SIST EN 4165-006:2025

Aerospace series - Connectors, electrical, rectangular, modular - Operating temperature 175 °C continuous - Part 006: Plug for 2 and 4 modules, series 2 - Product standard

This document specifies the plugs series 2, for 2 and 4 modules used in the family of rectangular electrical connectors, operating temperature 175 °C continuous. The receptacles and accessories corresponding to those plugs are specified in EN 4165 002.

Luft- und Raumfahrt - Elektrischer Rechtecksteckverbinder in modularer Bauweise - Betriebstemperatur 175 °C konstant - Teil 006: Freier Steckverbinder mit 2 und 4 Modulen, Serie 2 - Produktnorm

Dieses Dokument legt freie Steckverbinder der Serie 2 mit 2 und 4 Modulen fest, die in der Familie der elektrischen Rechtecksteckverbinder verwendet werden, Betriebstemperatur 175 °C konstant. Die diesen freien Steckverbindern entsprechenden festen Steckverbinder und Endgehäuse sind in EN 4165 002 festgelegt.

Série aérospatiale - Connecteurs électriques rectangulaires modulaires - Température d'utilisation 175 °C continu - Partie 006 : Fiches 2 et 4 modules, série 2 - Norme de produit

Le présent document spécifie les fiches série 2, pour 2 et 4 modules, utilisées dans la famille des connecteurs électriques rectangulaires modulaires, température d'utilisation 175 °C continu. Les embases et accessoires correspondant à ces fiches sont spécifiés dans l’EN 4165 002.

Aeronavtika - Konektorji, električni, pravokotni, modularni - Stalna delovna temperatura 175 °C - 006. del: Vtič z 2 ali 4 moduli, serija 2 - Standard za proizvod

Ta dokument določa vtiče z 2 ali 4 moduli, serija 2, ki se uporabljajo v družini pravokotnih električnih konektorjev pri stalni delovni temperaturi 175 °C. Spojniki in dodatki za te vtiče so opredeljeni v standardu EN 4165-002.

General Information

• Status: Published
• Public Enquiry End Date: 27-Oct-2021
• Publication Date: 25-Nov-2024
• ICS: 31.220.10 - Plug-and-socket devices. Connectors
• ICS: 49.060 - Aerospace electric equipment and systems
• Technical Committee: I13 - Imaginarni 13
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 25-Nov-2024
• Due Date: 30-Jan-2025
• Completion Date: 26-Nov-2024
• Ref Project: EN 4165-006:2024 - Aerospace series - Connectors, electrical, rectangular, modular - Operating temperature 175 °C continuous - Part 006: Plug for 2 and 4 modules, series 2 - Product standard

Relations

• Revised: SIST EN 4165-006:2009 - Aerospace series - Connectors, electrical, rectangular, modular - Operating temperature 175 °C continuous - Part 006: Plug for 2 and 4 modules, series 2 - Product standard
• Effective Date: 19-Jan-2023

Overview - EN 4165-006:2024 (CEN)

EN 4165-006:2024 is the CEN product standard for aerospace rectangular modular electrical connectors - specifically the series 2 plug for 2‑module and 4‑module configurations, rated for a continuous operating temperature of 175 °C. It defines the plug variants used in the EN 4165 family; matching receptacles and accessories are covered by EN 4165-002. This standard supersedes EN 4165-006:2007 and was approved in 2024.

Key topics and technical requirements

• Scope and applicability
  • Covers plugs, series 2, for 2 and 4 modules within the EN 4165 rectangular modular connector family.
  • Intended for aerospace electrical equipment and systems requiring continuous 175 °C operation.
• Dimensional and mass data
  • Provides dimensions and mass limits by module count and class (Figures and Tables in the standard).
  • Examples from the standard:
    • 2‑module plugs: overall dimension A max = 15.10 mm (classes W, F) and 15.90 mm (classes J, M); mass max 23.4 g (W, F) and 16.5 g (J, M).
    • 4‑module plugs: A max = 15.10 mm (W, F) and 15.90 mm (J, M); mass max 29 g (W, F) and 20.3 g (J, M).
• Classes and configurations
  • Plug classes referenced (W, F, J, M) align with contact and mechanical class definitions in EN 4165-002.
• Marking and designation
  • Mandatory marking: identity block per Clause 5, date of manufacture (year-week), and manufacturer name/trademark.
• Normative references
  • Integrates requirements and cross‑references with:
    • EN 4165-001 (technical specification)
    • EN 4165-002 (performance, contact arrangements; receptacles)
    • EN 4165-021 (coupling system keyway)
• Compliance notes
  • Terms and definitions per EN 4165-001; standard may include patent-right considerations.

Applications and users

Who uses EN 4165-006:

• Aerospace connector manufacturers designing and producing series‑2 plugs for high‑temperature environments.
• Aircraft and spacecraft electrical systems engineers specifying connector interfaces that must withstand 175 °C continuous duty.
• Procurement and quality teams verifying supplier components against EN 4165 family requirements.
• Maintenance, repair and overhaul (MRO) organizations replacing or sourcing compatible plugs and mating hardware.
• Certification and regulatory bodies assessing conformity with CEN/ASD‑STAN standards.

Practical applications:

• High‑temperature zones in aircraft and spacecraft harnesses, avionics cabinets, engine bay interfaces, and other systems where elevated continuous operating temperature is required.

Related standards

• EN 4165-001 - Technical specification (terms, general requirements)
• EN 4165-002 - Receptacles, accessories, performance and contact arrangements
• EN 4165-021 - Coupling system keyway for plug

Keywords: EN 4165-006, aerospace connectors, rectangular modular connectors, series 2 plug, 175 °C continuous, CEN, connector standard, 2-module plug, 4-module plug.

Standards Content (Sample)

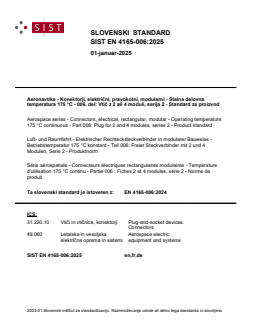

SLOVENSKI STANDARD
01-januar-2025
Aeronavtika - Konektorji, električni, pravokotni, modularni - Stalna delovna
temperatura 175 °C - 006. del: Vtič z 2 ali 4 moduli, serija 2 - Standard za proizvod
Aerospace series - Connectors, electrical, rectangular, modular - Operating temperature
175 °C continuous - Part 006: Plug for 2 and 4 modules, series 2 - Product standard
Luft- und Raumfahrt - Elektrischer Rechtecksteckverbinder in modularer Bauweise -
Betriebstemperatur 175 °C konstant - Teil 006: Freier Steckverbinder mit 2 und 4
Modulen, Serie 2 - Produktnorm
Série aérospatiale - Connecteurs électriques rectangulaires modulaires - Température
d'utilisation 175 °C continu - Partie 006 : Fiches 2 et 4 modules, série 2 - Norme de
produit
Ta slovenski standard je istoveten z: EN 4165-006:2024
ICS:
31.220.10 Vtiči in vtičnice, konektorji Plug-and-socket devices.
Connectors
49.060 Letalska in vesoljska Aerospace electric
električna oprema in sistemi equipment and systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

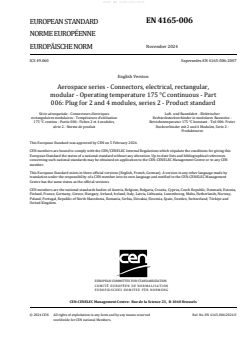

EN 4165-006
EUROPEAN STANDARD
NORME EUROPÉENNE
November 2024
EUROPÄISCHE NORM
ICS 49.060 Supersedes EN 4165-006:2007
English Version
Aerospace series - Connectors, electrical, rectangular,
modular - Operating temperature 175 °C continuous - Part
006: Plug for 2 and 4 modules, series 2 - Product standard
Série aérospatiale - Connecteurs électriques Luft- und Raumfahrt - Elektrischer
rectangulaires modulaires - Température d'utilisation Rechtecksteckverbinder in modularer Bauweise -
175 °C continu - Partie 006 : Fiches 2 et 4 modules, Betriebstemperatur 175 °C konstant - Teil 006: Freier
série 2 - Norme de produit Steckverbinder mit 2 und 4 Modulen, Serie 2 -
Produktnorm
This European Standard was approved by CEN on 5 February 2024.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 4165-006:2024 E
worldwide for CEN national Members.

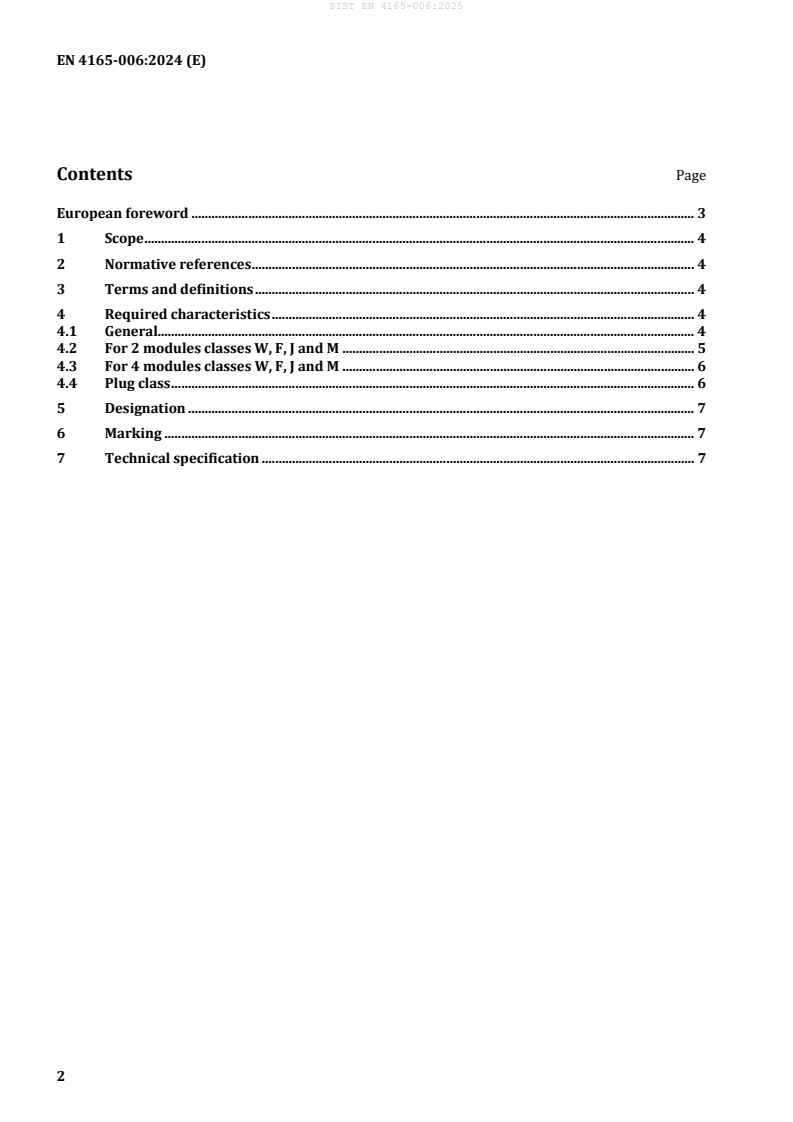

Contents Page
