SIST EN 14305:2016/oprA1:2019

Thermal insulation products for building equipment and industrial installations - Factory made cellular glass (CG) products - Specification

This amendment modifies EN 14305:2015 identifying those clauses of the standard which are needed for the compliance of this
European Standard with the Construction Products Regulation (CPR).
This amendment introduces:
a) an update for the normative references;
b) delete 4.3.15 Continuous glowing combustion;
c) the reaction to fire class "F" in Annex A;
d) the new Annex ZA;
e) editorial changes.

Wärmedämmstoffe für die technische Gebäudeausrüstung und für betriebstechnische Anlagen in der Industrie - Werkmäßig hergestellte Produkte aus Schaumglas (CG) - Spezifikation

Produits isolants thermiques pour l'équipement du bâtiment et les installations industrielles - Produits manufacturés en verre cellulaire (CG) - Spécification

Toplotnoizolacijski proizvodi za opremo stavb in industrijske inštalacije - Proizvodi iz penjenega stekla (CG) - Specifikacija

General Information

• Status: Not Published
• Public Enquiry End Date: 24-Jan-2019
• ICS: 91.100.60 - Thermal and sound insulating materials
• Technical Committee: TOP - Thermal insulation
• Current Stage: 98 - Abandoned project (Adopted Project)
• Start Date: 30-Sep-2020
• Due Date: 05-Oct-2020
• Completion Date: 30-Sep-2020
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Mandate: M/103 REV - Amendment to mandate to CEN and CENELEC concerning the execution of standardisation work for harmonised standards on thermal insulation products (m/103)
• Ref Project: EN 14305:2015/prA1 - Thermal insulation products for building equipment and industrial installations - Factory made cellular glass (CG) products - Specification

Relations

• Amends: SIST EN 14305:2016 - Thermal insulation products for building equipment and industrial installations - Factory made cellular glass (CG) products - Specification
• Effective Date: 02-May-2018

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 14305:2016/oprA1:2019
01-januar-2019
Toplotnoizolacijski proizvodi za opremo stavb in industrijske inštalacije -
Proizvodi iz penjenega stekla (CG) - Specifikacija
Thermal insulation products for building equipment and industrial installations - Factory
made cellular glass (CG) products - Specification
Wärmedämmstoffe für die technische Gebäudeausrüstung und für betriebstechnische
Anlagen in der Industrie - Werkmäßig hergestellte Produkte aus Schaumglas (CG) -
Spezifikation
Produits isolants thermiques pour l'équipement du bâtiment et les installations
industrielles - Produits manufacturés en verre cellulaire (CG) - Spécification
Ta slovenski standard je istoveten z: EN 14305:2015/prA1
ICS:
91.100.60 0DWHULDOL]DWRSORWQRLQ Thermal and sound insulating
]YRþQRL]RODFLMR materials
SIST EN 14305:2016/oprA1:2019 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST EN 14305:2016/oprA1:2019

---------------------- Page: 2 ----------------------

SIST EN 14305:2016/oprA1:2019


DRAFT
EUROPEAN STANDARD
EN 14305:2015
NORME EUROPÉENNE

EUROPÄISCHE NORM
prA1
November 2018
ICS 91.100.60
English Version

Thermal insulation products for building equipment and
industrial installations - Factory made cellular glass (CG)
products - Specification
Produits isolants thermiques pour l'équipement du Wärmedämmstoffe für die technische
bâtiment et les installations industrielles - Produits Gebäudeausrüstung und für betriebstechnische
manufacturés en verre cellulaire (CG) - Spécification Anlagen in der Industrie - Werkmäßig hergestellte
Produkte aus Schaumglas (CG) - Spezifikation
This draft amendment is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 88.

This draft amendment A1, if approved, will modify the European Standard EN 14305:2015. If this draft becomes an amendment,
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for inclusion of
this amendment into the relevant national standard without any alteration.

This draft amendment was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.


EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2018 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 14305:2015/prA1:2018 E
worldwide for CEN national Members.

---------------------- Page: 3 ----------------------

SIST EN 14305:2016/oprA1:2019
EN 14305:2015/prA1:2018 (E)

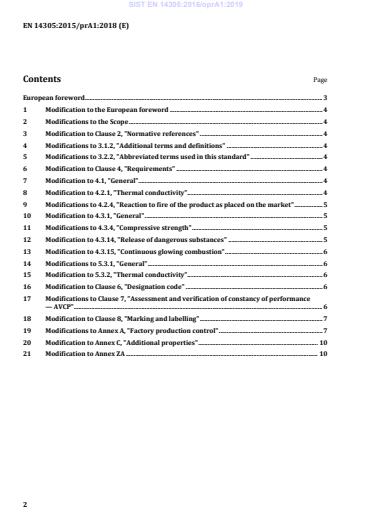

Contents Page
European foreword . 3
1 Modification to the European foreword . 4
2 Modifications to the Scope . 4
3 Modification to Clause 2, "Normative references" . 4
4 Modifications to 3.1.2, "Additional terms and definitions" . 4
5 Modifications to 3.2.2, "Abbreviated terms used in this standard" . 4
6 Modification to Clause 4, "Requirements" . 4
7 Modification to 4.1, "General" . 4
8 Modification to 4.2.1, "Thermal conductivity". 4
9 Modifications to 4.2.4, "Reaction to fire of the product as placed on the market" . 5
10 Modification to 4.3.1, "General" . 5
11 Modifications to 4.3.4, "Compressive strength" . 5
12 Modification to 4.3.14, "Release of dangerous substances" . 5
13 Modification to 4.3.15, "Continuous glowing combustion" . 6
14 Modifications to 5.3.1, "General" . 6
15 Modification to 5.3.2, "Thermal conductivity". 6
16 Modification to Clause 6, "Designation code" . 6
17 Modifications to Clause 7, "Assessment and verification of constancy of performance
— AVCP" . 6
18 Modification to Clause 8, "Marking and labelling" . 7
19 Modifications to Annex A, "Factory production control" . 7
20 Modification to Annex C, "Additional properties" . 10
21 Modification to Annex ZA . 10

2

---------------------- Page: 4 ----------------------

SIST EN 14305:2016/oprA1:2019
EN 14305:2015/prA1:2018 (E)
European foreword
This document (EN 14305:2015/prA1:2018) has been prepared by Technical Committee CEN/TC 88
“Thermal insulating materials and products”, the secretariat of which is held by DIN.
This document is currently submitted to the CEN Enquiry.
This amendment modifies EN 14305:2015 identifying those clauses of the standard which are needed
for the compliance of this European Standard with the Construction Products Regulation (CPR).
This amendment introduces:
a) an update for the normative references;
b) an update for 4.3.14 Release of dangerous substances by referencing EN 16516 and corresponding
adaptions in the document;
c) the deletion of 4.3.15 Continuous glowing combustion;
d) the reaction to fire class "F" in Annex A;
e) the new Annex ZA;
f) editorial changes.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association.
For relationship with Regulation (EU) No. 305/2011, see informative Annex ZA, which is an integral
part of this document.
3

---------------------- Page: 5 ----------------------

SIST EN 14305:2016/oprA1:2019
EN 14305:2015/prA1:2018 (E)
1 Modification to the European foreword
Delete "and supports essential requirements of Regulation (EU) No. 305/2011" from the 7th paragraph.
The European foreword will be updated using the latest template texts and listing the modifications as
described in the foreword of this document.
2 Modifications to the Scope
st
Replace "requirements" with "characteristics" in the 1 paragraph.
Replace "evaluation of conformity" with "assessment and verification of constancy of performance
(AVCP)" in the 4th paragraph".
Replace "declared" with "measured" in the 7th paragraph.
Replace "European Standard" with "document" in the whole Scope.
3 Modification to Clause 2, "Normative references"
Add:
"EN 16516, Construction products – Assessment of release of dangerous substances – Determination of
emissions into indoor air".
4 Modifications to 3.1.2, "Additional terms and definitions"
Delete term 3.1.2.1 "level".
Delete term 3.1.2.2 "class".
Renumber the other terms accordingly.
5 Modifications to 3.2.2, "Abbreviated terms used in this standard"
Delete the abbreviations "PTD" and "VCP" and their explanations.
Add:
"
CWFT is Classification without further testing
"
6 Modification to Clause 4, "Requirements"
Replace the title of Clause 4 with the following: "Characteristics".
7 Modification to 4.1, "General"
Delete the second sentence from the first paragraph.
8 Modification to 4.2.1, "Thermal conductivity"
Delete "by the manufacturer" from the 2nd paragraph (two times).
4

---------------------- Page: 6 ----------------------

SIST EN 14305:2016/oprA1:2019
EN 14305:2015/prA1:2018 (E)
9 Modifications to 4.2.4, "Reaction to fire of the product as placed on the
market"
Replace the last paragraph with the following:
"Reaction to fire class A1 without further test is declared when it is demonstrated by testing in
accordance with EN 13820 that the products do not contain more than 1,0 % by weight or volume
(whichever is the more onerous) of organic matter."
Replace NOTE 2 with the following:
"NOTE 2 The European Commission Decision 96/603/EC amended by Decision 2000/605/EC and
2003/424/EC gives the conditions for classification A1 without the need for testing.".
10 Modification to 4.3.1, "General"
Delete "by the manufacturer".
11 Modifications to 4.3.4, "Compressive strength"
Please replace the first sentence with the following:
"Compressive strength, σ , shall be determined in accordance with EN 826."
m
Add the following NOTES and paragraph at the end of the clause:
"
NOTE 1 The estimated standard deviation of compressive strength can be needed. In this event, it will be
calculated from at least five test results.
For cellular glass, EN 826:2013 compressive behaviour test method Annex A shall be respected in
which test specimens shall be capped with hot bitumen to cover the open cut cells. In absence of hot
bitumen, an alternative capping shall be foreseen having the same smoothness and cell filling capacity
as hot bitumen, e.g. soft butyl or other elastomeric thin foils or membranes.
NOTE 2 EN 826 compressive behaviour test method calls for a capping made of bitumen and a well-defined
foil; the results can be used directly where cellular glass is installed with hot bitumen or bitumen based cold
adhesive. For some applications, different cappings or no cappings are used, for instance when the operating
temperature does not allow for bitumen application. In these cases, compressive strength will be different and
tests will be run simulating the actual application conditions.".
12 Modification to 4.3.14, "Release of dangerous substances"
Replace the paragraphs and the note with the following:
1)
"If declared, the release of dangerous substances into indoor air shall be tested according to
EN 16516.
NOTE An informative database covering European and national provisions on dangerous substances is
available at the Growth website on EUROPA accessed through: http://ec.europa.eu/growth/tools-databases/cp-
ds/.".

1) See for reference the LCI list of the European Commission "Agreed EU-LCI values"
(http://ec.europa.eu/growth/sectors/construction/eu-lci/values_en)
5

---------------------- Page: 7 ----------------------

SIST EN 14305:2016/oprA1:2019
EN 14305:2015/prA1:2018 (E)
13 Modification to 4.3.15, "Continuous glowing combustion"
Delete subclause 4.3.15.
14 Modifications to 5.3.1, "General"
In Table 6 "Test methods, test specimens and conditions" replace the lines "4.3.14 (release of dangerous
substances)" with the following:
"
Clause Test method Minimum
Test
number of
Specific
specimen
measurements
conditions
No. Title Flat Cylindrical
a
to get one test
dimensions
result
Release of
EN see see
4.3.14 dangerous EN 16516 see EN 16516
16516 EN 16516 EN 16516
substances
".
In Table 6, delete the line "4.3.15 (Continuous glowing combustion)".
In Table 6, delete footnote 'b'.
15 Modification to 5.3.2, "Thermal conductivity"
Replace 'PTD' with 'type testing' in the fourth paragraph.
16 Modification to Clause 6, "Designation code"
Replace the first paragraph with the following:
"If a designation code is provided it shall be given as follows:".
17 Modifications to Clause 7, "Assessment and verification of constancy of
performance — AVCP"
Replace subclauses 7.1 and 7.2 with the following clauses:
"
7.1 General
In accordance with EN 13172 , the compliance of the factory made cellular glass (CG) products with the
requirements of this standard and with the performances declared by the manufacturer in the DoP shall
be demonstrated by:
— Determination of the product type (Type testing);
— Factory Production Control (FPC) by the manufacturer, including product assessment;
— Initial inspection of manufacturing plant and of Factory Production Control (FPC);
— Continuing surveillance, assessment and evaluation of Factory Production Control (FPC).
The manufacturer shall always retain the overall control and shall have the necessary means to take
responsibility for the conformity of the product with its declared performance(s).
6

---------------------- Page: 8 ----------------------

SIST EN 14305:2016/oprA1:2019
EN 14305:2015/prA1:2018 (E)
If a manufacturer decides to group his products, it shall be done in accordance with EN 13172.
7.2 Type testing
All performances related to characteristics included in this standard shall be determined when the
manufacturer intends to declare the respective performances unless the standard gives provisions for
declaring them without performing tests. (e.g. use of previously existing data, CWFT and conventionally
accepted performance).
Type testing for the thermal conductivity curve shall be carried out
...
