SIST EN 50131-2-7-2:2012/A1:2014

Alarm systems - Intrusion and hold-up systems -- Part 2-7-2: Intrusion detectors - Glass break detectors (passive)

This European Standard is for passive surface mounted glass break detectors installed in buildings and provides for security Grades 1 to 4, specific or non-specific wired or wire-free detectors, and uses environmental classes I to IV. This European Standard does not include requirements for passive surface mounted glass break detectors intended for use outdoors. A detector shall fulfil all the requirements of the specified Grade. Functions additional to the mandatory functions specified in this standard may be included in the detector, providing they do not adversely influence the correct operation of the mandatory functions. This European Standard does not apply to system interconnections.

Alarmanlagen - Einbruch- und Überfallmeldeanlagen -- Teil 2-7-2: Einbruchmelder - Glasbruchmelder (Passiv)

Systèmes d’alarme - Systèmes d'alarme contre l’intrusion et les hold-up -- Partie 2-7-2: Détecteurs d'intrusion - Détecteurs bris de glace (passifs)

Alarmni sistemi - Sistemi za javljanje vloma in ropa - 2-7-2. del: Zahteve za javljalnike vloma - Javljalniki loma stekla (pasivni) - Dopolnilo A1

Ta evropski standard se uporablja za pasivne javljalnike loma stekla, nameščene na površino zgradb, določa varnostne razrede od 1 do 4 in lastnosti specifičnih in nespecifičnih kabelskih ali brezžičnih javljalnikov ter uporablja okoljske razrede od I do IV. Ta evropski standard ne vključuje zahtev za pasivne javljalnike loma stekla, nameščene na površino, ki so namenjeni za uporabo na prostem. Javljalnik mora izpolnjevati vse zahteve posameznega razreda. Poleg obveznih funkcij, ki so opredeljene v tem standardu, ima lahko javljalnik tudi dodatne funkcije, pri čemer te ne smejo negativno vplivati na pravilno delovanje obveznih funkcij. Ta evropski standard se ne uporablja za medsebojne povezave sistemov.

General Information

• Status: Published
• Publication Date: 13-Jan-2014
• ICS: 13.310 - Protection against crime
• ICS: 13.320 - Alarm and warning systems
• Technical Committee: EAL - Alarm systems
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 10-Jan-2014
• Due Date: 17-Mar-2014
• Completion Date: 14-Jan-2014
• Directive: 2020-01-0063 - Pravilnik o pogojih in merilih za izdajatelja pomnilniških kartic za zapisovalno opremo v cestnih prevozih ter načinu oblikovanja in določanja cene za izdajo kartice
• Ref Project: EN 50131-2-7-2:2012/A1:2013 - Alarm systems - Intrusion and hold-up systems - Part 2-7-2: Intrusion detectors - Glass break detectors (passive)

Relations

• Amends: SIST EN 50131-2-7-2:2012 - Alarm systems - Intrusion and hold-up systems - Part 2-7-2: Intrusion detectors - Glass break detectors (passive)
• Effective Date: 01-Feb-2014

Overview

SIST EN 50131-2-7-2:2012/A1:2014 is a European standard issued by CLC, focusing on alarm systems specifically designed for intrusion and hold-up systems. This part-2-7-2-details requirements and specifications for passive glass break detectors, an essential type of intrusion detector that senses glass breakage events without emitting signals actively. The amendment A1, approved in 2013, updates the original 2012 standard to enhance performance criteria, immunity, event processing, and power supply behavior for these detectors. This helps ensure reliability and robustness in protecting premises against burglary or vandalism.

Key Topics

• Event Processing: The standard defines graded requirements for event handling, including mandatory and optional alarm events such as intrusion detection, masking, tampering, low power conditions, and power supply loss. It ensures detectors respond appropriately across different security grades (1 to 4).
• Masking Detection: Modifications clarify the methodology for recognizing attempts to mask or disable detector functionality, an important aspect of anti-tampering.
• Immunity Requirements: The amendment introduces precise modifications for detector immunity to various physical impacts on glass, including:
  • Soft and hard objects hitting the glass (using controlled pendulum tests)
  • Static and dynamic pressure applications to simulate environmental and accidental forces
• Power Supply Conditions: The standard updates requirements related to slow voltage changes, power supply range, and total power loss, ensuring detectors reliably signal faults before losing intrusion detection capabilities.
• Testing Protocols: Detailed testing criteria guarantee detectors maintain performance under adverse conditions, highlighting the importance of generating correct fault signals and messages to alarm control units (CIEs).

Applications

This standard applies to the design, manufacture, testing, and certification of passive glass break detectors used in security alarm systems. Typical applications include:

• Residential and commercial intrusion alarm systems, where detecting forced entry through windows or glass doors is critical.
• High-security sites requiring hold-up alarm integration with robust monitoring of glass integrity.
• Security system manufacturers ensuring compliance with European regulatory frameworks for product reliability.
• Installation and maintenance companies selecting detectors compatible with grade-based security requirements to tailor protection levels.
• System integrators enhancing intruder detection capabilities with reliable glass break sensors resistant to environmental and tampering factors.

By adhering to SIST EN 50131-2-7-2:2012/A1:2014, security professionals can provide clients with enhanced confidence in early glass break detection, reducing false alarms and improving overall system resilience.

Related Standards

• EN 50131-1: Overall requirements for intrusion and hold-up alarm systems.
• EN 50131-2-x Series: Other parts detailing different types of intrusion detectors, such as motion detectors, vibration detectors, and glass break detectors (active).
• CENELEC CLC/TC 79: Technical committee responsible for European alarm system standards, ensuring harmonization across countries.
• ISO/IEC 27001: While focused on information security, coordination with physical security standards like EN 50131 helps ensure comprehensive site protection.
• National implementations of EN 50131-2-7-2, enforced by member states for standardized alarm performance under EU directives.

Compliance with this standard is essential for manufacturers and security providers aiming to deliver trusted, standardized passive glass break detection solutions within the European market and beyond.

---

Keywords: passive glass break detectors, intrusion alarm systems, EN 50131-2-7-2, alarm system standards, glass break detection, event processing, masking detection, power supply immunity, intrusion security, alarm grade requirements, CENELEC standards, intrusion detector testing.

Standards Content (Sample)

SLOVENSKI STANDARD
01-februar-2014
Alarmni sistemi - Sistemi za javljanje vloma in ropa - 2-7-2. del: Zahteve za
javljalnike vloma - Javljalniki loma stekla (pasivni) - Dopolnilo A1
Alarm systems - Intrusion and hold-up systems -- Part 2-7-2: Intrusion detectors - Glass
break detectors (passive)
Alarmanlagen - Einbruch- und Überfallmeldeanlagen -- Teil 2-7-2: Einbruchmelder -
Glasbruchmelder (Passiv)
Systèmes d’alarme - Systèmes d'alarme contre l’intrusion et les hold-up -- Partie 2-7-2:
Détecteurs d'intrusion - Détecteurs bris de glace (passifs)
Ta slovenski standard je istoveten z: EN 50131-2-7-2:2012/A1:2013
ICS:
13.310 Varstvo pred kriminalom Protection against crime
13.320 Alarmni in opozorilni sistemi Alarm and warning systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 50131-2-7-2/A1
NORME EUROPÉENNE
December 2013
EUROPÄISCHE NORM
ICS 13.320
English version
Alarm systems -
Intrusion and hold-up systems -
Part 2-7-2: Intrusion detectors -
Glass break detectors (passive)

Systèmes d’alarme -  Alarmanlagen -
Systèmes d'alarme contre l’intrusion et les Einbruch- und Überfallmeldeanlagen -
hold-up - Teil 2-7-2: Einbruchmelder -
Partie 2-7-2: Détecteurs d'intrusion - Glasbruchmelder (Passiv)
Détecteurs bris de glace (passifs)

This amendment A1 modifies the European Standard EN 50131-2-7-2:2012; it was approved by CENELEC on
2013-10-14. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this amendment the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This amendment exists in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CENELEC member into its own language and notified to the
CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

CEN-CENELEC Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2013 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 50131-2-7-2:2012/A1:2013 E

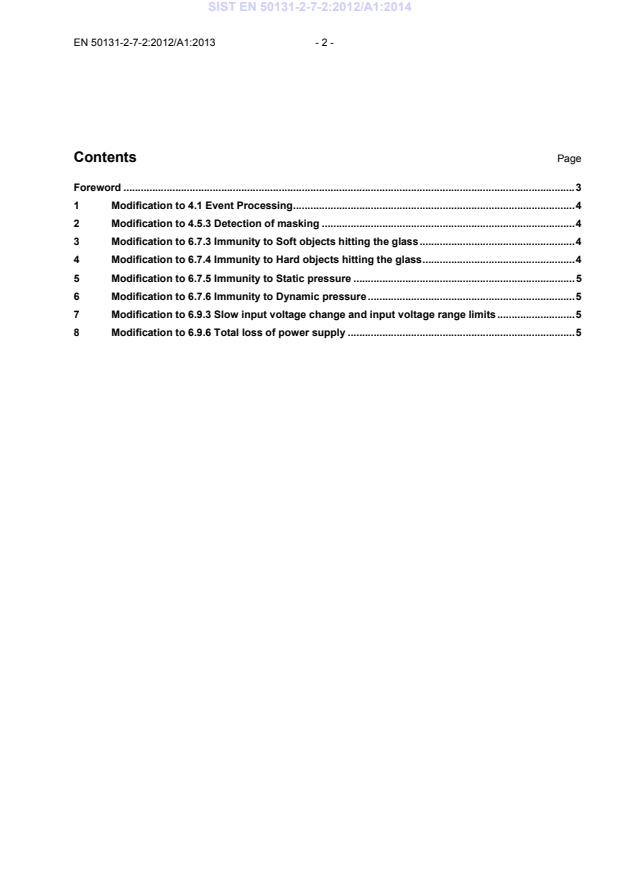

Contents Page
Foreword . 3
1 Modification to 4.1 Event Processing . 4
2 Modification to 4.5.3 Detection of masking . 4
3 Modification to 6.7.3 Immunity to Soft objects hitting the glass . 4
4 Modification to 6.7.4 Immunity to Hard objects hitting the glass . 4
5 Modification to 6.7.5 Immunity to Static pressure . 5
6 Modification to 6.7.6 Immunity to Dynamic pressure . 5
7 Modification to 6.9.3 Slow input voltage change and input voltage range limits . 5
8 Modification to 6.9.6 Total l
...
