SIST EN 60512-16-13:2008

Connectors for electronic equipment - Tests and measurements -- Part 16-13: Mechanical tests on contacts and terminations - Test 16m: Un-wrapping, solderless wrapped connections

IEC 60512-16-13:2008 details a standard test method to determine if a wrapped connection has been made without damaging the wrapping wire. Such wrapped connections are described in IEC 60352-1.

Steckverbinder für elektronische Einrichtungen - Mess- und Prüfverfahren - Teil 16-13: Mechanische Prüfungen an Kontakten und Anschlüssen - Prüfung 16m: Abwickeln, Wickelverbindungen

Connecteurs pour équipements électroniques - Essais et mesures -- Partie 16-13: Essais mécaniques des contacts et des sorties - Essai 16m: Déroulement, connexions enroulées sans soudure

La CEI 60512-16-13:2008 détaille une méthode d'essai normalisée pour déterminer si une connexion enroulée a été réalisée sans endommager le fil de l'enroulement. De telles connexions enroulées sont décrites dans la CEI 60352-1.

Konektorji za elektronsko opremo - Preskušanje in meritve - 16-13. del: Mehanski preskusi na kontaktih in priključkih - Preskus 16m: Odvito, nespajkani oviti spoji (IEC 60512-16-13:2008)

General Information

• Status: Published
• Publication Date: 22-Sep-2008
• ICS: 19.060 - Mechanical testing
• ICS: 31.220.10 - Plug-and-socket devices. Connectors
• Technical Committee: I11 - Imaginarni 11
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 15-Sep-2008
• Due Date: 20-Nov-2008
• Completion Date: 23-Sep-2008
• Ref Project: EN 60512-16-13:2008 - Connectors for electronic equipment - Tests and measurements - Part 16-13: Mechanical tests on contacts and terminations - Test 16m: Un-wrapping, solderless wrapped connections

Overview

EN 60512-16-13:2008 / IEC 60512-16-13:2008 specifies a standard mechanical test method - Test 16m: Un-wrapping, solderless wrapped connections - used to determine whether a solderless wrapped (wire-wrap) connection has been made without damaging the wrapping wire. The procedure is intended for connectors for electronic equipment and covers the un-wrapping action, observations and acceptance criteria. Note: this test is regarded as destructive to specimens.

Keywords: connectors for electronic equipment, solderless wrapped connections, un‑wrapping test, IEC 60512-16-13, mechanical tests on contacts and terminations.

Key topics and technical requirements

• Objective: Verify that a wrapped connection can be un-wrapped without causing breakage or imminent failure of the wrapping wire.
• Specimen preparation:
  • Use a wrap post with a wrapped connection as defined in the applicable detail specification; pre-conditioning (if required) must be applied.
  • Geometrical, metallurgical and surface finish details of post and wire, tooling and application details are essential when specified.
• Test equipment and setup:
  • Mount the wrap post so it can be freely rotated about its axis.
  • Provide a means (manual or otherwise) to keep the wrapping wire under a small but adequate tension that does not add twist or stress.
• Procedure:
  • Carefully un-wrap by rotating the post while keeping the wire tensioned so the wire is substantially straightened.
• Measurements and acceptance:
  • Conduct a visual examination per IEC 60512-1-1 before testing; specimens must be free of defects that would invalidate the test.
  • During testing, the wire shall be substantially straightened without breaking.
  • Record any areas of damage that do not immediately break the wire but indicate imminent failure.
  • Note: small notches or indentations from wrapping are normal and expected.
• Documentation:
  • Detail any preconditioning, specimen specifics, number of specimens, and deviations from the standard test method in the detail specification.

Applications and users

• Practical use cases:
  • Qualification and routine testing of connector wrap posts and solderless wrapped connections in electronic assemblies.
  • Failure analysis where wrap integrity after installation or service life is questioned.
  • Quality control during connector design, production and incoming inspection.
• Typical users:
  • Connector and component manufacturers
  • Test laboratories and third‑party certification bodies
  • Design and reliability engineers, procurement and quality assurance teams
  • Standards writers and compliance officers

Related standards

• IEC 60352-1 - Solderless connections - Part 1: Wrapped connections (general requirements and guidance)
• IEC 60512-1 and IEC 60512-1-100 - General structure and general examination (Test 1a: visual examination)
• EN/CENELEC adoption: EN 60512-16-13:2008

This standard is part of the IEC 60512 series for connector tests and should be referenced alongside the cited normative documents when specifying wrapped-connection test requirements.

Standards Content (Sample)

SLOVENSKI STANDARD
01-november-2008
.RQHNWRUML]DHOHNWURQVNRRSUHPR3UHVNXãDQMHLQPHULWYHGHO0HKDQVNL
SUHVNXVLQDNRQWDNWLKLQSULNOMXþNLK3UHVNXVP2GYLWRQHVSDMNDQLRYLWLVSRML
,(&
Connectors for electronic equipment - Tests and measurements -- Part 16-13:
Mechanical tests on contacts and terminations - Test 16m: Un-wrapping, solderless
wrapped connections
Steckverbinder für elektronische Einrichtungen - Mess- und Prüfverfahren - Teil 16-13:
Mechanische Prüfungen an Kontakten und Anschlüssen - Prüfung 16m: Abwickeln,
Wickelverbindungen
Connecteurs pour équipements électroniques - Essais et mesures -- Partie 16-13: Essais
mécaniques des contacts et des sorties - Essai 16m: Déroulement, connexions
enroulées sans soudure
Ta slovenski standard je istoveten z: EN 60512-16-13:2008
ICS:
19.060 Mehansko preskušanje Mechanical testing
31.220.10 9WLþLLQYWLþQLFHNRQHNWRUML Plug-and-socket devices.
Connectors
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 60512-16-13
NORME EUROPÉENNE
July 2008
EUROPÄISCHE NORM
ICS 31.220.10
English version
Connectors for electronic equipment -
Tests and measurements -
Part 16-13: Mechanical tests on contacts and terminations -
Test 16m: Un-wrapping, solderless wrapped connections
(IEC 60512-16-13:2008)
Connecteurs  Steckverbinder
pour équipements électroniques - für elektronische Einrichtungen -
Essais et mesures - Mess- und Prüfverfahren -
Partie 16-13: Essais mécaniques Teil 16-13: Mechanische Prüfungen
des contacts et des sorties - an Kontakten und Anschlüssen -
Essai 16m: Déroulement, Prüfung 16m: Abwickeln,
connexions enroulées sans soudure Wickelverbindungen
(CEI 60512-16-13:2008) (IEC 60512-16-13:2008)

This European Standard was approved by CENELEC on 2008-06-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2008 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60512-16-13:2008 E

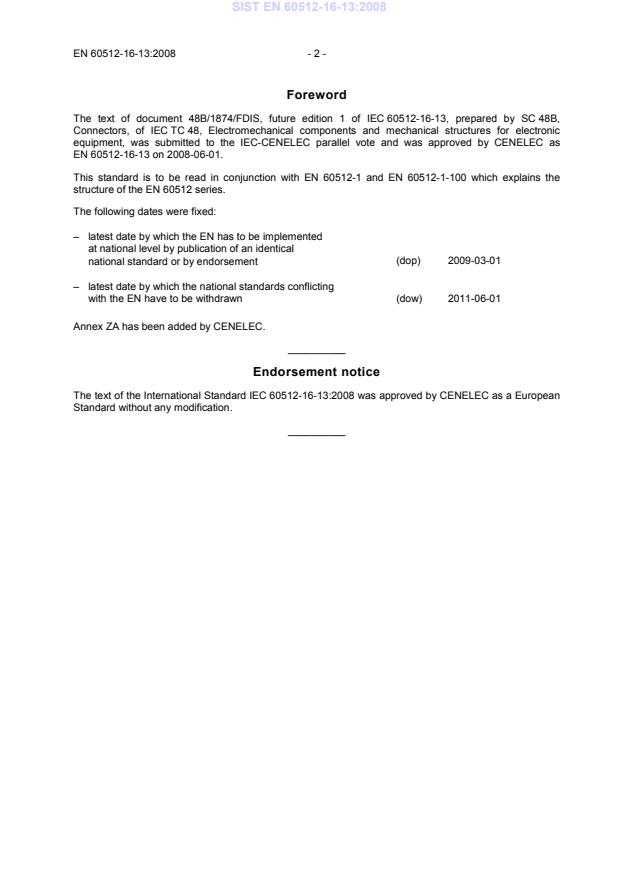

Foreword
The text of document 48B/1874/FDIS, future edition 1 of IEC 60512-16-13, prepared by SC 48B,
Connectors, of IEC TC 48, Electromechanical components and mechanical structures for electronic
equipment, was submitted to the IEC-CENELEC parallel vote and was approved by CENELEC as
EN 60512-16-13 on 2008-06-01.
This standard is to be read in conjunction with EN 60512-1 and EN 60512-1-100 which explains the
structure of the EN 60512 series.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
(dop) 2009-03-01
national standard or by endorsement
– latest date by which the national standards conflicting
(dow) 2011-06-01
with the EN have to be withdrawn
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 60512-16-13:2008 was approved by CENELEC as a European
Standard without any modification.
__________
- 3 - EN 60512-16-13:2008
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

1) 2)
IEC 60352-1 - Solderless connections - EN 60352-1 1997
Part 1: Wrapped connections - General
requirements, test methods and practical
guidance
1) 2)
IEC 60512-1-1 - Connectors for electronic equipment - Tests EN 60512-1-1 2002
and measurements -
Part 1-1: General examination - Test 1a:
Visual examination
1)
Undated reference.
2)
Valid edition at date of issue.

IEC 60512-16-13
Edition 1.0 2008-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Connectors for electronic equipment – Tests and measurements –
Part 16-13: Mechanical tests on contacts and terminations – Test 16m: Un-
wrapping, solderless wrapped connections

Connecteurs pour équipements électroniques – Essais et mesures –
Partie 16-13: Essais mécaniques des contacts et des sorties – Essai 16m:
Déroulement, connexions enroulées sans soudure

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
E
CODE PRIX
ICS 31.220.10 ISBN 2-8318-9788-2

– 2 – 60512-16-13 © IEC:2008
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
CONNECTORS FOR ELECTRONIC EQUIPMENT –
TESTS AND MEASUREMENTS –
Part 16-13: Mechanical tests on contacts and terminations –
Test 16m: Un-wrapping, solderless wrapped connections

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Gui
...
