SIST EN 300 392-10-18 V1.3.1:2005

• Abstract:

  Inclusion of Change Requests.

• Status: Published
• Publication Date: 30-Jun-2005
• ICS: 33.070.10 - Terrestrial Trunked Radio (TETRA)
• Technical Committee: RES - Radio equipment and systems
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Jul-2005
• Due Date: 01-Jul-2005
• Completion Date: 01-Jul-2005
• Mandate: T-172-1A
• Ref Project: ETSI EN 300 392-10-18 V1.3.1 (2003-10) - Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D); Part 10: Supplementary services stage 1; Sub-part 18: Barring of Outgoing Calls (BOC)

SIST EN 300 392-10-18 V1.3.1:2005 is the Slovenian standard published by SIST and identical to ETSI EN 300 392-10-18 V1.3.1. It defines the Terrestrial Trunked Radio (TETRA) Voice plus Data (V+D) stage 1 service description for Barring of Outgoing Calls (BOC). In practice, it tells TETRA service providers and network designers how outgoing-call barring is set up, invoked, and combined with other supplementary services.

What does SIST EN 300 392-10-18 V1.3.1:2005 specify?

SIST EN 300 392-10-18 V1.3.1:2005 specifies the stage 1 description of the Barring of Outgoing Calls supplementary service for TETRA. Stage 1 gives the service view from the user side, including how the service behaves and what outcomes users should expect, but not the detailed human-interface design.

The document covers service description, procedures for normal and exceptional operation, interactions with other TETRA supplementary services, and interworking considerations. Charging principles are outside its scope.

Annex	What it covers
Annex A	Bibliography
Annex B	Change Requests

The body of the document is organized into Scope, References, Definitions and abbreviations, and the SS-BOC stage 1 specification with subsections for description, procedures, interactions, interworking, and an overall SDL view.

What are the key requirements of SIST EN 300 392-10-18 V1.3.1:2005?

Service meaning and applicability

SIST EN 300 392-10-18 V1.3.1:2005 defines BOC as a facility that bars certain outgoing calls. The service provider can set the barring, and an authorized user can apply or remove it for affected users.

BOC is defined by ranges of barred numbers, with exceptions allowed for closed user groups and individual numbers inside barred ranges. This matters because a network can block broad number ranges while still allowing specific approved destinations.

The same barring ranges and exceptions may be applied independently to circuit mode speech service, circuit mode data service, and Short Data Service (SDS). The service may also apply independently to TETRA teleservices, bearer services, and short data services.

Provisioning and user control

The service is provided by prior arrangement to affected users, on a per ITSI or GTSI basis. The authorized users and served users are defined when the service is provided.

The service provider may withdraw the service at any time without prior announcement. In practice, operators need clear service records so they know which users are allowed to define barring.

Normal operation

The authorized user may activate or deactivate the service through the definition process, and the service may be permanently activated on provision and deactivated on withdrawal. The authorized user may also set and remove barring for the affected users defined on provision.

Interrogation may be supported by the SwMI, and if it is supported, it shall work per affected user number. Cancellation is not applicable.

When a served user tries to set up a call to a barred number, the system invokes BOC, gives an indication of barring, and rejects the call. The served user can still receive calls, so outgoing barring does not block incoming calls.

Exceptional procedures and error handling

If the infrastructure cannot accept a definition or interrogation request, it returns a cause or failure indication. The document lists typical causes such as user not authorized, unknown TETRA identity, parameters not valid, or insufficient information.

For invocation and operation, if the infrastructure cannot invoke the service, no cause is returned to the calling or served user. That tells implementers how the network should behave when the barring function itself cannot be applied.

Interactions with other supplementary services

BOC has defined relationships with many other services, including precedence rules and non-interactions. For example, it takes precedence over Call Forwarding Unconditional (CFU), Call Forwarding on Busy (CFB), Call Forwarding on No Reply (CFNRy), and Call Forwarding on Not Reachable (CFNRc), and these services cannot be active for the same user at the same time.

BOC also interacts with Call Authorized by Dispatcher (CAD), Short Number Addressing (SNA), and Area Selection (AS). CAD can take precedence, SNA-2 may override BOC, and BOC takes precedence over AS.

Several services simply cannot proceed to a barred address, including Call Report (CR), Call Hold (HOLD), Call Completion to Busy Subscriber (CCBS), Discreet Listening (DL), Ambience Listening (AL), Call Completion on No Reply (CCNR), and Call ReTention (CRT) priority. For a buyer or integrator, these clauses matter because they define where barring stops a call flow and where another service is still allowed to act.

What terms does SIST EN 300 392-10-18 V1.3.1:2005 define?

• Affected user - the user whose outgoing service or services are barred.
• Authorized user - the user permitted to bar outgoing calls of defined users.
• Bearer service - a telecommunications service that carries signals between user-network interfaces.
• Switching and Management Infrastructure (SwMI) - the TETRA network equipment for Voice plus Data (V+D) except subscriber terminals.
• Teleservice - a telecommunications service that includes terminal equipment functions for communication between users according to agreed protocols.
• TETRA - Trans-European Trunked Radio.
• Short Data Service (SDS) - the short data service referenced in the service description and applicability rules.

Who uses SIST EN 300 392-10-18 V1.3.1:2005?

SIST EN 300 392-10-18 V1.3.1:2005 is used by TETRA service providers, SwMI designers, and engineers who configure supplementary services in a V+D network. It is also relevant to people who define service policies for individual users or groups, especially where outgoing-call restrictions must be applied consistently.

Network and system teams use it to decide how barring is provisioned, how users are registered, what happens on a barred call attempt, and how BOC behaves alongside forwarding, priority, and listening services. It is also useful for integration work across the intersystem interface.

What changed in SIST EN 300 392-10-18 V1.3.1:2005 from the previous edition?

The history shows that Version 1.3.1 followed Version 1.3.0 and incorporates change request 001. That change request corrected editorial errors in the interactions with Call Forwarding (CF), affecting clauses 4.3.7, 4.3.8, and 4.3.9.

Which standards are used with SIST EN 300 392-10-18 V1.3.1:2005?

• ITU-T Recommendation Z.100 - provides the Specification and Description Language (SDL) used for the overall dynamic description in Figure 1.
• ETSI EN 300 392-10-4 - provides the Call Forwarding (CF) part that BOC refers to for precedence and mutual activation rules.
• EN 300 392-9, EN 300 392-10, EN 300 392-11, EN 300 392-12, ETS 300 392-13, and EN 300 392-14 - these companion parts place BOC within the wider TETRA V+D supplementary services framework.

What does the SIST EN 300 392-10-18 V1.3.1:2005 document contain?

The document contains the service definition, procedure clauses, interaction clauses, and an overall SDL overview of how the network behaves when BOC is applied. Figure 1 gives the SDL model for service activation, deactivation, call request handling, and rejection behavior.

Annex B contains a change-request table that records the editorial correction included in this version. Annex A gives the bibliography, which supports the service description with related telecommunications references.

SLOVENSKI STANDARD
01-julij-2005
Prizemni snopovni radio (TETRA) - Govor in podatki (V+D) - 10. del: Dopolnilne
storitve stopnje 1 - 18. podpoglavje: Zapora odhodnih klicev (BOC)
Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D); Part 10: Supplementary
services stage 1; Sub-part 18: Barring of Outgoing Calls (BOC)
Ta slovenski standard je istoveten z: EN 300 392-10-18 Version 1.3.1
ICS:
33.070.10 Prizemni snopovni radio Terrestrial Trunked Radio
(TETRA) (TETRA)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

European Standard (Telecommunications series)

Terrestrial Trunked Radio (TETRA);
Voice plus Data (V+D);
Part 10: Supplementary services stage 1;
Sub-part 18: Barring of Outgoing Calls (BOC)

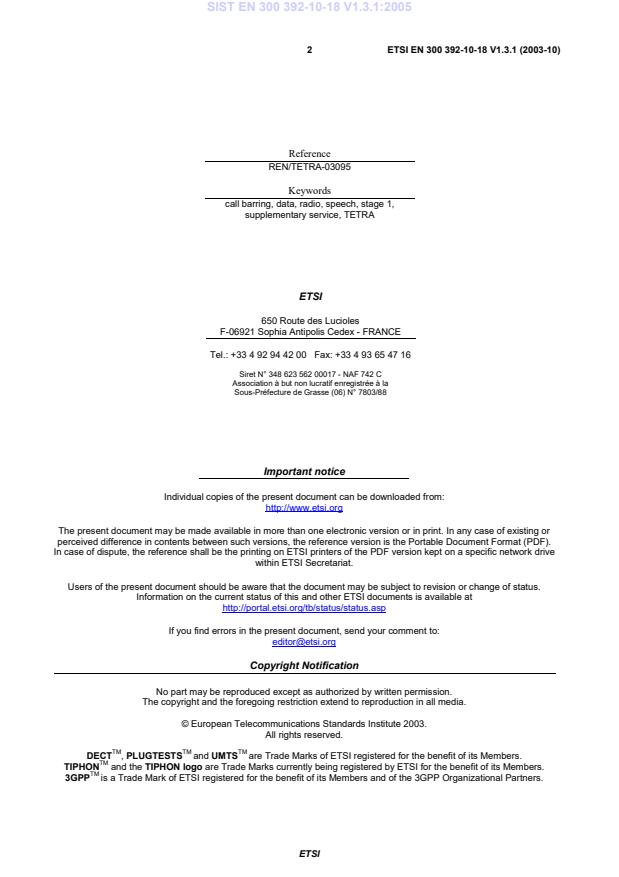

2 ETSI EN 300 392-10-18 V1.3.1 (2003-10)

Reference
REN/TETRA-03095
Keywords
call barring, data, radio, speech, stage 1,
supplementary service, TETRA
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, send your comment to:
[e-mail]
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2003.
All rights reserved.
TM TM TM
DECT , PLUGTESTS and UMTS are Trade Marks of ETSI registered for the benefit of its Members.
TM
TIPHON and the TIPHON logo are Trade Marks currently being registered by ETSI for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
ETSI
3 ETSI EN 300 392-10-18 V1.3.1 (2003-10)
Contents
Intellectual Property Rights.5
Foreword.5
1 Scope.7
2 References.7
3 Definitions and abbreviations.7
3.1 Definitions.7
3.2 Abbreviations.8
4 SS-BOC stage 1 specification .8
4.1 Description.8
4.1.1 General description.8
4.1.2 Qualifications on applicability to telecommunication services.9
4.2 Procedures.9
4.2.1 Provision/Withdrawal.9
4.2.2 Normal procedures.9
4.2.2.1 Activation, deactivation, definition, registration, interrogation and cancellation.9
4.2.2.1.1 Activation/Deactivation.9
4.2.2.1.2 Definition.9
4.2.2.1.3 Registration.9
4.2.2.1.4 Interrogation.9
4.2.2.1.5 Cancellation.9
4.2.2.2 Invocation and operation.9
4.2.3 Exceptional procedures.10
4.2.3.1 Activation, deactivation, definition, registration, interrogation and cancellation.10
4.2.3.1.1 Activation/Deactivation.10
4.2.3.1.2 Definition.10
4.2.3.1.3 Registration.10
4.2.3.1.4 Interrogation.10
4.2.3.1.5 Cancellation.10
4.2.3.2 Invocation and operation.10
4.3 Interactions with other supplementary services.11
4.3.1 Calling Line Identification Restriction (CLIR).11
4.3.2 Connected Line Identification Presentation (CLIP).11
4.3.3 Calling/COnnected Line Identification Presentation (COLP) .11
4.3.4 Call Report (CR).11
4.3.5 Talking Party Identification (TPI) .11
4.3.6 Call Forwarding Unconditional (CFU).11
4.3.7 Call Forwarding on Busy (CFB).11
4.3.8 Call Forwarding on No Reply (CFNRy).11
4.3.9 Call Forwarding on Not Reachable (CFNRc).11
4.3.10 List Search Call (LSC).11
4.3.11 Call Authorized by Dispatcher (CAD).11
4.3.12 Short Number Addressing (SNA).11
4.3.13 Area Selection (AS).12
4.3.14 Access Priority (AP) .12
4.3.15 Priority Call (PC).12
4.3.16 Call Waiting (CW).12
4.3.17 Call Hold (HOLD).12
4.3.18 Call Completion to Busy Subscriber (CCBS).12
4.3.19 Late Entry (LE).12
4.3.20 Void.12
4.3.21 Pre-emptive Priority Call (PPC) .12
4.3.22 Include Call (IC) .12
4.3.23 Void.12
4.3.24 Barring of Outgoing Calls (BOC).12
ETSI
4 ETSI EN 300 392-10-18 V1.3.1 (2003-10)
4.3.25 Barring of Incoming Calls (BIC) .12
4.3.26 Discreet Listening (DL) .12
4.3.27 Ambience Listening (AL).13
4.3.28 Dynamic Group Number Assignment (DGNA) .13
4.3.29 Call Completion on No Reply (CCNR) .13
4.3.30 Call ReTention (CRT) priority.13
4.4 Interworking considerations.13
4.5 Overall SDL.14
Annex A (informative): Bibliography.15
Annex B (informative): Change Requests .16
History .17

ETSI
5 ETSI EN 300 392-10-18 V1.3.1 (2003-10)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This European Standard (Telecommunications series) has been produced by ETSI Project Terrestrial Trunked Radio
(TETRA).
The present document is part 10, sub-part 18 of a multi-part deliverable covering Voice plus Data (V+D), as identified
below:
EN 300 392-1: "General network design";
EN 300 392-2: "Air Interface (AI)";
EN 300 392-3: "Interworking at the Inter-System Interface (ISI)";
ETS 300 392-4: "Gateways basic operation";
EN 300 392-5: "Peripheral Equipment Interface (PEI)";
EN 300 392-7: "Security";
EN 300 392-9: "General requirements for supplementary services";
EN 300 392-10: "Supplementary services stage 1";
EN 300 392-10-1: "Call Identification (CI)";
ETS 300 392-10-2: "Call report";
ETS 300 392-10-3: "Talking Party Identification (TPI)";
EN 300 392-10-4: "Call Forwarding (CF)";
ETS 300 392-10-5: "List Search Call (LSC)";
EN 300 392-10-6: "Call Authorized by Dispatcher (CAD)";
ETS 300 392-10-7: "Short number addressing";
EN 300 392-10-8: "Area Selection (AS)";
ETS 300 392-10-9: "Access priority";
EN 300 392-10-10: "Priority Call (PC)";
EN 300 392-10-11: "Call Waiting (CW)";
EN 300 392-10-12: "Call Hold (CH)";
ETS 300 392-10-13: "Call completion to busy subscriber";
EN 300 392-10-14: "Late Entry (LE)";
ETSI
6 ETSI EN 300 392-10-18 V1.3.1 (2003-10)
ETS 300 392-10-15: "Transfer of control";
EN 300 392-10-16: "Pre-emptive Priority Call (PC)";
EN 300 392-10-17: "Include Call (IC)";
EN 300 392-10-18: "Barring of Outgoing Calls (BOC)";
EN 300 392-10-19: "Barring of Incoming Calls (BIC)";
ETS 300 392-10-20: "Discreet Listening (DL)";
EN 300 392-10-21: "Ambience Listening (AL)";
...
