Valves - Shell design strength - Part 3: Experimental method

This standard specifies requirements for an experimental method, to prove by type test that the design of shells and their body ends, made in cast iron, steel or copper alloy materials, possess the required pressure containing capability, with an adequate margin of safety. This standard is not applicable to valves designed on the basis of time dependent strength values. e.g. pulsating pressure applications and/or creep range temperatures.

Armaturen - Gehäusefestigkeit - Teil 3: Experimentelles Verfahren

Diese Norm legt die Anforderung für ein experimentelles Verfahren fest, mit dem über eine Typprüfung nachgewiesen werden kann, daß die Auslegung der drucktragenden Gehäuse und deren Endöffnungen, hergestellt aus Gußeisen, Stahl oder Kupferlegierung, die erforderliche Druckfestigkeit mit einer angemessenen Sicherheitsspanne besitzt. Diese Norm ist nicht anwendbar auf Armaturen, die auf der Basis von zeitabhängigen Festigkeitskennwerten ausgelegt sind, z.B. für Anwendung bei Druckstößen und/oder bei Temperaturen im Kriechbereich.

Appareils de robinetterie - Résistance mécanique des enveloppes - Partie 3: Méthode expérimentale

La présente norme spécifie les prescriptions d'une méthode expérimentale desti- née a prouver que des enveloppes et leurs extrémités, fabriquées dans des matériaux tels que fonte, acier, ou alliage de cuivre ont la résistance a la pression exigée avec une marge de sécurité appropriée. Cette norme ne s'applique pas aux appareils de robinetterie conçus sur la base de valeurs de résistance a la rupture fonction du temps, telles que des applications d'une pression pulsatoire et/ou des gammes de température de fluage.

Ventili - Trdnost ohišja - 3. del: Eksperimentalna metoda

General Information

Status
Published
Publication Date
30-Jun-2003
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
01-Jul-2003
Due Date
01-Jul-2003
Completion Date
01-Jul-2003

Relations

Buy Standard

Standard
EN 12516-3:2003
English language
12 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Valves - Shell design strength - Part 3: Experimental methodVentili - Trdnost ohišja - 3. del: Eksperimentalna metodaAppareils de robinetterie - Résistance mécanique des enveloppes - Partie 3: Méthode expérimentaleArmaturen - Gehäusefestigkeit - Teil 3: Experimentelles VerfahrenTa slovenski standard je istoveten z:EN 12516-3:2002SIST EN 12516-3:2003en23.060.01ICS:SLOVENSKI
STANDARDSIST EN 12516-3:200301-julij-2003







EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 12516-3October 2002ICS 23.060.01English versionValves - Shell design strength - Part 3: Experimental methodAppareils de robinetterie - Résistance mécanique desenveloppes - Partie 3: Méthode expérimentaleArmaturen - Gehäusefestigkeit - Teil 3: ExperimentellesVerfahrenThis European Standard was approved by CEN on 1 August 2002.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2002 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 12516-3:2002 E

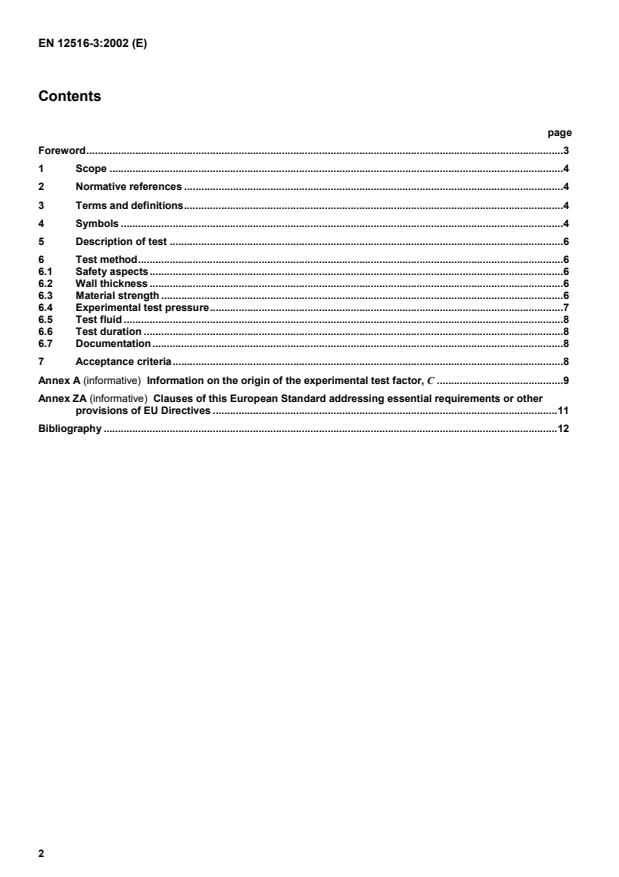

EN 12516-3:2002 (E)2ContentspageForeword.31Scope.42Normative references.43Terms and definitions.44Symbols.45Description of test.66Test method.66.1Safety aspects.66.2Wall thickness.66.3Material strength.66.4Experimental test pressure.76.5Test fluid.86.6Test duration.86.7Documentation.87Acceptance criteria.8Annex A (informative)
Information on the origin of the experimental test factor, C.9Annex ZA (informative)
Clauses of this European Standard addressing essential requirements or otherprovisions of EU Directives.11Bibliography.12



EN 12516-3:2002 (E)3ForewordThis document (EN 12516-3:2002) has been prepared by Technical Committee CEN /TC 69, "Industrial Valves",the secretariat of which is held by AFNOR.This European Standard shall be given the status of a national standard, either by publication of an identical text orby endorsement, at the latest by April 2003, and conflicting national standards shall be withdrawn at the latest byApril 2003.EN 12516 consists of three parts :¾ Part 1 : Tabulation method for steel valve shells ;¾ Part 2 : Calculation method for steel valve shells ;¾ Part 3 : Experimental method.This document has been prepared under a mandate given to CEN by the European Commission and the EuropeanFree Trade Association, and supports essential requirements of EU Directive(s).For relationship with EU Directive(s), see informative annex ZA, which is an integral part of this document.Annex A is informativeAccording to the CEN/CENELEC Internal Regulations, the national standards organizations of the followingcountries are bound to implement this European Standard: Austria, Belgium, Czech Republic, Denmark, Finland,France, Germany, Greece, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain,Sweden, Switzerland and the United Kingdom.



EN 12516-3:2002 (E)4IntroductionThis standard establishes an experimental method of assessing the strength of valve shells by applying anelevated hydrostatic pressure test at room temperature.The experimental test factor, C, for use in the equation to determine the elevated hydrostatic test pressure, takesinto account the ductility of the various materials. Information on the origin of the experimental test factor, C, isgiven in annex A.This standard may be used as an alternative method to those to be specified in Part 1 (Tabulation method) or Part 2,(Calculation method) within the limits specified in the scope.1 ScopeThis standard specifies requirements for an experimental method to prove that representative samples of valveshells and their body ends, made in cast iron, steel or copper alloy materials, are designed to possess the requiredpressure containing capability, with an adequate margin of safety.This standard is not applicable to valves designed on the basis of time dependent strength values (creep) or valvesdesigned for pulsating pressure applications (fatigue).NOTEFor valves needing to comply with the EU Directive 97/23/EC (PED), the upper limit for application of this standardwithout calculation, is when the maximum allowable pressure at room temperature, PSRT, multiplied by the DN-number is lessthan 3000 bar. This standard may be used to supplement the Tabulation method for steel valves, Part 1, and the Calculationmethod for steel valves, Part 2 without limit.2 Normative referencesThis European Standard incorporates by dated or undated reference, provisions from other publications. Thesenormative references are cited at the appropriate places in the text and the publications are listed hereafter. Fordated references, subsequent amendments to or revisions of any of these publications apply to this EuropeanStandard only when incorporated in it by amendment or revision. For undated references the latest edition of thepublication referred to applies (including amendments).EN 736-2, Valves — Terminology — Part 2 : Definition of components of valves.EN 736-3, Valves — Terminology — Part 3 : Definition of terms.3 Terms and definitionsFor the purposes of this standard, the terms and definitions given in EN 736-2 and EN 736-3 apply.In this standard, the term component shall be taken to mean the body, the bonnet and the cover.4 SymbolsThe following symbols are used in this standard :Ais the percentage elongation after fracture, in per cent ;Cis the experimental test factor ;Cb is the experimental test factor for the body ;Cbc is the experimental test factor for the bonnet or cover ;emesis the measured wall thickness, in millimetres ;



EN 12516-3:2002 (E)5eminis the minimum specified drawing wall thickness, in millimetres ;Kis the factor for calculating of the experimental test pressure pt, exp ;Kbis the K for the body ;Kbcis the K for the bonnet or cover ;pis the design pressure, in bar ;PSis the maximum allowable pressure, in bar ;PSRTis the maximum allowable pressure at room temperature, in bar ;PStis the maximum allowable pressure at temperature t, in bar ;pt, expis the experimental test pressure, in bar ;pt, exp/RTis the experimental test pressure at room temperature, in bar ;pt, exp b/RTis the experimental test pressure at room temperature for the body, in bar ;pt, exp bc/RTis the experimental test pressure at room temperature for the bonnet or cover, in bar ;p”is the elevated test pressure used for type testing of series-manufactured valves, in bar ;Rm/RTis the tensile strength at room temperature, in Newtons per square millimetre ;Rp1,0is the 1,0 % proof strength, in Newtons per square millimetre ;Rp0,2 act/RTis the actual 0,2 % proof strength at room temperature, in Newtons per square millimetre ;Rp0,2 min/RTis the minimum 0,2 % proof strength at room temperature specified in the appropriate materialstandard, in Newtons per square millimetre ;Rp0,2 min/tis the minimum 0,2 % proof strength at temperature t specified in the appropriate material standard, inNewtons per square millimetre ;Sis the safety factor ;S"is the safety factor depending on the material ;Xis the ratio of emes to emin ;Xb maxis the maximum value of X for the body ;Xbc maxis the maximum value of X for the bonnet or cover ;Yis the ratio of Rp0,2 act/RT/Rp0,2 min/RT ;Ybis the Y for the body ;Ybcis the Y for the bonnet or cover.NOTEThe term maximum allowable pressure, PS, defined in EU Directive 97/23/EC (PED) is equivalent to the termallowable pressure, ps, defined in EN 736-3.



EN 12516-3:2002 (E)65 Description of testThe valve body ends shall be closed using suitable sealing components e.g. flanges, threaded plugs, welded capsetc. corresponding to the type of body ends.The test equipment shall be of such a design, that it does not subject the shell to externally applied loads and doesnot apply any reinforcement to the components, which may affect the results of the tests.NOTEThe test equipment can apply external loads sufficient to react to the forces resulting from the test pressure.The test pressure shall be applied to the shell assembly or to the assembled valve. The components may be testedseparately.6 Test method6.1 Safety aspectsSafety aspects during testing are not covered by this standard. The users of this standard should analyse the hazardresulting
...
