Meteorological Aids (Met Aids) - Radiosondes to be used in the 400,15 MHz to 406 MHz frequency range with power levels ranging up to 200 mW - Harmonised Standard covering the essential requirements of article 3.2 of Directive 2014/53/EU

The present document specifies technical characteristics and methods of measurements for digitally modulated
radiosondes operating in the range from 400,15 MHz to 406 MHz and with power levels ranging up to 200 mW.
NOTE: The present document does not cover radiosondes with an imbedded receiver.
The present document covers the essential requirements of article 3.2 of Directive 2014/53/EU [i.1] under the
conditions identified in annex A.

Meteorološki pripomočki (Met Aids) - Radiosonde za uporabo v frekvenčnem območju od 400,15 MHz do 406 MHz z močnostnimi nivoji do največ 200 mW - Harmonizirani standard, ki zajema bistvene zahteve člena 3.2 direktive 2014/53/EU

Ta dokument določa tehnične lastnosti in metode merjenja za digitalno modulirane radiosonde za uporabo v območju od 400,15 MHz do 406 MHz ter z močnostnimi nivoji do največ 200 mW.
OPOMBA: Ta dokument ne zajema radiosond z vdelanim sprejemnikom.
Ta dokument zajema bistvene zahteve člena 3.2 direktive 2014/53/EU [i.1] pod pogoji iz dodatka A.

General Information

Status
Published
Public Enquiry End Date
31-Jul-2017
Publication Date
07-Nov-2017
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
09-Oct-2017
Due Date
14-Dec-2017
Completion Date
08-Nov-2017

Buy Standard

Standard
EN 302 054 V2.1.1:2017
English language
23 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day
Standard
ETSI EN 302 054 V2.1.1 (2017-10) - Meteorological Aids (Met Aids); Radiosondes to be used in the 400,15 MHz to 406 MHz frequency range with power levels ranging up to 200 mW; Harmonised Standard covering the essential requirements of article 3.2 of Directive 2014/53/EU
English language
23 pages
sale 15% off
Preview
sale 15% off
Preview
Standard
ETSI EN 302 054 V2.1.0 (2017-05) - Meteorological Aids (Met Aids); Radiosondes to be used in the 400,15 MHz to 406 MHz frequency range with power levels ranging up to 200 mW; Harmonised Standard covering the essential requirements of article 3.2 of Directive 2014/53/EU
English language
23 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.YHQþQHPMeteorological Aids (Met Aids) - Radiosondes to be used in the 400,15 MHz to 406 MHz frequency range with power levels ranging up to 200 mW - Harmonised Standard covering the essential requirements of article 3.2 of Directive 2014/53/EU33.060.99Druga oprema za radijske komunikacijeOther equipment for radiocommunications07.060Geologija. Meteorologija. HidrologijaGeology. Meteorology. HydrologyICS:Ta slovenski standard je istoveten z:ETSI EN 302 054 V2.1.1 (2017-10)SIST EN 302 054 V2.1.1:2017en01-december-2017SIST EN 302 054 V2.1.1:2017SLOVENSKI
STANDARD



SIST EN 302 054 V2.1.1:2017



ETSI EN 302 054 V2.1.1 (2017-10) Meteorological Aids (Met Aids); Radiosondes to be used in the 400,15 MHz to 406 MHz frequency range with power levels ranging up to 200 mW; Harmonised Standard covering the essential requirements of article 3.2 of Directive 2014/53/EU
HARMONISED EUROPEAN STANDARD SIST EN 302 054 V2.1.1:2017



ETSI ETSI EN 302 054 V2.1.1 (2017-10) 2
Reference REN/ERM-TGAERO-51 Keywords harmonised standard, radio, short range, testing, UHF ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00
Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice The present document can be downloaded from: http://www.etsi.org/standards-search The present document may be made available in electronic versions and/or in print. The content of any electronic and/or print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx If you find errors in the present document, please send your comment to one of the following services: https://portal.etsi.org/People/CommiteeSupportStaff.aspx Copyright Notification No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm except as authorized by written permission of ETSI. The content of the PDF version shall not be modified without the written authorization of ETSI. The copyright and the foregoing restriction extend to reproduction in all media.
© ETSI 2017. All rights reserved.
DECTTM, PLUGTESTSTM, UMTSTM and the ETSI logo are trademarks of ETSI registered for the benefit of its Members. 3GPPTM and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners. oneM2M logo is protected for the benefit of its Members. GSM® and the GSM logo are trademarks registered and owned by the GSM Association. SIST EN 302 054 V2.1.1:2017



ETSI ETSI EN 302 054 V2.1.1 (2017-10) 3 Contents Intellectual Property Rights . 5 Foreword . 5 Modal verbs terminology . 5 Introduction . 6 1 Scope . 7 2 References . 7 2.1 Normative references . 7 2.2 Informative references . 7 3 Definitions, symbols and abbreviations . 8 3.1 Definitions . 8 3.2 Symbols . 8 3.3 Abbreviations . 8 4 Technical requirements specifications . 9 4.1 Environmental profile . 9 4.2 Conformance requirements . 9 4.2.1 General Requirements . 9 4.2.2 Frequency error . 9 4.2.2.1 Definition . 9 4.2.2.2 Limits . 9 4.2.2.3 Conformance . 9 4.2.3 Carrier Power (conducted) . 9 4.2.3.1 Definition . 9 4.2.3.2 Limits . 9 4.2.3.3 Conformance . 10 4.2.4 Effective Radiated Power . 10 4.2.4.1 Definition . 10 4.2.4.2 Limits . 10 4.2.4.3 Conformance . 10 4.2.5 Modulation bandwidth . 10 4.2.5.1 Definition . 10 4.2.5.2 Limits . 10 4.2.5.3 Conformance . 10 4.2.6 Spurious emissions . 11 4.2.6.1 Definition . 11 4.2.6.2 Limits . 11 4.2.6.3 Conformance . 11 4.2.7 Frequency stability under low voltage conditions . 11 4.2.7.1 Definition . 11 4.2.7.2 Limits . 11 4.2.7.3 Conformance . 11 5 Conditions for measurements . 11 5.1 Presentation of the equipment for testing purposes . 11 5.1.1 General Considerations . 11 5.1.2 Choice of model for testing . 12 5.1.3 Testing of equipment with alternative power levels . 12 5.1.4 Testing of equipment that does not have an external 50 Ω RF connector (integral antenna equipment) . 12 5.1.4.1 Equipment with an internal permanent or temporary antenna connector . 12 5.1.4.2 Equipment with an internal permanent antenna . 12 5.1.5 Auxiliary test equipment . 12 5.2 General conditions for testing . 12 5.2.1 Test signals and modulation. 12 5.2.2 Artificial antenna . 13 SIST EN 302 054 V2.1.1:2017



ETSI ETSI EN 302 054 V2.1.1 (2017-10) 4 5.2.3 Test fixture . 13 5.2.4 Test sites and general arrangements for radiated measurements . 13 5.2.5 Modes of operation of the transmitter . 13 5.2.6 Measuring device . 13 5.3 Test conditions, power sources and ambient temperatures . 14 5.3.1 Normal and extreme test conditions. 14 5.3.2 Test power source . 14 5.3.2.1 External test power source . 14 5.3.2.2 Internal test power source . 14 5.3.3 Normal test conditions . 14 5.3.3.1 Normal temperature and humidity . 14 5.3.3.2 Normal test power source . 14 5.3.4 Extreme test conditions . 14 5.3.4.1 General . 14 5.3.4.2 Procedure for tests at extreme conditions . 15 5.3.4.3 Special Radiosondes. 15 5.3.4.4 Extreme test source voltages . 15 5.3.4.4.1 Power sources using batteries . 15 5.3.4.4.2 Other power sources . 16 6 Testing for compliance with technical requirements . 16 6.1 Environmental conditions for testing . 16 6.2 Interpretation of the measurement results . 16 6.3 Radio tests . 17 6.3.1 Frequency error . 17 6.3.2 Carrier Power (conducted) . 17 6.3.3 Effective Radiated Power . 17 6.3.4 Modulation bandwidth . 18 6.3.5 Spurious emissions . 18 6.3.5.1 General requirement . 18 6.3.5.2 Method of measuring the power level in a specified load, clause 6.3.5.1 a) i) . 19 6.3.5.3 Method of measuring the effective radiated power, clause 6.3.5.1 a) ii). 19 6.3.5.4 Method of measuring the effective radiated power, clause 6.3.5.1 b) . 20 6.3.6 Frequency stability under low voltage conditions . 20 Annex A (informative): Relationship between the present document and the essential requirements of Directive 2014/53/EU . 21 Annex B (informative): Change history . 22 History . 23
SIST EN 302 054 V2.1.1:2017



ETSI ETSI EN 302 054 V2.1.1 (2017-10) 5 Intellectual Property Rights Essential patents IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (https://ipr.etsi.org/). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Trademarks The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners. ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks. Foreword This Harmonised European Standard (EN) has been produced by ETSI Technical Committee Electromagnetic compatibility and Radio spectrum Matters (ERM). The present document has been prepared under the Commission's standardisation request C(2015) 5376 final [i.2] to provide one voluntary means of conforming to the essential requirements of Directive 2014/53/EU on the harmonisation of the laws of the Member States relating to the making available on the market of radio equipment and repealing Directive 1999/5/EC [i.1]. Once the present document is cited in the Official Journal of the European Union under that Directive, compliance with the normative clauses of the present document given in table A.1 confers, within the limits of the scope of the present document, a presumption of conformity with the corresponding essential requirements of that Directive and associated EFTA regulations.
National transposition dates Date of adoption of this EN: 21 August 2017 Date of latest announcement of this EN (doa): 30 November 2017 Date of latest publication of new National Standard or endorsement of this EN (dop/e):
31 May 2018 Date of withdrawal of any conflicting National Standard (dow): 31 May 2018
Modal verbs terminology In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and "cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of provisions). "must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation. SIST EN 302 054 V2.1.1:2017



ETSI ETSI EN 302 054 V2.1.1 (2017-10) 6 Introduction Meteorological aids, Radiosondes, are light weight, disposable precision measurement instruments mainly used for in situ upper air measurements of meteorological variables (pressure, temperature, relative humidity, wind speed and direction) in the atmosphere up to an altitude of 36 km. The measurements are vital to international weather forecasting capability (and hence severe weather warning services for the public involving protection of life and property). The Radiosonde systems provide simultaneous measurements of the vertical profile of temperature, relative humidity as well as wind speed and direction. The variation of these meteorological variables in the vertical contains the majority of the critical information for weather forecasting. These systems are the only meteorological observing systems able to regularly provide the vertical resolution that meteorologists need for all five variables (i.e. pressure, temperature, relative humidity, wind speed and direction). Typically the Radiosonde observations are produced by Radiosondes measuring atmosphere for approximately 2 hours and carried by ascending balloons launched from land stations or ships. Radiosonde observations are carried out routinely by almost all countries, two to four times a day. The observation data is then circulated immediately to all other countries within a few hours via the WMO (World Meteorological Organization) Global Telecommunications System (GTS). The observing systems and data dissemination are all organized under the framework of the World Weather Watch Programme of WMO. The observation stations are required, worldwide, at a horizontal spacing of less than or equal to 250 km with a frequency of observation from one to four times per day.
Remotely sensed measurements from satellites do not have the vertical resolution available from Radiosondes. Successful derivation of vertical temperature structure from these satellite measurements usually requires a computation initialized either directly from Radiosonde statistics or from the numerical weather forecast itself. In the latter case, the Radiosonde measurements ensure that the vertical structure in these forecasts remains accurate and stable with time. In addition, the Radiosonde measurements are used to calibrate satellite observations by a variety of techniques. Radiosonde observations are thus seen to remain absolutely necessary for meteorological operations for the foreseeable future. Other applications, independent of the main civilian meteorological organizations include environmental pollution, hydrology, radioactivity in the free atmosphere, significant weather phenomena (e.g. winter storms, thunderstorms, etc.) and investigation of a range of physical and chemical properties of the atmosphere.
About 150 000 Radiosondes are annually used in Europe, about 90 % of them are in 403 MHz band. This use is not decreasing with time, since with modern automation it is now much easier to successfully operate systems without highly skilled operators and a large amount of supporting equipment. The Radiosondes use unidirectional transmission on two frequency bands: 403 MHz band covers primary and co-primary allocations from 400,15 MHz to 406 MHz and 1 680 MHz band from 1 668,4 MHz to 1 690 MHz. The 403 MHz Radiosonde technology applies GNSS (Global Navigation Satellite Systems) for wind measurement, whereas the 1 680 MHz systems may base the wind measurement on balloon tracking with a Radio Direction Finding antenna. Because the 403 MHz wind measurement depends on the availability of the GNSS signals, many operators do not consider this technology secure enough for critical applications (e.g. defence and national security), and consequently prefer 1 680 MHz systems. National regulatory conditions (channel/frequency separations or the inclusion of an automatic transmitter shut-off feature) for an individual/general license or license exemption may apply.
SIST EN 302 054 V2.1.1:2017



ETSI ETSI EN 302 054 V2.1.1 (2017-10) 7 1 Scope The present document specifies technical characteristics and methods of measurements for digitally modulated radiosondes operating in the range from 400,15 MHz to 406 MHz and with power levels ranging up to 200 mW. NOTE: The present document does not cover radiosondes with an imbedded receiver. The present document covers the essential requirements of article 3.2 of Directive 2014/53/EU [i.1] under the conditions identified in annex A. 2 References 2.1 Normative references References are specific, identified by date of publication and/or edition number or version number. Only the cited version applies. Referenced documents which are not found to be publicly available in the expected location might be found at https://docbox.etsi.org/Reference/. NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee their long term validity. The following referenced documents are necessary for the application of the present document. [1] CISPR 16-1-1 (Edition 4.0) (09-2015): "Specification for radio disturbance and immunity measuring apparatus and methods - Part 1-1: Radio disturbance and immunity measuring apparatus - Measuring apparatus". [2] ETSI TS 103 052 (V1.1.1) (03-2011): "Electromagnetic compatibility and Radio spectrum Matters (ERM); Radiated measurement methods and general arrangements for test sites up to 100 GHz". [3] ETSI EN 300 220-1 (V3.1.1) (02-2017): "Short Range Devices (SRD) operating in the frequency range 25 MHz to 1 000 MHz; Part 1: Technical characteristics and methods of measurement". 2.2 Informative references References are either specific (identified by date of publication and/or edition number or version number) or non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the referenced document (including any amendments) applies. NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee their long term validity. The following referenced documents are not necessary for the application of the present document but they assist the user with regard to a particular subject area. [i.1] Directive 2014/53/EU of the European Parliament and of the Council of 16 April 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of radio equipment and repealing Directive 1999/5/EC. [i.2] Commission Implementing Decision C(2015) 5376 final of 4.8.2015 on a standardisation request to the European Committee for Electrotechnical Standardisation and to the European Telecommunications Standards Institute as regards radio equipment in support of Directive 2014/53/EU of the European Parliament and of the Council. [i.3] ETSI TR 100 028 (all parts) (V1.4.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM); Uncertainties in the measurement of mobile radio equipment characteristics". SIST EN 302 054 V2.1.1:2017



ETSI ETSI EN 302 054 V2.1.1 (2017-10) 8 [i.4] ETSI TR 100 028-2 (V1.4.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM); Uncertainties in the measurement of mobile radio equipment characteristics; Part 2". 3 Definitions, symbols and abbreviations 3.1 Definitions For the purposes of the present document, the following terms and definitions apply: conducted measurements: measurements which are made using a direct 50 Ω connection to the EUT dedicated antenna: removable antenna supplied and tested with the radio equipment, designed as an indispensable part of the EUT integral antenna: permanent fixed antenna, which may be built-in, designed as an indispensable part of the equipment radiated measurements: measurements which involve the absolute measurement of a radiated field telemetry: use of radio communication for indicating or recording data at a distance 3.2 Symbols For the purposes of the present document, the following symbols apply: dB decibel E Field strength °C Temperature in degrees Celsius hPa Atmospheric pressure in hecto Pascal %RH Air relative humidity in percentage λ Wavelength 3.3 Abbreviations For the purposes of the present document, the following abbreviations apply: CISPR International Special Committee on Radio Interference DC Direct Current EU European Union EUT Equipment Under Test FAR Fully Anechoic Room GNSS Global Navigation Satellite Systems GTS Global Telecommunications System ICAO International Civil Aviation Organization RF Radio Frequency RH Relative Humidity RMS Root Mean Square VSWR Voltage Standing Wave Ratio WMO World Meteorological Organization SIST EN 302 054 V2.1.1:2017



ETSI ETSI EN 302 054 V2.1.1 (2017-10) 9 4 Technical requirements specifications 4.1 Environmental profile The technical requirements of the present document apply under the environmental profile for operation of the equipment, which shall be declared by the manufacturer, but as a minimum, shall be that specified in the test conditions contained in the present document. The equipment shall comply with all the technical requirements of the present document which are identified as applicable in annex A at all times when operating within the boundary limits of the declared operational environmental profile. 4.2 Conformance requirements 4.2.1 General Requirements Where the transmitter is designed with an adjustable carrier power, then all transmitter parameters shall be measured using the highest power level, as declared by the manufacturer. If the EUT is supplied with both a permanent external 50 Ω RF connector and a dedicated or integral
...

ETSI EN 302 054 V2.1.1 (2017-10)






HARMONISED EUROPEAN STANDARD
Meteorological Aids (Met Aids);
Radiosondes to be used in the 400,15 MHz to 406 MHz
frequency range with power levels ranging up to 200 mW;
Harmonised Standard covering the essential requirements
of article 3.2 of Directive 2014/53/EU

---------------------- Page: 1 ----------------------
2 ETSI EN 302 054 V2.1.1 (2017-10)



Reference
REN/ERM-TGAERO-51
Keywords
harmonised standard, radio, short range, testing,
UHF
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: +33 4 92 94 42 00  Fax: +33 4 93 65 47 16

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the
print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying
and microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2017.
All rights reserved.

TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are trademarks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are trademarks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
oneM2M logo is protected for the benefit of its Members.
GSM® and the GSM logo are trademarks registered and owned by the GSM Association.
ETSI

---------------------- Page: 2 ----------------------
3 ETSI EN 302 054 V2.1.1 (2017-10)
Contents
Intellectual Property Rights . 5
Foreword . 5
Modal verbs terminology . 5
Introduction . 6
1 Scope . 7
2 References . 7
2.1 Normative references . 7
2.2 Informative references . 7
3 Definitions, symbols and abbreviations . 8
3.1 Definitions . 8
3.2 Symbols . 8
3.3 Abbreviations . 8
4 Technical requirements specifications . 9
4.1 Environmental profile . 9
4.2 Conformance requirements . 9
4.2.1 General Requirements . 9
4.2.2 Frequency error . 9
4.2.2.1 Definition . 9
4.2.2.2 Limits . 9
4.2.2.3 Conformance . 9
4.2.3 Carrier Power (conducted) . 9
4.2.3.1 Definition . 9
4.2.3.2 Limits . 9
4.2.3.3 Conformance . 10
4.2.4 Effective Radiated Power . 10
4.2.4.1 Definition . 10
4.2.4.2 Limits . 10
4.2.4.3 Conformance . 10
4.2.5 Modulation bandwidth . 10
4.2.5.1 Definition . 10
4.2.5.2 Limits . 10
4.2.5.3 Conformance . 10
4.2.6 Spurious emissions . 11
4.2.6.1 Definition . 11
4.2.6.2 Limits . 11
4.2.6.3 Conformance . 11
4.2.7 Frequency stability under low voltage conditions . 11
4.2.7.1 Definition . 11
4.2.7.2 Limits . 11
4.2.7.3 Conformance . 11
5 Conditions for measurements . 11
5.1 Presentation of the equipment for testing purposes . 11
5.1.1 General Considerations . 11
5.1.2 Choice of model for testing . 12
5.1.3 Testing of equipment with alternative power levels . 12
5.1.4 Testing of equipment that does not have an external 50 Ω RF connector (integral antenna
equipment) . 12
5.1.4.1 Equipment with an internal permanent or temporary antenna connector . 12
5.1.4.2 Equipment with an internal permanent antenna . 12
5.1.5 Auxiliary test equipment . 12
5.2 General conditions for testing . 12
5.2.1 Test signals and modulation. 12
5.2.2 Artificial antenna . 13
ETSI

---------------------- Page: 3 ----------------------
4 ETSI EN 302 054 V2.1.1 (2017-10)
5.2.3 Test fixture . 13
5.2.4 Test sites and general arrangements for radiated measurements . 13
5.2.5 Modes of operation of the transmitter . 13
5.2.6 Measuring device . 13
5.3 Test conditions, power sources and ambient te mperat ures . 14
5.3.1 Normal and extreme test conditions. 14
5.3.2 Test power source . 14
5.3.2.1 External test power source . 14
5.3.2.2 Internal test power source . 14
5.3.3 Normal test conditions . 14
5.3.3.1 Normal temperature and humidity . 14
5.3.3.2 Normal test power source . 14
5.3.4 Extreme test conditions . 14
5.3.4.1 General . 14
5.3.4.2 Procedure for tests at extreme conditions . 15
5.3.4.3 Special Radiosondes. 15
5.3.4.4 Extreme test source voltages . 15
5.3.4.4.1 Power sources using batteries . 15
5.3.4.4.2 Other power sources . 16
6 Testing for compliance with technical requirements . 16
6.1 Environmental conditions for testing . 16
6.2 Interpretation of the measurement results . 16
6.3 Radio tests . 17
6.3.1 Frequency error . 17
6.3.2 Carrier Power (conducted) . 17
6.3.3 Effective Radiated Power . 17
6.3.4 Modulation bandwidth . 18
6.3.5 Spurious emissions . 18
6.3.5.1 General requirement . 18
6.3.5.2 Method of measuring the power level in a specified load, clause 6.3.5.1 a) i) . 19
6.3.5.3 Method of measuring the effective radiated power, clause 6.3.5.1 a) ii). 19
6.3.5.4 Method of measuring the effective radiated power, clause 6.3.5.1 b) . 20
6.3.6 Frequency stability under low voltage conditions . 20
Annex A (informative): Relationship between the present document and the essential
requirements of Directive 2014/53/EU . 21
Annex B (informative): Change history . 22
History . 23


ETSI

---------------------- Page: 4 ----------------------
5 ETSI EN 302 054 V2.1.1 (2017-10)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (https://ipr.etsi.org/).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
Foreword
This Harmonised European Standard (EN) has been produced by ETSI Technical Committee Electromagnetic
compatibility and Radio spectrum Matters (ERM).
The present document has been prepared under the Commission's standardisation request C(2015) 5376 final [i.2] to
provide one voluntary means of conforming to the essential requirements of Directive 2014/53/EU on the harmonisation
of the laws of the Member States relating to the making available on the market of radio equipment and repealing
Directive 1999/5/EC [i.1].
Once the present document is cited in the Official Journal of the European Union under that Directive, compliance with
the normative clauses of the present document given in table A.1 confers, within the limits of the scope of the present
document, a presumption of conformity with the corresponding essential requirements of that Directive and associated
EFTA regulations.

National transposition dates
Date of adoption of this EN: 21 August 2017
Date of latest announcement of this EN (doa): 30 November 2017
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 31 May 2018
Date of withdrawal of any conflicting National Standard (dow): 31 May 2018

Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
ETSI

---------------------- Page: 5 ----------------------
6 ETSI EN 302 054 V2.1.1 (2017-10)
Introduction
Meteorological aids, Radiosondes, are light weight, disposable precision measurement instruments mainly used for
in situ upper air measurements of meteorological variables (pressure, temperature, relative humidity, wind speed and
direction) in the atmosphere up to an altitude of 36 km. The measurements are vital to international weather forecasting
capability (and hence severe weather warning services for the public involving protection of life and property). The
Radiosonde systems provide simultaneous measurements of the vertical profile of temperature, relative humidity as well
as wind speed and direction. The variation of these meteorological variables in the vertical contains the majority of the
critical information for weather forecasting. These systems are the only meteorological observing systems able to
regularly provide the vertical resolution that meteorologists need for all five variables (i.e. pressure, temperature,
relative humidity, wind speed and direction).
Typically the Radiosonde observations are produced by Radiosondes measuring atmosphere for approximately 2 hours
and carried by ascending balloons launched from land stations or ships. Radiosonde observations are carried out
routinely by almost all countries, two to four times a day. The observation data is then circulated immediately to all
other countries within a few hours via the WMO (World Meteorological Organization) Global Telecommunications
System (GTS). The observing systems and data dissemination are all organized under the framework of the World
Weather Watch Programme of WMO.
The observation stations are required, worldwide, at a horizontal spacing of less than or equal to 250 km with a
frequency of observation from one to four times per day.
Remotely sensed measurements from satellites do not have the vertical resolution available from Radiosondes.
Successful derivation of vertical temperature structure from these satellite measurements usually requires a computation
initialized either directly from Radiosonde statistics or from the numerical weather forecast itself. In the latter case, the
Radiosonde measurements ensure that the vertical structure in these forecasts remains accurate and stable with time. In
addition, the Radiosonde measurements are used to calibrate satellite observations by a variety of techniques.
Radiosonde observations are thus seen to remain absolutely necessary for meteorological operations for the foreseeable
future.
Other applications, independent of the main civilian meteorological organizations include environmental pollution,
hydrology, radioactivity in the free atmosphere, significant weather phenomena (e.g. winter storms, thunderstorms, etc.)
and investigation of a range of physical and chemical properties of the atmosphere.
About 150 000 Radiosondes are annually used in Europe, about 90 % of them are in 403 MHz band. This use is not
decreasing with time, since with modern automation it is now much easier to successfully operate systems without
highly skilled operators and a large amount of supporting equipment.
The Radiosondes use unidirectional transmission on two frequency bands: 403 MHz band covers primary and
co-primary allocations from 400,15 MHz to 406 MHz and 1 680 MHz band from 1 668,4 MHz to 1 690 MHz. The
403 MHz Radiosonde technology applies GNSS (Global Navigation Satellite Systems) for wind measurement, whereas
the 1 680 MHz systems may base the wind measurement on balloon tracking with a Radio Direction Finding antenna.
Because the 403 MHz wind measurement depends on the availability of the GNSS signals, many operators do not
consider this technology secure enough for critical applications (e.g. defence and national security), and consequently
prefer 1 680 MHz systems.
National regulatory conditions (channel/frequency separations or the inclusion of an automatic transmitter shut-off
feature) for an individual/general license or license exemption may apply.

ETSI

---------------------- Page: 6 ----------------------
7 ETSI EN 302 054 V2.1.1 (2017-10)
1 Scope
The present document specifies technical characteristics and methods of measurements for digitally modulated
radiosondes operating in the range from 400,15 MHz to 406 MHz and with power levels ranging up to 200 mW.
NOTE: The present document does not cover radiosondes with an imbedded receiver.
The present document covers the essential requirements of article 3.2 of Directive 2014/53/EU [i.1] under the
conditions identified in annex A.
2 References
2.1 Normative references
References are specific, identified by date of publication and/or edition number or version number. Only the cited
version applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
https://docbox.etsi.org/Reference/.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are necessary for the application of the present document.
[1] CISPR 16-1-1 (Edition 4.0) (09-2015): "Specification for radio disturbance and immunity
measuring apparatus and methods - Part 1-1: Radio disturbance and immunity measuring
apparatus - Measuring apparatus".
[2] ETSI TS 103 052 (V1.1.1) (03-2011): "Electromagnetic compatibility and Radio spectrum Matters
(ERM); Radiated measurement methods and general arrangements for test sites up to 100 GHz".
[3] ETSI EN 300 220-1 (V3.1.1) (02-2017): "Short Range Devices (SRD) operating in the frequency
range 25 MHz to 1 000 MHz; Part 1: Technical characteristics and methods of measurement".
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] Directive 2014/53/EU of the European Parliament and of the Council of 16 April 2014 on the
harmonisation of the laws of the Member States relating to the making available on the market of
radio equipment and repealing Directive 1999/5/EC.
[i.2] Commission Implementing Decision C(2015) 5376 final of 4.8.2015 on a standardisation request
to the European Committee for Electrotechnical Standardisation and to the European
Telecommunications Standards Institute as regards radio equipment in support of Directive
2014/53/EU of the European Parliament and of the Council.
[i.3] ETSI TR 100 028 (all parts) (V1.4.1): "Electromagnetic compatibility and Radio spectrum Matters
(ERM); Uncertainties in the measurement of mobile radio equipment characteristics".
ETSI

---------------------- Page: 7 ----------------------
8 ETSI EN 302 054 V2.1.1 (2017-10)
[i.4] ETSI TR 100 028-2 (V1.4.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
Uncertainties in the measurement of mobile radio equipment characteristics; Part 2".
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
conducted measurements: measurements which are made using a direct 50 Ω connection to the EUT
dedicated antenna: removable antenna supplied and tested with the radio equipment, designed as an indispensable part
of the EUT
integral antenna: permanent fixed antenna, which may be built-in, designed as an indispensable part of the equipment
radiated measurements: measurements which involve the absolute measurement of a radiated field
telemetry: use of radio communication for indicating or recording data at a distance
3.2 Symbols
For the purposes of the present document, the following symbols apply:
dB decibel
E Field strength
°
C Temperature in degrees Celsius
hPa Atmospheric pressure in hecto Pascal
%RH Air relative humidity in percentage
λ Wavelength
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
CISPR International Special Committee on Radio Interference
DC Direct Current
EU European Union
EUT Equipment Under Test
FAR Fully Anechoic Room
GNSS Global Navigation Satellite Systems
GTS Global Telecommunications System
ICAO International Civil Aviation Organization
RF Radio Frequency
RH Relative Humidity
RMS Root Mean Square
VSWR Voltage Standing Wave Ratio
WMO World Meteorological Organization
ETSI

---------------------- Page: 8 ----------------------
9 ETSI EN 302 054 V2.1.1 (2017-10)
4 Technical requirements specifications
4.1 Environmental profile
The technical requirements of the present document apply under the environmental profile for operation of the
equipment, which shall be declared by the manufacturer, but as a minimum, shall be that specified in the test conditions
contained in the present document. The equipment shall comply with all the technical requirements of the present
document which are identified as applicable in annex A at all times when operating within the boundary limits of the
declared operational environmental profile.
4.2 Conformance requirements
4.2.1 General Requirements
Where the transmitter is designed with an adjustable carrier power, then all transmitter parameters shall be measured using
the highest power level, as declared by the manufacturer.
If the EUT is supplied with both a permanent external 50 Ω RF connector and a dedicated or integral antenna, then full
tests shall be carried out using the external connector. In addition, the following tests shall be carried out with
...

Draft ETSI EN 302 054 V2.1.0 (2017-05)






HARMONISED EUROPEAN STANDARD
Meteorological Aids (Met Aids);
Radiosondes to be used in the 400,15 MHz to 406 MHz
frequency range with power levels ranging up to 200 mW;
Harmonised Standard covering the essential requirements
of article 3.2 of Directive 2014/53/EU

---------------------- Page: 1 ----------------------
2 Draft ETSI EN 302 054 V2.1.0 (2017-05)



Reference
REN/ERM-TGAERO-51
Keywords
harmonised standard, radio, short range, testing,
UHF
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: +33 4 92 94 42 00  Fax: +33 4 93 65 47 16

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the
print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying
and microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2017.
All rights reserved.

TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
oneM2M logo is protected for the benefit of its Members
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI

---------------------- Page: 2 ----------------------
3 Draft ETSI EN 302 054 V2.1.0 (2017-05)
Contents
Intellectual Property Rights . 5
Foreword . 5
Modal verbs terminology . 5
Introduction . 6
1 Scope . 7
2 References . 7
2.1 Normative references . 7
2.2 Informative references . 7
3 Definitions, symbols and abbreviations . 8
3.1 Definitions . 8
3.2 Symbols . 8
3.3 Abbreviations . 8
4 Technical requirements specifications . 8
4.1 Environmental profile . 8
4.2 Conformance requirements . 9
4.2.1 General Requirements . 9
4.2.2 Frequency error . 9
4.2.2.1 Definition . 9
4.2.2.2 Limits . 9
4.2.2.3 Conformance . 9
4.2.3 Carrier Power (conducted) . 9
4.2.3.1 Definition . 9
4.2.3.2 Limits . 9
4.2.3.3 Conformance . 9
4.2.4 Effective Radiated Power . 9
4.2.4.1 Definition . 9
4.2.4.2 Limits . 10
4.2.4.3 Conformance . 10
4.2.5 Modulation bandwidth . 10
4.2.5.1 Definition . 10
4.2.5.2 Limits . 10
4.2.5.3 Conformance . 10
4.2.6 Spurious emissions . 10
4.2.6.1 Definition . 10
4.2.6.2 Limits . 10
4.2.6.3 Conformance . 11
4.2.7 Frequency stability under low voltage conditions . 11
4.2.7.1 Definition . 11
4.2.7.2 Limits . 11
4.2.7.3 Conformance . 11
5 Conditions for measurements . 11
5.1 Presentation of the equipment for testing purposes . 11
5.1.1 General Considerations . 11
5.1.2 Choice of model for testing . 12
5.1.3 Testing of equipment with alternative power levels . 12
5.1.4 Testing of equipment that does not have an external 50 Ω RF connector (integral antenna
equipment) . 12
5.1.4.1 Equipment with an internal permanent or temporary antenna connector . 12
5.1.4.2 Equipment with an internal permanent antenna . 12
5.1.5 Auxiliary test equipment . 12
5.2 General conditions for testing . 12
5.2.1 Test signals and modulation. 12
5.2.2 Artificial antenna . 12
ETSI

---------------------- Page: 3 ----------------------
4 Draft ETSI EN 302 054 V2.1.0 (2017-05)
5.2.3 Test fixture . 13
5.2.4 Test sites and general arrangements for radiated measurements . 13
5.2.5 Modes of operation of the transmitter . 13
5.2.6 Measuring device . 13
5.3 Test conditions, power sources and ambient te mperat ures . 13

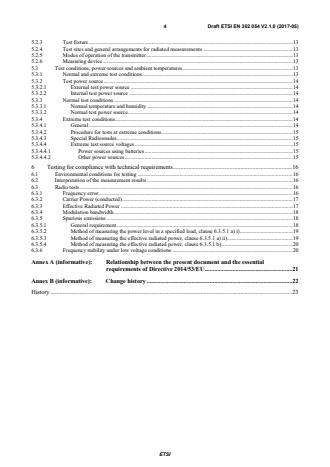

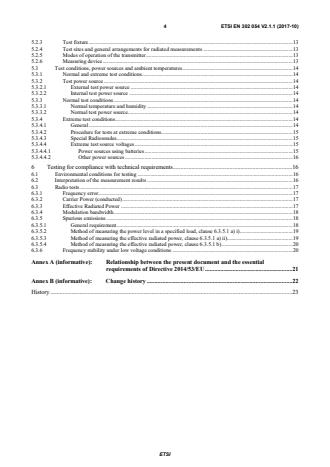

5.3.1 Normal and extreme test conditions. 13
5.3.2 Test power source . 14
5.3.2.1 External test power source . 14
5.3.2.2 Internal test power source . 14
5.3.3 Normal test conditions . 14
5.3.3.1 Normal temperature and humidity . 14
5.3.3.2 Normal test power source . 14
5.3.4 Extreme test conditions . 14
5.3.4.1 General . 14
5.3.4.2 Procedure for tests at extreme conditions . 15
5.3.4.3 Special Radiosondes. 15
5.3.4.4 Extreme test source voltages . 15
5.3.4.4.1 Power sources using batteries . 15
5.3.4.4.2 Other power sources . 15
6 Testing for compliance with technical requirements . 16
6.1 Environmental conditions for testing . 16
6.2 Interpretation of the measurement results . 16
6.3 Radio tests . 16
6.3.1 Frequency error . 16
6.3.2 Carrier Power (conducted) . 17
6.3.3 Effective Radiated Power . 17
6.3.4 Modulation bandwidth . 18
6.3.5 Spurious emissions . 18
6.3.5.1 General requirement . 18
6.3.5.2 Method of measuring the power level in a specified load, clause 6.3.5.1 a) i) . 19
6.3.5.3 Method of measuring the effective radiated power, clause 6.3.5.1 a) ii). 19
6.3.5.4 Method of measuring the effective radiated power, clause 6.3.5.1 b) . 20
6.3.6 Frequency stability under low voltage conditions . 20
Annex A (informative): Relationship between the present document and the essential
requirements of Directive 2014/53/EU . 21
Annex B (informative): Change history . 22
History . 23


ETSI

---------------------- Page: 4 ----------------------
5 Draft ETSI EN 302 054 V2.1.0 (2017-05)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (https://ipr.etsi.org/).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This draft Harmonised European Standard (EN) has been produced by ETSI Technical Committee Electromagnetic
compatibility and Radio spectrum Matters (ERM), and is now submitted for the combined Public Enquiry and Vote
phase of the ETSI standards EN Approval Procedure.
The present document has been prepared under the Commission's standardisation request C(2015) 5376 final [i.2] to
provide one voluntary means of conforming to the essential requirements of Directive 2014/53/EU on the harmonisation
of the laws of the Member States relating to the making available on the market of radio equipment and repealing
Directive 1999/5/EC [i.1].
Once the present document is cited in the Official Journal of the European Union under that Directive, compliance with
the normative clauses of the present document given in table A.1 confers, within the limits of the scope of the present
document, a presumption of conformity with the corresponding essential requirements of that Directive and associated
EFTA regulations.

Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 6 months after doa

Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
ETSI

---------------------- Page: 5 ----------------------
6 Draft ETSI EN 302 054 V2.1.0 (2017-05)
Introduction
Meteorological aids, Radiosondes, are light weight, disposable precision measurement instruments mainly used for
in situ upper air measurements of meteorological variables (pressure, temperature, relative humidity, wind speed and
direction) in the atmosphere up to an altitude of 36 km. The measurements are vital to international weather forecasting
capability (and hence severe weather warning services for the public involving protection of life and property). The
Radiosonde systems provide simultaneous measurements of the vertical profile of temperature, relative humidity as well
as wind speed and direction. The variation of these meteorological variables in the vertical contains the majority of the
critical information for weather forecasting. These systems are the only meteorological observing systems able to
regularly provide the vertical resolution that meteorologists need for all five variables (i.e. pressure, temperature,
relative humidity, wind speed and direction).
Typically the Radiosonde observations are produced by Radiosondes measuring atmosphere for approximately 2 hours
and carried by ascending balloons launched from land stations or ships. Radiosonde observations are carried out
routinely by almost all countries, two to four times a day. The observation data is then circulated immediately to all
other countries within a few hours via the WMO (World Meteorological Organization) Global Telecommunications
System (GTS). The observing systems and data dissemination are all organized under the framework of the World
Weather Watch Programme of WMO.
The observation stations are required, worldwide, at a horizontal spacing of less than or equal to 250 km with a
frequency of observation from one to four times per day.
Remotely sensed measurements from satellites do not have the vertical resolution available from Radiosondes.
Successful derivation of vertical temperature structure from these satellite measurements usually requires a computation
initialized either directly from Radiosonde statistics or from the numerical weather forecast itself. In the latter case, the
Radiosonde measurements ensure that the vertical structure in these forecasts remains accurate and stable with time. In
addition, the Radiosonde measurements are used to calibrate satellite observations by a variety of techniques.
Radiosonde observations are thus seen to remain absolutely necessary for meteorological operations for the foreseeable
future.
Other applications, independent of the main civilian meteorological organizations include environmental pollution,
hydrology, radioactivity in the free atmosphere, significant weather phenomena (e.g. winter storms, thunderstorms, etc.)
and investigation of a range of physical and chemical properties of the atmosphere.
About 150 000 Radiosondes are annually used in Europe, about 90 % of them are in 403 MHz band. This use is not
decreasing with time, since with modern automation it is now much easier to successfully operate systems without
highly skilled operators and a large amount of supporting equipment.
The Radiosondes use unidirectional transmission on two frequency bands: 403 MHz band covers primary and
co-primary allocations from 400,15 MHz to 406 MHz and 1 680 MHz band from 1 668,4 MHz to 1 690 MHz. The
403 MHz Radiosonde technology applies GNSS (Global Navigation Satellite Systems) for wind measurement, whereas
the 1 680 MHz systems may base the wind measurement on balloon tracking with a Radio Direction Finding antenna.
Because the 403 MHz wind measurement depends on the availability of the GNSS signals, many operators do not
consider this technology secure enough for critical applications (e.g. defence and national security), and consequently
prefer 1 680 MHz systems.
National regulatory conditions (channel/frequency separations or the inclusion of an automatic transmitter shut-off
feature) for an individual/general license or license exemption may apply.

ETSI

---------------------- Page: 6 ----------------------
7 Draft ETSI EN 302 054 V2.1.0 (2017-05)
1 Scope
The present document specifies technical characteristics and methods of measurements for digitally modulated
radiosondes operating in the range from 400,15 MHz to 406 MHz and with power levels ranging up to 200 mW.
The present document covers the essential requirements of article 3.2 of Directive 2014/53/EU [i.1] under the
conditions identified in annex A.
2 References
2.1 Normative references
References are specific, identified by date of publication and/or edition number or version number. Only the cited
version applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
https://docbox.etsi.org/Reference/.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are necessary for the application of the present document.
[1] CISPR 16-1-1 (Edition 4.0) (09-2015): "Specification for radio disturbance and immunity
measuring apparatus and methods - Part 1-1: Radio disturbance and immunity measuring
apparatus - Measuring apparatus".
[2] ETSI TS 103 052 (V1.1.1) (03-2011): "Electromagnetic compatibility and Radio spectrum Matters
(ERM); Radiated measurement methods and general arrangements for test sites up to 100 GHz".
[3] ETSI EN 300 220-1 (V3.1.1) (02-2017): "Short Range Devices (SRD) operating in the frequency
range 25 MHz to 1 000 MHz; Part 1: Technical characteristics and methods of measurement".
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] Directive 2014/53/EU of the European Parliament and of the Council of 16 April 2014 on the
harmonisation of the laws of the Member States relating to the making available on the market of
radio equipment and repealing Directive 1999/5/EC.
[i.2] Commission Implementing Decision C(2015) 5376 final of 4.8.2015 on a standardisation request
to the European Committee for Electrotechnical Standardisation and to the European
Telecommunications Standards Institute as regards radio equipment in support of Directive
2014/53/EU of the European Parliament and of the Council.
[i.3] ETSI TR 100 028 (all parts) (V1.4.1): "Electromagnetic compatibility and Radio spectrum Matters
(ERM); Uncertainties in the measurement of mobile radio equipment characteristics".
[i.4] ETSI TR 100 028-2 (V1.4.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
Uncertainties in the measurement of mobile radio equipment characteristics; Part 2".
ETSI

---------------------- Page: 7 ----------------------
8 Draft ETSI EN 302 054 V2.1.0 (2017-05)
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
conducted measurements: measurements which are made using a direct 50 Ω connection to the EUT
dedicated antenna: removable antenna supplied and tested with the radio equipment, designed as an indispensable part
of the EUT
integral antenna: permanent fixed antenna, which may be built-in, designed as an indispensable part of the equipment
radiated measurements: measurements which involve the absolute measurement of a radiated field
telemetry: use of radio communication for indicating or recording data at a distance
3.2 Symbols
For the purposes of the present document, the following symbols apply:
dB decibel
E Field strength
°
C Temperature in degrees Celsius
hPa Atmospheric pressure in hecto Pascal
%RH Air relative humidity in percentage
λ Wavelength
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
CISPR International Special Committee on Radio Interference
DC Direct Current
EU European Union
EUT Equipment Under Test
FAR Fully Anechoic Room
GNSS Global Navigation Satellite Systems
GTS Global Telecommunications System
ICAO International Civil Aviation Organization
RF Radio Frequency
RH Relative Humidity
RMS Root Mean Square
VSWR Voltage Standing Wave Ratio
WMO World Meteorological Organization
4 Technical requirements specifications
4.1 Environmental profile
The technical requirements of the present document apply under the environmental profile for operation of the
equipment, which shall be declared by the manufacturer, but as a minimum, shall be that specified in the test conditions
contained in the present document. The equipment shall comply with all the technical requirements of the present
document which are identified as applicable in annex A at all times when operating within the boundary limits of the
declared operational environmental profile.
ETSI

---------------------- Page: 8 ----------------------
9 Draft ETSI EN 302 054 V2.1.0 (2017-05)
4.2 Conformance requirements
4.2.1 General Requirements
Where the transmitter is designed with an adjustable carrier power, then all transmitter parameters shall be measured using
the highest power level, as declared by the manufacturer.
If the EUT is supplied with both a permanent external 50 Ω RF connector and a dedicated or integral antenna, then full
tests shall be carried out using the external connector. In addition, the following tests shall be carried out with the
dedicated or integral antenna:
- effective radiated power (radiated) (see clause 4.2.4);
- spurious emissions (see clause 4.2.6).
The submitted EUT shall fulfil the requirements of the stated measurements.
4.2.2 Frequency error
4.2.2.1 Definition
The frequency error of the transmitter is the difference between the measured unmodulat
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
