SIST ETS 300 050 E1:2003

• Abstract:

  T/NA1(89)20

• Status: Published
• Publication Date: 30-Nov-2003
• ICS: 33.080 - Integrated Services Digital Network (ISDN)
• Technical Committee: SS EIT - Technical Board for the electrotechnical, information technology and telecommunications fields
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Dec-2003
• Due Date: 01-Dec-2003
• Completion Date: 01-Dec-2003
• Ref Project: ETSI ETS 300 050 ed.1 (1991-10) - Integrated Services Digital Network (ISDN); Multiple Subscriber Number (MSN) supplementary service; Service Description

SIST ETS 300 050 E1:2003 is the Slovenian version of ETS 300 050 Edition 1 from ETSI. It specifies the stage 1 service description of the Integrated Services Digital Network (ISDN) Multiple Subscriber Number (MSN) supplementary service for European public telecommunications operators, with notes on private ISDN interworking. In practice, it explains how one access can carry multiple numbers so the network can select terminals and apply other supplementary services by number.

What does SIST ETS 300 050 E1:2003 specify?

SIST ETS 300 050 E1:2003 defines the user-facing service description for MSN in ISDN. It covers the service as provided on the public ISDN, the interworking requirements for private ISDNs, and the base functionality when the service is offered through a private ISDN.

The scope is limited to stage 1 aspects. It does not deal with human interface details, charging principles, or supplementary services outside Clause 8.

The document is organized into Clauses 1 to 8 plus two informative annexes.

Annex	What it covers
Annex A	Terminal interchangeability between public and private ISDNs
Annex B	Bibliography

What are the key requirements of SIST ETS 300 050 E1:2003?

Access, numbering and subscription

SIST ETS 300 050 E1:2003 says MSN applies to both basic access and primary rate access. The service allows multiple numbers, not necessarily consecutive, to be assigned to one public or private access, so one line can reach more than one terminal.

Clause 5 also says the service provider fixes the number length delivered to the user installation. That length may range from the least significant digit(s) to the full ISDN number, which matters because terminal selection can be done with a short internal code or with the full network number.

Provisioning and call handling

Clause 6.1 requires the service to be provided or withdrawn only after prior arrangement with the service provider. The provider allocates a set of ISDN numbers to the user interface, and the maximum number of MSNs per access is a network option.

Clause 6.2.3 says call initiation follows the basic service procedure. For an incoming call, the network of the called user analyzes the called number and, when MSN is active, sends all or part of the ISDN number, always using the least significant digits if only part of the number is sent. In practice, this is the core of terminal selection on a multi-terminal access.

The same clause also allows a compatible terminal to insert a multiple subscriber number in outgoing call request address information. That lets the terminal identify itself to the network for features such as calling line identification presentation.

Interworking and service interactions

Clause 6.3.3 says terminals that do not support MSN treat an incoming request carrying MSN digits as a basic call. This supports mixed installations, but it also means behavior can vary when MSN-capable and non-capable terminals share the same interface.

Clause 7 says interworking with non-ISDNs and private ISDNs is handled as for a basic call. Clause 8 then describes how MSN interacts with other supplementary services such as Calling line identification presentation, Closed user group, Direct dialling in, Call forwarding unconditional, Call forwarding busy, Call forwarding no reply, and Malicious call identification.

One practical point is that some services may be applied per multiple subscriber number rather than per access. For example, Clause 8.10 says call forwarding requests on a per-number basis should include the ISDN number concerned, and Clause 8.12 allows malicious call identification to be global for the whole access or per MSN, depending on access arrangements.

What terms does SIST ETS 300 050 E1:2003 define?

• Integrated Services Digital Network (ISDN) - A digital telecommunications network concept used throughout the standard for the access types and numbering scheme.
• Multiple Subscriber Number (MSN) - A number used to identify one or more terminals connected to an access.
• Supplementary service - A service that extends a basic telecommunication service.
• ISDN number - A number that follows the ISDN numbering plan and structure in E.164.
• Basic Call - The procedures used to establish and terminate a basic telecommunication service call.
• basic access - An ISDN access type used in the service description and procedures.
• primary rate access - Another ISDN access type used by the MSN service.
• service; telecommunication service - The general service concept used by the stage 1 description.

Who uses SIST ETS 300 050 E1:2003?

SIST ETS 300 050 E1:2003 is used by ISDN operators, service providers, and network engineers who need to define how MSN is offered on public or private accesses. It is also relevant for terminal vendors and system integrators that must support terminal selection, calling-number handling, and compatibility with mixed terminal installations.

Quality and interoperability teams use it to check whether a deployment follows the service model expected by the network and whether interactions with CLIP, diversion services, CUG, DDI, or malicious call identification are handled in the intended way. Authors of stage 2 and stage 3 specifications use it as the service baseline.

Which standards are used with SIST ETS 300 050 E1:2003?

SIST ETS 300 050 E1:2003 cites these references as its technical basis:

• CCITT Recommendation I.130 - the three-stage model used to describe ISDN services.
• CCITT Recommendation I.112 - the ISDN vocabulary used for core terms.
• CCITT Recommendation E.164 - the numbering plan used for ISDN numbers.
• ETS 300 089 - the service description for Calling Line Identification Presentation (CLIP), referenced for outgoing calling number handling.
• CCITT Recommendation I.210 - principles for supplementary services and how they are described.
• CCITT Recommendation Q.9 - switching and signalling vocabulary, including the access types.
• ETS 300 051 and ETS 300 052 - the stage 2 and stage 3 parts for MSN mentioned in the foreword.

What does the SIST ETS 300 050 E1:2003 document contain?

SIST ETS 300 050 E1:2003 contains the service description, provisioning rules, call procedures, intercommunication considerations, and interaction notes for MSN. Clause 6 sets out normal and exceptional procedures for activation, deactivation, registration, erasure, invocation, operation, and interrogation.

The document is not a test method standard. It states that conformance is achieved by conforming to the relevant stage 3 standards for the equipment being implemented, so the standard serves as the service definition that stage 2 and stage 3 work from.

Annex A adds practical guidance on terminal interchangeability between public and private ISDNs, especially where private numbering plans are used. Annex B lists bibliography material, including ECMA-155.

SLOVENSKI STANDARD
01-december-2003
'LJLWDOQRRPUHåMH]LQWHJULUDQLPLVWRULWYDPL,6'1±'RSROQLOQDVWRULWHY
YHþãWHYLOþQLQDURþQLN061±2SLVVWRULWYH
Integrated Services Digital Network (ISDN); Multiple Subscriber Number (MSN)
supplementary service; Service Description
Ta slovenski standard je istoveten z: ETS 300 050 Edition 1
ICS:
33.080 Digitalno omrežje z Integrated Services Digital
integriranimi storitvami Network (ISDN)
(ISDN)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN ETS 300 050
TELECOMMUNICATION October 1991
STANDARD
Source: ETSI TC-NA Reference: T/NA1(89)20
ICS: 33.080
ISDN, supplementary service
Key words:
Integrated Services Digital Network (ISDN);
Multiple Subscriber Number (MSN) supplementary service
Service description
ETSI
European Telecommunications Standards Institute
ETSI Secretariat
F-06921 Sophia Antipolis CEDEX - FRANCE
Postal address:
650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCE
Office address:
c=fr, a=atlas, p=etsi, s=secretariat - [e-mail]
X.400: Internet:
Tel.: [phone] - Fax: [phone]
Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and the
foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1991. All rights reserved.
New presentation - see History box

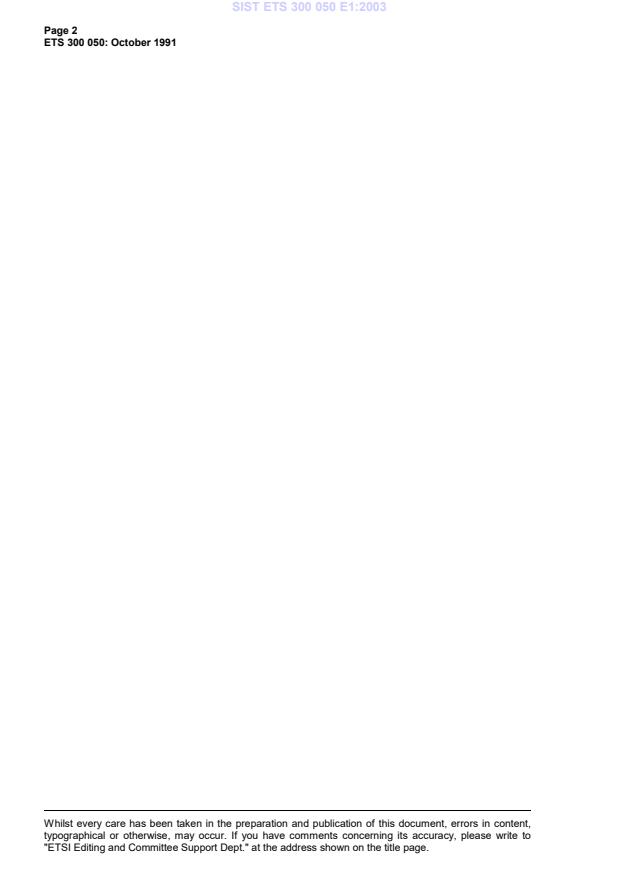

Page 2
ETS 300 050: October 1991
Whilst every care has been taken in the preparation and publication of this document, errors in content,
typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to
"ETSI Editing and Committee Support Dept." at the address shown on the title page.

Page 3
ETS 300 050: October 1991
Contents
Foreword .5
1 Scope .7
2 Normative references.8
3 Definitions.8
4 Symbols and abbreviations .8
5 Description .9
6 Procedures.9
6.1 Provision and withdrawal .9
6.2 Normal procedures .9
6.2.1 Activation, deactivation and registration.9
6.2.2 Erasure.9
6.2.3 Invocation and operation .9
6.2.4 Interrogation .10
6.3 Exceptional procedures .10
6.3.1 Activation, deactivation and registration.10
6.3.2 Erasure.10
6.3.3 Invocation and operation .10
6.3.4 Interrogation .10
7 Intercommunication considerations.10
7.1 Interworking with non-ISDNs .10
7.2 Interworking with private ISDNs.10
8 Interaction with other supplementary services .11
8.1 Advice of charge services.11
8.1.1 Charging information at call set-up time.11
8.1.2 Charging information during the call.11
8.1.3 Charging information at the end of the call.11
8.2 Call waiting.11
8.3 Call hold .11
8.4 Call transfer.11
8.4.1 Explicit call transfer .11
8.4.2 Single step call transfer.11
8.5 Number identification services.11
8.5.1 Calling line identification presentation .11
8.5.2 Calling line identification restriction .12
8.5.3 Connected line identification presentation.12
8.6 Closed user group.12
8.7 Completion of calls to busy subscriber .12
8.8 Conference services .12
8.8.1 Conference call, add-on .12
8.8.2 Meet me conference .12
8.9 Direct dialling in.12
8.10 Diversion services.13
8.10.1 Call forwarding unconditional .13
8.10.2 Call forwarding busy.13
8.10.3 Call forwarding no reply.13
8.10.4 Call deflection.13
8.11 Freephone.13
8.12 Malicious call identification.13

Page 4
ETS 300 050: October 1991
8.13 Multiple subscriber number . 13
8.14 Subaddressing . 13
8.15 Terminal portability. 14
8.16 Three party. 14
8.17 User-user signalling. 14
Annex A (informative): Terminal interchangeability between public and private ISDNs. 15
Annex B (informative): Bibliography . 16
History. 17

Page 5
ETS 300 050: October 1991
Foreword
This European Telecommunication Standard (ETS) has been produced by the Network Aspects (NA)
Technical Committee of the European Telecommunications Standards Institute (ETSI).
In accordance with CCITT Recommendation I.130 [1], the following three level structure is used to
describe the supplementary telecommunications services as provided by European public
telecommunications operators under the pan-European Integrated Services Digital Network (ISDN):
- Stage 1: is an overall service description, from the user's standpoint;
- Stage 2: identifies the functional capabilities and information flows needed to support the service
described in stage 1; and
- Stage 3: defines the signalling system protocols and switching functions needed to implement the
service described in stage 1.
This ETS details the stage 1 aspects (overall service description) for the Multiple Subscriber Number
(MSN) supplementary service. The stage 2 and stage 3 aspects are detailed in ETS 300 051 (1991) and
ETS 300 052 (1991), respectively.

Page 6
ETS 300 050: October 1991
Blank page
Page 7
ETS 300 050: October 1991
1 Scope
This standard defines the stage one of the Multiple Subscriber Number (MSN) supplementary service for
the pan-European Integrated Services Digital Network (ISDN) as provided by European public
telecommunications operators. Stage one is an overall service description from the user's point of view
(see CCITT Recommendation I.130 [1]), but does not deal with the details of the human interface itself.
This standard defines the interworking requirements of private ISDNs with the public ISDN.
In addition this standard specifies the base functionality where the service is provided to the user via a
private ISDN.
This standard does not specify the additional requirements where the service is provided to the user via a
telecommunications network that is not an ISDN but does include interworking requirements of other
networks with the public ISDN.
Interactions with supplementary services not listed in Clause 8 are outside the scope of this standard.
Charging principles are outside the scope of this standard.
The Multiple Subscriber Number (MSN) supplementary service provides the possibility for assigning
multiple numbers to a single public or private access.
NOTE: This allows e.g.:
1) a calling user to select, via the public network, one or multiple distinct terminals
out of a multiple choice;
2) to identify the terminal to the network for the application of other supplementary
services.
It is considered:
- that in the case of a basic access some service providers may not have knowledge or control over
what is connected, e.g. a private ISDN or a terminal configuration;
- that service providers have differing numbering methods.
The MSN supplementary service is applicable to all telecommunication services.
This standard is applicable to the stage two and stage three standards for the ISDN MSN supplementary
service. The terms "stage two" and "stage three" are also defined in CCITT Recommendation I.130 [1].
Where the text indicates the status of a requirement (i.e. as strict command or prohibition, as
authorisation leaving freedom, as a capability or possibility), this shall be reflected in the text of the
relevant stage two and stage three standards.
Furthermore, conformance to this standard is met by conforming to the stage three standards with the
field of application appropriate to the equipment being implemented. Therefore no method of testing is
provided for this standard.
Page 8
ETS 300 050: October 1991
2 Normative references
This standard incorporates, by dated or undated reference, provisions from other publications. These
normative references are cited at the appropriate places in the text and the publications are listed
hereafter. For dated references, subsequent amendments to, or revisions of any of these publications
apply to this standard only when incorporated in it by amendment or revision. For undated references the
latest edition of the publication referred to applies.
[1] CCITT Recommendation I.130 (1988): "Method for the characterisation of
telecommunication services supported by an ISDN and network capabilities of
an ISDN".
[2] CCITT Recommendation I.112 (1988): "Vocabulary of terms for ISDNs".
[3] CCITT Recommendation E.164 (1988): "Numbering plan for the ISDN era".
[4] ETS 300 089 (1991): "Integrated Services Digital Network (ISDN); Calling Line
Identification
...
