SIST ETS 300 392-10-9 E2:2003

• Abstract:

  Revision of Stage 1 after PE resolution of STages 2 and 3.

• Status: Published
• Publication Date: 30-Nov-2003
• ICS: 33.070.10 - Terrestrial Trunked Radio (TETRA)
• Technical Committee: SS EIT - Technical Board for the electrotechnical, information technology and telecommunications fields
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Dec-2003
• Due Date: 01-Dec-2003
• Completion Date: 01-Dec-2003
• Mandate: T-172-1A
• Ref Project: ETSI ETS 300 392-10-9 ed.2 (1998-12) - Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D); Part 10: Supplementary services stage 1; Sub-part 9: Access priority

SIST ETS 300 392-10-9 E2:2003 is the Slovene adoption of ETS 300 392-10-9 Edition 2 for Terrestrial Trunked Radio (TETRA) Voice plus Data (V+D). It specifies the stage 1 service description of the supplementary service Access Priority (SS-AP) for TETRA users, mobile stations and the Switching and Management Infrastructure (SwMI). In practice, it tells network operators, terminal designers and service administrators how access priority is applied when radio access is congested.

What does SIST ETS 300 392-10-9 E2:2003 specify?

SIST ETS 300 392-10-9 E2:2003 specifies the user-level behavior of SS-AP in TETRA, including when a mobile station may attempt uplink access and how priority is compared with the network broadcast value. The document also defines the service procedures, interactions with other supplementary services, and interworking behavior.

The standard is organized into:

• Scope
• Normative references
• Definitions and abbreviations
• Clause 4, which contains the stage 1 specification
• History

Clause 4 is split into the service description, procedures, interactions with other supplementary services, interworking considerations, and an overall SDL view of the service behavior.

What are the key requirements of SIST ETS 300 392-10-9 E2:2003?

SS-AP is used to let a user gain access to the TETRA system during radio link congestion, with preferential treatment on uplink access. In practical terms, the network can control who may start a call or data transfer when access resources are limited.

Service applicability and priority handling

Clause 4.1.2 applies SS-AP to TETRA circuit mode teleservices, circuit mode bearer services, packet mode data services, Short Data Services (SDS), and supplementary services management. The standard also says the Access Priority Level (APL) is handled in the Mobile Station (MS) and checked against a broadcast APL from the SwMI. This means access can be controlled per service and per subscriber identity.

Provisioning, activation and definition

Clause 4.2.1 says provision and withdrawal are by pre-arrangement with the service provider and are handled per TETRA number, that is, per Individual TETRA Subscriber Identity (ITSI) or Group TETRA Subscriber Identity (GTSI). Clause 4.2.2 says SS-AP is permanently activated in all MSs, while the service provider may activate or deactivate it in the SwMI. An authorized user may define the APL, for example in dispatcher operations.

Registration and interrogation

Clause 4.2.2.3 allows the SwMI to register authorized users who may define or interrogate the service, including their ITSI jurisdiction. Clause 4.2.2.4 requires the SwMI, when interrogation is supported, to provide low and high access priority APLs per service. This gives operators a way to check the current priority settings for a subscriber.

Invocation and operation

Clause 4.2.2.6 describes the core behavior: the SwMI broadcasts an APL, the MS stores it, and the MS compares that broadcast value with the user’s selected priority. If the MS APL is greater than or equal to the broadcast APL, access is allowed; otherwise the terminal must wait. This is the mechanism that controls access during congestion.

Exceptional cases, interactions and roaming

Clause 4.2.3 covers rejection cases such as an unauthorized user or an unknown TETRA identity, and it notes that the SwMI may redefine APLs if an MS tries to access without the right priority. Clause 4.3 states that SS-AP has no interaction with most listed supplementary services, while Pre-emptive Priority Call (SS-PPC) should apply the highest APL. Clause 4.4 says that when an MS moves to another SwMI, it uses default APLs until new APLs are downloaded.

What terms does SIST ETS 300 392-10-9 E2:2003 define?

• Access Priority Level (APL) - The priority value used to decide whether an MS may make an access attempt for a given service.
• Supplementary Service Access Priority (SS-AP) - The TETRA supplementary service that controls access under congestion.
• Mobile Station (MS) - The subscriber terminal that stores and uses the APL.
• Switching and Management Infrastructure (SwMI) - The network side of TETRA, excluding subscriber terminals, that broadcasts and manages APLs.
• Individual TETRA Subscriber Identity (ITSI) - A per-user TETRA identity used for provisioning and control.
• Group TETRA Subscriber Identity (GTSI) - A group identity used for service provisioning and access control.
• served user - The user making the service request.

Who uses SIST ETS 300 392-10-9 E2:2003?

This standard is used by TETRA network operators, SwMI implementers, MS manufacturers, service providers and dispatcher system designers. It is also relevant to quality and conformance teams that need to verify how access priority behaves during congestion, provisioning, interrogation and roaming.

What changed in SIST ETS 300 392-10-9 E2:2003 from the previous edition?

The document history shows a first edition from April 1996 and a second edition from December 1998. The scope describes this version as a revision of the Stage 1 specification after PE resolution of Stages 2 and 3.

Which standards are used with SIST ETS 300 392-10-9 E2:2003?

• CCITT Recommendation I.130 - Gives the method used to characterize telecommunication services supported by an ISDN and network capabilities.
• ITU-T Recommendation Z.100 - Provides Specification and Description Language (SDL), which the standard uses for its overall behavior model.
• ETS 300 392-2 - Provides the TETRA air interface background, including the low and high access priority reference used by SS-AP.
• Part 9: General requirements for supplementary services - Gives the common framework for TETRA supplementary services.
• Part 11: Supplementary services stage 2 - Covers the stage 2 view of supplementary services.
• Part 12: Supplementary services stage 3 - Covers the stage 3 view of supplementary services.

What does the SIST ETS 300 392-10-9 E2:2003 document contain?

Clause 4.2 sets out provisioning, activation, registration, interrogation and exceptional procedures for SS-AP. Clause 4.3 lists interactions with many named supplementary services, which is useful when integrating SS-AP with other TETRA features. Clause 4.5 includes an SDL figure showing the overall MS behavior for SS-AP, so implementers can model how access decisions are made.

SLOVENSKI STANDARD
01-december-2003
Prizemni snopovni radio (TETRA) – Govor in podatki (V+D) – 10. del: Dopolnilne
storitve stopnje 1 – 9. poglavje: Dostopovna prednost
Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D); Part 10: Supplementary
services stage 1; Sub-part 9: Access priority
Ta slovenski standard je istoveten z: ETS 300 392-10-9 Edition 2
ICS:
33.070.10 Prizemni snopovni radio Terrestrial Trunked Radio
(TETRA) (TETRA)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN ETS 300 392-10-9
TELECOMMUNICATION December 1998
STANDARD Second Edition
Source: TETRA Reference: RE/TETRA-03001-10-09
ICS: 33.020
Key words: TETRA, V+D
Terrestrial Trunked Radio (TETRA);
Voice plus Data (V+D);
Part 10: Supplementary services stage 1;
Sub-part 9: Access priority
ETSI
European Telecommunications Standards Institute
ETSI Secretariat
Postal address: F-06921 Sophia Antipolis CEDEX - FRANCE
Office address: 650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCE
Internet: [e-mail] - http://www.etsi.org
Tel.: [phone] - Fax: [phone]
Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and the
foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1998. All rights reserved.

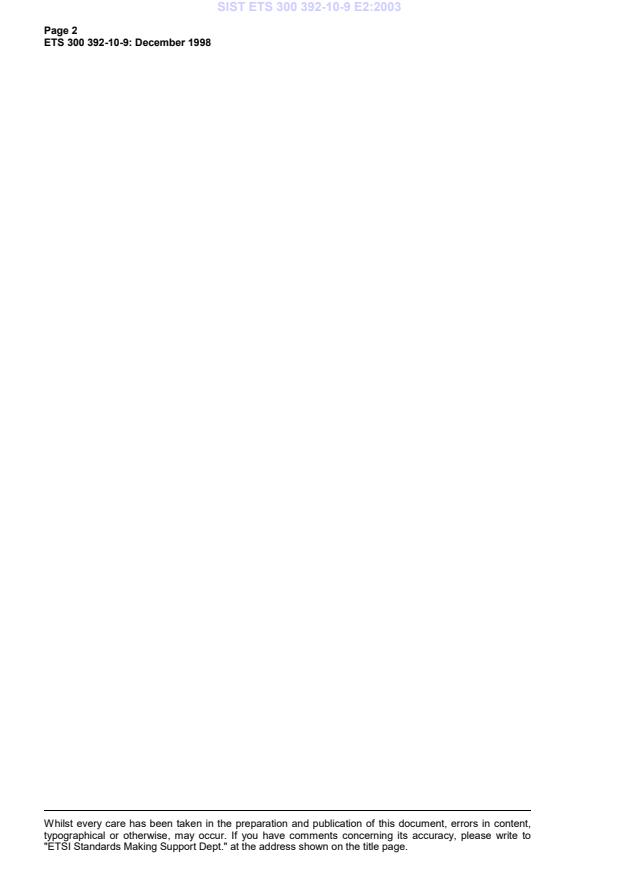

Page 2
ETS 300 392-10-9: December 1998
Whilst every care has been taken in the preparation and publication of this document, errors in content,
typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to
"ETSI Standards Making Support Dept." at the address shown on the title page.

Page 3
ETS 300 392-10-9: December 1998
Contents
Foreword .5
1 Scope .7
2 Normative references.7
3 Definitions and abbreviations .7
3.1 Definitions .7
3.2 Abbreviations .8
3.2.1 General abbreviations .8
3.2.2 Supplementary service abbreviations .8
4 Supplementary Service Access Priority (SS-AP) stage 1 specification.9
4.1 Description.9
4.1.1 General description .9
4.1.2 Qualifications on applicability to telecommunication services.9
4.2 Procedures.9
4.2.1 Provision and withdrawal.9
4.2.2 Normal procedures.9
4.2.2.1 Activation and deactivation .9
4.2.2.2 Definition.10
4.2.2.3 Registration.10
4.2.2.4 Interrogation.10
4.2.2.5 Cancellation.10
4.2.2.6 Invocation and operation .10
4.2.3 Exceptional procedures.10
4.2.3.1 Activation and deactivation .10
4.2.3.2 Definition.11
4.2.3.3 Registration.11
4.2.3.4 Interrogation.11
4.2.3.5 Cancellation.11
4.2.3.6 Invocation and operation .11
4.3 Interactions with other supplementary services.11
4.3.1 Calling Line Identification Presentation (SS-CLIP).11
4.3.2 Connected Line identification Presentation (SS-COLP).11
4.3.3 Calling/Connected Line Identification Restriction (SS-CLIR) .11
4.3.4 Call Report (SS-CR).11
4.3.5 Talking Party Identification (SS-TPI) .11
4.3.6 Call Forwarding Unconditional (SS-CFU).11
4.3.7 Call Forwarding on Busy (SS-CFB).12
4.3.8 Call Forwarding on No Reply (SS-CFNRy) .12
4.3.9 Call Forwarding on Not Reachable (SS-CFNRc) .12
4.3.10 List Search Call (SS-LSC).12
4.3.11 Call Authorized by Dispatcher (SS-CAD) .12
4.3.12 Short Number Addressing (SS-SNA) .12
4.3.13 Area Selection (SS-AS).12
4.3.14 Access Priority (SS-AP) .12
4.3.15 Priority Call (SS-PC).12
4.3.16 Call Waiting (SS-CW) .12
4.3.17 Call Hold (SS-HOLD) .12
4.3.18 Call Completion to Busy Subscriber (SS-CCBS) .12
4.3.19 Late Entry (SS-LE) .12
4.3.20 Transfer of Control (SS-TC).12
4.3.21 Pre-emptive Priority Call (SS-PPC).12
4.3.22 Include Call (SS-IC).13
4.3.23 Advice of Charge (SS-AoC) .13
4.3.24 Barring of Outgoing Calls (SS-BOC).13

Page 4
ETS 300 392-10-9: December 1998
4.3.25 Barring of Incoming Calls (SS-BIC) . 13
4.3.26 Discreet Listening (SS-DL) . 13
4.3.27 Ambience Listening (SS-AL). 13
4.3.28 Dynamic Group Number Assignment (DGNA) . 13
4.3.29 Call Completion on No Reply (SS-CCNR). 13
4.3.30 Call Retention (SS-CRT) . 13
4.4 Interworking considerations . 13
4.5 Overall SDL. 14
History. 15

Page 5
ETS 300 392-10-9: December 1998
Foreword
This second edition European Telecommunication Standard (ETS) has been produced by the Terrestrial
Trunked Radio (TETRA) Project of the European Telecommunications Standards Institute (ETSI).
This ETS is a multi-part standard and will consist of the following parts:
Part 1: "General network design";
Part 2: "Air Interface (AI)";
Part 3: "Interworking at the Inter-System Interface (ISI)";
Part 4: "Gateways basic operation";
Part 5: "Peripheral Equipment Interface (PEI)";
Part 6: "Line connected Station (LS)";
Part 7: "Security";
Part 9: "General requirements for supplementary services";
Part 10: "Supplementary services stage 1";
Part 11: "Supplementary services stage 2";
Part 12: "Supplementary services stage 3";
Part 13: "SDL model of the Air Interface (AI)";
Part 14: "Protocol Implementation Conformance Statement (PICS) proforma specification".
Transposition dates
Date of adoption of this ETS: 27 November 1998
Date of latest announcement of this ETS (doa): 28 February 1999
Date of latest publication of new National Standard
or endorsement of this ETS (dop/e): 31 August 1999
Date of withdrawal of any conflicting National Standard (dow): 31 August 1999

Page 6
ETS 300 392-10-9: December 1998
Blank page
Page 7
ETS 300 392-10-9: December 1998
1 Scope
This European Telecommunication Standard (ETS) defines the stage 1 specifications of the
Supplementary Service Access Priority (SS-AP) for the Terrestrial Trunked Radio (TETRA). Stage 1 is an
overall service description from the users point of view but does not deal with the details of the human
interface itself.
This ETS specifies the service description of the supplementary service and the procedures to be
expected with successful and unsuccessful outcomes. In addition this ETS specifies the interactions with
other TETRA supplementary services and interworking considerations.
Charging principles are outside the scope of this ETS.
The SS-AP enables to define specific priorities in an MS for uplink random access messages (at the air
interface) for circuit mode or packet mode communications.
2 Normative references
This ETS incorporates, by dated or undated reference, provisions from other publications. These
normative references are cited at the appropriate places in the text and the publications are listed
hereafter. For dated references, subsequent amendments to or revisions of any of these publications
apply to this ETS only when incorporated in it by amendment or revision. For undated references the latest
edition of the publication referred to applies.
[1] CCITT Recommendation I.130 (1988): "Method for the characterization of
telecommunication services supported by an ISDN and network capabilities of
an ISDN".
[2] ITU-T Recommendation Z.100 (1993): "Specification and Description Language
(SDL)".
[3] ETS 300 392-2 (1996): "Terrestrial Trunked Radio (TETRA); Voice plus Data
(V+D); Part 2: Air Interface (AI)".
3 Definitions and abbreviations
3.1 Definitions
For the purposes of this ETS, the following definitions apply:
access control: The prevention of unauthorized use of resources, including the use of a resource in an
unauthorized manner.
access priority level: A specific PDU priority level defined for an MS by SS-AP for a given primitive
access priority (low or high, see clause 11 of ETS 300 392-2 [3]) and for a given service. The possible
services are: circuit mode services (whether invoked as individual calls or as group calls), SDS, CONS,
SCLNS and s
...
