Digital cellular telecommunications system (Phase 2+) (GSM); Radio transmission and reception (GSM 05.05 version 8.4.1 Release 1999)

05.05; S31b; CR: A247; R99; 8.3.0; 8.4.0; Conforming requirements for LMUs containing a control mobile station 05.05; S31b; CR: A154; R99; 8.3.0; 8.4.0; Completion of GSM 05.05 for EDGE and clean-up

Digitalni celični telekomunikacijski sistem (faza 2+) – Radijsko oddajanje in sprejemanje (GSM 05.05, različica 8.4.1, izdaja 1999)

General Information

• Status: Published
• Publication Date: 30-Nov-2003
• ICS: 33.070.50 - Global System for Mobile Communication (GSM)
• Technical Committee: SS EIT - Technical Board for the electrotechnical, information technology and telecommunications fields
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Dec-2003
• Due Date: 01-Dec-2003
• Completion Date: 01-Dec-2003
• Ref Project: ETSI EN 300 910 V8.4.1 (2000-10) - Digital cellular telecommunications system (Phase 2+) (GSM); Radio transmission and reception (GSM 05.05 version 8.4.1 Release 1999)

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Digital cellular telecommunications system (Phase 2+) (GSM); Radio transmission and reception (GSM 05.05 version 8.4.1 Release 1999)33.070.50Globalni sistem za mobilno telekomunikacijo (GSM)Global System for Mobile Communication (GSM)ICS:Ta slovenski standard je istoveten z:EN 300 910 Version 8.4.1SIST EN 300 910 V8.4.1:2003en01-december-2003SIST EN 300 910 V8.4.1:2003SLOVENSKI
STANDARD



SIST EN 300 910 V8.4.1:2003



ETSIEN300910V8.4.1(2000-10)EuropeanStandard(Telecommunicationsseries)Digitalcellulartelecommunicationssystem(Phase2+);Radiotransmissionandreception(GSM05.05version8.4.1Release1999)GLOBALSYSTEMFORMOBILECOMMUNICATIONSRSIST EN 300 910 V8.4.1:2003

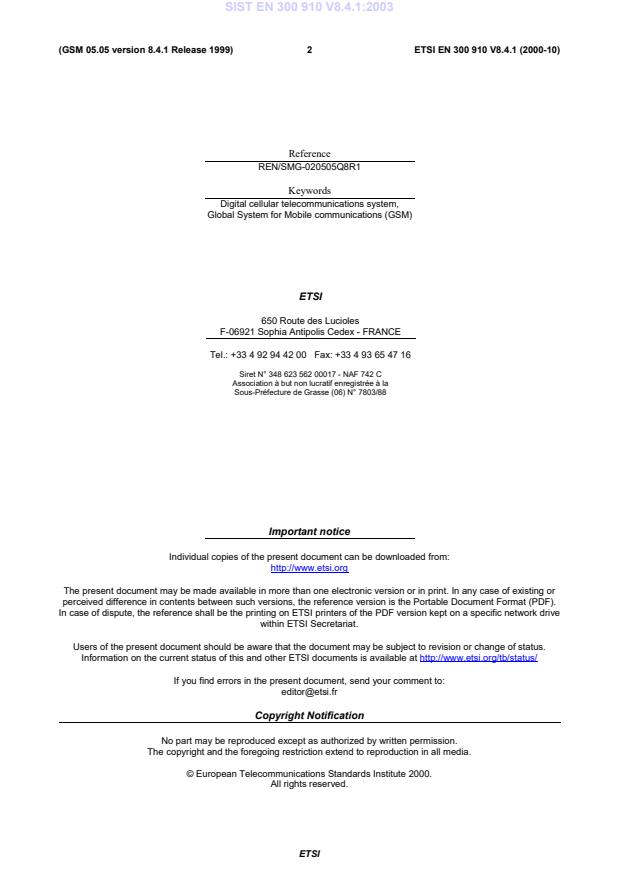

ETSIETSIEN300910V8.4.1(2000-10)2(GSM05.05version8.4.1Release1999)ReferenceREN/SMG-020505Q8R1KeywordsDigitalcellulartelecommunicationssystem,GlobalSystemforMobilecommunications(GSM)ETSI650RoutedesLuciolesF-06921SophiaAntipolisCedex-FRANCETel.:[phone]Fax:[phone]SiretN°34862356200017-NAF742CAssociationàbutnonlucratifenregistréeàlaSous-PréfecturedeGrasse(06)N°7803/88ImportantnoticeIndividualcopiesofthepresentdocumentcanbedownloadedfrom:http://www.etsi.orgThepresentdocumentmaybemadeavailableinmorethanoneelectronicversionorinprint.Inanycaseofexistingorperceiveddifferenceincontentsbetweensuchversions,thereferenceversionisthePortableDocumentFormat(PDF).Incaseofdispute,thereferenceshallbetheprintingonETSIprintersofthePDFversionkeptonaspecificnetworkdrivewithinETSISecretariat.Usersofthepresentdocumentshouldbeawarethatthedocumentmaybesubjecttorevisionorchangeofstatus.InformationonthecurrentstatusofthisandotherETSIdocumentsisavailableathttp://www.etsi.org/tb/status/Ifyoufinderrorsinthepresentdocument,sendyourcommentto:[e-mail]opartmaybereproducedexceptasauthorizedbywrittenpermission.Thecopyrightandtheforegoingrestrictionextendtoreproductioninallmedia.©EuropeanTelecommunicationsStandardsInstitute2000.Allrightsreserved.SIST EN 300 910 V8.4.1:2003



ETSIETSIEN300910V8.4.1(2000-10)3(GSM05.05version8.4.1Release1999)ContentsIntellectualPropertyRights.6Foreword.61Scope.71.1References.71.2Abbreviations.82Frequencybandsandchannelarrangement.83Referenceconfiguration.104Transmittercharacteristics.104.1Outputpower.104.1.1MobileStation.104.1.2Basestation.144.1.2.1AdditionalrequirementsforPCS1900andMXM1900Basestations.144.1.2.2AdditionalrequirementsforGSM850andMXM850Basestations.154.2OutputRFspectrum.154.2.1Spectrumduetothemodulationandwidebandnoise.154.2.2Spectrumduetoswitchingtransients.194.3Spuriousemissions.204.3.1Principleofthespecification.214.3.2BaseTransceiverStation.214.3.3MobileStation.224.3.3.1MobileStationGSM400,GSM900andDCS1800.224.3.3.2MobileStationGSM850andPCS1900.234.4Radiofrequencytolerance.244.5Outputleveldynamicoperation.244.5.1BaseTransceiverStation.244.5.2MobileStation.244.6Modulationaccuracy.244.6.1GMSKmodulation.244.6.28-PSKmodulation.254.6.2.1RMSEVM.254.6.2.2OriginOffsetSuppression.254.6.2.3PeakEVM.264.6.2.495:thpercentile.264.7Intermodulationattenuation.264.7.1Basetransceiverstation.264.7.2IntraBTSintermodulationattenuation.264.7.2.1GSM400,GSM900,DCS1800.264.7.2.2MXM850andMXM1900.264.7.2.3GSM850andPCS1900.274.7.3IntermodulationbetweenMS(DCS1800&PCS1900only).274.7.4MobilePBX(GSM900only).275Receivercharacteristics.275.1Blockingcharacteristics.275.2AMsuppressioncharacteristics.305.3Intermodulationcharacteristics.315.4Spuriousemissions.316Transmitter/receiverperformance.326.1NominalErrorRates(NER).326.1.1GMSKmodulation.326.1.28-PSKmodulation.336.2Referencesensitivitylevel.336.3Referenceinterferencelevel.366.4Erroneousframeindicationperformance.38SIST EN 300 910 V8.4.1:2003



ETSIETSIEN300910V8.4.1(2000-10)4(GSM05.05version8.4.1Release1999)6.5Randomaccessandpagingperformanceathighinputlevels.386.6Frequencyhoppingperformanceunderinterferenceconditions.396.7IncrementalRedundancyPerformanceforEGPRSMS.39AnnexA(informative):Spectrumcharacteristics(spectrumduetothemodulation).58AnnexB(normative):Transmittedpowerlevelversustime.70AnnexC(normative):Propagationconditions.74C.1Simplewidebandpropagationmodel.74C.2Dopplerspectrumtypes.74C.3Propagationmodels.75C.3.1Typicalcaseforruralarea(RAx):(6tapsetting).75C.3.2Typicalcaseforhillyterrain(HTx):(12tapsetting).75C.3.3Typicalcaseforurbanarea(TUx):(12tapsetting).76C.3.4Profileforequalizationtest(EQx):(6tapsetting).76C.3.5Typicalcaseforverysmallcells(TIx):(2tapsetting).76AnnexD(normative):Environmentalconditions.77D.1General.77D.2EnvironmentalrequirementsfortheMSs.77D.2.1Temperature(GSM400,GSM900andDCS1800).77D.2.1.1EnvironmentalConditions(PCS1900andGSM850).77D.2.2Voltage.77D.2.3Vibration(GSM400,GSM900andDCS1800).78D.2.3.1Vibration(PCS1900andGSM850).78D.3EnvironmentalrequirementsfortheBSSequipment.78D.3.1EnvironmentalrequirementsfortheBSSequipment.79AnnexE(normative):Repeatercharacteristics(GSM400,GSMGSM900andDCS1800).80E.1Introduction.80E.2Spuriousemissions.80E.3Intermodulationproducts.81E.4Outofbandgain.81E.5Frequencyerrorandmodulationaccuracy.81E.5.1Frequencyerror.81E.5.2ModulationaccuracyatGMSKmodulation.82E.5.3Modulationaccuracyat8-PSKmodulation.82AnnexF(normative):AntennaFeederLossCompensatorCharacteristics(GSM400,GSM900andDCS1800).83F.1Introduction.83F.2Transmittingpath.83F.2.1Maximumoutputpower.83F.2.2Gain.84F.2.3Bursttransmissioncharacteristics.84F.2.4Phaseerror.85F.2.5Frequencyerror.85F.2.6Groupdelay.85F.2.7Spuriousemissions.85F.2.8VSWR.86F.2.9Stability.86F.3Receivingpath.86F.3.1Gain.86SIST EN 300 910 V8.4.1:2003



ETSIETSIEN300910V8.4.1(2000-10)5(GSM05.05version8.4.1Release1999)F.3.2Noisefigure.86F.3.3Groupdelay.86F.3.4Intermodulationperformance.86F.3.5VSWR.86F.3.6Stability.87F.4Guidelines(informative).87AnnexG(normative):CalculationofErrorVectorMagnitude.88AnnexH(normative):RequirementsonLocationMeasurementUnit.90H.1TOALMURequirements.90H.1.1Void.90H.1.2LMUcharacteristics.90H.1.2.1Blockingcharacteristics.90H.1.2.2AMsuppressioncharacteristics.91H.1.2.3Intermodulationcharacteristics.91H.1.2.4Spuriousemissions.91H.1.3Time-of-ArrivalMeasurementPerformance.91H.1.3.1SensitivityPerformance.91H.1.3.2InterferencePerformance.92H.1.3.3MultipathPerformance.93H.1.4RadioInterfaceTimingMeasurementPerformance.93H.2E-OTDLMURequirements.94H.2.1LMUCharacteristics.94H.2.1.1Blockingcharacteristics.94H.2.1.2AMsuppressioncharacteristics.94H.2.1.3Intermodulationcharacteristics.94H.2.2SensitivityandInterferencePerformance.94H.2.2.1SensitivityPerformance.95H.2.2.2InterferencePerformance.95H.2.2.3MultipathPerformance.96AnnexI(normative):E-OTDMobileStationRequirements.97I.1Introduction.97I.2SensitivityandInterferencePerformance.97I.2.1SensitivityPerformance.97I.2.2InterferencePerformance.98I.2.3MultipathPerformance.98AnnexL(informative):Changecontrolhistory.99History.101SIST EN 300 910 V8.4.1:2003



ETSIETSIEN300910V8.4.1(2000-10)6(GSM05.05version8.4.1Release1999)IntellectualPropertyRightsIPRsessentialorpotentiallyessentialtothepresentdocumentmayhavebeendeclaredtoETSI.TheinformationpertainingtotheseessentialIPRs,ifany,ispubliclyavailableforETSImembersandnon-members,andcanbefoundinETSISR000314:"IntellectualPropertyRights(IPRs);Essential,orpotentiallyEssential,IPRsnotifiedtoETSIinrespectofETSIstandards",whichisavailablefromtheETSISecretariat.LatestupdatesareavailableontheETSIWebserver(http://www.etsi.org/ipr).PursuanttotheETSIIPRPolicy,noinvestigation,includingIPRsearches,hasbeencarriedoutbyETSI.NoguaranteecanbegivenastotheexistenceofotherIPRsnotreferencedinETSISR000314(ortheupdatesontheETSIWebserver)whichare,ormaybe,ormaybecome,essentialtothepresentdocument.ForewordThisEuropeanStandard(Telecommunicationsseries)hasbeenproducedbyETSITechnicalCommitteeSpecialMobileGroup(SMG).Thepresentdocumentdefinestherequirementsforthetransceiverofthedigitalmobilecellularandpersonalcommunicationsystemsoperatinginthe900MHz(P-GSM,E-GSMandR-GSM)and1800MHzband(GSM900andDCS1800).Italsoincludesspecificationinformationformixedmodeoperationat850MHzand1900MHz.(MXM850andMXM1900)850MHzand1900MHzmixed-modeisdefinedasanetworkthatdeploysboth30kHzRFcarriersand200kHzRFcarriersingeographicregionswheretheFederalCommunicationsCommission(FCC)regulationsareapplied.ThecontentsofthepresentdocumentmaybesubjecttocontinuingworkwithinSMGandmaychangefollowingformalSMGapproval.ShouldSMGmodifythecontentsofthepresentdocumentitwillthenbere-submittedforformalapprovalproceduresbyETSIwithanidentifyingchangeofreleasedateandanincreaseinversionnumberasfollows:Version8.x.ywhere:8GSMPhase2+Release1999.xtheseconddigitisincrementedforchangesofsubstance,i.e.technicalenhancements,corrections,updates,etc.;ythethirddigitisincrementedwheneditorialonlychangeshavebeenincorporatedinthespecification.NationaltranspositiondatesDateofadoptionofthisEN:29September2000DateoflatestannouncementofthisEN(doa):31December2000DateoflatestpublicationofnewNationalStandardorendorsementofthisEN(dop/e):30June2001DateofwithdrawalofanyconflictingNationalStandard(dow):30June2001SIST EN 300 910 V8.4.1:2003



ETSIETSIEN300910V8.4.1(2000-10)7(GSM05.05version8.4.1Release1999)1ScopeThepresentdocumentdefinestherequirementsforthetransceiverofthepan-EuropeandigitalcellulartelecommunicationssystemsGSM.Requirementsaredefinedfortwocategoriesofparameters:-thosethatarerequiredtoprovidecompatibilitybetweentheradiochannels,connectedeithertoseparateorcommonantennas,thatareusedinthesystem.Thiscategoryalsoincludesparametersprovidingcompatibilitywithexistingsystemsinthesameoradjacentfrequencybands;-thosethatdefinethetransmissionqualityofthesystem.ThisENdefinesRFcharacteristicsfortheMobileStation(MS)andBaseStationSystem(BSS).TheBSSwillcontaineitherBaseTransceiverStations(BTS)ormicrocellbasetransceiverstations(micro-BTS).TheprecisemeasurementmethodsarespecifiedinGSM11.10andGSM11.21.Unlessotherwisestated,therequirementsdefinedinthisENapplytothefullrangeofenvironmentalconditionsspecifiedfortheequipment(seeannexD).TherequirementsforaMSinamixed-modesystem,MXM850andMXM1900,correspondstotherequirementsforGSM850MSandPCS1900MSrespectively.Inthepresentdocumentsomerelaxation'sareintroducedforGSM400MSs,GSM900MSsandGSM850MSswhichfulfilthefollowingconditions:-pertaintopowerclass4or5(seesubclause4.1.1);-notdesignedtobevehiclemounted(seeGSM02.06).InthepresentdocumenttheseMobileStationsarereferredtoas"smallMS".NOTE:InthisEN,ahandheldwhichcanbeconnectedtoacarkitisnotconsideredtobevehiclemounted.MSsmayoperateonmorethanoneofthefrequencybandsspecifiedinclause2.TheseMSs,definedinGSM02.06,arereferredtoas"MultibandMSs"inthisEN.MultibandMSsshallmeetallrequirementsforeachofthebandssupported.TherelaxationonGSM400MSs,GSM900MSsandGSM850MSsfora"smallMS"arealsovalidforamultibandMSifitcomplieswiththedefinitionofasmallMS.TheRFcharacteristicsofrepeatersaredefinedinannexEofthisEN.AnnexesDandEaretheonlyclausesofthisENapplicabletorepeaters.AnnexEdoesnotapplytotheMSorBSS.1.1ReferencesThefollowingdocumentscontainprovisionswhich,throughreferenceinthistext,constituteprovisionsofthepresentdocument.• Referencesareeitherspecific(identifiedbydateofpublication,editionnumber,versionnumber,etc.)ornon-specific.• Foraspecificreference,subsequentrevisionsdonotapply.• Foranon-specificreference,thelatestversionapplies.• Anon-specificreferencetoanETSshallalsobetakentorefertolaterversionspublishedasanENwiththesamenumber.• ForthisRelease1999document,referencestoGSMdocumentsareforRelease1999versions(version8.x.y).[1]GSM01.04:"Digitalcellulartelecommunicationssystem(Phase2+);Abbreviationsandacronyms".SIST EN 300 910 V8.4.1:2003



ETSIETSIEN300910V8.4.1(2000-10)8(GSM05.05version8.4.1Release1999)[2]GSM02.06:"Digitalcellulartelecommunicationssystem(Phase2+);TypesofMobileStations(MS)".[3]GSM03.64:"Digitalcellulartelecommunicationssystem(Phase2+);GeneralPacketRadioService(GPRS);GPRSRadioInterfaceStage2".[3a]GSM03.71:"Digitalcellulartelecommunicationsystem(Phase2+);LocationServices;Functionaldescription–Stage2".[4]GSM05.01:"Digitalcellulartelecommunicationssystem(Phase2+);PhysicallayerontheradiopathGeneraldescription".[5]GSM05.04:"Digitalcellulartelecommunicationssystem(Phase2+);Modulation".[6]GSM05.08:"Digitalcellulartelecommunicationssystem(Phase2+);Radiosubsystemlinkcontrol".[7]GSM05.10:"Digitalcellulartelecommunicationssystem(Phase2+);Radiosubsystemsynchronization".[8]GSM11.10:"Digitalcellulartelecommunicationssystem(Phase2+);MobileStation(MS)conformityspecification".[9]GSM11.11:"Digitalcellulartelecommunicationssystem(Phase2+);SpecificationoftheSubscriberIdentityModule-MobileEquipment(SIM-ME)interface".[10]ITU-TRecommendationO.153:"Basicparametersforthemeasurementoferrorperformanceatbitratesbelowtheprimaryrate".[11]ETS300019-1-3:"EquipmentEngineering(EE);Environmentalconditionsandenvironmentaltestsfortelecommunicationsequipment;Part1-3:ClassificationofenvironmentalconditionsStationaryuseatweatherprotectedlocations".[12]ETS300019-1-4:"EquipmentEngineering(EE);Environmentalconditionsandenvironmentaltestsfortelecommunicationsequipment;Part1-4:ClassificationofenvironmentalconditionsStationaryuseatnon-weatherprotectedlocations".[13]GSM04.14:"Digitalcellulartelecommunicationssystem(Phase2+);Individualequipmenttyperequirementsandinterworking;Specialconformancetestingfunctions".[14]FCCTitle47CFRPart24:“PersonalCommunicationServices”,SubpartE“Broadbandservices”.[15]GSM03.52:"Digitalcellulartelecommunicationssystem(Phase2+);GSMCordlessTelephonySystem(CTS);LowerlayersoftheCTSradiointerface;Stage2".[16]ITU-TRecommendationO.151(1992):"Errorperformancemeasuringequipmentoperatingattheprimaryrateandabove".1.2AbbreviationsAbbreviationsusedinthepresentdocumentarelistedinGSM01.04.2Frequencybandsandchannelarrangementi)GSM450Band:-forGSM450,thesystemisrequiredtooperateinthefollowingband:-450,4MHzto457,6MHz:mobiletransmit,basereceive;-460,4MHzto467,6MHzbasetransmit,mobilereceive.SIST EN 300 910 V8.4.1:2003



ETSIETSIEN300910V8.4.1(2000-10)9(GSM05.05version8.4.1Release1999)ii)GSM480Band:-forGSM480,thesystemisrequiredtooperateinthefollowingband:-478,8MHzto486MHz:mobiletransmit,basereceive;-488,8MHzto496MHzbasetransmit,mobilereceive.iii)GSM850Band:-forGSM850,thesystemisrequiredtooperateinthefollowingband:-824MHzto849MHz:mobiletransmit,basereceiv
...
