SIST EN 50131-2-7-1:2012/A1:2014

Alarm systems - Intrusion and hold-up systems -- Part 2-7-1: Intrusion detectors - Glass break detectors (acoustic)

This European Standard is for passive acoustic glass break detectors installed in buildings and provides for security Grades 1 to 4 (see EN 50131-1), specific or non-specific wired or wire-free detectors, and uses environmental classes I to IV (see EN 50130-5). This European Standard does not include requirements for passive acoustic glass break detectors intended for use outdoors. A detector shall fulfil all the requirements of the specified Grade. Functions additional to the mandatory functions specified in this standard may be included in the detector, providing they do not adversely influence the correct operation of the mandatory functions. This European Standard does not apply to system interconnections.

Alarmanlagen - Einbruch- und Überfallmeldeanlagen -- Teil 2-7-1: Einbruchmelder - Glasbruchmelder (Akustisch)

Systèmes d’alarme - Systèmes d'alarme contre l’intrusion et les hold-up -- Partie 2-7-1: Détecteurs d'intrusion - Détecteurs bris de glace (acoustiques)

Alarmni sistemi - Sistemi za javljanje vloma in ropa - 2-7-1. del: Zahteve za javljalnike vloma - Javljalniki loma stekla (akustični) - Dopolnilo A1

Ta evropski standard se uporablja za pasivne akustične javljalnike loma stekla, nameščene na zgradbe, določa varnostne razrede od 1 do 4 (glejte EN 50131-1) in lastnosti specifičnih in nespecifičnih kabelskih ali brezžičnih javljalnikov ter uporablja okoljske razrede od I do IV (glejte EN 50130-5). Ta evropski standard ne vključuje zahtev za pasivne akustične javljalnike loma stekla, ki so namenjeni za uporabo na prostem. Javljalnik mora izpolnjevati vse zahteve posameznega razreda. Poleg obveznih funkcij, ki so opredeljene v tem standardu, ima lahko javljalnik tudi dodatne funkcije, pri čemer te ne smejo negativno vplivati na pravilno delovanje obveznih funkcij. Ta evropski standard se ne uporablja za medsebojne povezave sistemov.

General Information

• Status: Published
• Publication Date: 13-Jan-2014
• ICS: 13.310 - Protection against crime
• ICS: 13.320 - Alarm and warning systems
• Technical Committee: EAL - Alarm systems
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 10-Jan-2014
• Due Date: 17-Mar-2014
• Completion Date: 14-Jan-2014
• Directive: 2020-01-0063 - Pravilnik o pogojih in merilih za izdajatelja pomnilniških kartic za zapisovalno opremo v cestnih prevozih ter načinu oblikovanja in določanja cene za izdajo kartice
• Ref Project: EN 50131-2-7-1:2012/A1:2013 - Alarm systems - Intrusion and hold-up systems - Part 2-7-1: Intrusion detectors - Glass break detectors (acoustic)

Relations

• Amends: SIST EN 50131-2-7-1:2012 - Alarm systems - Intrusion and hold-up systems - Part 2-7-1: Intrusion detectors - Glass break detectors (acoustic)
• Effective Date: 01-Feb-2014

Overview

EN 50131-2-7-1:2012/A1:2013 (CENELEC) is the European amendment for acoustic glass break detectors used in alarm systems - part of the EN 50131 family for intrusion and hold‑up systems. The amendment (A1) updates test methods, immunity and environmental requirements and clarifies manufacturer information (for example, directional sensitivity). This standard is applied for product evaluation, type testing and national adoption across CENElec members.

Key topics and technical requirements

• Scope: Acoustic glass‑break (bris de glace) intrusion detectors used in alarm systems.
• Detection test environment: Passive acoustic detectors require an enclosed, draught‑free test area sized at least 15% longer than the claimed range in the long dimension and at least half that long dimension for the short dimension (example: 10 m claimed range → min. long = 11.5 m; short = 5.75 m). Window mounting location rules specify window centre must be 15–40% of wall length from either side.
• Directional sensitivity: Manufacturers should indicate if a detector is directionally sensitive; if so, related requirements apply.
• Immunity tests:
  • Small objects hitting glass - test height changed from 1.0 m to 1.80 m.
  • Hard objects via pendulum - pendulum connection must be a cotton string < 3 mm; single-hit tests without repeated bouncing.
  • Single‑frequency sound sources - sound level references updated from 80 dBA to 80 dB.
  • Wide‑band noise using flat steel rulers - detailed ruler specifications and test procedures added:
    • Short: 200 mm, cross‑section 13 × 0.4 mm, approx. 0.01 kg
    • Midsize: 300 mm, cross‑section 30 × 1 mm, approx. 0.06 kg
    • Long: 500 mm, cross‑section 30 × 1 mm, approx. 0.1 kg
  • Masking detection and environmental classification tables were renumbered and clarified (masking range materials, operational and endurance tests).
• Documentation: Amendment details and compliance dates are specified for national adoption.

Applications and who uses the standard

• Manufacturers of acoustic glass break detectors - for product design, internal validation and to ensure compliance with CENELEC test methods.
• Test laboratories and certification bodies - to perform standardized immunity, environmental and operational testing for product certification.
• System integrators and security specifiers - to select compliant detectors and understand performance limits, range and installation constraints.
• Procurement officers and regulatory bodies - to specify compliant components for commercial and residential intrusion alarm installations.

Related standards

• EN 50131 series (intrusion and hold‑up systems) - this document is Part 2‑7‑1 within that family.
• CENELEC/CENELEC member national implementations of EN 50131.

Keywords: EN 50131-2-7-1, glass break detectors, acoustic detectors, alarm systems, intrusion detection, CENELEC, immunity testing, masking, environmental classification.

Standards Content (Sample)

SLOVENSKI STANDARD
01-februar-2014
$ODUPQLVLVWHPL6LVWHPL]DMDYOMDQMHYORPDLQURSDGHO=DKWHYH]D
MDYOMDOQLNHYORPD-DYOMDOQLNLORPDVWHNODDNXVWLþQL'RSROQLOR$
Alarm systems - Intrusion and hold-up systems -- Part 2-7-1: Intrusion detectors - Glass
break detectors (acoustic)
Alarmanlagen - Einbruch- und Überfallmeldeanlagen -- Teil 2-7-1: Einbruchmelder -
Glasbruchmelder (Akustisch)
Systèmes d’alarme - Systèmes d'alarme contre l’intrusion et les hold-up -- Partie 2-7-1:
Détecteurs d'intrusion - Détecteurs bris de glace (acoustiques)
Ta slovenski standard je istoveten z: EN 50131-2-7-1:2012/A1:2013
ICS:
13.310 Varstvo pred kriminalom Protection against crime
13.320 Alarmni in opozorilni sistemi Alarm and warning systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 50131-2-7-1/A1
NORME EUROPÉENNE
December 2013
EUROPÄISCHE NORM
ICS 13.320
English version
Alarm systems -
Intrusion and hold-up systems -
Part 2-7-1: Intrusion detectors -
Glass break detectors (acoustic)

Systèmes d’alarme -  Alarmanlagen -
Systèmes d'alarme contre l’intrusion et les Einbruch- und Überfallmeldeanlagen -
hold-up - Teil 2-7-1: Einbruchmelder -
Partie 2-7-1: Détecteurs d'intrusion - Glasbruchmelder (Akustisch)
Détecteurs bris de glace (acoustiques)

This amendment A1 modifies the European Standard EN 50131-2-7-1:2012; it was approved by CENELEC on
2013-10-14. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this amendment the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This amendment exists in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CENELEC member into its own language and notified to the
CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

CEN-CENELEC Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2013 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 50131-2-7-1:2012/A1:2013 E

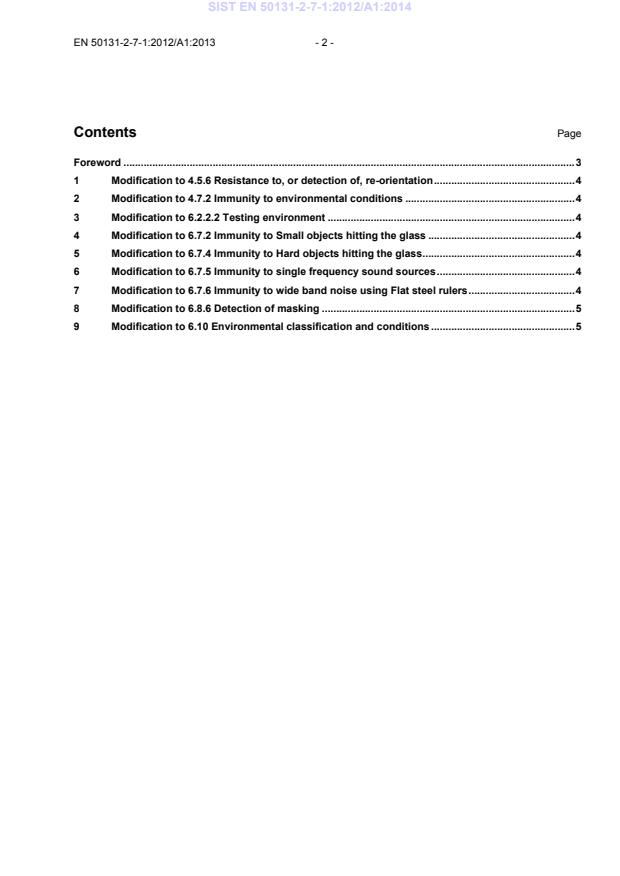

Contents Page
