SIST EN 12911:2006
(Main)Products used for treatment of water intended for human consumption - Manganese greensand
Products used for treatment of water intended for human consumption - Manganese greensand
This European Standard is applicable to manganese greensand used for treatment of water intended for human consumption. It describes the characteristics of manganese greensand and specifies the requirements and the corresponding test methods for manganese greensand. It gives information on its use in water treatment.
Produkte zur Aufbereitung von Wasser für den menschlichen Gebrauch - Mangangrünsand
Diese Europäische Norm gilt für Mangangrünsand zur Aufbereitung von Wasser für den menschlichen
Gebrauch. Sie beschreibt die Eigenschaften von Mangangrünsand und legt die Anforderungen sowie die
entsprechenden Prüfverfahren für Mangangrünsand fest. Sie enthält Angaben zu seiner Anwendung in der
Wasseraufbereitung.
Produits utilisés pour le traitement de l'eau destinée a la consommation humaine - Sable vert manganisé
La présente Norme européenne est applicable au sable vert manganisé utilisé pour le traitement de l'eau destinée à la consommation humaine. Elle décrit les caractéristiques du sable vert manganisé et spécifie les exigences et les méthodes d'essai correspondantes. Elle donne les informations pour son emploi dans le traitement de l'eau
Proizvodi, ki se uporabljajo za pripravo pitne vode – Glavkonit
General Information
Relations
Standards Content (Sample)

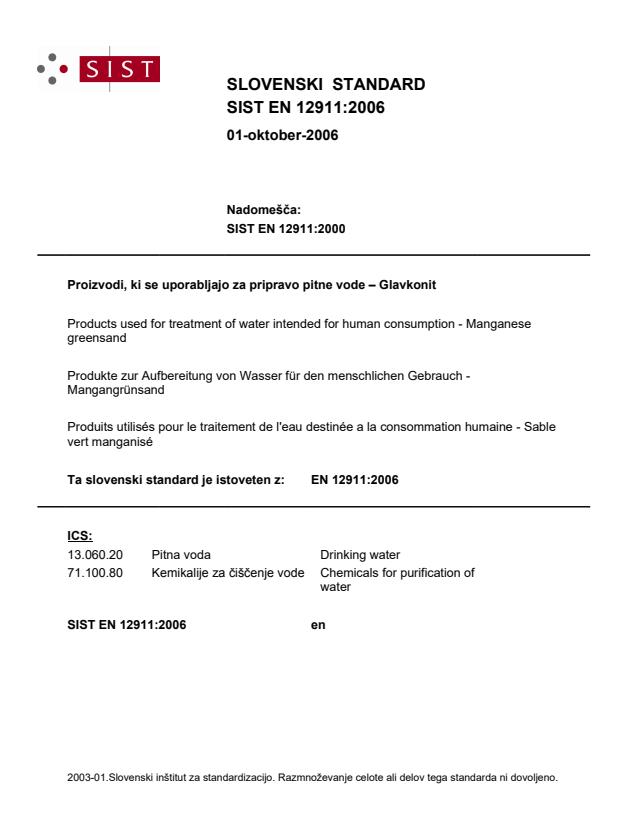

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Proizvodi, ki se uporabljajo za pripravo pitne vode – GlavkonitProdukte zur Aufbereitung von Wasser für den menschlichen Gebrauch - MangangrünsandProduits utilisés pour le traitement de l'eau destinée a la consommation humaine - Sable vert manganiséProducts used for treatment of water intended for human consumption - Manganese greensand71.100.80Chemicals for purification of water13.060.20Pitna vodaDrinking waterICS:Ta slovenski standard je istoveten z:EN 12911:2006SIST EN 12911:2006en01-oktober-2006SIST EN 12911:2006SLOVENSKI
STANDARDSIST EN 12911:20001DGRPHãþD

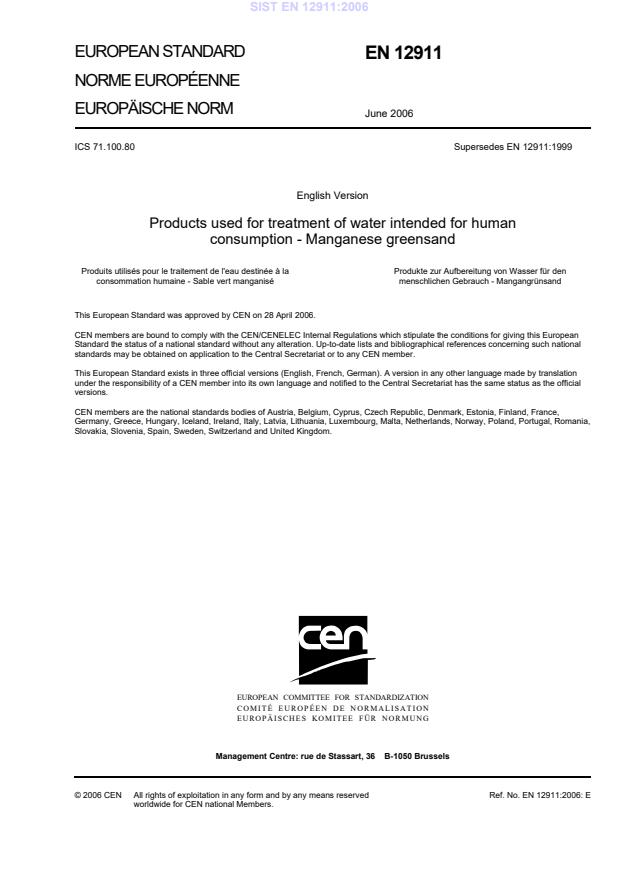

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 12911June 2006ICS 71.100.80Supersedes EN 12911:1999
English VersionProducts used for treatment of water intended for humanconsumption - Manganese greensandProduits utilisés pour le traitement de l'eau destinée à laconsommation humaine - Sable vert manganiséProdukte zur Aufbereitung von Wasser für denmenschlichen Gebrauch - MangangrünsandThis European Standard was approved by CEN on 28 April 2006.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2006 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 12911:2006: ESIST EN 12911:2006
General information on manganese greensand.13 Bibliography.17 SIST EN 12911:2006
1) Chemical Abstracts Service Registry Number. SIST EN 12911:2006
by particle size range and by mass fraction of oversize and undersize particles. The maximum permitted mass fractions of oversize and undersize are 5 %. NOTE 2 Other values can be necessary for certain applications. 5.3 Density (bulk density loose) The bulk density loose shall be at least 1 300 kg/m3.
2) European Inventory of Existing Commercial Chemical Substances. SIST EN 12911:2006
0,2 to 0,8 Mass loss at 150 °C max. 6 Ignition loss at 650 °C max. 8 a
The manganese in the product is present as a mixture of different oxides. NOTE 2 Acid-soluble material is not a relevant parameter for this product which is not stable to acids and which will react with hydrochloric acid releasing chlorine gas. NOTE 3 After filling, washing and commissioning of a filter system producing drinking water, manganese greensand should not increase the concentrations of chemical parameters (see [1]). NOTE 4 Water extractable substances, determined in accordance with the method for granular materials given in
EN 12902, can be used to estimate the leaching of the chemicals specified in EN 12902. 7 Specific properties The oxidation capacity of manganese greensand (regenerated form), expressed as grams of Mn per litre of packed product, shall be at least 0,7 g/l. 8 Test methods 8.1 Sampling Prepare the laboratory sample(s) required by the relevant procedures described in EN 12902. 8.2 Analysis 8.2.1 Particle size distribution The particle size distribution shall be determined in accordance with EN 12902. SIST EN 12911:2006
… (1) where X1 is the measured value. 8.2.4 Ignition loss at 650 °C 8.2.4.1 Principle Heating the sample to constant mass at 650 °C. It is assumed that water, including chemically bound water, is the only material present in the manganese greensand that is volatile at this temperature. At 650 °C the loss of water is practically complete. 8.2.4.2 Apparatus Ordinary laboratory apparatus and glassware together with the following. 8.2.4.2.1 Muffle furnace, capable of being controlled at (650 ± 25) °C. 8.2.4.2.2 High temperature metal or ceramic crucible with lid. 8.2.4.2.3 Desiccator. 8.2.4.2.4 Analytical balance, having an accuracy of ± 0,1 mg. 8.2.4.3 Procedure Ignite the crucible and the lid (8.2.4.2.2) in the muffle furnace at (650 ± 25) °C for 1 h. Place the crucible and the lid in the desiccator, cool to room temperature and weigh to the nearest 0,1 mg; note the mass m0. Place a 5 g to 10 g sample of manganese greensand into the pre-ignited crucible. Close the crucible and weigh immediately to the nearest 0,5 mg (m1). Remove the lid and place the crucible and lid in the muffle furnace at (650 ± 25) °C and leave for 3 h. Place the crucible in the desiccator, cover it with the lid and allow to cool to room temperature. When cool, weigh to the nearest 0,5 mg (m2). SIST EN 12911:2006
… (3) 8.2.5 Manganese content 8.2.5.1 Principle Determination of manganese in accordance with ISO 9682-1:1991, adopting the decomposition procedure "a" (alkali fusion), and using a modi
...
