Agricultural and forestry machinery - Reel machines for irrigation - Safety

This standard specifies safety requirements and their verification for the design and construction of reel machines for irrigation including self-propelled machines.
It describes methods for elimination or reduction of risks which need specific requirements for reel machines for irrigation.
In addition, it specifies the type of information on safe working practices to be provided by the manufacturer.
The list of significant hazards dealt with in this standard is given in annex A. Annex A also indicates the hazards which have not been dealt with.
Environmental aspects have not been considered in this standard.
This standard applies primarily to machines which are manufactured after the date of issue of the standard.

Land- und Forstmaschinen - Beregnungsmaschinen mit Schlauchtrommel - Sicherheit

Diese Norm enthält sicherheitstechnische Anforderungen und deren Überprüfung für die Gestaltung und
Konstruktion von Beregnungsmaschinen mit Schlauchtrommel einschließlich der selbstfahrenden Maschinen.
Sie beschreibt Maßnahmen zur Vermeidung oder Verminderung von Gefährdungen, die für die spezifischen
Anforderungen an Beregnungsmaschinen mit Schlauchtrommel benötigt werden.
Außerdem bestimmt sie Informationen über sicheres Arbeiten, die vom Hersteller zur Verfügung zu stellen
sind.
Die Liste der signifikanten Gefährdungen, die in dieser Norm angesprochen werden, ist in Anhang A aufgeführt.
Der Anhang A weist auch auf die Gefährdungen hin, die nicht behandelt wurden.
Die Umweltaspekte wurden in dieser Norm nicht in Betracht gezogen.
Diese Europäische Norm gilt in erster Linie für Maschinen, die nach dem Ausgabedatum der Norm hergestellt
worden sind.

Matériel agricole et forestier - Enrouleurs d'irrigation - Sécurité

La présente norme détermine les prescriptions de sécurité et les vérifications pour la conception et la construction
des enrouleurs d’irrigation y compris les machines automotrices.
Elle décrit les méthodes pour éliminer ou réduire les risques nécessitant des prescriptions spécifiques aux enrouleurs
d’irrigation.
En outre, elle spécifie le type d’informations que le fabricant doit donner sur les pratiques d’utilisation sûre.
La liste des phénomènes dangereux significatifs traités dans cette norme est donnée en annexe A. L’annexe A
indique également les phénomènes dangereux qui n’ont pas été traités.
Les aspects liés à l’environnement n’ont pas été pris en compte dans cette norme.
La présente norme s’applique avant tout aux machines fabriquées après la date de publication de la norme.

Kmetijski in gozdarski stroji - Bobenski namakalniki - Varnost

General Information

Status
Published
Publication Date
13-Sep-2009
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
03-Sep-2009
Due Date
08-Nov-2009
Completion Date
14-Sep-2009

Relations

Buy Standard

Standard
EN 908:1999+A1:2009
English language
16 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 908:1999+A1:2009
01-november-2009
Kmetijski in gozdarski stroji - Bobenski namakalniki - Varnost
Agricultural and forestry machinery - Reel machines for irrigation - Safety
Land- und Forstmaschinen - Beregnungsmaschinen mit Schlauchtrommel - Sicherheit
Matériel agricole et forestier - Enrouleurs d'irrigation - Sécurité
Ta slovenski standard je istoveten z: EN 908:1999+A1:2009
ICS:
65.060.35 Namakalna in drenažna Irrigation and drainage
oprema equipment
SIST EN 908:1999+A1:2009 en,fr
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST EN 908:1999+A1:2009

---------------------- Page: 2 ----------------------

SIST EN 908:1999+A1:2009


EUROPEAN STANDARD
EN 908:1999+A1

NORME EUROPÉENNE

EUROPÄISCHE NORM
July 2009
ICS 65.060.35 Supersedes EN 908:1999
English Version
Agricultural and forestry machinery - Reel machines for irrigation
- Safety
Matériel agricole et forestier - Enrouleurs d'irrigation - Land- und Forstmaschinen - Beregnungsmaschinen mit
Sécurité Schlauchtrommel - Sicherheit
This European Standard was approved by CEN on 14 December 1998 and includes Amendment 1 approved by CEN on 23 May 2009.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the
official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.






EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2009 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 908:1999+A1:2009: E
worldwide for CEN national Members.

---------------------- Page: 3 ----------------------

SIST EN 908:1999+A1:2009
EN 908:1999+A1:2009 (E)

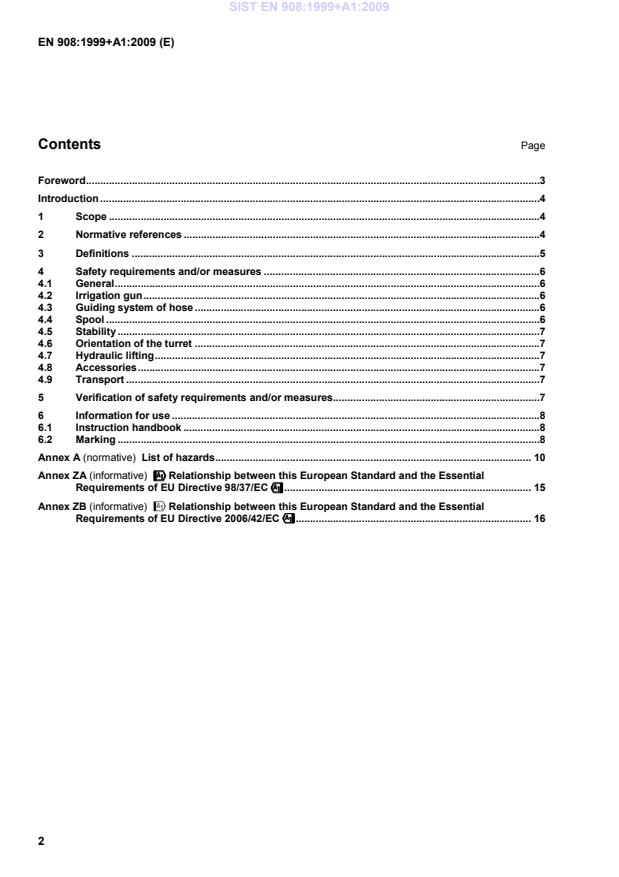

Contents Page
Foreword .3
Introduction .4
1 Scope .4
2 Normative references .4
3 Definitions .5
4 Safety requirements and/or measures .6
4.1 General .6
4.2 Irrigation gun .6
4.3 Guiding system of hose .6
4.4 Spool .6
4.5 Stability .7
4.6 Orientation of the turret .7
4.7 Hydraulic lifting .7
4.8 Accessories .7
4.9 Transport .7
5 Verification of safety requirements and/or measures .7
6 Information for use .8
6.1 Instruction handbook .8
6.2 Marking .8
Annex A (normative) List of hazards . 10
Annex ZA (informative) !!!!Relationship between this European Standard and the Essential
Requirements of EU Directive 98/37/EC"" . 15
""
Annex ZB (informative) !Relationship between this European Standard and the Essential
Requirements of EU Directive 2006/42/EC"""" . 16

2

---------------------- Page: 4 ----------------------

SIST EN 908:1999+A1:2009
EN 908:1999+A1:2009 (E)

Foreword
This document (EN 908:1999+A1:2009) has been prepared by Technical Committee CEN/TC 144 "Tractors
and machinery for agriculture and forestry", the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by January 2010, and conflicting national standards shall be withdrawn at
the latest by January 2010.
This document includes Amendment 1, approved by CEN on 2009-05-23.
This European Standard supersedes EN 908:1999.
The start and finish of text introduced or altered by amendment is indicated in the text by tags ! ".
This European Standard has been prepared under a mandate given to CEN by the European Commission
and the European Free Trade Association, and supports essential requirements of EU Directive(s).
!For relationship with EU Directive(s), see informative Annexes ZA and ZB, which are integral parts of this
document."
Annex A is normative and contains the "List of hazards".
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and United Kingdom.
3

---------------------- Page: 5 ----------------------

SIST EN 908:1999+A1:2009
EN 908:1999+A1:2009 (E)
Introduction
The extent to which hazards are covered is indicated in the scope of this standard. These hazards are specific
to reel machines for irrigation.
The hazards that are common to all the agricultural machines (self-propelled, mounted, semi-mounted and
trailed) will be dealt with in a standard currently in preparation (prEN 1553).
1 Scope
This standard specifies safety requirements and their verification for the design and construction of reel
machines for irrigation including self-propelled machines.
It describes methods for elimination or reduction of risks which need specific requirements for reel machines
for irrigation.
In addition, it specifies the type of information on safe working practices to be provided by the manufacturer.
The list of significant hazards dealt with in this standard is given in annex A. Annex A also indicates the
hazards which have not been dealt with.
Environmental aspects have not been considered in this standard.
This standard applies primarily to machines which are manufactured after the date of issue of the standard.
2 Normative references
This European Standard incorporates by dated or undated reference, provisions from other publications.
These normative references are cited at the appropriate places in the text and the publications are listed
hereafter. For dated references, subsequent amendments to or revisions of any of these publications apply to
this European Standard only when incorporated in it by amendment or revision. For undated references the
latest edition of the publication referred to applies.
EN 292-1: 1991, Safety of machinery — Basic concepts, general principles for design — Part 1: Basic
terminology, methodology.
EN 292-2:1991, Safety of machinery — Basic concepts, general principles for design — Part 2: Technical
principles and specifications (and amendment A1:1995).
EN 294:1992, Safety of machinery — Safety distances to prevent danger zones being reached by the upper
limbs.
EN 953:1997, Safety of machinery — Guards — General requirements for the design and construction of fixed
and movable guards.
prEN 1553:1998, Agricultural machinery — Agricultural self-propelled, mounted, semi-mounted and trailed
machines — Common safety requirements.
4

---------------------- Page: 6 ----------------------

SIST EN 908:1999+A1:2009
EN 908:1999+A1:2009 (E)

3 Definitions
For the purpose of this standard, the definitions given in EN 292-1:1991 and EN 292-2:1991 apply together
with the following:
3.1
reel machine
type of traveller irrigation machine featuring a stationary structure with a reel, coiling a hose which carries
irrigation water to, and drags, a travelling cart, upon which is affixed the emitting system, which is most often
an irrigation gun
3.2
irrigation gun
large sprinkler used on reel machines and other systems
3 3
NOTE The usual flow-rates from guns range from 10 m /h to 100 m /h, and their nozzle diameter from 10 mm to 40
mm.
3.3
coiling
one of the actions performed by the reel machine when irrigating: the reel machine is progressively coiling all
the polyethylene hose on the drum, causing the irrigation gun to move regularly across the irrigation field.
When the irrigation gun reaches the machine, the coiling is completed and the machine stops
3.4
guiding system
lateral guiding device of the hose that permits its steady coiling with joined spirals
3.5
drive system of the guiding system
mechanism providing power to the guiding system that ensures the even layering of the hose
3.6
sweeping zone
envelope of the different positions of the turret corresponding to its different possible orientations

1 - Drum of the spool
2 - Turret
3 - Hose guiding system
4 - Irrigation gun
Figure 1
5

---------------------- Page: 7 ----------------------

SIST EN 908:1999+A1:2009
EN 908:1999+A1:2009 (E)
4 Safety requirements and/or measures
4.1 General
The reel machines for irrigation shall comply as appropriate with EN 292 for hazards which are not dealt with
and especially with annex A of EN 292-2:1991/A1:1995 when EN 292 does not give precise requirements.
Unless otherwise specified in this standard, the machine shall comply with the requirements of prEN
1553:1998 and with tables 1, 3, 4 and 6 of EN 294:1992.
4.2 Irrigation gun
The adjustment controls of the irrigation gun that have to be operated during the working (for example
adjustment of the sector angle and of the rotation speed of the irrigation gun) shall be located at a distance
less than 1,80 m from the ground or from the access platform, whatever the speed of rotation of the irrigation
gun.
-1
Irrigation guns with a speed of rotation greater than 1 rad.s shall be located at a height equal to or more than
2 m from the ground or from any platform (vertical distance between the ground or the platform and the lowest
rotating part of the irrigation gun).
This requirement does not apply:
 when the swivelling range of the irrigation gun is restricted to a maximum of 300° provided that the
adjustment platform be located outside the swivelling range;
 when the irrigation gun is fitted with a guard providing a safety distance in accordance with EN 294:1992.
4.3 Guiding system of hose
-1
When the coiling speed of the hose is greater than 0,4 m.s , access to crushing and shearing points between
the hose and the guiding system and between the guiding system and the frame of the machine shall be
prevented by fixed guards according to EN 953 or by the framework of the machine using the safety distances
according to table 1 of EN 294:1992.
When the uncoiling speed of the hose can be greater than 0,4 m.s-1, access to crushing and shearing points
between the guiding system and the frame of the machine shall be prevented by fixed guards according to EN
953 or by the framework of the machine using the safety distances of table 1 of EN 294:1992.
Access to the drive system of the guiding system shall be prevented by fixed guards according to EN 953.
4.4 Spool
If the rotation of the drum generates crushing or shearing points between the spool and the machine frame,
such points shall be guarded.
Satisfactory methods include for example:
 a guard providing the safety distance according to tables 3 and 4 of EN 294:1992;
or
 a full (without opening) side wall without any prominent feature including the water delivery pipe between
the axis of the drum and the hose.
Machines equipped with hose speed selector shall be fitted with:
6

---------------------- Page: 8 ----------------------

SIST EN 908:1999+A1:2009
EN 908:1999+A1:2009 (E)

 a device which allows for the removal of tension from the hose before changing gear;
or
 a device which enables the operator to change gear under tension.
4.5 Stability
Any means needed to ensure stability when working (e.g. jacks, supporting wheels) shall be an integral part of
the machine. They shall comply with 4.3.2.1.1. of prEN 1553:1998.
The machine shall be stable when resting on a slope of 8,5° in the following conditions:
 without using the additional means to ensure stability;
 hoses full of water and with irrigation gun hooked;
 in all the directions of the turret around its vertical axis (if applicable);
 with the axle positioned parallel, then perpendicular to the slope.
Any functional outlet of water, associated with the use of the machine, except the possible leakages, shall be
at a minimum distance of 5 m away from the machine.
4.6 Orientation of the turret
If applicable, turrets shall be lockable in both working and transport positions.
The centre of gravity of the mobile part shall be located at less than
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
