SIST ETS 300 392-10-2:1999 defines the stage 1 Call Report (CR) supplementary service for Terrestrial Trunked Radio (TETRA) Voice plus Data (V+D). It is a European Telecommunication Standard from ETSI, issued in SIST form, and it describes the service from the user point of view for European TETRA operators and implementers. In practice, it says what Call Report does when a called user is busy, does not answer, or is not reachable, and how the network should handle those cases.

What does SIST ETS 300 392-10-2:1999 specify?

SIST ETS 300 392-10-2:1999 specifies the stage 1 service description, procedures, interactions, and inter-working considerations for the SS-CR supplementary service. Stage 1 is the overall description of the service from the user point of view, not the detailed human interface.

The scope covers:

• the Call Report service itself;
• successful and unsuccessful procedure outcomes;
• interactions with other TETRA supplementary services;
• inter-working considerations between networks.

Charging principles are outside the scope. The document is organized into scope, normative references, definitions and abbreviations, and the SS-CR stage 1 specification, including description, procedures, interactions, inter-working considerations, and an overall SDL.

What are the key requirements of SIST ETS 300 392-10-2:1999?

The core requirement is that Call Report lets the calling user A leave identity presentation for the called user B when B is busy, does not answer, or is not reachable. For unreachable users, the Switching and Management Infrastructure (SwMI) monitors user B and sends the identity presentation when B becomes reachable.

• Applicability - SS-CR applies to all TETRA individual speech teleservices and to TETRA individual circuit mode bearer services. This tells implementers where the feature has to work.
• Provision and withdrawal - SS-CR may be available to subscribed users or to all users in a system, and it may be withdrawn for administrative reasons. The subscription parameters include identity presentation, priority, and time information, so operators can choose how much detail the network stores or reports.
• Activation and deactivation - SS-CR is activated when provided and deactivated when withdrawn. Definition, registration, and interrogation are not applicable, which keeps the service model simple for user equipment and network software.
• Invocation after failed calls - If user B is busy or does not answer, user A may request SS-CR before disconnecting. If the call has already ended, the SwMI keeps the call information for a period governed by the CC-SS retention timer, and user A can still request SS-CR during that period.
• Unreachable users - If user B is not reachable, the SwMI retains the call information, starts monitoring user B, and uses the SS-CR message validity timer to limit how long the request remains active. In practice, this gives the network a controlled window to deliver the identity presentation when B comes back online.
• Cancellation and rejection - User A may send a cancellation message as an implementation option. The SwMI rejects requests when SS-CR is withdrawn, not subscribed, cannot be completed, has reached a request limit, cannot inter-work with the other network, or the CC-SS retention timer has expired.
• Interactions - SS-CR has defined behavior with Call Forwarding Unconditional (CFU), Call Forwarding on Busy (CFB), Call Forwarding on No Reply (CFNRy), Call Forwarding on Not Reachable (CFNRc), area selection, and Barring of Incoming Calls (BIC). These clauses matter because they decide whether SS-CR is applied to the originally called user or the diverted-to user.

What terms does SIST ETS 300 392-10-2:1999 define?

• Call Report (CR) - A supplementary service that allows the calling user to leave identity presentation for the called party.
• Switching and Management Infrastructure (SwMI) - The TETRA network equipment, excluding subscriber terminals, that lets terminals communicate through the network.
• Mobile Station (MS) - The physical grouping of mobile equipment used to obtain TETRA services, containing at least one Mobile Radio Stack (MRS).
• CC-SS retention timer - The timer that lets the network keep call information after disconnection so supplementary service requests linked to that call can still be made.
• SS-CR message validity timer - The timer, defined by the served user and controlled by the infrastructure, that sets how long the SS-CR message may be stored.
• Identity presentation - The stored or displayed identification delivered to the called party for later callback.
• Supplementary service - A service that modifies or supplements a bearer service or teleservice and is not offered as a stand-alone service.

Who uses SIST ETS 300 392-10-2:1999?

SIST ETS 300 392-10-2:1999 is used by TETRA operators, network designers, and implementers of SwMI and subscriber terminals. It also helps service engineers and system integrators who need to configure or test supplementary services and their interactions.

It is particularly relevant in TETRA V+D networks where the operator needs a clear rule set for failed calls, forwarding cases, and inter-working between networks. Buyers and technical evaluators can use it to check whether a product or network supports the Call Report behavior they need.

Which standards are used with SIST ETS 300 392-10-2:1999?

The document cites these normative references:

• CCITT Recommendation I.130 (1988) - used for characterizing telecommunication services and network capabilities.
• ITU-T Recommendation Z.100 (1993) - the Specification and Description Language (SDL) used for the overall process model.

The foreword also places this standard in the TETRA series, alongside Parts 1 to 16, which cover general network design, air interface, inter-working, gateways, terminal equipment interface, line connected stations, security, management services, performance objectives, supplementary services stage 2 and stage 3, the SDL model of the air interface, PICS Proforma, interworking - Extended Operations, and gateways for supplementary services.

What does the SIST ETS 300 392-10-2:1999 document contain?

The document contains the service description, the procedure rules, the interaction clauses, and the inter-working considerations for SS-CR. It also includes Table 1, which lists SS-CR subscription parameters, and Figure 1, which gives the overall SDL behavior of the service.

Clause 4.2 describes normal and exceptional procedures, including provision, activation, request handling, cancellation, and rejection. Clause 4.3 lists interactions with other supplementary services, which is the part most implementers use when checking combined service behavior.

For design and testing, the document gives the behavioral framework needed to verify how the network reacts to busy, unanswered, and unreachable calls, and when it forwards identity presentation to another user.

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D); Part 10: Supplementary services stage 1; Sub-part 2: Call report33.070.10Prizemni snopovni radio (TETRA)Terrestrial Trunked Radio (TETRA)ICS:Ta slovenski standard je istoveten z:ETS 300 392-10-2 E3SIST ETS 300 392-10-2:1999en01-MXOLM19993SIST ETS 300 392-10-2:1999SLOVENSKI
STANDARD
EUROPEANETS 300 392-10-02TELECOMMUNICATIONApril 1996STANDARDSource: ETSI TC-RESReference: DE/RES-06001-10-02ICS:33.020, 33.060.50Key words:TETRA, V+DRadio Equipment and Systems (RES);Trans-European Trunked Radio (TETRA);Voice plus Data (V+D);Part 10: Supplementary services stage 1;Part 10-02: Call reportETSIEuropean Telecommunications Standards InstituteETSI SecretariatPostal address: F-06921 Sophia Antipolis CEDEX - FRANCEOffice address: 650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCEX.400: c=fr, a=atlas, p=etsi, s=secretariat - Internet: [e-mail].: [phone] - Fax: [phone]Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and theforegoing restriction extend to reproduction in all media.© European Telecommunications Standards Institute 1996. All rights reserved.SIST ETS 300 392-10-2:1999

Page 2ETS 300 392-10-02: April 1996Whilst every care has been taken in the preparation and publication of this document, errors in content,typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to"ETSI Editing and Committee Support Dept." at the address shown on the title page.SIST ETS 300 392-10-2:1999

Page 3ETS 300 392-10-02: April 1996ContentsForeword.51Scope.72Normative references.73Definitions and abbreviations.73.1Definitions.73.2Abbreviations.83.2.1General abbreviations.83.2.2Supplementary service abbreviations.84SS-CR stage 1 specification.84.1Description.84.1.1General description.84.1.2Qualifications on applicability to telecommunication services.84.2Procedures.94.2.1Provision/Withdrawal.94.2.2Normal procedures.94.2.2.1Activation/deactivation, definition, registration,interrogation and cancellation.94.2.2.1.1Activation/deactivation.94.2.2.1.2Definition.94.2.2.1.3Registration.94.2.2.1.4Interrogation.94.2.2.1.5Cancellation.94.2.2.2Invocation and operation.94.2.3Exceptional procedures.104.2.3.1Activation/deactivation, definition, registration,interrogation and cancellation.104.2.3.1.1Activation/deactivation.104.2.3.1.2Definition.104.2.3.1.3Registration.104.2.3.1.4Interrogation.104.2.3.1.5Cancellation.104.2.3.2Invocation and operation.104.2.3.2.1Rejection of SS-CR service request.104.3Interactions with other supplementary services.104.3.1Calling line identification presentation.114.3.2Connected line identification presentation.114.3.3Calling/connected line identification restriction.114.3.4Call report.114.3.5Talking party identification.114.3.6Call forwarding unconditional.114.3.7Call forwarding on busy.114.3.8Call forwarding on no reply.114.3.9Call forwarding on not reachable.114.3.10List search call.114.3.11Call authorized by dispatcher.114.3.12Short number addressing.124.3.13Area selection.124.3.14Access priority.124.3.15Priority call.124.3.16Call waiting.124.3.17Call hold.124.3.18Call completion to busy subscriber.124.3.19Late entry.12SIST ETS 300 392-10-2:1999

Page 4ETS 300 392-10-02: April 19964.3.20Transfer of control.124.3.21Pre-emptive priority call.124.3.22Include call.124.3.23Advice of charge.124.3.24Barring of outgoing calls.124.3.25Barring of incoming calls.134.3.26Discreet listening.134.3.27Ambience listening.134.3.28Dynamic group number assignment.134.3.29Call completion on no reply.134.3.30Call retention.134.4Inter-working considerations.134.5Overall SDL.13History.15SIST ETS 300 392-10-2:1999

Page 5ETS 300 392-10-02: April 1996ForewordThis European Telecommunication Standard (ETS) has been produced by the Radio Equipment andSystems (RES) Technical Committee of the European Telecommunications Standards Institute (ETSI).This ETS is a multi-part standard and will consist of the following parts:Part 1:"General network design".Part 2:"Air Interface (AI)".Part 3:"Inter-working", (DE/RES-06001-3).Part 4:"Gateways", (DE/RES-06001-4).Part 5:"Terminal equipment interface", (DE/RES-06001-5).Part 6:"Line connected stations", (DE/RES-06001-6).Part 7:"Security".Part 8:"Management services", (DE/RES-06001-8).Part 9:"Performance objectives", (DE/RES-06001-9).Part 10:"Supplementary services stage 1".Part 11:"Supplementary services stage 2", (DE/RES-06001-11).Part 12:"Supplementary services stage 3", (DE/RES-06001-12).Part 13:"SDL Model of the Air Interface", (DE/RES-06001-13).Part 14:"PICS Proforma", (DE/RES-06001-14).Part 15:"Interworking - Extended Operations", (DE/RES-06001-15).Part 16:"Gateways for Supplementary Services", (DE/RES-06001-16).Transposition datesDate of adoption of this ETS:1 March 1996Date of latest announcement of this ETS (doa):31 July 1996Date of latest publication of new National Standardor endorsement of this ETS (dop/e):31 January 1997Date of withdrawal of any conflicting National Standard (dow):31 January 1997SIST ETS 300 392-10-2:1999

Page 6ETS 300 392-10-02: April 1996Blank pageSIST ETS 300 392-10-2:1999

Page 7ETS 300 392-10-02: April 19961ScopeThis European Telecommunication Standard (ETS) defines the stage 1 specifications of the Call Report(CR) supplementary service for the Trans-European Trunked RAdio as provided by European operators.Stage 1 is an overall service description from the users point of view but does not deal with the details ofthe human interface itself.This ETS specifies the service description of the supplementary service and the procedures to beexpected with successful and unsuccessful outcomes. In addition the ETS specifies the interactions withother TETRA supplementary services and inter-working considerations.Charging principles are outside the scope of this ETS.The CR supplementary service enables the call originator to leave his/her identity for the called party.2Normative referencesThis ETS incorporates, by dated or undated reference, provisions from other publications. Thesenormative references are cited at the appropriate places in the text and the publications are listedhereafter. For dated references, subsequent amendments to or revisions of any of these publicationsapply to this ETS only when incorporated in it by amendment or revision. For undated references the latestedition of the publication referred to applies.[1]CCITT Recommendation I.130 (1988): "Method for the characterization oftelecommunication services supported by an ISDN and network capabilities ofan ISDN".[2]ITU-T Recommendation Z.100 (1993): "CCITT Specification and DescriptionLanguage (SDL)".3Definitions and abbreviations3.1DefinitionsFor the purposes of this ETS, the following definitions apply:bearer service: A type of telecommunication service that provides the capability for the transmission ofsignals between user-network interfaces.busy: A property of a user for whom a network determined user busy condition applies (see ITU-TRecommendation Z.100 [2]).identity presentation: The stored/displayed identification provided to the called party for subsequent callback.Mobile Station (MS): A physical grouping that contains all of the mobile equipment that is used to obtainTETRA services. By definition, a mobile station contains at least one Mobile Radio Stack (MRS).CC-SS retention timer: A timer started by the infrastructure upon disconnection of the call, which allowsthe user to use the call Identification in order to invoke/activate/interrogate a supplementary servicerelated to that call. After expiry of the timer, the user is no longer able to use the call Identification in orderto carry out supplementary service procedures.SS-CR message validity timer: A timer controlled by the infrastructure but defined by the served user,which determines how long a message can be stored in the infrastructure. After expiry of the timer themessage is deleted.supplementary service: A supplementary service
...

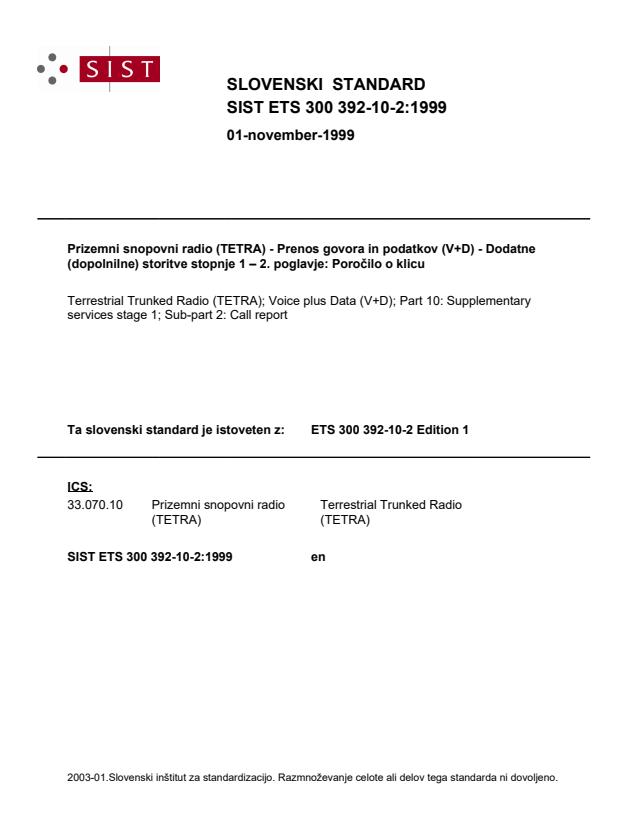

SLOVENSKI STANDARD
01-november-1999
3UL]HPQLVQRSRYQLUDGLR7(75$3UHQRVJRYRUDLQSRGDWNRY9''RGDWQH
GRSROQLOQHVWRULWYHVWRSQMH±SRJODYMH3RURþLORRNOLFX
Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D); Part 10: Supplementary
services stage 1; Sub-part 2: Call report
Ta slovenski standard je istoveten z: ETS 300 392-10-2 Edition 1
ICS:
33.070.10 Prizemni snopovni radio Terrestrial Trunked Radio
(TETRA) (TETRA)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

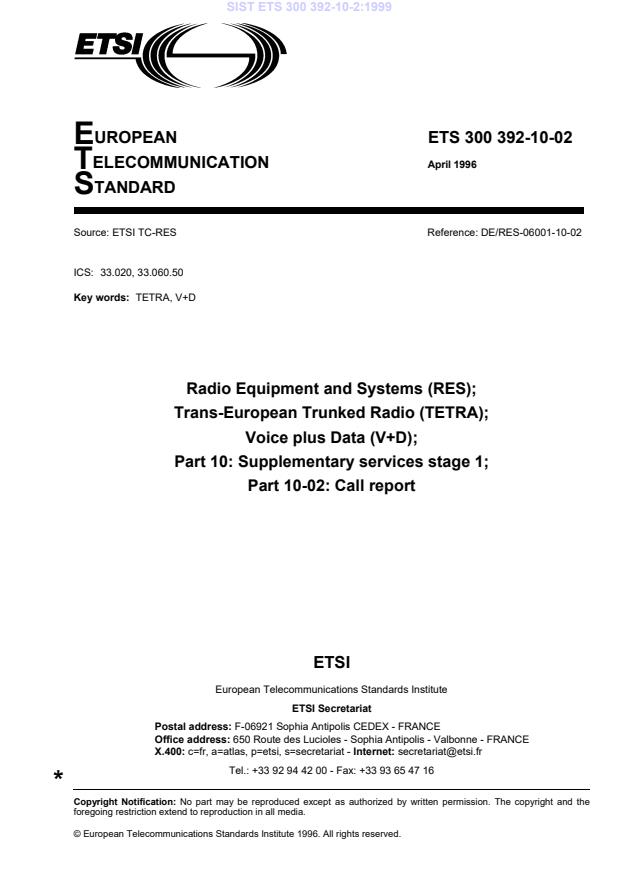

EUROPEAN ETS 300 392-10-02
TELECOMMUNICATION April 1996
STANDARD
Source: ETSI TC-RES Reference: DE/RES-06001-10-02
ICS: 33.020, 33.060.50
TETRA, V+D
Key words:
Radio Equipment and Systems (RES);
Trans-European Trunked Radio (TETRA);
Voice plus Data (V+D);
Part 10: Supplementary services stage 1;
Part 10-02: Call report
ETSI
European Telecommunications Standards Institute
ETSI Secretariat
F-06921 Sophia Antipolis CEDEX - FRANCE
Postal address:
650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCE
Office address:
c=fr, a=atlas, p=etsi, s=secretariat - [e-mail]
X.400: Internet:
Tel.: [phone] - Fax: [phone]
*
Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and the
foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1996. All rights reserved.

Page 2
ETS 300 392-10-02: April 1996
Whilst every care has been taken in the preparation and publication of this document, errors in content,
typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to
"ETSI Editing and Committee Support Dept." at the address shown on the title page.

Page 3
ETS 300 392-10-02: April 1996
Contents
Foreword .5
1 Scope .7
2 Normative references.7
3 Definitions and abbreviations .7
3.1 Definitions .7
3.2 Abbreviations .8
3.2.1 General abbreviations .8
3.2.2 Supplementary service abbreviations .8
4 SS-CR stage 1 specification.8
4.1 Description.8
4.1.1 General description .8
4.1.2 Qualifications on applicability to telecommunication services.8
4.2 Procedures.9
4.2.1 Provision/Withdrawal.9
4.2.2 Normal procedures.9
4.2.2.1 Activation/deactivation, definition, registration,
interrogation and cancellation.9
4.2.2.1.1 Activation/deactivation .9
4.2.2.1.2 Definition.9
4.2.2.1.3 Registration.9
4.2.2.1.4 Interrogation.9
4.2.2.1.5 Cancellation .9
4.2.2.2 Invocation and operation .9
4.2.3 Exceptional procedures.10
4.2.3.1 Activation/deactivation, definition, registration,
interrogation and cancellation.10
4.2.3.1.1 Activation/deactivation .10
4.2.3.1.2 Definition.10
4.2.3.1.3 Registration.10
4.2.3.1.4 Interrogation.10
4.2.3.1.5 Cancellation .10
4.2.3.2 Invocation and operation .10
4.2.3.2.1 Rejection of SS-CR service request .10
4.3 Interactions with other supplementary services.10
4.3.1 Calling line identification presentation .11
4.3.2 Connected line identification presentation.11
4.3.3 Calling/connected line identification restriction.11
4.3.4 Call report.11
4.3.5 Talking party identification.11
4.3.6 Call forwarding unconditional .11
4.3.7 Call forwarding on busy.11
4.3.8 Call forwarding on no reply.11
4.3.9 Call forwarding on not reachable.11
4.3.10 List search call.11
4.3.11 Call authorized by dispatcher .11
4.3.12 Short number addressing.12
4.3.13 Area selection.12
4.3.14 Access priority .12
4.3.15 Priority call.12
4.3.16 Call waiting .12
4.3.17 Call hold.12
4.3.18 Call completion to busy subscriber.12
4.3.19 Late entry.12

Page 4
ETS 300 392-10-02: April 1996
4.3.20 Transfer of control . 12
4.3.21 Pre-emptive priority call . 12
4.3.22 Include call. 12
4.3.23 Advice of charge. 12
4.3.24 Barring of outgoing calls . 12
4.3.25 Barring of incoming calls. 13
4.3.26 Discreet listening . 13
4.3.27 Ambience listening. 13
4.3.28 Dynamic group number assignment. 13
4.3.29 Call completion on no reply. 13
4.3.30 Call retention. 13
4.4 Inter-working considerations . 13
4.5 Overall SDL. 13
History. 15

Page 5
ETS 300 392-10-02: April 1996
Foreword
This European Telecommunication Standard (ETS) has been produced by the Radio Equipment and
Systems (RES) Technical Committee of the European Telecommunications Standards Institute (ETSI).
This ETS is a multi-part standard and will consist of the following parts:
Part 1: "General network design".
Part 2: "Air Interface (AI)".
Part 3: "Inter-working", (DE/RES-06001-3).
Part 4: "Gateways", (DE/RES-06001-4).
Part 5: "Terminal equipment interface", (DE/RES-06001-5).
Part 6: "Line connected stations", (DE/RES-06001-6).
Part 7: "Security".
Part 8: "Management services", (DE/RES-06001-8).
Part 9: "Performance objectives", (DE/RES-06001-9).
Part 10: "Supplementary services stage 1".
Part 11: "Supplementary services stage 2", (DE/RES-06001-11).
Part 12: "Supplementary services stage 3", (DE/RES-06001-12).
Part 13: "SDL Model of the Air Interface", (DE/RES-06001-13).
Part 14: "PICS Proforma", (DE/RES-06001-14).
Part 15: "Interworking - Extended Operations", (DE/RES-06001-15).
Part 16: "Gateways for Supplementary Services", (DE/RES-06001-16).
Transposition dates
Date of adoption of this ETS: 1 March 1996
Date of latest announcement of this ETS (doa): 31 July 1996
Date of latest publication of new National Standard
or endorsement of this ETS (dop/e): 31 January 1997
Date of withdrawal of any conflicting National Standard (dow): 31 January 1997

Page 6
ETS 300 392-10-02: April 1996
Blank page
Page 7
ETS 300 392-10-02: April 1996
1 Scope
This European Telecommunication Standard (ETS) defines the stage 1 specifications of the Call Report
(CR) supplementary service for the Trans-European Trunked RAdio as provided by European operators.
Stage 1 is an overall service description from the users point of view but does not deal with the details of
the human interface itself.
This ETS specifies the service description of the supplementary service and the procedures to be
expected with successful and unsuccessful outcomes. In addition the ETS specifies the interactions with
other TETRA supplementary services and inter-working considerations.
Charging principles are outside the scope of this ETS.
The CR supplementary service enables the call originator to leave his/her identity for the called party.
2 Normative references
This ETS incorporates, by dated or undated reference, provisions from other publications. These
normative references are cited at the appropriate places in the text and the publications are listed
hereafter. For dated references, subsequent amendments to or revisions of any of these publications
apply to this ETS only when incorporated in it by amendment or revision. For undated references the latest
edition of the publication referred to applies.
[1] CCITT Recommendation I.130 (1988): "Method for the characterization of
telecommunication services supported by an ISDN and network capabilities of
an ISDN".
[2] ITU-T Recommendation Z.100 (1993): "CCITT Specification and Description
Language (SDL)".
3 Definitions and abbreviations
3.1 Definitions
For the purposes of this ETS, the following definitions apply:
bearer service: A type of telecommunication service that provides the capability for the transmission of
signals between user-network interfaces.
busy: A property of a user for whom a network determined user busy condition applies (see ITU-T
Recommendation Z.100 [2]).
identity presentation: The stored/displayed identification provided to the called party for subsequent call
back.
Mobile Station (MS): A physical grouping that contains all of the mobile equipment that is used to obtain
TETRA services. By definition, a mobile station contains at least one Mobile Radio Stack (MRS).
CC-SS retention timer: A timer started by the infrastructure upon disconnection of the call, which allows
the user to use the call Identification in order to invoke/activate/interrogate a supplementary service
related to that call. After expiry of the timer, the user is no longer able to use the call Identification in order
to carry out supplementary service procedures.
SS-CR message validity timer: A timer controlled by the infrastructure but defined by the served user,
which determines how long a message can be stored in the infrastructure. After expiry of the timer the
message is deleted.
supplementary service: A su
...
