SIST EN 300 919 V6.0.1:2003

• Abstract:

  Upgrade from Phase 2+ to Release 1997

• Status: Published
• Publication Date: 30-Nov-2003
• ICS: 33.070.50 - Global System for Mobile Communication (GSM)
• Technical Committee: SS EIT - Technical Board for the electrotechnical, information technology and telecommunications fields
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Dec-2003
• Due Date: 01-Dec-2003
• Completion Date: 01-Dec-2003
• Ref Project: ETSI EN 300 919 V6.0.1 (1999-05) - Digital cellular telecommunications system (Phase 2+) (GSM); Types of Mobile Stations (MS) (GSM 02.06 version 6.0.1 Release 1997)

Overview

SIST EN 300 919 V6.0.1:2003 specifies the attributes and types of Mobile Stations (MS) used in the Digital Cellular Telecommunications System (GSM Phase 2+), including support for DCS 1800 Public Land Mobile Networks (PLMNs). Developed by the Slovenski inštitut za standardizacijo (SIST) and aligned with ETSI EN 300 919, this European Standard describes the requirements for Multi-band, Full Rate, Half Rate, and multislot capabilities for mobile stations as upgraded in Release 1997. The standard ensures compatibility and interoperability of mobile devices across networks, providing a foundational reference for manufacturers, operators, and service providers in the mobile telecommunications industry.

Key Topics

• Types of Mobile Stations (MS): Defines attributes for handheld and vehicular mounted mobile stations.
• Service Access Configuration: Details MS service access based on customer needs and telecommunication services supported.
• Access Capabilities:
  • Frequency Bands: Outlines support for standard GSM bands, extended GSM bands, and DCS 1800 bands, including Multi-band MS capabilities.
  • Full Rate and Half Rate Services: Specifies support for different speech codecs and operational rates.
  • Multislot Capability: Introduces the concept of multislot classes, defining the number of RX/TX slots and support for General Bearer Service (GBS) signaling.
• Mobile Station Output and Power Control: Categorizes MS classes by maximum mean output power, as aligned with GSM 05.05, and mandates transmitter power reduction on network command.
• Configuration Possibilities: Provides options for MS configurations, including requirements for handheld and vehicular-mounted units across GSM and DCS bands.

Applications

The practical applications of SIST EN 300 919 V6.0.1:2003 span the development, certification, and deployment of mobile communications devices within GSM and DCS 1800 networks:

• Device Design & Manufacturing: Guides manufacturers on required MS attributes, frequency bands, and power classes, ensuring device interoperability and compliance.
• Mobile Network Operators: Assists operators in network planning by standardizing device requirements, enabling efficient service delivery and handover across frequency bands.
• Testing & Certification: Forms the basis for type approval and conformity testing of mobile stations, referencing GSM 11.10 for conformity specifications.
• Multi-Band Device Deployment: Supports the evolution of devices capable of operating seamlessly across multiple bands and configurations, facilitating international roaming and better spectrum utilization.
• Service Expansion: Enables service providers to deploy various tele-, bearer, and supplementary services by aligning mobile station capabilities with standardized service access configurations.

Related Standards

• GSM 01.04: Defines abbreviations and acronyms for digital cellular telecommunication systems.
• GSM 04.03: Details channel structures and access capabilities for MS-BSS interface.
• GSM 04.08: Specifies the mobile radio interface Layer 3 protocol.
• GSM 05.02: Covers radio path multiplexing, multiple access, and multislot class definitions.
• GSM 05.05: Describes radio transmission and reception, classifying MS output power.
• GSM 11.10: Provides conformity specifications for testing and type approval of mobile stations.

SIST EN 300 919 V6.0.1:2003 is critical for organizations involved in GSM technology, ensuring a consistent framework for developing, certifying, and deploying mobile stations worldwide. By adhering to this standard, stakeholders support international compatibility, innovation, and reliable mobile telecommunication services.

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Digital cellular telecommunications system (Phase 2+) (GSM); Types of Mobile Stations (MS) (GSM 02.06 version 6.0.1 Release 1997)33.070.50Globalni sistem za mobilno telekomunikacijo (GSM)Global System for Mobile Communication (GSM)ICS:Ta slovenski standard je istoveten z:EN 300 919 Version 6.0.1SIST EN 300 919 V6.0.1:2003en01-december-2003SIST EN 300 919 V6.0.1:2003SLOVENSKI
STANDARD
EN 300 919 V6.0.1 (1999-05)European Standard (Telecommunications series)Digital cellular telecommunications system (Phase 2+);Types of Mobile Stations (MS)(GSM 02.06 version 6.0.1 Release 1997)GLOBAL SYSTEM
FOR MOBILE COMMUNICATIONSRSIST EN 300 919 V6.0.1:2003

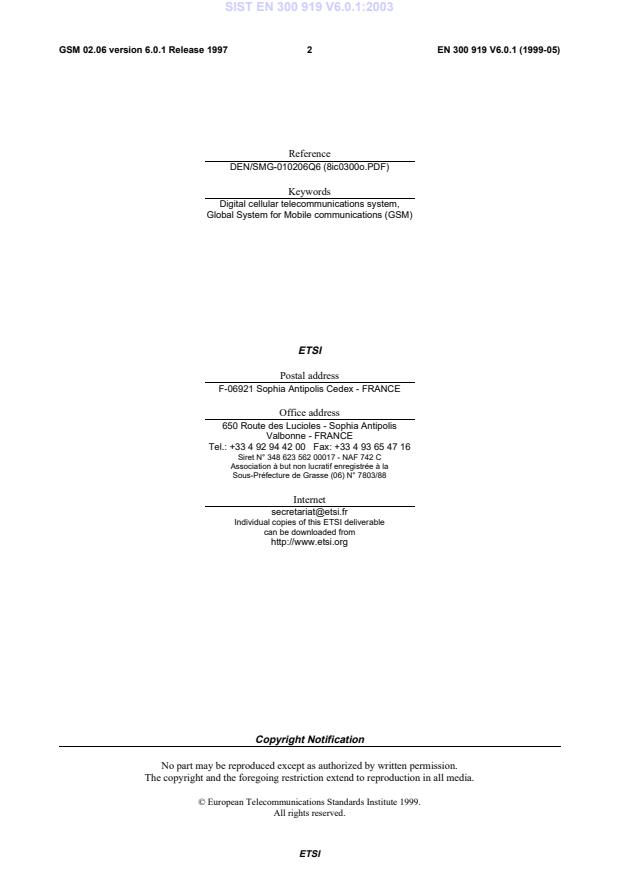

ETSIEN 300 919 V6.0.1 (1999-05)2GSM 02.06 version 6.0.1 Release 1997ReferenceDEN/SMG-010206Q6 (8ic0300o.PDF)KeywordsDigital cellular telecommunications system,Global System for Mobile communications (GSM)ETSIPostal addressF-06921 Sophia Antipolis Cedex - FRANCEOffice address650 Route des Lucioles - Sophia AntipolisValbonne - FRANCETel.: [phone]
Fax: [phone]Siret N° 348 623 562 00017 - NAF 742 CAssociation à but non lucratif enregistrée à laSous-Préfecture de Grasse (06) N° 7803/[e-mail] copies of this ETSI deliverablecan be downloaded fromhttp://www.etsi.orgCopyright NotificationNo part may be reproduced except as authorized by written permission.The copyright and the foregoing restriction extend to reproduction in all media.© European Telecommunications Standards Institute 1999.All rights reserved.SIST EN 300 919 V6.0.1:2003

ETSIEN 300 919 V6.0.1 (1999-05)3GSM 02.06 version 6.0.1 Release 1997ContentsIntellectual Property Rights.4Foreword.41Scope.51.1Normative references.51.2Abbreviations.52General.53Mobile Station attributes.63.1MS service access configuration.63.2MS access capability.63.2.1Frequency Bands.63.2.2Full Rate/Half Rate Services.63.2.3MS multislot capability.73.2.3.1Signalling support for GBS.73.2.4Speech codecs.73.3Definition of a hand-held MS.73.4Definition of a vehicular mounted MS.74Mobile Station output and power control.85Configuration possibilities.8Annex A (informative):Change history.9History.10SIST EN 300 919 V6.0.1:2003

ETSIEN 300 919 V6.0.1 (1999-05)4GSM 02.06 version 6.0.1 Release 1997Intellectual Property RightsIPRs essential or potentially essential to the present document may have been declared to ETSI. The informationpertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be foundin SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respectof ETSI standards", which is available free of charge from the ETSI Secretariat. Latest updates are available on theETSI Web server (http://www.etsi.org/ipr).Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guaranteecan be given as to the existence of other IPRs not referenced in SR 000 314 (or the updates on the ETSI Web server)which are, or may be, or may become, essential to the present document.ForewordThis European Standard (Telecommunications series) has been produced by the Special Mobile Group (SMG) of theEuropean Telecommunications Standards Institute (ETSI).This EN defines typical attributes of different types of Mobile Stations (MS) used with GSM and DCS 1800 PLMNswithin the digital cellular telecommunications system.The contents of this standard may be subject to continuing work within SMG and may change following formal SMGapproval. Should SMG modify the contents of this standard it will then be re-submitted for formal approval proceduresby ETSI with an identifying change of release date and an increase in version number as follows:Version 6.x.ywhere:6GSM Phase 2+ Release 1997xthe second digit is incremented for changes of substance, i.e. technical enhancements, corrections, updates,etc.;ythe third digit is incremented when editorial only changes have been incorporated in the specification.Proposed national transposition datesDate of adoption of this EN:28 May 1999Date of latest announcement of this EN (doa):31 August 1999Date of latest publication of new National Standardor endorsement of this EN (dop/e):29 February 2000Date of withdrawal of any conflicting National Standard (dow):29 February 2000SIST EN 300 919 V6.0.1:2003

ETSIEN 300 919 V6.0.1 (1999-05)5GSM 02.06 version 6.0.1 Release 19971ScopeThe purpose of this EN is to describe typical attributes of different types of Mobile Stations (MS) to be used on GSMPLMNs. The term GSM PLMN refers to a GSM, DCS 1800 or any PLMN based on the GSM specification, irrespectiveof the frequency band used.Manufacturers and customers may choose any appropriate combination of these attributes in order to fulfil their needwhile utilizing the services offered through a GSM or a DCS 1800 PLMN. This is not an exhaustive list of attributes ortypes of MS. Type approval of MSs is addressed in GSM 11.10.1.1Normative referencesThe following documents contain provisions which, through reference in this text, constitute provisions of the presentdocument.-References are either specific (identified by date
...
