SIST EN 2591-606:2004

Aerospace series - Elements of electrical and optical connection - Test methods - Part 606: Optical elements - Crosstalk

This standard specifies a method of measuring the forward and backward crosstalk of light between multi-channel optical connection elements.
It shall be used together with EN 2591-100.

Luft- und Raumfahrt - Elektrische und optische Verbindungselemente - Prüfverfahren - Teil 606: Optische Elemente - Übersprechen

Diese Norm legt ein Messverfahren für das Übersprechen in Vorwärts- und Rückwärtsrichtung von Licht zwischen optischen Mehrkanal-Verbindungselementen fest.
Sie ist in Verbindung mit EN 2591-100 anzuwenden.

Série aérospatiale - Organes de connexion électrique et optique - Méthodes d'essais - Partie 606: Organes optiques - Diaphonie

Aerospace series - Elements of electrical and optical connection - Test methods - Part 606: Optical elements - Crosstalk

General Information

• Status: Published
• Publication Date: 30-Apr-2004
• ICS: 49.060 - Aerospace electric equipment and systems
• Technical Committee: I08 - Imaginarni 08
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-May-2004
• Due Date: 01-May-2004
• Completion Date: 01-May-2004
• Ref Project: EN 2591-606:2002 - Aerospace series - Elements of electrical and optical connection - Test methods - Part 606: Optical elements - Crosstalk

Overview

SIST EN 2591-606:2004 is a European aerospace standard developed by the European Committee for Standardization (CEN) under the guidance of the European Association of Aerospace Manufacturers (AECMA). This standard specifies a precise test method for measuring crosstalk-both forward and backward-of light between multi-channel optical connection elements used in aerospace electrical and optical systems.

Designed to ensure reliable and predictable performance of optical components in aerospace applications, SIST EN 2591-606:2004 is essential for manufacturers and testers working with multi-channel optical connections in demanding aerospace environments. It should be used in conjunction with EN 2591-100, which provides general testing requirements for aerospace electrical and optical connection elements.

Key Topics

• Scope and Purpose
  The standard defines a method to measure the optical crosstalk, which is the unwanted transfer of light signals between adjacent channels in multi-channel optical connectors. It addresses measuring both forward and backward crosstalk to ensure component quality and signal integrity.

• Specimen Preparation
  Specimens must be equipped with standard accessories and fully terminated contacts, adhering to detailed product specifications that include the type and length of fiber optic cables and allowable crosstalk limits.

• Test Apparatus
  Testing requires a Light Launch System (LLS) and Light Detector System (LDS) compliant with EN 2591-100 specifications, along with temporary joints and non-reflective terminators defined by EN 2591-601 and related parts.

• Testing Procedure
  The method involves inserting the specimen mid-cable, exciting one optical fiber, and measuring the optical output power in an adjacent fiber at both ends using detectors. These values enable calculation of crosstalk in decibels (dB), quantifying the leakage of optical signals.

• Calculation of Crosstalk
  Forward crosstalk (dB) = –10 log(Pf / Po)
  Backward crosstalk (dB) = –10 log(Pb / Po)
  where Po is the input power, Pf the forward power output, and Pb the backward power output from adjacent fibers.

Applications

• Aerospace Optical Systems
  SIST EN 2591-606:2004 is critical for testing optical interconnection elements in avionics and aerospace communication systems, where optical signal integrity and minimal interference are paramount.

• Quality Assurance in Manufacturing
  Manufacturers of multi-channel optical connectors and related components use this standard to verify that their products meet strict aerospace requirements for crosstalk.

• System Integration and Maintenance
  Aerospace integrators and maintenance teams apply the testing methods to diagnose optical performance issues, prevent signal degradation, and assure compliance with aerospace operational standards.

Related Standards

• EN 2591-100 – Aerospace series test methods general requirements: provides foundational guidelines and apparatus definitions for optical and electrical elements testing.
• EN 2591-601 – Test methods for optical elements focusing on insertion loss measurements, complementing crosstalk evaluations.
• TR 4257 – Technical report explaining numbering systems used within parts of EN 2591 series for consistent reference.

Using SIST EN 2591-606:2004 alongside these related standards ensures comprehensive, consistent testing protocols for optical connectors in aerospace applications, maintaining safety, reliability, and performance in critical systems.

---

Keywords: EN 2591-606, aerospace optical connector testing, optical crosstalk measurement, multi-channel optical elements, aerospace electrical and optical connections, optical crosstalk standard, forward and backward crosstalk, aerospace communication systems, optical test methods, CEN aerospace standards.

Standards Content (Sample)

SLOVENSKI STANDARD
01-maj-2004
Aerospace series - Elements of electrical and optical connection - Test methods -
Part 606: Optical elements - Crosstalk
Aerospace series - Elements of electrical and optical connection - Test methods - Part
606: Optical elements - Crosstalk
Luft- und Raumfahrt - Elektrische und optische Verbindungselemente - Prüfverfahren -
Teil 606: Optische Elemente - Übersprechen
Série aérospatiale - Organes de connexion électrique et optique - Méthodes d'essais -
Partie 606: Organes optiques - Diaphonie
Ta slovenski standard je istoveten z: EN 2591-606:2002
ICS:
49.060 /HWDOVNDLQYHVROMVND Aerospace electric
HOHNWULþQDRSUHPDLQVLVWHPL equipment and systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 2591-606
NORME EUROPÉENNE
EUROPÄISCHE NORM
June 2002
ICS 49.060
English version
Aerospace series - Elements of electrical and optical connection
- Test methods - Part 606: Optical elements - Crosstalk
Série aérospatiale - Organes de connexion électrique et Luft- und Raumfahrt - Elektrische und optische
optique - Méthodes d'essais - Partie 606: Organes optiques Verbindungselemente - Prüfverfahren - Teil 606: Optische
- Diaphonie Elemente - Übersprechen
This European Standard was approved by CEN on 8 February 2002.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,
Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2002 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 2591-606:2002 E
worldwide for CEN national Members.

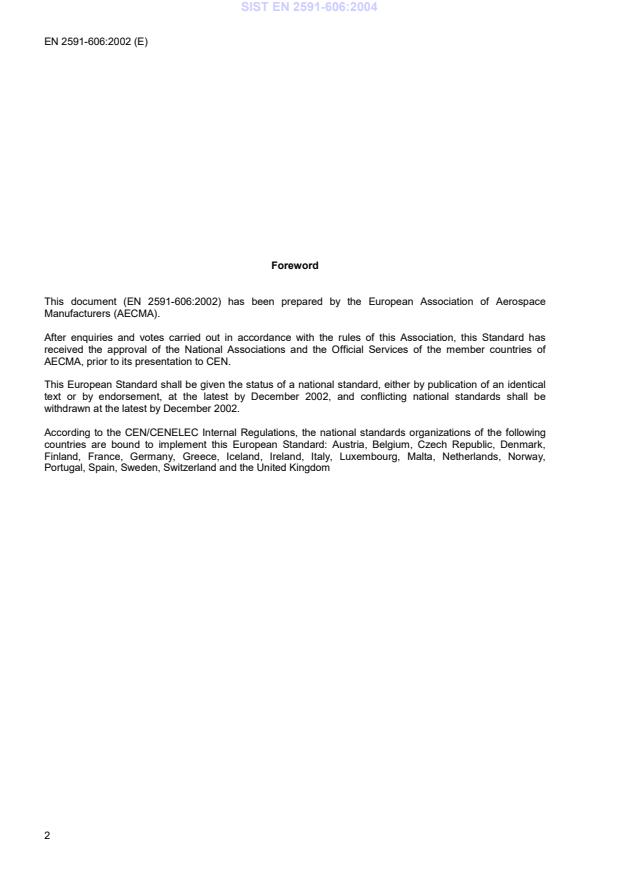

Foreword
