SIST EN 300 113-2 V1.4.2:2010

Electromagnetic compatibility and Radio spectrum Matters (ERM) - Land mobile service - Radio equipment intended for the transmission of data (and/or speech) using constant or non-constant envelope modulation and having an antenna connector - Part 2: Harmonized EN covering essential requirements of article 3.2 of the R&TTE Directive

The present document covers the technical requirements for radio transmitters and receivers used in stations in the Private Mobile Radio (PMR) service. It applies to use in the land mobile service, operating on radio frequencies in all or in any part of the frequencies as given below, with channel separations of 12,5 kHz, 20 kHz and 25 kHz, intended for speech and/or data.
It applies to equipment for continuous and/or discontinuous transmission of data and/or digital speech. The equipment comprises a transmitter and associated encoder and modulator and/or a receiver and associated demodulator and decoder. The types of equipment covered by the present document are as follows:
base station (equipment fitted with an antenna connector, intended for use in a fixed location);
mobile station (equipment fitted with an antenna connector, normally used in a vehicle or as a transportable);
and those hand portable stations:
a) fitted with an antenna socket; or
b) without an external antenna socket, but fitted with a permanent internal or a temporary internal 50
Ω Radio Frequency (RF) connector which allows access to the transmitter output and the receiver input. Hand portable equipment without an external or internal RF connector and without the possibility of having a temporary internal 50
Ω RF connector is not covered by the present document.
The present document is intended to cover the provisions of article 3.2 of Directive 1999/5/EC (R&TTE Directive) [i.1], which states that "(...) radio equipment shall be so constructed that it effectively uses the spectrum allocated to terrestrial/space radiocommunications and orbital resources so as to avoid harmful interference". In addition to the present document, other ENs that specify technical requirements in respect of essential requirements under other parts of article 3 of the R&TTE Directive [i.1] may apply to equipment within the scope of the present document.

Elektromagnetna združljivost in zadeve v zvezi z radijskim spektrom (ERM) - Storitev kopenskih mobilnih komunikacij - Radijska oprema za prenos podatkov (oziroma govora), ki uporablja modulacijo s konstantno ali nekonstantno ovojnico in ima antenski priključek - 2. del: Harmonizirani EN, ki zajema bistvene zahteve člena 3.2 direktive R&TTE

Pričujoči dokument zajema tehnične zahteve za radijske oddajnike in sprejemnike, uporabljene v postajah v zasebnih mobilnih radio (PMR) storitvah. Velja za uporabo pri kopenskih mobilnih storitvah, ki delujejo na radio frekvencah na vseh ali kateri koli spodaj navedeni frekvenci, z ločevanjem kanalov 12,5 kHz, 20 kHz in 25 kHz, namenjenih za govor in/ali podatke.
Velja za opremo za neprekinjeno in/ali prekinjeno oddajanje podatkov in/ali digitalni govor. Oprema je sestavljena iz oddajnika in povezanega kodirnika in modulatorja in/ali sprejemnika ter povezanega demodulatorja in dekodirnika. Tipi opreme, ki jo pričujoči dokument zajema, so, kot sledi:
bazna postaja (oprema, opremljena z antenskim priključkom, ki se uporablja na stalni lokaciji),
mobilna postaja (oprema, opremljena z antenskim priključkom, običajno uporabljena v vozilu ali kot prenosljiva)
in prenosne ročne postaje:
a) opremljene z antensko vtičnico ali
b) brez zunanje antenske vtičnice, vendar opremljene s stalnim notranjim ali začasnim notranjim 50 Ω radiofrekvenčnim (RF) priključkom, ki omogoča dostop do izhoda oddajnika in vhoda sprejemnika. Prenosna ročna oprema, brez zunanjega ali notranjega RF priključka in brez možnosti začasnega notranjega 50 Ω RF priključka, ni zajeta v pričujočem dokumentu.
Pričujoči dokument zajema določbe člena 3.2 Direktive 1999/5/ES (R&TTE direktive) [i.1], ki navaja, da »(…) radijska oprema je narejena tako, da učinkovito izrablja spekter, razporejen za prizemne/vesoljske radiokomunikacije in orbitalne vire, tako da ne pride do škodljivega motenja«. Poleg pričujočega dokumenta se lahko ostali ENs, ki določajo tehnične zahteve v skladu z bistvenimi zahtevami v drugih delih člena 3 direktive R&TTE [i.1], uporabljajo za opremo znotraj področja uporabe pričujočega dokumenta.

General Information

• Status: Published
• Publication Date: 18-Jan-2010
• ICS: 33.060.99 - Other equipment for radiocommunications
• ICS: 33.070.01 - Mobile services in general
• ICS: 33.100.01 - Electromagnetic compatibility in general
• Technical Committee: MOC - Mobile Communications
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 08-Dec-2009
• Due Date: 12-Feb-2010
• Completion Date: 19-Jan-2010
• Directive: 1999/5/EC - Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity
• Mandate: M/284
• Ref Project: ETSI EN 300 113-2 V1.4.2 (2009-11) - Electromagnetic compatibility and Radio spectrum Matters (ERM); Land mobile service; Radio equipment intended for the transmission of data (and/or speech) using constant or non-constant envelope modulation and having an antenna connector; Part 2: Harmonized EN covering essential requirements of article 3.2 of the R&TTE Directive

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Electromagnetic compatibility and Radio spectrum Matters (ERM) - Land mobile service - Radio equipment intended for the transmission of data (and/or speech) using constant or non-constant envelope modulation and having an antenna connector - Part 2: Harmonized EN covering essential requirements of article 3.2 of the R&TTE Directive33.100.01Elektromagnetna združljivost na splošnoElectromagnetic compatibility in general33.070.01Mobilni servisi na splošnoMobile services in general33.060.99Druga oprema za radijske komunikacijeOther equipment for radiocommunicationsICS:Ta slovenski standard je istoveten z:EN 300 113-2 Version 1.4.2SIST EN 300 113-2 V1.4.2:2010en01-februar-2010SIST EN 300 113-2 V1.4.2:2010SLOVENSKI
STANDARD



SIST EN 300 113-2 V1.4.2:2010



ETSI EN 300 113-2 V1.4.2 (2009-11)Harmonized European Standard (Telecommunications series) Electromagnetic compatibilityand Radio spectrum Matters (ERM);Land mobile service;Radio equipment intended for the transmissionof data (and/or speech) using constant or non-constantenvelope modulation and having an antenna connector;Part 2: Harmonized EN covering essential requirementsof article 3.2 of the R&TTE Directive SIST EN 300 113-2 V1.4.2:2010



ETSI ETSI EN 300 113-2 V1.4.2 (2009-11) 2
Reference REN/ERM-TGDMR-286-2 Keywords antenna, data, mobile, radio, regulation, speech, PMR, TDD, TDMA ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: [phone]
Fax: [phone]
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice Individual copies of the present document can be downloaded from: http://www.etsi.org The present document may be made available in more than one electronic version or in print. In any case of existing or perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF). In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at http://portal.etsi.org/tb/status/status.asp If you find errors in the present document, please send your comment to one of the following services: http://portal.etsi.org/chaircor/ETSI_support.asp Copyright Notification No part may be reproduced except as authorized by written permission. The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2009. All rights reserved.
DECTTM, PLUGTESTSTM, UMTSTM, TIPHONTM, the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members. 3GPPTM is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners. LTE™ is a Trade Mark of ETSI currently being registered for the benefit of its Members and of the 3GPP Organizational Partners. GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association. SIST EN 300 113-2 V1.4.2:2010



ETSI ETSI EN 300 113-2 V1.4.2 (2009-11) 3 Contents Intellectual Property Rights . 5 Foreword . 5 Introduction . 5 1 Scope . 6 2 References . 6 2.1 Normative references . 7 2.2 Informative references . 7 3 Definitions, symbols and abbreviations . 7 3.1 Definitions . 7 3.2 Symbols . 7 3.3 Abbreviations . 7 4 Technical requirements specifications . 8 4.1 Environmental profile . 8 4.2 Transmitter requirements . 8 4.2.1 Frequency error . 8 4.2.1.1 Definition . 8 4.2.1.2 Limit . 8 4.2.1.3 Conformance . 8 4.2.2 Transmitter power (conducted) . 8 4.2.2.1 Definition . 8 4.2.2.2 Limit . 8 4.2.2.3 Conformance . 8 4.2.3 Maximum effective radiated power . 8 4.2.3.1 Definition . 8 4.2.3.2 Limit . 8 4.2.3.3 Conformance . 8 4.2.4 Adjacent and alternate channel power . 9 4.2.4.1 Definition . 9 4.2.4.2 Limit . 9 4.2.4.3 Conformance . 9 4.2.5 Unwanted emissions in the spurious domain . 9 4.2.5.1 Definition . 9 4.2.5.2 Limit . 9 4.2.5.3 Conformance . 9 4.2.6 Intermodulation attenuation . 9 4.2.6.1 Definition . 9 4.2.6.2 Limit . 9 4.2.6.3 Conformance . 9 4.2.7 Transient frequency behaviour of the transmitter . 9 4.2.7.1 Definition . 9 4.2.7.2 Limit . 9 4.2.7.3 Conformance . 9 4.2.8 Transmitter timeout timer . 10 4.2.8.1 Definition . 10 4.2.8.2 Limit . 10 4.2.8.3 Conformance . 10 4.3 Receiver requirements . 10 4.3.1 Maximum usable receiver sensitivity . 10 4.3.1.1 Definition . 10 4.3.1.2 Limit . 10 4.3.1.3 Conformance . 10 4.3.2 Co-channel rejection . 10 4.3.2.1 Definition . 10 4.3.2.2 Limit . 10 SIST EN 300 113-2 V1.4.2:2010



ETSI ETSI EN 300 113-2 V1.4.2 (2009-11) 4 4.3.2.3 Conformance . 10 4.3.3 Adjacent channel selectivity . 11 4.3.3.1 Definition . 11 4.3.3.2 Limit . 11 4.3.3.3 Conformance . 11 4.3.4 Spurious response rejection . 11 4.3.4.1 Definition . 11 4.3.4.2 Limit . 11 4.3.4.3 Conformance . 11 4.3.5 Intermodulation response rejection . 11 4.3.5.1 Definition . 11 4.3.5.2 Limit . 11 4.3.5.3 Conformance . 11 4.3.6 Blocking or desensitization . 11 4.3.6.1 Definition . 11 4.3.6.2 Limit . 12 4.3.6.3 Conformance . 12 4.3.7 Spurious radiations . 12 4.3.7.1 Definition . 12 4.3.7.2 Limit . 12 4.3.7.3 Conformance . 12 5 Testing for compliance with technical requirements . 12 5.1 Environmental conditions for testing . 12 5.1.1 Normal and extreme test-conditions . 12 5.1.2 Test power source . 12 5.1.3 Choice of samples for test suites . 12 5.2 Interpretation of the measurement results . 12 5.3 Essential radio test suites . 13 5.3.1 Frequency error . 13 5.3.2 Transmitter power (conducted) . 13 5.3.3 Maximum effective radiated power . 13 5.3.4 Adjacent and alternate channel power . 13 5.3.5 Unwanted emissions in the spurious domain . 13 5.3.6 Intermodulation attenuation . 13 5.3.7 Transient frequency behaviour of the transmitter . 13 5.3.8 Receiver Spurious radiations . 13 5.4 Other radio test suites . 14 5.4.1 Maximum usable receiver sensitivity . 14 5.4.2 Co-channel rejection . 14 5.4.3 Adjacent channel selectivity . 14 5.4.4 Spurious response rejection . 14 5.4.5 Intermodulation response rejection . 14 5.4.6 Receiver blocking or desensitization . 14 Annex A (normative): HS Requirements and conformance Test specifications Table (HS-RTT) . 15 Annex B (informative): The EN title in the official languages . 17 Annex C (informative): Bibliography . 18 History . 19
SIST EN 300 113-2 V1.4.2:2010



ETSI ETSI EN 300 113-2 V1.4.2 (2009-11) 5 Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (http://webapp.etsi.org/IPR/home.asp). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Foreword This Harmonized European Standard (Telecommunications series) has been produced by ETSI Technical Committee Electromagnetic compatibility and Radio spectrum Matters (ERM). The present document has been produced by ETSI in response to a mandate from the European Commission issued under Council Directive 98/34/EC [i.2] (as amended) laying down a procedure for the provision of information in the field of technical standards and regulations. The present document is intended to become a Harmonized Standard, the reference of which will be published in the Official Journal of the European Communities referencing the Directive 1999/5/EC [i.1] of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity ("the R&TTE Directive"). Technical specifications relevant to Directive 1999/5/EC [i.1] are given in annex A. The present document is part 2 of a multi-part deliverable covering the Electromagnetic compatibility and Radio spectrum Matters (ERM); Land mobile service; Radio equipment intended for the transmission of data (and/or speech) using constant or non-constant envelope modulation and having an antenna connector, as identified below: Part 1:
"Technical characteristics and methods of measurement"; Part 2: "Harmonized EN covering essential requirements of article 3.2 of the R&TTE Directive".
Proposed national transposition dates Date of latest announcement of this EN (doa): 28 February 2010 Date of latest publication of new National Standard or endorsement of this EN (dop/e):
31 August 2010 Date of withdrawal of any conflicting National Standard (dow): 31 August 2011
Introduction The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive. The modular structure is shown in EG 201 399 [i.3].
SIST EN 300 113-2 V1.4.2:2010



ETSI ETSI EN 300 113-2 V1.4.2 (2009-11) 6 1 Scope The present document covers the technical requirements for radio transmitters and receivers used in stations in the Private Mobile Radio (PMR) service. It applies to use in the land mobile service, operating on radio frequencies in all or in any part of the frequencies as given below, with channel separations of 12,5 kHz, 20 kHz and 25 kHz, intended for speech and/or data. Table 1: Radiocommunications service frequency bands
Radiocommunications service frequency bands Transmit
30 MHz to 1 000 MHz Receive
30 MHz to 1 000 MHz
It applies to equipment for continuous and/or discontinuous transmission of data and/or digital speech.
The equipment comprises a transmitter and associated encoder and modulator and/or a receiver and associated demodulator and decoder. The types of equipment covered by the present document are as follows: • base station (equipment fitted with an antenna connector, intended for use in a fixed location); • mobile station (equipment fitted with an antenna connector, normally used in a vehicle or as a transportable); • and those hand portable stations: a) fitted with an antenna socket; or b) without an external antenna socket, but fitted with a permanent internal or a temporary internal 50 Ω Radio Frequency (RF) connector which allows access to the transmitter output and the receiver input. Hand portable equipment without an external or internal RF connector and without the possibility of having a temporary internal 50 Ω RF connector is not covered by the present document. The present document is intended to cover the provisions of article 3.2 of Directive 1999/5/EC
(R&TTE Directive) [i.1], which states that "(.) radio equipment shall be so constructed that it effectively uses the spectrum allocated to terrestrial/space radiocommunications and orbital resources so as to avoid harmful interference". In addition to the present document, other ENs that specify technical requirements in respect of essential requirements under other parts of article 3 of the R&TTE Directive [i.1] may apply to equipment within the scope of the present document. NOTE: A list of such ENs is included on the web site http://www.newapproach.org. 2 References References are either specific (identified by date of publication and/or edition number or version number) or non-specific. • For a specific reference, subsequent revisions do not apply. • Non-specific reference may be made only to a complete document or a part thereof and only in the following cases:
- if it is accepted that it will be possible to use all future changes of the referenced document for the purposes of the referring document;
- for informative references. SIST EN 300 113-2 V1.4.2:2010



ETSI ETSI EN 300 113-2 V1.4.2 (2009-11) 7 Referenced documents which are not found to be publicly available in the expected location might be found at http://docbox.etsi.org/Reference. NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee their long term validity. 2.1 Normative references The following referenced documents are indispensable for the application of the present document. For dated references, only the edition cited applies. For non-specific references, the latest edition of the referenced document (including any amendments) applies. [1] ETSI EN 300 113-1 (V1.6.2): "Electromagnetic compatibility and Radio spectrum Matters (ERM); Land mobile service; Radio equipment intended for the transmission of data (and/or speech) using constant or non-constant envelope modulation and having an antenna connector; Part 1: Technical characteristics and methods of measurement". 2.2 Informative references The following referenced documents are not essential to the use of the present document but they assist the user with regard to a particular subject area. For non-specific references, the latest version of the referenced document (including any amendments) applies. [i.1] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity (R&TTE Directive). [i.2] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a procedure for the provision of information in the field of technical standards and regulations and of rules on information society services. [i.3] ETSI EG 201 399 (V2.1.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM); A guide to the production of candidate Harmonized Standards for application under the R&TTE Directive". 3 Definitions, symbols and abbreviations 3.1 Definitions For the purposes of the present document, the terms and definitions given in the R&TTE Directive [i.1] and EN 300 113-1 [1] apply. 3.2 Symbols For the purposes of the present document, the symbols given in EN 300 113-1 [1] apply. 3.3 Abbreviations For the purposes of the present document, the abbreviations given in EN 300 113-1 [1] apply. SIST EN 300 113-2 V1.4.2:2010



ETSI ETSI EN 300 113-2 V1.4.2 (2009-11) 8 4 Technical requirements specifications 4.1 Environmental profile The technical requirements of the present document apply under the environmental profile for operation of the equipment, which shall be declared by the manufacturer of the equipment. The equipment shall comply with all the technical requirements of the present document at all times when operating within the boundary limits of the declared operational environmental profile. 4.2 Transmitter requirements 4.2.1 Frequency error 4.2.1.1 Definition The frequency error is defined in EN 300 113-1 [1], clause 7.1.1. 4.2.1.2 Limit The frequency error shall not exceed the limits in EN 300 113-1 [1], clause 7.1.3. 4.2.1.3 Conformance If the transmitter adjacent and alternate channels power (clause 5.3.4) has not been measured under extreme test conditions, then the conformance tests as defined in clause 5.3.1 shall be carried out. 4.2.2 Transmitter power (conducted) 4.2.2.1 Definition The transmitter power (conducted) is defined in EN 300 113-1 [1], clause 7.2.1. 4.2.2.2 Limit The transmitter power (conducted) shall not exceed the limits in EN 300 113-1 [1], clause 7.2.3. 4.2.2.3 Conformance Conformance tests as defined in clause 5.3.2 shall be carried out. 4.2.3 Maximum effective radiated power 4.2.3.1 Definition The maximum effective radiated power is defined in EN 300 113-1 [1], clause 7.3.1. 4.2.3.2 Limit The maximum effective radiated power shall not exceed the limits in EN 300 113-1 [1], clause 7.3.3. 4.2.3.3 Conformance Conformance tests as defined in clause 5.3.3 shall be carried out. SIST EN 300 113-2 V1.4.2:2010



ETSI ETSI EN 300 113-2 V1.4.2 (2009-11) 9 4.2.4 Adjacent and alternate channel power 4.2.4.1 Definition The adjacent and alternate channel power is defined in EN 300 113-1 [1], clause 7.4.1. 4.2.4.2 Limit The adjacent and alternate channel power shall not exceed the limits in EN 300 113-1 [1], clause 7.4.3. 4.2.4.3 Conformance Conformance tests as defined in clause 5.3.4 shall be carried out. 4.2.5 Unwanted emissions in the spurious domain 4.2.5.1 Definition The unwanted emissions in the spurious domain are defined in EN 300 113-1 [1], clause 7.5.1. 4.2.5.2 Limit The unwanted emissions in the sp
...

ETSI EN 300 113-2 V1.4.2 (2009-11)
Harmonized European Standard (Telecommunications series)

Electromagnetic compatibility
and Radio spectrum Matters (ERM);
Land mobile service;
Radio equipment intended for the transmission
of data (and/or speech) using constant or non-constant
envelope modulation and having an antenna connector;
Part 2: Harmonized EN covering essential requirements
of article 3.2 of the R&TTE Directive

---------------------- Page: 1 ----------------------

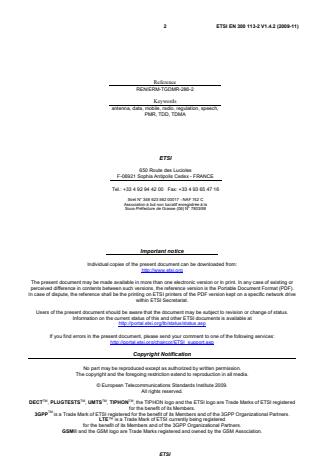

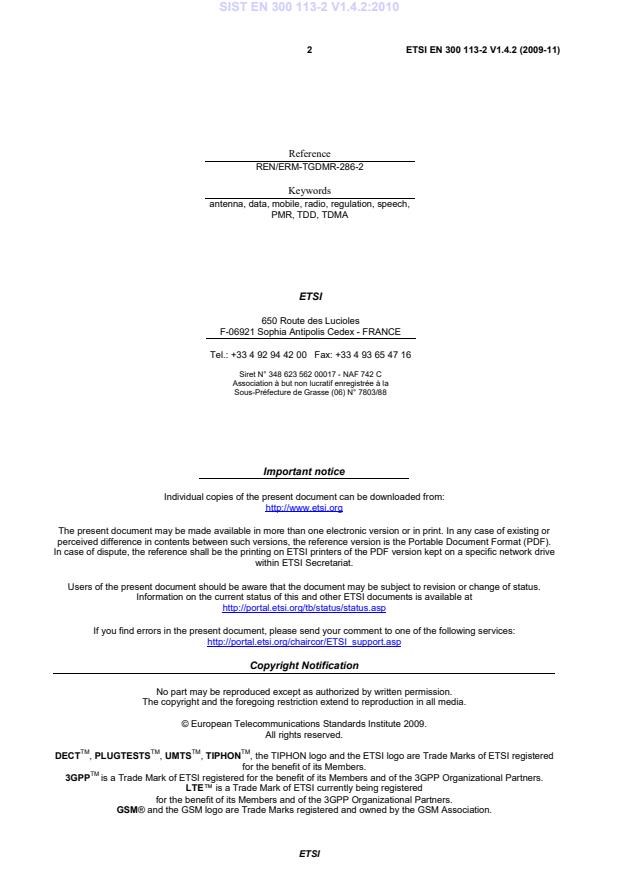

2 ETSI EN 300 113-2 V1.4.2 (2009-11)



Reference
REN/ERM-TGDMR-286-2
Keywords
antenna, data, mobile, radio, regulation, speech,
PMR, TDD, TDMA
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2009.
All rights reserved.

TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI

---------------------- Page: 2 ----------------------
3 ETSI EN 300 113-2 V1.4.2 (2009-11)
Contents
Intellectual Property Rights . 5
Foreword . 5
Introduction . 5
1 Scope . 6
2 References . 6
2.1 Normative references . 7
2.2 Informative references . 7
3 Definitions, symbols and abbreviations . 7
3.1 Definitions . 7
3.2 Symbols . 7
3.3 Abbreviations . 7
4 Technical requirements specifications . 8
4.1 Environmental profile . 8
4.2 Transmitter requirements . 8
4.2.1 Frequency error . 8
4.2.1.1 Definition . 8
4.2.1.2 Limit . 8
4.2.1.3 Conformance . 8
4.2.2 Transmitter power (conducted) . 8
4.2.2.1 Definition . 8
4.2.2.2 Limit . 8
4.2.2.3 Conformance . 8
4.2.3 Maximum effective radiated power . 8
4.2.3.1 Definition . 8
4.2.3.2 Limit . 8
4.2.3.3 Conformance . 8
4.2.4 Adjacent and alternate channel power . 9
4.2.4.1 Definition . 9
4.2.4.2 Limit . 9
4.2.4.3 Conformance . 9
4.2.5 Unwanted emissions in the spurious domain . 9
4.2.5.1 Definition . 9
4.2.5.2 Limit . 9
4.2.5.3 Conformance . 9
4.2.6 Intermodulation attenuation . 9
4.2.6.1 Definition . 9
4.2.6.2 Limit . 9
4.2.6.3 Conformance . 9
4.2.7 Transient frequency behaviour of the transmitter . 9
4.2.7.1 Definition . 9
4.2.7.2 Limit . 9
4.2.7.3 Conformance . 9
4.2.8 Transmitter timeout timer . 10
4.2.8.1 Definition . 10
4.2.8.2 Limit . 10
4.2.8.3 Conformance . 10
4.3 Receiver requirements . 10
4.3.1 Maximum usable receiver sensitivity . 10
4.3.1.1 Definition . 10
4.3.1.2 Limit . 10
4.3.1.3 Conformance . 10
4.3.2 Co-channel rejection . 10
4.3.2.1 Definition . 10
4.3.2.2 Limit . 10
ETSI

---------------------- Page: 3 ----------------------

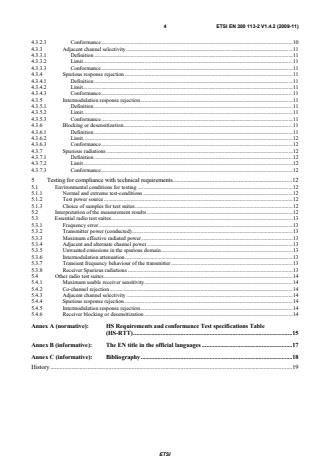

4 ETSI EN 300 113-2 V1.4.2 (2009-11)
4.3.2.3 Conformance . 10
4.3.3 Adjacent channel selectivity . 11
4.3.3.1 Definition . 11
4.3.3.2 Limit . 11
4.3.3.3 Conformance . 11
4.3.4 Spurious response rejection . 11
4.3.4.1 Definition . 11
4.3.4.2 Limit . 11
4.3.4.3 Conformance . 11
4.3.5 Intermodulation response rejection . 11
4.3.5.1 Definition . 11
4.3.5.2 Limit . 11
4.3.5.3 Conformance . 11
4.3.6 Blocking or desensitization . 11
4.3.6.1 Definition . 11
4.3.6.2 Limit . 12
4.3.6.3 Conformance . 12
4.3.7 Spurious radiations . 12
4.3.7.1 Definition . 12
4.3.7.2 Limit . 12
4.3.7.3 Conformance . 12
5 Testing for compliance with technical requirements . 12
5.1 Environmental conditions for testing . 12
5.1.1 Normal and extreme test-conditions . 12
5.1.2 Test power source . 12
5.1.3 Choice of samples for test suites . 12
5.2 Interpretation of the measurement results . 12
5.3 Essential radio test suites . 13
5.3.1 Frequency error . 13
5.3.2 Transmitter power (conducted) . 13
5.3.3 Maximum effective radiated power . 13
5.3.4 Adjacent and alternate channel power . 13
5.3.5 Unwanted emissions in the spurious domain . 13
5.3.6 Intermodulation attenuation . 13
5.3.7 Transient frequency behaviour of the transmitter . 13
5.3.8 Receiver Spurious radiations . 13
5.4 Other radio test suites . 14
5.4.1 Maximum usable receiver sensitivity . 14
5.4.2 Co-channel rejection . 14
5.4.3 Adjacent channel selectivity . 14
5.4.4 Spurious response rejection . 14
5.4.5 Intermodulation response rejection . 14
5.4.6 Receiver blocking or desensitization . 14
Annex A (normative): HS Requirements and conformance Test specifications Table
(HS-RTT) . 15
Annex B (informative): The EN title in the official languages . 17
Annex C (informative): Bibliography . 18
History . 19

ETSI

---------------------- Page: 4 ----------------------
5 ETSI EN 300 113-2 V1.4.2 (2009-11)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonized European Standard (Telecommunications series) has been produced by ETSI Technical Committee
Electromagnetic compatibility and Radio spectrum Matters (ERM).
The present document has been produced by ETSI in response to a mandate from the European Commission issued
under Council Directive 98/34/EC [i.2] (as amended) laying down a procedure for the provision of information in the
field of technical standards and regulations.
The present document is intended to become a Harmonized Standard, the reference of which will be published in the
Official Journal of the European Communities referencing the Directive 1999/5/EC [i.1] of the European Parliament
and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual
recognition of their conformity ("the R&TTE Directive").
Technical specifications relevant to Directive 1999/5/EC [i.1] are given in annex A.
The present document is part 2 of a multi-part deliverable covering the Electromagnetic compatibility and Radio
spectrum Matters (ERM); Land mobile service; Radio equipment intended for the transmission of data (and/or speech)
using constant or non-constant envelope modulation and having an antenna connector, as identified below:
Part 1: "Technical characteristics and methods of measurement";
Part 2: "Harmonized EN covering essential requirements of article 3.2 of the R&TTE Directive".

Proposed national transposition dates
Date of latest announcement of this EN (doa): 28 February 2010
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 31 August 2010
Date of withdrawal of any conflicting National Standard (dow): 31 August 2011

Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive. The modular
structure is shown in EG 201 399 [i.3].
ETSI

---------------------- Page: 5 ----------------------
6 ETSI EN 300 113-2 V1.4.2 (2009-11)
1 Scope
The present document covers the technical requirements for radio transmitters and receivers used in stations in the
Private Mobile Radio (PMR) service.
It applies to use in the land mobile service, operating on radio frequencies in all or in any part of the frequencies as
given below, with channel separations of 12,5 kHz, 20 kHz and 25 kHz, intended for speech and/or data.
Table 1: Radiocommunications service frequency bands
Radiocommunications service frequency bands
Transmit 30 MHz to 1 000 MHz
Receive 30 MHz to 1 000 MHz

It applies to equipment for continuous and/or discontinuous transmission of data and/or digital speech.
The equipment comprises a transmitter and associated encoder and modulator and/or a receiver and associated
demodulator and decoder. The types of equipment covered by the present document are as follows:
• base station (equipment fitted with an antenna connector, intended for use in a fixed location);
• mobile station (equipment fitted with an antenna connector, normally used in a vehicle or as a transportable);
• and those hand portable stations:
a) fitted with an antenna socket; or
b) without an external antenna socket, but fitted with a permanent internal or a temporary internal 50 Ω
Radio Frequency (RF) connector which allows access to the transmitter output and the receiver input.
Hand portable equipment without an external or internal RF connector and without the possibility of having a temporary
internal 50 Ω RF connector is not covered by the present document.
The present document is intended to cover the provisions of article 3.2 of Directive 1999/5/EC
(R&TTE Directive) [i.1], which states that "(.) radio equipment shall be so constructed that it effectively uses the
spectrum allocated to terrestrial/space radiocommunications and orbital resources so as to avoid harmful interference".
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements
under other parts of article 3 of the R&TTE Directive [i.1] may apply to equipment within the scope of the present
document.
NOTE: A list of such ENs is included on the web site http://www.newapproach.org.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific.
• For a specific reference, subsequent revisions do not apply.
• Non-specific reference may be made only to a complete document or a part thereof and only in the following
cases:
- if it is accepted that it will be possible to use all future changes of the referenced document for the
purposes of the referring document;
- for informative references.
ETSI

---------------------- Page: 6 ----------------------
7 ETSI EN 300 113-2 V1.4.2 (2009-11)
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are indispensable for the application of the present document. For dated
references, only the edition cited applies. For non-specific references, the latest edition of the referenced document
(including any amendments) applies.
[1] ETSI EN 300 113-1 (V1.6.2): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
Land mobile service; Radio equipment intended for the transmission of data (and/or speech) using
constant or non-constant envelope modulation and having an antenna connector; Part 1: Technical
characteristics and methods of measurement".
2.2 Informative references
The following referenced documents are not essential to the use of the present document but they assist the user with
regard to a particular subject area. For non-specific references, the latest version of the referenced document (including
any amendments) applies.
[i.1] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio
equipment and telecommunications terminal equipment and the mutual recognition of their
conformity (R&TTE Directive).
[i.2] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a
procedure for the provision of information in the field of technical standards and regulations and of
rules on information society services.
[i.3] ETSI EG 201 399 (V2.1.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
A guide to the production of candidate Harmonized Standards for application under the R&TTE
Directive".
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the terms and definitions given in the R&TTE Directive [i.1] and
EN 300 113-1 [1] apply.
3.2 Symbols
For the purposes of the present document, the symbols given in EN 300 113-1 [1] apply.
3.3 Abbreviations
For the purposes of the present document, the abbreviations given in EN 300 113-1 [1] apply.
ETSI

---------------------- Page: 7 ----------------------
8 ETSI EN 300 113-2 V1.4.2 (2009-11)
4 Technical requirements specifications
4.1 Environmental profile
The technical requirements of the present document apply under the environmental profile for operation of the
equipment, which shall be declared by the manufacturer of the equipment. The equipment shall comply with all the
technical requirements of the present document at all times when operating within the boundary limits of the declared
operational environmental profile.
4.2 Transmitter requirements
4.2.1 Frequency error
4.2.1.1 Definition
The frequency error is defined in EN 300 113-1 [1], clause 7.1.1.
4.2.1.2 Limit
The frequency error shall not exceed the limits in EN 300 113-1 [1], clause 7.1.3.
4.2.1.3 Conformance
If the transmitter adjacent and alternate channels power (clause 5.3.4) has not been measured under extreme test
conditions, then the conformance tests as defined in clause 5.3.1 shall be carried out.
4.2.2 Transmitter power (conducted)
4.2.2.1 Definition
The transmitter power (conducted) is defined in EN 300 113-1 [1], clause 7.2.1.
4.2.2.2 Limit
The transmitter power (conducted) shall not exceed the limits in EN 300 113-1 [1], clause 7.2.3.
4.2.2.3 Conformance
Conformance tests as defined in clause 5.3.2 shall be carried out.
4.2.3 Maximum effective radiated power
4.2.3.1 Definition
The maximum effective radiated power is defined in EN 300 113-1 [1], clause 7.3.1.
4.2.3.2 Limit
The maximum effective radiated power shall not exceed the limits in EN 300 113-1 [1], clause 7.3.3.
4.2.3.3 Conformance
Conformance tests as defined in clause 5.3.3 shall be carried out.
ETSI

---------------------- Page: 8 ----------------------
9 ETSI EN 300 113-2 V1.4.2 (2009-11)
4.2.4 Adjacent and alternate channel power
4.2.4.1 Definition
The adjacent and alternate channel power is defined in EN 300 113-1 [1], clause 7.4.1.
4.2.4.2 Limit
The adjacent and alternate channel power shall not exceed the limits in EN 300 113-1 [1], clause 7.4.3.
4.2.4.3 Conformance
Conformance tests as defined in clause 5.3.4 shall be carried out.
4.2.5 Unwanted emissions in the spurious domain
4.2.5.1 Definition
The unwanted emissions in the spurious domain are defined in EN 300 113-1 [1], clause 7.5.1.
4.2.5.2 Limit
The unwanted emissions in the spurious domain shall not exceed the limits in EN 300 113-1 [1], clause 7.5.4.
4.2.5.3 Conformance
Conformance tests as defined in clause 5.3.5 shall be carried out.
4.2.6 Intermodulation attenuation
4.2.6.1 Definition
The intermodulation attenuation is defined in EN 300 113-1 [1], clause 7.6.1.
4.2.6.2 Limit
The intermodu
...
