SIST EN 300 392-10-4 V1.3.1:2003

Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D); Part 10: Supplementary services stage 1; Sub-part 4: Call Forwarding (CF)

Updates due to finalisation of stage 2 and 3.

Prizemni snopovni radio (TETRA) – Govor in podatki (V+D) – 10. del: Dopolnilne storitve stopnje 1 – 4. poglavje: Predaja klica (CF)

General Information

• Status: Published
• Publication Date: 30-Nov-2003
• ICS: 33.070.10 - Terrestrial Trunked Radio (TETRA)
• Technical Committee: SS EIT - Technical Board for the electrotechnical, information technology and telecommunications fields
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Dec-2003
• Due Date: 01-Dec-2003
• Completion Date: 01-Dec-2003
• Mandate: T-172-1A
• Ref Project: ETSI EN 300 392-10-4 V1.3.1 (2003-09) - Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D); Part 10: Supplementary services stage 1; Sub-part 4: Call Forwarding (CF)

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Prizemni snopovni radio (TETRA) – Govor in podatki (V+D) – 10. del: Dopolnilne storitve stopnje 1 – 4. poglavje: Predaja klica (CF)Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D); Part 10: Supplementary services stage 1; Sub-part 4: Call Forwarding (CF)33.070.10Prizemni snopovni radio (TETRA)Terrestrial Trunked Radio (TETRA)ICS:Ta slovenski standard je istoveten z:EN 300 392-10-4 Version 1.3.1SIST EN 300 392-10-4 V1.3.1:2003en01-december-2003SIST EN 300 392-10-4 V1.3.1:2003SLOVENSKI
STANDARD



SIST EN 300 392-10-4 V1.3.1:2003



ETSI EN 300 392-10-4 V1.3.1 (2003-09)European Standard (Telecommunications series) Terrestrial Trunked Radio (TETRA);Voice plus Data (V+D);Part 10: Supplementary services stage 1;Sub-part 4: Call Forwarding (CF)
SIST EN 300 392-10-4 V1.3.1:2003

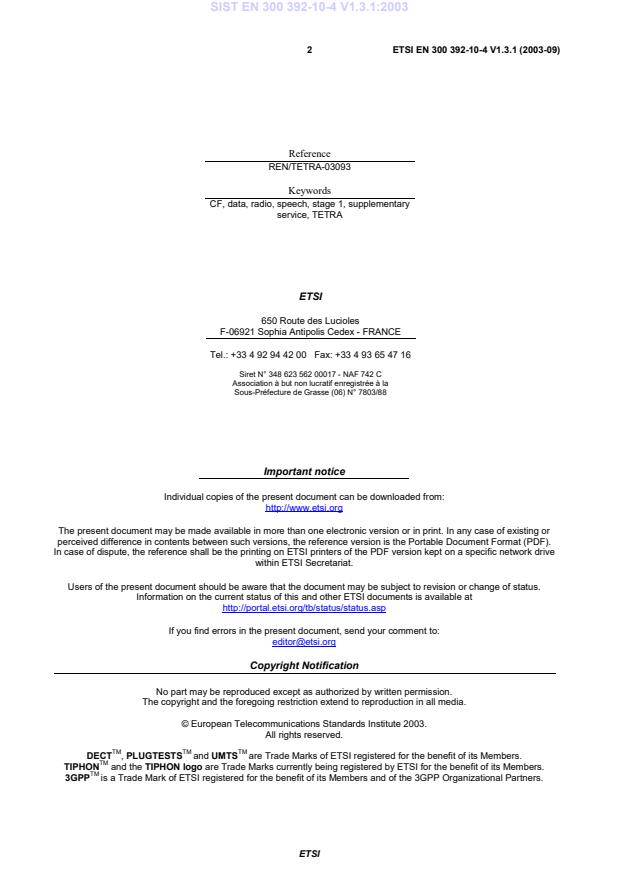

ETSI ETSI EN 300 392-10-4 V1.3.1 (2003-09) 2
Reference REN/TETRA-03093 Keywords CF, data, radio, speech, stage 1, supplementary service, TETRA ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: [phone]
Fax: [phone]
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice Individual copies of the present document can be downloaded from: http://www.etsi.org The present document may be made available in more than one electronic version or in print. In any case of existing or perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF). In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at http://portal.etsi.org/tb/status/status.asp If you find errors in the present document, send your comment to: [e-mail] Copyright Notification No part may be reproduced except as authorized by written permission. The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2003. All rights reserved.
DECTTM, PLUGTESTSTM and UMTSTM are Trade Marks of ETSI registered for the benefit of its Members. TIPHONTM and the TIPHON logo are Trade Marks currently being registered by ETSI for the benefit of its Members. 3GPPTM is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners. SIST EN 300 392-10-4 V1.3.1:2003



ETSI ETSI EN 300 392-10-4 V1.3.1 (2003-09) 3
Contents Intellectual Property Rights.5 Foreword.5 Introduction.7 1 Scope.8 2 References.8 3 Definitions, symbols and abbreviations.9 3.1 Definitions.9 3.2 Symbols.10 3.3 Abbreviations.10 4 SS-CF generic specification.11 4.1 Description.11 4.1.1 General description.11 4.1.2 SS-CFU specific features.12 4.1.3 SS-CFB specific features.12 4.1.4 SS-CFNRy specific features.12 4.1.5 SS-CFNRc specific features.13 4.1.6 Authorized users.13 4.2 Procedures.14 4.2.1 Provision/withdrawal.14 4.2.2 Normal procedures.14 4.2.2.1 SS-CF management.14 4.2.2.1.1 Activation/deactivation.14 4.2.2.1.2 Enable/disable.16 4.2.2.1.3 Registration.16 4.2.2.1.4 Interrogation.16 4.2.2.2 Invocation and operation.17 4.2.2.2.1 SS-CF invocation and operation.17 4.2.2.2.2 Forwarded-to user C notification.18 4.2.2.2.3 Calling user A notification.18 4.2.2.2.4 Served user notification.18 4.2.3 Exceptional procedures.18 4.2.3.1 Activation/deactivation.18 4.2.3.2 Interrogation.19 4.2.3.3 Invocation and operation.19 4.3 Interactions with other supplementary services and ANFs.19 4.3.1 Access priority.19 4.3.2 Ambiance listening.19 4.3.3 Area selection.19 4.3.4 Barring of incoming calls.19 4.3.5 Barring of outgoing calls.20 4.3.6 Call authorized by dispatcher.20 4.3.7 Call Completion on No Reply (SS-CCNRy).20 4.3.8 Call Completion to Busy Subscriber (SS-CCBS).20 4.3.9 Call hold.21 4.3.10 Calling/Connected Line Identification Restriction (SS-CLIR/SS-COLR).21 4.3.11 Calling Line Identification Presentation (SS-CLIP).21 4.3.12 Call waiting.21 4.3.12.1 Common to SS-CF.21 4.3.12.2 Call Forwarding Unconditional (SS-CFU).21 4.3.12.3 Call Forwarding On Busy (SS-CFB).21 4.3.12.4 Call Forwarding on No Reply (SS-CFNRy).22 4.3.12.5 Call Forwarding on Not Reachable (SS-CFNRc).22 4.3.13 Call report.22 SIST EN 300 392-10-4 V1.3.1:2003



ETSI ETSI EN 300 392-10-4 V1.3.1 (2003-09) 4
4.3.14 Connected Line Identification Presentation (SS-COLP).22 4.3.15 Discreet listening.22 4.3.16 Dynamic group number assignment.22 4.3.17 Include call.22 4.3.18 Late entry.22 4.3.19 List search call.22 4.3.20 Pre-emptive Priority Call.23 4.3.21 Priority call.23 4.3.22 Short number addressing.23 4.3.23 Talking party identification.23 4.3.24 Interaction with ANF mobility.23 4.4 Interworking considerations.23 5 SS-CF overall SDL.24 6 SS-CFU for SDS specification.28 6.1 General description.28 6.2 Procedures.29 6.3 Interactions with other supplementary services and ANFs.29 6.3.1 Interactions with other supplementary services.29 6.3.2 Interaction with ANF mobility.29 6.4 Interworking considerations.29 Annex A (informative): Bibliography.30 History.31
SIST EN 300 392-10-4 V1.3.1:2003



ETSI ETSI EN 300 392-10-4 V1.3.1 (2003-09) 5
Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (http://webapp.etsi.org/IPR/home.asp). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Foreword This European Standard (Telecommunications series) has been produced by ETSI Project Terrestrial Trunked Radio (TETRA). The present document is part 10, sub-part 4 of a multi-part deliverable covering Voice plus Data (V+D), as identified below: EN 300 392-1: "General network design"; EN 300 392-2: "Air Interface (AI)"; EN 300 392-3: "Interworking at the Inter-System Interface (ISI)"; ETS 300 392-4: "Gateways basic operation"; EN 300 392-5: "Peripheral Equipment Interface (PEI)"; EN 300 392-7: "Security"; EN 300 392-9: "General requirements for supplementary services"; EN 300 392-10: "Supplementary services stage 1"; ETS 300 392-10-1: "Call identification"; ETS 300 392-10-2: "Call report"; ETS 300 392-10-3: "Talking Party Identification (TPI)"; EN 300 392-10-4:
"Call Forwarding (CF)"; ETS 300 392-10-5: "List Search Call (LSC)"; ETS 300 392-10-6: "Call Authorized by Dispatcher (CAD)"; ETS 300 392-10-7: "Short number addressing"; ETS 300 392-10-8: "Area selection"; ETS 300 392-10-9: "Access priority"; EN 300 392-10-10: "Priority Call (PC)"; ETS 300 392-10-11: "Call Waiting (CW)"; ETS 300 392-10-12: "Call Hold (CH)"; ETS 300 392-10-13: "Call completion to busy subscriber"; EN 300 392-10-14: "Late Entry (LE)"; SIST EN 300 392-10-4 V1.3.1:2003



ETSI ETSI EN 300 392-10-4 V1.3.1 (2003-09) 6
ETS 300 392-10-15: "Transfer of control"; ETS 300 392-10-16: "Pre-emptive priority call"; EN 300 392-10-17: "Include Call (IC)"; EN 300 392-10-18: "Barring of Outgoing Calls (BOC)"; EN 300 392-10-19: "Barring of Incoming Calls (BIC)"; ETS 300 392-10-20: "Discreet Listening (DL)"; EN 300 392-10-21: "Ambience Listening (AL)"; EN 300 392-10-22: "Dynamic Group Number Assignment (DGNA)"; ETS 300 392-10-23: "Call completion on no reply"; ETS 300 392-10-24: "Call Retention (CRT)"; EN 300 392-11: "Supplementary services stage 2"; EN 300 392-12: "Supplementary services stage 3"; ETS 300 392-13: "SDL model of the Air Interface (AI)"; ETS 300 392-14: "Protocol Implementation Conformance Statement (PICS) proforma specification"; TS 100 392-15: "TETRA frequency bands, duplex spacings and channel numbering"; TS 100 392-16: "Network Performance Metrics"; TS 100 392-17: "TETRA V+D and DMO Release 1.1 specifications".
National transposition dates Date of adoption of this EN: 29 August 2003 Date of latest announcement of this EN (doa): 30 November 2003 Date of latest publication of new National Standard or endorsement of this EN (dop/e):
31 May 2004 Date of withdrawal of any conflicting National Standard (dow): 31 May 2004
SIST EN 300 392-10-4 V1.3.1:2003



ETSI ETSI EN 300 392-10-4 V1.3.1 (2003-09) 7
Introduction Supplementary services specifications are produced in three stages, according to the method described in ITU-T Recommendation I.210 [2]. The present document contains the stage 1 specifications of SS-CFU, SS-CFB, SS-CFNRy and SS-CFNRc. The stage 1 descriptions specify the supplementary services as seen by users of networks. The first edition of the present document was presented as a delta document to the first edition of ECMA-173 [1]. The second edition was redrafted based on the latest published text of ECMA-173 [1] as a self contained document so as to be more readable. Additions compared to ECMA-173 [1] were made to take into account particular TETRA specifics such as group calls and to include user requirements and situations not addressed in ECMA-173 [1]. NOTE 1: Contrary to ECMA-173 [1], the present document does not specify SS-CD (Call Deflection) which is not presently supported by TETRA. NOTE 2: Contrary to ECMA-173 [1], distinction is needed in the TETRA environment between "no reply" and "not reachable" because of the radio nature of the TETRA links. The distinction between the two services is that in the case of SS-CFNRy, the calling user obtains an ALERT signal while in the case of SS-CFNRc, the calling user does not obtain any signal.
The present document is updated to take into account improvements to the protocol in stage 3. SIST EN 300 392-10-4 V1.3.1:2003



ETSI ETSI EN 300 392-10-4 V1.3.1 (2003-09) 8
1 Scope The present document specifies the supplementary services Call Forwarding Unconditional (CFU), Call Forwarding Busy (CFB), Call Forwarding on No Reply (CFNRy) and Call Forwarding on Not Reachable (CFNRc) which are applicable to various basic services supported by TETRA SwMIs. Basic services are specified in EN 300 392-2 [4]. SS-CFU, SS-CFB, SS-CFNRy and SS-CFNRc are supplementary services which apply during call establishment providing a forwarding of an incoming call to an other destination than the original destination defined by the calling user under different conditions (busy, no reply or not reachable) or under no condition (unconditional). The present document is applicable to circuit mode TETRA V+D tele-services and bearer services. The present document is also applicable to TETRA Short Data Service (SDS), but limited to the supplementary service Call Forwarding Unconditional (CFU).
Man machine interfaces and charging principles are outside the scope of the present document. The present document specifies also the SS-CF invocation counter, which is applicable to various basic services supported by TETRA networks.
2 References The following documents contain provisions which, through reference in this text, constitute provisions of the present document. • References are either specific (identified by date of publication and/or edition number or version number) or non-specific. • For a specific reference, subsequent revisions do not apply. • For a non-specific reference, the latest version applies. Referenced documents which are not found to be publicly available in the expected location might be found at http://docbox.etsi.org/Reference. [1] ECMA-173: "Private Integrated Services Network (PISN) - Specification, Functional Model and Information Flows - Call Diversion Supplementary Services (CFSD)". [2] ITU-T Recommendation I.210: "Principles of telecommunication services supported by an ISDN and the means to describe them". [3] ITU-T Recommendation Z.100: "Specification and description language (SDL)". [4] ETSI EN 300 392-2: "Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D); Part 2: Air Interface (AI)". [5] ITU-T Recommendation Q.9: "Vocabulary of switching and signalling terms". [6] ETSI EN 300 392-12-4: "Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D); Part 12: Supplementary services stage 3; Sub-part 4: Call Forwarding (CF)". [7] ETSI EN 300 392-3-2: "Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D); Part 3: Interworking at the Inter-System Interface (ISI); Sub-part 2: Additional Network Feature Individual Call (ANF-ISIIC)". [8] ETSI EN 300 392-7: "Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D); Part 7: Security". SIST EN 300 392-10-4 V1.3.1:2003



ETSI ETSI EN 300 392-10-4 V1.3.1 (2003-09) 9
3 Definitions, symbols and abbreviations 3.1 Definitions For the purposes of the present document, the following terms and definitions apply: Additional Network Feature (ANF): capability, over and above that of a basic service, provided by a SwMI, but not directly to a SwMI user authorized user: user who is responsible for the definition, activation and deactivation of the service NOTE: The authorized user may also interrogate the service. busy: TETRA destination is considered to be busy if either a "network determined user busy" or a "user determined user busy" condition exists call, basic call: instance of the use of a basic service connected number: number of the user that answers (user C) forwarded-to number: number to which a call is forwarded forwarded-to user: user to which a call is forwarded forwarding: redirection of a call, on behalf of a called user and prior to connect, to a number different from the number of that called user forwarding cause: contains the reason for the forwarding: CFU, CFB, CFNRy, CFNRc forwarding number: number of the served user forwarding user: user for which the call forwarding is invoked; it may be the called user first and then any of the successive forwarded-to users (see also last forwarding user) forward switching: network routeing algorithm which performs the forwarding by joining together the first connection from user A's node to user B's node and a second, new connection from user B's node to user C's node last forwarding user: served user from the point of view of the forwarded-to user for a particular stage of call forwarding NOTE:
In the case of a call subject to a single stage of call forwarding, user B is the last forwarding user from the point of view of user C. In the case of a call subject to multiple stages of call forwarding, user B1 is the last forwarding user from the point of view of user B2, user B2 is the last forwarding user from the point of view of user B3, etc. The served user for the final stage of call forwarding is the last forwarding user from the point of view of user C. Mobile Station (MS): physical grouping that contains all of the mobile equipment that is used to obtain TETRA services. By definition, a mobile station contains at least one Mobile Radio Stack (MRS) original called number: number of user B (in case of multiple call forwarding user B1) original called user: first served user of a call which is subject to one or more stages of call forwarding, i.e. user B or B1 partial re-routeing: network routeing algorithm which performs the call forwarding by replacing a particular part of the connection from user A's node to user B's node by another connection from user A's node to user C's node SDS message: status or any type of SDS message NOTE: This definition is used in the present document to combine all TETRA STATUS and SDS messages as defined in clause 13.3 of EN 300 392-2 [4]. signalling connection: connection used to exchange information between peer supplementary service protocol control entities independently of a basic call SIST EN 300 392-10-4 V1.3.1:2003



ETSI ETSI EN 300 392-10-4 V1.3.1 (2003-09) 10 SS-CF invocation counter: counter for the number of forwarding involved in a call or signalling connection during the establishment phase supplementary service: any service provided by a network in addition to its basic service or services (defined in ITU-T Recommendation Q.9)
NOTE: A supplementary service modifies or supplements a basic telecommunication service. Consequently, it cannot be offered to a customer as a stand alone service. It must be offered together with or in association with a basic telecommunication service (extract from ITU-T Recommendation I.210 [2]) Switching and Management Infrastructure (SwMI): all of the TETRA equipment for a Voice plus Data (V+D) network except for subscriber terminals NOTE: The SwMI enables subscriber terminals to communicate with each other via the SwMI. SwMI number: number belonging to a SwMI numbering plan re-routeing: network routeing algorithm which performs the call forwarding by replacing the connection from user A's node to user B's node by another connection from user A's node to user C's node served user: user of a particular SwMI number who is requesting that calls to his number be forwarded NOTE: This user may also be referred to as the forwarding user or the called user. tele-service: type of telecommunications service that provides the complete capability, including terminal equipment functions, for communication between users according to agreed protocols served user: user for whom the supplementary service is invoked user: entity using the services of a telecommunications network via an externally accessible service access point NOTE 1: Unless otherwise noted, the word user is to be understood as individual or group. NOTE 2: A user may be a person or an application process. user application: application process which acts as a user (see definition of user) user A: calling user of a call which is subject to call forwarding user B: served (forwarding) user of a call which is subject to call forwarding. NOTE: User B is also known as the (original) called user. user B1, user B2, user B3, etc.: these are the served (forwarding) users of a call which are subject to multiple stages of forwarding NOTE 1: B1 is the first served user, B2 is the second served user, B3 is the third served user, etc. NOTE 2: B2 is also the forwarded-to user with respect to the first stage of call forwarding, B3 is also the forwarded-to user with respect to the second stage of call forwarding, etc. user C: forwarded-to user with respect to the final stage of call forwarding 3.2 Symbols For the purposes of the present document, the symbols defined in ITU-T Recommendation Z.100 [3] apply. 3.3 Abbreviations For the purposes of the present document, the following abbreviations apply: ANF Additional Network Feature GTSI Group TETRA Subscriber Identity ISDN Integrated Services Digital Network
ISI Inter System Interface SIST EN 300 392-10-4 V1.3.1:2003



ETSI ETSI EN 300 392-10-4 V1.3.1 (2003-09) 11 ITSI Individual TETRA Subscriber Identity
MS Mobile Station NDUB Network Determined User Busy SDL Specification and Description Language SDS Short Data Service SS Supplementary Service
NOTE: The abbreviation SS is only used when referring to a specific supplementary service. SwMI Switching and Management Infrastructure TE Terminal Equipment TETRA Terrestrial European Trunked Radio UDUB User Defined User Busy V+D Voice Plus Data Supplementary service abbreviations: AL Ambience Listening BIC Barring of Incoming Calls BOC Barring of Outgoing Calls CAD Call Authorized by Dispatcher CCBS Call Completion to Busy Subscriber (TETRA) CCNR Call Completion on No Reply (TETRA) CF Call Forwarding CFB Call Forwarding on Busy CFNRc Call Forwarding on Not Reachable CFNRy Call Forwarding on No Reply CFU Call Forwarding Unconditional CLIP Calling Line Identification Presentation CLIR Calling/Connected Line Identification Restriction COLP COnnected Line Identification Presentation COLR COnnected Line Identification Restriction CR Call Report CW Call Waiting DL Discreet Listening IC Include Call PC Priority Call PPC Pre-emptive Priority Call SNA Short Number Addressing 4 SS-CF generic specification 4.1 Description 4.1.1 General description This generic specification groups together all elements common to the four Call Forwarding procedures (CFU, CFB, CFNRy and CFNRc).
SS-CF enables a served user to have the network redirect, to either an ITSI, to a GTSI or to an external subscriber number, calls which are addressed to the served user's ITSI/GTSI/exter
...
