SIST ETS 300 394-5-3 E1:2003

• Abstract:

  Protocol conformance testing (TTCN) of security features for TETRA equ ipment

• Status: Published
• Publication Date: 30-Nov-2003
• ICS: 33.070.10 - Terrestrial Trunked Radio (TETRA)
• Technical Committee: SS EIT - Technical Board for the electrotechnical, information technology and telecommunications fields
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Dec-2003
• Due Date: 01-Dec-2003
• Completion Date: 01-Dec-2003
• Mandate: BC-T-344
• Ref Project: ETSI ETS 300 394-5-3 ed.1 (1999-07) - Terrestrial Trunked Radio (TETRA); Conformance testing specification; Part 5: Security; Sub-part 3: Abstract Test Suite (ATS)

SIST ETS 300 394-5-3 E1:2003 is the Slovenian adoption of ETS 300 394-5-3 Edition 1, published by SIST and based on an ETSI European Telecommunication Standard. It is the Terrestrial Trunked Radio (TETRA) conformance testing specification for security, and it provides Abstract Test Suites (ATS) for protocol conformance testing of TETRA security features. In practice, it is the document you use when you need to test TETRA V+D and DMO security behavior in a way that supports equipment approval and interoperability.

What does SIST ETS 300 394-5-3 E1:2003 specify?

SIST ETS 300 394-5-3 E1:2003 specifies two ATSs for TETRA security protocol conformance testing: one for Voice plus Data (V+D) security and one for Direct Mode Operation (DMO) security. The document focuses on protocol testing with TTCN and on the supporting proformas needed to prepare and report tests.

The document is organized around the test method, ATS conventions, and annexes for the test suites and reporting forms. Clause 4 describes the Abstract Test Method (ATM), clause 5 sets out naming and mapping conventions, and annexes A to F contain the concrete ATS material and proformas. Annex G is a bibliography.

Annex	What it covers
A	ATS for TETRA V+D security NWK layers and TETRA V+D security link layer
B	ATS for TETRA DMO security NWK layers and TETRA DMO security link layer
C	Partial PIXIT proforma for TETRA V+D security
D	Partial PIXIT proforma for TETRA DMO security
E	PCTR proforma for TETRA V+D security
F	PCTR proforma for TETRA DMO security
G	Bibliography

What are the key requirements of SIST ETS 300 394-5-3 E1:2003?

The main technical content is the test method, the ATS structure, and the test documentation model. These are the points that matter most when you have to implement the test suite, prepare a test campaign, or interpret a report.

Test method and observation points

Clause 4 uses an embedded variant of the remote Single Party Testing (SPyT) test method. The Lower Tester (LT) is remote in the test system, there is no explicit Upper Tester (UT), and the upper layers inside the System Under Test (SUT) are used implicitly for testing.

This matters because the IUT is tested from outside while some actions are triggered through the SUT itself. The document also explains that NWK-layer operations, such as authentication, can affect link-layer Protocol Data Units (PDUs), so some link-layer test cases are included to observe MAC header behavior when NWK information is carried.

Control and observation at the right protocol layer

Clause 4.4 places the Point of Control and Observation (PCO) differently depending on what is being tested. For V+D NWK testing, the document assumes different configurations for Mobility Management (MM), Mobile Link Entity (MLE), and Circuit Mode Control Entity (CMCE), with separate arrangements for call control and Short Data Service (SDS). For DMO link-layer testing, the PCO is located in the link protocol to observe MAC header PDUs, and for DMO security testing the PCO is in the NWK layer inside SDS.

In practice, this tells a test designer where to inject stimuli and where to look for responses. It also shows that the same security suite covers both control-plane style behavior and message-carrying behavior at the protocol boundary.

ATS naming and maintenance conventions

Clause 5 defines naming conventions for the ATS declarations, constraints, and dynamic parts. It specifies identifier patterns for test suite operations, parameters, constants, variables, PCOs, timers, PDUs, and test cases.

This matters because the ATS is meant to be maintainable and consistent across the two security suites. The document also requires a one-to-one mapping between Test Case (TC) identifiers and Test Purpose (TP) identifiers, which helps trace each executable test back to the intended purpose.

Annex content for testing and reporting

Annexes A and B provide the TTCN forms of the ATSs in graphical and machine-processable form. The graphical form takes precedence if there is a conflict in operational semantics. Annexes C and D provide Partial PIXIT proformas, which collect test-laboratory data, SUT details, protocol information, implicit send events, and parameter values.

Annexes E and F provide PCTR proformas for recording test results. They cover identification, testing environment, conformance status, static and dynamic summaries, review notes, campaign reports, and observations. In practice, these annexes are the templates you use to prepare evidence that a TETRA implementation was tested in a disciplined way.

Test scope at a glance

The conformance material is split between V+D and DMO, and the report tables in the annexes reflect that split. The document also includes separate test-campaign listings for security functions such as authentication, Over The Air Rekeying (OTAR), and Secure Enable/Disable (SED), so the test coverage is organized by security function and protocol variant.

What terms does SIST ETS 300 394-5-3 E1:2003 define?

• Abstract Test Suite (ATS) - A formal set of abstract test cases and test behavior used to test protocol conformance.
• Abstract Test Method (ATM) - The testing approach that defines how the system under test is controlled and observed.
• Lower Tester (LT) - The tester component in the remote test system that controls and observes the IUT.
• Point of Control and Observation (PCO) - The interface location where test stimuli and observations are applied.
• Protocol Implementation eXtra Information for Testing (PIXIT) - Implementation-specific information needed to run the test suite correctly.
• Protocol Conformance Test Report (PCTR) - The structured report used to record conformance test results.
• Implementation Under Test (IUT) - The implementation being assessed for conformance.
• Single Party Testing (SPyT) - The remote test context used as the basis for the selected ATM.

Who uses SIST ETS 300 394-5-3 E1:2003?

Test laboratories use this standard to configure ATS execution, collect PIXIT data, and produce PCTR reports. TETRA equipment manufacturers use it to prepare implementations for conformance testing and to understand what behavior the test suite will exercise.

It is also used by approval and quality teams that need a common test basis for security-related TETRA equipment assessment. Buyers and technical evaluators can use it to check whether a supplier’s testing claims are based on the V+D and DMO security conformance suites defined here.

What changed in SIST ETS 300 394-5-3 E1:2003 from the previous edition?

SIST ETS 300 394-5-3 E1:2003 is identical to ETS 300 394-5-3 Edition 1. The document history shows the first edition was published in 1999, and the Slovenian standard reproduces that edition.

Which standards are used with SIST ETS 300 394-5-3 E1:2003?

Referenced standard	What it contributes
ETS 300 394-5-2	Test Suite Structure and Test Purposes for TETRA security ATSs
ETS 300 392-7	TETRA V+D security protocol specification
ETS 300 396-6	TETRA DMO security protocol specification
ISO/IEC 9646-1	General conformance testing concepts and framework
ISO/IEC 9646-2	Abstract test suite specification methodology
ISO/IEC 9646-3	TTCN notation and representation rules
ISO/IEC 9646-5	Requirements for test laboratories and clients
ISO/IEC 9646-6	Protocol profile test specification and PIXIT-related basis
ETS 300 406	ETSI methodology for protocol and profile conformance testing specifications
ETR 141	TTCN style guide

What does the SIST ETS 300 394-5-3 E1:2003 document contain?

The document contains the TTCN-based ATS for V+D and DMO security, plus the supporting test architecture and naming conventions. It also contains partial PIXIT proformas for test setup and partial PCTR proformas for recording outcomes.

Annex A and Annex B each include both a graphical TTCN form and a machine-processable TTCN form. Annexes C and D contain the tables for identification, laboratory, client, SUT, protocol layer information, implicit send events, and parameter values. Annexes E and F contain the reporting templates for conformance status, static and dynamic summaries, campaign results, and observations.

SLOVENSKI STANDARD
01-december-2003
Prizemni snopovni radio (TETRA) – Specifikacija za preskušanje skladnosti – 5.
del: Varnost – 3. poddel: Abstraktni preskušalni niz (ATS)
Terrestrial Trunked Radio (TETRA); Conformance testing specification; Part 5: Security;
Sub-part 3: Abstract Test Suite (ATS)
Ta slovenski standard je istoveten z: ETS 300 394-5-3 Edition 1
ICS:
33.070.10 Prizemni snopovni radio Terrestrial Trunked Radio
(TETRA) (TETRA)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN ETS 300 394-5-3
TELECOMMUNICATION July 1999
STANDARD
Source: TETRA Reference: DE/TETRA-06009-5-3
ICS: 33.020
Key words: TETRA, V+D, security, testing, TTCN, ATS
Terrestrial Trunked Radio (TETRA);
Conformance testing specification;
Part 5: Security;
Sub-part 3: Abstract Test Suite (ATS)
ETSI
European Telecommunications Standards Institute
ETSI Secretariat
Postal address: F-06921 Sophia Antipolis CEDEX - FRANCE
Office address: 650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCE
Internet: [e-mail] - http://www.etsi.org
Tel.: [phone] - Fax: [phone]
Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and the
foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1999. All rights reserved.

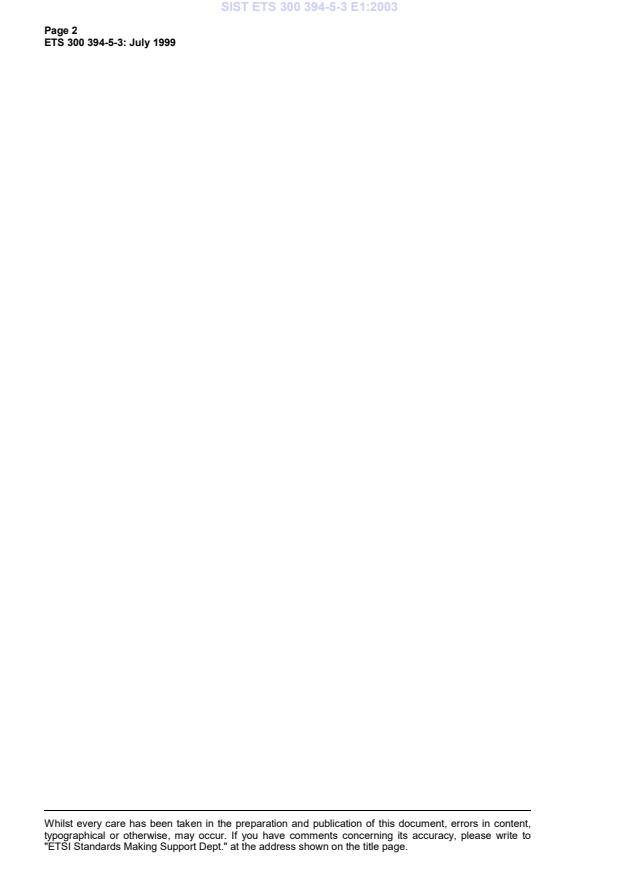

Page 2
ETS 300 394-5-3: July 1999
Whilst every care has been taken in the preparation and publication of this document, errors in content,
typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to
"ETSI Standards Making Support Dept." at the address shown on the title page.

Page 3
ETS 300 394-5-3: July 1999
Contents
Foreword . 7
1 Scope. 9
2 Normative references . 9
3 Definitions and abbreviations. 10
3.1 TETRA definitions . 10
3.2 TETRA abbreviations . 10
3.3 ISO 9646 definitions . 10
3.4 ISO 9646 abbreviations. 11
4 Abstract Test Method (ATM). 11
4.1 Lower Tester (LT). 12
4.2 Upper Tester (UT) . 12
4.3 Test Co-ordination Procedures (TCP). 12
4.4 Point of Control and Observation (PCO) . 13
5 ATS conventions. 13
5.1 Naming conventions. 13
5.1.1 Declarations part. 13
5.1.1.1 Test suite type and structured type definitions. 13
5.1.1.2 Test suite operations definitions. 13
5.1.1.3 Test suite parameter declarations. 13
5.1.1.4 Test case selection expression definitions. 14
5.1.1.5 Test suite constant declarations. 14
5.1.1.6 Test suite variable declarations. 14
5.1.1.7 Test case variable declarations. 14
5.1.1.8 PCO declarations . 14
5.1.1.9 Timer declarations. 14
5.1.1.10 ASP type definitions . 15
5.1.1.11 PDU type definitions. 15
5.1.1.12 Alias definitions . 15
5.1.2 Constraints part. 15
5.1.3 Dynamic part. 16
5.1.3.1 Test case identifier . 16
5.1.3.2 Test step identifier. 16
5.1.3.3 Default identifier . 16
5.2 TC and TP mapping . 17
Annex A (normative): ATS for TETRA V+D security NWK layers and TETRA V+D security link layer 18
A.1 The TTCN Graphical form (TTCN.GR). 18
A.2 The TTCN Machine Processable form (TTCN.MP). 18
Annex B (normative): ATS for TETRA DMO security NWK layers and TETRA DMO security link
layer. 19
B.1 The TTCN Graphical form (TTCN.GR). 19
B.2 The TTCN Machine Processable form (TTCN.MP). 19
Annex C (normative): Partial PIXIT proforma for TETRA V+D security. 20
C.1 Identification summary. 20

Page 4
ETS 300 394-5-3: July 1999
C.2 ATS summary .20
C.3 Test laboratory .20
C.4 Client identification .20
C.5 SUT .21
C.6 Protocol layer information.21
C.6.1 Protocol identification.21
C.6.2 IUT information .21
C.6.2.1 Implicit send events.21
C.6.2.2 Parameter values .22
Annex D (normative): Partial PIXIT proforma for TETRA DMO security.24
D.1 Identification summary .24
D.2 ATS summary .24
D.3 Test laboratory .24
D.4 Client identification .24
D.5 SUT .25
D.6 Protocol layer information.25
D.6.1 Protocol identification.25
D.6.2 IUT information .25
D.6.2.1 Implicit send events.25
D.6.2.2 Parameter values .26
Annex E (normative): Protocol Conformance Test Report (PCTR) proforma for TETRA V+D
security .27
E.1 Identification summary .27
E.1.1 Protocol conformance test report.27
E.1.2 IUT identification .27
E.1.3 Testing environment .27
E.1.4 Limits and reservation.27
E.1.5 Comments .28
E.2 IUT conformance status.28
E.3 Static conformance summary.28
E.4 Dynamic conformance summary.28
E.5 Static conformance review report.28
E.6 Test campaign report .29
E.7 Observations .32
Annex F (normative): Protocol Conformance Test Report (PCTR) proforma for TETRA DMO
security .33
F.1 Identification summary .33
F.1.1 Protocol conformance test report.33
F.1.2 IUT identification .33
F.1.3 Testing environment .33
F.1.4 Limits and reservation.33

Page 5
ETS 300 394-5-3: July 1999
F.1.5 Comments. 34
F.2 IUT conformance status. 34
F.3 Static conformance summary . 34
F.4 Dynamic conformance summary . 34
F.5 Static conformance review report . 34
F.6 Test campaign report. 35
F.7 Observations. 36
Annex G (informative): Bibliography. 37
History . 38

Page 6
ETS 300 394-5-3: July 1999
Blank page
Page 7
ETS 300 394-5-3: July 1999
Foreword
This European Telecommunication Standard (ETS) has been produced by the Terrestrial Trunked Radio
(TETRA) Project of the European Telecommunications Standards Institute (ETSI).
Every ETS prepared by ETSI is a voluntary standard. This ETS contains text concerning conformance
testing of the equipment to which it relates. This text should be considered only as guidance and does not
make this ETS mandatory.
This ETS is a multi-part standard and will consist of the following parts:
Part 1: "Radio";
Part 2: "Protocol testing specification for Voice plus Data (V+D)";
Part 4: "Protocol testing specification for Direct Mode Operation (DMO)";
Part 5: "Security".
Transposition dates
Date of adoption of this ETS: 25 June 1999
Date of latest announcement of this ETS (doa): 30 September 1999
Date of latest publication of new National Standard
or endorsement of this ETS (dop/e): 31 March 2000
Date of withdrawal of any conflicting National Standard (dow): 31 march 2000

Page 8
ETS 300 394-5-3: July 1999
Blank page
Page 9
ETS 300 394-5-3: July 1999
1 Scope
This ETS contains two Abstract Test Suites (ATSs) to test the TETRA security V+D and DMO protocols.
The protocols are specified, respectively, in ETS 300 392-7 [2] and ETS 300 396-6 [3]. The Test Suite
Structure (TSS) and Test Purposes (TPs) for these ATSs are defined in ETS 300 394-5-2 [1].
The objective of this test specification is to provide a basis for approval tests for TETRA equipment giving
a high probability of air interface inter-operability between different manufacturer's TETRA equipment.
The ISO standard for the methodology of conformance testing, ISO/IEC 9646-1 [4], ISO/IEC 9646-2 [5],
ISO/IEC 9646-3 [6] and ISO/IEC 9646-5 [7], as well as the ETSI rules for conformance testing,
ETS 300 406 [9] and ETR 141 [10], are used as a basis for the test methodology.
Annex A and B provide the Tree and Tabular Combined Notation (TTCN) part of these ATSs.
Annex C and D provides the Partial Protocol Implementation eXtra Information for Testing (PIXIT)
Proforma of these ATSs.
Annex E and F provides the Protocol Conformance Test Report (PCTR) Proforma of these ATSs.
2 Normative references
This ETS incorporates by dated and undated reference, provisions from other publications. These
normative references are cited at the appropriate places in the text and the publications are listed
hereafter. For dated references, subsequent amendments to or revisions of any of these publications
apply to this ETS only when incorporated in it by amendment or revision. For undated references the latest
edition of the publication referred to applies.
[1] ETS 300 394-5-2: "Terrestrial Trunked Radio (TETRA); Conformance testing
specification; Part 5: Security; Sub-part 2: Protocol testing specification for
TETRA security".
[2] ETS 300 392-7: "Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D);
Part 7: Security".
[3] ETS 300 396-6: "Terrestrial Trunked Radio (TETRA); Direct Mode Operation
(DMO); Part 6: Security".
[4] ISO/IEC 9646-1 (1994): "Information technology - Open Systems
Interconnection - Conformance testing methodology and framework - Part 1:
General Concepts". (See also CCITT Recommendation X.290 (1991))
[5] ISO/IEC 9646-2 (1991): "Information technology - Open Systems
Interconnection - Conformance testing methodology and framework - Part 2:
Abstract test suite specification". (See also CCITT Recommendation X.291
(1991)).
[6] ISO/IEC 9646-3 (1991): "Information technology - Open Systems
Interconnection - Conformance testing methodology and framework - Part 3:
The Tree and Tabular Combined Notation (TTCN)". (See also CCITT
Recommendation X.292 (1992)).
[7] ISO/IEC 9646-5 (1991): "Information technology - Open Systems
Interconnection - Conformance testing methodology and framework - Part 5:
Requirements on test laboratories and clients for the conformance assessment
process". (See also CCITT Recommendation X.292 (1992)).
[8] ISO/IEC 9646-6 (1991): "Information technology - Open Systems
Interconnection - Conformance testing methodology and framework - Part 6:
Protocol profile test specification".

Page 10
ETS 300 394-5-3: July 1999
[9] ETS 300 406: "Methods for Testing and Specification (MTS); Protocol and
profile conformance testing specifications; Standardization methodology".
[10] ETR 141 (1994): "Methods for Testing and Specification (MTS); Protocol and
profile conformance testing specifications; The Tree and Tabular Combined
Notation (TTCN) style guide".
3 Definitions and abbreviations
3.1 TETRA definitions
For the purposes of this ETS, the definitions given in ETS 300 394-5 [1] apply.
3.2 TETRA abbreviations
For the purposes of this ETS the following TETRA abbreviations apply:
CC Call Control
CMCE Circuit Mode Control Entity
DM Direct Mode
DMO Direct Mode Operation
MAC Medium Access Control
MLE Mobile Link Entity
MM Mobility Management
MS Mobile Station
PC Protocol Control
SCLNP Specific ConnectionLess Network Protocol
SDS Short Data Service
SDU Service Data Unit
3.3 ISO 9646 definitions
For the purposes of this ETS the following ISO/IEC 9646-1 [4] definitions apply:
Abstract Test Suite (ATS)
Abstract Test Method (ATM)
Implementation Conformance Statement (ICS)
Implementation Under Test (IUT)
Implementation eXtra Information for Testing (IXIT)
Lower Tester (LT)
PICS proforma
PIXIT proforma
Point of Control and Observation (PCO)
Protocol Implementation Conformance Statement (PICS)
Protocol Implementation eXtra Information for Testing (PIXIT)
Service Access Point (SAP)
Single Party Testing (SPyT)
System Under Test (SUT)
Upper Tester (UT)
For the purposes of this ETS the following ISO/IEC 9646-3 [6] definitions apply:
TTCN.GR
TTCN.MP
For the purposes of this ETS the following ISO/IEC 9646-5 [7] definitions apply:
Protocol Conformance Test Report (PCTR)
PCTR proforma
Page 11
ETS 300 394-5-3: July 1999
3.4 ISO 9646 abbreviations
For the purposes of this ETS the following ISO/IEC 9646-1 [4] abbreviations apply:
ASP Abstract Service Primitive
ATM Abstract Test Method
ATS Abstract Test Suite
IUT Implementation Under Test
LT Lower Tester
NWK Network Layer
PCO Point of Control and Observation
PDU Protocol Data Unit
PICS Protocol Implementation Conformance Statements
PIXIT Protocol Implementation eXtra Information for Testing
SAP Service Access Point
SPyT Single Party Testing
SUT System Under Test
TC Test Case
TP Test Purpose
TTCN Tree and Tabular Combined Notation
TSS Test Suite Structure
UT Upper Tester
For the purposes of this ETS the following ISO/IEC 9646-5 [7] abbreviations apply:
PCTR Protocol Conformance Test Report
4 Abstract Test Method (ATM)
This clause describes the ATM used for testing the V+D and DM security protocol. It is the embedded
variant of the remote test method used in Single Party Testing (SPyT) context, as defined in
ISO/IEC 9646-2 [2], clause 11. This test method has been selected, because:
- this test method implies no specific requirements from the Implementation Under Test (IUT);
- the upper Service Access Point (SAP) of the IUT cannot be directly observed;
- the variety of the possible TETRA implementations is a serious technical obstacle for the adoption
of a different ATM;
- this test method places minimum limitations in the realisation of conformance testing.
Operations at NetWorK (NWK) layer in the V+D and DM security protocol (for example authentication)
affect the content of the link layer PDUs (i.e. MAC PDUs). Therefore link layer test cases have been
defined to observe the status of the MAC header when conveying NWK layer information elements.

Page 12
ETS 300 394-5-3: July 1999
The selected test method used to test the NWK layer is illustrated in figure 1.
Test system SUT
Upper
UT
TCP
layers
LT
TETRA
NWK- PDUs
NWK
IUT
PCO
ASPs
TETRA LLC layer TETRA LLC layer
TETRA MAC layer TETRA MAC layer
TETRA physical layer and radio communication
Figure 1: Remote SPyT test method for TETRA Security NWK layer
The selected test method used to test the DM link layer is illustrated in figure 2.
SUT
Test system
Upper
UT
TCP
layers
LT
LINK-PDUs
TETRA
LINK IUT
PCO
ASPs
TETRA physical layer and radio communication
Figure 2: Remote SPyT test method for V+D TETRA Security link layer
4.1 Lower Tester (LT)
A LT is located in a remote TETRA test system. It controls and observes the behaviour of the IUT.
4.2 Upper Tester (UT)
There is no explicit UT in the remote test method, but the TETRA NWK layer or LINK layer and the layers
above inside the System Under Test (SUT) are used implicitly for testing the NWK layer or LINK layer.
4.3 Test Co-ordination Procedures (TCP)
The implicit send events defined by the provider of an implementation in annex B serve the purpose of the
TCP. They are used as an input to the IUT communicating with the UT to initiate test events at NWK and
LINK layers.
Page 13
ETS 300 394-5-3: July 1999
4.4 Point of Control and Observation (PCO)
The PCOs for the V+D NWK layer testing are located inside the NWK protocols. Two different test
configurations are assumed. One for testing the upper protocols in NWK layer Mobility Management (MM)
and another one for invoking Mobile Link Entity (MLE). In the first case PCOs for upper protocols are to be
used with test system providing the underlying MLE functionality and in the latter case the PCO inside
MLE protocol is to be used. Additionally some Abstract Service Primitives (ASPs) are defined for control
and observation purposes. Two other PCOs were defined to test the state of the IUT using the Circuit
Mode Control Entity (CMCE) protocol: one to use the call control and an other one to use the Short Data
Service (SDS).
The PCO defined for the DM link layer testing is located in the link protocol for testing the MAC header
PDUs.
The PCO defined for testing the DM security protocol is located in the NWK layer inside the Short Data
Service protocol.
5 ATS conventions
This clause describes the conventions applied to define the ATSs and gives the naming conventions
chosen for the different elements of the ATSs.
The ATSs conventions are intended to give a better understanding of the ATSs but they describe also the
conventions made for the development of the ATSs, thus for any later maintenance purposes or further
development of the ATSs, the conventions described in this clause shall be considered.
5.1 Naming conventions
5.1.1 Declarations part
This subclause describes the naming conventions chosen for the elements of the ATS declarations part.
5.1.1.1 Test suite type and structured type definitions
The test suite type and test suite structured type identifiers describe the information elements, and each
whole word included in the name is written in lowercase starting by an uppercase letter:
EXAMPLE: CellIdentifierType simple type
ITSI_Type structured type
In the case an abbreviation is included in the declaration name, there is an underscore ("_") before and/or
after it, separating it from the rest of the identifier. This rule with abbreviations apply to all the naming
conventions in the whole test suite.
5.1.1.2 Test suite operations definitions
The test suite operation identifiers are composed of strings in uppercase letters starting by the uppercase
string "TSO_". The different strings in the definition are separated with underscores.
EXAMPLE: TSO_ENCRYPT_SDU
5.1.1.3 Test suite parameter declarations
The test suite parameter identifiers are composed of strings in uppercase letters starting by the uppercase
string "PIC_" or "PIX_" and separated by underscores.

Page 14
ETS 300 394-5-3: July 1999
If the test suite parameter references a PICS item, the prefix "PIC_" is used.
EXAMPLE 1: PIC_OTAR_CCK_SUPP
If the test suite parameter references a PIXIT item, the prefix "PIX_" is used.
EXAMPLE 2: PIX_MS_ITSI
Complete names as defined in the specifications are used.
5.1.1.4 Test case selection expression definitions
The naming conventions for the test case selection expression definitions use free text starting with an
uppercase letter. The name of the expression shall explain clearly the selection rule. The test case
selection expressions are generally logical combinations of the test suite parameter definitions.
5.1.1.5 Test suite constant declarations
The test suite constant identifiers are composed of strings in uppercase letters starting by the uppercase
string "TSC_".
EXAMPLE: TSC_TETRA_VERSION
Complete names as defined in the specifications are used. However, in the parameters including a dot
character, the dot is replaced by an underscore.
5.1.1.6 Test suite variable declarations
The test suite variable identifiers are composed of string in lowercase letters starting by the lowercase
string "tsv_".
EXAMPLE: tsv_llc_ul_sdu_nmbr
If the test suite variable represents a system parameter or value, the name defined in the specifications is
used. However, in the variables including a dot character, the dot is replaced by an underscore.
5.1.1.7 Test case variable declarations
The test case variable identifiers are composed of strings in lowercase letters starting by the lowercase
string "tcv_".
5.1.1.8 PCO declarations
The point of control and observation identifiers are composed of three to six capital letters, beginning with
an "L", as there are only LTs.
EXAMPLE: LMM Represents a PCO on NWK interface for call control PDUs as
LT in the test equipment.
5.1.1.9 Timer declarations
Two kinds of timers can be distinguished:
1) standardized:
Those defined in the standard, e.g. T.316, use the same name as in the standard, beginning with a
capital "T", except that the dot is replaced by an underscore.
As there is a tolerance margin accepted for these timers, two values are needed:
- the maximum value allowed, which will use the suffix "_Max";
- the minimum value allowed, which will use the suffix "_Min";
EXAMPLE 1: T316_Max
Page 15
ETS 300 394-5-3: July 1999
2) non-standardized:
Those not defined in the standard, i.e. for execution use, e.g. a timer waiting for a response. These
timers begin with the prefix "T_", followed by a string in lowercase letters with each word in the
following string starting with an uppercase letter.
EXAMPLE 2: T_IUT_Response
T_NoResponse
5.1.1.10 ASP type definitions
ASP definitions follow the specification in the ETS 300 392-7 [2] or ETS 300 396-6 [3] when a
corresponding definition exists. If not, a free name is used.
EXAMPLE: MLE_ACTIVATE_confirm_RegistrationReq
RESET_MS.
5.1.1.11 PDU type definitions
The identifier of a PDU is given in a string in uppercase letters, which represents the layer message.
EXAMPLE 1: D_ENABLE for the D-STATUS layer 3 PDU reception;
U_AUTHENTICATION_DEMAND for the DISCONNECT layer 3 PDU transmission.
Where the message is a composite word, an underscore character appears in the string.
EXAMPLE 2: U_AUTHENTICATION_DEMAND is the U-AUTHENTICATION DEMAND layer
3 message.
5.1.1.12 Alias definitions
No alias definitions are used in the test suite.
5.1.2 Constraints part
This subclause describes the naming conventions chosen for the elements of the ATS constraints part.
PDU constraint identifiers shall explain clearly the meaning/contents of the constraint. The PDU identifiers
names are defined with:
1) the PDU type name in uppercase
2) additional names separated with underscores and written in lowercase with each word starting with
an uppercase letter.
If the declaration part of the name does not indicate if the constraint is received or sent (U_ for
Uplink and D_ for Downlink), then the expression _S or _R shall be added at the end of the name of
the constraint.
EXAMPLE 1: DM_SDS_DATA_ENDIS_CONFIRM_Normal_R
The identifier name of structured type constraints shall be written with upper and lower cases. This
identifier name shall represent the contents of the constraint.
If formal parameter lists are used, the variable names are written in lowercase. The variable name is the
same as the name of the element it is representing starting with prefix "cpa_".
EXAMPLE 2: D_ENABLE_Confirm_TEI(cpa_tei: TEI_Type)

Page 16
ETS 300 394-5-3: July 1999
5.1.3 Dynamic part
This subclause describes the naming conventions chosen for the elements of the ATS dynamic part.
5.1.3.1 Test case identifier
The identifier of a TC is built according to table 1:
Table 1: TC naming convention
TC__

_____
= test suite Sec Security

= protocol VD Voice + Data
DM Direct Mode
= functional module For Sec layer:
AU Authentication
OTAR Over The Air Rekeying
SED Secure Enable/Disable
= layer L3 Layer 3 (not in the V+D part)
L2 Layer 2 (not in the V+D part)
x = Type of testing BV
...
