SIST ETS 300 580-4 E1:2003

European digital cellular telecommunications system (Phase 2); Comfort noise aspects for full rate speech traffic channels (GSM 06.12)

...

Evropski digitalni celični telekomunikacijski sistem (faza 2) – Vidik znosnega šuma za prometne kanale s polno hitrostjo govora (GSM 06.12)

General Information

• Status: Published
• Publication Date: 30-Nov-2003
• ICS: 33.070.50 - Global System for Mobile Communication (GSM)
• Technical Committee: SS EIT - Technical Board for the electrotechnical, information technology and telecommunications fields
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Dec-2003
• Due Date: 01-Dec-2003
• Completion Date: 01-Dec-2003
• Ref Project: ETSI ETS 300 580-4 ed.1 (1994-09) - European digital cellular telecommunications system (Phase 2); Comfort noise aspects for full rate speech traffic channels (GSM 06.12)

Standards Content (Sample)

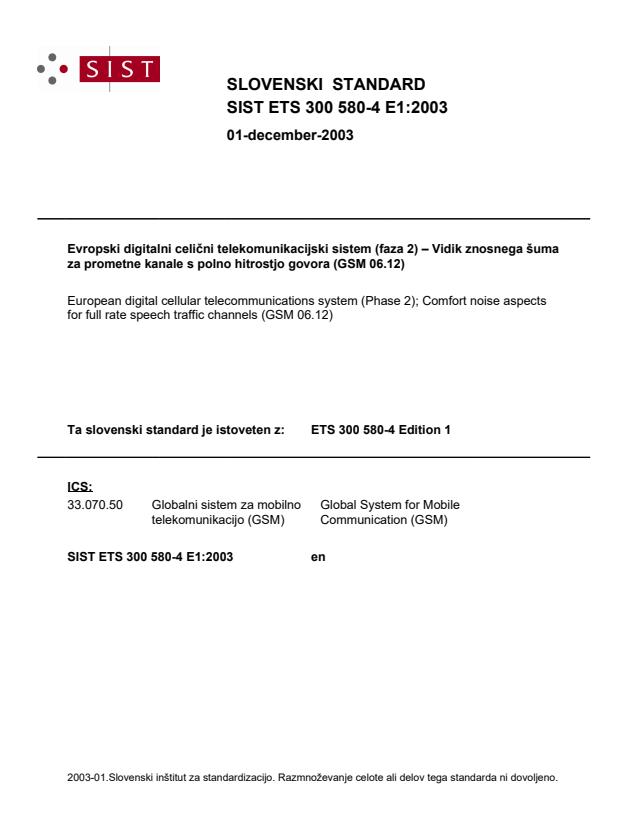

SLOVENSKI STANDARD
SIST ETS 300 580-4 E1:2003
01-december-2003
(YURSVNLGLJLWDOQLFHOLþQLWHOHNRPXQLNDFLMVNLVLVWHPID]D±9LGLN]QRVQHJDãXPD
]DSURPHWQHNDQDOHVSROQRKLWURVWMRJRYRUD*60
European digital cellular telecommunications system (Phase 2); Comfort noise aspects
for full rate speech traffic channels (GSM 06.12)
Ta slovenski standard je istoveten z: ETS 300 580-4 Edition 1
ICS:
33.070.50 Globalni sistem za mobilno Global System for Mobile
telekomunikacijo (GSM) Communication (GSM)
SIST ETS 300 580-4 E1:2003 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST ETS 300 580-4 E1:2003

---------------------- Page: 2 ----------------------

SIST ETS 300 580-4 E1:2003

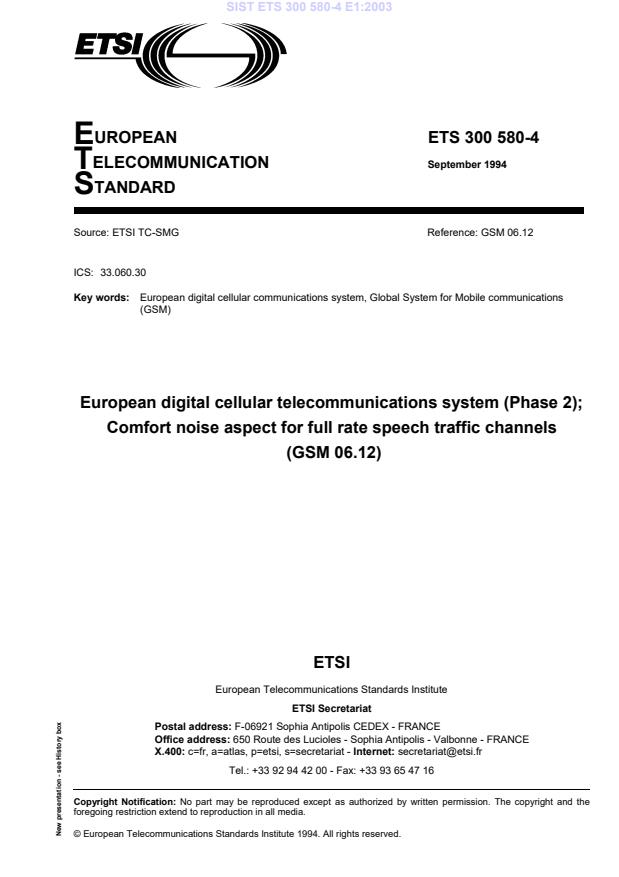

EUROPEAN ETS 300 580-4
TELECOMMUNICATION September 1994
STANDARD
Source: ETSI TC-SMG Reference: GSM 06.12
ICS: 33.060.30
European digital cellular communications system, Global System for Mobile communications
Key words:
(GSM)
European digital cellular telecommunications system (Phase 2);
Comfort noise aspect for full rate speech traffic channels
(GSM 06.12)
ETSI
European Telecommunications Standards Institute
ETSI Secretariat
F-06921 Sophia Antipolis CEDEX - FRANCE
Postal address:
650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCE
Office address:
c=fr, a=atlas, p=etsi, s=secretariat - [e-mail]
X.400: Internet:
Tel.: [phone] - Fax: [phone]
Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and the
foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1994. All rights reserved.
New presentation - see History box

---------------------- Page: 3 ----------------------

SIST ETS 300 580-4 E1:2003
Page 2
ETS 300 580-4:September 1994 (GSM 06.12 version 4.0.4)
Whilst every care has been taken in the preparation and publication of this document, errors in content,
typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to
"ETSI Editing and Committee Support Dept." at the address shown on the title page.

---------------------- Page: 4 ----------------------

SIST ETS 300 580-4 E1:2003
Page 3
ETS 300 580-4:September 1994 (GSM 06.12 version 4.0.4)
Contents
Foreword .5
0.1 Scope .7
0.2 Normative references.7
0.3 Definitions and abbreviations .7
1 General.7
2 Functions on the transmit side .8
2.1 Background acoustic noise evaluation .8
2.2 SID-frame encoding.8
3 Functions on the receive side.8
3.1 Comfort noise generation and updating.9
History.10

---------------------- Page: 5 ----------------------

SIST ETS 300 580-4 E1:2003
Page 4
ETS 300 580-4:September 1994 (GSM 06.12 version 4.0.4)
Blank page

---------------------- Page: 6 ----------------------

SIST ETS 300 580-4 E1:2003
Page 5
ETS 300 580-4:September 1994 (GSM 06.12 version 4.0.4)
Foreword
This European Telecommunication Standard (ETS) has been produced by the Special Mobile Group
(SMG) Technical Committee (TC) of the European Telecommunications Standards Institute (ETSI).
This ETS specifies the comfort noise aspect for full rate speech traffic channels for the European digital
cellular telecommunications system (Phase 2).
This ETS correspond to GSM technical specification, GSM 06.12 version 4.0.4.
The specification from which this ETS has been derived was originally based on CEPT documentation,
hence the presentation of this ETS may not be entirely in accordance with the ETSI/PNE rules.
Reference is made within this ETS to GSM Technical Specifications (GSM-TSs) (NOTE).
NOTE: TC-SMG has produced documents which give the technical specifications for the
implementation of the European digital cellular telecommunications system.
Historically, these documents have been identified as GSM Technical Specifications
(GSM-TS). These TSs may have subsequently become I-ETSs (Phase 1), or ETSs
(Phase 2), whilst others may become ETSI Technical Reports (ETRs). GSM-TSs are,
for editorial reasons, still referred to in GSM ETSs.

---------------------- Page: 7 ----------------------

SIST ETS 300 580-4 E1:2003
Page 6
ETS 300 580-4:September 1994 (GSM 06.12 version 4.0.4)
Blank page

---------------------- Page: 8 ----------------------

SIST ETS 300 580-4 E1:2003
Page 7
ETS 300 580-4:September 1994 (GSM 06.12 version 4.0.4)
0.1 Scope
This technical specification gives the detailed requirements for the correct operation of the background
acoustic noise evaluation, noise parameter encoding/decoding and comfort noise generation in GSM
Mobile Stations and Base Station Systems during Discontinuous Transmission (DTX) on full rate speech
traffic channels.
The requirements described in this technical specification are mandatory for implementation in all GSM
Mobile Stations. The receiver requirements are mandatory for implementation in all GSM Base Station
Systems, the transmitter requirements only for those where downlink DTX will be used.
0.2 Normative references
This ETS incorporates by dated and undated reference, provisions from other publications. These
normative references are cit
...
