Insulation coordination for equipment within low-voltage supply systems - Part 1: Principles, requirements and tests (IEC 60664-1:2020)

This part of IEC 60664 deals with insulation coordination for equipment having a
rated voltage up to AC 1 000 V or DC 1 500 V connected to low-voltage supply systems.
This document applies to frequencies up to 30 kHz.
NOTE 1 Requirements for insulation coordination for equipment within low-voltage supply systems with rated
frequencies above 30 kHz are given in IEC 60664-4.
NOTE 2 Higher voltages can exist in internal circuits of the equipment.
It applies to equipment for use up to 2 000 m above sea level and provides guidance for use
at higher altitudes (See 5.2.3.4).
It provides requirements for technical committees to determine clearances, creepage
distances and criteria for solid insulation. It includes methods of electrical testing with
respect to insulation coordination.
The minimum clearances specified in this document do not apply where ionized gases are
present. Special requirements for such situations can be specified at the discretion of the
relevant technical committee.
This document does not deal with distances:
– through liquid insulation;
– through gases other than air;
– through compressed air.
This basic safety publication focusing on safety essential requirements is primarily intended
for use by technical committees in the preparation of standards in accordance with the
principles laid down in IEC Guide 104 and ISO/IEC Guide 51.
One of the responsibilities of a technical committee is, wherever applicable, to make use of
basic safety publications in the preparation of its publications.
However, in case of missing specified values for clearances, creepage distances and
requirements for solid insulation in the relevant product standards, or even missing
standards, this document applies.

Isolationskoordination für elektrische Betriebsmittel in Niederspannungsanlagen - Teil 1: Grundsätze, Anforderungen und Prüfungen (IEC 60664-1:2020)

Coordination de l'isolement des matériels dans les réseaux d'énergie électrique à basse tension - Partie 1: Principes, exigences et essais (IEC 60664-1:2020)

L’IEC 60664-1:2020 traite de la coordination de l'isolement des matériels ayant une tension assignée allant jusqu’à 1 000 V en courant alternatif ou jusqu’à 1 500 V en courant continu connectés aux réseaux d’énergie électrique à basse tension. Le présent document s’applique aux fréquences jusqu’à 30 kHz inclus. NOTE 1 Les exigences de coordination de l’isolement des matériels dans les réseaux d’énergie électrique à basse tension dont les fréquences assignées sont supérieures à 30 kHz sont données dans l’IEC 60664-4. NOTE 2 Des tensions plus élevées peuvent exister dans les circuits internes des matériels. Il s'applique au matériel utilisé jusqu'à 2 000 m au-dessus du niveau de la mer, et fournit des recommandations pour l’utilisation à des altitudes plus élevées (Voir  REF _Ref452123764 \r \h \* MERGEFORMAT 5.2.3.4 08D0C9EA79F9BACE118C8200AA004BA90B02000000080000000E0000005F005200650066003400350032003100320033003700360034000000 ). Il définit les exigences permettant aux comités d’études de déterminer les distances d'isolement, les lignes de fuite et les critères pour l’isolation solide. Il comprend les méthodes d'essais diélectriques concernant la coordination de l'isolement. Les distances d'isolement minimales spécifiées dans le présent document ne s'appliquent pas en présence de gaz ionisés. Les exigences particulières dans de telles conditions peuvent être spécifiées, comme ils l'entendent, par les comités d'études compétents. Le présent document ne traite pas des distances: – à travers l'isolation liquide; – à travers les gaz autres que l'air; – à travers l'air comprimé. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:  mise à jour du Domaine d’application et des Articles 2 et 3, nouvelle structure pour les Articles 4 et 5, ajout de 1 500 V en courant continu dans les tableaux dans Annexe B et F, mise à jour de la correction de l’altitude des distances dans un nouveau Tableau F.10, ajout d’une Annexe G avec un organigramme relatif aux distances d’isolement, ajout d’une Annexe H avec un organigramme relatif aux lignes de fuite.  Elle a le statut d’une publication fondamentale de sécurité conformément au Guide 104 de l’IEC.

Koordinacija izolacije za opremo v okviru nizkonapetostnih sistemov - 1. del: Načela, zahteve in preskusi (IEC 60664-1:2020)

General Information

Status
Published
Publication Date
01-Sep-2020
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
12-Aug-2020
Due Date
17-Oct-2020
Completion Date
02-Sep-2020

RELATIONS

Buy Standard

Standard
SIST EN IEC 60664-1:2020 - BARVE na PDF-str 59
English language
85 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN IEC 60664-1:2020
01-oktober-2020
Nadomešča:
SIST EN 60664-1:2007
Koordinacija izolacije za opremo v okviru nizkonapetostnih sistemov - 1. del:
Načela, zahteve in preskusi (IEC 60664-1:2020)

Insulation coordination for equipment within low-voltage supply systems - Part 1:

Principles, requirements and tests (IEC 60664-1:2020)

Isolationskoordination für elektrische Betriebsmittel in Niederspannungsanlagen - Teil 1:

Grundsätze, Anforderungen und Prüfungen (IEC 60664-1:2020)

Coordination de l'isolement des matériels dans les réseaux d'énergie électrique à basse

tension - Partie 1: Principes, exigences et essais (IEC 60664-1:2020)
Ta slovenski standard je istoveten z: EN IEC 60664-1:2020
ICS:
29.080.30 Izolacijski sistemi Insulation systems
SIST EN IEC 60664-1:2020 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN IEC 60664-1:2020
---------------------- Page: 2 ----------------------
SIST EN IEC 60664-1:2020
EUROPEAN STANDARD EN IEC 60664-1
NORME EUROPÉENNE
EUROPÄISCHE NORM
July 2020
ICS 29.080.30 Supersedes EN 60664-1:2007 and all of its amendments
and corrigenda (if any)
English Version
Insulation coordination for equipment within low-voltage supply
systems - Part 1: Principles, requirements and tests
(IEC 60664-1:2020)

Coordination de l'isolement des matériels dans les réseaux Isolationskoordination für elektrische Betriebsmittel in

d'énergie électrique à basse tension - Partie 1: Principes, Niederspannungsanlagen - Teil 1: Grundsätze,

exigences et essais Anforderungen und Prüfungen
(IEC 60664-1:2020) (IEC 60664-1:2020)

This European Standard was approved by CENELEC on 2020-06-30. CENELEC members are bound to comply with the CEN/CENELEC

Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC

Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation

under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the

same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,

Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the

Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2020 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.

Ref. No. EN IEC 60664-1:2020 E
---------------------- Page: 3 ----------------------
SIST EN IEC 60664-1:2020
EN IEC 60664-1:2020 (E)

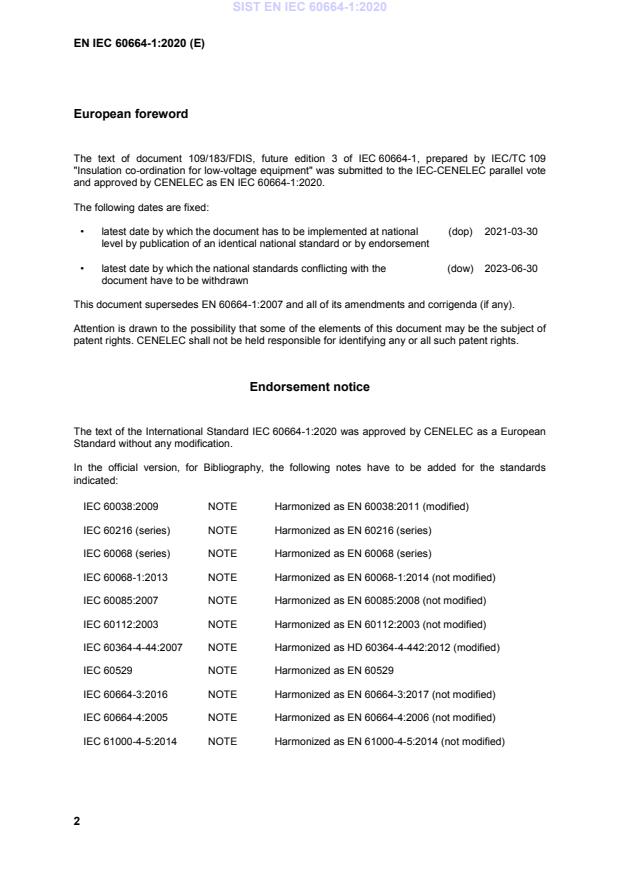

European foreword
