SIST ETS 300 505 E3:2003

• Abstract:

  The purpose of this ETS is to define mobile station features and to cl assify them according to their type and whether they are mandatory or optional. The MS features detailed in this Specification do not repres ent an exhaustive list. Those MS features which are subject to Type Ap proval are described in GSM 11.10.

• Status: Published
• Publication Date: 30-Nov-2003
• ICS: 33.070.50 - Global System for Mobile Communication (GSM)
• Technical Committee: SS EIT - Technical Board for the electrotechnical, information technology and telecommunications fields
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Dec-2003
• Due Date: 01-Dec-2003
• Completion Date: 01-Dec-2003
• Ref Project: ETSI ETS 300 505 ed.3 (1998-01) - Digital cellular telecommunications system (Phase 2) (GSM); Mobile Station (MS) features (GSM 02.07 version 4.8.2)

Overview

SIST ETS 300 505 E3:2003 is the Slovene-adopted European Telecommunication Standard that specifies the features of Mobile Stations (MS) for the digital cellular telecommunications system (GSM Phase 2), aligning with GSM 02.07 version 4.8.2. Developed for the Global System for Mobile Communications (GSM), this standard provides a detailed classification of MS features, indicating which features are mandatory and which are optional. It offers guidance for manufacturers, operators, and testing bodies on the functional capabilities that ensure interoperability, user safety, and network compatibility in GSM mobile devices.

This standard is essential for anyone involved in the design, testing, certification, and deployment of GSM equipment, especially within Slovenia and across Europe.

Key Topics

• Mobile Station Feature Classification: The standard identifies and categorizes features as basic, supplementary, or additional.
  • Basic features include the functionality required for core GSM services like call setup, display, and keypad operations.
  • Supplementary features cover enhancements such as call forwarding and call barring.
  • Additional features reference non-essential but valuable functionalities (e.g., abbreviated dialling, fixed number dialling).
• Mandatory vs. Optional Features: Features are clearly marked as mandatory or optional, facilitating easy reference for compliance and certification.
• Implementation Requirements: Manufacturers must ensure that implemented features do not interfere with the GSM air interface or network operation. Mandatory features are subject to type approval, referencing GSM 11.10 for conformity testing.
• User Interface Elements: Requirements for features like display of called number, indication of call progress, country/PLMN indication and selection, and keypad functionality are outlined.
• Security and Identification: Includes requirements for IMEI assignment, support for encryption algorithms (A5/1, A5/2), subscription identity management using SIM cards, and ciphering indicators.
• Short Message Services (SMS): Defines handling of short message indication, overflow alerts, message acknowledgement, and related interface capabilities.
• Call Control and Restrictions: Details emergency call capabilities, autocalling restrictions, call barring mechanisms, and DTMF function.

Applications

The SIST ETS 300 505 E3:2003 standard is foundational for several applications in the GSM mobile communications ecosystem:

• Mobile Device Manufacturing: Ensures that new handsets conform to obligatory GSM feature sets, supporting both compliance and customer expectations.
• Network Interoperability: Unified mobile station features enable consistent operation across diverse GSM networks and countries.
• Certification and Type Approval: Provides the functional baseline for testing bodies to evaluate and certify GSM equipment, referencing GSM 11.10 conformity tests.
• End-User Experience: Guarantees essential services, such as emergency calling and display features, are consistently available to GSM users regardless of device brand.
• Device Customization: Allows manufacturers to introduce optional or additional features while maintaining network integrity and baseline user requirements.
• Security & Fraud Prevention: With features like IMEI management and ciphering indicators, the standard assists in device traceability and communication security.

Related Standards

For comprehensive GSM implementation and interoperability, the following related standards should also be considered:

• GSM 11.10 (ETS 300 607): Mobile Station (MS) Conformity Specification - Defines type approval procedures.
• GSM 02.03 (ETS 300 502): Teleservices supported by GSM Public Land Mobile Network (PLMN).
• GSM 02.11 (ETS 300 507): Service accessibility guidelines.
• GSM 02.16 (ETS 300 508): International Mobile station Equipment Identities (IMEI).
• GSM 02.30 (ETS 300 511): Man-machine interface (MMI) for MS.
• GSM 11.11 (ETS 300 608): SIM-Mobile Equipment interface specifications.
• Other GSM 02.xx and 03.xx series: Address supplementary services, number management, and data handling.

These standards, together with SIST ETS 300 505 E3:2003, enable manufacturers and operators to deliver compatible, secure, and user-friendly GSM mobile devices and services.

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Digital cellular telecommunications system (Phase 2); Mobile Station (MS) features (GSM 02.07 version 4.8.2)33.070.50Globalni sistem za mobilno telekomunikacijo (GSM)Global System for Mobile Communication (GSM)ICS:Ta slovenski standard je istoveten z:ETS 300 505 Edition 3SIST ETS 300 505 E3:2003en01-december-2003SIST ETS 300 505 E3:2003SLOVENSKI
STANDARD
EUROPEAN ETS 300 505TELECOMMUNICATION January 1998STANDARD Third EditionSource: SMG Reference: RE/SMG-010207PR1ICS:33.020Key words:Digital cellular telecommunications system, Global System for Mobile communications (GSM)GLOBAL SYSTEM
FOR MOBILE COMMUNICATIONSRDigital cellular telecommunications system (Phase 2);Mobile Stations (MS) features(GSM 02.07 version 4.8.2)ETSIEuropean Telecommunications Standards InstituteETSI SecretariatPostal address: F-06921 Sophia Antipolis CEDEX - FRANCEOffice address: 650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCEX.400: c=fr, a=atlas, p=etsi, s=secretariat - Internet: [e-mail].: [phone] - Fax: [phone]Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and theforegoing restriction extend to reproduction in all media.© European Telecommunications Standards Institute 1998. All rights reserved.SIST ETS 300 505 E3:2003

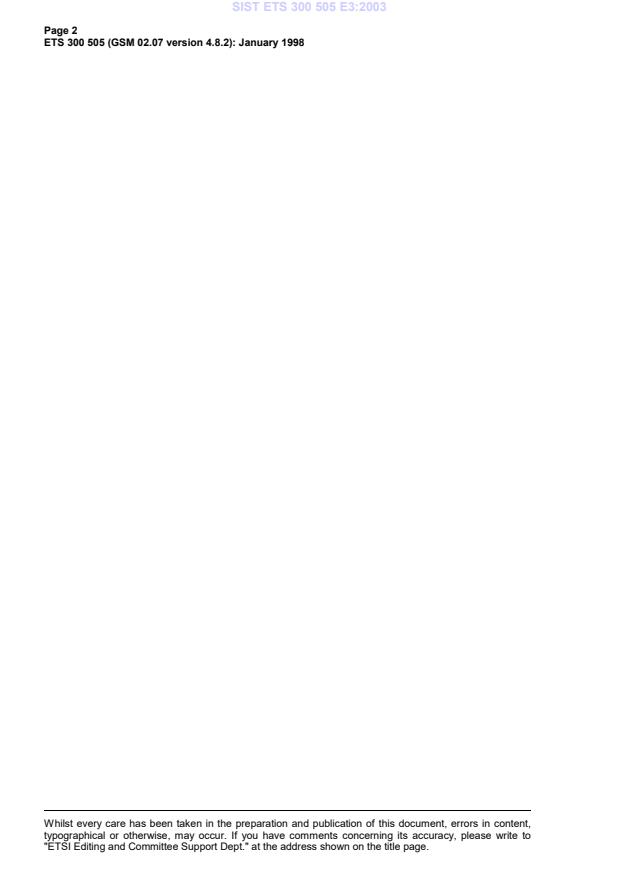

Page 2ETS 300 505 (GSM 02.07 version 4.8.2): January 1998Whilst every care has been taken in the preparation and publication of this document, errors in content,typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to"ETSI Editing and Committee Support Dept." at the address shown on the title page.SIST ETS 300 505 E3:2003

Page 3ETS 300 505 (GSM 02.07 version 4.8.2): January 1998ContentsForeword.51Scope.71.1Normative references.71.2Definitions and abbreviations.82Requirements for implementing MS features.8Annex A (normative):Automatic calling repeat call attempt restrictions.11Annex B (normative):Description of mobile station features.13B.1.1Display of called number.13B.1.2Indication of call progress signals.13B.1.3Country/PLMN indication.13B.1.4Country/PLMN selection.13B.1.5Keypad.13B.1.6IMEI.13B.1.7Short message indication and acknowledgement.14B.1.8Short message overflow indication.14B.1.9DTE/DCE interface.14B.1.10ISDN 'S' terminal interface.14B.1.11International access function.14B.1.12Service Indicator (SI).14B.1.13Autocalling restriction capabilities.14B.1.14Emergency Calls capabilities.14B.1.15Dual Tone Multi Frequency (DTMF).14B.1.16Subscription identity management.15B.1.17On/Off switch.15B.1.18Sub-Address.15B.1.19Support of encryption A5/1 and A5/2.15B.1.20Short Message Service Cell Broadcast DRX.15B.1.21Service Provider Indication.15B.1.22Ciphering Indicator.15B.2.1Support of supplementary services.16B.3.1Abbreviated dialling.16B.3.2Fixed number dialling.16B.3.3Barring of outgoing calls.17B.3.4DTMF control digits separator.17B.3.5Selection of directory number in short messages.17B.3.6Last Numbers Dialled (LND).17Annex C (normative):GSM-MoU ID1 SIM layout.18Annex D (informative):Change history.19History.20SIST ETS 300 505 E3:2003

Page 4ETS 300 505 (GSM 02.07 version 4.8.2): January 1998Blank pageSIST ETS 300 505 E3:2003

Page 5ETS 300 505 (GSM 02.07 version 4.8.2): January 1998ForewordThis European Telecommunication Standard (ETS) has been produced by the Special Mobile Group(SMG) of the European Telecommunications Standards Institute (ETSI).This ETS defines typical Mobile Station features (MS) used within the digital cellular telecommunicationssystem (Phase 2) and corresponds to GSM technical specification GSM 02.07 version 4.8.2.The specification from which this ETS has been derived was originally based on CEPT documentation,hence the presentation of this ETS may not be entirely in accordance with the ETSI/PNE Rules.Transposition datesDate of adoption of this ETS:5 December 1997Date of latest announcement of this ETS (doa):30 April 1998Date of latest publication of new National Standardor endorsement of this ETS (dop/e):31 October 1998Date of withdrawal of any conflicting National Standard (dow):31 October 1998SIST ETS 300 505 E3:2003

Page 6ETS 300 505 (GSM 02.07 version 4.8.2): January 1998Blank pageSIST ETS 300 505 E3:2003

Page 7ETS 300 505 (GSM 02.07 version 4.8.2): January 19981ScopeThe purpose of this European Telecommunication Standard (ETS) is to define Mobile Station (MS)features and to classify them according to their type and whether they are mandatory or optional. The MSfeatures detailed in this ETS do not represent an exhaustive list. Those MS features which are subject toType Approval are described in GSM 11.10.1.1Normative referencesThis ETS incorporates by dated and undated reference, provisions from other publications. Thesenormative references are cited at the appropriate places in the text and the publications are listedhereafter. For dated references, subsequent amendments to or revisions of any of these publicationsapply to this ETS only when incorporated in it by amendment or revision. For undated references, thelatest edition of the publication referred to applies.[1]GSM 01.04 (ETR 100): "Digital cellular telecommunications system (Phase 2);Abbreviations and acronyms".[2]GSM 02.03 (ETS 300 502): "Digital cellular telecommunications system(Phase 2); Teleservices supported by a GSM Public Land Mobile Network(PLMN)".[3]GSM 02.04 (ETS 300 503): "Digital cellular telecommunications system(Phase 2); General on supplementary services".[4]GSM 02.11 (ETS 300 507): "Digital cellular telecommunications system(Phase 2); Service accessibility".[5]GSM 02.16 (ETS 300 508): "Digital cellular telecommunications system(Phase 2); International Mobile station Equipment Identities (IMEI)".[6]GSM 02.17 (ETS 300 509): "Digital cellular telecommunications system(Phase 2); Subscriber identity modules Functional characteristics".[7]GSM 02.30 (ETS 300 511): "Digital cellular telecommunications system(Phase 2); Man-Machine Interface (MMI) of the Mobile Station (MS)".[8]GSM 02.40 (ETS 300 512): "Digital cellular telecommunications system(Phase 2); Procedures for call progress indications".[9]GSM 02.90 (ETS 300 625): "Digital cellular telecommunications system(Phase 2); Stage 1 description of Unstructured Supplementary Service Data(UUSD)".[10]GSM 03.03 (ETS 300 523): "Digital cellular telecommunications system(Phase 2); Numbering, addressing and identification".[11]GSM 03.14 (ETS 300 532): "Digital cellular telecommunications system(Phase 2); Support of Dual Tone Multi-Frequency signalling (DTMF) via theGSM system".[12]GSM 04.08 (ETS 300 557): "Digital cellular telecommunications system(Phase 2); Mobile radio interface layer 3 specification".[13]GSM 11.10 (ETS 300 607): "Digital cellular telecommunications system(Phase 2); Mobile Station (MS) conformity specification".[14]GSM 11.11 (ETS 300 608): "Digital cellular telecommunications system(Phase 2); Specification of the Subscriber Identity Module-Mobile Equipment(SIM-ME) interface".SIST ETS 300 505 E3:2003

Page 8ETS 300 505 (GSM 02.07 version 4.8.2): January 19981.2Definitions and abbreviationsFor the purposes of this ETS, the following definitions apply:An MS feature is defined as a piece of equipment of function which directly relates to the operation of theMS. On the basis of this, three categories of features can be distinguished: basic, supplementary andadditional features.Basic MS features: A basic MS feature is directly related to the operation of basic telecommunicationservices (e.g. key-pad function).Supplementary MS features: A supplementary MS feature is directly related to the operation ofsupplementary services (e.g. display of calling line number).Additional MS features: An additional MS feature is a feature which is neither a basic nor asupplementary feature (e.g. abbreviated dialling).Additional MS features and supplementary services may be used independently according to the choice ofsubscribers/users (e.g. barring of outgoing calls). Features not directly relevant to the use as a MobileStation are permitted, provided they do not interfere with the performance of the MS (e.g. a clock).Abbreviations used in this ETS are listed in GSM 01.04.2Requirements for implementing MS featuresMS features are qualified as mandatory or optional. Mandatory features have to be implemented as longas they are relevant to the MS type, and will be subject to Type Approval when applied according toGSM 11.10. Whether or not an optional feature is implemented is left to the manufacturers' discretion. Themethod of implementation of all MS features must be done in accordance with the appropriate GSMspecifications. For all present and future MS features, manufacturers have the responsibility to ensure thatthe MS features will neither conflict with the air interface nor cause any interference to the network or anyother MS or its own MS, and these requirements shall be recognized during the Type Approval process.In the following tables 1, 2 and 3 the basic, supplementary and additional MS features are listed.Mandatory features are marked by "M". Optional features are marked by "0".Additional MS features not listed in table 3 are permitted without the requirement for this table to beamended, provided that these new features do not affect the mandatory air interface requirements.Unless otherwise stated for a particular feature, the feature supported by the Subscriber Identity Module(SIM) takes priority over the same feature supported by the Mobile Equipment (ME).SIST ETS 300 505 E3:2003

Page 9ETS 300 505 (GSM 02.07 version 4.8.2): January 1998Table 1: Basic MS featuresNameMandatory (M)Optional (O)1.1Display of Called NumberM*1.2Indication of Call Progress SignalsM*1.3Country/PLMN IndicationM*1.4Country/PLMN SelectionM1.5KeypadO(note 1)1.6IMEIM1.7Short MessageM(note 4)1.8Short Message Overflow IndicationM1.9DTE/DCE InterfaceO1.10ISDN 'S' InterfaceO1.11International Access Function ("+" key)O(note 1)1.12Service IndicatorM*1.13Autocalling restriction capabilities(note 2)1.14Emergency Calls capabilitiesM(note 3)1.15Dual Tone Multi Frequency function (DTMF)M(note 5)1.16Subscription Identity ManagementM1.17On/Off switchO1.18SubaddressO1.19Support of Encryption A5/1 and A5/2M1.20Short Message Service Cell Broadcast DRXO1.211.22Service Provider IndicationCiphering IndicatorOM*Descriptions are given in the annex B.*Mandatory where a human interface is provided, i.e. may be in-appropriate for MS driven byexternal equipment.NOTE 1:The physical means of entering the characters 0-9, +, * and # may be keypad, voiceinput device, DTE or others, but it is mandatory that there shall be the means to enterthis information.NOTE 2:MTs with capabilities for Autocalling, or to which call initiating equipment can beconnected via the "R" or "S" interface, shall restrict repeated call attempts according tothe procedures described in annex A.NOTE 3:Emergency calls shall be possible according to Teleservice 12 (see GSM 02.03 and02.30). This feature is only required to be provided by ME supporting Telephony.NOTE 4:Support of reception by the ME and storage of SMS MT in the SIM is mandatory, butits display is optional. Reception and storage of a message shall be indicated by theMS.NOTE 5:The use of DTMF is only mandatory when the speech teleservice is being used orduring the speech phase of alternate speech/data and alternate speech/facsimileteleservices.SIST ETS 300 505 E3:2003

Page 10ETS 300 505 (GSM 02.07 version 4.8.2): January 1998Table 2: Supplementary MS featuresNameMandatory (M)Optional (O)2.1Control of Supplementary Services(note 1)NOTE 1:See annex B.Descriptions are given in the annex B.Table 3: Additional MS featuresNameMandatory (M)Optional (O)3.1Abbreviated DiallingO3.2Fixed Number DiallingO3.3Barring of Outgoing CallsO3.4DTMF Control Digits SeparatorO3.5Selection of Directory No in Short MessagesO3.6Last Numbers DialledODescriptions are given in the annex B.SIST ETS 300 505 E3:2003

Page 11ETS 300 505 (GSM 02.07 version 4.8.2): January 1998Annex A (normative):Automatic calling repeat call attempt restrictionsCall set up attempts referred to in this annex are assumed to be initiated from peripheral equipment orautomatically from the MT itself.A repeat call attempt may be made when a call attempt is unsuccessful for the reasons listed below (asdefined in GSM 04.08).These reasons are classified in three major categories:1)"Busy destination":Cause number17User busy2)"Unobtainable destination - temporary":Cause number18No user responding19User alerting, no answer27Destination out of order34No circuit/channel available41Temporary failure42Switching Equipment congestion44Requested circuit/channel not available47Resources unavailable, unspecified3)"Unobtainable destination - permanent/long term":Cause number1Unassigned (unallocated) number3No route to destination22Number changed28Invalid number format (uncompleted number)38Network out of order.NOTE:Optionally, it is allowed to implement cause number 27 in Category 3, instead ofCategory 2, as this is desirable already in Phase 1.The table below describes a repeat call restriction pattern to any B number. This pattern defines amaximum number (n) of call repeat attempts; when this numb
...
