SIST EN 300 444 V2.1.1:2009

• Abstract:

  The present document specifies that set of technical requirements for Digital Enhanced Cordless Telecommunications (DECT) Fixed Part (FP) and DECT Portable Part (PP) necessary for the support of the Generic Access Profile (GAP). The GAP is applicable to all DECT Portable radio Terminations (PT) and Fixed radio Terminations (FT) which under the scope of EN 300 176-2 [10] (i.e. 3,1 kHz telephony teleservice) and specifies the minimum functionality that is supported by all other 3,1 kHz voice profiles. The objective of the present document is to ensure the Air Interface (AI) inter-operability of DECT equipment capable of 3,1 kHz telephony applications, in such a way that any DECT PT conforming to the procedures described in the present document is inter-operable with any DECT FT conforming to the procedures described in the present document. The profile consists of the minimum mandatory requirements that allow a 3,1 kHz teleservice connection to be established, maintained and released between a FT and a PT with the appropriate access rights, irrespective of whether the FP provides residential, business or public access services.; In addition, the present document defines the features, services, procedures etc. for both the FT and the PT, which are provision mandatory either in the PT or in the FT, as well as some elements that are provision optional but still process mandatory. Mobility Management (MM) procedures at the DECT AI to support incoming calls and outgoing calls are included. Inter-working between the FT and the attached network is outside the scope of the present document.

• Status: Published
• Publication Date: 20-Nov-2008
• ICS: 33.070.30 - Digital Enhanced Cordless Telecommunications (DECT)
• Technical Committee: MOC - Mobile Communications
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 14-Nov-2008
• Due Date: 19-Jan-2009
• Completion Date: 21-Nov-2008
• Mandate: T-317
• Ref Project: ETSI EN 300 444 V2.1.1 (2008-10) - Digital Enhanced Cordless Telecommunications (DECT); Generic Access Profile (GAP)

SIST EN 300 444 V2.1.1:2009 is the Slovenian adoption of ETSI EN 300 444 for Digital Enhanced Cordless Telecommunications (DECT) - Generic Access Profile (GAP). It specifies the minimum technical requirements for DECT Fixed Part (FP) and DECT Portable Part (PP) needed to support 3,1 kHz telephony and to make DECT equipment inter-operable over the Air Interface (AI).

What does SIST EN 300 444 V2.1.1:2009 specify?

SIST EN 300 444 V2.1.1:2009 specifies the GAP requirements that DECT PT and FT equipment need in order to establish, maintain and release a 3,1 kHz teleservice connection with the right access rights. The profile is the common baseline for DECT voice use cases, including residential, business and public access services.

The document applies to DECT Portable radio Terminations (PT) and Fixed radio Terminations (FT) that fall under EN 300 176-2 for 3,1 kHz telephony teleservice. Inter-working between the FT and the attached network is outside its scope.

The document is organized into clauses on:

• references and definitions
• feature and service definitions
• interoperability requirements
• procedure descriptions
• NWK, DLC, MAC and PHL procedures
• speech transmission requirements
• management procedures
• application procedures

Annex	What it covers
B	Connection of the U-plane and provision of tones, including tones before U-plane connection, tones with a Progress indicator, and a summary

What are the key requirements of SIST EN 300 444 V2.1.1:2009?

SIST EN 300 444 V2.1.1:2009 is mainly a profile specification, so its core job is to tell implementers which DECT features, services and procedures must work together. In practice, a product is GAP-compliant only if it follows the mandatory behavior for the role it plays, whether that is PT, FT, or both.

Interoperability profile and support classes

Clause 6 maps NWK features, DLC services, MAC services, application features, and speech coding/audio features to PT and FT support. The tables use support codes such as M, O, C and N/A to show what is mandatory, optional, conditional, or not applicable for each side.

This matters because buyers and test teams can see quickly which functions are part of the common profile and which are only available in specific product combinations. For example, the baseline includes outgoing and incoming call handling, off-hook, on-hook, dialled digits, alerting, subscription registration on-air and link control.

Clause 6 also includes advanced functions such as authentication of the PP and FT, location registration, encryption activation and deactivation, CLIP, CNIP, internal call, service call, handover and extended frequency allocation. These features are useful when a system must support roaming, security, internal calling or caller identity presentation.

Call control and mobility procedures

Clause 7 states that the listed protocol elements are process mandatory. That means the relevant entity must send, receive and process the elements required by its role, and the normal case, associated procedures and exceptional cases are all part of the procedure.

Clause 8 defines NWK-layer procedures for outgoing call setup, overlap sending, call proceeding, call confirmation, connection, normal and abnormal release, partial release, keypad information, display, terminal capability indication, internal call setup, service call setup, identification of PP, authentication, access rights, key allocation, cipher switching, link establishment and link release.

This is the section to use when checking actual call behavior. It shows how a GAP handset and base station should react to timers, release collisions, rejects and timeouts so that a call does not fail in an ambiguous way.

A few practical examples stand out:

• For outgoing calls, keypad information is carried in the defined CC-INFO paths.
• For call proceeding, if the Progress indicator shows in-band information or an appropriate pattern is now available, the PT is expected to connect the U-plane.
• For incoming calls, the FT may include calling party information, alerting and ringing behavior.
• For display handling, the PT and FT display information must stay logically separate so the two sources are not mixed on the same display.

Link, bearer and radio-layer behavior

Clause 9 covers DLC-layer procedures such as Class A link establishment, acknowledged information transfer, C channel fragmentation and recombination, basic connection handover, encryption switching and U-plane class 0/minimum delay. This is the lower-layer control that keeps the link usable during normal operation and handover.

Clause 10 covers MAC-layer procedures such as broadcast, paging, basic connection setup, bearer and connection handover, C-channel data, encryption initialization and synchronization, encryption mode control and extended frequency allocation. Clause 11 then adds PHL requirements, including Minimum Normal Transmit Power (NTP), radio receiver sensitivity, sliding collision detection, physical channel availability and synchronization window.

In practice, these clauses are what engineers use to check that a device can actually get on the air, stay connected and recover properly when radio conditions change.

Security, identities and subscription data

Clause 8 includes authentication of FT and PP, location registration, obtaining access rights, FT terminating access rights, key allocation, cipher-switching and storing the DCK. The document uses identities such as IPUI, PARK, TPUI, PARI and RPN to identify the portable side and the fixed side.

Clause 13 covers management of MM procedures, assigned individual TPUI management, PMID management, DCK management, broadcast attributes management and storage of subscription-related data. This is important for products that must remember subscription data across power cycles and network changes.

Clause 6.9.4 adds a practical error-handling rule: a reserved value in an information element is not an error by itself. If the receiver understands it, it processes the value; otherwise it ignores it.

What terms does SIST EN 300 444 V2.1.1:2009 define?

• Fixed Part (FP) - the DECT infrastructure side that provides coverage and services to portable equipment.
• Fixed radio Termination (FT) - the logical group of functions on the fixed side of the DECT Air Interface.
• Portable Part (PP) - the user-side DECT equipment, which may be one or several physical pieces.
• Portable radio Termination (PT) - the logical group of DECT functions on the portable side of the Air Interface.
• Mobility Management (MM) - the DECT procedures that support call handling, location registration, access rights and related mobility functions.
• Location Area (LA) - the area in which a PP can make or receive calls after a single location registration.
• Calling Line Identification Presentation (CLIP) - the function that provides the calling party number before the called party accepts the call.
• Calling Name Identification Presentation (CNIP) - the function that provides the calling party name before call acceptance.

Who uses SIST EN 300 444 V2.1.1:2009?

SIST EN 300 444 V2.1.1:2009 is used by DECT equipment manufacturers, system integrators, test laboratories, quality managers and buyers who need a common voice profile for interoperability. It is relevant wherever 3,1 kHz telephony services are implemented over DECT.

It is especially useful for teams working on:

• DECT handsets, base stations and accessories
• residential, business and public access services
• roaming between coverage areas
• caller identity features such as CLIP and CNIP
• security functions such as authentication and ciphering
• conformance or interoperability testing against the GAP profile

Which standards are used with SIST EN 300 444 V2.1.1:2009?

Reference	What it contributes
ETSI EN 300 175-2	Physical layer (PHL) for the DECT Common Interface (CI)
ETSI EN 300 175-3	Medium Access Control (MAC) layer
ETSI EN 300 175-4	Data Link Control (DLC) layer
ETSI EN 300 175-5	Network (NWK) layer
ETSI EN 300 175-6	Identities and addressing
ETSI EN 300 175-7	Security features
ETSI EN 300 175-8	Speech coding and transmission
ETSI EN 300 176-1	Radio test specification
ETSI EN 300 176-2	Speech test specification
ETSI EN 301 406	Generic radio essential requirements for DECT
ISO/IEC 9646-6	Protocol profile test specification methodology
ISO/IEC 9646-7	Implementation Conformance Statements
ISO/IEC 8073	Underlying checksum calculation for DLC procedures
ITU-T Recommendation G.726	ADPCM codec referenced for speech handling

What does the SIST EN 300 444 V2.1.1:2009 document contain?

The document contains the feature lists, service lists and interoperability matrices that define GAP behavior for PT and FT equipment. It also contains detailed procedure clauses for NWK, DLC and MAC layer behavior, with message contents, timer handling and exception handling.

Several parts are especially practical for implementation and testing:

• message and information-element tables for call control, authentication, location registration and ciphering
• flow diagrams for outgoing and incoming call cases, release cases, paging and handover
• MAC and DLC frame formats for Class A operation
• speech and radio requirements such as transmit power, sensitivity and volume control
• management tables for storing subscription data, DCK, TPUI and related identities
• an example for manual entry of the PARK
• Annex B material on providing tones and connecting the U-plane during call handling

Final draft ETSI EN 300 444 V2.1.0 (2008-06)
European Standard (Telecommunications series)

Digital Enhanced Cordless Telecommunications (DECT);
Generic Access Profile (GAP)

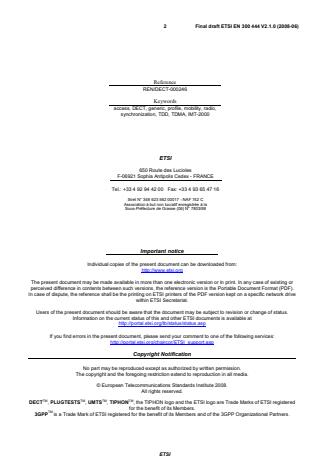

2 Final draft ETSI EN 300 444 V2.1.0 (2008-06)

Reference
REN/DECT-000246
Keywords
access, DECT, generic, profile, mobility, radio,
synchronization, TDD, TDMA, IMT-2000
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2008.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
ETSI
3 Final draft ETSI EN 300 444 V2.1.0 (2008-06)
Contents
Intellectual Property Rights.9
Foreword.9
1 Scope.10
2 References.10
2.1 Normative references.10
2.2 Informative references.11
3 Definitions, symbols and abbreviations .12
3.1 Definitions.12
3.2 Symbols.14
3.3 Abbreviations.14
4 Feature definitions.16
4.1 NetWorK (NWK) features .16
4.2 Speech coding and audio features .17
4.3 Application features.19
5 Service definitions.19
5.1 DLC service definitions.19
5.2 MAC service definitions .20
6 Inter-operability requirements.21
6.1 General.21
6.2 NWK features.22
6.3 DLC services.23
6.4 MAC services.23
6.5 PHysical Layer (PHL) services .24
6.6 Application features.24
6.7 Speech coding and audio features .24
6.8 Feature/service to procedure mapping.25
6.8.1 NWK feature to procedure mapping.25
6.8.2 DLC service to procedure mapping .27
6.8.3 MAC service to procedure mapping .28
6.8.4 Application feature to procedure mapping.29
6.8.5 Speech coding and audio feature to procedure mapping.29
6.9 General requirements.29
6.9.1 NWK layer message contents .29
6.9.2 Transaction identifier.29
6.9.3 Length of a NWK layer message .29
6.9.4 Handling of error and exception conditions.29
6.9.5 GAP default setup attributes .30
6.9.6 Coexistence of MM and CC procedures.30
6.9.7 Coding rules for information elements .30
7 Procedure description.31
8 NWK layer procedures.31
8.1 Summary of outgoing call messages, normal cases.31
8.2 Outgoing call request.33
8.2.1 Associated procedures.33
8.2.1.1 Timer P- management.33
8.2.2 Exceptional cases.34
8.2.2.1 Timer P- expiry .34
8.2.2.2 PT releases the outgoing call request .34
8.2.2.3 FT rejects the outgoing call request .35
8.3 Overlap sending.35
8.3.1 Associated procedure.36
ETSI

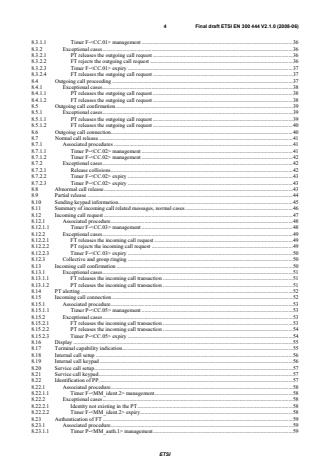

4 Final draft ETSI EN 300 444 V2.1.0 (2008-06)
8.3.1.1 Timer F- management.36
8.3.2 Exceptional cases.36
8.3.2.1 PT releases the outgoing call request .36
8.3.2.2 FT rejects the outgoing call request .36
8.3.2.3 Timer F- expiry .37
8.3.2.4 FT releases the outgoing call request .37
8.4 Outgoing call proceeding .37
8.4.1 Exceptional cases.38
8.4.1.1 PT releases the outgoing call request .38
8.4.1.2 FT releases the outgoing call request .38
8.5 Outgoing call confirmation.39
8.5.1 Exceptional cases.39
8.5.1.1 PT releases the outgoing call request .39
8.5.1.2 FT releases the outgoing call request .40
8.6 Outgoing call connection.40
8.7 Normal call release.41
8.7.1 Associated procedures.41
8.7.1.1 Timer P- management.41
8.7.1.2 Timer F- management.42
8.7.2 Exceptional cases.42
8.7.2.1 Release collisions.42
8.7.2.2 Timer F- expiry .43
8.7.2.3 Timer P- expiry .43
8.8 Abnormal call release.43
8.9 Partial release .44
8.10 Sending keypad information.45
8.11 Summary of incoming call related messages, normal cases.46
8.12 Incoming call request .47
8.12.1 Associated procedure.48
8.12.1.1 Timer F- management .48
8.12.2 Exceptional cases.49
8.12.2.1 FT releases the incoming call request .49
8.12.2.2 PT rejects the incoming call request .49
8.12.2.3 Timer F- expiry .50
8.12.3 Collective and group ringing .50
8.13 Incoming call confirmation .50
8.13.1 Exceptional cases.51
8.13.1.1 FT releases the incoming call transaction .51
8.13.1.2 PT releases the incoming call transaction .51
8.14 PT alerting.52
8.15 Incoming call connection .52
8.15.1 Associated procedure.53
8.15.1.1 Timer P- management .53
8.15.2 Exceptional cases.53
8.15.2.1 FT releases the incoming call transaction .53
8.15.2.2 PT releases the incoming call transaction .54
8.15.2.3 Timer P- expiry .54
8.16 Display.55
8.17 Terminal capability indication.55
8.18 Internal call setup.56
8.19 Internal call keypad.56
8.20 Service call setup.57
8.21 Service call keypad.57
8.22 Identification of PP.57
8.22.1 Associated procedure.58
8.22.1.1 Timer F- management.58
8.22.2 Exceptional cases.58
8.22.2.1 Identity not existing in the PT.58
8.22.2.2 Timer F- expiry.58
8.23 Authentication of FT .59
8.23.1 Associated procedure.59
8.23.1.1 Timer P- management.59
ETSI
5 Final draft ETSI EN 300 444 V2.1.0 (2008-06)
8.23.2 Exceptional cases.60
8.23.2.1 Authentication algorithm/key not supported.60
8.23.2.2 Authentication challenge RES has wrong value .60
8.23.2.3 Timer P- expiry.60
8.24 Authentication of PP .61
8.24.1 Associated procedure.62
8.24.1.1 Timer F- management.62
8.24.2 Exceptional cases.62
8.24.2.1 Authentication algorithm/key not supported.62
8.24.2.2 Timer F- expiry.62
8.25 Authentication of user .62
8.25.1 Associated procedure.63
8.25.1.1 Timer F- management.63
8.25.2 Exceptional cases.63
8.25.2.1 Authentication algorithm/key not supported.63
8.25.2.2 Timer F- expiry.63
8.26 Incrementing the ZAP value.63
8.27 Storing the DCK.64
8.28 Location registration.65
8.28.1 Associated procedures.66
8.28.1.1 Timer P- management.66
8.28.1.2 Timer F- management.66
8.28.2 Exceptional cases.67
8.28.2.1 FT rejects the location registration procedure.67
8.28.2.2 Failure of location registration procedure .67
8.28.2.3 PT rejects the identity assignment.67
8.28.2.4 Timer F- expiry.68
8.29 Location update.68
8.30 Obtaining access rights.69
8.30.1 Associated procedure.70
8.30.1.1 Timer P- management.70
8.30.2 Exceptional cases.70
8.30.2.1 FT rejects the access rights .70
8.30.2.2 Timer P- expiry.71
8.31 FT terminating access rights.71
8.31.1 Associated procedure.72
8.31.1.1 Timer F- management.72
8.31.2 Exceptional cases.72
8.31.2.1 PT rejects the termination request.72
8.31.2.2 Timer F- expiry.72
8.32 Key allocation.73
8.32.1 Associated procedures.74
8.32.1.1 Timer F- management.74
8.32.1.2 Timer P- management.74
8.32.2 Exceptional cases.74
8.32.2.1 Timer F- expiry.74
8.32.2.2 Timer P- expiry.74
8.32.2.3 Allocation-type element is unacceptable.75
8.32.2.4 Authentication of PT fails .75
8.32.2.5 Authentication of FT fails .75
8.33 Cipher-switching initiated by FT.76
8.33.1 Associated procedure.77
8.33.1.1 Timer F- management.77
8.33.2 Exceptional cases.77
8.33.2.1 PT rejects the cipher request .77
8.33.2.2 Timer F- expiry.77
8.34 Cipher-switching initiated by PT.78
8.34.1 Associated procedure.79
8.34.1.1 Timer P- management.79
8.34.2 Exceptional cases.79
8.34.2.1 FT rejects the cipher request .79
8.34.2.2 Timer P- expiry.79
ETSI
6 Final draft ETSI EN 300 444 V2.1.0 (2008-06)
8.35 Indirect FT initiated link establishment.79
8.35.1 Associated procedure.80
8.35.1.1 Timer F- management.80
8.35.2 Exceptional cases.81
8.35.2.1 The IPUI received in the {LCE-PAGE-RESPONSE} does not match .81
8.35.2.2 Timer expiry.81
8.35.2.3 Release from the higher entity .82
8.36 Direct PT initiated link establishment .82
8.36.1 Exceptional case.83
8.36.1.1 Link establishment failure.83
8.37 Link release "normal".83
8.37.1 Associated procedure.85
8.37.1.1 Timer management.85
8.37.2 Exceptional cases.85
8.37.2.1 Timer expiry.85
8.37.2.2 Outstanding data has been discarded.85
8.38 Link release "abnormal" .86
8.39 Link release "maintain" .86
8.39.1 Associated procedure.86
8.39.1.1 Timer management.86
8.40 Enhanced FT initiated U- plane connection .87
8.41 Calling Line Identification Presentation (CLIP) Indication .87
8.42 Calling Name Identification Presentation (CNIP) Indication.88
8.43 Internal Call Calling Line Identification Presentation (CLIP).88
8.44 Internal Call Calling Name Identification Presentation (CNIP).89
9 DLC layer procedures .91
9.1 Class A link establishment .91
9.1.1 Associated procedures.93
9.1.1.1 Timer P management.93
9.1.1.2 Re-transmission counter management.93
9.1.1.3 Multiple frame operation variables management .93
9.1.1.4 Lower Layer Management Entity (LLME) establishment of a MAC connection.93
9.1.2 Exceptional cases.94
9.1.2.1 Timer P expiry.94
9.1.2.2 Receipt of a request for link release .95
9.1.2.3 Receipt of an indication for a connection release.95
9.2 Class A Acknowledged Information transfer .95
9.2.1 Acknowledgement with an I_frame.95
9.2.2 Acknowledgement with a RR_frame.96
9.2.3 Class A acknowledged information transfer with segment reassemble .97
9.2.4 Associated procedures.97
9.2.4.1 Timer management.97
9.2.4.2 Re-transmission counter management.97
9.2.4.3 Multiple frame operation variables management .97
9.2.5 Exceptional cases.98
9.2.5.1 Timer expiry.98
9.2.5.2 Receipt of a request for link release .98
9.2.5.3 Receipt of an indication for a connection release.98
9.2.5.4 DLC wants to make a connection handover.98
9.3 Class A link release .99
9.3.1 Associated procedures.99
9.3.1.1 LLME U-plane release.99
9.3.1.2 LLME release a MAC connection .99
9.4 Class A link re-establishment.99
9.5 C channel fragmentation and recombination .99
S
9.6 Normal broadcast.99
9.7 Class A basic connection handover.100
9.7.1 Voluntary handover.101
9.7.2 Associated procedure.101
9.7.2.1 LLME connection handover management .101
9.7.3 Exceptional case.101
ETSI
7 Final draft ETSI EN 300 444 V2.1.0 (2008-06)
9.7.3.1 Receipt of a request for link release .101
9.8 Encryption switching.101
9.8.1 Associated procedure.102
9.8.1.1 Providing Encryption key to the MAC layer.102
9.8.2 Exceptional cases.102
9.8.2.1 Encryption fails.102
9.8.2.2 Connection handover of ciphered connections.102
9.9 U-plane class 0/min delay .102
9.9.1 Associated procedure.102
9.9.1.1 LLME U-plane establishment .102
9.10 FU1 frame operation .103
10 MAC layer procedures .103
10.1 General.103
10.2 Downlink broadcast.104
10.2.1 N message .104
T
10.2.2 Q - static system information .104
T
10.2.3 Q - FP capabilities.105
T
10.2.4 Q - SARI list contents .105
T
10.3 Paging broadcast.105
10.3.1 Short page, normal/extended paging.106
10.3.2 Zero page, normal/extended paging.106
10.3.3 Blind slot information.107
10.3.4 Bearer handover information .107
10.4 Setup of basic connection, basic bearer setup (A-field) .107
10.4.1 M message.108
T
10.4.2 Associated procedures.108
10.4.2.1 Timer T200 management .108
10.4.2.2 Counter N200 management.108
10.4.3 Exceptional cases.109
10.4.3.1 Bearer setup attempt fails N200+1 times .109
10.4.3.2 Timer T200 expiry .110
10.5 Connection/bearer release.110
10.5.1 M message.111
T
10.6 Bearer handover request.111
10.6.1 M message.111
T
10.7 Connection handover request.111
10.7.1 M message.
...

European Standard (Telecommunications series)

Digital Enhanced Cordless Telecommunications (DECT);
Generic Access Profile (GAP)
2 ETSI EN 300 444 V2.1.1 (2008-10)

Reference
REN/DECT-000246
Keywords
access, DECT, generic, profile, mobility, radio,
synchronization, TDD, TDMA, IMT-2000
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2008.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
ETSI
3 ETSI EN 300 444 V2.1.1 (2008-10)
Contents
Intellectual Property Rights . 9
Foreword . 9
1 Scope . 10
2 References . 10
2.1 Normative references . 10
2.2 Informative references . 11
3 Definitions, symbols and abbreviations . 12
3.1 Definitions . 12
3.2 Symbols . 14
3.3 Abbreviations . 14
4 Feature definitions . 16
4.1 NetWorK (NWK) features . 16
4.2 Speech coding and audio features . 17
4.3 Application features . 19
5 Service definitions . 19
5.1 DLC service definitions . 19
5.2 MAC service definitions . 20
6 Inter-operability requirements . 21
6.1 General . 21
6.2 NWK features . 22
6.3 DLC services . 23
6.4 MAC services . 23
6.5 PHysical Layer (PHL) services . 24
6.6 Application features . 24
6.7 Speech coding and audio features . 24
6.8 Feature/service to procedure mapping . 25
6.8.1 NWK feature to procedure mapping . 25
6.8.2 DLC service to procedure mapping . 27
6.8.3 MAC service to procedure mapping . 28
6.8.4 Application feature to procedure mapping . 29
6.8.5 Speech coding and audio feature to procedure mapping. 29
6.9 General requirements . 29
6.9.1 NWK layer message contents . 29
6.9.2 Transaction identifier . 29
6.9.3 Length of a NWK layer message . 29
6.9.4 Handling of error and exception conditions . 29
6.9.5 GAP default setup attributes . 30
6.9.6 Coexistence of MM and CC procedures . 30
6.9.7 Coding rules for information elements . 30
7 Procedure description . 31
8 NWK layer procedures . 31
8.1 Summary of outgoing call messages, normal cases . 31
8.2 Outgoing call request . 33
8.2.1 Associated procedures . 33
8.2.1.1 Timer P- management . 33
8.2.2 Exceptional cases . 34
8.2.2.1 Timer P- expiry . 34
8.2.2.2 PT releases the outgoing call request . 34
8.2.2.3 FT rejects the outgoing call request . 35
8.3 Overlap sending . 35
8.3.1 Associated procedure . 36
ETSI
4 ETSI EN 300 444 V2.1.1 (2008-10)
8.3.1.1 Timer F- management . 36
8.3.2 Exceptional cases . 36
8.3.2.1 PT releases the outgoing call request . 36
8.3.2.2 FT rejects the outgoing call request . 36
8.3.2.3 Timer F- expiry . 37
8.3.2.4 FT releases the outgoing call request . 37
8.4 Outgoing call proceeding . 37
8.4.1 Exceptional cases . 38
8.4.1.1 PT releases the outgoing call request . 38
8.4.1.2 FT releases the outgoing call request . 38
8.5 Outgoing call confirmation. 39
8.5.1 Exceptional cases . 39
8.5.1.1 PT releases the outgoing call request . 39
8.5.1.2 FT releases the outgoing call request . 40
8.6 Outgoing call connection . 40
8.7 Normal call release . 41
8.7.1 Associated procedures . 41
8.7.1.1 Timer P- management . 41
8.7.1.2 Timer F- management . 42
8.7.2 Exceptional cases . 42
8.7.2.1 Release collisions . 42
8.7.2.2 Timer F- expiry . 43
8.7.2.3 Timer P- expiry . 43
8.8 Abnormal call release . 43
8.9 Partial release . 44
8.10 Sending keypad information. 45
8.11 Summary of incoming call related messages, normal cases . 46
8.12 Incoming call request . 47
8.12.1 Associated procedure . 48
8.12.1.1 Timer F- management . 48
8.12.2 Exceptional cases . 49
8.12.2.1 FT releases the incoming call request . 49
8.12.2.2 PT rejects the incoming call request . 49
8.12.2.3 Timer F- expiry . 50
8.12.3 Collective and group ringing . 50
8.13 Incoming call confirmation . 50
8.13.1 Exceptional cases . 51
8.13.1.1 FT releases the incoming call transaction . 51
8.13.1.2 PT releases the incoming call transaction . 51
8.14 PT alerting . 52
8.15 Incoming call connection . 52
8.15.1 Associated procedure . 53
8.15.1.1 Timer P- management . 53
8.15.2 Exceptional cases . 53
8.15.2.1 FT releases the incoming call transaction . 53
8.15.2.2 PT releases the incoming call transaction . 54
8.15.2.3 Timer P- expiry . 54
8.16 Display . 55
8.17 Terminal capability indication . 55
8.18 Internal call setup . 56
8.19 Internal call keypad . 56
8.20 Service call setup . 57
8.21 Service call keypad . 57
8.22 Identification of PP . 57
8.22.1 Associated procedure . 58
8.22.1.1 Timer F- management . 58
8.22.2 Exceptional cases . 58
8.22.2.1 Identity not existing in the PT . 58
8.22.2.2 Timer F- expiry . 58
8.23 Authentication of FT . 59
8.23.1 Associated procedure . 59
8.23.1.1 Timer P- management . 59
ETSI
5 ETSI EN 300 444 V2.1.1 (2008-10)
8.23.2 Exceptional cases . 60
8.23.2.1 Authentication algorithm/key not supported . 60
8.23.2.2 Authentication challenge RES has wrong value . 60
8.23.2.3 Timer P- expiry . 60
8.24 Authentication of PP . 61
8.24.1 Associated procedure . 62
8.24.1.1 Timer F- management . 62
8.24.2 Exceptional cases . 62
8.24.2.1 Authentication algorithm/key not supported . 62
8.24.2.2 Timer F- expiry . 62
8.25 Authentication of user . 62
8.25.1 Associated procedure . 63
8.25.1.1 Timer F- management . 63
8.25.2 Exceptional cases . 63
8.25.2.1 Authentication algorithm/key not supported . 63
8.25.2.2 Timer F- expiry . 63
8.26 Incrementing the ZAP value . 63
8.27 Storing the DCK . 64
8.28 Location registration. 65
8.28.1 Associated procedures . 66
8.28.1.1 Timer P- management . 66
8.28.1.2 Timer F- management . 66
8.28.2 Exceptional cases . 67
8.28.2.1 FT rejects the location registration procedure . 67
8.28.2.2 Failure of location registration procedure . 67
8.28.2.3 PT rejects the identity assignment . 67
8.28.2.4 Timer F- expiry. 68
8.29 Location update . 68
8.30 Obtaining access rights . 69
8.30.1 Associated procedure . 70
8.30.1.1 Timer P- management . 70
8.30.2 Exceptional cases . 70
8.30.2.1 FT rejects the access rights . 70
8.30.2.2 Timer P- expiry. 71
8.31 FT terminating access rights . 71
8.31.1 Associated procedure . 72
8.31.1.1 Timer F- management . 72
8.31.2 Exceptional cases . 72
8.31.2.1 PT rejects the termination request . 72
8.31.2.2 Timer F- expiry. 72
8.32 Key allocation . 73
8.32.1 Associated procedures . 74
8.32.1.1 Timer F- management . 74
8.32.1.2 Timer P- management . 74
8.32.2 Exceptional cases . 74
8.32.2.1 Timer F- expiry . 74
8.32.2.2 Timer P- expiry . 74
8.32.2.3 Allocation-type element is unacceptable . 75
8.32.2.4 Authentication of PT fails . 75
8.32.2.5 Authentication of FT fails . 75
8.33 Cipher-switching initiated by FT . 76
8.33.1 Associated procedure . 77
8.33.1.1 Timer F- management . 77
8.33.2 Exceptional cases . 77
8.33.2.1 PT rejects the cipher request . 77
8.33.2.2 Timer F- expiry . 77
8.34 Cipher-switching initiated by PT . 78
8.34.1 Associated procedure . 79
8.34.1.1 Timer P- management . 79
8.34.2 Exceptional cases . 79
8.34.2.1 FT rejects the cipher request . 79
8.34.2.2 Timer P- expiry . 79
ETSI
6 ETSI EN 300 444 V2.1.1 (2008-10)
8.35 Indirect FT initiated link establishment . 79
8.35.1 Associated procedure . 80
8.35.1.1 Timer F- management . 80
8.35.2 Exceptional cases . 81
8.35.2.1 The IPUI received in the {LCE-PAGE-RESPONSE} does not match . 81
8.35.2.2 Timer expiry . 81
8.35.2.3 Release from the higher entity . 82
8.36 Direct PT initiated link establishment . 82
8.36.1 Exceptional case . 83
8.36.1.1 Link establishment failure . 83
8.37 Link release "normal" . 83
8.37.1 Associated procedure . 85
8.37.1.1 Timer management . 85
8.37.2 Exceptional cases . 85
8.37.2.1 Timer expiry . 85
8.37.2.2 Outstanding data has been discarded. 85
8.38 Link release "abnormal" . 86
8.39 Link release "maintain" . 86
8.39.1 Associated procedure . 86
8.39.1.1 Timer management . 86
8.40 Enhanced FT initiated U- plane connection . 87
8.41 Calling Line Identification Presentation (CLIP) Indication . 87
8.42 Calling Name Identification Presentation (CNIP) Indication . 88
8.43 Internal Call Calling Line Identification Presentation (CLIP) . 88
8.44 Internal Call Calling Name Identification Presentation (CNIP) . 89
9 DLC layer procedures . 91
9.1 Class A link establishment . 91
9.1.1 Associated procedures . 93
9.1.1.1 Timer P management . 93
9.1.1.2 Re-transmission counter management. 93
9.1.1.3 Multiple frame operation variables management . 93
9.1.1.4 Lower Layer Management Entity (LLME) establishment of a MAC connection . 93
9.1.2 Exceptional cases . 94
9.1.2.1 Timer P expiry . 94
9.1.2.2 Receipt of a request for link release . 95
9.1.2.3 Receipt of an indication for a connection release . 95
9.2 Class A Acknowledged Information transfer . 95
9.2.1 Acknowledgement with an I_frame . 95
9.2.2 Acknowledgement with a RR_frame . 96
9.2.3 Class A acknowledged information transfer with segment reassemble . 97
9.2.4 Associated procedures . 97
9.2.4.1 Timer management . 97
9.2.4.2 Re-transmission counter management. 97
9.2.4.3 Multiple frame operation variables management . 97
9.2.5 Exceptional cases . 98
9.2.5.1 Timer expiry . 98
9.2.5.2 Receipt of a request for link release . 98
9.2.5.3 Receipt of an indication for a connection release . 98
9.2.5.4 DLC wants to make a connection handover . 98
9.3 Class A link release . 99
9.3.1 Associated procedures . 99
9.3.1.1 LLME U-plane release . 99
9.3.1.2 LLME release a MAC connection . 99
9.4 Class A link re-establishment . 99
9.5 C channel fragmentation and recombination . 99
S
9.6 Normal broadcast . 99
9.7 Class A basic connection handover . 100
9.7.1 Voluntary handover . 101
9.7.2 Associated procedure . 101
9.7.2.1 LLME connection handover management . 101
9.7.3 Exceptional case . 101
ETSI
7 ETSI EN 300 444 V2.1.1 (2008-10)
9.7.3.1 Receipt of a request for link release . 101
9.8 Encryption switching . 101
9.8.1 Associated procedure . 102
9.8.1.1 Providing Encryption key to the MAC layer . 102
9.8.2 Exceptional cases . 102
9.8.2.1 Encryption fails . 102
9.8.2.2 Connection handover of ciphered connections. 102
9.9 U-plane class 0/min delay . 102
9.9.1 Associated procedure . 102
9.9.1.1 LLME U-plane establishment . 102
9.10 FU1 frame operation . 103
10 MAC layer procedures . 103
10.1 General . 103
10.2 Downlink broadcast . 104
10.2.1 N message . 104
T
10.2.2 Q - static system information . 104
T
10.2.3 Q - FP capabilities . 105
T
10.2.4 Q - SARI list contents . 105
T
10.3 Paging broadcast . 105
10.3.1 Short page, normal/extended paging . 106
10.3.2 Zero page, normal/extended paging . 106
10.3.3 Blind slot information . 107
10.3.4 Bearer handover information . 107
10.4 Setup of basic connection, basic bearer setup (A-field) . 107
10.4.1 M message . 108
T
10.4.2 Associated procedures . 108
10.4.2.1 Timer T200 management . 108
10.4.2.2 Counter N200 management . 108
10.4.3 Exceptional cases . 109
10.4.3.1 Bearer setup attempt fails N200+1 times . 109
10.4.3.2 Timer T200 expiry . 110
10.5 Connection/bearer release . 110
10.5.1 M message . 111
T
10.6 Bearer handover request .
...

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Digital Enhanced Cordless Telecommunications (DECT) - Generic Access Profile (GAP)33.070.30'(&7Digital Enhanced Cordless Telecommunications (DECT)ICS:Ta slovenski standard je istoveten z:EN 300 444 Version 2.1.1SIST EN 300 444 V2.1.1:2009en01-januar-2009SIST EN 300 444 V2.1.1:2009SLOVENSKI
STANDARD
ETSI ETSI EN 300 444 V2.1.1 (2008-10) 2
Reference REN/DECT-000246 Keywords access, DECT, generic, profile, mobility, radio, synchronization, TDD, TDMA, IMT-2000 ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: [phone]
Fax: [phone]
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice Individual copies of the present document can be downloaded from: http://www.etsi.org The present document may be made available in more than one electronic version or in print. In any case of existing or perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF). In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at http://portal.etsi.org/tb/status/status.asp If you find errors in the present document, please send your comment to one of the following services: http://portal.etsi.org/chaircor/ETSI_support.asp Copyright Notification No part may be reproduced except as authorized by written permission. The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2008. All rights reserved.
DECTTM, PLUGTESTSTM, UMTSTM, TIPHONTM, the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members. 3GPPTM is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners. SIST EN 300 444 V2.1.1:2009

ETSI ETSI EN 300 444 V2.1.1 (2008-10) 3 Contents Intellectual Property Rights . 9 Foreword . 9 1 Scope . 10 2 References . 10 2.1 Normative references . 10 2.2 Informative references . 11 3 Definitions, symbols and abbreviations . 12 3.1 Definitions . 12 3.2 Symbols . 14 3.3 Abbreviations . 14 4 Feature definitions . 16 4.1 NetWorK (NWK) features . 16 4.2 Speech coding and audio features . 17 4.3 Application features . 19 5 Service definitions . 19 5.1 DLC service definitions . 19 5.2 MAC service definitions . 20 6 Inter-operability requirements . 21 6.1 General . 21 6.2 NWK features . 22 6.3 DLC services . 23 6.4 MAC services . 23 6.5 PHysical Layer (PHL) services . 24 6.6 Application features . 24 6.7 Speech coding and audio features . 24 6.8 Feature/service to procedure mapping . 25 6.8.1 NWK feature to procedure mapping . 25 6.8.2 DLC service to procedure mapping . 27 6.8.3 MAC service to procedure mapping . 28 6.8.4 Application feature to procedure mapping . 29 6.8.5 Speech coding and audio feature to procedure mapping. 29 6.9 General requirements . 29 6.9.1 NWK layer message contents . 29 6.9.2 Transaction identifier . 29 6.9.3 Length of a NWK layer message . 29 6.9.4 Handling of error and exception conditions . 29 6.9.5 GAP default setup attributes . 30 6.9.6 Coexistence of MM and CC procedures . 30 6.9.7 Coding rules for information elements . 30 7 Procedure description . 31 8 NWK layer procedures . 31 8.1 Summary of outgoing call messages, normal cases . 31 8.2 Outgoing call request . 33 8.2.1 Associated procedures . 33 8.2.1.1 Timer P- management . 33 8.2.2 Exceptional cases . 34 8.2.2.1 Timer P- expiry . 34 8.2.2.2 PT releases the outgoing call request . 34 8.2.2.3 FT rejects the outgoing call request . 35 8.3 Overlap sending . 35 8.3.1 Associated procedure . 36 SIST EN 300 444 V2.1.1:2009

ETSI ETSI EN 300 444 V2.1.1 (2008-10) 4 8.3.1.1 Timer F- management . 36 8.3.2 Exceptional cases . 36 8.3.2.1 PT releases the outgoing call request . 36 8.3.2.2 FT rejects the outgoing call request . 36 8.3.2.3 Timer F- expiry . 37 8.3.2.4 FT releases the outgoing call request . 37 8.4 Outgoing call proceeding . 37 8.4.1 Exceptional cases . 38 8.4.1.1 PT releases the outgoing call request . 38 8.4.1.2 FT releases the outgoing call request . 38 8.5 Outgoing call confirmation. 39 8.5.1 Exceptional cases . 39 8.5.1.1 PT releases the outgoing call request . 39 8.5.1.2 FT releases the outgoing call request . 40 8.6 Outgoing call connection . 40 8.7 Normal call release . 41 8.7.1 Associated procedures . 41 8.7.1.1 Timer P- management . 41 8.7.1.2 Timer F- management . 42 8.7.2 Exceptional cases . 42 8.7.2.1 Release collisions . 42 8.7.2.2 Timer F- expiry . 43 8.7.2.3 Timer P- expiry . 43 8.8 Abnormal call release . 43 8.9 Partial release . 44 8.10 Sending keypad information. 45 8.11 Summary of incoming call related messages, normal cases . 46 8.12 Incoming call request . 47 8.12.1 Associated procedure . 48 8.12.1.1 Timer F- management . 48 8.12.2 Exceptional cases . 49 8.12.2.1 FT releases the incoming call request . 49 8.12.2.2 PT rejects the incoming call request . 49 8.12.2.3 Timer F- expiry . 50 8.12.3 Collective and group ringing . 50 8.13 Incoming call confirmation . 50 8.13.1 Exceptional cases . 51 8.13.1.1 FT releases the incoming call transaction . 51 8.13.1.2 PT releases the incoming call transaction . 51 8.14 PT alerting . 52 8.15 Incoming call connection . 52 8.15.1 Associated procedure . 53 8.15.1.1 Timer P- management . 53 8.15.2 Exceptional cases . 53 8.15.2.1 FT releases the incoming call transaction . 53 8.15.2.2 PT releases the incoming call transaction . 54 8.15.2.3 Timer P- expiry . 54 8.16 Display . 55 8.17 Terminal capability indication . 55 8.18 Internal call setup . 56 8.19 Internal call keypad . 56 8.20 Service call setup . 57 8.21 Service call keypad . 57 8.22 Identification of PP . 57 8.22.1 Associated procedure . 58 8.22.1.1 Timer F- management . 58 8.22.2 Exceptional cases . 58 8.22.2.1 Identity not existing in the PT . 58 8.22.2.2 Timer F- expiry . 58 8.23 Authentication of FT . 59 8.23.1 Associated procedure . 59 8.23.1.1 Timer P- management . 59 SIST EN 300 444 V2.1.1:2009

ETSI ETSI EN 300 444 V2.1.1 (2008-10) 5 8.23.2 Exceptional cases . 60 8.23.2.1 Authentication algorithm/key not supported . 60 8.23.2.2 Authentication challenge RES has wrong value . 60 8.23.2.3 Timer P- expiry . 60 8.24 Authentication of PP . 61 8.24.1 Associated procedure . 62 8.24.1.1 Timer F- management . 62 8.24.2 Exceptional cases . 62 8.24.2.1 Authentication algorithm/key not supported . 62 8.24.2.2 Timer F- expiry . 62 8.25 Authentication of user . 62 8.25.1 Associated procedure . 63 8.25.1.1 Timer F- management . 63 8.25.2 Exceptional cases . 63 8.25.2.1 Authentication algorithm/key not supported . 63 8.25.2.2 Timer F- expiry . 63 8.26 Incrementing the ZAP value . 63 8.27 Storing the DCK . 64 8.28 Location registration. 65 8.28.1 Associated procedures . 66 8.28.1.1 Timer P- management . 66 8.28.1.2 Timer F- management . 66 8.28.2 Exceptional cases . 67 8.28.2.1 FT rejects the location registration procedure . 67 8.28.2.2 Failure of location registration procedure . 67 8.28.2.3 PT rejects the identity assignment . 67 8.28.2.4 Timer F- expiry. 68 8.29 Location update . 68 8.30 Obtaining access rights . 69 8.30.1 Associated procedure . 70 8.30.1.1 Timer P- management . 70 8.30.2 Exceptional cases . 70 8.30.2.1 FT rejects the access rights . 70 8.30.2.2 Timer P- expiry. 71 8.31 FT terminating access rights . 71 8.31.1 Associated procedure . 72 8.31.1.1 Timer F- management . 72 8.31.2 Exceptional cases . 72 8.31.2.1 PT rejects the termination request . 72 8.31.2.2 Timer F- expiry. 72 8.32 Key allocation . 73 8.32.1 Associated procedures . 74 8.32.1.1 Timer F- management . 74 8.32.1.2 Timer P- management . 74 8.32.2 Exceptional cases . 74 8.32.2.1 Timer F- expiry . 74 8.32.2.2 Timer P- expiry . 74 8.32.2.3 Allocation-type element is unacceptable . 75 8.32.2.4 Authentication of PT fails . 75 8.32.2.5 Authentication of FT fails . 75 8.33 Cipher-switching initiated by FT . 76 8.33.1 Associated procedure . 77 8.33.1.1 Timer F- management . 77 8.33.2 Exceptional cases . 77 8.33.2.1 PT rejects the cipher request . 77 8.33.2.2 Timer F- expiry . 77 8.34 Cipher-switching initiated by PT . 78 8.34.1 Associated procedure . 79 8.34.1.1 Timer P- management . 79 8.34.2 Exceptional cases . 79 8.34.2.1 FT rejects the cipher request . 79 8.34.2.2 Timer P- expiry . 79 SIST EN 300 444 V2.1.1:2009

ETSI ETSI EN 300 444 V2.1.1 (2008-10) 6 8.35 Indirect FT initiated link establishment . 79 8.35.1 Associated procedure . 80 8.35.1.1 Timer F- management . 80 8.35.2 Exceptional cases . 81 8.35.2.1 The IPUI received in the {LCE-PAGE-RESPONSE} does not match . 81 8.35.2.2 Timer expiry . 81 8.35.2.3 Release from the higher entity . 82 8.36 Direct PT initiated link establishment . 82 8.36.1 Exceptional case . 83 8.36.1.1 Link establishment failure . 83 8.37 Link release "normal" . 83 8.37.1 Associated procedure . 85 8.37.1.1 Timer management . 85 8.37.2 Exceptional cases . 85 8.37.2.1 Timer expiry . 85 8.37.2.2 Outstanding data has been discarded. 85 8.38 Link release "abnormal" . 86 8.39 Link release "maintain" . 86 8.39.1 Associated procedure . 86 8.39.1.1 Timer management . 86 8.40 Enhanced FT initiated U- plane connection . 87 8.41 Calling Line Identification Presentation (CLIP) Indication . 87 8.42 Calling Name Identification Presentation (CNIP) Indication . 88 8.43 Internal Call Calling Line Identification Presentation (CLIP) . 88 8.44 Internal Call Calling Name Identification Presentation (CNIP) . 89 9 DLC layer procedures . 91 9.1 Class A link establishment . 91 9.1.1 Associated procedures . 93 9.1.1.1 Timer P management . 93 9.1.1.2 Re-transmission counter management. 93 9.1.1.3 Multiple frame operation variables management . 93 9.1.1.4 Lower Layer Management Entity (LLME) establishment of a MAC connection . 93 9.1.2 Exceptional cases . 94 9.1.2.1 Timer P expiry . 94 9.1.2.2 Receipt of a request for link release . 95 9.1.2.3 Receipt of an indication for a connection release . 95 9.2 Class A Acknowledged Information transfer . 95 9.2.1 Acknowledgement with an I_frame . 95 9.2.2 Acknowledgement with a RR_frame . 96 9.2.3 Class A acknowledged information transfer with segment reassemble . 97 9.2.4 Associated procedures . 97 9.2.4.1 Timer management . 97 9.2.4.2 Re-transmission counter management. 97 9.2.4.3 Multiple frame operation variables management . 97 9.2.5 Exceptional cases . 98 9.2.5.1 Timer expiry . 98 9.2.5.2 Receipt of a request for link release . 98 9.2.5.3 Receipt of an indication for a connection release . 98 9.2.5.4 DLC wants to make a connection handover . 98 9.3 Class A link release . 99 9.3.1 Associated procedures . 99 9.3.1.1 LLME U-plane release . 99 9.3.1.2 LLME release a MAC connection . 99 9.4 Class A link re-establishment . 99 9.5 CS channel fragmentation and recombination . 99 9.6 Normal broadcast . 99 9.7 Class A basic connection handover . 100 9.7.1 Voluntary handover . 101 9.7.2 Associated procedure . 101 9.7.2.1 LLME connection handover management . 101 9.7.3 Exceptional case . 101 SIST EN 300 444 V2.1.1:2009

ETSI ETSI EN 300 444 V2.1.1 (2008-10) 7 9.7.3.1 Receipt of a request for link release . 101 9.8 Encryption switching . 101 9.8.1 Associated procedure . 102 9.8.1.1 Providing Encryption key to the MAC layer . 102 9.8.2 Exceptional cases . 102 9.8.2.1 Encryption fails . 102 9.8.2.2 Connection handover of ciphered connections. 102 9.9 U-plane class 0/min delay . 102 9.9.1 Associated procedure . 102 9.9.1.1 LLME U-plane establishment . 102 9.10 FU1 frame operation . 103 10 MAC layer procedures . 103 10.1 General . 103 10.2 Downlink broadcast . 104 10.2.1 NT message . 104 10.2.2 QT - static system information . 104 10.2.3 QT - FP capabilities . 105 10.2.4 QT - SARI list contents . 105 10.3 Paging broadcast . 105 10.3.1 Short page, normal/extended paging . 106 10.3.2 Zero page, normal/extended paging . 106 10.3.3 Blind slot information . 107 10.3.4 Bearer handover information . 107 10.4 Setup of basic connection, basic bearer setup (A-field) . 107 10.4.1 MT message . 108 10.4.2 Associated procedures . 108 10.4.2.1 Timer T200 management . 108 10.4.2.2 Counter N200 management . 108 10.4.3 Exceptional cases . 109 10.4.3.1 Bearer setup attempt fails N200+1 times . 109 10.4.3.2 Timer T200 expiry . 110 10.5 Connection/bearer release . 110 10.5.1 MT message . 111 10.6 Bearer handover request . 111 10.6.1 MT message .
...
