Flanges and their joints - Gaskets for PN-designated flanges - Part 2: Spiral wound gaskets for use with steel flanges

This part of EN 1514 specifies the dimensions and marking of spiral wound gaskets for use in conjunction with flat face and raised face flanges complying with the requirements of EN 1092-1 for PN 10, PN 16, PN 25, PN 40, PN 63, PN 100 and PN 160 and up to and including DN 1 000.
NOTE 1   Dimensions of other types of gaskets for use with flanges to EN 1092-1, EN 1092-2, EN 1092-3 and EN 1092 4 are given in EN 1514-1, EN 1514-3, EN 1514-4, EN 1514-6, EN 1514-7 and EN 1514-8.
NOTE 2   Annex A lists information to be supplied by the purchaser when ordering gaskets in circumstances where the choice of the gasket materials appropriate to the service is left to the manufacturer.

Flansche und ihre Verbindungen - Dichtungen für Flansche mit PN-Bezeichnung - Teil 2: Spiraldichtungen für Stahlflansche

Brides et leurs assemblages - Joints pour les brides désignées PN - Partie 2 : Joints spiralés pour utilisation avec des brides en acier

Prirobnice in prirobnični spoji - Tesnila za prirobnice z oznako PN - 2. del: Spiralna tesnila za jeklene prirobnice (vključuje dopolnilo A1)

General Information

Status
Published
Publication Date
02-Mar-2021
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
11-Feb-2021
Due Date
18-Apr-2021
Completion Date
03-Mar-2021

RELATIONS

Buy Standard

Standard
SIST EN 1514-2:2014+A1:2021
English language
16 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN 1514-2:2014+A1:2021
01-april-2021
Nadomešča:
SIST EN 1514-2:2014

Prirobnice in prirobnični spoji - Tesnila za prirobnice z oznako PN - 2. del: Spiralna

tesnila za jeklene prirobnice (vključuje dopolnilo A1)

Flanges and their joints - Gaskets for PN-designated flanges - Part 2: Spiral wound

gaskets for use with steel flanges

Flansche und ihre Verbindungen - Dichtungen für Flansche mit PN-Bezeichnung - Teil 2:

Spiraldichtungen für Stahlflansche

Brides et leurs assemblages - Joints pour les brides désignées PN - Partie 2 : Joints

spiralés pour utilisation avec des brides en acier
Ta slovenski standard je istoveten z: EN 1514-2:2014+A1:2021
ICS:
23.040.60 Prirobnice, oglavki in spojni Flanges, couplings and joints
elementi
23.040.80 Tesnila za cevne zveze Seals for pipe and hose
assemblies
SIST EN 1514-2:2014+A1:2021 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 1514-2:2014+A1:2021
---------------------- Page: 2 ----------------------
SIST EN 1514-2:2014+A1:2021
EN 1514-2:2014+A1
EUROPEAN STANDARD
NORME EUROPÉENNE
January 2021
EUROPÄISCHE NORM
ICS 23.040.80
English Version
Flanges and their joints - Gaskets for PN-designated
flanges - Part 2: Spiral wound gaskets for use with steel
flanges

Brides et leurs assemblages - Joints pour les brides Flansche und ihre Verbindungen - Dichtungen für

désignées PN - Partie 2 : Joints spiralés pour utilisation Flansche mit PN-Bezeichnung - Teil 2:

avec des brides en acier Spiraldichtungen für Stahlflansche

This European Standard was approved by CEN on 25 July 2014 and includes Amendment 1 approved by CEN on 30 November

2020.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this

European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references

concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN

member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by

translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management

Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,

Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and

United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 1514-2:2014+A1:2021 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 1514-2:2014+A1:2021
EN 1514-2:2014 +A1:2021 (E)

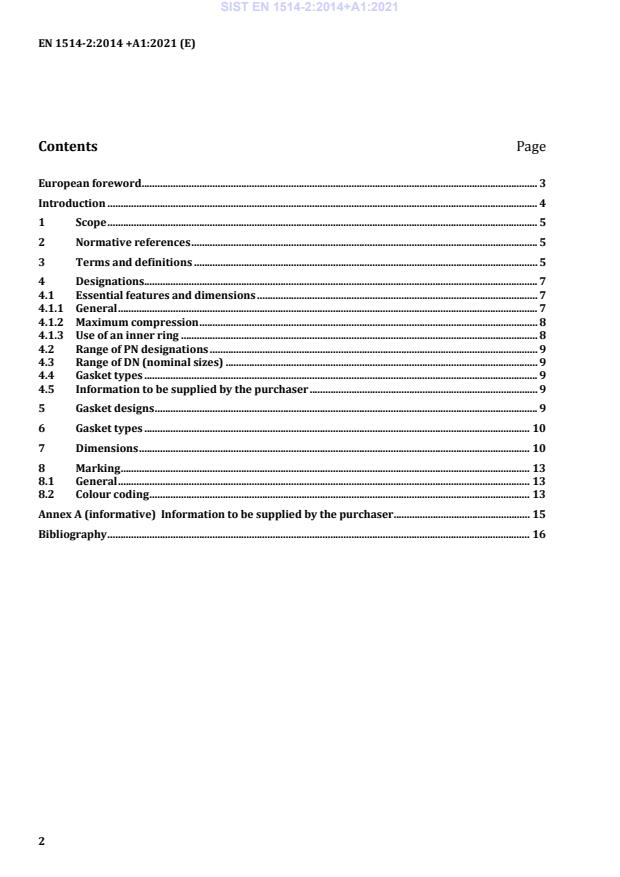

Contents Page

European foreword ....................................................................................................................................................... 3

Introduction .................................................................................................................................................................... 4

1 Scope .................................................................................................................................................................... 5

2 Normative references .................................................................................................................................... 5

3 Terms and definitions ................................................................................................................................... 5

4 Designations...................................................................................................................................................... 7

4.1 Essential features and dimensions ........................................................................................................... 7

4.1.1 General ................................................................................................................................................................ 7

4.1.2 Maximum compression ................................................................................................................................. 8

4.1.3 Use of an inner ring ........................................................................................................................................ 8

4.2 Range of PN designations ............................................................................................................................. 9

4.3 Range of DN (nominal sizes) ....................................................................................................................... 9

4.4 Gasket types ...................................................................................................................................................... 9

4.5 Information to be supplied by the purchaser ....................................................................................... 9

5 Gasket designs .................................................................................................................................................. 9

6 Gasket types ................................................................................................................................................... 10

7 Dimensions ..................................................................................................................................................... 10

8 Marking ............................................................................................................................................................ 13

8.1 General ............................................................................................................................................................. 13

8.2 Colour coding ................................................................................................................................................. 13

Annex A (informative) Information to be supplied by the purchaser .................................................... 15

Bibliography ................................................................................................................................................................. 16

---------------------- Page: 4 ----------------------
SIST EN 1514-2:2014+A1:2021
EN 1514-2:2014+A1:2021 (E)
European foreword

This document (EN 1514-2:2014+A1:2021) has been prepared by Technical Committee CEN/TC 74

“Flanges and their joints”, the secretariat of which is held by DIN.

This European Standard shall be given the status of a national standard, either by publication of an

identical text or by endorsement, at the latest by July 2021, and conflicting national standards shall be

withdrawn at the latest by July 2021.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent

rights.
This document includes Amendment 1 approved by CEN on 15 June 2020.
This document supersedes !EN 1514-2:2014".

The start and finish of text introduced or altered by amendment is indicated in the text by tags !".

EN 1514, Flanges and their joints — (Dimensions of) gaskets for PN-designated flanges, consists of the

following parts:
— Part 1: Non-metallic flat gaskets with or without inserts;
— Part 2: Spiral wound gaskets for use with steel flanges;
— Part 3: Non-metallic PTFE envelope gaskets;

— Part 4: Corrugated, flat or grooved metallic and filled metallic gaskets for use with steel flanges;

— Part 6: Covered serrated metal gaskets for use with steel flanges;
— Part 7: Covered metal jacketed gaskets for use with steel flanges;
— Part 8: Polymeric O-Ring gaskets for grooved flanges.

According to the CEN-CENELEC Internal Regulations, the national standards organisations of the

following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,

Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,

Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of

North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the

United Kingdom.
---------------------- Page: 5 ----------------------
SIST EN 1514-2:2014+A1:2021
EN 1514-2:2014 +A1:2021 (E)
Introduction

The dimensions of spiral wound gaskets for tongue and groove flanges and spigot and recess flanges to

EN 1092-1 are not included in this part of EN 1514. Such gaskets may be available for these types of

flange and the purchaser is advised to consult the manufacturer as to their availability.

---------------------- Page: 6 ----------------------
SIST EN 1514-2:2014+A1:2021
EN 1514-2:2014+A1:2021 (E)
1 Scope

This part of EN 1514 specifies the dimensions and marking of spiral wound gaskets for use in

conjunction with flat face and raised face flanges complying with the requirements of EN 1092-1 for

PN 10, PN 16, PN 25, PN 40, PN 63, PN 100 and PN 160 and up to and including DN 1 000.

NOTE 1 Dimensions of other types of gaskets for use with flanges to EN 1092-1, EN 1092-2, EN 1092-3 and

EN 1092-4 are given in EN 1514-1, EN 1514-3, EN 1514-4, EN 1514-6, EN 1514-7 and EN 1514-8.

NOTE 2 Annex A lists information to be supplied by the purchaser when ordering gaskets in circumstances

where the choice of the gasket materials appropriate to the service is left to the manufacturer.

2 Normative references

The following documents, in whole or in part, are normatively referenced in this document and are

indispensable for its application. For dated references, only the edition cited applies. For undated

references, the latest edition of the referenced document (including any amendments) applies.

EN 1333, Flanges and their joints - Pipework components - Definition and selection of PN

EN ISO 6708, Pipework components - Definition and selection of DN (nominal size) (ISO 6708)

3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1

alphanumeric designation of size for components of a pipework system, which is used for reference

purposes. It comprises the letters DN followed by a dimensionless whole number which is indirectly

related to the physical size, in millimetres, of the bore or outside diameter of the end connections

Note 1 to entry: The number following the letters DN does not represent a measurable value and should not be

used for calculation purposes except where specified in the relevant standard.

Note 2 to entry: In those standards which use the DN designation system, any relationship between DN and

component dimensions should be given (e.g. DN/OD or DN/ID).
---------------------- Page: 7 ----------------------
SIST EN 1514-2:2014+A1:2021
EN 1514-2:2014 +A1:2021 (E)
Note 3 to entry: The preferred DN values are:
DN 10 DN 250 DN 1
500
DN 15 DN 300 DN 1
600
DN 20 DN 350 DN 1
800
DN 25 DN 400 DN 2
000
DN 32 DN 450 DN 2
200
DN 40 DN 500 DN 2
400
DN 50 DN 600 DN 2
600
DN 60 DN 700 DN 2
800
DN 65 DN 800 DN 3
000
DN 80 DN 900 DN 3
200
DN 100 DN 1 DN 3
000 400
DN 125 DN 1 DN 3
100 600
DN 150 DN 1 DN 3
200 800
DN 200 DN 1 DN 4
400 000
[SOURCE: EN ISO 6708:1995, 2.1 and Clause 3]
3.2

alphanumeric designation used for reference purposes related to a combination of mechanical and

dimensional characteristics of a component of a pipework system. It comprises the letters PN followed

by a dimensionless number

Note 1 to entry: The number following the letters PN does not represent a measurable value and should not be

used for calculation purposes except where specified in the relevant standard.

Note 2 to entry: The designation PN is not meaningful unless it is related to the relevant component standard

number.

Note 3 to entry: The maximum allowable pressure of a pipework component depends on the PN number, the

material and design of the component, its maximum allowable temperature, etc. The relevant European

Component standards include tables of specified pressure/temperature ratings or, in minimum, include rules how

to determine pressure/temperature ratings.
---------------------- Page: 8 ----------------------
SIST EN 1514-2:2014+A1:2021
EN 1514-2:2014+A1:2021 (E)

Note 4 to entry: It is intended that all components with the same PN and DN designations have the same mating

dimensions for compatible flange types.
Note 5 to entry: The preferred PN values are:
PN 2,5 PN 25 PN 160
PN 6 PN 40 PN 250
PN 10 PN 63 PN 320
PN 16 PN 100 PN 400
[SOURCE: EN 1333:2006, 2.1 and Clause 3]
4 Designations
4.1 Essential features and dimensions
4.1.1 General
A major feature of the design of spiral wound gaskets mee
...
