SIST ETS 300 517 E1:2003

European digital cellular telecommunications system (Phase 2); Multi Party (MPTY) supplementary services; Stage 1 (GSM 02.84)

....

Evropski digitalni celični telekomunikacijski sistem (faza 2) – Dopolnilna storitev: več udeležencev (MPTY) – Stopnja 1 (GSM 02.84)

General Information

• Status: Published
• Publication Date: 30-Nov-2003
• ICS: 33.070.50 - Global System for Mobile Communication (GSM)
• Technical Committee: SS EIT - Technical Board for the electrotechnical, information technology and telecommunications fields
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Dec-2003
• Due Date: 01-Dec-2003
• Completion Date: 01-Dec-2003
• Ref Project: ETSI ETS 300 517 ed.1 (1994-09) - European digital cellular telecommunications system (Phase 2); Multi Party (MPTY) supplementary services; Stage 1 (GSM 02.84)

Standards Content (Sample)

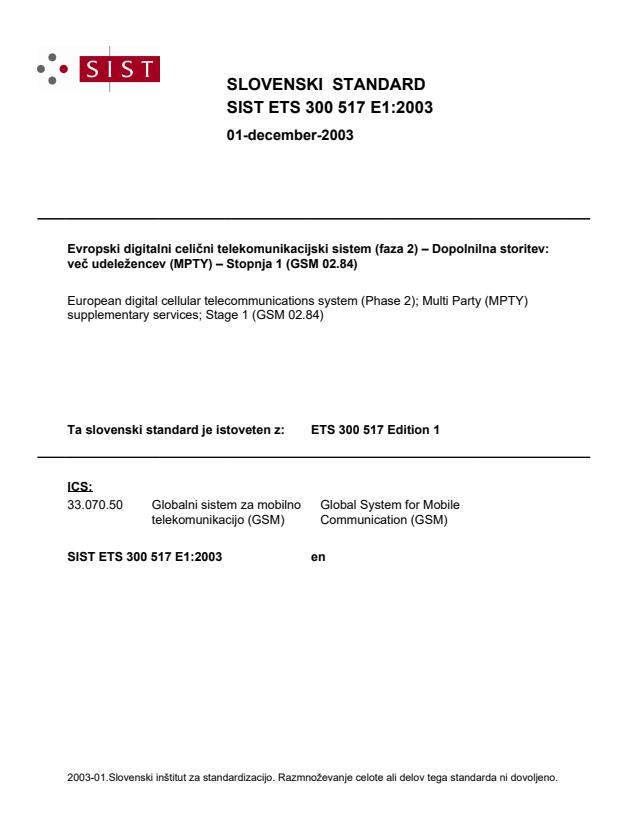

SLOVENSKI STANDARD
01-december-2003
(YURSVNLGLJLWDOQLFHOLþQLWHOHNRPXQLNDFLMVNLVLVWHPID]D±'RSROQLOQDVWRULWHY
YHþXGHOHåHQFHY037<±6WRSQMD*60
European digital cellular telecommunications system (Phase 2); Multi Party (MPTY)
supplementary services; Stage 1 (GSM 02.84)
Ta slovenski standard je istoveten z: ETS 300 517 Edition 1
ICS:
33.070.50 Globalni sistem za mobilno Global System for Mobile
telekomunikacijo (GSM) Communication (GSM)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

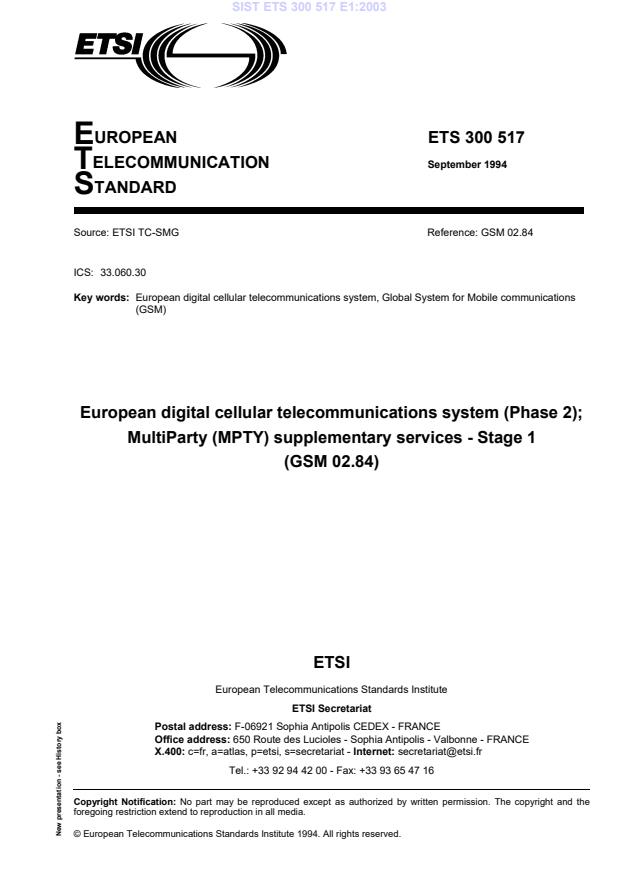

EUROPEAN ETS 300 517
TELECOMMUNICATION September 1994
STANDARD
Source: ETSI TC-SMG Reference: GSM 02.84
ICS: 33.060.30
European digital cellular telecommunications system, Global System for Mobile communications
Key words:
(GSM)
European digital cellular telecommunications system (Phase 2);
MultiParty (MPTY) supplementary services - Stage 1
(GSM 02.84)
ETSI
European Telecommunications Standards Institute
ETSI Secretariat
F-06921 Sophia Antipolis CEDEX - FRANCE
Postal address:
650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCE
Office address:
c=fr, a=atlas, p=etsi, s=secretariat - [e-mail]
X.400: Internet:
Tel.: [phone] - Fax: [phone]
Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and the
foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1994. All rights reserved.
New presentation - see History box

Page 2
ETS 300 517: September 1994 (GSM 02.84 version 4.4.6)
Whilst every care has been taken in the preparation and publication of this document, errors in content,
typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to
"ETSI Editing and Committee Support Dept." at the address shown on the title page.

Page 3
ETS 300 517: September 1994 (GSM 02.84 version 4.4.6)
Contents
Foreword .5
0 Multi party supplementary services .7
0.1 Scope.7
0.2 Normative references .7
0.3 Definitions and abbreviations.7
1 Multi-Party Service (MPTY).8
1.1 Definition.8
1.2 Description.8
1.2.1 Description .8
1.2.1.1 Indication about multi-party status.8
1.2.2 Applicability to telecommunication services .8
1.2.3 Terminology.8
1.3 Normal procedures with successful outcome.8
1.3.1 Provision.8
1.3.2 Withdrawal.9
1.3.5 Activation.9
1.3.6 Deactivation.9
1.3.7 Invocation .9
1.3.8 Normal operation with successful outcome.9
1.3.8.1 Beginning the multi-party call.9
1.3.8.2 Managing an active multi-party call .9
1.3.8.3 Managing a held multi-party call .10
1.3.8.4 Managing a single call and a MPTY .10
1.3.8.4.1 Single active call .10
1.3.8.4.2 Active MPTY and held call.11
1.3.8.5 Remote parties in a Multi-Party Call .11
1.4 Exceptional procedures or unsuccessful outcome .11
1.5 Alternate procedures.12
1.6 Interactions with other supplementary services.12
1.6.81.3 Connected line identification presentation.12
1.6.82.1 Call forwarding unconditional .12
1.6.82.2 Call forwarding on mobile subscriber Busy .12
1.6.82.3 Call forwarding on no reply.12
1.6.82.4 Call Forwarding on mobile subscriber not reachable .12
1.6.83.1 Call waiting .12
1.6.83.2 Call hold.12
1.6.84.1 Multi-party service .12
1.6.85.1 Closed user group.13
1.6.88.1 Barring of all outgoing calls .13
1.6.88.2 Barring of outgoing international calls .13
1.6.88.4 Barring of outgoing international calls except those directed to the home
PLMN country.13
1.6.88.6 Barring of incoming calls .13
1.6.88.7 Barring of incoming calls when roaming outside the home PLMN country .13
1.7 Interworking considerations .13
History.14

Page 4
ETS 300 517: September 1994 (GSM 02.84 version 4.4.6)
Blank page
Page 5
ETS 300 517: September 1994 (GSM 02.84 version 4.4.6)
Foreword
This European Telecommunication Standard (ETS) has been produced by the Special Mobile Group
(SMG) Technical Committee (TC) of the European Telecommunications Standards Institute (ETSI).
This ETS describes MultiParty (MPTY) supplementary services within the European digital cellular
telecommunications system (Phase 2) and correspond to GSM technical specification GSM 02.84 version
4.4.6.
The specification from which this ETS has been derived was originally based on CEPT documentation,
hence the presentation of this ETS may not be entirely in accordance with the ETSI/PNE rules.
Reference is made within this ETS to GSM Technical Specifications (GSM-TSs) (NOTE).
NOTE: TC-SMG has produced documents which give the technical specifications for the
implementation of the European digital cellular telecommunications system.
Historically, these documents have been identified as GSM Technical Specifications
(GSM-TSs). These TSs may have subsequently become I-ETSs (Phase 1), or ETSs
(Phase 2), whilst others may become ETSI Technical Reports (ETRs). GSM-TSs are,
for editorial reasons, still referred to in GSM ETSs.

Page 6
ETS 300 517: September 1994 (GSM 02.84 version 4.4.6)
Blank page
Page 7
ETS 300 517: September 1994 (GSM 02.84 version 4.4.6)
0 Multi party supplementary services
0.1 Scope
This specification describes the supplementary services belonging to the group MULTI PARTY
SUPPLEMENTARY SERVICES.
The general aspects, including definitions and recommended provision, of the description of the GSM
supplementary services are given in specification GSM 02.04.
The group of supplementary services MULTI PARTY SUPPLEMENTARY SERVICES consists of one
supplementary service:
- Multi Party service (section 1).
0.2 Normative references
This ETS incorporates by dated and undated reference, provisions from other publications. These
normative references are cited at the appropriate places in the text and the publications are listed
hereafter. For dated references, subsequent amendments to or revisions of any of these publications
apply to this ETS only when incorporated in it by amendment or revision. For undated references, the
latest edition of the publication referred to applies.
[1] GSM 01.04 (ETR 100): "European digital cellular telecommunication system
(Phase 2); Definitions, abbreviations and acronyms".
[2] GSM 02.04 (ETS 300 503): "European digital cellular telecommunication system
(Phase 2); General on supplementary services".
[3] GSM 02.30 (ETS 300 511): "European digital cellular telecommunication system
(Phase 2); Man-Machine Interface (MMI) of the Mobile Station (MS)".
[4] GSM 02.83 (ETS 300 516): "European digital cellular telecommunication system
(Phase 2); Call Waiting (CW) and Call Hold (HOLD) supplementary services -
Stage 1".
[5] GSM 02.85 (ETS 300 518): "European digital cellular telecommunication system
(Phase 2); Closed User Group (CUG) supplementary services - Stage 1".
0.3 Definitions and abbreviations
Abbreviations used in this specification are listed in GSM 01.04.

Page 8
ETS 300 517: September 1994 (GSM 02.84 version 4.4.6)
1 Multi-Party Service (MPTY)
1.1 Definition
This supplementary service provides a mobile subscriber with the ability to have a multi-connection call,
i.e. a simultaneous communication with more than one party.
1.2 Description
1.2.1 Description
A precondition for the multi-party service is that the served mobile subscriber is in control of one active call
and one call on hold, both calls having been answered. In this situation the served mobile subscriber can
request the network to begin the multi-party service.
Once a multi-party call is active, remote parties may be added, disconnected or separated (i.e. removed
from the multi-party call but remain connected to the served mobile subscriber).
The maximum number of remote parties is 5.
1.2.1.1 Indication about multi-party status
Notification shall be sent towards the served mobile subscriber and all the remote parties in a multi-party
call at the invocation of this supplementary service. In addition a notification shall always be sent towards
all remote parties (i.e. not towards the served mobile subscriber) every time a new party is added to the
multi-party call. Notifications shall also be sent to remote parties when they are put on hold and when they
are retrieved in accordance with normal Call Hold procedures.
In the case where a previously private communication is added again to the multi-party call a notification
shall be sent towards all remote parties.
NOTE: During an interim period of time, some networks might not support the sending of the
notifications to the remote parties.
1.2.2 Applicability to telecommunication services
This service is applicable to Telephony (TS 11) only.
1.2.3 Terminology
Served Mobile Subscriber
During the invocation and active phase, the service is under the control of the served mobile subscriber,
i.e. the one who has subscribed to the service.
Remote Party
Any participant in the multi-party call who is not the served mobile subscriber.
1.3 Normal procedures with successful outcome
1.3.1 Provision
This supplementary service is provisioned for all Basic Services subscribed to and to which it is
applicable, i.e. not to any subset of these BS.
The provision of the Call Hold supplem
...
