SIST ETS 300 905 E3:2003

• Abstract:

  This ETS describe and defines a recommended set of Teleservices to be supported by a GSM PLMN in connection with other networks as a basis for defining the network capabilities required. Teleservices not included in this specification should not be introduced unilateraly by a mobile network operator, if the provision of this service requires that the GSM signalling specifications are modified.

• Status: Published
• Publication Date: 30-Nov-2003
• ICS: 33.070.50 - Global System for Mobile Communication (GSM)
• Technical Committee: SS EIT - Technical Board for the electrotechnical, information technology and telecommunications fields
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Dec-2003
• Due Date: 01-Dec-2003
• Completion Date: 01-Dec-2003
• Ref Project: ETSI ETS 300 905 ed.3 (1998-01) - Digital cellular telecommunications system (Phase 2+) (GSM); Teleservices supported by a GSM Public Land Mobile Network (PLMN) (GSM 02.03 version 5.3.2)

Overview

SIST ETS 300 905 E3:2003 defines the recommended set of teleservices to be supported by a GSM Public Land Mobile Network (PLMN), as specified for the Digital Cellular Telecommunications System (GSM Phase 2+). This standard, harmonized with ETSI's GSM 02.03 version 5.3.2, establishes the functional requirements and capabilities that a GSM PLMN must offer for telecommunication services, particularly when connecting with other networks. The document also sets guidelines to prevent the unilateral introduction of new teleservices by operators if such services would require modifications to GSM signaling specifications.

Key Topics

Teleservices Defined by GSM PLMN

• Speech Services: Support for basic telephony and emergency calls, ensuring reliable voice communications consistent with public networks like PSTN and ISDN.
• Short Message Services (SMS): Details the support for mobile-terminated and mobile-originated point-to-point SMS, as well as cell broadcast messaging, enabling text transmission and broadcast to users within defined cell areas.
• Facsimile Services: Specification for alternate speech/facsimile and automatic Group 3 fax (G3), allowing fax transmission between mobile stations and fixed networks via the GSM PLMN.
• Voice Group Call and Broadcast Services: Provision for group communication, such as voice group call service and voice broadcast service, targeting predefined groups in multipoint setups.
• Service Attributes: Classification of teleservices based on high-layer and low-layer (bearer capability) attributes, as well as supplementary attributes like quality of service and commercial features.

Applications

Practical Value in the Telecommunications Industry

• Mobile Network Design and Interconnection
  By defining the standard set of teleservices, this specification ensures interoperability between GSM networks and seamless integration with other public networks (PSTN, ISDN). Network providers can benchmark against these service requirements to design compliant and future-proof infrastructures.

• Operator Service Offerings
  The standard acts as a reference for allowable GSM teleservices, ensuring consistency in essential offerings such as voice, emergency communication, and SMS. It also protects network integrity by preventing proprietary or incompatible service deployment that could impact network functions or interoperability.

• Regulatory Compliance and Quality Assurance
  Compliance with SIST ETS 300 905 E3:2003 is often a legal or regulatory requirement for GSM network operators in many regions. Operators and equipment suppliers rely on these specifications to maintain service quality, ensure user safety (especially for emergency calls), and facilitate cross-network messaging services.

• Roaming and International Compatibility
  The standardized teleservices make international roaming feasible, as users expect consistent and predictable service support-such as SMS and emergency calling-when traveling across networks worldwide.

Related Standards

• GSM 01.04 (ETR 350): Reference for abbreviations and acronyms used in GSM standards.
• GSM 02.01: Principles underlying telecommunication services in the GSM PLMN.
• GSM 02.02 / ETS 300 904: Bearer services supported by GSM PLMN.
• GSM 02.04 / ETS 300 918: General overview of supplementary services in GSM.
• GSM 02.68 / ETS 300 925: Voice Group Call Service specifications.
• GSM 02.69 / ETS 300 926: Voice Broadcast Service specifications.
• GSM 03.40 / ETS 300 901: Technical realization of SMS (Point-to-Point).
• GSM 03.41 / ETS 300 902: Technical realization of SMS Cell Broadcast.
• GSM 04.08 / ETS 300 940: Mobile radio interface layer 3 specification.
• GSM 07.01 / ETS 300 913: Terminal Adaptation Functions for Mobile Stations.
• GSM 07.05: Use of DTE–DCE interface for SMS and CBS.

Keywords: digital cellular telecommunications, GSM, telecommunication services, GSM PLMN, SMS, voice calls, emergency calls, facsimile, group call, cell broadcast, interoperability, network standardization.

SLOVENSKI STANDARD
01-december-2003
'LJLWDOQLFHOLþQLWHOHNRPXQLNDFLMVNLVLVWHPID]D±'DOMLQVNHVWRULWYHNLMLK
SRGSLUDMDYQRNRSHQVNRPRELOQRRPUHåMH3/01VLVWHPD*60*60
UD]OLþLFD
Digital cellular telecommunications system (Phase 2+) (GSM); Teleservices supported
by a GSM Public Land Mobile Network (PLMN) (GSM 02.03 version 5.3.2)
Ta slovenski standard je istoveten z: ETS 300 905 Edition 3
ICS:
33.070.50 Globalni sistem za mobilno Global System for Mobile
telekomunikacijo (GSM) Communication (GSM)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN ETS 300 905
TELECOMMUNICATION January 1998
STANDARD Third Edition
Source: SMG Reference: RE/SMG-010203QR2
ICS: 33.020
Key words: Digital cellular telecommunications system, Global System for Mobile communications (GSM)
R
GLOBAL SYSTEM FOR
MOBILE COMMUNICATIONS
Digital cellular telecommunications system (Phase 2+);
Teleservices supported by a GSM
Public Land Mobile Network (PLMN);
(GSM 02.03 version 5.3.2)
ETSI
European Telecommunications Standards Institute
ETSI Secretariat
Postal address: F-06921 Sophia Antipolis CEDEX - FRANCE
Office address: 650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCE
X.400: c=fr, a=atlas, p=etsi, s=secretariat - Internet: [e-mail]
Tel.: [phone] - Fax: [phone]
Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and the
foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1998. All rights reserved.

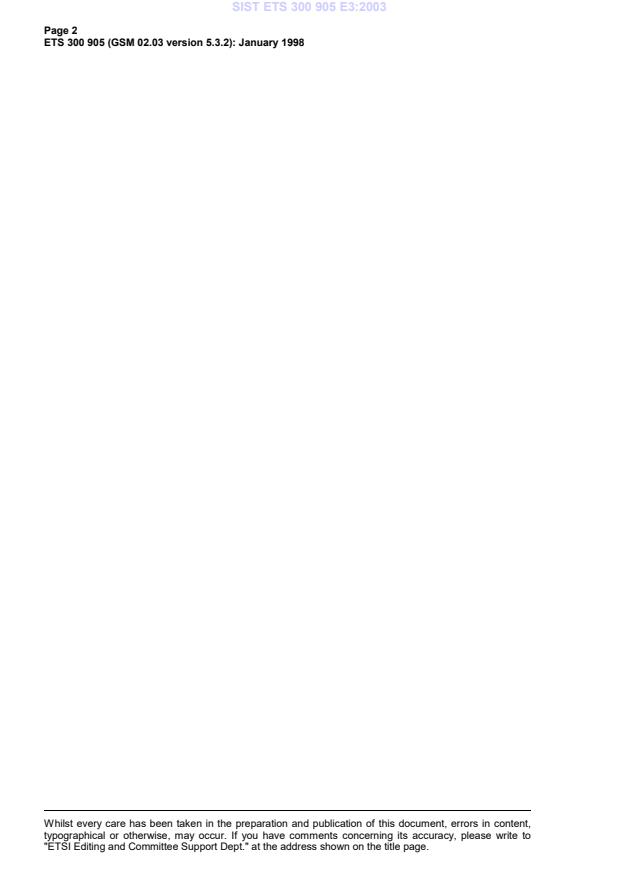

Page 2
ETS 300 905 (GSM 02.03 version 5.3.2): January 1998
Whilst every care has been taken in the preparation and publication of this document, errors in content,
typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to
"ETSI Editing and Committee Support Dept." at the address shown on the title page.

Page 3
ETS 300 905 (GSM 02.03 version 5.3.2): January 1998
Contents
Foreword .5
0 Scope .7
0.1 Normative references .7
0.2 Abbreviations .8
1 Framework for describing teleservices supported by a GSM PLMN.8
2 List of the teleservice attributes.9
3 List of teleservice categories and individual teleservices.9
4 Description of individual teleservices .9
5 Bearer capabilities supporting teleservices.9
6 Possible further evolution phases of teleservices in a GSM PLMN .10
Annex A (normative): Description of individual Teleservices .11
A.1 Individual Teleservices.11
A.1.1 Telephony .11
A.1.2 Emergency calls.12
A.1.3 Short Message Service (SMS).13
A.1.3.1 Short message service MT/PP.13
A.1.3.2 Short message service MO/PP .14
A.1.3.3 Short message service Cell Broadcast (CB).15
A.1.3.4 Short message service description .16
A.1.4 Alternate speech/facsimile G3.18
A.1.5 Automatic facsimile G3.19
A.1.6 Voice Group Call Service.20
A.1.7 Voice Broadcast Service.21
Annex B (informative): Change history .22
History.23

Page 4
ETS 300 905 (GSM 02.03 version 5.3.2): January 1998
Blank page
Page 5
ETS 300 905 (GSM 02.03 version 5.3.2): January 1998
Foreword
This European Telecommunications Standard (ETS) has been produced by the Special Mobile Group
(SMG) of the European Telecommunications Standards Institute (ETSI).
This ETS describes and defines a recommended set of Teleservices to be supported by a GSM
(Phase 2+) PLMN in connection with other networks as a basis for defining the network capabilities
required.
The contents of this ETS is subject to continuing work within SMG and may change following formal SMG
approval. Should SMG modify the contents of this ETS, it will be resubmitted for OAP by ETSI with an
identifying change of release date and an increase in version number as follows:
Version 5.x.y
where:
y the third digit is incremented when editorial only changes have been incorporated in the
specification;
x the second digit is incremented for all other types of changes, i.e. technical enhancements,
corrections, updates, etc.
The specification from which this ETS has been derived was originally based on CEPT documentation,
hence the presentation of this ETS may not be entirely in accordance with the ETSI drafting rules.
Transposition dates
Date of adoption of this ETS: 5 December 1997
Date of latest announcement of this ETS (doa): 30 April 1998
Date of latest publication of new National Standard
or endorsement of this ETS (dop/e): 31 October 1998
Date of withdrawal of any conflicting National Standard (dow): 31 October 1998

Page 6
ETS 300 905 (GSM 02.03 version 5.3.2): January 1998
Blank page
Page 7
ETS 300 905 (GSM 02.03 version 5.3.2): January 1998
0 Scope
This European Telecommunications Standard (ETS) describes and defines a recommended set of
Teleservices to be supported by a GSM PLMN in connection with other networks as a basis for defining
the network capabilities required.
Teleservices not included in this ETS should not be introduced unilaterally by a mobile network operator, if
the provision of this service requires that the GSM signalling specifications are modified.
0.1 Normative references
This ETS incorporates by dated and undated reference, provisions from other publications. These
normative references are cited at the appropriate places in the text and the publications are listed
hereafter. For dated references, subsequent amendments to or revisions of any of these publications
apply to this ETS only when incorporated in it by amendment or revision. For undated references, the
latest edition of the publication referred to applies.
[1] GSM 01.04 (ETR 350): "Digital cellular telecommunications system (Phase 2+);
Abbreviations and acronyms".
[2] GSM 02.01: "Digital cellular telecommunications system (Phase 2+); Principles
of telecommunication services supported by a GSM Public Land Mobile Network
(PLMN)".
[3] GSM 02.02 (ETS 300 904): "Digital cellular telecommunications system
(Phase 2+); Bearer Services (BS) supported by a GSM Public Land Mobile
Network (PLMN)".
[4] GSM 02.04 (ETS 300 918): "Digital cellular telecommunications system
(Phase 2+); General on supplementary services".
[5] GSM 02.68 (ETS 300 925): "Digital cellular telecommunications system
(Phase 2+); Voice Group Call Service (VGCS) - Stage 1".
[6] GSM 02.69 (ETS 300 926): "Digital cellular telecommunications system
(Phase 2+); Voice Broadcast Service (VBS) - Stage 1".
[7] GSM 03.40 (ETS 300 901): "Digital cellular telecommunications system
(Phase 2+); Technical realization of the Short Message Service (SMS)
Point-to-Point (PP)".
[8] GSM 03.41 (ETS 300 902): "Digital cellular telecommunications system
(Phase 2+); Technical realization of Short Message Service Cell Broadcast
(SMSCB)".
[9] GSM 04.08 (ETS 300 940): "Digital cellular telecommunication system
(Phase 2+); Mobile radio interface layer 3 specification".
[10] GSM 07.01 (ETS 300 913): "Digital cellular telecommunications system
(Phase 2+); General on Terminal Adaptation Functions (TAF) for Mobile
Stations (MS)".
[11] GSM 07.05: "Digital cellular telecommunications system (Phase 2+); Use of
Data Terminal Equipment - Data Circuit terminating Equipment (DTE - DCE)
interface for Short Message Service (SMS) and Cell Broadcast Service (CBS)".
[12] CCITT Recommendation T.4: "Standardization of group 3 facsimile apparatus
for document transmission".
[13] CCITT Recommendation T.30: "Procedures for document facsimile
transmission in the general switched telephone network".

Page 8
ETS 300 905 (GSM 02.03 version 5.3.2): January 1998
0.2 Abbreviations
Abbreviations used in this ETS are listed in GSM 01.04 [1].
1 Framework for describing teleservices supported by a GSM PLMN
Teleservices supported by a GSM PLMN are described by a number of attributes which are intended to be
largely independent.
These attributes are described and defined in specification GSM 02.01 [2].
They are grouped into three categories:
- High layer attributes;
- Low layer attributes (describing the Bearer capabilities which support the Teleservice).
- information transfer attributes;
- access attributes.
- General attributes.
NOTE: Teleservices generally make use of underlying lower layer capabilities of Bearer
Services as defined in specification GSM 02.02 [3]. However, where Teleservices are
provided by a single Administration, RPOA or other services provider, the combination
of values of lower layer attributes applicable to specific Teleservices may not
necessarily be identical to any of those identified for the Bearer Services appearing in
specification GSM 02.02 [3].
Figure 1 shows the relationship between the different categories of services attributes, and their scope
within a Teleservice.
High layer attributes
Low layer attributes
(=bearer capability)
P ossible
GSM PLMN
T erm in atin g
TE transit TE
(originating
network
network
network)
NOTE 1: A transit network may not exist.
NOTE 2: Communication may be established from both ends in principle.
Figure 1: Relationship between the categories of services attributes and their scope
within a Teleservice
Page 9
ETS 300 905 (GSM 02.03 version 5.3.2): January 1998
2 List of the teleservice attributes
Table 1 gives the list of the attributes. For the definitions and possible values of these attributes, see
GSM 02.01 [2].
Table 1: List of Teleservice attributes
1. High layer 1.1 Type of user information Dominant Teleservice attribute
capabilities category
1.2 Layer 4 protocol functions
1.3 Layer 5   "    "
Secondary attributes
1.4 Layer 6   "    "
"    "
1.5 Layer 7   "    "
2. Low layer 2.1 Information transfer "    "
capabilities
2.1.1 Information transfer capabilities "    "
(describing the
Bearer capability
2.1.2 Information transfer mode "    "
which supports the
Teleservice) 2.1.3 Information transfer rate Individual services (in the category)
2.1.4 Structure
2.1.5 Establishment of communication
2.1.6 Communication configuration
2.1.7 Symmetry
2.2 Access (GSM 02.01) Qualifying attributes
2.2.1 Signalling access "    "
2.2.2 Information access "    "
2.3 Interworking "    "
2.3.1 Terminating network type "    "
2.3.2 National/international interworking Further specify the individual
services
2.3.3 Interface of terminal equipment
3. General 3.1 Supplementary services provided
3.2 Quality of service
3.3 Operational and commercial
3 List of teleservice categories and individual teleservices
Table 2 presents a list of all Teleservices categories and of individual Teleservices and the associated
dominant and secondary attributes.
4 Description of individual teleservices
The annex contains a data sheet per Teleservice with all attributes and comments.
5 Bearer capabilities supporting teleservices
According to specification GSM 02.01 [2] the Bearer Capability defines the technical features of a
Teleservice as they appear to the user at the customer access point or an appropriate interface of a fixed
network. The Bearer Capability is characterized by information transfer, access and interworking
attributes. The same set of attributes as for a Bearer Service is used. A Bearer Capability is associated
with every Teleservice.
Page 10
ETS 300 905 (GSM 02.03 version 5.3.2): January 1998
6 Possible further evolution phases of teleservices in a GSM PLMN
Possible further evolution phases according to the definition in GSM 01.06 could become necessary. For
instance, speech coding procedures (half rate speech codec) will provide for the reduction of the bit rate
for speech transmission and thus increase the network capacity.
Table 2: Teleservice categories and Teleservices
Dominan Category of Individual Teleservice
t teleservice
attribute
Type of No Name No Name
user in-
formation
Speech 1 Speech 11 Telephony
trans- 12 Emergency Calls
mission
Short 2 Short 21 Short message MT/PP
message message 22 Short message MO/PP
service 23 Short message cell broadcast
Facsimile 6 Facsimile 61 Alternate speech and facsimile group 3 T
trans - NT
mission 62 Automatic Facsimile group 3 T
NT
Speech 9 Voice 91 Voice Group Call Service
Group 92 Voice Broadcast Service
service
NOTE: Direct access to private networks is foreseen by recommended provision A.

Page 11
ETS 300 905 (GSM 02.03 version 5.3.2): January 1998
Annex A (normative): Description of individual Teleservices
NOTE 1: Interworking with Telex may be provided via teletex-telex- or other interworking
functions.
NOTE 2: Within the GSM PLMN the "Information transfer rate" attribute is not indicated, this is
because the user may access the PLMN at either an "S" or "R" reference point. In
addition, the "Information transfer rate" at other reference points within the PLMN
assumed or otherwise may be different.
A.1 Individual Teleservices
A.1.1 Telephony
Teleservice 11, Telephony
1. 1.1 Type or user information speech
A HLC 1.2 Layer 4 protocol functions -
T 1.3 Layer 5 protocol functions -
T 1.4 Layer 6 protocol functions -
R 1.5 Layer 7 protocol functions -
I 2. 2.1 2.1.1 Information transfer capability speech (digital representation)
B LLC 2.1.2 Information transfer mode circuit
U Inform 2.1.3 Information transfer rate not applicable
T transfer 2.1.4 Structure not applicable
E 2.1.5 Establishment of connection demand MO MT
S 2.1.6 Communication configuration point-to-point
2.1.7 Symmetry bidirectional symmetry
2.2 2.2.1 Signalling access manual
Access 2.2.2 Information access rate full rate/half rate
at MS (GSM 02.01) interface
2.3 2.3.1 Visible network type PSTN/ISDN/GSM-PLMN
Inter- 2.3.2 National/Internat. interworking international/national
working 2.3.3 Interface of TE to terminating 2 wire, analogue 4 wire GSM/ME
S (B+B+D)
3. 3.1 Supplementary service provided GSM 02.04
Gen 3.2 Quality of service
Comments:
This service provides the transmission of speech information and audible signalling tones of the
PSTN/ISDN. In the GSM PLMN and the fixed network processing technique appropriate for speech
such as analogue transmission, echo cancellation and low bit rate voice encoding may be used.
Hence, bit integrity is not assured.
1) Transparency for telephone signalling tones is provided.
2) Transparency for voice band facsimile signals is not mandatory. (Appropriate bearer services see
GSM 02.02 [3].)
3) Transparency for end to end speech encryption is not mandatory. If a user needs to apply this
technique an appropriate bearer service (GSM 02.02 [3]) can be used.
4) Transmission of DTMF is provided in the mobile to fixed direction (e.g. for controlling voice mail
boxes) during any time of an established call.

Page 12
ETS 300 905 (GSM 02.03 version 5.3.2): January 1998
A.1.2 Emergency calls
Teleservice 12, Emergency calls
1. 1.1 Type or user information speech
A HLC 1.2 Layer 4 protocol functions -
T 1.3 Layer 5 protocol functions -
T 1.4 Layer 6 protocol functions -
R 1.5 Layer 7 protocol functions -
I 2. 2.1 2.1.1 Information transfer capability speech (digital representation)
B LLC 2.1.2 Information transfer mode circuit
U Inform 2.1.3 Information transfer rate not applicable
T transfer 2.1.4 Structure not applicable
E 2.1.5 Establishment of connection demand MO MT
S 2.1.6 Communication configuration point-to-point
2.1.7 Symmetry bidirectional symmetry
2.2 2.2.1 Signalling access manual
Access 2.2.2 Information access rate full rate/half rate
at MS (GSM 02.01) interface
2.3 2.3.1 Visible network type PSTN ISDN
Inter- 2.3.2 National/Internat. interworking national
working 2.3.3 Interface of TE to terminating Ntwk. 2 wire 4 wire
3. 3.1 Supplementary service provided GSM 02.04 (see note 3)
Gen 3.2 Quality of service
Comments:
1) A standardized access method throughout all GSM PLMNs is mandatory. In addition national
emergency call numbers of PSTN/ISDN must be usable from MS.
2) It shall be an option of the network operator whether to accept emergency calls coming from mobile
stations which do not transmit an IMSI or a TMSI.
3) Emergency calls supersede all constraints imposed by supplementary services or mobile station
features used for other Tele or Bearer services. The lock state of the MS is overridden by the
SOS-procedure.
4) Emergency calls will be routed to the emergency services in accordance with national regulations.
5) In order to help identifying callers in cases of misuse databases in the GSM PLMN may be
accessed to retrieve the identity of the calling MS.

Page 13
ETS 300 905 (GSM 02.03 version 5.3.2): January 1998
A.1.3 Short Message Service (SMS)
A.1.3.1 Short message service MT/PP
Teleservice 21, Short Message MT point-to-point 1), 2)
1. 1.1 Type or user information short message, ≤ 160 characters
A 1.2 Layer 4 protocol functions
T 1.3 Layer 5 protocol functions see GSM 03.40
T 1.4 Layer 6 protocol functions see GSM 03.40
R 1.5 Layer 7 protocol functions see GSM 03.40
I 2. 2.1 2.1.1 Information transfer capability not applicable
B 2.1.2 Information transfer mode not applicable
U Inform 2.1.3 Information transfer rate not applicable
T transfer 2.1.4 Structure not applicable
E 2.1.5 Establishment of connection not applicable
S 2.1.6 Communication configuration not applicable
2.1.7 Symmetry not applicable
2.2 2.2.1 Signalling access see GSM 07.05
Access 2.2.2 Information access rate not applicable
at MS (GSM 02.01) interface
2.3 2.3.1 Visible network type not applicable 3)
Inter- 2.3.2 National/Internat. interworking not applicable 3)
working 2.3.3 Interface of TE to terminating Ntwk. not applicable 3)
3. 3.1 Supplementary service provided GSM 02.04
Gen 3.2 Quality of service
Comments:
1) This service provides the transmission of a short message from a message handling system
(service centre) to a mobile station. The service centre is functi
...
