SIST EN 302 208-2 V1.4.1:2011
(Main)Electromagnetic compatibility and Radio spectrum Matters (ERM) - Radio Frequency Identification Equipment operating in the band 865 MHz to 868 MHz with power levels up to 2 W - Part 2: Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive
Electromagnetic compatibility and Radio spectrum Matters (ERM) - Radio Frequency Identification Equipment operating in the band 865 MHz to 868 MHz with power levels up to 2 W - Part 2: Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive
Revisions to Part 2 to reflect the changes in Part 1 of EN 302 208-1 v1.4.1.
Elektromagnetna združljivost in zadeve v zvezi z radijskim spektrom (ERM) - Oprema za radiofrekvenčno identifikacijo (RFID), ki deluje v pasu od 865 MHz do 868 MHz z močnostnimi nivoji do 2 W - 2. del: Harmonizirani EN, ki zajema bistvene zahteve člena 3.2 direktive R&TTE
Ta dokument velja za izpraševalce RFID in oznake, ki skupaj delujejo kot sistem. Izpraševalci oddajajo na štirih določenih kanalih 200 kHz, vsak od njih pa uporablja modulirano nosilno frekvenco. Oznake po možnosti odgovorijo z moduliranim signalom po sosednjih kanalih nizke moči. Izpraševalci se lahko uporabijo z vgrajenimi ali zunanjimi antenami.
Ta dokument velja za izpraševalce RFID, ki se uporabljajo skupaj z njihovimi odzivniki RFID (oznake). Izpraševalci delujejo v gostem izpraševalnem načinu v 200 kHz kanalih z uporabo modulirane nosilne frekvence. Oznake odgovorijo z moduliranim signalom prek sosednjih kanalov. Izpraševalci se lahko uporabljajo z vgrajenimi ali zunanjimi antenami.
Vrste opreme, ki jo ta dokument zajema, so:
stalni izpraševalci,
prenosni izpraševalci,
oznake brez baterij,
oznake, ki jih podpirajo baterije,
oznake, ki jih napajajo baterije.
Te vrste radijske opreme so zmožne delovati v vseh ali katerem koli delu frekvenčnega pasu, kot so navedeni spodaj.
Namen tega dokumenta je zajem določbe člena 3.2 Direktive 1999/5/ES [i.1], (direktive R&TTE), ki navaja, da »… radijska oprema je narejena tako, da učinkovito izrablja spekter, razporejen za prizemne/vesoljske radiokomunikacije in orbitalne vire, tako da ne pride do škodljivega motenja«.
Poleg tega dokumenta se preostali EN, ki določajo tehnične zahteve v skladu z bistvenimi zahtevami v drugih delih člena 3 direktive R&TTE [i.1], lahko uporabljajo za opremo v okviru področja uporabe tega dokumenta.
General Information
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Electromagnetic compatibility and Radio spectrum Matters (ERM) - Radio Frequency Identification Equipment operating in the band 865 MHz to 868 MHz with power levels up to 2 W - Part 2: Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive33.100.01Elektromagnetna združljivost na splošnoElectromagnetic compatibility in general33.060.99Druga oprema za radijske komunikacijeOther equipment for radiocommunicationsICS:Ta slovenski standard je istoveten z:EN 302 208-2 Version 1.4.1SIST EN 302 208-2 V1.4.1:2011en01-december-2011SIST EN 302 208-2 V1.4.1:2011SLOVENSKI
STANDARD
SIST EN 302 208-2 V1.4.1:2011
ETSI EN 302 208-2 V1.4.1 (2011-11) Electromagnetic compatibility and Radio spectrum Matters (ERM); Radio Frequency Identification Equipment operating in the band 865 MHz to 868 MHz with power levels up to 2 W; Part 2: Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive
Harmonized European Standard SIST EN 302 208-2 V1.4.1:2011
ETSI ETSI EN 302 208-2 V1.4.1 (2011-11) 2

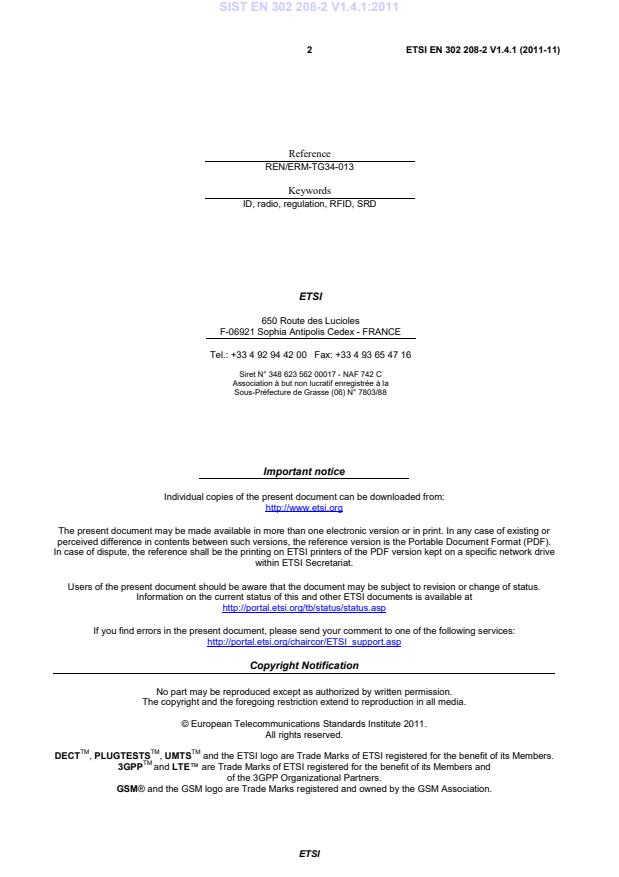

Reference REN/ERM-TG34-013 Keywords ID, radio, regulation, RFID, SRD ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00
Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice Individual copies of the present document can be downloaded from: http://www.etsi.org The present document may be made available in more than one electronic version or in print. In any case of existing or perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF). In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at http://portal.etsi.org/tb/status/status.asp If you find errors in the present document, please send your comment to one of the following services: http://portal.etsi.org/chaircor/ETSI_support.asp Copyright Notification No part may be reproduced except as authorized by written permission. The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2011. All rights reserved.
DECTTM, PLUGTESTSTM, UMTSTM and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members. 3GPPTM and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners. GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association. SIST EN 302 208-2 V1.4.1:2011

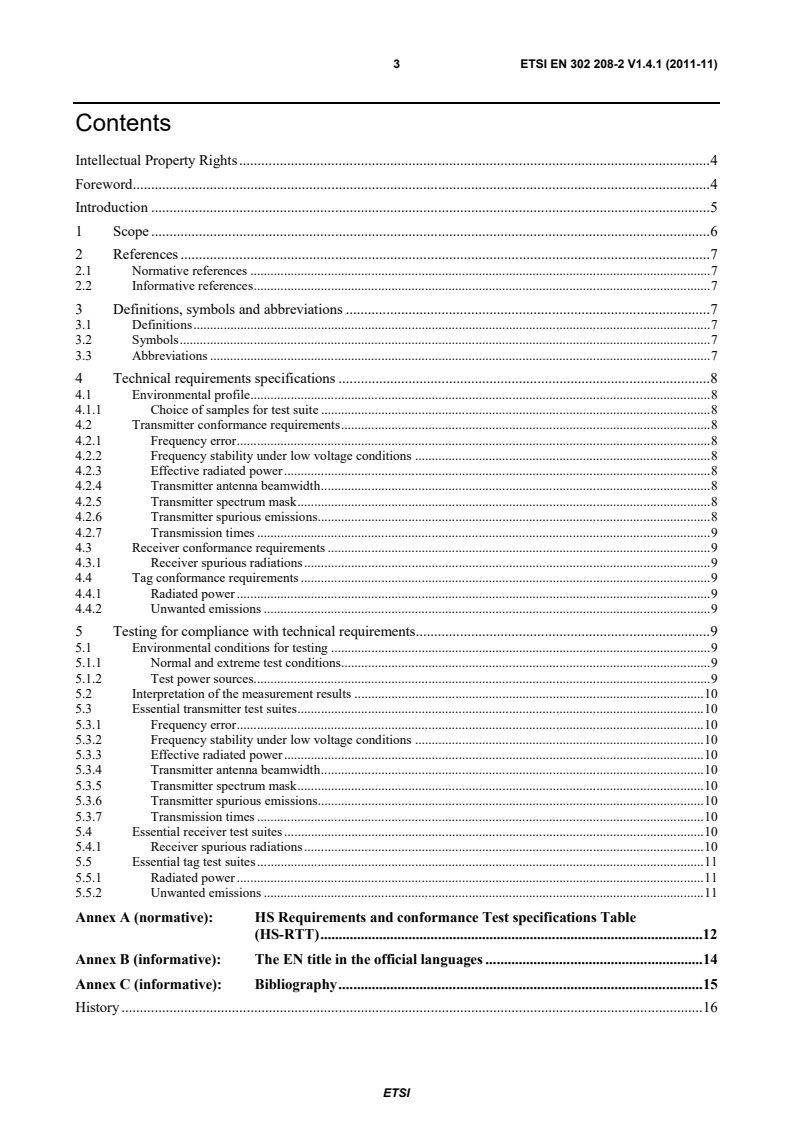

ETSI ETSI EN 302 208-2 V1.4.1 (2011-11) 3 Contents Intellectual Property Rights . 4 Foreword . 4 Introduction . 5 1 Scope . 6 2 References . 7 2.1 Normative references . 7 2.2 Informative references . 7 3 Definitions, symbols and abbreviations . 7 3.1 Definitions . 7 3.2 Symbols . 7 3.3 Abbreviations . 7 4 Technical requirements specifications . 8 4.1 Environmental profile . 8 4.1.1 Choice of samples for test suite . 8 4.2 Transmitter conformance requirements . 8 4.2.1 Frequency error . 8 4.2.2 Frequency stability under low voltage conditions . 8 4.2.3 Effective radiated power . 8 4.2.4 Transmitter antenna beamwidth . 8 4.2.5 Transmitter spectrum mask . 8 4.2.6 Transmitter spurious emissions . 8 4.2.7 Transmission times . 9 4.3 Receiver conformance requirements . 9 4.3.1 Receiver spurious radiations . 9 4.4 Tag conformance requirements . 9 4.4.1 Radiated power . 9 4.4.2 Unwanted emissions . 9 5 Testing for compliance with technical requirements . 9 5.1 Environmental conditions for testing . 9 5.1.1 Normal and extreme test conditions. 9 5.1.2 Test power sources. 9 5.2 Interpretation of the measurement results . 10 5.3 Essential transmitter test suites . 10 5.3.1 Frequency error . 10 5.3.2 Frequency stability under low voltage conditions . 10 5.3.3 Effective radiated power . 10 5.3.4 Transmitter antenna beamwidth . 10 5.3.5 Transmitter spectrum mask . 10 5.3.6 Transmitter spurious emissions . 10 5.3.7 Transmission times . 10 5.4 Essential receiver test suites . 10 5.4.1 Receiver spurious radiations . 10 5.5 Essential tag test suites . 11 5.5.1 Radiated power . 11 5.5.2 Unwanted emissions . 11 Annex A (normative): HS Requirements and conformance Test specifications Table (HS-RTT) . 12 Annex B (informative): The EN title in the official languages . 14 Annex C (informative): Bibliography . 15 History . 16
SIST EN 302 208-2 V1.4.1:2011

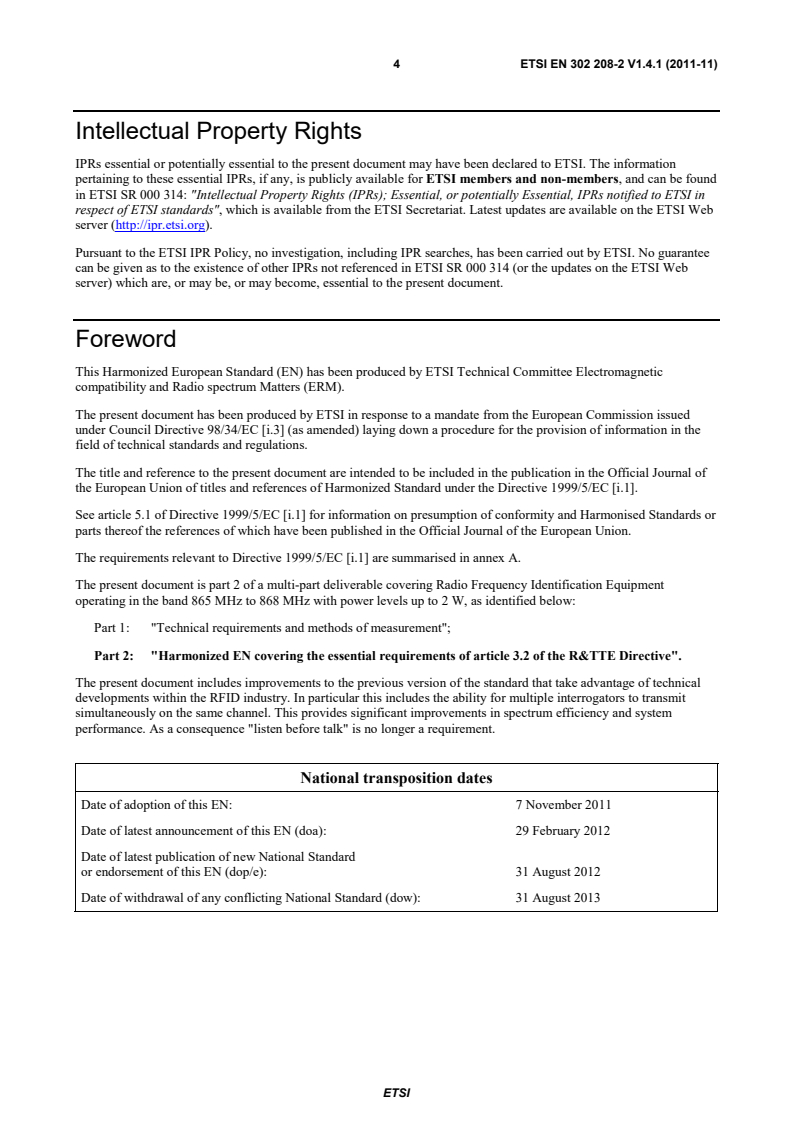

ETSI ETSI EN 302 208-2 V1.4.1 (2011-11) 4 Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (http://ipr.etsi.org). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Foreword This Harmonized European Standard (EN) has been produced by ETSI Technical Committee Electromagnetic compatibility and Radio spectrum Matters (ERM). The present document has been produced by ETSI in response to a mandate from the European Commission issued under Council Directive 98/34/EC [i.3] (as amended) laying down a procedure for the provision of information in the field of technical standards and regulations. The title and reference to the present document are intended to be included in the publication in the Official Journal of the European Union of titles and references of Harmonized Standard under the Directive 1999/5/EC [i.1]. See article 5.1 of Directive 1999/5/EC [i.1] for information on presumption of conformity and Harmonised Standards or parts thereof the references of which have been published in the Official Journal of the European Union. The requirements relevant to Directive 1999/5/EC [i.1] are summarised in annex A. The present document is part 2 of a multi-part deliverable covering Radio Frequency Identification Equipment operating in the band 865 MHz to 868 MHz with power levels up to 2 W, as identified below: Part 1: "Technical requirements and methods of measurement"; Part 2: "Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive". The present document includes improvements to the previous version of the standard that take advantage of technical developments within the RFID industry. In particular this includes the ability for multiple interrogators to transmit simultaneously on the same channel. This provides significant improvements in spectrum efficiency and system performance. As a consequence "listen before talk" is no longer a requirement.
National transposition dates Date of adoption of this EN: 7 November 2011 Date of latest announcement of this EN (doa): 29 February 2012 Date of latest publication of new National Standard or endorsement of this EN (dop/e):
31 August 2012 Date of withdrawal of any conflicting National Standard (dow): 31 August 2013
SIST EN 302 208-2 V1.4.1:2011
ETSI ETSI EN 302 208-2 V1.4.1 (2011-11) 5 Introduction The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [i.1]. The modular structure is shown in EG 201 399 [i.2]. SIST EN 302 208-2 V1.4.1:2011
ETSI ETSI EN 302 208-2 V1.4.1 (2011-11) 6 1 Scope The present document applies to RFID interrogators and tags operating together as a system. The interrogators transmit in four specified channels of 200 kHz each using a modulated carrier. The tags preferably respond with a modulated signal in the adjacent low power channels. Interrogators may be used with either integral or external antennas. The present document applies to RFID interrogators used in conjunction with their RFID transponders (tags). The interrogators operate in the dense interrogator mode in 200 kHz channels using a modulated carrier. The tags respond in the adjacent channels with a modulated signal. Interrogators may be used with either integral or external antennas. The types of equipment covered by the present document are as follows: • fixed interrogators; • portable interrogators; • batteryless tags; • battery assisted tags; • battery powered tags. These radio equipment types are capable of operating in all or any part of the frequency band as specified below. Table 1: Frequencies of operation Equipment Operating frequencies Interrogator Transmit channel 4 865,6 MHz to 865,8 MHz Interrogator Transmit channel 7 866,2 MHz to 866,4 MHz Interrogator Transmit channel 10 866,8 MHz to 867,0 MHz Interrogator Transmit channel 13 867,4 MHz to 867,6 MHz Interrogator Receive
865,0 MHz to 868,0 MHz Tag Transmit
865,0 MHz to 868,0 MHz
The present document is intended to cover the provisions of Directive 1999/5/EC [i.1] (R&TTE Directive), article 3.2, which states that "…. radio equipment shall be so constructed th
...
