SIST EN 301 489-27 V2.1.1:2017

• Abstract:

  The present document together with ETSI EN 301 489-1 [1], covers the assessment of all radio transceivers associated; with Ultra Low Power Active Medical Implants (ULP-AMIs) and associated Peripheral ULP-AMI-Ps) in respect of; ElectroMagnetic Compatibility (EMC).; The present document covers the EMC requirements for the radio functions of ULP-AMI and ULP-AMI-P devices.; Technical specifications related to the antenna port and emissions from the enclosure port of the ULP-AMI and ULPAMI-; P devices radio system are not included in the present document. Such technical specifications are found in the; relevant product standards for the effective use of the radio spectrum.; The present document specifies the applicable test conditions, performance assessment, and performance criteria for; ULP-AMIs and associated Peripheral devices (ULP-AMI-Ps).; Definitions of types of ULP-AMIs and ULP-AMI-Ps covered by present document are given in annex B.; In case of differences (for instance concerning special conditions, definitions, abbreviations) between the present; document and ETSI EN 301 489-1 [1], the provisions of the present document take precedence.; The environmental classification and the emission and immunity requirements used in the present document are as; stated in ETSI EN 301 489-1 [1], except for any special conditions included in the present document.; The present document, together with ETSI EN 301 489-1 [1], contains requirements to demonstrate an adequate level of; electromagnetic compatibility as set out in Directive 2014/53/EU [i.1].

• Status: Published
• Public Enquiry End Date: 30-Nov-2016
• Publication Date: 03-Jan-2017
• ICS: 11.040.99 - Other medical equipment
• ICS: 33.060.99 - Other equipment for radiocommunications
• ICS: 33.100.01 - Electromagnetic compatibility in general
• Technical Committee: MOC - Mobile Communications
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 03-Jan-2017
• Due Date: 10-Mar-2017
• Completion Date: 04-Jan-2017
• Ref Project: ETSI EN 301 489-27 V2.1.1 (2016-12) - ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 27: Specific conditions for Ultra Low Power Active Medical Implants (ULP-AMI) and related peripheral devices (ULP-AMI-P); Harmonised Standard covering the essential requirements of article 3.1(b) of Directive 2014/53/EU

Overview

SIST EN 301 489-27 V2.1.1:2017 is a harmonised European standard developed by SIST and based on ETSI EN 301 489-27. It provides comprehensive requirements for ElectroMagnetic Compatibility (EMC) assessment of radio transceivers associated with Ultra Low Power Active Medical Implants (ULP-AMI) and corresponding external Peripheral Devices (ULP-AMI-P). The standard supports compliance with the essential EMC requirements defined in Article 3.1(b) of Directive 2014/53/EU (Radio Equipment Directive - RED).

This standard specifically addresses the unique operational and EMC considerations for body-implanted radio devices as well as their associated external peripherals, ensuring that such devices do not cause or suffer from unacceptable electromagnetic disturbances in practical healthcare environments.

Key Topics

• Scope of EMC Compliance: The document outlines EMC requirements uniquely applicable to ULP-AMI and ULP-AMI-P devices, focusing on their radio functions. Requirements concerning antenna and enclosure port emissions are referenced in separate product standards.
• Test Conditions and Performance Assessment: It defines specific test conditions, arrangements for test signals, and exclusion band concepts to ensure realistic and reproducible measurement environments, including the use of a simulated man for implant testing.
• Device Classification: ULP-AMI and ULP-AMI-P devices are classified by risk, following IEC EN 60601-1-2 principles. Each class has corresponding performance criteria to match the device’s medical criticality.
• Immunity and Emission Requirements: The standard details emission and immunity levels, referencing ETSI EN 301 489-1, but adds specific provisions where necessary for medical implant communication systems.
• Functional Integrity: Key requirements ensure that devices maintain essential functions, recover gracefully from electromagnetic disturbances, and avoid catastrophic failures, unwanted resets, or unintended operations.

Applications

SIST EN 301 489-27 V2.1.1:2017 applies directly to:

• Manufacturers of ULP-AMI and ULP-AMI-P devices: Provides a clear framework for demonstrating EMC compliance with European regulations, essential for product certification and CE marking.
• Test Laboratories: Supplies consistent test conditions, procedures, and performance criteria for evaluating EMC of radio-enabled medical devices, ensuring reliable and repeatable results.
• Regulatory Bodies and Notified Bodies: Offers a harmonised approach to assessing product compliance with Directive 2014/53/EU, streamlining market access for innovative medical implants and their controllers.
• Product Developers: Assists R&D teams in designing products that meet stringent EMC requirements, avoiding costly redesigns and ensuring patient safety.

The standard is particularly relevant for active medical implants such as pacemakers, neurostimulators, drug delivery pumps, and their external controllers or programmers operating in the 402–405 MHz band. By establishing robust EMC provisions, it helps minimize risks of electromagnetic interference in critical medical applications.

Related Standards

• ETSI EN 301 489-1: General EMC requirements for radio equipment and services; foundational document referenced by this standard.
• ETSI EN 301 839: Specific requirements for ULP-AMI and ULP-AMI-P devices operating in the 402–405 MHz frequency range.
• IEC EN 60601-1-2: EMC collateral standard for medical electrical equipment; forms the basis for medical device EMC risk classifications.
• IEC EN 61000-4-5: Testing and measurement techniques for surge immunity.
• Directive 2014/53/EU: European Radio Equipment Directive outlining essential health, safety, and EMC requirements.

Keywords: electromagnetic compatibility, EMC, ultra low power active medical implants, ULP-AMI, medical device EMC, ULP-AMI-P, Directive 2014/53/EU, radio equipment, harmonised standard, EMC testing, medical implant compliance, radiofrequency medical devices.

Draft ETSI EN 301 489-27 V2.1.0 (2016-09)

HARMONISED EUROPEAN STANDARD
ElectroMagnetic Compatibility (EMC) standard
for radio equipment and services;
Harmonised Standard covering the essential requirements
of article 3.1(b) of Directive 2014/53/EU;
Part 27: Specific conditions for Ultra Low Power Active
Medical Implants (ULP-AMI) and related peripheral devices
(ULP-AMI-P)

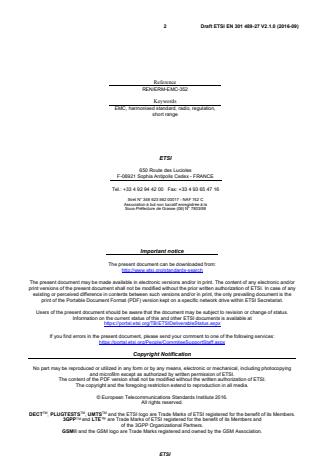

2 Draft ETSI EN 301 489-27 V2.1.0 (2016-09)

Reference
REN/ERM-EMC-352
Keywords
EMC, harmonised standard, radio, regulation,
short range
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the
print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying
and microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2016.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 Draft ETSI EN 301 489-27 V2.1.0 (2016-09)
Contents
Intellectual Property Rights . 5
Foreword . 5
Modal verbs terminology . 5
1 Scope . 6
2 References . 6
2.1 Normative references . 6
2.2 Informative references . 7
3 Definitions and abbreviations . 7
3.0 Applicability . 7
3.1 Definitions . 7
3.2 Abbreviations . 8
4 Test conditions . 8
4.1 General . 8
4.2 Arrangements for test signals . 8
4.2.0 General . 8
4.2.1 Arrangements for test signals at the input of transmitters . 8
4.2.2 Arrangements for test signals at the RF output of transmitters . 9
4.2.2.1 General . 9
4.2.2.2 ULP-AMI transmitters . 9
4.2.2.3 ULP-AMI-P transmitters . 9
4.2.3 Arrangements for test signals at the RF input of receivers . 9
4.2.4 Arrangements for test signals at the output of receivers . 9
4.2.5 Arrangements for testing transmitter and receiver together (as a system: ULP-AMI together with an
associated ULP-AMI-P) . 9
4.3 RF exclusion band of radio equipment . 10
4.3.0 General . 10
4.3.1 Exclusion bands for receivers . 10
4.3.2 Exclusion band for transmitters . 10
4.4 Narrow band responses of receivers or receivers which are part of transceivers . 11
4.5 Normal test modulation . 11
5 Performance assessment . 11
5.1 General . 11
5.2 Equipment which can provide a continuous communication link . 11
5.3 Equipment which does not provide a continuous communication link . 11
5.4 Ancillary equipment . 11
5.5 Equipment classification . 11
6 Performance criteria . 12
6.1 classification of ULP-AMI and ULP-AMI-P devices . 12
6.2 General performance criteria . 12
6.3 Performance criteria and table . 13
6.4 Performance criteria for continuous phenomena applied to transmitters . 14
6.5 Performance criteria for transient phenomena applied to transmitters . 14
6.6 Performance criteria for continuous phenomena applied to receivers . 14
6.7 Performance criteria for transient phenomena applied to receivers . 15
7 Applicability overview . 15
7.1 EMC emission . 15
7.1.1 General . 15
7.1.2 Special conditions . 15
7.2 Immunity . 15
7.2.1 General . 15
7.2.2 Special conditions . 15

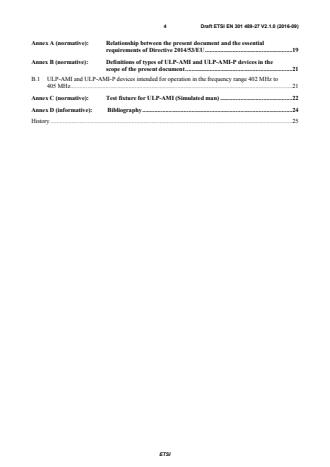

ETSI
4 Draft ETSI EN 301 489-27 V2.1.0 (2016-09)
Annex A (normative): Relationship between the present document and the essential
requirements of Directive 2014/53/EU . 19
Annex B (normative): Definitions of types of ULP-AMI and ULP-AMI-P devices in the
scope of the present document . 21
B.1 ULP-AMI and ULP-AMI-P devices intended for operation in the frequency range 402 MHz to
405 MHz . 21
Annex C (normative): Test fixture for ULP-AMI (Simulated man) . 22
Annex D (informative): Bibliography . 24
History . 25

ETSI
5 Draft ETSI EN 301 489-27 V2.1.0 (2016-09)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (https://ipr.etsi.org/).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This draft Harmonised European Standard (EN) has been produced by ETSI Technical Committee Electromagnetic
compatibility and Radio spectrum Matters (ERM), and is now submitted for the combined Public Enquiry and Vote
phase of the ETSI standards EN Approval Procedure.
The present document has been prepared under the Commission's standardisation request C(2015) 5376 final [i.4] to
provide one voluntary means of conforming to the essential requirements of Directive 2014/53/EU on the harmonisation
of the laws of the Member States relating to the making available on the market of radio equipment and repealing
Directive 1999/5/EC [i.1].
Once the present document is cited in the Official Journal of the European Union under that Directive, compliance with
the normative clauses of the present document given in table A.1 confers, within the limits of the scope of the present
document, a presumption of conformity with the corresponding essential requirements of that Directive and associated
EFTA regulations.
The present document is part 27 of a multi-part deliverable. Full details of the entire series can be found in ETSI
EN 301 489-1 [1].
Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 18 months after doa

Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
ETSI
6 Draft ETSI EN 301 489-27 V2.1.0 (2016-09)
1 Scope
The present document together with ETSI EN 301 489-1 [1], covers the assessment of all radio transceivers associated
with Ultra Low Power Active Medical Implants (ULP-AMIs) and associated Peripheral ULP-AMI-Ps) in respect of
ElectroMagnetic Compatibility (EMC).
The present document covers the EMC requirements for the radio functions of ULP-AMI and ULP-AMI-P devices.
Technical specifications related to the antenna port and emissions from the enclosure port of the ULP-AMI and ULP-
AMI-P devices radio system are not included in the present document. Such technical specifications are found in the
relevant product standards for the effective use of the radio spectrum.
The present document specifies the applicable test conditions, performance assessment, and performance criteria for
ULP-AMIs and associated Peripheral devices (ULP-AMI-Ps).
Definitions of types of ULP-AMIs and ULP-AMI-Ps covered by present document are given in annex B.
In case of differences (for instance concerning special conditions, definitions, abbreviations) between the present
document and ETSI EN 301 489-1 [1], the provisions of the present document take precedence.
The environmental classification and the emission and immunity requirements used in the present document are as
stated in ETSI EN 301 489-1 [1], except for any special conditions included in the present document.
The present document, together with ETSI EN 301 489-1 [1], contains requirements to demonstrate an adequate level of
electromagnetic compatibility as set out in Directive 2014/53/EU [i.1].
2 References
2.1 Normative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
https://docbox.etsi.org/Reference/.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are necessary for the application of the present document.
[1] ETSI EN 301 489-1 (V2.1.0) (04-2016): "ElectroMagnetic Compatibility (EMC) standard for
radio equipment and services; Harmonised Standard covering the essential requirements of
article 3.1(b) of the Directive 2014/53/EU and the essential requirements of article 6 of the
Directive 2014/30/EU; Part 1: Common technical requirements".
NOTE: Available at
http://www.etsi.org/deliver/etsi_en/301400_301499/30148901/02.01.00_20/en_30148901v020100a.pdf.
[2] ETSI EN 301 839 (V2.1.1) (04-2016): "Ultra Low Power Active Medical Implants (ULP-AMI)
and associated Peripherals (ULP-AMI-P) operating in the frequency range 402 MHz to 405 MHz;
Harmonised Standard covering the essential requirements of article 3.2 of the Directive
2014/53/EU".
[3] IEC EN 60601-1-2 (2007): "Medical electrical equipment - Part 1-2: General requirements for
safety - Collateral standard: Electromagnetic compatibility - Requirements and tests".
[4] IEC EN 61000-4-5 (2006): "Electromagnetic compatibility (EMC) - Part 4-5: Testing and
measurement techniques - Surge immunity test".
ETSI
7 Draft ETSI EN 301 489-27 V2.1.0 (2016-09)
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] Directive 2014/53/EU of the European Parliament and of the council of 16 April 2014 on the
harmonisation of the laws of the Member States relating to the making available on the market of
radio equipment and repealing Directive 1999/5/EC.
[i.2] Void.
[i.3] Camelia Gabriel: "Compilation of the dielectric properties of body tissues at RF and Microwave
Frequencies", Physics Department, Kings College, London WC2R 2LS, UK.
[i.4] Commission Implementing Decision C(2015) 5376 final of 4.8.2015 on a standardisation request
to the European Committee for Electrotechnical Standardisation and to the European
Telecommunications Standards Institute as regards radio equipment in support of Directive
2014/53/EU of the European Parliament and of the Council.
[i.5] Italian National Research Council, Institute for Applied Physics.
NOTE: Available at http://niremf.ifac.cnr.it/.
3 Definitions and abbreviations
3.0 Applicability
For the purposes of the present document, definitions and abbreviations have the meanings ascribed herein in clause 3.
Where such meanings are not so ascribed the meanings in ETSI EN 301 489-1 [1], clause 3, apply.
Where such meanings are not so ascribed the meanings in ETSI EN 301 839 [2], clause 3, apply.
Where such meanings are not so ascribed the meanings in the Directive 2014/53/EU [i.1] apply.
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
Active Medical Implant (AMI): diagnostic or therapeutic device designed to be implanted in a human body containing
a power source and a transceiver using the 402 MHz to 405 MHz frequency band for the purpose of providing a
two-way digital communications link
environmental profile: range of environmental conditions under which equipment within the scope of the present
document is required to comply with the provisions of the present document
life supporting equipment: equipment whose continued normal operation is required in order to sustain life
Medical Implant Communications Link (MICL): collections of transmission that may or may not be continuous,
between co-operating medical implant devices and accessories, including programmer/controllers, transferring patient
related information in communications service
Medical Implant Communications System (MICS): specific system providing radiocommunications between an
ULP-AMI and an associated ULP-AMI-P
ETSI
8 Draft ETSI EN 301 489-27 V2.1.0 (2016-09)
Ultra Low Power Active Medical Implant (ULP-AMI): transmitter or receiver or transceiver forming part of an
active medical implant, that is used in a medical implant communications system radio link set up by the peripheral
device (ULP-AMI-P)
Ultra Low Power Active Medical Implant Peripheral device (ULP-AMI-P): radio part of equipment outside the
human body, including body worn devices, used to program and/or control an ULP-AMI by means of a Medical
Implant (radio) Communications Link (MICL), such as an external programmer or control transceiver
3.2 Abbreviations
For the purposes of the present document, the following abbreviations apply:
AC Alternating Current
AIMD Active Implantable Medical Device
AMI Active Medical Implant
DC Direct Current
EMC ElectroMagnetic Compatibility
ERP Effective Radiated Power
EUT Equipment Under Test
ISM Industrial, Scientific and Medical
MICL Medical Implant Communications Link
MICS Medical Implant Communications System
RF Radio Frequency
ULP-AMI Ultra Low Power Active Medical Implant
ULP-AMI-P Ultra Low Power Active Medical Implant Peripheral device
4 Test conditions
4.1 General
For the purposes of the present document, the test conditions of the ETSI EN 301 489-1 [1], clause 4, shall apply as
appropriate. Further product related test conditions for ULP-AMI and associated ULP-AMI-P are specified in the
present document.
For emission and immunity tests the normal test modulation, test arrangements, etc., as specified in the present
document, clauses 4.1 to 4.5 shall apply.
Whenever the Equipment Under Test (EUT) is provided with a detachable antenna, the EUT shall be tested with the
antenna fitted in a manner typical of normal intended use, unless otherwise specified. If the EUT can be used with
several types of antenna the test shall be repeated for each type of antenna.
ULP-AMI devices (active medical implants) are designed to be implanted within a human body. These radio systems
are isolated from disturbances by the surrounding body tissue. In order to adequately assess the EMC characteristics of
active medical implants devices , the use of a simulated man is necessary. See annex C for additional details. The
provisions of annex C are intended to provide an operational environment that simulates, to the extent possible, actual
usage conditions for internal implanted devices. It is necessary to use this or another appropriate special fixture when
making emission measurements and immunity tests with radiated RF fields.
4.2 Arrangements for test signals
4.2.0 General
The provisions of the ETSI EN 301 489-1 [1], clause 4.2 shall apply.
4.2.1 Arrangements for test signals at the input of transmitters
The provisions of the ETSI EN 301 489-1 [1], clause 4.2.1 shall apply with the following modifications:
ETSI
9 Draft ETSI EN 301 489-27 V2.1.0 (2016-09)
The transmitter shall be modulated with normal test modulation as specified for that type of equipment (clause 4.5).
Where transmitters do not have a modulation input port, the internal equipment modulation shall be used.
4.2.2 Arrangements for test signals at the RF output of transmitters
4.2.2.1 General
The provisions of the ETSI EN 301 489-1 [1], clause 4.2.2 shall apply with the following modification:
The manufacturer may provide a suitable companion receiver or another device that can be used to set up a
communications link and/or to receive messages.
4.2.2.2 ULP-AMI transmitters
For ULP-AMI transmitters the test fixture described in annex C may be used.
The manufacturer shall provide a suitable receiver or alternate technique that can be used to monitor the medical
implant communications link.
4.2.2.3 ULP-AMI-P transmitters
The provisions of the ETSI EN 301 489-1 [1], clause 4.2.2 shall apply with the following modifications:
• ULP-AMI-Ps are designed to be used external to a human body;
• the manufacturer shall provide a suitable receiver or alternate technique that can be used to monitor the
medical implant communications link.
4.2.3 Arrangements for test signals at the RF input of receivers
The provisions of ETSI EN 301 489-1 [1], clause 4.2.3 shall apply with the following modifications:
• the wanted RF input signal, coupled to the receiver, shall be modulated with normal test modulation as
specified for that type of equipment (clause 4.5);
• the level of the wanted RF input signal shall be 20 dB above the threshold sensitivity level of the receiver, but
in all cases it shall be below the overload characteristics of the receiver;
• the manufacturer shall provide a suitable transmitter that can be used to set up the medical implant
communications link.
4.2.4 Arrangements for test signals at the output of receivers
The provisions of ETSI EN 301 489-1 [1], clause 4.2.4 shall apply with the following modification, if appropriate:
If direct access to the receiver output of the ULP-AMI and associated ULP-AMI-P is not possible, then the
manufacturer shall provide the method by which the receiver's functionality can be monitored during the immunity
tests.
4.2.5 Arrangements for testing transmitter and receiver together
(as a system: ULP-AMI together with an associated ULP-AMI-P)
The provisions of ETSI EN 301 489-1 [1], clause 4.2.5 shall apply with the following modification:
The transmitter of an ULP-AMI and the receiver of an associated ULP-AMI-P or the receiver of an ULP-AMI and the
transmitter of an associated ULP-AMI-P may be tested together, if appropriate and agreed by the manufacturer and the
test laboratory (size of devices, etc.).
In this case both EUTs shall be located in their respective test environment and exposed simultaneously to the EMC
phenomena.
ETSI
10 Draft ETSI EN 301 489-27 V2.1.0 (2016-09)
4.3 RF exclusion band of radio equipment
4.3.0 General
The emission measurement and immunity test exclusions are referred to as "exclusion bands" and are defined in the
clauses 4.3.1 and 4.3.2.
The frequencies on which the EUT is intended to operate, shall be excluded from conducted and radiated RF immunity
tests.
The frequencies on which the transmitter part of the EUT is intended to operate shall be excluded from emission
measurements when performed in transmit mode of operation.
During emission measurements, a frequency exclusion band does not apply for the receiver part of ULP-AMIs and/or
associated ULP-AMI-Ps.
4.3.1 Exclusion bands for receivers
The exclusion band for receivers (including receivers that are part of transceivers) is determined as follows:
• for receivers capable of operating on 9 or more channels within the frequency band specified in table 1 and not
having an alignment range, the lower frequency of the exclusion band is the lower frequency of the used
frequency channel minus the extension value given in table 1, and the upper frequency of the exclusion band is
the upper frequency of the used frequency channel plus the extension value given in table 1. The calculated
extension value shall be based on the operating frequency;
• for receivers capable of operating on more than one frequency and having an alignment range, the lower
frequency of the exclusion band is the lower frequency of the alignment range minus the extension value given
in table 1, and the upper frequency of the exclusion band is the upper frequency of the alignment range plus
the extension value given in table 1. The calculated extension values shall be based on the centre frequency of
the alignment range;
• for wide band receivers, i.e. receivers operating in a non-channelized arrangement, the lower frequency of the
exclusion band is the lower frequency of the intended operating band minus the extension value given in
table 1 and the upper frequency of the exclusion band is the upper frequency of the intended operating band
plus the extension value given in table 1, or the total exclusion band is twice the intended operating frequency
band of the receiver centred around the centre frequency of the intended operating band, whichever is the
greater.
Table 1: Exclusion band for the receiver part of ULP-AMI or ULP-AMI-Ps
Receiver operating Receiver exclusion band
frequency f
o
402 MHz to 405 MHz
f ± 10 MHz
o
4.3.2 Exclusion band for transmitters
For transmitters operating, or intended to operate, in a channelized arrangement in the 402 MHz to 405 MHz frequency
band, the exclusion band is nine times the maximum occupied bandwidth allowed for that service, centred around the
operating frequency. For the 402 MHz to 405 MHz band, the maximum occupied bandwidth is 300 kHz. The actual
occupied bandwidth is determined using the procedures in ETSI EN 301 839 [2] for measuring emission bandwidth.
For wide band transmitters, i.e. transmitters in a non-channelized frequency band, the exclusion band is twice the
intended operating frequency band (i.e. 3 MHz or less) centred around the centre frequency of the intended operating
frequency band.
In case the receiver and transmitter are tested together as a system (see clause 4.2.5) the exclusion band defined for
receivers or the exclusion band defined for transmitters shall be used, whichever is greater.
ETSI
11 Draft ETSI EN 301 489-27 V2.1.0 (
...

HARMONISED EUROPEAN STANDARD
ElectroMagnetic Compatibility (EMC)
standard for radio equipment and services;
Part 27: Specific conditions for Ultra Low
Power Active Medical Implants (ULP-AMI) and
related peripheral devices (ULP-AMI-P);
Harmonised Standard covering the essential requirements
of article 3.1(b) of Directive 2014/53/EU

2 ETSI EN 301 489-27 V2.1.1 (2016-12)

Reference
REN/ERM-EMC-352
Keywords
EMC, harmonised standard, radio, regulation,
short range
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the
print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying
and microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2016.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 ETSI EN 301 489-27 V2.1.1 (2016-12)
Contents
Intellectual Property Rights . 5
Foreword . 5
Modal verbs terminology . 5
1 Scope . 6
2 References . 6
2.1 Normative references . 6
2.2 Informative references . 7
3 Definitions and abbreviations . 7
3.0 Applicability . 7
3.1 Definitions . 7
3.2 Abbreviations . 8
4 Test conditions . 8
4.1 General . 8
4.2 Arrangements for test signals . 9
4.2.0 General . 9
4.2.1 Arrangements for test signals at the input of transmitters . 9
4.2.2 Arrangements for test signals at the RF output of transmitters . 9
4.2.2.1 General . 9
4.2.2.2 ULP-AMI transmitters . 9
4.2.2.3 ULP-AMI-P transmitters . 9
4.2.3 Arrangements for test signals at the RF input of receivers . 9
4.2.4 Arrangements for test signals at the output of receivers . 9
4.2.5 Arrangements for testing transmitter and receiver together (as a system: ULP-AMI together with an
associated ULP-AMI-P) . 10
4.3 RF exclusion band of radio equipment . 10
4.3.0 General . 10
4.3.1 Exclusion bands for receivers . 10
4.3.2 Exclusion band for transmitters . 11
4.4 Narrow band responses of receivers or receivers which are part of transceivers . 11
4.5 Normal test modulation . 11
5 Performance assessment . 11
5.1 General . 11
5.2 Equipment which can provide a continuous communication link . 11
5.3 Equipment which does not provide a continuous communication link . 12
5.4 Ancillary equipment . 12
5.5 Equipment classification . 12
6 Performance criteria . 12
6.1 classification of ULP-AMI and ULP-AMI-P devices . 12
6.2 General performance criteria . 12
6.3 Performance criteria and table . 13
6.4 Performance criteria for continuous phenomena applied to transmitters . 14
6.5 Performance criteria for transient phenomena applied to transmitters . 14
6.6 Performance criteria for continuous phenomena applied to receivers . 14
6.7 Performance criteria for transient phenomena applied to receivers . 15
7 Applicability overview . 15
7.1 EMC emission . 15
7.1.1 General . 15
7.1.2 Special conditions . 15
7.2 Immunity . 15
7.2.1 General . 15
7.2.2 Special conditions . 15
ETSI
4 ETSI EN 301 489-27 V2.1.1 (2016-12)
Annex A (normative): Relationship between the present document and the essential
requirements of Directive 2014/53/EU . 19
Annex B (normative): Definitions of types of ULP-AMI and ULP-AMI-P devices in the
scope of the present document . 21
B.1 ULP-AMI and ULP-AMI-P devices intended for operation in the frequency range 402 MHz to
405 MHz . 21
Annex C (normative): Test fixture for ULP-AMI (Simulated man) . 22
History . 24

ETSI
5 ETSI EN 301 489-27 V2.1.1 (2016-12)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (https://ipr.etsi.org/).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonised European Standard (EN) has been produced by ETSI Technical Committee Electromagnetic
compatibility and Radio spectrum Matters (ERM).
The present document has been prepared under the Commission's standardisation request C(2015) 5376 final [i.4] to
provide one voluntary means of conforming to the essential requirements of Directive 2014/53/EU on the harmonisation
of the laws of the Member States relating to the making available on the market of radio equipment and repealing
Directive 1999/5/EC [i.1].
Once the present document is cited in the Official Journal of the European Union under that Directive, compliance with
the normative clauses of the present document given in table A.1 confers, within the limits of the scope of the present
document, a presumption of conformity with the corresponding essential requirements of that Directive and associated
EFTA regulations.
The present document is part 27 of a multi-part deliverable. Full details of the entire series can be found in ETSI
EN 301 489-1 [1].
National transposition dates
Date of adoption of this EN: 12 December 2016
Date of latest announcement of this EN (doa): 31 March 2017
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 30 September 2017
Date of withdrawal of any conflicting National Standard (dow): 30 September 2018

Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
ETSI
6 ETSI EN 301 489-27 V2.1.1 (2016-12)
1 Scope
The present document together with ETSI EN 301 489-1 [1], covers the assessment of all radio transceivers associated
with Ultra Low Power Active Medical Implants (ULP-AMIs) and associated Peripheral ULP-AMI-Ps) in respect of
ElectroMagnetic Compatibility (EMC).
The present document covers the EMC requirements for the radio functions of ULP-AMI and ULP-AMI-P devices.
Technical specifications related to the antenna port and emissions from the enclosure port of the ULP-AMI and ULP-
AMI-P devices radio system are not included in the present document. Such technical specifications are found in the
relevant product standards for the effective use of the radio spectrum.
The present document specifies the applicable test conditions, performance assessment, and performance criteria for
ULP-AMIs and associated Peripheral devices (ULP-AMI-Ps).
Definitions of types of ULP-AMIs and ULP-AMI-Ps covered by present document are given in annex B.
In case of differences (for instance concerning special conditions, definitions, abbreviations) between the present
document and ETSI EN 301 489-1 [1], the provisions of the present document take precedence.
The environmental classification and the emission and immunity requirements used in the present document are as
stated in ETSI EN 301 489-1 [1], except for any special conditions included in the present document.
The present document, together with ETSI EN 301 489-1 [1], contains requirements to demonstrate an adequate level of
electromagnetic compatibility as set out in Directive 2014/53/EU [i.1].
2 References
2.1 Normative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
https://docbox.etsi.org/Reference/.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are necessary for the application of the present document.
[1] ETSI EN 301 489-1 (V2.1.1) (11-2016): "ElectroMagnetic Compatibility (EMC) standard for
radio equipment and services; Part 1: Common technical requirements; Harmonised Standard
covering the essential requirements of article 3.1(b) of Directive 2014/53/EU and the essential
requirements of article 6 of Directive 2014/30/EU".
NOTE: Available at
http://www.etsi.org/deliver/etsi_en/301400_301499/30148901/02.01.01_30/en_30148901v020101v.pdf.
[2] ETSI EN 301 839 (V2.1.1) (04-2016): "Ultra Low Power Active Medical Implants (ULP-AMI)
and associated Peripherals (ULP-AMI-P) operating in the frequency range 402 MHz to 405 MHz;
Harmonised Standard covering the essential requirements of article 3.2 of the Directive
2014/53/EU".
[3] IEC EN 60601-1-2 (2007): "Medical electrical equipment - Part 1-2: General requirements for
safety - Collateral standard: Electromagnetic compatibility - Requirements and tests".
[4] IEC EN 61000-4-5 (2006): "Electromagnetic compatibility (EMC) - Part 4-5: Testing and
measurement techniques - Surge immunity test".
ETSI
7 ETSI EN 301 489-27 V2.1.1 (2016-12)
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] Directive 2014/53/EU of the European Parliament and of the council of 16 April 2014 on the
harmonisation of the laws of the Member States relating to the making available on the market of
radio equipment and repealing Directive 1999/5/EC.
[i.2] CEPT/ERC/REC 70-03: "Relating to the use of Short Range Devices (SRD)".
[i.3] Camelia Gabriel: "Compilation of the dielectric properties of body tissues at RF and Microwave
Frequencies", Physics Department, King's College, London WC2R 2LS, UK. February 1996.
NOTE: Available at http://www.dtic.mil/dtic/tr/fulltext/u2/a305826.pdf.
[i.4] Commission Implementing Decision C(2015) 5376 final of 4.8.2015 on a standardisation request
to the European Committee for Electrotechnical Standardisation and to the European
Telecommunications Standards Institute as regards radio equipment in support of Directive
2014/53/EU of the European Parliament and of the Council.
[i.5] Italian National Research Council, Institute for Applied Physics.
NOTE: Available at http://niremf.ifac.cnr.it/.
3 Definitions and abbreviations
3.0 Applicability
For the purposes of the present document, definitions and abbreviations have the meanings ascribed herein in clause 3.
Where such meanings are not so ascribed the meanings in ETSI EN 301 489-1 [1], clause 3, apply.
Where such meanings are not so ascribed the meanings in ETSI EN 301 839 [2], clause 3, apply.
Where such meanings are not so ascribed the meanings in the Directive 2014/53/EU [i.1] apply.
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
Active Medical Implant (AMI): diagnostic or therapeutic device designed to be implanted in a human body containing
a power source and a transceiver using the 402 MHz to 405 MHz frequency band for the purpose of providing a
two-way digital communications link
environmental profile: range of environmental conditions under which equipment within the scope of the present
document is required to comply with the provisions of the present document
life supporting equipment: equipment whose continued normal operation is required in order to sustain life
Medical Implant Communications Link (MICL): collections of transmission that may or may not be continuous,
between co-operating medical implant devices and accessories, including programmer/controllers, transferring patient
related information in communications service
ETSI
8 ETSI EN 301 489-27 V2.1.1 (2016-12)
Medical Implant Communications System (MICS): specific system providing radiocommunications between an
ULP-AMI and an associated ULP-AMI-P
Ultra Low Power Active Medical Implant (ULP-AMI): transmitter or receiver or transceiver forming part of an
active medical implant, that is used in a medical implant communications system radio link set up by the peripheral
device (ULP-AMI-P)
Ultra Low Power Active Medical Implant Peripheral device (ULP-AMI-P): radio part of equipment outside the
human body, including body worn devices, used to program and/or control an ULP-AMI by means of a Medical
Implant (radio) Communications Link (MICL), such as an external programmer or control transceiver
3.2 Abbreviations
For the purposes of the present document, the following abbreviations apply:
AC Alternating Current
AIMD Active Implantable Medical Device
AMI Active Medical Implant
DC Direct Current
EMC ElectroMagnetic Compatibility
ERP Effective Radiated Power
EUT Equipment Under Test
ISM Industrial, Scientific and Medical
MICL Medical Implant Communications Link
MICS Medical Implant Communications System
RF Radio Frequency
ULP-AMI Ultra Low Power Active Medical Implant
ULP-AMI-P Ultra Low Power Active Medical Implant Peripheral device
4 Test conditions
4.1 General
For the purposes of the present document, the test conditions of the ETSI EN 301 489-1 [1], clause 4, shall apply as
appropriate. Further product related test conditions for ULP-AMI and associated ULP-AMI-P are specified in the
present document.
For emission and immunity tests the normal test modulation, test arrangements, etc., as specified in the present
document, clauses 4.1 to 4.5 shall apply.
Whenever the Equipment Under Test (EUT) is provided with a detachable antenna, the EUT shall be tested with the
antenna fitted in a manner typical of normal intended use, unless otherwise specified. If the EUT can be used with
several types of antenna the test shall be repeated for each type of antenna.
ULP-AMI devices (active medical implants) are designed to be implanted within a human body. These radio systems
are isolated from disturbances by the surrounding body tissue. In order to adequately assess the EMC characteristics of
active medical implants devices , the use of a simulated man is necessary. See annex C for additional details. The
provisions of annex C are intended to provide an operational environment that simulates, to the extent possible, actual
usage conditions for internal implanted devices. It is necessary to use this or another appropriate special fixture when
making emission measurements and immunity tests with radiated RF fields.
ETSI
9 ETSI EN 301 489-27 V2.1.1 (2016-12)
4.2 Arrangements for test signals
4.2.0 General
The provisions of the ETSI EN 301 489-1 [1], clause 4.2 shall apply.
4.2.1 Arrangements for test signals at the input of transmitters
The provisions of the ETSI EN 301 489-1 [1], clause 4.2.1 shall apply with the following modifications:
The transmitter shall be modulated with normal test modulation as specified for that type of equipment (clause 4.5).
Where transmitters do not have a modulation input port, the internal equipment modulation shall be used.
4.2.2 Arrangements for test signals at the RF output of transmitters
4.2.2.1 General
The provisions of the ETSI EN 301 489-1 [1], clause 4.2.2 shall apply with the following modification:
The manufacturer may provide a suitable companion receiver or another device that can be used to set up a
communications link and/or to receive messages.
4.2.2.2 ULP-AMI transmitters
For ULP-AMI transmitters the test fixture described in annex C may be used.
The manufacturer shall provide a suitable receiver or alternate technique that can be used to monitor the medical
implant communications link.
4.2.2.3 ULP-AMI-P transmitters
The provisions of the ETSI EN 301 489-1 [1], clause 4.2.2 shall apply with the following modifications:
• ULP-AMI-Ps are designed to be used external to a human body;
• the manufacturer shall provide a suitable receiver or alternate technique that can be used to monitor the
medical implant communications link.
4.2.3 Arrangements for test signals at the RF input of receivers
The provisions of ETSI EN 301 489-1 [1], clause 4.2.3 shall apply with the following modifications:
• the wanted RF input signal, coupled to the receiver, shall be modulated with normal test modulation as
specified for that type of equipment (clause 4.5);
• the level of the wanted RF input signal shall be 20 dB above the threshold sensitivity level of the receiver, but
in all cases it shall be below the overload characteristics of the receiver;
• the manufacturer shall provide a suitable transmitter that can be used to set up the medical implant
communications link.
4.2.4 Arrangements for test signals at the output of receivers
The provisions of ETSI EN 301 489-1 [1], clause 4.2.4 shall apply with the following modification, if appropriate:
If direct access to the receiver output of the ULP-AMI and associated ULP-AMI-P is not possible, then the
manufacturer shall provide the method by which the receiver's functionality can be monitored during the immunity
tests.
ETSI
10 ETSI EN 301 489-27 V2.1.1 (2016-12)
4.2.5 Arrangements for testing transmitter and receiver together
(as a system: ULP-AMI together with an associated ULP-AMI-P)
The provisions of ETSI EN 301 489-1 [1], clause 4.2.5 shall apply with the following modification:
The transmitter of an ULP-AMI and the receiver of an associated ULP-AMI-P or the receiver of an ULP-AMI and the
transmitter of an associated ULP-AMI-P may be tested together, if appropriate and agreed by the manufacturer and the
test laboratory (size of devices, etc.).
In this case both EUTs shall be located in their respective test environment and exposed simultaneously to the EMC
phenomena.
4.3 RF exclusion band of radio equipment
4.3.0 General
The emission measurement and immunity test exclusions are referred to as "exclusion bands" and are defined in the
clauses 4.3.1 and 4.3.2.
The frequencies on which the EUT is intended to operate, shall be excluded from conducted and radiated RF immunity
tests.
The frequencies on which the transmitter part of the EUT is intended to operate shall be excluded from emission
measurements when performed in transmit mode of operation.
During emission measurements, a frequency exclusion band does not apply for the receiver part of ULP-AMIs and/or
associated ULP-AMI-Ps.
4.3.1 Exclusion bands for receivers
The exclusion band for receivers (including receivers that are part of transceivers) is determined as follows:
• for receivers capable of operating on 9 or more channels within the frequency band specified in table 1 and not
having an alignment range, the lower frequency of the exclusion band is the lower frequency of the used
frequency channel minus the extension value given in table 1, and the upper frequency of the exclusion band is
the upper frequency of the used frequency channel plus the extension value given in table 1. The calculated
extension value shall be based on the operating frequency;
• for receivers capable of operating on more than one frequency and having an alignment range, the lower
frequency of the exclusion band is the lower frequency of the alignment range minus the extension value given
in table 1, and the upper frequency of the exclusion band is the upper frequency of the alignment range plus
the extension value given in table 1. The calculated extension values shall be based on the centre frequency of
the alignment range;
• for wide band receivers, i.e. receivers operating in a non-channelized arrangement, the lower frequency of the
exclusion band is the lower frequency of the intended operating band minus the extension value given in
table 1 and the upper frequency of the exclusion band is the upper frequency of the intended operating band
plus the extension value given in table 1, or the total exclusion band is twice the intended operating frequency
band of the receiver centred around the centre frequency of the intended operating band, whichever is the
greater.
Table 1: Exclusion band for the receiver part of ULP-AMI or ULP-AMI-Ps
Receiver operating Receiver exclusion band
frequency f
o
402 MHz to 405 MHz
f ± 10 MHz
o
ETSI
11 ETSI EN 301 489-27 V2.1.1 (2016-12)
4.3.2 Exclusion band for transmitters
For transmitters operating, or intended to operate, in a channelized arrangement in the 402 MHz to 405 MHz frequency
band, the exclusion band is nine times the maximum occupied bandwidth allowed for that service, centred around the
operating frequency. For the 402 MHz to 405 MHz band, the maximum occupied bandwidth is 300 kHz. The actual
occupied bandwidth is determined using the procedures in ETSI EN 301 839 [2] for measuring emission bandwidth.
For wide band transmitters, i.e. transmitters in a non-channelized frequency band, the exclusion band is twice the
intended operating frequency band (i.e. 3 MHz or less) centred around the centre frequency of the intended operating
frequency band.
In case the receiver and transmitter are tested together as a system (see clause 4.2.5) the exclusion band defined for
receivers or the exclusi
...

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.LUHNWLYHElectroMagnetic Compatibility (EMC) standard for radio equipment and services - Harmonised Standard covering the essential requirements of article 3.1(b) of Directive 2014/53/EU - Part 27: Specific conditions for Ultra Low Power Active Medical Implants (ULP-AMI) and related peripheral devices (ULP-AMI-P)33.100.01Elektromagnetna združljivost na splošnoElectromagnetic compatibility in general33.060.99Druga oprema za radijske komunikacijeOther equipment for radiocommunications11.040.99Druga medicinska opremaOther medical equipmentICS:Ta slovenski standard je istoveten z:ETSI EN 301 489-27 V2.1.1 (2016-12)SIST EN 301 489-27 V2.1.1:2017en01-februar-2017SIST EN 301 489-27 V2.1.1:2017SLOVENSKI
STANDARD
HARMONISED EUROPEAN STANDARD SIST EN 301 489-27 V2.1.1:2017

ETSI ETSI EN 301 489-27 V2.1.1 (2016-12)2
Reference REN/ERM-EMC-352 Keywords EMC, harmonised standard, radio, regulation, short range ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: [phone]
Fax: [phone]
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice The present document can be downloaded from: http://www.etsi.org/standards-search The present document may be made available in electronic versions and/or in print. The content of any electronic and/or print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx If you find errors in the present document, please send your comment to one of the following services: https://portal.etsi.org/People/CommiteeSupportStaff.aspx Copyright Notification No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm except as authorized by written permission of ETSI. The content of the PDF version shall not be modified without the written authorization of ETSI. The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2016. All rights reserved.
DECTTM, PLUGTESTSTM, UMTSTM and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members. 3GPPTM and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners. GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association. SIST EN 301 489-27 V2.1.1:2017

ETSI ETSI EN 301 489-27 V2.1.1 (2016-12)3 Contents Intellectual Property Rights . 5 Foreword . 5 Modal verbs terminology . 5 1 Scope . 6 2 References . 6 2.1 Normative references . 6 2.2 Informative references . 7 3 Definitions and abbreviations . 7 3.0 Applicability . 7 3.1 Definitions . 7 3.2 Abbreviations . 8 4 Test conditions . 8 4.1 General . 8 4.2 Arrangements for test signals . 9 4.2.0 General . 9 4.2.1 Arrangements for test signals at the input of transmitters . 9 4.2.2 Arrangements for test signals at the RF output of transmitters . 9 4.2.2.1 General . 9 4.2.2.2 ULP-AMI transmitters . 9 4.2.2.3 ULP-AMI-P transmitters . 9 4.2.3 Arrangements for test signals at the RF input of receivers . 9 4.2.4 Arrangements for test signals at the output of receivers . 9 4.2.5 Arrangements for testing transmitter and receiver together (as a system: ULP-AMI together with an associated ULP-AMI-P) . 10 4.3 RF exclusion band of radio equipment . 10 4.3.0 General . 10 4.3.1 Exclusion bands for receivers . 10 4.3.2 Exclusion band for transmitters . 11 4.4 Narrow band responses of receivers or receivers which are part of transceivers . 11 4.5 Normal test modulation . 11 5 Performance assessment . 11 5.1 General . 11 5.2 Equipment which can provide a continuous communication link . 11 5.3 Equipment which does not provide a continuous communication link . 12 5.4 Ancillary equipment . 12 5.5 Equipment classification . 12 6 Performance criteria . 12 6.1 classification of ULP-AMI and ULP-AMI-P devices . 12 6.2 General performance criteria . 12 6.3 Performance criteria and table . 13 6.4 Performance criteria for continuous phenomena applied to transmitters . 14 6.5 Performance criteria for transient phenomena applied to transmitters . 14 6.6 Performance criteria for continuous phenomena applied to receivers . 14 6.7 Performance criteria for transient phenomena applied to receivers . 15 7 Applicability overview . 15 7.1 EMC emission . 15 7.1.1 General . 15 7.1.2 Special conditions . 15 7.2 Immunity . 15 7.2.1 General . 15 7.2.2 Special conditions . 15 SIST EN 301 489-27 V2.1.1:2017

ETSI ETSI EN 301 489-27 V2.1.1 (2016-12)4 Annex A (normative): Relationship between the present document and the essential requirements of Directive 2014/53/EU . 19 Annex B (normative): Definitions of types of ULP-AMI and ULP-AMI-P devices in the scope of the present document . 21 B.1 ULP-AMI and ULP-AMI-P devices intended for operation in the frequency range 402 MHz to 405 MHz . 21 Annex C (normative): Test fixture for ULP-AMI (Simulated man) . 22 History . 24
ETSI ETSI EN 301 489-27 V2.1.1 (2016-12)5 Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (https://ipr.etsi.org/). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Foreword This Harmonised European Standard (EN) has been produced by ETSI Technical Committee Electromagnetic compatibility and Radio spectrum Matters (ERM). The present document has been prepared under the Commission's standardisation request C(2015) 5376 final [i.4] to provide one voluntary means of conforming to the essential requirements of Directive 2014/53/EU on the harmonisation of the laws of the Member States relating to the making available on the market of radio equipment and repealing Directive 1999/5/EC [i.1]. Once the present document is cited in the Official Journal of the European Union under that Directive, compliance with the normative clauses of the present document given in table A.1 confers, within the limits of the scope of the present document, a presumption of conformity with the corresponding essential requirements of that Directive and associated EFTA regulations. The present document is part 27 of a multi-part deliverable. Full details of the entire series can be found in ETSI EN 301 489-1 [1].
National transposition dates Date of adoption of this EN: 12 December 2016 Date of latest announcement of this EN (doa): 31 March 2017 Date of latest publication of new National Standard or endorsement of this EN (dop/e):
30 September 2017 Date of withdrawal of any conflicting National Standard (dow): 30 September 2018
Modal verbs terminology In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and "cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of provisions). "must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation. SIST EN 301 489-27 V2.1.1:2017

ETSI ETSI EN 301 489-27 V2.1.1 (2016-12)6 1 Scope The present document together with ETSI EN 301 489-1 [1], covers the assessment of all radio transceivers associated with Ultra Low Power Active Medical Implants (ULP-AMIs) and associated Peripheral ULP-AMI-Ps) in respect of ElectroMagnetic Compatibility (EMC). The present document covers the EMC requirements for the radio functions of ULP-AMI and ULP-AMI-P devices. Technical specifications related to the antenna port and emissions from the enclosure port of the ULP-AMI and ULP-AMI-P devices radio system are not included in the present document. Such technical specifications are found in the relevant product standards for the effective use of the radio spectrum. The present document specifies the applicable test conditions, performance assessment, and performance criteria for ULP-AMIs and associated Peripheral devices (ULP-AMI-Ps). Definitions of types of ULP-AMIs and ULP-AMI-Ps covered by present document are given in annex B. In case of differences (for instance concerning special conditions, definitions, abbreviations) between the present document and ETSI EN 301 489-1 [1], the provisions of the present document take precedence. The environmental classification and the emission and immunity requirements used in the present document are as stated in ETSI EN 301 489-1 [1], except for any special conditions included in the present document. The present document, together with ETSI EN 301 489-1 [1], contains requirements to demonstrate an adequate level of electromagnetic compatibility as set out in Directive 2014/53/EU [i.1]. 2 References 2.1 Normative references References are either specific (identified by date of publication and/or edition number or version number) or non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the referenced document (including any amendments) applies. Referenced documents which are not found to be publicly available in the expected location might be found at https://docbox.etsi.org/Reference/. NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee their long term validity. The following referenced documents are necessary for the application of the present document. [1] ETSI EN 301 489-1 (V2.1.1) (11-2016): "ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements; Harmonised Standard covering the essential requirements of article 3.1(b) of Directive 2014/53/EU and the essential requirements of article 6 of Directive 2014/30/EU". NOTE: Available at http://www.etsi.org/deliver/etsi_en/301400_301499/30148901/02.01.01_30/en_30148901v020101v.pdf.
[2] ETSI EN 301 839 (V2.1.1) (04-2016): "Ultra Low Power Active Medical Implants (ULP-AMI) and associated Peripherals (ULP-AMI-P) operating in the frequency range 402 MHz to 405 MHz; Harmonised Standard covering the essential requirements of article 3.2 of the Directive 2014/53/EU". [3] IEC EN 60601-1-2 (2007): "Medical electrical equipment - Part 1-2: General requirements for safety - Collateral standard: Electromagnetic compatibility - Requirements and tests". [4] IEC EN 61000-4-5 (2006): "Electromagnetic compatibility (EMC) - Part 4-5: Testing and measurement techniques - Surge immunity test". SIST EN 301 489-27 V2.1.1:2017

ETSI ETSI EN 301 489-27 V2.1.1 (2016-12)7 2.2 Informative references References are either specific (identified by date of publication and/or edition number or version number) or non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the referenced document (including any amendments) applies. NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee their long term validity. The following referenced documents are not necessary for the application of the present document but they assist the user with regard to a particular subject area. [i.1] Directive 2014/53/EU of the European Parliament and of the council of 16 April 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of radio equipment and repealing Directive 1999/5/EC. [i.2] CEPT/ERC/REC 70-03: "Relating to the use of Short Range Devices (SRD)". [i.3] Camelia Gabriel: "Compilation of the dielectric properties of body tissues at RF and Microwave Frequencies", Physics Department, King's College, London WC2R 2LS, UK. February 1996. NOTE: Available at http://www.dtic.mil/dtic/tr/fulltext/u2/a305826.pdf. [i.4] Commission Implementing Decision C(2015) 5376 final of 4.8.2015 on a standardisation request to the European Committee for Electrotechnical Standardisation and to the European Telecommunications Standards Institute as regards radio equipment in support of Directive 2014/53/EU of the European Parliament and of the Council. [i.5] Italian National Research Council, Institute for Applied Physics. NOTE: Available at http://niremf.ifac.cnr.it/.
3 Definitions and abbreviations 3.0 Applicability For the purposes of the present document, definitions and abbreviations have the meanings ascribed herein in clause 3. Where such meanings are not so ascribed the meanings in ETSI EN 301 489-1 [1], clause 3, apply. Where such meanings are not so ascribed the meanings in ETSI EN 301 839 [2], clause 3, apply. Where such meanings are not so ascribed the meanings in the Directive 2014/53/EU [i.1] apply. 3.1 Definitions For the purposes of the present document, the following terms and definitions apply: Active Medical Implant (AMI): diagnostic or therapeutic device designed to be implanted in a human body containing a power source and a transceiver using the 402 MHz to 405 MHz frequency band for the purpose of providing a two-way digital communications link environmental profile: range of environmental conditions under which equipment within the scope of the present document is required to comply with the provisions of the present document life supporting equipment: equipment whose continued normal operation is required in order to sustain life Medical Implant Communications Link (MICL): collections of transmission that may or may not be continuous, between co-operating medical implant devices and accessories, including programmer/controllers, transferring patient related information in communications service SIST EN 301 489-27 V2.1.1:2017

ETSI ETSI EN 301 489-27 V2.1.1 (2016-12)8 Medical Implant Communications System (MICS): specific system providing radiocommunications between an ULP-AMI and an associated ULP-AMI-P Ultra Low Power Active Medical Implant (ULP-AMI): transmitter or receiver or transceiver forming part of an active medical implant, that is used in a medical implant communications system radio link set up by the peripheral device (ULP-AMI-P) Ultra Low Power Active Medical Implant Peripheral device (ULP-AMI-P): radio part of equipment outside the human body, including body worn devices, used to program and/or control an ULP-AMI by means of a Medical Implant (radio) Communications Link (MICL), such as an external programmer or control transceiver 3.2 Abbreviations For the purposes of the present document, the following abbreviations apply: AC Alternating Current AIMD Active Implantable Medical Device AMI Active Medical Implant DC Direct Current EMC ElectroMagnetic Compatibility ERP Effective Radiated Power EUT Equipment Under Test ISM Industrial, Scientific and Medical MICL Medical Implant Communications Link MICS Medical Implant Communications System RF Radio Frequency ULP-AMI Ultra Low Power Active Medical Implant ULP-AMI-P Ultra Low Power Active Medical Implant Peripheral device 4 Test conditions 4.1 General For the purposes of the present document, the test conditions of the ETSI EN 301 489-1 [1], clause 4, shall apply as appropriate. Further product related test conditions for ULP-AMI and associated ULP-AMI-P are specified in the present document. For emission and immunity tests the normal test modulation, test arrangements, etc., as specified in the present document, clauses 4.1 to 4.5 shall apply. Whenever the Equipment Under Test (EUT) is provided with a detachable antenna, the EUT shall be tested with the antenna fitted in a manner typical of normal intended use, unless otherwise specified. If the EUT can be used with several types of antenna the test shall be repeated for each type of antenna. ULP-AMI devices (active medical implants) are designed to be implanted within a human body. These radio systems are isolated from disturbances by the surrounding body tissue. In order to adequately assess the EMC characteristics of active medical implants devices , the use of a simulated man is necessary. See annex C for additional details. The provisions of annex C are intended to provide an operational environment that simulates, to the extent possible, actual usage conditions for internal implanted devices. It is necessary to use this or another appropriate special fixture when making emission measurements and immunity tests with radiated RF fields. SIST EN 301 489-27 V2.1.1:2017

ETSI ETSI EN 301 489-27 V2.1.1 (2016-12)9 4.2 Arrangements for test signals 4.2.0 General The provisions of the ETSI EN 301 489-1 [1], clause 4.2 shall apply. 4.2.1 Arrangements for test signals at the input of transmitters The provisions of the ETSI EN 301 489-1 [1], clause 4.2.1 shall apply with the following modifications: The transmitter shall be modulated with normal test modulation as specified for that type of equipment (clause 4.5). Where transmitters do not have a modulation input port, the internal equipment modulation shall be used. 4.2.2 Arrangements for test signals at the RF output of transmitters 4.2.2.1 General The provisions of the ETSI EN 301 489-1 [1], clause 4.2.2 shall apply with the following modification: The manufacturer may provide a suitable companion receiver or another device that can be used to set up a communications link and/or to receive messages. 4.2.2.2 ULP-AMI transmitters For ULP-AMI transmitters the test fixture described in annex C may be used. The manufacturer shall provide a suitable receiver or alternate technique that can be used to monitor the medical implant communications link. 4.2.2.3 ULP-AMI-P transmitters The provisions of the ETSI EN 301 489-1 [1], clause 4.2.2 shall apply with the following modifications: • ULP-AMI-Ps are designed to be used external to a human body; • the manufacturer shall provide a suitable receiver or alternate technique that can be used to monitor the medical implant communications link. 4.2.3 Arrangements for test signals at the RF input of receivers The provisions of ETSI EN 301 489-1 [1], clause 4.2.3 shall apply with the following modifications: • the wanted RF input signal, coupled to the receiver, shall be modulated with normal test modulation as specified for that type of equipment (clause 4.5); • the level of the wanted RF input signal shall be 20 dB above the threshold sensitivity level of the receiver, but in all cases it shall be below the overload characteristics of the receiver; • the manufacturer shall provide a suitable transmitter that can be used to set up the medical implant communications link. 4.2.4 Arrangements for test signals at the output of receivers The provisions of ETSI EN 301 489-1 [1], clause 4.2.4 shall apply with the following modification, if appropriate: If direct access to the receiver output of the ULP-AMI and associated ULP-AMI-P is not possible, then the manufacturer shall provide the method by which the receiver's functionality can be monitored during the immunity tests. SIST EN 301 489-27 V2.1.1:2017

ETSI ETSI EN 301 489-27 V2.1.1 (2016-12)10 4.2.5 Arrangements for testing transmitter and receiver together (as a system: ULP-AMI together with an associated ULP-AMI-P) The provisions of ETSI EN 301 489-1 [1], clause 4.2.5 shall apply with the following modification: The transmitter of an ULP-AMI and the receiver of an associated ULP-AMI-P or the receiver of an ULP-AMI and the transmitter of an associated ULP-AMI-P may be tested together, if appropriate and agreed by the manufacturer and the test laboratory (size of devices, etc.). In this case both EUTs shall be located in their respective test environment and exposed simultaneously to the EMC phenomena. 4.3 RF exclusion band of radio equipment 4.3.0 General The emission measurement and immunity test exclusions are referred to as "exclusion bands" and are defined in the clauses 4.3.1 and 4.3.2. The frequencies on which the EUT is intended to operate, shall be excluded from conducted and radiated RF immunity tests. The frequencies on which the transmitter part of the EUT is intended to operate shall be excluded from emission measurements when performed in transmit mode of operation. During emission measurements, a frequency exclusion band does not apply for the receiver part of ULP-AMIs and/or associated ULP-AMI-Ps. 4.3.1 Exclusion bands for receivers The exclusion band for receivers (including receivers that are part of transceivers) is determined as follows: • for receivers capable of operating on 9 or more channels within the frequency band specified in table 1 and not having an alignment range, the lower frequency of the exclusion band is the lower frequency of the used frequency channel minus the extension value given in table 1, and the upper frequency of the exclusion band is the upper frequency of the used frequency channel plus the extension value given in table 1. The calculated extension value shall be based on the operating frequency; • for receivers capable of operating on more than one frequency and having an alignment range, the lower frequency of the exclusion band is the lower frequency of the alignment range minus the extension value given in table 1, and the upper frequency of the exclusion band is the upper frequency of the alignment range plus the extension value given in table 1. The calculated extension values shall be based on the centre frequency of the alignment range; • for wide band receivers, i.e. receivers operating in a non-channelized arrangement, the lower frequency of the exclusion band is the lower frequency of the intended operating band minus the extension value given in
table 1 and the upper frequency of the exclusion band is the upper frequency of the intended operating band plus the extension value given in table 1, or the total exclusion band is twice the intended operating frequency band of the receiver centred around the centre frequency of the intended operating band, whichever is the greater. Table 1: Exclusion band for the receiver part of ULP-AMI or ULP-AMI-Ps Receiver operating frequency fo Receiver exclusion band 402 MHz to 405 MHz fo ± 10 MHz
ETSI ETSI EN 301 489-27 V2.1.1 (2016-12)11 4.3.2 Exclusion band for transmitters For transmitters operating, or intended to operate, in a channelized arrangement in the 402 MHz to 405 MHz frequency band, the exclusion band is nine times the maximum occupied bandwidth allowed for that service, centred around the operating frequency. For the 402 MHz to 405 MHz b
...
