The present document describes the energy management landscape of the operational infrastructures of broadband deployment addressed by the ES 205 200 series of documents, their inter-relationship and boundaries. The present document specifies the following aspects for Global Key Performance Indicators (KPIEM) in relation to energy management for the operational infrastructures of broadband deployment:
• common objectives in relation to:
- energy consumption;
- task efficiency;
- energy re-use;
- renewable energy;
• general requirements for all KPIs specified in the ES 205 200-2 series in relation to:
- infrastructure scalability;
- infrastructure evolution;
- formulae and definitions of terms;
- measurement points and procedures;
• the use of KPIs.
Dostop, priključki, prenos in multipleksiranje (ATTM) - Gospodarjenje z energijo - Globalni ključni kazalniki uspešnosti (KPI) - Operativne infrastrukture - 1. del: Splošne zahteve
General Information
Buy Standard
Standards Content (Sample)
ETSI ES 205 200-1 V1.1.1 (2013-05)
ETSI Standard
Access, Terminals, Transmission and Multiplexing (ATTM);
Energy management;
Global KPIs;
Operational infrastructures;
Part 1: General requirements
---------------------- Page: 1 ----------------------

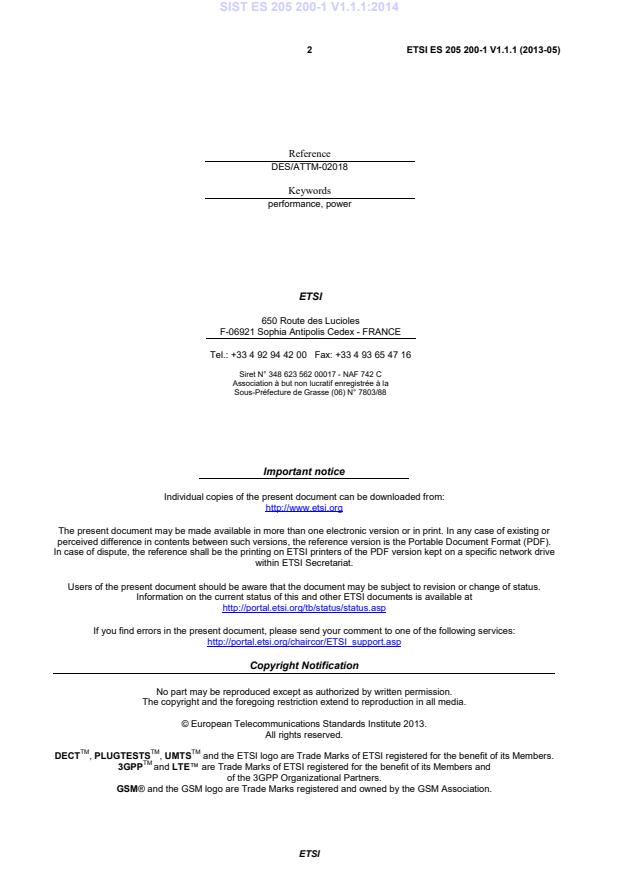

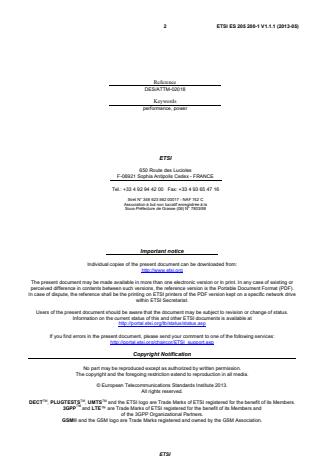

2 ETSI ES 205 200-1 V1.1.1 (2013-05)
Reference
DES/ATTM-02018
Keywords
performance, power
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2013.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
---------------------- Page: 2 ----------------------
3 ETSI ES 205 200-1 V1.1.1 (2013-05)

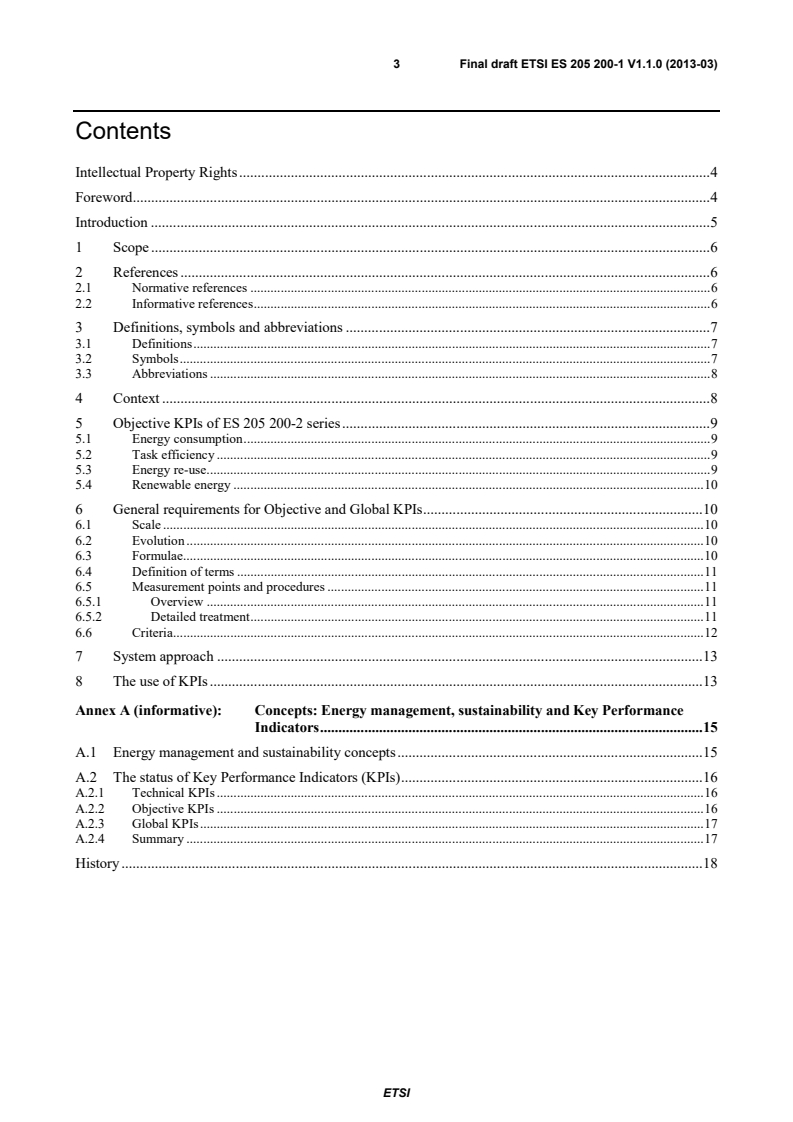

Contents
Intellectual Property Rights . 4
Foreword . 4
Introduction . 5
1 Scope . 6
2 References . 6
2.1 Normative references . 6
2.2 Informative references . 6
3 Definitions, symbols and abbreviations . 7
3.1 Definitions . 7
3.2 Symbols . 7
3.3 Abbreviations . 8
4 Context . 8
5 Objective KPIs of ES 205 200-2 series . 9
5.1 Energy consumption . 9
5.2 Task efficiency . 9
5.3 Energy re-use . 10
5.4 Renewable energy . 10
6 General requirements for Objective and Global KPIs . 10
6.1 Scale . 10
6.2 Evolution . 10
6.3 Formulae. 10
6.4 Definition of terms . 11
6.5 Measurement points and procedures . 11
6.5.1 Overview . 11
6.5.2 Detailed treatment . 12
6.6 Criteria . 13
7 System approach . 13
8 The use of KPIs . 13
Annex A (informative): Concepts: Energy management, sustainability and Key Performance
Indicators . 15
A.1 Energy management and sustainability concepts . 15
A.2 The status of Key Performance Indicators (KPIs) . 16
A.2.1 Technical KPIs . 16
A.2.2 Objective KPIs . 16
A.2.3 Global KPIs . 17
A.2.4 Summary . 17
History . 18
ETSI
---------------------- Page: 3 ----------------------
4 ETSI ES 205 200-1 V1.1.1 (2013-05)

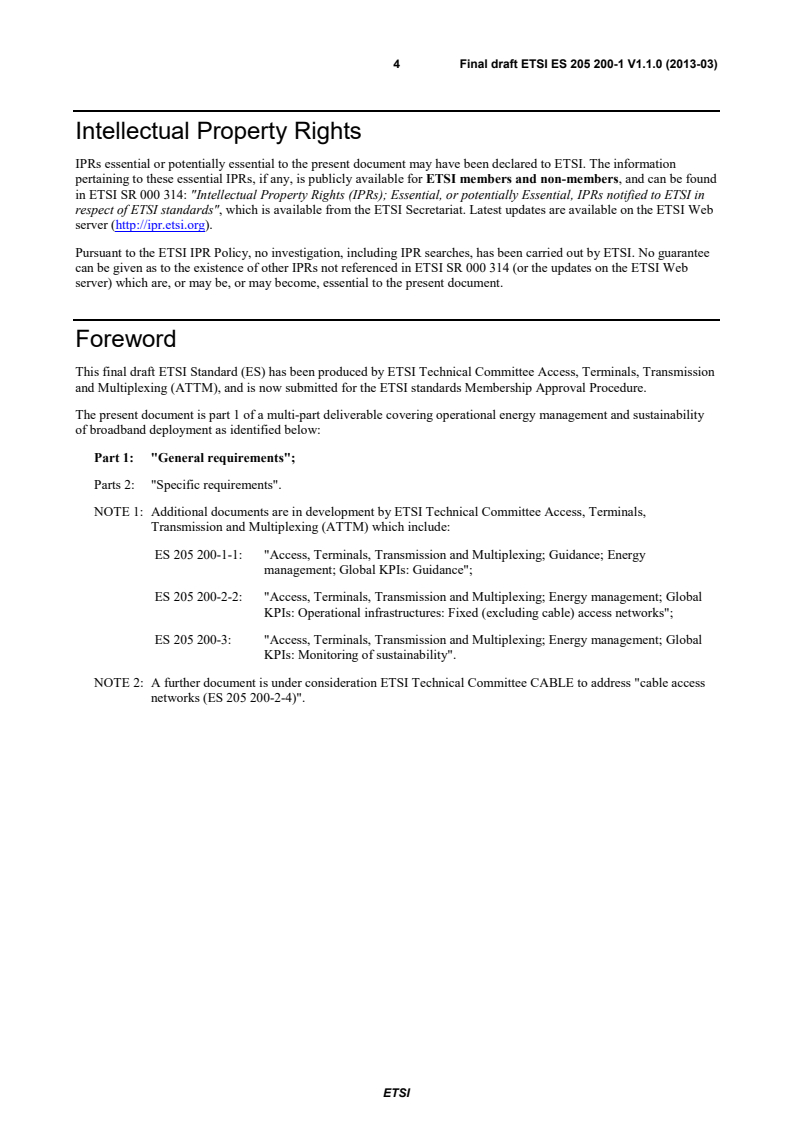

Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://ipr.etsi.org).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This ETSI Standard (ES) has been produced by ETSI Technical Committee Access, Terminals, Transmission and
Multiplexing (ATTM).
The present document is part 1 of a multi-part deliverable covering operational energy management and sustainability
of broadband deployment as identified below:
Part 1: "General requirements";
Parts 2: "Specific requirements".
NOTE 1: Additional documents are in development by ETSI Technical Committee Access, Terminals,
Transmission and Multiplexing (ATTM) which include:
ES 205 200-1-1: "Access, Terminals, Transmission and Multiplexing; Guidance; Energy
management; Global KPIs: Guidance";
ES 205 200-2-2: "Access, Terminals, Transmission and Multiplexing; Energy management; Global
KPIs: Operational infrastructures: Fixed (excluding cable) access networks";
ES 205 200-3: "Access, Terminals, Transmission and Multiplexing; Energy management; Global
KPIs: Monitoring of sustainability".
NOTE 2: A further document is under consideration ETSI Technical Committee CABLE to address "cable access
networks (ES 205 200-2-4)".
ETSI
---------------------- Page: 4 ----------------------
5 ETSI ES 205 200-1 V1.1.1 (2013-05)
Introduction
Energy costs continue to rise, a trend that will continue in the future, while broadband penetration is introducing new
active equipment to the network architecture. In this context, and to reflect other environmental aspects of
sustainability, it is vital that the main telecommunication actors implement effective general engineering of fixed and
mobile broadband networks and sites provisioning, managing or using those networks (i.e. operator sites, operator data
centres and customer data centres) in order to respond to critical issues of energy consumption while proposing essential
solutions to true broadband deployment. To guide this process, it is essential that metrics are defined, termed Global
Key Performance Indicators (KPI ) that enable energy usage to be managed more effectively.
EM
The ES 205 200 series of standards comprises:
• ES 205 200-1: a generic requirements document addressing Global KPIs for operational infrastructures;
NOTE: Global KPIs do not address design/operation of components or subsystems of broadband deployment
networks.
• a sub-series ES 205 200-2 that defines the Global KPIs, and drives energy management targets, for specific
operational networks and sites and which describes how the Global KPIs are to be applied (which may be used
to support future regulatory objectives);
- ES 205 200-2-1: Data centres;
- ES 205 200-2-3: Mobile access networks.
These documents do not define KPI limits or targets (which is outside the scope of the ES 205 200 series of
standards).
These documents will accelerate:
• availability of operational infrastructure architectures and network implementations that use energy more
efficiently;
• the definition and attainment objectives for other environmental aspects of sustainability for operational
broadband networks.
Within the present document:
• clause 4 explains the context underlying the need for the development of Global KPIs for energy efficiency
and introduces the Objective KPIs upon which the Global KPIs are founded;
• clause 5 outlines the role of the Objective KPIs that are used throughout the ES 205 200-2 series;
• clause 6 describes the general requirements that are applied to all KPIs defined within the ES 205 200-2 series;
• clause 7 provides a mapping of the operational infrastructures addressed by the ES 205 200-2 series to those
described in the ESO response to the European Commission Mandate M/462 [i.1];
• clause 8 summarizes the applicability of the Global and Objective KPIs defined in the ES 205 200-2 series;
• Annex A discusses the roles of different types of Key Performance Indicators i.e. Technical, Objective and
Global in relation to the overall energy management concepts of the present document.
ETSI
---------------------- Page: 5 ----------------------
6 ETSI ES 205 200-1 V1.1.1 (2013-05)
1 Scope
The present document describes the energy management landscape of the operational infrastructures of broadband
deployment addressed by the ES 205 200 series of documents, their inter-relationship and boundaries.
The present document specifies the following aspects for Global Key Performance Indicators (KPI ) in relation to
EM
energy management for the operational infrastructures of broadband deployment:
• common objectives in relation to:
- energy consumption;
- task efficiency;
- energy re-use;
- renewable energy;
• general requirements for all KPIs specified in the ES 205 200-2 series in relation to:
- infrastructure scalability;
- infrastructure evolution;
- formulae and definitions of terms;
- measurement points and procedures;
• the use of KPIs.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
Not applicable.
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] EC Mandate M/462: "Standardisation mandate addressed to CEN, CENELEC and ETSI in the
field of Information and Communication Technologies".
[i.2] European Commission DG JRC Code of Conduct for Data Centre Energy Efficiency.
[i.3] European Commission DG JRC Code of Conduct on Energy Consumption of Broadband
Equipment.
ETSI
---------------------- Page: 6 ----------------------
7 ETSI ES 205 200-1 V1.1.1 (2013-05)
[i.4] ISO Guide 82: "Guide for addressing sustainability in standards".
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
customer data centre: data centre connected to the access network
data centre: structure, or group of structures, dedicated to the centralized accommodation, interconnection and
operation of information technology and network telecommunications equipment providing data storage, processing and
transport services together with all the facilities and infrastructures for power distribution and environmental control
together with the necessary levels of resilience and security required to provide the desired service availability
energy consumption: total consumption of energy by an operational infrastructure
energy management: combination of reduced energy consumption and increased task efficiency, re-use of energy and
use of renewable energy
energy re-use: transfer or conversion of energy (typically in the form of heat) produced by the operational
infrastructure to do other work
fixed access network: functional elements that enable wired (including optical fibre) communications to customer
equipment
Information Technology Equipment (ITE): equipment providing data storage, processing and transport services for
subsequent distribution by network telecommunications equipment
mobile access network: functional elements that enable wireless communications to customer equipment
Network Telecommunications Equipment (NTE): equipment dedicated to providing direct connection to core and/or
access networks
Objective KPI: KPI assessing one of the objectives of operational energy performance which is subsequently used to
define a Global KPI for energy management (KPI )
EM
operational infrastructure: combination of information technology equipment (ITE) and/or network
telecommunications equipment (NTE) together with the power supply and environmental control systems necessary to
ensure provision of service
operator data centre: data centre embedded within the core network
operator site: premises accommodating network telecommunications equipment providing direct connection to the
core and access networks and which may also accommodate information technology equipment
renewable energy: energy produced from dedicated generation systems using resources that are naturally replenished
task efficiency: measure of the work done (as a result of design and/or operational procedures) for a given amount of
energy consumed
3.2 Symbols
For the purposes of the present document, the following symbols apply:
Δt the maximum time variation between measurement points of the different Objective Key
Performance Indicators within a given Global Key Performance Indicator
KPI Global Key Performance Indicator of energy management
EM
KPI Objective Key Performance Indicator of energy consumption
EC
KPI Objective Key Performance Indicator of task efficiency
TE
KPI Objective Key Performance Indicator of renewable energy usage
REN
ETSI
---------------------- Page: 7 ----------------------
8 ETSI ES 205 200-1 V1.1.1 (2013-05)
KPI Objective Key Performance Indicator of energy re-use
REUSE
T period of time over which Objective KPIs are assessed
KPI
T the minimum time between which the Objective KPIs can be assessed to determine relevant trend
REPEAT
information
W weighting factor applied to KPI
EC EC
W weighting factor applied to KPI
TE TE
W weighting factor applied to KPI
REN REN
W weighting factor applied to KPI
REUSE REUSE
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
ITE Information Technology Equipment
KPI Key Performance Indicator
NTE Network Telecommunications Equipment
ODC Operator Data Centre
OS Operator Site
4 Context
The Global Key Performance Indicators (KPI) for energy management (KPI ) specified in the ES 205 200 series of
EM
standards shall reflect and encourage:
Objective 1: a reduction in energy consumption;
NOTE: Other sustainability issues are not considered within ES 205 200-1 or ES 205 200-2.
Objective 2: improvements in task efficiency (although the meaning of task efficiency may depend on the
particular operational infrastructure);
Objective 3: the re-use of energy;
Objective 4: the contribution of renewable energy.
While objectives 1 and 2 are in the foreground of the development of all Global KPIs, the relative priority given to the
objectives 3 and 4 above may differ depending on the opportunities available to the particular operational infrastructure.
Figure 1 shows the combination and inter-relation of the four objective KPIs in the production of the KPI for an
EE
operational infrastructure.
Energy Energy
Task efficiency
provision re-use
Non-renewable ITE and/or NTE ITE and/or NTE
supply load re-use
+
Facilities and
Renewable Facilities and
infrastructure
supply infrastructure load
re-use
Operational infrastructure
Renewable energy
contribution
Environmental control
Power distribution
Figure 1: Schematic of foundations of Global KPIs
ETSI
---------------------- Page: 8 ----------------------
9 ETSI ES 205 200-1 V1.1.1 (2013-05)
For each of the operational infrastructures considered within the ES 205 200-2 series of documents, there may be more
than one KPI but each KPI reflects a combination of the four separate objective KPIs:
EM EM
• energy consumption (KPI );
EC
• task efficiency (KPI );
TE
• re-use of energy (KPI );
REUSE
• use of renewable energy (KPI ).
REN
The KPI may either:
EM
• be a single-valued parameter based upon a s
...
SLOVENSKI STANDARD
SIST ES 205 200-1 V1.1.1:2014
01-marec-2014
'RVWRSSULNOMXþNLSUHQRVLQPXOWLSOHNVLUDQMH $770 *RVSRGDUMHQMH]HQHUJLMR
*OREDOQLNOMXþQLND]DOQLNLXVSHãQRVWL .3, 2SHUDWLYQHLQIUDVWUXNWXUHGHO
6SORãQH]DKWHYH
Access, Terminals, Transmission and Multiplexing (ATTM) - Energy management -
Global KPIs - Operational infrastructures - Part 1: General requirements
Ta slovenski standard je istoveten z: ES 205 200-1 Version 1.1.1
ICS:
33.060.40 Kabelski razdelilni sistemi Cabled distribution systems
SIST ES 205 200-1 V1.1.1:2014 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST ES 205 200-1 V1.1.1:2014
---------------------- Page: 2 ----------------------
SIST ES 205 200-1 V1.1.1:2014
ETSI ES 205 200-1 V1.1.1 (2013-05)
ETSI Standard
Access, Terminals, Transmission and Multiplexing (ATTM);
Energy management;
Global KPIs;
Operational infrastructures;
Part 1: General requirements
---------------------- Page: 3 ----------------------
SIST ES 205 200-1 V1.1.1:2014
2 ETSI ES 205 200-1 V1.1.1 (2013-05)
Reference
DES/ATTM-02018
Keywords
performance, power
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2013.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
---------------------- Page: 4 ----------------------
SIST ES 205 200-1 V1.1.1:2014
3 ETSI ES 205 200-1 V1.1.1 (2013-05)
Contents
Intellectual Property Rights . 4
Foreword . 4
Introduction . 5
1 Scope . 6
2 References . 6
2.1 Normative references . 6
2.2 Informative references . 6
3 Definitions, symbols and abbreviations . 7
3.1 Definitions . 7
3.2 Symbols . 7
3.3 Abbreviations . 8
4 Context . 8
5 Objective KPIs of ES 205 200-2 series . 9
5.1 Energy consumption . 9
5.2 Task efficiency . 9
5.3 Energy re-use . 10
5.4 Renewable energy . 10
6 General requirements for Objective and Global KPIs . 10
6.1 Scale . 10
6.2 Evolution . 10
6.3 Formulae. 10
6.4 Definition of terms . 11
6.5 Measurement points and procedures . 11
6.5.1 Overview . 11
6.5.2 Detailed treatment . 12
6.6 Criteria . 13
7 System approach . 13
8 The use of KPIs . 13
Annex A (informative): Concepts: Energy management, sustainability and Key Performance
Indicators . 15
A.1 Energy management and sustainability concepts . 15
A.2 The status of Key Performance Indicators (KPIs) . 16
A.2.1 Technical KPIs . 16
A.2.2 Objective KPIs . 16
A.2.3 Global KPIs . 17
A.2.4 Summary . 17
History . 18
ETSI
---------------------- Page: 5 ----------------------
SIST ES 205 200-1 V1.1.1:2014
4 ETSI ES 205 200-1 V1.1.1 (2013-05)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://ipr.etsi.org).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This ETSI Standard (ES) has been produced by ETSI Technical Committee Access, Terminals, Transmission and
Multiplexing (ATTM).
The present document is part 1 of a multi-part deliverable covering operational energy management and sustainability
of broadband deployment as identified below:
Part 1: "General requirements";
Parts 2: "Specific requirements".
NOTE 1: Additional documents are in development by ETSI Technical Committee Access, Terminals,
Transmission and Multiplexing (ATTM) which include:
ES 205 200-1-1: "Access, Terminals, Transmission and Multiplexing; Guidance; Energy
management; Global KPIs: Guidance";
ES 205 200-2-2: "Access, Terminals, Transmission and Multiplexing; Energy management; Global
KPIs: Operational infrastructures: Fixed (excluding cable) access networks";
ES 205 200-3: "Access, Terminals, Transmission and Multiplexing; Energy management; Global
KPIs: Monitoring of sustainability".
NOTE 2: A further document is under consideration ETSI Technical Committee CABLE to address "cable access
networks (ES 205 200-2-4)".
ETSI
---------------------- Page: 6 ----------------------
SIST ES 205 200-1 V1.1.1:2014
5 ETSI ES 205 200-1 V1.1.1 (2013-05)
Introduction
Energy costs continue to rise, a trend that will continue in the future, while broadband penetration is introducing new
active equipment to the network architecture. In this context, and to reflect other environmental aspects of
sustainability, it is vital that the main telecommunication actors implement effective general engineering of fixed and
mobile broadband networks and sites provisioning, managing or using those networks (i.e. operator sites, operator data
centres and customer data centres) in order to respond to critical issues of energy consumption while proposing essential
solutions to true broadband deployment. To guide this process, it is essential that metrics are defined, termed Global
Key Performance Indicators (KPI ) that enable energy usage to be managed more effectively.
EM
The ES 205 200 series of standards comprises:
• ES 205 200-1: a generic requirements document addressing Global KPIs for operational infrastructures;
NOTE: Global KPIs do not address design/operation of components or subsystems of broadband deployment
networks.
• a sub-series ES 205 200-2 that defines the Global KPIs, and drives energy management targets, for specific
operational networks and sites and which describes how the Global KPIs are to be applied (which may be used
to support future regulatory objectives);
- ES 205 200-2-1: Data centres;
- ES 205 200-2-3: Mobile access networks.
These documents do not define KPI limits or targets (which is outside the scope of the ES 205 200 series of
standards).
These documents will accelerate:
• availability of operational infrastructure architectures and network implementations that use energy more
efficiently;
• the definition and attainment objectives for other environmental aspects of sustainability for operational
broadband networks.
Within the present document:
• clause 4 explains the context underlying the need for the development of Global KPIs for energy efficiency
and introduces the Objective KPIs upon which the Global KPIs are founded;
• clause 5 outlines the role of the Objective KPIs that are used throughout the ES 205 200-2 series;
• clause 6 describes the general requirements that are applied to all KPIs defined within the ES 205 200-2 series;
• clause 7 provides a mapping of the operational infrastructures addressed by the ES 205 200-2 series to those
described in the ESO response to the European Commission Mandate M/462 [i.1];
• clause 8 summarizes the applicability of the Global and Objective KPIs defined in the ES 205 200-2 series;
• Annex A discusses the roles of different types of Key Performance Indicators i.e. Technical, Objective and
Global in relation to the overall energy management concepts of the present document.
ETSI
---------------------- Page: 7 ----------------------
SIST ES 205 200-1 V1.1.1:2014
6 ETSI ES 205 200-1 V1.1.1 (2013-05)
1 Scope
The present document describes the energy management landscape of the operational infrastructures of broadband
deployment addressed by the ES 205 200 series of documents, their inter-relationship and boundaries.
The present document specifies the following aspects for Global Key Performance Indicators (KPI ) in relation to
EM
energy management for the operational infrastructures of broadband deployment:
• common objectives in relation to:
- energy consumption;
- task efficiency;
- energy re-use;
- renewable energy;
• general requirements for all KPIs specified in the ES 205 200-2 series in relation to:
- infrastructure scalability;
- infrastructure evolution;
- formulae and definitions of terms;
- measurement points and procedures;
• the use of KPIs.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
Not applicable.
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] EC Mandate M/462: "Standardisation mandate addressed to CEN, CENELEC and ETSI in the
field of Information and Communication Technologies".
[i.2] European Commission DG JRC Code of Conduct for Data Centre Energy Efficiency.
[i.3] European Commission DG JRC Code of Conduct on Energy Consumption of Broadband
Equipment.
ETSI
---------------------- Page: 8 ----------------------
SIST ES 205 200-1 V1.1.1:2014
7 ETSI ES 205 200-1 V1.1.1 (2013-05)
[i.4] ISO Guide 82: "Guide for addressing sustainability in standards".
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
customer data centre: data centre connected to the access network
data centre: structure, or group of structures, dedicated to the centralized accommodation, interconnection and
operation of information technology and network telecommunications equipment providing data storage, processing and
transport services together with all the facilities and infrastructures for power distribution and environmental control
together with the necessary levels of resilience and security required to provide the desired service availability
energy consumption: total consumption of energy by an operational infrastructure
energy management: combination of reduced energy consumption and increased task efficiency, re-use of energy and
use of renewable energy
energy re-use: transfer or conversion of energy (typically in the form of heat) produced by the operational
infrastructure to do other work
fixed access network: functional elements that enable wired (including optical fibre) communications to customer
equipment
Information Technology Equipment (ITE): equipment providing data storage, processing and transport services for
subsequent distribution by network telecommunications equipment
mobile access network: functional elements that enable wireless communications to customer equipment
Network Telecommunications Equipment (NTE): equipment dedicated to providing direct connection to core and/or
access networks
Objective KPI: KPI assessing one of the objectives of operational energy performance which is subsequently used to
define a Global KPI for energy management (KPI )
EM
operational infrastructure: combination of information technology equipment (ITE) and/or network
telecommunications equipment (NTE) together with the power supply and environmental control systems necessary to
ensure provision of service
operator data centre: data centre embedded within the core network
operator site: premises accommodating network telecommunications equipment providing direct connection to the
core and access networks and which may also accommodate information technology equipment
renewable energy: energy produced from dedicated generation systems using resources that are naturally replenished
task efficiency: measure of the work done (as a result of design and/or operational procedures) for a given amount of
energy consumed
3.2 Symbols
For the purposes of the present document, the following symbols apply:
Δt the maximum time variation between measurement points of the different Objective Key
Performance Indicators within a given Global Key Performance Indicator
KPI Global Key Performance Indicator of energy management
EM
KPI Objective Key Performance Indicator of energy consumption
EC
KPI Objective Key Performance Indicator of task efficiency
TE
KPI Objective Key Performance Indicator of renewable energy usage
REN
ETSI
---------------------- Page: 9 ----------------------
SIST ES 205 200-1 V1.1.1:2014
8 ETSI ES 205 200-1 V1.1.1 (2013-05)
KPI Objective Key Performance Indicator of energy re-use
REUSE
T period of time over which Objective KPIs are assessed
KPI
T the minimum time between which the Objective KPIs can be assessed to determine relevant trend
REPEAT
information
W weighting factor applied to KPI
EC EC
W weighting factor applied to KPI
TE TE
W weighting factor applied to KPI
REN REN
W weighting factor applied to KPI
REUSE REUSE
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
ITE Information Technology Equipment
KPI Key Performance Indicator
NTE Network Telecommunications Equipment
ODC Operator Data Centre
OS Operator Site
4 Context
The Global Key Performance Indicators (KPI) for energy management (KPI ) specified in the ES 205 200 series of
EM
standards shall reflect and encourage:
Objective 1: a reduction in energy consumption;
NOTE: Other sustainability issues are not considered within ES 205 200-1 or ES 205 200-2.
Objective 2: improvements in task efficiency (although the meaning of task efficiency may depend on the
particular operational infrastructure);
Objective 3: the re-use of energy;
Objective 4: the contribution of renewable energy.
While objectives 1 and 2 are in the foreground of the development of all Global KPIs, the relative priority given to the
objectives 3 and 4 above may differ depending on the opportunities available to the particular operational infrastructure.
Figure 1 shows the combination and inter-relation of the four objective KPIs in the production of the KPI for an
EE
operational infrastructure.
Energy Energy
Task efficiency
provision re-use
Non-renewable ITE and/or NTE ITE and/or NTE
supply load re-use
+
Facilities and
Renewable Facilities and
infrastructure
supply infrastructure load
re-use
Operational infrastructure
Renewable energy
contribution
Environmental control
Power distribution
Figure 1: Schematic of foundations of Global KPIs
ETSI
---------------------- Page: 10 ----------------------
SIST ES 205 200-1 V1.1.1:2014
9 ETSI ES 205 200-1 V1.1.1 (2013-05)
For each
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
