Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D); Part 10: Supplementary services stage 1; Sub-part 1: Call Identification (CI)

The present document specifies the following identification supplementary services: Calling Line Identification Presentation (SS-CLIP), Connected Line Identification Presentation (SS-COLP), Calling Line Identification Restriction (SS-CLIR) and Connected Line Identification Restriction (SS-COLR), which are applicable to various basic services supported by TETRA Switching and Management Infrastructures (SwMIs). TETRA basic services are specified in EN 300 392-2 [1].
Calling Line Identification Presentation (SS-CLIP) is a supplementary service which is offered to the connected user and which provides the calling user's TETRA number to the connected user. Connected Line Identification Presentation (SS-COLP) is a supplementary service which is offered to the calling user and which provides the called (connected) user's TETRA number to the calling user. Calling Line Identification Restriction (SS-CLIR) is a supplementary service offered to a calling user to restrict presentation of that user's TETRA number to another user. Connected Line Identification Restriction (SS-COLR) is a supplementary service offered to a connected user to restrict
presentation of that user's TETRA number to another user.
NOTE 1: For readability of the present document, and contrary to ECMA-148 [2], SS-CLIR and SS-COLR are split
in the present document. As a TETRA network implementation option, override capability shall be provided to selected users; for a group call, override shall be defined against the group identity and not against each individual member of the group.
NOTE 2: This capability is provided in ECMA-148 [2].
Supplementary service specifications are produced in three stages, according to the method described in ETS 300 387 [6]. The present document contains the stage 1 specifications of SS-CLIP, SS-COLP and SS-CLIR. The stage 1 descriptions specify the supplementary services as seen by users of SwMIs. The present document is applicable to circuit mode TETRA teleservices and bearer services only. This first version of the present document was presented as a delta document to ECMA-148 [2]. This version has been redrafted still based on the text of ECMA-148 [2] but includes now the full applicable text so as to be more readable.

Prizemni snopovni radio (TETRA) – Govor in podatki (V+D) – 10. del: Dopolnilne storitve stopnje 1 – 1. poddel: Identifikacija klica (CI)

General Information

Status
Published
Publication Date
31-Mar-2006
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
01-Apr-2006
Due Date
01-Apr-2006
Completion Date
01-Apr-2006
Mandate

Buy Standard

Standard
SIST EN 300 392-10-1 V1.3.1:2006
English language
37 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Prizemni snopovni radio (TETRA) – Govor in podatki (V+D) – 10. del: Dopolnilne storitve stopnje 1 – 1. poddel: Identifikacija klica (CI)Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D); Part 10: Supplementary services stage 1; Sub-part 1: Call Identification (CI)33.070.10Prizemni snopovni radio (TETRA)Terrestrial Trunked Radio (TETRA)ICS:Ta slovenski standard je istoveten z:EN 300 392-10-1 Version 1.3.1SIST EN 300 392-10-1 V1.3.1:2006en01-april-2006SIST EN 300 392-10-1 V1.3.1:2006SLOVENSKI

STANDARD
SIST EN 300 392-10-1 V1.3.1:2006

ETSI EN 300 392-10-1 V1.3.1 (2004-01)European Standard (Telecommunications series) Terrestrial Trunked Radio (TETRA);Voice plus Data (V+D);Part 10: Supplementary services stage 1;Sub-part 1: Call Identification (CI)

SIST EN 300 392-10-1 V1.3.1:2006
ETSI ETSI EN 300 392-10-1 V1.3.1 (2004-01) 2

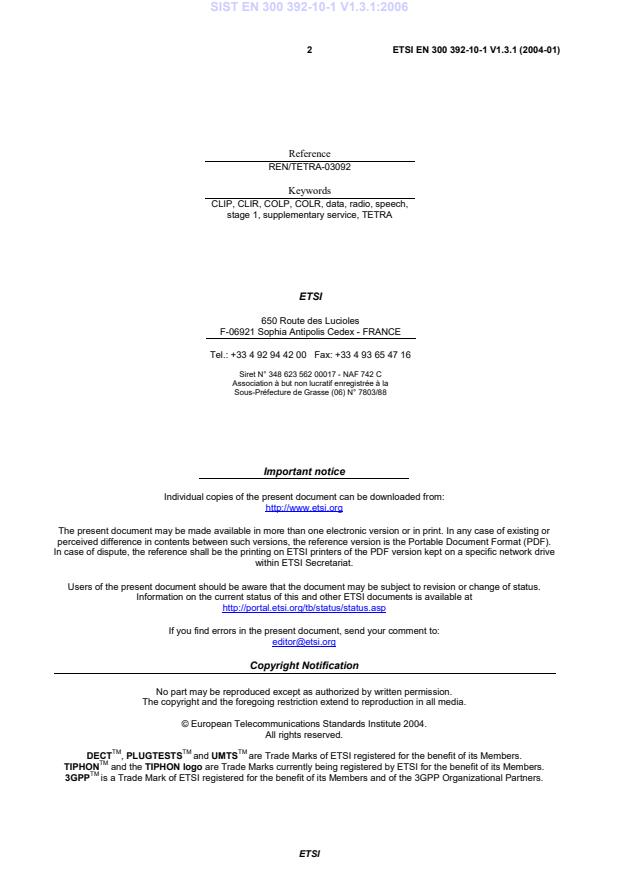

Reference REN/TETRA-03092 Keywords CLIP, CLIR, COLP, COLR, data, radio, speech, stage 1, supplementary service, TETRA ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: +33 4 92 94 42 00
Fax: +33 4 93 65 47 16

Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88

Important notice Individual copies of the present document can be downloaded from: http://www.etsi.org The present document may be made available in more than one electronic version or in print. In any case of existing or perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF). In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at http://portal.etsi.org/tb/status/status.asp If you find errors in the present document, send your comment to: editor@etsi.org Copyright Notification No part may be reproduced except as authorized by written permission. The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2004. All rights reserved.

DECTTM, PLUGTESTSTM and UMTSTM are Trade Marks of ETSI registered for the benefit of its Members. TIPHONTM and the TIPHON logo are Trade Marks currently being registered by ETSI for the benefit of its Members. 3GPPTM is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners. SIST EN 300 392-10-1 V1.3.1:2006

ETSI ETSI EN 300 392-10-1 V1.3.1 (2004-01) 3

Contents Intellectual Property Rights................................................................................................................................7 Foreword.............................................................................................................................................................7 1 Scope........................................................................................................................................................9 2 References................................................................................................................................................9 3 Definitions and abbreviations.................................................................................................................10 3.1 Definitions........................................................................................................................................................10 3.2 Abbreviations...................................................................................................................................................11 3.2.1 General abbreviations.................................................................................................................................11 3.2.2 Supplementary service abbreviations..........................................................................................................11 4 SS-CLIP stage 1 specification................................................................................................................12 4.1 Description.......................................................................................................................................................12 4.1.1 General description.....................................................................................................................................12 4.1.2 Qualifications on applicability to telecommunication services...................................................................12 4.2 Procedure..........................................................................................................................................................12 4.2.1 Provision/withdrawal..................................................................................................................................12 4.2.2 Normal procedures......................................................................................................................................12 4.2.2.1 Activation/deactivation/definition/interrogation...................................................................................12 4.2.2.2 Invocation and operation.......................................................................................................................12 4.2.3 Exceptional procedures...............................................................................................................................12 4.2.3.1 Activation/deactivation/registration/interrogation................................................................................12 4.2.3.2 Invocation and operation.......................................................................................................................13 4.3 Interaction with other supplementary services and ANFs................................................................................13 4.3.1 Calling Line Identification Restriction (SS-CLIR).....................................................................................13 4.3.2 Connected Line Identification Presentation (SS-COLP)............................................................................13 4.3.3 COnnected Line Identification Restriction (SS-COLR).............................................................................13 4.3.4 Call report...................................................................................................................................................13 4.3.5 Talking party identification.........................................................................................................................13 4.3.6 Call forward unconditional.........................................................................................................................14 4.3.7 Call forwarding on subscriber busy............................................................................................................14 4.3.8 Call forwarding on no reply........................................................................................................................14 4.3.9 Call forwarding on not reachable................................................................................................................14 4.3.10 List search call............................................................................................................................................14 4.3.11 Call authorized by dispatcher......................................................................................................................14 4.3.12 Short number addressing............................................................................................................................14 4.3.13 Area selection.............................................................................................................................................14 4.3.14 Access priority............................................................................................................................................14 4.3.15 Priority call.................................................................................................................................................14 4.3.16 Call waiting.................................................................................................................................................14 4.3.17 Call hold.....................................................................................................................................................14 4.3.18 Call completion to busy subscriber.............................................................................................................15 4.3.19 Late entry....................................................................................................................................................15 4.3.20 Transfer of control......................................................................................................................................15 4.3.21 Pre-emptive priority call.............................................................................................................................15 4.3.22 Include call..................................................................................................................................................15 4.3.23 Advice of charge.........................................................................................................................................15 4.3.24 Barring of outgoing calls............................................................................................................................15 4.3.25 Barring of incoming calls...........................................................................................................................15 4.3.26 Discreet listening........................................................................................................................................15 4.3.27 Ambience listening.....................................................................................................................................15 4.3.28 Dynamic group number assignment...........................................................................................................15 4.3.29 Call completion on no reply........................................................................................................................16 4.3.30 Call retention..............................................................................................................................................16 4.3.31 Interaction with ANF Mobility Management.............................................................................................16 4.4 Interworking considerations.............................................................................................................................16 SIST EN 300 392-10-1 V1.3.1:2006

ETSI ETSI EN 300 392-10-1 V1.3.1 (2004-01) 4

4.4.1 Incoming calls.............................................................................................................................................16 4.4.2 Outgoing calls.............................................................................................................................................16 4.5 Overall SDL.....................................................................................................................................................16 5 SS-COLP stage 1 specification..............................................................................................................18 5.1 Description.......................................................................................................................................................18 5.1.1 General description.....................................................................................................................................18 5.1.2 Qualifications on applicability to telecommunication services...................................................................18 5.2 Procedure..........................................................................................................................................................18 5.2.1 Provision/withdrawal..................................................................................................................................18 5.2.2 Normal procedures......................................................................................................................................18 5.2.2.1 Activation/deactivation/definition/interrogation...................................................................................18 5.2.2.2 Invocation and operation.......................................................................................................................18 5.2.3 Exceptional procedures...............................................................................................................................19 5.2.3.1 Activation/deactivation/definition/interrogation...................................................................................19 5.2.3.2 Invocation and operation.......................................................................................................................19 5.3 Interaction with other supplementary services and ANFs................................................................................19 5.3.1 Calling Line Identification Presentation (SS-CLIP)...................................................................................19 5.3.2 Calling Line Identification Presentation (SS-CLIR)...................................................................................19 5.3.3 Connected Line Identification Restriction (SS-COLR)..............................................................................19 5.3.4 Call report...................................................................................................................................................19 5.3.5 Talking party identification.........................................................................................................................20 5.3.6 Call forwarding unconditional....................................................................................................................20 5.3.7 Call forwarding on subscriber busy............................................................................................................20 5.3.8 Call forwarding on no reply........................................................................................................................20 5.3.9 Call forwarding on not reachable................................................................................................................20 5.3.10 List search call............................................................................................................................................20 5.3.11 Call authorized by dispatcher......................................................................................................................20 5.3.12 Short number addressing............................................................................................................................20 5.3.13 Area selection.............................................................................................................................................20 5.3.14 Access priority............................................................................................................................................20 5.3.15 Priority call.................................................................................................................................................21 5.3.16 Call waiting.................................................................................................................................................21 5.3.17 Call hold.....................................................................................................................................................21 5.3.18 Call completion to busy subscriber.............................................................................................................21 5.3.19 Late entry....................................................................................................................................................21 5.3.20 Transfer of control......................................................................................................................................21 5.3.21 Pre-emptive priority call.............................................................................................................................21 5.3.22 Include call..................................................................................................................................................21 5.3.23 Advice of charge.........................................................................................................................................21 5.3.24 Barring of outgoing calls............................................................................................................................21 5.3.25 Barring of incoming calls...........................................................................................................................21 5.3.26 Discreet listening........................................................................................................................................22 5.3.27 Ambience listening.....................................................................................................................................22 5.3.28 Dynamic group number assignment...........................................................................................................22 5.3.29 Call completion on no reply........................................................................................................................22 5.3.30 Call retention..............................................................................................................................................22 5.3.31 Interaction with ANF Mobility Management.............................................................................................22 5.4 Interworking considerations.............................................................................................................................22 5.4.1 Outgoing calls.............................................................................................................................................22 5.4.2 Incoming calls.............................................................................................................................................22 5.5 Overall SDL.....................................................................................................................................................23 6 SS-CLIR stage 1 specification...............................................................................................................24 6.1 Description.......................................................................................................................................................24 6.1.1 General description.....................................................................................................................................24 6.1.2 Qualifications on applicability to telecommunication services...................................................................24 6.2 Procedure..........................................................................................................................................................24 6.2.1 Provision/withdrawal..................................................................................................................................24 6.2.1.1 Case of individual calls.........................................................................................................................24 6.2.1.2 Case of group calls................................................................................................................................24 6.2.2 Normal procedures......................................................................................................................................24 SIST EN 300 392-10-1 V1.3.1:2006

ETSI ETSI EN 300 392-10-1 V1.3.1 (2004-01) 5

6.2.2.1 Activation/deactivation/definition/interrogation...................................................................................24 6.2.2.2 Invocation and operation.......................................................................................................................25 6.2.3 Exceptional procedures...............................................................................................................................25 6.2.3.1 Activation/deactivation/definition/interrogation...................................................................................25 6.2.3.2 Invocation and operation.......................................................................................................................25 6.3 Interaction with other supplementary services and ANFs................................................................................25 6.3.1 Calling Line Identification Presentation (SS-CLIP)...................................................................................25 6.3.2 Connected Line Identification Presentation (SS-COLP)............................................................................25 6.3.3 Call report...................................................................................................................................................25 6.3.4 Talking party identification.........................................................................................................................25 6.3.5 Call forward unconditional.........................................................................................................................26 6.3.6 Call forwarding on subscriber busy............................................................................................................26 6.3.7 Call forwarding on no reply........................................................................................................................26 6.3.8 Call forwarding on not reachable................................................................................................................26 6.3.9 List search call............................................................................................................................................26 6.3.10 Call authorized by dispatcher......................................................................................................................26 6.3.11 Short number addressing............................................................................................................................26 6.3.12 Area selection.............................................................................................................................................26 6.3.13 Access priority............................................................................................................................................26 6.3.14 Priority call.................................................................................................................................................26 6.3.15 Call waiting.................................................................................................................................................26 6.3.16 Call hold.....................................................................................................................................................26 6.3.17 Call completion to busy subscriber.............................................................................................................27 6.3.18 Late entry....................................................................................................................................................27 6.3.19 Transfer of control......................................................................................................................................27 6.3.20 Pre-emptive priority call.............................................................................................................................27 6.3.21 Include call..................................................................................................................................................27 6.3.22 Advice of charge.........................................................................................................................................27 6.3.23 Barring of outgoing calls............................................................................................................................27 6.3.24 Barring of incoming calls...........................................................................................................................27 6.3.25 Discreet listening........................................................................................................................................27 6.3.26 Ambience listening.....................................................................................................................................27 6.3.27 Dynamic group number assignment...........................................................................................................27 6.3.28 Call completion on no reply........................................................................................................................27 6.3.29 Call retention..............................................................................................................................................28 6.3.30 Interaction with ANF Mobility Management.............................................................................................28 6.4 Interworking considerations.............................................................................................................................28 6.4.1 Incoming calls.............................................................................................................................................28 6.4.2 Outgoing calls.............................................................................................................................................28 6.5 Overall SDL.....................................................................................................................................................29 7 SS-COLR stage 1 specification..............................................................................................................30 7.1 Description.......................................................................................................................................................30 7.1.1 General description.....................................................................................................................................30 7.1.2 Qualifications on applicability to telecommunication services...................................................................30 7.2 Procedure..........................................................................................................................................................30 7.2.1 Provision/withdrawal..................................................................................................................................30 7.2.1.1 Case of individual calls.........................................................................................................................30 7.2.1.2 Case of group calls................................................................................................................................30 7.2.2 Normal procedures......................................................................................................................................30 7.2.2.1 Activation/deactivation/definition/interrogation...................................................................................30 7.2.2.2 Invocation and operation.......................................................................................................................31 7.2.3 Exceptional procedures...............................................................................................................................31 7.2.3.1 Activation/deactivation/definition/interrogation...................................................................................31 7.2.3.2 Invocation and operation.......................................................................................................................31 7.3 Interaction with other supplementary services and ANFs................................................................................31 7.3.1 Calling Line Identification Presentation (SS-CLIP)...................................................................................31 7.3.2 Connected Line Identification Presentation (SS-COLP)............................................................................31 7.3.3 Call report...................................................................................................................................................31 7.3.4 Talking party identification...

...
