SIST ETS 300 392-10-24 E2:2003

• Abstract:

  Analysis of predicted needs for digital trunked systems in Europe; definition of services to be provided; analysis of spectrum req ments; characteristics of relevant interfaces Contains: TETRA 03.60 to 03.85

• Status: Published
• Publication Date: 30-Nov-2003
• ICS: 33.070.10 - Terrestrial Trunked Radio (TETRA)
• Technical Committee: SS EIT - Technical Board for the electrotechnical, information technology and telecommunications fields
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Dec-2003
• Due Date: 01-Dec-2003
• Completion Date: 01-Dec-2003
• Mandate: T-172-1A
• Ref Project: ETSI ETS 300 392-10-24 ed.2 (2000-04) - Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D); Part 10: Supplementary services stage 1; Sub-part 24: Call Retention (CRT)

SIST ETS 300 392-10-24 E2:2003 is the Slovenian standard adopted from ETS 300 392-10-24 Edition 2, published by ETSI for Terrestrial Trunked Radio (TETRA) Voice plus Data (V+D). It specifies the stage 1 user view of Call Retention (CRT), a supplementary service that assigns a Call Retention Value (CRV) so a TETRA call can be protected against pre-emption by lower-priority calls.

What does SIST ETS 300 392-10-24 E2:2003 specify?

SIST ETS 300 392-10-24 E2:2003 specifies SS-CRT for TETRA SwMIs. It covers how the service is provided, invoked, changed during a call, and how it behaves when it meets other supplementary services and ANFs.

The standard applies to circuit mode TETRA V+D tele-services and bearer services defined in ETS 300 392-2. It is not applicable to TETRA Short Data Service (SDS). Man Machine Interfaces and charging principles are outside its scope.

The document is organized into:

• Scope
• Normative references
• Definitions, symbols and abbreviations
• SS-CRT stage 1 specification, including description, procedures, interactions, inter-working considerations, and overall SDL
• Annex A, an informative bibliography

What are the key requirements of SIST ETS 300 392-10-24 E2:2003?

Service model and protection rule

SIST ETS 300 392-10-24 E2:2003 defines Call Retention (SS-CRT) as a way to protect calls from pre-emption. The core idea is simple: each call in the Switching and Management Infrastructure (SwMI) is assigned a CRV, and when resources are needed the call with the lowest CRV using those resources is pre-empted.

In practice, this means the network must be able to compare calls by protection level. If all calls have the same CRV, another selection rule may be used, such as oldest call or call type. The standard also notes that on networks without SS-CRT, all calls are treated as if they have the same CRV.

Provision, activation, and invocation

SIST ETS 300 392-10-24 E2:2003 provides SS-CRT on a per Individual TETRA Subscriber Identity (ITSI) or Group TETRA Subscriber Identity (GTSI) basis. Provision and withdrawal may be arranged with the service provider or made generally available.

One or more CRVs are allocated to the served user. If no CRV is allocated, the default is zero, which means no protection. The service must support at least two values: 0 for no protection and 3 for total protection, with intermediate values allowed.

Activation happens on provision and deactivation on withdrawal. Registration does not apply, and cancellation is not applicable. Interrogation, if supported, can be local, remote, or both, and can report whether the service is provided, the default CRV, the allowed value range, and the applicable basic service. That is the practical information a network or customer support team needs to verify the subscription profile.

Call setup, call changes, and exceptional cases

SIST ETS 300 392-10-24 E2:2003 allows SS-CRT to be invoked by the calling user or the called user in the initial call setup message. The CRV can also be changed during an active call, and the network stores the CRV for the lifetime of the call.

If both sides invoke SS-CRT for the same call, the higher requested CRV is used. If a call involves both calling-user and called-user CRVs, the SwMI passes the received value through and then sets the call to the highest value. For group calls, the called group may be assigned a group CRV before setup, and that value is not changed during the call.

If a request is rejected, the call continues with the default CRV. If the requested CRV is outside the allowed range, the infrastructure adjusts it to the nearest maximum value allowed for that user and continues the call. If SS-CRT cannot be invoked, the call is still allowed to proceed.

Interactions, forwarding, and interworking

SIST ETS 300 392-10-24 E2:2003 states that SS-CRT has no interaction with many other supplementary services, including SS-AP, SS-AOC, SS-AL, SS-AS, SS-BIC, SS-BOC, SS-CAD, SS-HOLD, SS-CR, SS-CW, SS-CLIP, SS-CLIR, SS-COLP, SS-DL, SS-DGNA, SS-IC, SS-LE, SS-LSC, SS-PC, SS-SNA, and SS-TPI.

Some services are allowed to carry SS-CRT through the new call. For SS-CCNR, SS-CCBS, SS-CFB, SS-CFNRy, SS-CFNRc, and SS-CFU, the forwarded or completed call keeps the same CRV behavior, and the forwarded-to user may request a higher protection level. For ANF-ISI-IC and ANF-ISI-GC, the call gets the highest CRV from the originating and terminating SwMIs, and limited ISI resources are pre-empted starting with the lowest CRV calls.

What terms does SIST ETS 300 392-10-24 E2:2003 define?

• Call Retention Value (CRV) - the value that sets the relative protection level of a call against pre-emption.
• protected call - a call that has been assigned a CRV.
• unprotected call - a call with no CRV, or with CRV equal to zero.
• priority call - a call assigned some level of priority by a PC or PPC value.
• served user - the user who requests SS-CRT.
• Switching and Management Infrastructure (SwMI) - the TETRA network equipment other than subscriber terminals, through which terminals communicate.
• Individual TETRA Subscriber Identity (ITSI) / Group TETRA Subscriber Identity (GTSI) - the identities used for subscription and service provision on an individual or group basis.

Who uses SIST ETS 300 392-10-24 E2:2003?

SIST ETS 300 392-10-24 E2:2003 is used by TETRA network operators, service providers, and SwMI implementers who need to define how calls are protected from pre-emption. It is also relevant to engineers working on call setup, priority handling, group calls, forwarding, and interworking in circuit-mode TETRA V+D networks.

In practice, buyers and quality managers use it when specifying supplementary-service behavior for TETRA systems, especially where priority traffic must be protected. Interoperability and test engineers use it to check that CRV handling is consistent across calling and called users, across forwarded calls, and across inter-SwMI connections.

What changed in SIST ETS 300 392-10-24 E2:2003 from the previous edition?

This is the second edition of the Call Retention standard. The document history shows a first edition in April 1996 and a second edition in April 2000.

The second edition states that it is based on the latest edition of ECMA-263. It also says that additions were made for TETRA-specific behavior, including group calls, and for user requirements and situations not addressed in ECMA-263.

Which standards are used with SIST ETS 300 392-10-24 E2:2003?

• ECMA-263 (1997) - provides the functional model and information flows for Call Priority Interruption and Call Priority Interruption Protection Supplementary Services, and forms the main basis for this edition.
• ITU-T Recommendation I.210 (1993) - gives the method used to describe telecommunication services and their three-stage structure.
• ITU-T Recommendation Z.100 (1993) - defines Specification and Description Language (SDL), used for the dynamic model in Figure 1.
• ETSI ETS 300 392-2 (1995) - defines the TETRA Air Interface and the basic services referenced by the scope.
• ETSI ETS 300 392-10-24 (1996) - the earlier Call Retention text referenced by the second edition.

What does the SIST ETS 300 392-10-24 E2:2003 document contain?

The document contains the stage 1 service description of SS-CRT, including provision, interrogation, invocation, exceptional behavior, and call-state rules. Clause 4.3 gives the interaction map with other supplementary services and ANFs, which is the part most implementers use when checking feature coexistence.

Figure 1 provides the overall SDL for SS-CRT, showing how the network handles requests, stores CRV during the call, and resets the value on disconnect. Annex A gives a short informative bibliography for related priority and pre-emption work.

SLOVENSKI STANDARD
01-december-2003
Prizemni snopovni radio (TETRA) – Govor in podatki (V+D) – 10. del: Dopolnilne
storitve stopnje 1 – 24. poglavje: Ohranitev klica (CRT)
Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D); Part 10: Supplementary
services stage 1; Sub-part 24: Call Retention (CRT)
Ta slovenski standard je istoveten z: ETS 300 392-10-24 Edition 2
ICS:
33.070.10 Prizemni snopovni radio Terrestrial Trunked Radio
(TETRA) (TETRA)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN ETS 300 392-10-24
TELECOMMUNICATION April 2000
STANDARD Second Edition
Source: TETRA Reference: RE/TETRA-03001-10-24
ICS: 33.020
Key words: Data, radio, retention, speech, stage 1, supplementary service, TETRA, V+D
Terrestrial Trunked Radio (TETRA);
VoiceplusData(V+D);
Part 10: Supplementary services stage 1;
Sub-part 24: Call Retention (CRT)
ETSI
European Telecommunications Standards Institute
ETSI Secretariat
Postal address: F-06921 Sophia Antipolis CEDEX - FRANCE
Office address: 650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCE
Internet: [e-mail] - http://www.etsi.org
Tel.:[phone]- Fax:[phone]
Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and the
foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2000. All rights reserved.

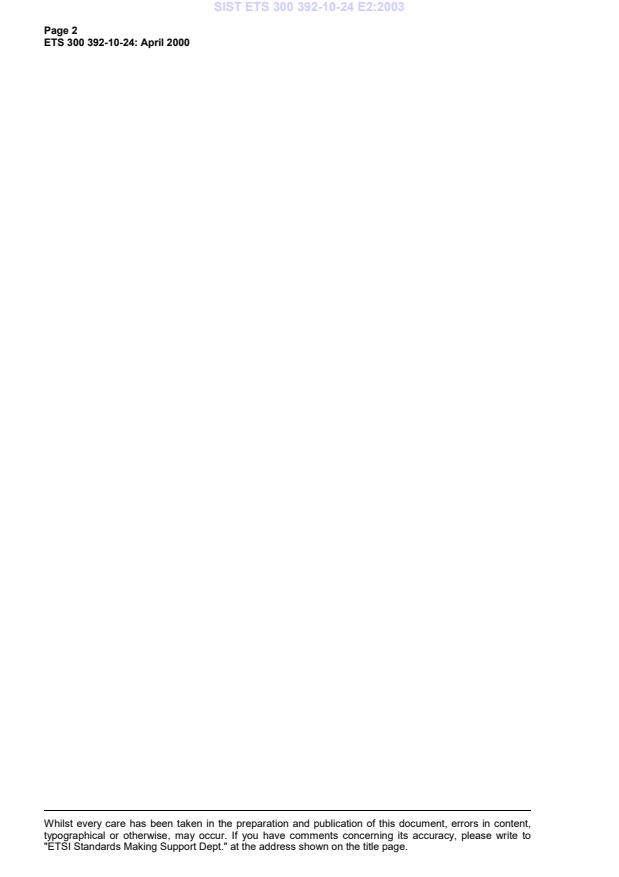

Page 2
ETS 300 392-10-24: April 2000
Whilst every care has been taken in the preparation and publication of this document, errors in content,
typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to
"ETSI Standards Making Support Dept." at the address shown on the title page.

Page 3
ETS 300 392-10-24: April 2000
Contents
Foreword.5
1 Scope .7
2 Normative references.7
3 Definitions, symbols and abbreviations .7
3.1 Definitions .7
3.2 Symbols .8
3.3 Abbreviations .8
3.3.1 General abbreviations .8
3.3.2 Supplementary service abbreviations.9
4 SS-CRT stage 1 specification .9
4.1 Description .9
4.1.1 General description .9
4.1.2 Qualifications on applicability to telecommunication services .10
4.2 Procedure .10
4.2.1 Provision/withdrawal.10
4.2.2 Normal procedures.10
4.2.2.1 Activation/deactivation/registration/interrogation .10
4.2.2.1.1 Void.10
4.2.2.1.2 Definition .10
4.2.2.1.3 Registration.10
4.2.2.1.4 Interrogation.10
4.2.2.1.5 Cancellation .11
4.2.2.2 Invocation and operation.11
4.2.2.2.1 Invocation by a calling user.11
4.2.2.2.2 Invocation by a called user.12
4.2.3 Exceptional procedures.12
4.2.3.1 Activation/deactivation/registration/interrogation .12
4.2.3.1.1 Void.12
4.2.3.1.2 Interrogation.12
4.2.3.2 Invocation and operation.12
4.3 Interaction with other supplementary services and ANFs.12
4.3.1 Access Priority (SS-AP).13
4.3.2 Advice of Charge (SS-AOC).13
4.3.3 Ambience Listening (SS-AL) .13
4.3.4 Area Selection (SS-AS).13
4.3.5 Barring of Incoming Calls (SS-BIC).13
4.3.6 Barring of Outgoing Calls (SS-BOC) .13
4.3.7 Call Authorized by Dispatcher (SS-CAD) .13
4.3.8 Call Completion on No Reply (SS-CCNR).13
4.3.9 Call Completion to Busy Subscriber (SS-CCBS).13
4.3.10 Call Forwarding Busy (SS-CFB).13
4.3.11 Call Forwarding No Reply (SS-CFNRy).13
4.3.12 Call Forwarding Not Reachable (SS-CFNRc) .13
4.3.13 Call Forwarding Unconditional (SS-CFU).13
4.3.14 Call Hold (SS-HOLD).14
4.3.15 Call Report (SS-CR).14
4.3.16 Call Waiting (SS-CW).14
4.3.17 Calling Line Identification Presentation (SS-CLIP).14
4.3.18 Calling/Connected Line identification Restriction (SS-CLIR).14
4.3.19 Connected Line identification Presentation (SS-COLP).14
4.3.20 Discreet Listening (SS-DL).14
4.3.21 Dynamic Group Number Assignment (SS-DGNA).14
4.3.22 Include Call (SS-IC).14

Page 4
ETS 300 392-10-24: April 2000
4.3.23 Late Entry (SS-LE). 14
4.3.24 List Search Call (SS-LSC) . 14
4.3.25 Pre-emptive Priority Call (SS-PPC) . 14
4.3.26 Priority Call (SS-PC) . 15
4.3.27 Short Number Addressing (SS-SNA). 15
4.3.28 Talking Party Identification (SS-TPI). 15
4.3.29 Transfer of Control (SS-TC) . 15
4.3.30 Transit Counter (ANF-TC) . 15
4.3.31 ANF-ISI-IC . 15
4.3.32 ANF-ISI-GC. 15
4.3.33 ANF-ISI-MM. 15
4.4 Inter-working considerations . 15
4.5 Overall SDL . 15
Annex A (informative): Bibliography . 18
History. 19

Page 5
ETS 300 392-10-24: April 2000
Foreword
This European Telecommunication Standard (ETS) has been produced by the Terrestrial Trunked Radio
(TETRA) Project of the European Telecommunications Standards Institute (ETSI).
This ETS is a multi-part standard and will consist of the following parts:
Part 1: "General network design";
Part 2: "Air Interface (AI)";
Part 3: "Interworking at the Inter-System Interface (ISI)";
Part 4: "Gateways basic operation”;
Part 5: “Peripheral Equipment Interface (PEI)";
Part 6: "Line connected Station (LS)";
Part 7: "Security";
Part 9: "General requirements for supplementary services";
Part 10: "Supplementary services stage 1";
Part 11: "Supplementary services stage 2";
Part 12: "Supplementary services stage 3";
Part 13: "SDL model of the Air Interface (AI)";
Part 14: "Protocol Implementation Conformance Statement (PICS) proforma specification”.
Transposition dates
Date of adoption of this ETS: 14 April 2000
Date of latest announcement of this ETS (doa): 31 July 2000
Date of latest publication of new National Standard
or endorsement of this ETS (dop/e): 31 January 2001
Date of withdrawal of any conflicting National Standard (dow): 31 January 2001

Page 6
ETS 300 392-10-24: April 2000
Blank Page
Page 7
ETS 300 392-10-24: April 2000
1 Scope
This ETS specifies the supplementary service Call Retention SS-CRT which is applicable to various basic
services supported by TETRA SwMIs. Basic services are specified in ETS 300 392-2 [4].
SS-CRT is a supplementary service which applies either during call establishment or once call is
established to protect a call from pre-emption by another call of lower priority.
Supplementary service specifications are produced in three stages, according to the method described in
ITU-T Recommendation I.210 [2]. The present document contains the stage 1 specifications of SS-CRT.
The stage 1 descriptions specify the supplementary services as seen by users of networks.
This ETS is applicable to circuit mode TETRA V+D tele-services and bearer services. This ETS is not
applicable to TETRA Short Data Service (SDS).
Man Machine Interfaces and charging principles are outside the scope of this ETS.
This second edition of this ETS is based on the latest edition of ECMA-263 [1]. The first edition of this ETS
was drafted at a time where no published text of ECMA-263 [1] existed. Additions to ECMA-263 [1] have
been made to take into account particular TETRA specifics such as group calls and to include user
requirements and situations not addressed in ECMA-263 [1].
2 Normative references
This ETS incorporates by dated and undated reference, provisions from other publications. These
normative references are cited at the appropriate places in the text and the publications are listed
hereafter. For dated references, subsequent amendments to or revisions of any of these publications
apply to this ETS only when incorporated in it by amendment or revision. For undated references the latest
edition of the publication referred to applies.
[1] ECMA-263 (1997): "Private Integrated Services Network (PISN) -
Specification, Functional Model and Information Flows -
Call Priority Interruption and Call Priority Interruption Protection Supplementary
Services (CPI(P)SD)".
[2] ITU-T Recommendation I.210 (1993): "Principles of telecommunication services
supported by an ISDN and the means to describe them".
[3] ITU-T Recommendation Z.100 (1993): "CCITT Specification and description
language (SDL)".
[4] ETSI ETS 300 392-2 (1995): "Terrestrial Trunked Radio (TETRA); Voice plus
Data (V+D); Part 2: Air Interface (AI)".
[5] ETSI ETS 300 392-10-24 (1996): "Terrestrial Trunked Radio (TETRA); Voice
plus Data (V+D); Part 10: Supplementary services stage 1; Part 10-24: Call
retention".
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of this ETS, the following definitions apply:
Call Priority Interruption Capability Level (CPICL): parameter indicating the priority of a call
(ECMA-263); will be used in case of interworking
Call Priority Interruption Protection Level (CPIPL): parameter indicating a level of protection of a call
against interruption from other calls (ECMA-263); will be used in case of interworking

Page 8
ETS 300 392-10-24: April 2000
Call Retention Value (CRV): value which defines the relative level of protection of established calls
against pre-emption
established call: active call that is selected for interruption
impending priority interruption state: condition of an established call and a priority call after provision of
an Impending priority interruption warning notification and before the release of the established call
impending priority interruption warning notification: notification provided before the release of the
established call
non-priority call: call that has not been assigned any level of priority
NOTE 1: A non-priority call may be a protected call.
non-protected call: call that has not been assigned any level of protection
NOTE 2: A non-protected call may be a priority call.
priority call: call that has been assigned some level of priority (by a PC or PPC value)
NOTE 3: A priority call may also be a protected call.
protected call: call that has been assigned some level of protection (by a Call Retention Value)
NOTE 4: A protected call may also be a priority call.
served user: user who requests SS-CRT
Switching and Management Infrastructure (SwMI): all of the TETRA equipment for a Voice plus Data
(V+D) network except for subscriber terminals. The SwMI enables subscriber terminals to communicate
with each other via the SwMI
time to priority interruption: duration of the impending priority interruption state
unprotected call: call which has not been assigned a CRV value or has a CRV value equal to zero
3.2 Symbols
For the purposes of this ETS, there are no additional symbols excepted the symbols used in the SDL
representation (ITU-T Recommendation Z.100 [3]).
3.3 Abbreviations
3.3.1 General abbreviations
For the purposes of this ETS, the following general abbreviations apply:
GTSI Group TETRA Subscriber Identity
ISDN Integrated Services Digital Network
ISI Inter System Interface
ITSI Individual TETRA Subscriber Identity
SDL (Functional) Specification and Description Language
SS Supplementary Service
NOTE: The abbreviation SS is only used when referring to a specific supplementary service.
SwMI Switching and Management Infrastructure
TETRA Terrestrial Trunked RAdio

Page 9
ETS 300 392-10-24: April 2000
3.3.2 Supplementary service abbreviations
For the purposes of this ETS, the following Supplementary Service abbreviations apply:
AL Ambience Listening
AoC Advice of Charge
AP Access Priority
AS Area Selection
BIC Barring of Incoming Calls
BOC Barring of Outgoing Calls
CAD Call Authorized by Dispatcher
CCBS Call Completion to Busy Subscriber
CCNR Call Completion on No Reply
CFB Call Forwarding on Busy
CFNRy Call Forwarding on No Reply
CFNRc Call Forwarding on Not Reachable
CFU Call Forwarding Unconditional
CLIP Calling Line Identification Presentation
CLIR Calling/Connected Line Identification Restriction
COLP Connected Line Identification Presentation
CR Call Report
CRT Call Retention
CRV Call Retention Value
CW Call Waiting
DGNA Dynamic Group Number Assignment
DL Discreet Listening
HOLD Call Hold
IC Include Call
LE Late Entry
LSC List Search Call
PC Priority Call
PPC Pre-emptive Priority Call
SNA Short Number Addressing
TC Transfer of Control
TPI Talking Party Identification
4 SS-CRT stage 1 specification
4.1 Description
4.1.1 General description
Call Retention (SS-CRT) is a supplementary service that allows the protection of calls against
pre-emption. SS-CRT enables the user to define a relative level of call protection, once established,
against the probability of having the network connection resources pre-empted.
Every call in a Switching and Management Infrastructure (SwMI) shall be assigned a Call Retention Value
(CRV), and, i
...
