SIST EN 60335-2-48:2003/A11:2012

Household and similar electrical appliances - Safety - Part 2-48: Particular requirements for commercial electric grillers and toasters

Deals with the safety of electrically operated commercial grillers and toasters not intended for household use. The rated voltage being not more than 250 V for single-phase appliances connected between one phase and neutral, and 480 V for other appliances. Rotary or continuous grillers and toasters and similar appliances intended for grilling by radiant heat such as rotisseries, salamanders, etc. are with the scope of this standard. Appliances within the scope of this standard are typically used in restaurants, canteens, hospitals and commercial enterprises such as bakeries, butcheries, etc. The electrical part of appliances making use of other forms of energy is also within the scope of this standard.

Sicherheit elektrischer Geräte für den Hausgebrauch und ähnliche Zwecke - Teil 2-48: Besondere Anforderungen für elektrische Strahlungsgrillgeräte und Toaster für den gewerblichen Gebrauch

Appareils électrodomestiques et analogues - Sécurité - Partie 2-48: Règles particulières pour les grils et grille-pain électriques à usage collectif

Gospodinjski in podobni električni aparati - Varnost - 2-48. del: Posebne zahteve za komercialne električne žare in opekače - Dopolnilo A11

Standard obravnava varnost električno upravljanih komercialnih električnih žarov in opekačev, ki niso namenjeni gospodinjski uporabi. Nazivna napetost mora biti manjša od 250 V za enofazne aparate, priključene med fazo in nevtralni vodnik, in 480 V za ostale aparate. Rotacijski ali neprekinjeno delujoči žari in opekači ter podobni aparati, namenjeni pečenju s toplotnim sevanjem, kot so ražnji, salamandri itd., spadajo v področje uporabe tega standarda. Aparati, ki spadajo v področje uporabe tega standarda, se običajno uporabljajo v restavracijah, menzah, bolnišnicah in komercialnih podjetjih, kot so pekarne, mesnice itd. Tudi električni del aparatov, ki uporabljajo druge vire energije, spada v področje uporabe tega standarda.

General Information

• Status: Published
• Publication Date: 07-May-2012
• ICS: 97.040.20 - Cooking ranges, working tables, ovens and similar appliances
• Technical Committee: VGA - Safety of household and similar electrical appliances
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 13-Apr-2012
• Due Date: 18-Jun-2012
• Completion Date: 08-May-2012
• Directive: 2006/42/EC - Directive 2006/42/EC of the European Parliament and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC (recast)
• Directive: 2006/95/EC - Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits (codified version)
• Directive: 2014/35/EU - Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits
• Ref Project: EN 60335-2-48:2003/A11:2012 - Household and similar electrical appliances - Safety - Part 2-48: Particular requirements for commercial electric grillers and toasters

Relations

• Amends: SIST EN 60335-2-48:2003 - Household and similar electrical applicances - Safety -- Part 2-48: Particular requirements for commercial electric grillers and toasters
• Effective Date: 01-Jun-2012

Overview

EN 60335-2-48:2003/A11:2012 is a CENELEC amendment to the European safety standard for commercial electric grillers and toasters. It supplements EN 60335-2-48:2003 and EN 60335-1:2012 to define particular safety, marking and testing requirements for appliances intended for commercial and collective use (restaurants, canteens, hospitals, bakeries, butcheries, etc.). The amendment includes specific provisions for appliances with power-driven moving parts (Annex ZE) and supports conformity with the EU Low Voltage Directive (2006/95/EC) and Machinery Directive (2006/42/EC).

Key topics and technical requirements

• Scope and exclusions: applies to commercial electric grillers and toasters; excludes machines exclusively for industrial purposes, induction-heated grillers, continuous mass‑production food machines and griddles covered by IEC 60335-2-38.
• Annex ZE (commercial machines with moving parts): additional requirements to meet Essential Health and Safety Requirements (EHSR) of 2006/42/EC for appliances used by trained users or declared for commercial use.
• Operational test conditions: tests are carried out with appliances unloaded, controls set to maximum, timers disabled; motors are operated under the most severe expected normal-use conditions.
• Marking & instructions: mandatory front-cover caution (“CAUTION: Read the instructions before using the machine” or equivalent symbols), explanation of symbols (IEC 60417, ISO 7000), declaration of maximum empty weight, and guidance on protective devices for leakage currents exceeding 10 mA.
• Safety & durability tests: interlocks/guards tested for 5 000 cycles at 5 cycles/min; requirements for control visibility, secure positioning and prevention of accidental actuation.
• Hygiene and ergonomics: appliances must comply with hygiene design requirements (EN ISO 14159) and ergonomic principles (EN 614-1, EN 614-2).
• Noise guidance: airborne noise A-weighted sound pressure level below 70 dB(A) is indicated in instructions where applicable.
• Warnings and misuse: instructions must include foreseeable misuse and safety warnings (e.g., disconnect power during cleaning/maintenance).

Practical applications

• Ensures safe design, testing and documentation for commercial electric grillers and toasters, reducing risks in commercial kitchens and food-service environments.
• Used to prepare technical files for CE marking and to demonstrate conformity with EU directives.
• Guides product design decisions on guards, interlocks, hygiene-friendly construction, operator controls and maintenance procedures.

Who should use this standard

• Appliance manufacturers and design engineers for commercial catering equipment
• Test laboratories and conformity assessment bodies
• Compliance officers, procurement managers and safety engineers in food-service and institutional facilities
• Technical writers preparing user manuals and safety instructions

Related standards

• EN 60335-1:2012 (general requirements for household and similar electrical appliances)
• EN ISO 14159:2008 (hygiene requirements for machinery design)
• EN 614-1 / EN 614-2 (ergonomic design principles)
• IEC 60335-2-38 (griddles)
• IEC 60417 / ISO 7000 (graphical symbols for equipment)

Keywords: EN 60335-2-48:2003/A11:2012, commercial electric grillers, commercial toasters, appliance safety standard, CENELEC, Annex ZE, hygiene requirements, CE conformity.

Standards Content (Sample)

SLOVENSKI STANDARD
01-junij-2012
*RVSRGLQMVNLLQSRGREQLHOHNWULþQLDSDUDWL9DUQRVWGHO3RVHEQH]DKWHYH
]DNRPHUFLDOQHHOHNWULþQHåDUHLQRSHNDþH'RSROQLOR$
Household and similar electrical appliances - Safety - Part 2-48: Particular requirements
for commercial electric grillers and toasters
Sicherheit elektrischer Geräte für den Hausgebrauch und ähnliche Zwecke - Teil 2-48:
Besondere Anforderungen für elektrische Strahlungsgrillgeräte und Toaster für den
gewerblichen Gebrauch
Appareils électrodomestiques et analogues - Sécurité - Partie 2-48: Règles particulières
pour les grils et grille-pain électriques à usage collectif
Ta slovenski standard je istoveten z: EN 60335-2-48:2003/A11:2012
ICS:
97.040.20 âWHGLOQLNLGHORYQLSXOWL Cooking ranges, working
SHþLFHLQSRGREQLDSDUDWL tables, ovens and similar
appliances
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 60335-2-48/A11
NORME EUROPÉENNE
April 2012
EUROPÄISCHE NORM
ICS 97.040.50
English version
Household and similar electrical appliances -
Safety -
Part 2-48: Particular requirements for commercial electric grillers and
toasters
Appareils électrodomestiques et Sicherheit elektrischer Geräte für den
analogues - Hausgebrauch und ähnliche Zwecke -
Sécurité - Teil 2-48: Besondere Anforderungen für
Partie 2-48: Règles particulières pour les elektrische Strahlungsgrillgeräte und
grils et grille-pain électriques à usage Toaster für den gewerblichen Gebrauch
collectif
This amendment A11 modifies the European Standard EN 60335-2-48:2003; it was approved by CENELEC on
2011-12-21. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this amendment the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This amendment exists in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CENELEC member into its own language and notified to the
CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2012 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60335-2-48:2003/A11:2012 E

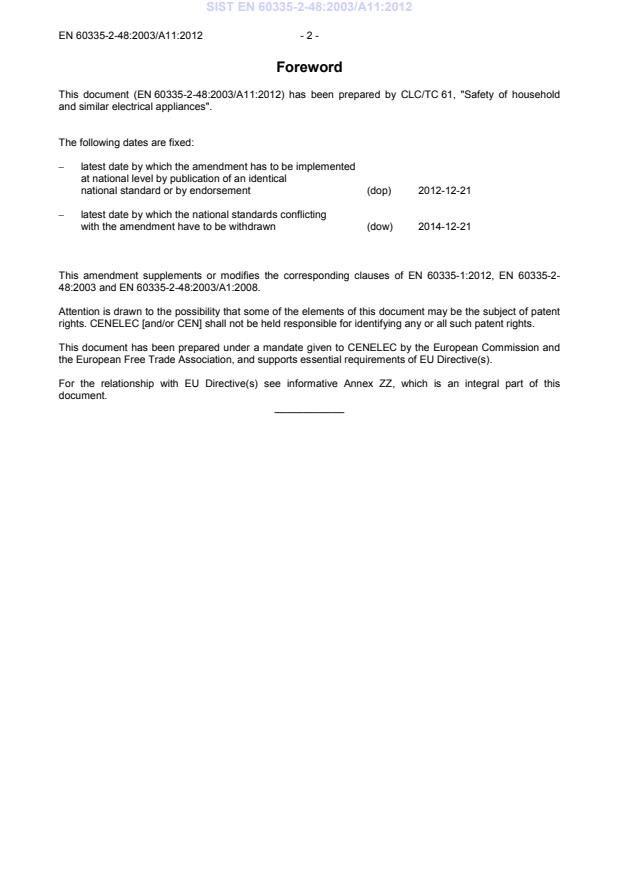

Foreword
This document (EN 60335-2-48:2003/A11:2012) has been prepared by CLC/TC 61, "Safety of household
and similar electrical appliances".

The following dates are fixed:

– latest date by which the amendment has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2012-12-21

– latest date by which the national standards conflicting
with the amendment have to be withdrawn (dow) 2014-12-21

This amendment supplements or modifies the corresponding clauses of EN 60335-1:2012, EN 60335-2-
48:2003 and EN 60335-2-48:2003/A1:2008.

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent rights.

This document has been prepared under a mandate given to CENELEC by the European Commission and
the European Free Trade Association, and supports essential requirements of EU Directive(s).

For the relationship with EU Directive(s) see informative Annex ZZ, which is an integral part of this
document.
____________
- 3 - EN 60335-2-48:2003/A11:2012

Introduction
Replace the addition of CENELEC common modifications by the following:
The principle objectives of Low Voltage Directive, 2006/95/EC, are covered in this standard. The essential
safety requirements of the Machinery Directive 2006/42/EC have also been taken into account for appliances
covered by this part.
1 Scope
Add the following paragraph before NOTE 101:
Additional requirements for appliances with power driven moving parts are given in Annex ZE.
Replace the NOTE 103 by the following text:
This standard does not apply to
– machines designed exclusively for industrial purposes,
– machines intended to be used in locations where a corrosive or an explosive atmosphere is present (dust, vapour
or gas),
– continuous process machines for the mass production of food,
– grillers and toasters designed for induction heating,
– machinery for processing cosmetics, chemicals and pharmaceutical products,
– griddles and griddle grills (IEC 60335-2-38).
3 Definitions
3.104 Replacement
installation wall
a fixed construction containing supply facilities for wall mounted appliances on one or both sides

5 General conditions for the tests
5.5 Addition
Appliances are operated with no load and with any controls intended to be operated by the user set at the
maximum. Timers, if provided, are rendered inoperative.
If doors, lids, reflectors or drip trays are provided, they are arranged in accordance with the manufacturer's
instructions. If no instructions are given, doors are fully open, drip trays are put into the lowest and the grilling
grid into the highest possible position.
If the appliance cannot be operated without a load, then the manufacturer's instructions are taken into
...
