SIST EN 1942:2008

Self adhesive tapes - Measurement of Thickness

This European Standard specifies a method on how to measure the total thickness of both the backing and adhesive layer comprising an adhesive tape.

Klebebänder - Messung der Dicke

Diese Europäische Norm legt ein Verfahren zur Messung der Gesamtdicke sowohl von dem Träger als auch
von der Klebemasse eines Klebebandes fest.

Rubans auto-adhésifs - Mesure de l'épaisseur

La présente Norme européenne spécifie une méthode permettant de mesurer l’épaisseur totale du support et
de la couche adhésive constituant un ruban adhésif.

Samolepilni trakovi - Merjenje debeline

General Information

• Status: Published
• Publication Date: 07-Sep-2008
• ICS: 83.180 - Adhesives
• Technical Committee: EPO - Packaging - sales and grouped
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 05-Sep-2008
• Due Date: 10-Nov-2008
• Completion Date: 08-Sep-2008
• Ref Project: EN 1942:2008 - Self adhesive tapes - Measurement of Thickness

Relations

• Replaces: SIST EN 1942:2003 - Self adhesive tapes - Measurement of Thickness
• Effective Date: 01-Oct-2008

Overview

EN 1942:2008 - "Self adhesive tapes - Measurement of Thickness" is a European Standard published by CEN that defines a laboratory method to measure the total thickness of self-adhesive tapes (backing plus adhesive). The standard specifies required apparatus, sample conditioning, measurement procedure and reporting requirements to ensure repeatable, comparable tape thickness measurements used in quality control and product specification.

Key topics and technical requirements

• Scope: Measurement of total thickness of adhesive tape (backing + adhesive).
• Significance: Thickness is an important property for end-use performance and acceptance testing.
• Conditioning: Roll/sample conditioned at (23 ± 1) °C and (50 ± 5) % RH unless otherwise specified.
• Apparatus:
  • Micrometer (calliper gauge) with two plane surfaces; the smaller face circular, 5 mm to 16 mm diameter.
  • Faces parallel to within 5 µm, constrained to move on an axis perpendicular to them.
  • Foot pressure on the tape in the range 40 kPa to 60 kPa.
  • Instrument sensitivity at least 2 µm.
• Test pieces:
  • Width greater than micrometer foot diameter and at least 50 mm long.
  • Remove 3–6 outer turns of roll before sampling; typically one test piece per roll unless specified otherwise.
• Procedure:
  • Zero the instrument and clean the pressure foot before each measurement.
  • Place test piece adhesive side up; lower foot gently; record reading 1 s after lowering.
  • Make three measurements on different areas of the piece and average for the thickness value.
  • For double-coated tapes with liner: measure tape+liner, measure liner separately at same positions, subtract liner average from total average.
• Results & reporting:
  • Express thickness as arithmetic mean in µm.
  • Test report must reference EN 1942:2008 and include sample identification, results, any deviations, test date/place and tester signature.

Applications and who uses it

• Tape manufacturers for production quality control and specification compliance.
• Independent testing laboratories performing acceptance and comparative testing.
• Purchasing/procurement teams verifying supplier claims.
• R&D and product development teams assessing how thickness affects tape performance (e.g., bonding, cushioning, dielectric properties).
• Useful across industries using pressure-sensitive tapes: electronics, automotive, packaging, construction, and general industrial assembly.

Related standards

• Supersedes EN 1942:2003. Developed in collaboration with AFERA and PSTC with the intent of harmonisation and potential future adoption by ISO.
• ICS classification: 83.180 (Adhesives).

Keywords: EN 1942:2008, self adhesive tapes, measurement of thickness, tape thickness measurement, micrometer, adhesive tape thickness.

Standards Content (Sample)

SLOVENSKI STANDARD
01-oktober-2008
1DGRPHãþD
SIST EN 1942:2003
Samolepilni trakovi - Merjenje debeline
Self adhesive tapes - Measurement of Thickness
Klebebänder - Messung der Dicke
Rubans auto-adhésifs - Mesure de l'épaisseur
Ta slovenski standard je istoveten z: EN 1942:2008
ICS:
83.180 Lepila Adhesives
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 1942
NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2008
ICS 83.180 Supersedes EN 1942:2003
English Version
Self adhesive tapes - Measurement of Thickness
Rubans auto-adhésifs - Mesure de l'épaisseur Klebebänder - Messung der Dicke
This European Standard was approved by CEN on 24 February 2008.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the
official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2008 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 1942:2008: E
worldwide for CEN national Members.

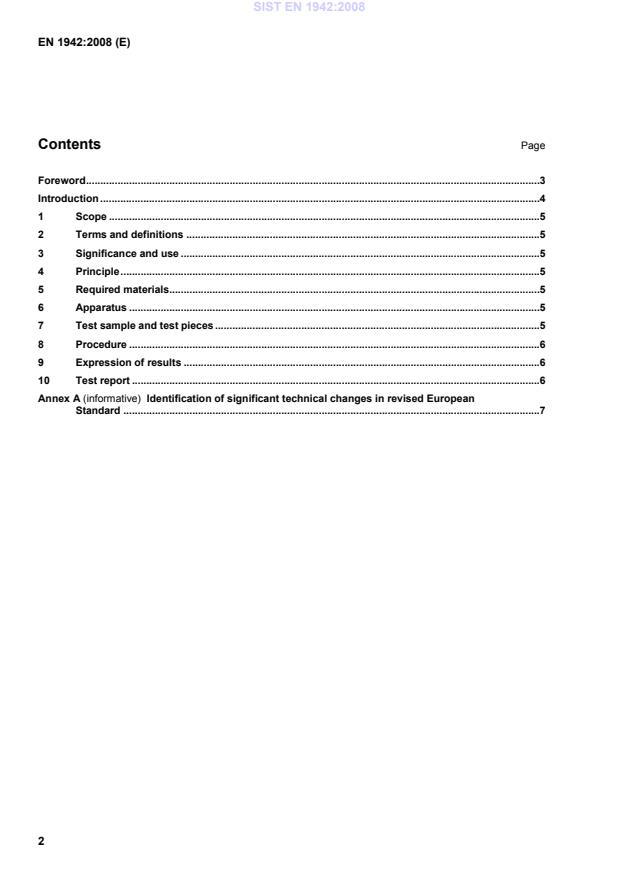

Contents Page
Foreword.3
Introduction .4
1 Scope.5
2 Terms and definitions .5
3 Significance and use .5
4 Principle.5
5 Required materials.5
6 Apparatus.5
7 Test sample and test pieces .5
8 Procedure.6
9 Expression of results.6
10 Test report.6
Annex A (informative) Identification of significant technical changes in revised European
Standard .7

Foreword
This document (EN 1942:2008) has been prepared by Technical Committee CEN/TC 253 “Self adhesive
tapes”, the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by September 2008, and conflicting national standards shall be
withdrawn at the latest by September 2008.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 1942:2003.
Annex A provides details of significant technical changes between this European Standard and the previous
edition.
According to the CEN/CENELEC Internal
...
