Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI); Part 2: Physical Layer (PHL)
Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI); Part 2: Physical Layer (PHL)
The present document is one of the parts of the specification of the Digital Enhanced Cordless Telecommunications
(DECT) Common Interface (CI).
The present document specifies the physical channel arrangements. DECT physical channels are radio communication
paths between two radio end points. A radio end point is either part of the fixed infrastructure, a privately owned Fixed
Part (FP), typically a base station, or a Portable Part (PP), typically a handset. The assignment of one or more particular
physical channels to a call is the task of higher layers.
The Physical Layer (PHL) interfaces with the Medium Access Control (MAC) layer, and with the Lower Layer
Management Entity (LLME). On the other side of the PHL is the radio transmission medium which has to be shared
extensively with other DECT users and a wide variety of other radio services. The tasks of the PHL can be grouped into
five categories:
a) to modulate and demodulate radio carriers with a bit stream of a defined rate to create a radio frequency
channel;
b) to acquire and maintain bit and slot synchronization between transmitters and receivers;
c) to transmit or receive a defined number of bits at a requested time and on a particular frequency;
d) to add and remove the synchronization field and the Z-field used for rear end collision detection;
e) to observe the radio environment to report signal strengths.
The present document includes New Generation DECT, a further development of the DECT standard introducing
wideband speech, improved data services, new slot types and other technical enhancements.
Digitalne izboljšane brezvrvične telekomunikacije (DECT) - Skupni vmesnik (CI) - 2. del: Fizična plast (PHL)
Ta dokument je eden od delov specifikacije skupnega vmesnika (CI) za digitalne izboljšane brezvrvične telekomunikacije (DECT).
Ta dokument določa ureditve fizičnega kanala. Fizični kanali digitalnih izboljšanih brezvrvičnih telekomunikacij so poti radijske komunikacije med dvema radijskima končnima točkama. Radijska končna točka je del fiksne strukture, tj. fiksni del (FP) v zasebni lasti – običajno bazna postaja, ali prenosni del (PP) – običajno slušalka. Dodelitev enega ali več določenih fizičnih kanalov klicu je opravilo, ki ga izvajajo višje plasti.
Fizična plast (PHL) je povezana s plastjo krmiljenja dostopa do prenosnega medija (MAC) in entiteto upravljanja nižjih plasti (LLME). Na drugi strani fizične plasti je medij za radijski prenos, ki je namenjen obsežni skupni uporabi več uporabnikov digitalnih izboljšanih brezvrvičnih telekomunikacij in različnim radijskim storitvam. Opravila fizične plasti je mogoče združiti v pet kategorij:
a) modulacija in demodulacija radijskih nosilcev z bitnim pretokom določene stopnje za ustvarjanje radiofrekvenčnega kanala;
b) pridobivanje ter vzdrževanje bitne in režne sinhronizacije med oddajniki in prejemniki;
c) oddajanje ali prejemanje določenega števila bitov ob zahtevanem času in na določeni frekvenci;
d) dodajanje in odstranjevanje polja sinhronizacije in polja Z, ki se uporablja za zaznavanje trka v zadnji del vozila;
e) opazovanje radijskega okolja za sporočanje moči signala.
Ta dokument vključuje novo generacijo digitalnih izboljšanih brezvrvičnih telekomunikacij, nadaljnji razvoj standarda za digitalne izboljšane brezvrvične telekomunikacije, ki uvaja širokopasovni govor, izpopolnjene podatkovne storitve, nove tipe rež in druge tehnične izpopolnitve.
General Information
Standards Content (Sample)
Draft ETSI EN 300 175-2 V2.5.6 (2015-03)
EUROPEAN STANDARD
Digital Enhanced Cordless Telecommunications (DECT);
Common Interface (CI);
Part 2: Physical Layer (PHL)
2 Draft ETSI EN 300 175-2 V2.5.6 (2015-03)
Reference
REN/DECT-000304-2
Keywords
DECT, IMT-2000, mobility, radio, TDD, TDMA
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the
print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying
and microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2015.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 Draft ETSI EN 300 175-2 V2.5.6 (2015-03)
Contents
Intellectual Property Rights . 7
Foreword . 7
Modal verbs terminology . 7
1 Scope . 8
2 References . 8
2.1 Normative references . 8
2.2 Informative references . 9
3 Definitions and abbreviations . 10
3.1 Definitions . 10
3.2 Abbreviations . 11
4 PHL services . 12
4.0 General . 12
4.1 RF channels (access in frequency) . 13
4.1.1 Nominal position of RF carriers . 13
4.1.2 Accuracy and stability of RF carriers . 14
4.2 Time Division Multiple Access (TDMA) structure (access in time) . 14
4.2.1 Frame, full-slot, double-slot, half-slot and variable capacity slot structure (including long slot) . 14
4.2.2 Reference timer accuracy and stability . 15
4.2.3 RFP transmission jitter. 16
4.2.4 PP reference timer synchronization . 16
4.2.5 System synchronization . 16
4.2.6 Inter-system synchronization . 16
4.2.7 Reference timer adjustment for synchronization . 17
4.3 Cells (access in space) . 17
4.4 Physical packets . 17
4.4.0 General . 17
4.4.1 The short physical packet P00 . 17
4.4.2 The basic physical packet P32 . 18
4.4.3 The variable capacity physical packet P00j . 18
4.4.4 The high capacity physical packet P80 . 19
4.5 Physical channels . 19
4.5.0 General . 19
4.5.1 Ra (K, L, M, N) notation . 19
4.5.2 The short physical channel R00 (K, L, M, N) . 20
4.5.3 The basic physical channel R32 (K, L, M, N) . 20
4.5.4 The variable-rate physical channel R00j (K, L, M, N) . 21
4.5.5 The high capacity physical channel R80 (K, L, M, N) . 22
4.6 Synchronization field S . 22
4.7 D-field . 23
4.7.1 Physical packet P00 . 23
4.7.2 Physical packet P32 . 23
4.7.3 Physical packet P00j . 23
4.7.4 Physical packet P80 . 23
4.8 Z-field . 24
4.9 Bit pattern during ramping . 24
5 Transmission of physical packets . 24
5.1 Definitions . 24
5.1.1 End of the physical packet . 24
5.1.2 Transmitted power . 24
5.1.3 Normal Transmitted Power (NTP) . 24
5.2 Transmission burst . 25
5.2.0 General . 25
5.2.1 Transmitter attack time . 25
5.2.2 Transmitter release time . 25
ETSI
4 Draft ETSI EN 300 175-2 V2.5.6 (2015-03)
5.2.3 Minimum power . 25
5.2.4 Maximum power . 25
5.2.5 Maintenance of transmission after packet end . 25
5.2.6 Transmitter idle power output . 25
5.3 Transmitted power . 26
5.3.1 Peak power per transceiver . 26
5.3.1.1 PP and RFP with an integral antenna . 26
5.3.1.2 PP and RFP with external connections for all antennas . 26
5.3.2 Maximum EIRP and number of transceivers . 26
5.4 RF carrier modulation . 26
5.4.1 Modulation method . 26
5.4.2 Definition of "1" and "0" . 26
5.4.3 Deviation limits . 26
5.5 Unwanted RF power radiation . 27
5.5.1 Emissions due to modulation . 27
5.5.2 Emissions due to transmitter transients . 27
5.5.3 Emissions due to intermodulation . 27
5.5.4 Spurious emissions when allocated a transmit channel . 28
6 Reception of physical packets . 28
6.1 Definitions and conditions for clause 6 . 28
6.1.1 Power levels and field strength . 28
6.1.2 Test conditions . 28
6.1.3 Reference DECT radio end point . 29
6.2 Radio receiver sensitivity . 29
6.3 Radio receiver reference bit error rate and frame error ratio . 29
6.4 Radio receiver interference performance. 29
6.5 Radio receiver blocking . 30
6.5.1 Owing to signals occurring at the same time but on other frequencies . 30
6.5.2 Owing to signals occurring at a different time . 30
6.6 Receiver intermodulation performance . 30
6.7 Spurious emissions when not allocated a transmit channel . 30
6.7.1 Out of band . 30
6.7.2 In the DECT band . 31
7 Primitives between physical layer and other entities . 31
7.0 General . 31
7.1 Medium access control layer (D-SAP) . 31
7.1.0 D-SAP general . 31
7.1.1 PL_TX {req} . 31
7.1.2 PL_RX {req, cfm} . 32
7.1.3 PL_FREQ_ADJ {req} . 32
7.2 Management entity (PM-SAP) . 32
7.2.0 PM-SAP general . 32
7.2.1 PL_ME_SYNC {req, cfm} . 32
7.2.2 PL_ME_SIG_STR {req, cfm} . 32
7.2.3 PL_ME_TIME_ADJ {req, cfm} . 32
8 PHL procedures . 33
8.1 Addition of synchronization field and transmission . 33
8.2 Packet reception and removal of synchronization field . 33
8.3 Measurement of signal strength . 33
8.4 Synchronization pulse detection . 34
8.5 Timing adjustment . 34
8.6 Frequency adjustment . 34
9 Management entity procedures related to PHL . 34
9.1 List of quietest physical channels . 34
9.2 Physical channels with greatest field strength (PP only) . 34
9.3 Extract timing . 34
Annex A (informative): RF exposure requirements . 35
A.0 General . 35
ETSI
5 Draft ETSI EN 300 175-2 V2.5.6 (2015-03)
A.1 Recommendation . 35
A.2 Compliance distances . 35
Annex B (normative): Synchronization port . 37
B.1 General requirements . 37
B.2 Wired synchronization ports . 37
B.2.0 Wired synchronization general . 37
B.2.1 Synchronization signal . 38
B.3 GPS synchronization . 39
B.3.0 GPS synchronization general . 39
B.3.1 Synchronization signal . 40
B.3.2 DECT timings derivation from the GPS time. 40
B.3.2.0 Timings derivation general . 40
B.3.2.1 DECT multiframe number synchronization using GPS . 41
B.3.2.2 DECT PSCN synchronization using GPS . 41
B.4 Guidance for installation . 42
B.4.1 Interconnection cable . 42
B.4.2 Propagation delay of synchronization signals . 42
B.4.2.1 Calculation of Propagation delay (informative) . 42
B.4.2.2 Delay compensation . 43
B.4.3 GPS receiver stability . 43
Annex C (informative): Prolonged preamble . 44
C.0 General . 44
C.1 Bit pattern . 44
C.2 The power-time template. 44
Annex D (normative): 4-level/8-level/16-level/64-level modulation option . 45
D.0 General . 45
D.1 The π/2-DBPSK modulation scheme . 46
D.1.1 RF carrier modulation . 46
D.1.1.0 Filter and phase change . 46
D.1.1.1 Modulation accuracy. 46
D.1.2 Transmission of physical packets . 47
D.2 The π/4-DQPSK modulation scheme . 47
D.2.1 RF carrier modulation . 47
D.2.1.0 Filter and phase change . 47
D.2.1.1 Modulation accuracy. 47
D.2.2 Transmission of physical packets . 47
D.3 The π/8-D8PSK modulation scheme . 47
D.3.1 RF carrier modulation . 47
D.3.1.0 Filter and phase change . 47
D.3.1.1 Modulation accuracy. 48
D.3.2 Transmission of physical packets . 48
D.4 The 16 QAM modulation scheme . 48
D.4.1 RF carrier modulation . 48
D.4.1.0 Filter and constellation symbols . 48
D.4.1.1 Modulation accuracy. 49
D.4.2 Transmission of physical packets . 49
D.5 The 64 QAM modulation scheme . 49
D.5.1 RF carrier modulation . 49
D.5.1.0 Filter and constellation symbols . 49
D.5.1.1 Modulation accuracy. 50
ETSI
6 Draft ETSI EN 300 175-2 V2.5.6 (2015-03)
D.5.2 Transmission of physical packets . 51
D.6 Transmission of physical packets . 51
D.6.1 Error vector magnitude definition . 51
D.6.2 EVM requirement . 51
Annex E (normative): Power control procedures . 52
E.0 General . 52
E.1 Definitions of parameters and relations between parameters . 52
E.2 Procedure for PP power adjustment due to movement . 53
E.3 Setting the power control threshold, RSSpT . 54
Annex F (normative): DECT carrier numbers and carrier positions in the range 1 880 MHz
to 2 025 MHz and for the US market 902 MHz to 928 MHz and
2 400 MHz to 2 483,5 MHz . 55
F.1 Introduction . 55
F.2 1 880 MHz to 1 978 MHz and 2 010 MHz to 2 025 MHz RF band 00001 . 55
F.3 1 880 MHz to 1 925 MHz and 2 010 MHz to 2 025 MHz RF band 00010 . 56
F.4 1 880 MHz to 1 900 MHz, 1 915 MHz to 1 940 MHz and 2 010 MHz to 2 025 MHz RF band
00011 . 57
F.5 1 880 MHz to 1 900 MHz, 1 935 MHz to 1 960 MHz and 2 010 MHz to 2 025 MHz RF band
00100 . 58
F.6 1 880 MHz to 1 900 MHZ, 1 955 MHz to 1 980 MHz and 2 010 MHz to 2 025 MHz RF band
00101 . 59
F.7 US ISM band carriers . 60
F.7.0 General . 60
F.7.1 902 MHz to 928 MHz RF band 01000 . 60
F.7.2 2 400 MHz to 2 483,5 MHz RF band 01001 . 61
Annex G (informative): Bibliography . 62
Annex H (informative): Change history . 63
History . 64
ETSI
7 Draft ETSI EN 300 175-2 V2.5.6 (2015-03)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://ipr.etsi.org).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This draft European Standard (EN) has been produced by ETSI Technical Committee Digital Enhanced Cordless
Telecommunications (DECT), and is now submitted for the combined Public Enquiry and Vote phase of the ETSI
standards EN Approval Procedure.
The present document is part 2 of a multi-part deliverable ([1] to [8]). Full details of the entire series can be found in
part 1 [1].
Further details of the DECT system may be found in ETSI TR 101 178 [i.1] and ETSI ETR 043 [i.2].
Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 6 months after doa
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
ETSI
8 Draft ETSI EN 300 175-2 V2.5.6 (2015-03)
1 Scope
The present document is one of the parts of the specification of the Digital Enhanced Cordless Telecommunications
(DECT) Common Interface (CI).
The present document specifies the physical channel arrangements. DECT physical channels are radio communication
paths between two radio end points. A radio end point is either part of the fixed infrastructure, a privately owned Fixed
Part (FP), typically a base station, or a Portable Part (PP), typically a handset. The assignment of one or more particular
physical channels to a call is the task of higher layers.
The Physical Layer (PHL) interfaces with the Medium Access Control (MAC) layer, and with the Lower Layer
Management Entity (LLME). On the other side of the PHL is the radio transmission medium which has to be shared
extensively with other DECT users and a wide variety of other radio services. The tasks of the PHL can be grouped into
five categories:
a) to modulate and demodulate radio carriers with a bit stream of a defined rate to create a radio frequency
channel;
b) to acquire and maintain bit and slot synchronization between transmitters and receivers;
c) to transmit or receive a defined number of bits at a requested time and on a particular frequency;
d) to add and remove the synchronization field and the Z-field used for rear end collision detection;
e) to observe the radio environment to report signal strengths.
The present document includes New Generation DECT, a further development of the DECT standard introducing
wideband speech, improved data services, new slot types and other technical enhancements.
2 References
2.1 Normative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
The following referenced documents are necessary for the application of the present document.
[1] ETSI EN 300 175-1: "Digital Enhanced Cordless Telecommunications (DECT); Common
Interface (CI); Part 1: Overview".
[2] Void.
[3] ETSI EN 300 175-3: "Digital Enhanced Cordless Telecommunications (DECT); Common
Interface (CI); Part 3: Medium Access Control (MAC) layer".
[4] ETSI EN 300 175-4: "Digital Enhanced Cordless Telecommunications (DECT); Common
Interface (CI); Part 4: Data Link Control (DLC) layer".
[5] ETSI EN 300 175-5: "Digital Enhanced Cordless Telecommunications (DECT); Common
Interface (CI); Part 5: Network (NWK) layer".
[6] ETSI EN 300 175-6: "Digital Enhanced Cordless Telecommunications (DECT); Common
Interface (CI); Part 6: Identities and addressing".
ETSI
9 Draft ETSI EN 300 175-2 V2.5.6 (2015-03)
[7] ETSI EN 300 175-7: "Digital Enhanced Cordless Telecommunications (DECT); Common
Interface (CI); Part 7: Security features".
[8] ETSI EN 300 175-8: "Digital Enhanced Cordless Telecommunications (DECT); Common
Interface (CI); Part 8: Speech and audio coding and transmission".
[9] ETSI EN 300 176-1: "Digital Enhanced Cordless Telecommunications (DECT); Test
specification; Part 1: Radio".
[10] Recommendation ITU-R M.1457-11: "Detailed specifications of the terrestrial radio interfaces of
International Mobile Telecommunications-2000 (IMT-2000)".
[11] Recommendation ITU-T V.11: "Electrical characteristics for balanced double-current interchange
circuits operating at data signalling rates up to 10 Mbit/s".
[12] Federal Communications Commission FCC 02-151: "Second Report and Order, Amendment of
Part 15 of the Commission's Rules Regarding Spread Spectrum Devices".
[13] CEPT/ECC/DEC/(06)01: "ECC Decision of 24 March 2006 amended 02 November 2012 on the
harmonised utilisation of the bands 1920-1980 MHz and 2110-2170 MHz for mobile/fixed
communications networks (MFCN) including terrestrial IMT systems".
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI TR 101 178: "Digital Enhanced Cordless Telecommunications (DECT); A High Level Guide
to the DECT Standardization".
[i.2] ETSI ETR 043: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface
(CI); Services and facilities requirements specification".
[i.3] International Commission on Non-Ionizing Radiation Protection (ICNIRP): "Guidelines for
limiting exposure to time-varying electric, magnetic, and electromagnetic fields (up to 300 GHz),
Health Physics", vol. 74, pp 494-522, April 1998.
[i.4] Council Recommendation 1999/519/EC of 12 July 1999 on the limitation of exposure of the
general public to electromagnetic fields (0 Hz to 300 GHz) (Official Journal of the European
Communities, July 1999).
[i.5] CENELEC EN 50360: "Product standard to demonstrate the compliance of mobile phones with
the basic restrictions related to human exposure to electromagnetic fields (300 MHz - 3 GHz)",
European Committee for Electrotechnical Standardization (CENELEC), July 2001. (Harmonized
standard listed under the R&TTE directive).
[i.6] CENELEC EN 50385: "Product standard to demonstrate the compliance of radio base stations and
fixed terminal stations for wireless telecommunication systems with the basic restrictions or the
reference levels related to human exposure to radio frequency electromagnetic fields (110 MHz -
40 GHz) - General public", European Committee for Electrotechnical Standardization
(CENELEC), November 2001 (draft).
[i.7] CENELEC EN 50383: "Basic standard for the calculation and measurement of electromagnetic
field strength and SAR related to human exposure from radio base stations and fixed terminal
stations for wireless telecommunication systems (110 MHz - 40 GHz)", European Committee for
Electrotechnical Standardization (CENELEC), November 2001 (draft).
ETSI
10 Draft ETSI EN 300 175-2 V2.5.6 (2015-03)
[i.8] IEEE 802.11b: "Standard for Information Technology - Telecommunications and Information
Exchange Between Systems - Local and Metropolitan Area Networks - Specific Requirements -
Part 11: Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY)
Specifications".
3 Definitions and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
antenna diversity: See ETSI EN 300 175-1 [1].
cell: See ETSI EN 300 175-1 [1].
Central Control Fixed Part (CCFP): See ETSI EN 300 175-1 [1].
channel: See ETSI EN 300 175-1 [1].
cluster: See ETSI EN 300 175-1 [1].
Connection Oriented mode (C/O): See ETSI EN 300 175-1 [1].
Cordless Radio Fixed Part (CRFP): See ETSI EN 300 175-1 [1].
coverage area: See ETSI EN 300 175-1 [1].
DECT Network (DNW): See ETSI EN 300 175-1 [1].
double duplex bearer: See ETSI EN 300 175-1 [1].
double simplex bearer: See ETSI EN 300 175-1 [1].
double slot: See ETSI EN 300 175-1 [1].
down-link: See ETSI EN 300 175-1 [1].
duplex bearer: See ETSI EN 300 175-1 [1].
Fixed Part (DECT Fixed Part) (FP): See ETSI EN 300 175-1 [1].
Fixed radio Termination (FT): See ETSI EN 300 175-1 [1].
frame: See ETSI EN 300 175-1 [1].
full slot (slot): See ETSI EN 300 175-1 [1].
guard space: See ETSI EN 300 175-1 [1].
half slot: See ETSI EN 300 175-1 [1].
handover: See ETSI EN 300 175-1 [1].
IMT-2000: International Mobile Telecommunications, Third Generation Mobile Systems
IMT-FT: International Mobile Telecommunications, FDMA/TDMA
NOTE: This is the DECT family member of IMT-2000.
intercell handover: See ETSI EN 300 175-1 [1].
intracell handover: See ETSI EN 300 175-1 [1].
Lower Layer Management Entity (LLME): See ETSI EN 300 175-1 [1].
multiframe: See ETSI EN 300 175-1 [1].
ETSI
11 Draft ETSI EN 300 175-2 V2.5.6 (2015-03)
New Generation DECT: See ETSI EN 300 175-1 [1].
physical channel (channel): See ETSI EN 300 175-1 [1].
Portable Part (DECT Portable Part) (PP): See ETSI EN 300 175-1 [1].
Portable radio Termination (PT): See ETSI EN 300 175-1 [1].
public access service: See ETSI EN 300 175-1 [1].
radio channel: See ETSI EN 300 175-1 [1].
radio end point: See ETSI EN 300 175-1 [1].
Radio Fixed Part (RFP): See ETSI EN 300 175-1 [1].
Repeater Part (REP): See ETSI EN 300 175-1 [1].
RF carrier (carrier): See ETSI EN 300 175-1 [1].
RF channel: See ETSI EN 300 175-1 [1].
simplex bearer: See ETSI EN 300 175-1 [1].
Single Radio Fixed Part (SRFP): See ETSI EN 300 175-1 [1].
TDMA frame: See ETSI EN 300 175-1 [1].
Wireless Relay Station (WRS): See ETSI EN 300 175-1 [1].
3.2 Abbreviations
For the purposes of the present document, the following abbreviations apply:
AC ACcuracy
AM Amplitude Modulation
BER Bit Error Rate
BT Bandwidth Time product (Gaussian filters)
CCFP Central Control Fixed Part
CI Common Interface (standard)
CRC Cyclic Redundancy Check
CRFP Cordless Radio Fixed Part
CTA Cordless Terminal Adapter
dBm dB relative to 1 milliwatt
DBPSK Differential Binary Phase Shift Keying
DC Direct Current
DLC Data Link Control layer
DNW DECT Network
DPSK Differential Phase Shift Keying
DQPSK Differential Quaternary Phase Shift Keying
D-SAP Data field-Service Access Point
DSV Digital Sum Variation
EIRP Equivalent Isotropically Radiated Power
ERP Effective Radiated Power
EVM Error-Vector Magnitude
FMID Fixed part MAC IDentity
FP Fixed Part
FT Fixed radio Termination
Fy Frequency
GFSK Gaussian Frequency Shift Keying
GMSK Gaussian Minimum Shift Keying
GPS Global Positioning System
HLM High Level Modulation
ICNIRP International Commission on Non-Ionizing Radiation Protection
iDCS instant Dynamic Channel Selection
ETSI
--
...
EUROPEAN STANDARD
Digital Enhanced Cordless Telecommunications (DECT);
Common Interface (CI);
Part 2: Physical Layer (PHL)

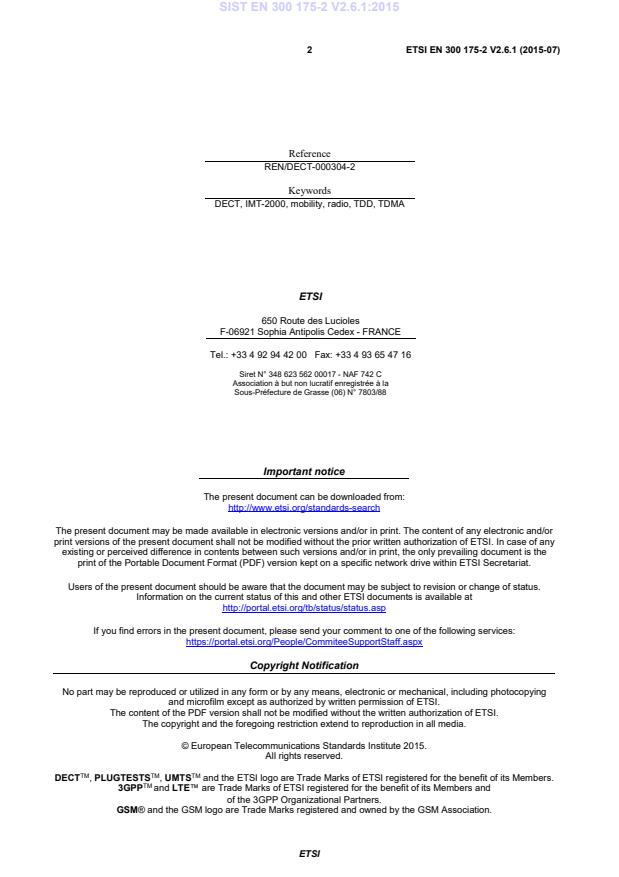

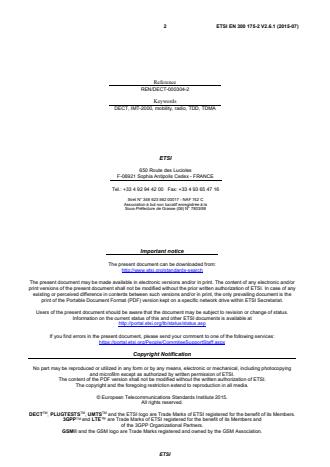

2 ETSI EN 300 175-2 V2.6.1 (2015-07)
Reference
REN/DECT-000304-2
Keywords
DECT, IMT-2000, mobility, radio, TDD, TDMA
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

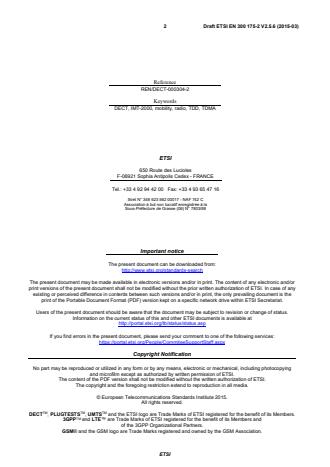

Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the
print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying
and microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2015.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 ETSI EN 300 175-2 V2.6.1 (2015-07)
Contents
Intellectual Property Rights . 7
Foreword . 7
Modal verbs terminology . 7
1 Scope . 8
2 References . 8
2.1 Normative references . 8
2.2 Informative references . 9
3 Definitions and abbreviations . 10
3.1 Definitions . 10
3.2 Abbreviations . 11
4 PHL services . 12
4.0 General . 12
4.1 RF channels (access in frequency) . 13
4.1.1 Nominal position of RF carriers . 13
4.1.2 Accuracy and stability of RF carriers . 14
4.2 Time Division Multiple Access (TDMA) structure (access in time) . 14
4.2.1 Frame, full-slot, double-slot, half-slot and variable capacity slot structure (including long slot) . 14
4.2.2 Reference timer accuracy and stability . 15
4.2.3 RFP transmission jitter. 16
4.2.4 PP reference timer synchronization . 16
4.2.5 System synchronization . 16
4.2.6 Inter-system synchronization . 16
4.2.7 Reference timer adjustment for synchronization . 17
4.3 Cells (access in space) . 17
4.4 Physical packets . 17
4.4.0 General . 17
4.4.1 The short physical packet P00 . 17
4.4.2 The basic physical packet P32 . 18
4.4.3 The variable capacity physical packet P00j . 18
4.4.4 The high capacity physical packet P80 . 19
4.5 Physical channels . 19
4.5.0 General . 19
4.5.1 Ra (K, L, M, N) notation . 19
4.5.2 The short physical channel R00 (K, L, M, N) . 20
4.5.3 The basic physical channel R32 (K, L, M, N) . 20
4.5.4 The variable-rate physical channel R00j (K, L, M, N) . 21
4.5.5 The high capacity physical channel R80 (K, L, M, N) . 22
4.6 Synchronization field S . 22
4.7 D-field . 23
4.7.1 Physical packet P00 . 23
4.7.2 Physical packet P32 . 23
4.7.3 Physical packet P00j . 23
4.7.4 Physical packet P80 . 23
4.8 Z-field . 24
4.9 Bit pattern during ramping . 24
5 Transmission of physical packets . 24
5.1 Definitions . 24
5.1.1 End of the physical packet . 24
5.1.2 Transmitted power . 24
5.1.3 Normal Transmitted Power (NTP) . 24
5.2 Transmission burst . 25
5.2.0 General . 25
5.2.1 Transmitter attack time . 25
5.2.2 Transmitter release time . 25
ETSI
4 ETSI EN 300 175-2 V2.6.1 (2015-07)
5.2.3 Minimum power . 25
5.2.4 Maximum power . 25
5.2.5 Maintenance of transmission after packet end . 25
5.2.6 Transmitter idle power output . 25
5.3 Transmitted power . 26
5.3.1 Peak power per transceiver . 26
5.3.1.1 PP and RFP with an integral antenna . 26
5.3.1.2 PP and RFP with external connections for all antennas . 26
5.3.2 Maximum EIRP and number of transceivers . 26
5.4 RF carrier modulation . 26
5.4.1 Modulation method . 26
5.4.2 Definition of "1" and "0" . 26
5.4.3 Deviation limits . 26
5.5 Unwanted RF power radiation . 27
5.5.1 Emissions due to modulation . 27
5.5.2 Emissions due to transmitter transients . 27
5.5.3 Emissions due to intermodulation . 27
5.5.4 Spurious emissions when allocated a transmit channel . 28
6 Reception of physical packets . 28
6.1 Definitions and conditions for clause 6 . 28
6.1.1 Power levels and field strength . 28
6.1.2 Test conditions . 28
6.1.3 Reference DECT radio end point . 29
6.2 Radio receiver sensitivity . 29
6.3 Radio receiver reference bit error rate and frame error ratio . 29
6.4 Radio receiver interference performance. 29
6.5 Radio receiver blocking . 30
6.5.1 Owing to signals occurring at the same time but on other frequencies . 30
6.5.2 Owing to signals occurring at a different time . 30
6.6 Receiver intermodulation performance . 30
6.7 Spurious emissions when not allocated a transmit channel . 30
6.7.1 Out of band . 30
6.7.2 In the DECT band . 31
7 Primitives between physical layer and other entities . 31
7.0 General . 31
7.1 Medium access control layer (D-SAP) . 31
7.1.0 D-SAP general . 31
7.1.1 PL_TX {req} . 31
7.1.2 PL_RX {req, cfm} . 32
7.1.3 PL_FREQ_ADJ {req} . 32
7.2 Management entity (PM-SAP) . 32
7.2.0 PM-SAP general . 32
7.2.1 PL_ME_SYNC {req, cfm} . 32
7.2.2 PL_ME_SIG_STR {req, cfm} . 32
7.2.3 PL_ME_TIME_ADJ {req, cfm} . 32
8 PHL procedures . 33
8.1 Addition of synchronization field and transmission . 33
8.2 Packet reception and removal of synchronization field . 33
8.3 Measurement of signal strength . 33
8.4 Synchronization pulse detection . 34
8.5 Timing adjustment . 34
8.6 Frequency adjustment . 34
9 Management entity procedures related to PHL . 34
9.1 List of quietest physical channels . 34
9.2 Physical channels with greatest field strength (PP only) . 34
9.3 Extract timing . 34
Annex A (informative): RF exposure requirements . 35
A.0 General . 35
ETSI
5 ETSI EN 300 175-2 V2.6.1 (2015-07)
A.1 Recommendation . 35
A.2 Compliance distances . 35
Annex B (normative): Synchronization port . 37
B.1 General requirements . 37
B.2 Wired synchronization ports . 37
B.2.0 Wired synchronization general . 37
B.2.1 Synchronization signal . 38
B.3 GPS synchronization . 39
B.3.0 GPS synchronization general . 39
B.3.1 Synchronization signal . 40
B.3.2 DECT timings derivation from the GPS time. 40
B.3.2.0 Timings derivation general . 40
B.3.2.1 DECT multiframe number synchronization using GPS . 41
B.3.2.2 DECT PSCN synchronization using GPS . 41
B.4 Guidance for installation . 42
B.4.1 Interconnection cable . 42
B.4.2 Propagation delay of synchronization signals . 42
B.4.2.1 Calculation of Propagation delay (informative) . 42
B.4.2.2 Delay compensation . 43
B.4.3 GPS receiver stability . 43
Annex C (informative): Prolonged preamble . 44
C.0 General . 44
C.1 Bit pattern . 44
C.2 The power-time template. 44
Annex D (normative): 4-level/8-level/16-level/64-level modulation option . 45
D.0 General . 45
D.1 The π/2-DBPSK modulation scheme . 46
D.1.1 RF carrier modulation . 46
D.1.1.0 Filter and phase change . 46
D.1.1.1 Modulation accuracy. 46
D.1.2 Transmission of physical packets . 47
D.2 The π/4-DQPSK modulation scheme . 47
D.2.1 RF carrier modulation . 47
D.2.1.0 Filter and phase change . 47
D.2.1.1 Modulation accuracy. 47
D.2.2 Transmission of physical packets . 47
D.3 The π/8-D8PSK modulation scheme . 47
D.3.1 RF carrier modulation . 47
D.3.1.0 Filter and phase change . 47
D.3.1.1 Modulation accuracy. 48
D.3.2 Transmission of physical packets . 48
D.4 The 16 QAM modulation scheme . 48
D.4.1 RF carrier modulation . 48
D.4.1.0 Filter and constellation symbols . 48
D.4.1.1 Modulation accuracy. 49
D.4.2 Transmission of physical packets . 49
D.5 The 64 QAM modulation scheme . 49
D.5.1 RF carrier modulation . 49
D.5.1.0 Filter and constellation symbols . 49
D.5.1.1 Modulation accuracy. 50
ETSI
6 ETSI EN 300 175-2 V2.6.1 (2015-07)
D.5.2 Transmission of physical packets . 51
D.6 Transmission of physical packets . 51
D.6.1 Error vector magnitude definition . 51
D.6.2 EVM requirement . 51
Annex E (normative): Power control procedures . 52
E.0 General . 52
E.1 Definitions of parameters and relations between parameters . 52
E.2 Procedure for PP power adjustment due to movement . 53
E.3 Setting the power control threshold, RSSpT . 54
Annex F (normative): DECT carrier numbers and carrier positions in the range 1 880 MHz
to 2 025 MHz and for the US market 902 MHz to 928 MHz and
2 400 MHz to 2 483,5 MHz . 55
F.1 Introduction . 55
F.2 1 880 MHz to 1 978 MHz and 2 010 MHz to 2 025 MHz RF band 00001 . 55
F.3 1 880 MHz to 1 925 MHz and 2 010 MHz to 2 025 MHz RF band 00010 . 56
F.4 1 880 MHz to 1 900 MHz, 1 915 MHz to 1 940 MHz and 2 010 MHz to 2 025 MHz RF band
00011 . 57
F.5 1 880 MHz to 1 900 MHz, 1 935 MHz to 1 960 MHz and 2 010 MHz to 2 025 MHz RF band
00100 . 58
F.6 1 880 MHz to 1 900 MHZ, 1 955 MHz to 1 980 MHz and 2 010 MHz to 2 025 MHz RF band
00101 . 59
F.7 US ISM band carriers . 60
F.7.0 General . 60
F.7.1 902 MHz to 928 MHz RF band 01000 . 60
F.7.2 2 400 MHz to 2 483,5 MHz RF band 01001 . 61
Annex G (informative): Bibliography . 62
Annex H (informative): Change history . 63
History . 64
ETSI
7 ETSI EN 300 175-2 V2.6.1 (2015-07)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://ipr.etsi.org).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This European Standard (EN) has been produced by ETSI Technical Committee Digital Enhanced Cordless
Telecommunications (DECT).
The present document is part 2 of a multi-part deliverable ([1] to [8]). Full details of the entire series can be found in
part 1 [1].
Further details of the DECT system may be found in ETSI TR 101 178 [i.1] and ETSI ETR 043 [i.2].
National transposition dates
Date of adoption of this EN: 24 July 2015
Date of latest announcement of this EN (doa): 31 October 2015
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 30 April 2016
Date of withdrawal of any conflicting National Standard (dow): 30 April 2016
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
ETSI
8 ETSI EN 300 175-2 V2.6.1 (2015-07)
1 Scope
The present document is one of the parts of the specification of the Digital Enhanced Cordless Telecommunications
(DECT) Common Interface (CI).
The present document specifies the physical channel arrangements. DECT physical channels are radio communication
paths between two radio end points. A radio end point is either part of the fixed infrastructure, a privately owned Fixed
Part (FP), typically a base station, or a Portable Part (PP), typically a handset. The assignment of one or more particular
physical channels to a call is the task of higher layers.
The Physical Layer (PHL) interfaces with the Medium Access Control (MAC) layer, and with the Lower Layer
Management Entity (LLME). On the other side of the PHL is the radio transmission medium which has to be shared
extensively with other DECT users and a wide variety of other radio services. The tasks of the PHL can be grouped into
five categories:
a) to modulate and demodulate radio carriers with a bit stream of a defined rate to create a radio frequency
channel;
b) to acquire and maintain bit and slot synchronization between transmitters and receivers;
c) to transmit or receive a defined number of bits at a requested time and on a particular frequency;
d) to add and remove the synchronization field and the Z-field used for rear end collision detection;
e) to observe the radio environment to report signal strengths.
The present document includes New Generation DECT, a further development of the DECT standard introducing
wideband speech, improved data services, new slot types and other technical enhancements.
2 References
2.1 Normative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
The following referenced documents are necessary for the application of the present document.
[1] ETSI EN 300 175-1: "Digital Enhanced Cordless Telecommunications (DECT); Common
Interface (CI); Part 1: Overview".
[2] Void.
[3] ETSI EN 300 175-3: "Digital Enhanced Cordless Telecommunications (DECT); Common
Interface (CI); Part 3: Medium Access Control (MAC) layer".
[4] ETSI EN 300 175-4: "Digital Enhanced Cordless Telecommunications (DECT); Common
Interface (CI); Part 4: Data Link Control (DLC) layer".
[5] ETSI EN 300 175-5: "Digital Enhanced Cordless Telecommunications (DECT); Common
Interface (CI); Part 5: Network (NWK) layer".
[6] ETSI EN 300 175-6: "Digital Enhanced Cordless Telecommunications (DECT); Common
Interface (CI); Part 6: Identities and addressing".
ETSI
9 ETSI EN 300 175-2 V2.6.1 (2015-07)
[7] ETSI EN 300 175-7: "Digital Enhanced Cordless Telecommunications (DECT); Common
Interface (CI); Part 7: Security features".
[8] ETSI EN 300 175-8: "Digital Enhanced Cordless Telecommunications (DECT); Common
Interface (CI); Part 8: Speech and audio coding and transmission".
[9] ETSI EN 300 176-1: "Digital Enhanced Cordless Telecommunications (DECT); Test
specification; Part 1: Radio".
[10] Recommendation ITU-R M.1457-11: "Detailed specifications of the terrestrial radio interfaces of
International Mobile Telecommunications-2000 (IMT-2000)".
[11] Recommendation ITU-T V.11: "Electrical characteristics for balanced double-current interchange
circuits operating at data signalling rates up to 10 Mbit/s".
[12] Federal Communications Commission FCC 02-151: "Second Report and Order, Amendment of
Part 15 of the Commission's Rules Regarding Spread Spectrum Devices".
[13] CEPT/ECC/DEC/(06)01: "ECC Decision of 24 March 2006 amended 02 November 2012 on the
harmonised utilisation of the bands 1920-1980 MHz and 2110-2170 MHz for mobile/fixed
communications networks (MFCN) including terrestrial IMT systems".
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI TR 101 178: "Digital Enhanced Cordless Telecommunications (DECT); A High Level Guide
to the DECT Standardization".
[i.2] ETSI ETR 043: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface
(CI); Services and facilities requirements specification".
[i.3] International Commission on Non-Ionizing Radiation Protection (ICNIRP): "Guidelines for
limiting exposure to time-varying electric, magnetic, and electromagnetic fields (up to 300 GHz),
Health Physics", vol. 74, pp 494-522, April 1998.
[i.4] Council Recommendation 1999/519/EC of 12 July 1999 on the limitation of exposure of the
general public to electromagnetic fields (0 Hz to 300 GHz) (Official Journal of the European
Communities, July 1999).
[i.5] CENELEC EN 50360: "Product standard to demonstrate the compliance of mobile phones with
the basic restrictions related to human exposure to electromagnetic fields (300 MHz - 3 GHz)",
European Committee for Electrotechnical Standardization (CENELEC), July 2001. (Harmonized
standard listed under the R&TTE directive).
[i.6] CENELEC EN 50385: "Product standard to demonstrate the compliance of radio base stations and
fixed terminal stations for wireless telecommunication systems with the basic restrictions or the
reference levels related to human exposure to radio frequency electromagnetic fields (110 MHz -
40 GHz) - General public", European Committee for Electrotechnical Standardization
(CENELEC), November 2001 (draft).
[i.7] CENELEC EN 50383: "Basic standard for the calculation and measurement of electromagnetic
field strength and SAR related to human exposure from radio base stations and fixed terminal
stations for wireless telecommunication systems (110 MHz - 40 GHz)", European Committee for
Electrotechnical Standardization (CENELEC), November 2001 (draft).
ETSI
10 ETSI EN 300 175-2 V2.6.1 (2015-07)
[i.8] IEEE 802.11b: "Standard for Information Technology - Telecommunications and Information
Exchange Between Systems - Local and Metropolitan Area Networks - Specific Requirements -
Part 11: Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY)
Specifications".
3 Definitions and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
antenna diversity: See ETSI EN 300 175-1 [1].
cell: See ETSI EN 300 175-1 [1].
Central Control Fixed Part (CCFP): See ETSI EN 300 175-1 [1].
channel: See ETSI EN 300 175-1 [1].
cluster: See ETSI EN 300 175-1 [1].
Connection Oriented mode (C/O): See ETSI EN 300 175-1 [1].
Cordless Radio Fixed Part (CRFP): See ETSI EN 300 175-1 [1].
coverage area: See ETSI EN 300 175-1 [1].
DECT Network (DNW): See ETSI EN 300 175-1 [1].
double duplex bearer: See ETSI EN 300 175-1 [1].
double simplex bearer: See ETSI EN 300 175-1 [1].
double slot: See ETSI EN 300 175-1 [1].
down-link: See ETSI EN 300 175-1 [1].
duplex bearer: See ETSI EN 300 175-1 [1].
Fixed Part (DECT Fixed Part) (FP): See ETSI EN 300 175-1 [1].
Fixed radio Termination (FT): See ETSI EN 300 175-1 [1].
frame: See ETSI EN 300 175-1 [1].
full slot (slot): See ETSI EN 300 175-1 [1].
guard space: See ETSI EN 300 175-1 [1].
half slot: See ETSI EN 300 175-1 [1].
handover: See ETSI EN 300 175-1 [1].
IMT-2000: International Mobile Telecommunications, Third Generation Mobile Systems
IMT-FT: International Mobile Telecommunications, FDMA/TDMA
NOTE: This is the DECT family member of IMT-2000.
intercell handover: See ETSI EN 300 175-1 [1].
intracell handover: See ETSI EN 300 175-1 [1].
Lower Layer Management Entity (LLME): See ETSI EN 300 175-1 [1].
multiframe: See ETSI EN 300 175-1 [1].
ETSI
11 ETSI EN 300 175-2 V2.6.1 (2015-07)
New Generation DECT: See ETSI EN 300 175-1 [1].
physical channel (channel): See ETSI EN 300 175-1 [1].
Portable Part (DECT Portable Part) (PP): See ETSI EN 300 175-1 [1].
Portable radio Termination (PT): See ETSI EN 300 175-1 [1].
public access service: See ETSI EN 300 175-1 [1].
radio channel: See ETSI EN 300 175-1 [1].
radio end point: See ETSI EN 300 175-1 [1].
Radio Fixed Part (RFP): See ETSI EN 300 175-1 [1].
Repeater Part (REP): See ETSI EN 300 175-1 [1].
RF carrier (carrier): See ETSI EN 300 175-1 [1].
RF channel: See ETSI EN 300 175-1 [1].
simplex bearer: See ETSI EN 300 175-1 [1].
Single Radio Fixed Part (SRFP): See ETSI EN 300 175-1 [1].
TDMA frame: See ETSI EN 300 175-1 [1].
Wireless Relay Station (WRS): See ETSI EN 300 175-1 [1].
3.2 Abbreviations
For the purposes of the present document, the following abbreviations apply:
AC ACcuracy
AM Amplitude Modulation
BER Bit Error Rate
BT Bandwidth Time product (Gaussian filters)
CCFP Central Control Fixed Part
CI Common Interface (standard)
CRC Cyclic Redundancy Check
CRFP Cordless Radio Fixed Part
CTA Cordless Terminal Adapter
dBm dB relative to 1 milliwatt
DBPSK Differential Binary Phase Shift Keying
DC Direct Current
DLC Data Link Control layer
DNW DECT Network
DPSK Differential Phase Shift Keying
DQPSK Differential Quaternary Phase Shift Keying
D-SAP Data field-Service Access Point
DSV Digital Sum Variation
EIRP Equivalent Isotropically Radiated Power
ERP Effective Radiated Power
EVM Error-Vector Magnitude
FMID Fixed part MAC IDentity
FP Fixed Part
FT Fixed radio Termination
Fy Frequency
GFSK Gaussian Frequency Shift Keying
GMSK Gaussian Minimum Shift Keying
GPS Global Positioning System
HLM High Level Modulation
ICNIRP International Commission on Non-Ionizing Radiation Protection
iDCS instant Dynamic Channel Selection
ETSI
12 ETSI EN 300 175-2 V2.6.1 (2015-07)
IMT-FT International Mobile Telecommunications - Frequency Time
ISM Indust
...
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI); Part 2: Physical Layer (PHL)35.100.10Physical layer33.070.30'(&7Digital Enhanced Cordless Telecommunications (DECT)ICS:Ta slovenski standard je istoveten z:EN 300 175-2 V2.6.1SIST EN 300 175-2 V2.6.1:2015en,fr,de01-november-2015SIST EN 300 175-2 V2.6.1:2015SLOVENSKI
STANDARD
EUROPEAN STANDARD SIST EN 300 175-2 V2.6.1:2015
ETSI ETSI EN 300 175-2 V2.6.1 (2015-07) 2
Reference REN/DECT-000304-2 Keywords DECT, IMT-2000, mobility, radio, TDD, TDMA ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00
Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice The present document can be downloaded from: http://www.etsi.org/standards-search The present document may be made available in electronic versions and/or in print. The content of any electronic and/or print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at http://portal.etsi.org/tb/status/status.asp If you find errors in the present document, please send your comment to one of the following services: https://portal.etsi.org/People/CommiteeSupportStaff.aspx Copyright Notification No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm except as authorized by written permission of ETSI. The content of the PDF version shall not be modified without the written authorization of ETSI. The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2015. All rights reserved.
DECTTM, PLUGTESTSTM, UMTSTM and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members. 3GPPTM and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners. GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association. SIST EN 300 175-2 V2.6.1:2015
ETSI ETSI EN 300 175-2 V2.6.1 (2015-07) 3 Contents Intellectual Property Rights . 7 Foreword . 7 Modal verbs terminology . 7 1 Scope . 8 2 References . 8 2.1 Normative references . 8 2.2 Informative references . 9 3 Definitions and abbreviations . 10 3.1 Definitions . 10 3.2 Abbreviations . 11 4 PHL services . 12 4.0 General . 12 4.1 RF channels (access in frequency) . 13 4.1.1 Nominal position of RF carriers . 13 4.1.2 Accuracy and stability of RF carriers . 14 4.2 Time Division Multiple Access (TDMA) structure (access in time) . 14 4.2.1 Frame, full-slot, double-slot, half-slot and variable capacity slot structure (including long slot) . 14 4.2.2 Reference timer accuracy and stability . 15 4.2.3 RFP transmission jitter. 16 4.2.4 PP reference timer synchronization . 16 4.2.5 System synchronization . 16 4.2.6 Inter-system synchronization . 16 4.2.7 Reference timer adjustment for synchronization . 17 4.3 Cells (access in space) . 17 4.4 Physical packets . 17 4.4.0 General . 17 4.4.1 The short physical packet P00 . 17 4.4.2 The basic physical packet P32 . 18 4.4.3 The variable capacity physical packet P00j . 18 4.4.4 The high capacity physical packet P80 . 19 4.5 Physical channels . 19 4.5.0 General . 19 4.5.1 Ra (K, L, M, N) notation . 19 4.5.2 The short physical channel R00 (K, L, M, N) . 20 4.5.3 The basic physical channel R32 (K, L, M, N) . 20 4.5.4 The variable-rate physical channel R00j (K, L, M, N) . 21 4.5.5 The high capacity physical channel R80 (K, L, M, N) . 22 4.6 Synchronization field S . 22 4.7 D-field . 23 4.7.1 Physical packet P00 . 23 4.7.2 Physical packet P32 . 23 4.7.3 Physical packet P00j . 23 4.7.4 Physical packet P80 . 23 4.8 Z-field . 24 4.9 Bit pattern during ramping . 24 5 Transmission of physical packets . 24 5.1 Definitions . 24 5.1.1 End of the physical packet . 24 5.1.2 Transmitted power . 24 5.1.3 Normal Transmitted Power (NTP) . 24 5.2 Transmission burst . 25 5.2.0 General . 25 5.2.1 Transmitter attack time . 25 5.2.2 Transmitter release time . 25 SIST EN 300 175-2 V2.6.1:2015
ETSI ETSI EN 300 175-2 V2.6.1 (2015-07) 4 5.2.3 Minimum power . 25 5.2.4 Maximum power . 25 5.2.5 Maintenance of transmission after packet end . 25 5.2.6 Transmitter idle power output . 25 5.3 Transmitted power . 26 5.3.1 Peak power per transceiver . 26 5.3.1.1 PP and RFP with an integral antenna . 26 5.3.1.2 PP and RFP with external connections for all antennas . 26 5.3.2 Maximum EIRP and number of transceivers . 26 5.4 RF carrier modulation . 26 5.4.1 Modulation method . 26 5.4.2 Definition of "1" and "0" . 26 5.4.3 Deviation limits . 26 5.5 Unwanted RF power radiation . 27 5.5.1 Emissions due to modulation . 27 5.5.2 Emissions due to transmitter transients . 27 5.5.3 Emissions due to intermodulation . 27 5.5.4 Spurious emissions when allocated a transmit channel . 28 6 Reception of physical packets . 28 6.1 Definitions and conditions for clause 6 . 28 6.1.1 Power levels and field strength . 28 6.1.2 Test conditions . 28 6.1.3 Reference DECT radio end point . 29 6.2 Radio receiver sensitivity . 29 6.3 Radio receiver reference bit error rate and frame error ratio . 29 6.4 Radio receiver interference performance. 29 6.5 Radio receiver blocking . 30 6.5.1 Owing to signals occurring at the same time but on other frequencies . 30 6.5.2 Owing to signals occurring at a different time . 30 6.6 Receiver intermodulation performance . 30 6.7 Spurious emissions when not allocated a transmit channel . 30 6.7.1 Out of band . 30 6.7.2 In the DECT band . 31 7 Primitives between physical layer and other entities . 31 7.0 General . 31 7.1 Medium access control layer (D-SAP) . 31 7.1.0 D-SAP general . 31 7.1.1 PL_TX {req} . 31 7.1.2 PL_RX {req, cfm} . 32 7.1.3 PL_FREQ_ADJ {req} . 32 7.2 Management entity (PM-SAP) . 32 7.2.0 PM-SAP general . 32 7.2.1 PL_ME_SYNC {req, cfm} . 32 7.2.2 PL_ME_SIG_STR {req, cfm} . 32 7.2.3 PL_ME_TIME_ADJ {req, cfm} . 32 8 PHL procedures . 33 8.1 Addition of synchronization field and transmission . 33 8.2 Packet reception and removal of synchronization field . 33 8.3 Measurement of signal strength . 33 8.4 Synchronization pulse detection . 34 8.5 Timing adjustment . 34 8.6 Frequency adjustment . 34 9 Management entity procedures related to PHL . 34 9.1 List of quietest physical channels . 34 9.2 Physical channels with greatest field strength (PP only) . 34 9.3 Extract timing . 34 Annex A (informative): RF exposure requirements . 35 A.0 General . 35 SIST EN 300 175-2 V2.6.1:2015
ETSI ETSI EN 300 175-2 V2.6.1 (2015-07) 5 A.1 Recommendation . 35 A.2 Compliance distances . 35 Annex B (normative): Synchronization port . 37 B.1 General requirements . 37 B.2 Wired synchronization ports . 37 B.2.0 Wired synchronization general . 37 B.2.1 Synchronization signal . 38 B.3 GPS synchronization . 39 B.3.0 GPS synchronization general . 39 B.3.1 Synchronization signal . 40 B.3.2 DECT timings derivation from the GPS time. 40 B.3.2.0 Timings derivation general . 40 B.3.2.1 DECT multiframe number synchronization using GPS . 41 B.3.2.2 DECT PSCN synchronization using GPS . 41 B.4 Guidance for installation . 42 B.4.1 Interconnection cable . 42 B.4.2 Propagation delay of synchronization signals . 42 B.4.2.1 Calculation of Propagation delay (informative) . 42 B.4.2.2 Delay compensation . 43 B.4.3 GPS receiver stability . 43 Annex C (informative): Prolonged preamble . 44 C.0 General . 44 C.1 Bit pattern . 44 C.2 The power-time template. 44 Annex D (normative): 4-level/8-level/16-level/64-level modulation option . 45 D.0 General . 45 D.1 The π/2-DBPSK modulation scheme . 46 D.1.1 RF carrier modulation . 46 D.1.1.0 Filter and phase change . 46 D.1.1.1 Modulation accuracy. 46 D.1.2 Transmission of physical packets . 47 D.2 The π/4-DQPSK modulation scheme . 47 D.2.1 RF carrier modulation . 47 D.2.1.0 Filter and phase change . 47 D.2.1.1 Modulation accuracy. 47 D.2.2 Transmission of physical packets . 47 D.3 The π/8-D8PSK modulation scheme . 47 D.3.1 RF carrier modulation . 47 D.3.1.0 Filter and phase change . 47 D.3.1.1 Modulation accuracy. 48 D.3.2 Transmission of physical packets . 48 D.4 The 16 QAM modulation scheme . 48 D.4.1 RF carrier modulation . 48 D.4.1.0 Filter and constellation symbols . 48 D.4.1.1 Modulation accuracy. 49 D.4.2 Transmission of physical packets . 49 D.5 The 64 QAM modulation scheme . 49 D.5.1 RF carrier modulation . 49 D.5.1.0 Filter and constellation symbols . 49 D.5.1.1 Modulation accuracy. 50 SIST EN 300 175-2 V2.6.1:2015
ETSI ETSI EN 300 175-2 V2.6.1 (2015-07) 6 D.5.2 Transmission of physical packets . 51 D.6 Transmission of physical packets . 51 D.6.1 Error vector magnitude definition . 51 D.6.2 EVM requirement . 51 Annex E (normative): Power control procedures . 52 E.0 General . 52 E.1 Definitions of parameters and relations between parameters . 52 E.2 Procedure for PP power adjustment due to movement . 53 E.3 Setting the power control threshold, RSSpT . 54 Annex F (normative): DECT carrier numbers and carrier positions in the range 1 880 MHz to 2 025 MHz and for the US market 902 MHz to 928 MHz and 2 400 MHz to 2 483,5 MHz . 55 F.1 Introduction . 55 F.2 1 880 MHz to 1 978 MHz and 2 010 MHz to 2 025 MHz RF band 00001 . 55 F.3 1 880 MHz to 1 925 MHz and 2 010 MHz to 2 025 MHz RF band 00010 . 56 F.4 1 880 MHz to 1 900 MHz, 1 915 MHz to 1 940 MHz and 2 010 MHz to 2 025 MHz RF band 00011 . 57 F.5 1 880 MHz to 1 900 MHz, 1 935 MHz to 1 960 MHz and 2 010 MHz to 2 025 MHz RF band 00100 . 58 F.6 1 880 MHz to 1 900 MHZ, 1 955 MHz to 1 980 MHz and 2 010 MHz to 2 025 MHz RF band 00101 . 59 F.7 US ISM band carriers . 60 F.7.0 General . 60 F.7.1 902 MHz to 928 MHz RF band 01000 . 60 F.7.2 2 400 MHz to 2 483,5 MHz RF band 01001 . 61 Annex G (informative): Bibliography . 62 Annex H (informative): Change history . 63 History . 64
ETSI ETSI EN 300 175-2 V2.6.1 (2015-07) 7 Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (http://ipr.etsi.org). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Foreword This European Standard (EN) has been produced by ETSI Technical Committee Digital Enhanced Cordless Telecommunications (DECT). The present document is part 2 of a multi-part deliverable ([1] to [8]). Full details of the entire series can be found in part 1 [1]. Further details of the DECT system may be found in ETSI TR 101 178 [i.1] and ETSI ETR 043 [i.2].
National transposition dates Date of adoption of this EN: 24 July 2015 Date of latest announcement of this EN (doa): 31 October 2015 Date of latest publication of new National Standard or endorsement of this EN (dop/e):
30 April 2016 Date of withdrawal of any conflicting National Standard (dow): 30 April 2016
Modal verbs terminology In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and "cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of provisions). "must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation. SIST EN 300 175-2 V2.6.1:2015
ETSI ETSI EN 300 175-2 V2.6.1 (2015-07) 8 1 Scope The present document is one of the parts of the specification of the Digital Enhanced Cordless Telecommunications (DECT) Common Interface (CI). The present document specifies the physical channel arrangements. DECT physical channels are radio communication paths between two radio end points. A radio end point is either part of the fixed infrastructure, a privately owned Fixed Part (FP), typically a base station, or a Portable Part (PP), typically a handset. The assignment of one or more particular physical channels to a call is the task of higher layers. The Physical Layer (PHL) interfaces with the Medium Access Control (MAC) layer, and with the Lower Layer Management Entity (LLME). On the other side of the PHL is the radio transmission medium which has to be shared extensively with other DECT users and a wide variety of other radio services. The tasks of the PHL can be grouped into five categories: a) to modulate and demodulate radio carriers with a bit stream of a defined rate to create a radio frequency channel; b) to acquire and maintain bit and slot synchronization between transmitters and receivers; c) to transmit or receive a defined number of bits at a requested time and on a particular frequency; d) to add and remove the synchronization field and the Z-field used for rear end collision detection; e) to observe the radio environment to report signal strengths. The present document includes New Generation DECT, a further development of the DECT standard introducing wideband speech, improved data services, new slot types and other technical enhancements. 2 References 2.1 Normative references References are either specific (identified by date of publication and/or edition number or version number) or non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the reference document (including any amendments) applies. Referenced documents which are not found to be publicly available in the expected location might be found at http://docbox.etsi.org/Reference. NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee their long term validity. The following referenced documents are necessary for the application of the present document. [1] ETSI EN 300 175-1: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI); Part 1: Overview". [2] Void. [3] ETSI EN 300 175-3: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI); Part 3: Medium Access Control (MAC) layer". [4] ETSI EN 300 175-4: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI); Part 4: Data Link Control (DLC) layer". [5] ETSI EN 300 175-5: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI); Part 5: Network (NWK) layer". [6] ETSI EN 300 175-6: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI); Part 6: Identities and addressing". SIST EN 300 175-2 V2.6.1:2015
ETSI ETSI EN 300 175-2 V2.6.1 (2015-07) 9 [7] ETSI EN 300 175-7: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI); Part 7: Security features". [8] ETSI EN 300 175-8: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI); Part 8: Speech and audio coding and transmission". [9] ETSI EN 300 176-1: "Digital Enhanced Cordless Telecommunications (DECT); Test specification; Part 1: Radio". [10] Recommendation ITU-R M.1457-11: "Detailed specifications of the terrestrial radio interfaces of International Mobile Telecommunications-2000 (IMT-2000)". [11] Recommendation ITU-T V.11: "Electrical characteristics for balanced double-current interchange circuits operating at data signalling rates up to 10 Mbit/s". [12] Federal Communications Commission FCC 02-151: "Second Report and Order, Amendment of Part 15 of the Commission's Rules Regarding Spread Spectrum Devices". [13] CEPT/ECC/DEC/(06)01: "ECC Decision of 24 March 2006 amended 02 November 2012 on the harmonised utilisation of the bands 1920-1980 MHz and 2110-2170 MHz for mobile/fixed communications networks (MFCN) including terrestrial IMT systems". 2.2 Informative references References are either specific (identified by date of publication and/or edition number or version number) or non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the reference document (including any amendments) applies. NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee their long term validity. The following referenced documents are not necessary for the application of the present document but they assist the user with regard to a particular subject area. [i.1] ETSI TR 101 178: "Digital Enhanced Cordless Telecommunications (DECT); A High Level Guide to the DECT Standardization". [i.2] ETSI ETR 043: "Digital Enhanced Cordless Telecommunications (DECT); Common Interface (CI); Services and facilities requirements specification". [i.3] International Commission on Non-Ionizing Radiation Protection (ICNIRP): "Guidelines for limiting exposure to time-varying electric, magnetic, and electromagnetic fields (up to 300 GHz), Health Physics", vol. 74, pp 494-522, April 1998. [i.4] Council Recommendation 1999/519/EC of 12 July 1999 on the limitation of exposure of the general public to electromagnetic fields (0 Hz to 300 GHz) (Official Journal of the European Communities, July 1999). [i.5] CENELEC EN 50360: "Product standard to demonstrate the compliance of mobile phones with the basic restrictions related to human exposure to electromagnetic fields (300 MHz - 3 GHz)", European Committee for Electrotechnical Standardization (CENELEC), July 2001. (Harmonized standard listed under the R&TTE directive). [i.6] CENELEC EN 50385: "Product standard to demonstrate the compliance of radio base stations and fixed terminal stations for wireless telecommunication systems with the basic restrictions or the reference levels related to human exposure to radio frequency electromagnetic fields (110 MHz - 40 GHz) - General public", European Committee for Electrotechnical Standardization (CENELEC), November 2001 (draft). [i.7] CENELEC EN 50383: "Basic standard for the calculation and measurement of electromagnetic field strength and SAR related to human exposure from radio base stations and fixed terminal stations for wireless telecommunication systems (110 MHz - 40 GHz)", European Committee for Electrotechnical Standardization (CENELEC), November 2001 (draft). SIST EN 300 175-2 V2.6.1:2015
ETSI ETSI EN 300 175-2 V2.6.1 (2015-07) 10 [i.8] IEEE 802.11b: "Standard for Information Technology - Telecommunications and Information Exchange Between Systems - Local and Metropolitan Area Networks - Specific Requirements - Part 11: Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications". 3 Definitions and abbreviations 3.1 Definitions For the purposes of the present document, the following terms and definitions apply: antenna diversity: See ETSI EN 300 175-1 [1]. cell: See ETSI EN 300 175-1 [1]. Central Control Fixed Part (CCFP): See ETSI EN 300 175-1 [1]. channel: See ETSI EN 300 175-1 [1]. cluster: See ETSI EN 300 175-1 [1]. Connection Oriented mode (C/O): See ETSI EN 300 175-1 [1]. Cordless Radio Fixed Part (CRFP): See ETSI EN 300 175-1 [1]. coverage area: See ETSI EN 300 175-1 [1]. DECT Network (DNW): See ETSI EN 300 175-1 [1]. double duplex bearer: See ETSI EN 300 175-1 [1]. double simplex bearer: See ETSI EN 300 175-1 [1]. double slot: See ETSI EN 300 175-1 [1]. down-link: See ETSI EN 300 175-1 [1]. duplex bearer: See ETSI EN 300 175-1 [1]. Fixed Part (DECT Fixed Part) (FP): See ETSI EN 300 175-1 [1]. Fixed radio Termination (FT): See ETSI EN 300 175-1 [1]. frame: See ETSI EN 300 175-1 [1]. full slot (slot): See ETSI EN 300 175-1 [1]. guard space: See ETSI EN 300 175-1 [1]. half slot: See ETSI EN 300 175-1 [1]. handover: See ETSI EN 300 175-1 [1]. IMT-2000: International Mobile Telecommunications, Third Generation Mobile Systems IMT-FT: International Mobile Telecommunications, FDMA/TDMA NOTE: This is the DECT family member of IMT-2000. intercell handover: See ETSI EN 300 175-1 [1]. intracell handover: See ETSI EN 300 175-1 [1]. Lower Layer Management Entity (LLME): See ETSI EN 300 175-1 [1]. multiframe: See ETSI EN 300 175-1 [1]. SIST EN 300 175-2 V2.6.1:2015
ETSI ETSI EN 300 175-2 V2.6.1 (2015-07) 11 New Generation DECT: See ETSI EN 300 175-1 [1]. physical channel (channel): See ETSI EN 300 175-1 [1]. Portable Part (DECT Portable Part) (PP): See ETSI EN 300 175-1 [1]. Portable radio Termination (PT): See ETSI EN 300 175-1 [1]. public access service: See ETSI EN 300 175-1 [1]. radio channel: See ETSI EN 300 175-1 [1]. radio end point: See ETSI EN 300 175-1 [1]. Radio Fixed Part (RFP): See ETSI EN 300 175-1 [1]. Repeater Part (REP): See ETSI EN 300 175-1 [1]. RF carrier (carrier): See ETSI EN 300 175-1 [1]. RF channel: See ETSI EN 300 175-1 [1]. simplex bearer: See ETSI EN 300 175-1 [1]. Single Radio Fixed Part (SRFP): See ETSI EN 300 175-1 [1]. TDMA frame: See ETSI EN 300 175-1 [1]. Wireless Relay Station (WRS): See ETSI EN 300 175-1 [1]. 3.2 Abbreviations For the purposes of the present document, the following abbreviations apply: AC ACcuracy AM Amplitude Modulation BER Bit Error Rate BT Bandwidth Time product (Gaussian filters) CCFP Central Control Fixed Part CI Common Interface (standard) CRC Cyclic Redundancy Check CRFP Cordless Radio Fixed Part CTA Cordless Terminal Adapter dBm dB relative to 1 milliwatt DBPSK Differential Binary Phase Shift Keying DC Direct Current DLC Data Link Control layer DNW DECT Network DPSK Differential Phase Shift Keying DQPSK Differential Quaternary Phase Shift Keying D-SAP Data field-Service Access Point DSV Digital Sum Variation EIRP Equivalent Isotropically Radiated Power ERP Effective Radiated Power EVM Error-Vector Magnitude FMID Fixed part MAC IDentity FP Fixed Part FT Fixed radio Termination Fy Frequency GFSK Gaussian Frequency Shift Keying GMSK Gaussian Minimum Shift Keying GPS Global Positioning System HLM High Level Modulation ICNIRP International Commission on Non-Ionizing Radiation Protection iDCS instant Dynamic Channel Selection SIST EN 300 175-2 V2.6.1:2015
ETSI ETSI EN 300 175-2 V2.6.1 (2015-07) 12 IMT-FT International Mobile Telecommunications - Frequency Time ISM Industrial, Scientific and Medical LCD Largest Common Denominator LLME Lower Layer Management Entity MAC Medium Access Control layer MCM Minimum Common Multiple ME Management Entity MF Fading Margin MFN MultiFrame Number MT MAC control channel on A-tail field, or o
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
