ASTM C488-16(2023)
(Test Method)Standard Test Method for Conducting Exterior Exposure Tests of Finishes for Thermal Insulation
Standard Test Method for Conducting Exterior Exposure Tests of Finishes for Thermal Insulation
SIGNIFICANCE AND USE
5.1 Both physical and chemical changes possibly occur from weather exposure, and these changes affect performance properties, service life, and maintenance schedules. For this reason, tests of properties relating to performance shall be made both before and after specific periods of outdoor exposure.
5.2 This test method recognizes that differing geographical locations, environmental conditions, differences between surface temperatures and ambient temperatures, and test durations have extremely varied effects upon the test results.
5.3 This test method is to be used for comparative qualitative testing.
SCOPE
1.1 This test method covers out-of-doors exposure testing of finishes that are normally field-applied to thermal insulation and possibly include joints or joint sealants, or both. Such exposure is essential prior to the determination of certain physical properties when the finish is to be exposed to exterior weather conditions. This test method also indicates possible compatibility problems between the joint sealant and the finish as well as the ability of the finish to span a dry joint. This test method is not intended to evaluate mildew resistance, efflorescence, or chemical resistance.
Note 1: For testing free plastic films, see Practice D1435.
1.2 This test method does not prescribe the method of application, test duration, or inspection intervals.
1.3 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
- Status
- Published
- Publication Date
- 31-Aug-2023
- Technical Committee
- C16 - Thermal Insulation
- Drafting Committee
- C16.33 - Insulation Finishes and Moisture
Relations
- Effective Date
- 15-Apr-2024
- Effective Date
- 15-Apr-2018
- Effective Date
- 01-Jun-2017
- Effective Date
- 15-Oct-2015
- Effective Date
- 01-Jun-2015
- Effective Date
- 01-Apr-2013
- Effective Date
- 01-Jan-2010
- Effective Date
- 15-Dec-2008
- Effective Date
- 01-Sep-2008
- Effective Date
- 01-Jun-2008
- Effective Date
- 01-Nov-2005
- Effective Date
- 01-Jun-2005
- Effective Date
- 01-Mar-2005
- Effective Date
- 10-Apr-2003
- Effective Date
- 10-Jul-2002
Overview
ASTM C488-16(2023), titled Standard Test Method for Conducting Exterior Exposure Tests of Finishes for Thermal Insulation, is an essential international standard developed by ASTM International. It outlines testing procedures for assessing the weathering effects and performance of finishes applied to field-installed thermal insulation, including systems with joints and joint sealants. This standard is recognized for comparative, qualitative testing under outdoor conditions and helps determine physical and chemical changes in finishes caused by real-world weather exposure.
Key Topics
- Exterior Exposure Testing: Evaluates how thermal insulation finishes withstand outdoor conditions such as sunlight, moisture, and temperature fluctuations.
- Performance Properties: Focuses on the impact of weathering on key attributes-discoloration, cracking, flaking, chalking, shrinkage, blistering, loss of adhesion, and incompatibility between finish and joint sealants.
- Comparative Qualitative Analysis: Emphasizes before-and-after testing periods to identify weather-induced changes and service life impacts.
- Test Specimen Preparation and Placement:
- Minimum of three test specimens and one indoor-stored control.
- Inclusion of different joint configurations: no joints, dry joints, joints with sealants.
- Application records for finish type, membrane use, and thickness.
- Geographical and Environmental Variation: Acknowledges the significance of location, environmental factors, and duration in test results, making this method adaptable to various climates.
- Documentation and Reporting: Detailed requirements for reporting test conditions, application methods, geographical location, test duration, and all observed results.
Applications
ASTM C488-16(2023) is critical for a variety of stakeholders in the construction and insulation materials industries. Its practical value lies in:
- Product Development: Manufacturers use this method to evaluate new coatings, vapor barrier finishes, and joint sealants, ensuring compatibility and resistance to exterior weathering.
- Quality Assurance: Ensures that exterior finishes meet required standards for durability before widespread implementation on building projects.
- Regulatory Compliance: Assists specifiers, architects, and contractors in selecting finishes and sealants that are proven to withstand site-specific environmental conditions.
- Comparative Evaluation: Enables side-by-side comparisons of various finishes under identical conditions to inform material selection.
- Service Life Prediction: Provides valuable data on expected longevity and maintenance schedules for exterior thermal insulation systems.
Related Standards
- ASTM C168: Terminology Relating to Thermal Insulation – standard reference for terms used throughout C488.
- ASTM D1435: Practice for Outdoor Weathering of Plastics – relevant when testing finishes consisting of free plastic films.
- ISO and WTO TBT Compliance: Developed per internationally recognized standardization principles, supporting global trade and interoperability.
Keywords: exterior exposure test, thermal insulation finishes, ASTM C488, weathering resistance, outdoor testing, joint sealant compatibility, qualitative comparative testing, vapor barrier finish, building envelope durability, insulation materials performance.
By adhering to ASTM C488-16(2023), industry professionals can systematically evaluate and compare the weathering performance of field-applied finishes on thermal insulation, supporting better product selection, improved service life, and higher reliability for building envelope systems exposed to challenging exterior conditions.
Get Certified
Connect with accredited certification bodies for this standard
DNV
DNV is an independent assurance and risk management provider.
Lloyd's Register
Lloyd's Register is a global professional services organisation specialising in engineering and technology.
DNV Energy Systems
Energy and renewable energy certification.
Sponsored listings
Frequently Asked Questions
ASTM C488-16(2023) is a standard published by ASTM International. Its full title is "Standard Test Method for Conducting Exterior Exposure Tests of Finishes for Thermal Insulation". This standard covers: SIGNIFICANCE AND USE 5.1 Both physical and chemical changes possibly occur from weather exposure, and these changes affect performance properties, service life, and maintenance schedules. For this reason, tests of properties relating to performance shall be made both before and after specific periods of outdoor exposure. 5.2 This test method recognizes that differing geographical locations, environmental conditions, differences between surface temperatures and ambient temperatures, and test durations have extremely varied effects upon the test results. 5.3 This test method is to be used for comparative qualitative testing. SCOPE 1.1 This test method covers out-of-doors exposure testing of finishes that are normally field-applied to thermal insulation and possibly include joints or joint sealants, or both. Such exposure is essential prior to the determination of certain physical properties when the finish is to be exposed to exterior weather conditions. This test method also indicates possible compatibility problems between the joint sealant and the finish as well as the ability of the finish to span a dry joint. This test method is not intended to evaluate mildew resistance, efflorescence, or chemical resistance. Note 1: For testing free plastic films, see Practice D1435. 1.2 This test method does not prescribe the method of application, test duration, or inspection intervals. 1.3 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard. 1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
SIGNIFICANCE AND USE 5.1 Both physical and chemical changes possibly occur from weather exposure, and these changes affect performance properties, service life, and maintenance schedules. For this reason, tests of properties relating to performance shall be made both before and after specific periods of outdoor exposure. 5.2 This test method recognizes that differing geographical locations, environmental conditions, differences between surface temperatures and ambient temperatures, and test durations have extremely varied effects upon the test results. 5.3 This test method is to be used for comparative qualitative testing. SCOPE 1.1 This test method covers out-of-doors exposure testing of finishes that are normally field-applied to thermal insulation and possibly include joints or joint sealants, or both. Such exposure is essential prior to the determination of certain physical properties when the finish is to be exposed to exterior weather conditions. This test method also indicates possible compatibility problems between the joint sealant and the finish as well as the ability of the finish to span a dry joint. This test method is not intended to evaluate mildew resistance, efflorescence, or chemical resistance. Note 1: For testing free plastic films, see Practice D1435. 1.2 This test method does not prescribe the method of application, test duration, or inspection intervals. 1.3 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard. 1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ASTM C488-16(2023) is classified under the following ICS (International Classification for Standards) categories: 27.220 - Heat recovery. Thermal insulation. The ICS classification helps identify the subject area and facilitates finding related standards.
ASTM C488-16(2023) has the following relationships with other standards: It is inter standard links to ASTM C168-24, ASTM C168-18, ASTM C168-17, ASTM C168-15a, ASTM C168-15, ASTM C168-13, ASTM C168-10, ASTM C168-08b, ASTM C168-08a, ASTM C168-08, ASTM C168-05a, ASTM C168-05, ASTM D1435-05, ASTM C168-03, ASTM C168-02. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ASTM C488-16(2023) is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

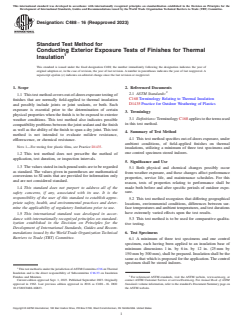

Designation: C488 − 16 (Reapproved 2023)
Standard Test Method for
Conducting Exterior Exposure Tests of Finishes for Thermal
Insulation
This standard is issued under the fixed designation C488; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 2. Referenced Documents
2.1 ASTM Standards:
1.1 This test method covers out-of-doors exposure testing of
C168 Terminology Relating to Thermal Insulation
finishes that are normally field-applied to thermal insulation
D1435 Practice for Outdoor Weathering of Plastics
and possibly include joints or joint sealants, or both. Such
exposure is essential prior to the determination of certain
3. Terminlogy
physical properties when the finish is to be exposed to exterior
3.1 Definitions: Terminology C168 applies to the terms used
weather conditions. This test method also indicates possible
in this test method.
compatibility problems between the joint sealant and the finish
as well as the ability of the finish to span a dry joint. This test
4. Summary of Test Method
method is not intended to evaluate mildew resistance,
4.1 This test method specifies out-of-doors exposure, under
efflorescence, or chemical resistance.
ambient conditions, of field-applied finishes on thermal
NOTE 1—For testing free plastic films, see Practice D1435.
insulations, utilizing a minimum of three test specimens and
one control specimen stored indoors.
1.2 This test method does not prescribe the method of
application, test duration, or inspection intervals.
5. Significance and Use
1.3 The values stated in inch-pound units are to be regarded
5.1 Both physical and chemical changes possibly occur
as standard. The values given in parentheses are mathematical
from weather exposure, and these changes affect performance
conversions to SI units that are provided for information only
properties, service life, and maintenance schedules. For this
and are not considered standard.
reason, tests of properties relating to performance shall be
made both before and after specific periods of outdoor expo-
1.4 This standard does not purport to address all of the
sure.
safety concerns, if any, associated with its use. It is the
responsibility of the user of this standard to establish appro-
5.2 This test method recognizes that differing geographical
priate safety, health, and environmental practices and deter-
locations, environmental conditions, differences between sur-
mine the applicability of regulatory limitations prior to use.
face temperatures and ambient temperatures, and test durations
have extremely varied effects upon the test results.
1.5 This international standard was developed in accor-
dance with internationally recognized principles on standard-
5.3 This test method is to be used for comparative qualita-
ization established in the Decision on Principles for the
tive testing.
Development of International Standards, Guides and Recom-
6. Test Specimens
mendations issued by the World Trade Organization Technical
Barriers to Trade (TBT) Committee.
6.1 A minimum of three test specimens and one control
specimen, each having been applied to an insulation base of
minimum dimensions 1 in. by 6 in. by 12 in. (25 mm by
150 mm by 300 mm), shall be prepared. Insulation shall be the
same as that which is proposed for the application. The control
specimen shall be stored indoors.
This test method is under the jurisdiction of ASTM Committee C16 on Thermal
Insulation and is the direct responsibility of Subcommittee C16.33 on Insulation
Finishes and Moisture. For referenced ASTM standards, visit the ASTM website, www.astm.org, or
Current edition approved Sept. 1, 2023. Published September 2023. Originally contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
approved in 1962. Last previous edition approved in 2016 as C488 – 16. DOI: Standards volume information, refer to the standard’s Document Summary page on
10.1520/C0488-16R23. the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

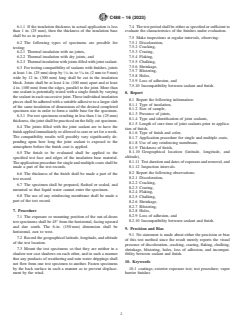

C488 − 16 (2023)
6.1.1 If the insulation thickness in actual application is less 7.4 The test period shall be either as specified or sufficient to
than 1 in. (25 mm), then the thickness of the insulation base evaluate the characteristics of the finishes under evaluation.
shall be as in practice.
7.5 Make inspections at regular intervals, observing:
6.2 The following types of specimens are possible for 7.5.1 Discoloration,
testing: 7.5.2 Cracking,
6.2.1 Thermal insulation with no joints, 7.5.3 Crazing,
6.2.2 Thermal insulation with dry joints, and 7.5.4
...
