ASTM D7320-18e1

Standard Test Method for Evaluation of Automotive Engine Oils in the Sequence IIIG, Spark-Ignition Engine

SIGNIFICANCE AND USE
5.1 This test method was developed to evaluate automotive engine oils for protection against oil thickening and engine wear during moderately high-speed, high-temperature service.
5.2 The increase in oil viscosity obtained in this test indicates the tendency of an oil to thicken because of oxidation. In automotive service, such thickening can cause oil pump starvation and resultant catastrophic engine failures.
5.3 The deposit ratings for an oil indicate the tendency for the formation of deposits throughout the engine, including those that can cause sticking of the piston rings in their grooves. This can be involved in the loss of compression pressures in the engine.
5.4 The camshaft and lifter wear values obtained in this test provide a measure of the anti-wear quality of an oil under conditions of high unit pressure mechanical contact.
5.5 The test method was developed to correlate with oils of known good and poor protection against oil thickening and engine wear. Specially formulated oils that produce less than desirable results with unleaded fuels were also used during the development of this test.
5.6 The Sequence IIIG engine oil test has replaced the Sequence IIIF test and can be used in specifications and classifications of engine lubricating oils, such as the following:
5.6.1 Specification D4485,
5.6.2 Military Specification MIL-PRF-2104, and
5.6.3 SAE Classification J183.
SCOPE
1.1 This test method covers an engine test procedure for evaluating automotive engine oils for certain high-temperature performance characteristics, including oil thickening, varnish deposition, oil consumption, as well as engine wear. Such oils include both single viscosity grade and multiviscosity grade oils that are used in both spark-ignition, gasoline-fueled engines, as well as in diesel engines.
1.1.1 Additionally, with nonmandatory supplemental requirements, a IIIGA Test (Mini Rotary Viscometer and Cold Cranking Simulator measurements), a IIIGVS Test (EOT viscosity increase measurement), or a IIIGB Test (phosphorous retention measurement) can be conducted. These supplemental test procedures are contained in Appendix X1, Appendix X2, and Appendix X3, respectively.
Note 1: Companion test methods used to evaluate engine oil performance for specification requirements are discussed in SAE J304.
1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.2.1 Exception—Where there is no direct SI equivalent such as screw threads, national pipe threads/diameters, and tubing size.
1.3 This test method is arranged as follows:
Section
Introduction
Scope
1
Referenced Documents
2
Terminology
3
Summary of Test Methods
4
Significance and Use
5
Apparatus
6
Laboratory
6.1
Drawings
6.2
Specified Equipment
6.3
Test Engine
6.4
Engine Parts
6.4.1
Engine Speed and Load Control
6.5
Fluid Conditioning Module
6.6
Engine Cooling System
6.6.1
Flushing Tank
6.7
Coolant Mixing Tank
6.8
Condenser Cooling Systems
6.9
Engine Oil-Cooling System
6.10
Fuel System
6.11
Induction Air Supply Humidity, Temperature, and Pressure
6.12
Temperature Measurement
6.13
Thermocouple Location
6.13.1
Air-to-Fuel Ratio Determination
6.14
Injector Flow Testing
6.14.1
Exhaust and Exhaust Back Pressure Systems
6.15
Blowby Flow Rate Measurement
6.16
Pressure Measurement and Pressure Sensor Location
6.17
Reagents and Materials
7
Test Fuel
7.1
Engine and Condenser Coolant
7.2
Coolant Additive
7.3
Coolant Preparation
7.4
Pre-Test Cleaning Materials
7.5
Sealing and Anti-seize Compounds
7.6
Test Oil Sample Requirements
8
Preparation of Apparatus
9
Condenser C...

General Information

• Status: Published
• Publication Date: 31-Mar-2018
• ICS: 75.100 - Lubricants, industrial oils and related products
• Technical Committee: D02 - Petroleum Products, Liquid Fuels, and Lubricants
• Drafting Committee: D02.B0.01 - Passenger Car Engine Oils

Relations

• Refers: ASTM D445-24 - Standard Test Method for Kinematic Viscosity of Transparent and Opaque Liquids (and Calculation of Dynamic Viscosity)
• Effective Date: 01-Apr-2024
• Refers: ASTM D2699-24 - Standard Test Method for Research Octane Number of Spark-Ignition Engine Fuel
• Effective Date: 01-Mar-2024
• Refers: ASTM D2700-24 - Standard Test Method for Motor Octane Number of Spark-Ignition Engine Fuel
• Effective Date: 01-Mar-2024
• Refers: ASTM D3231-24 - Standard Test Method for Phosphorus in Gasoline
• Effective Date: 01-Mar-2024
• Refers: ASTM D4175-23a - Standard Terminology Relating to Petroleum Products, Liquid Fuels, and Lubricants
• Effective Date: 15-Dec-2023
• Refers: ASTM D7422-23 - Standard Test Method for Evaluation of Diesel Engine Oils in T-12 Exhaust Gas Recirculation Diesel Engine
• Effective Date: 01-Dec-2023
• Refers: ASTM D86-23a - Standard Test Method for Distillation of Petroleum Products and Liquid Fuels at Atmospheric Pressure
• Effective Date: 01-Dec-2023
• Refers: ASTM D86-23ae1 - Standard Test Method for Distillation of Petroleum Products and Liquid Fuels at Atmospheric Pressure
• Effective Date: 01-Dec-2023
• Refers: ASTM D445-23 - Standard Test Method for Kinematic Viscosity of Transparent and Opaque Liquids (and Calculation of Dynamic Viscosity)
• Effective Date: 01-Nov-2023
• Refers: ASTM D2699-23b - Standard Test Method for Research Octane Number of Spark-Ignition Engine Fuel
• Effective Date: 01-Nov-2023
• Refers: ASTM D2700-23b - Standard Test Method for Motor Octane Number of Spark-Ignition Engine Fuel
• Effective Date: 01-Nov-2023
• Refers: ASTM D2699-23a - Standard Test Method for Research Octane Number of Spark-Ignition Engine Fuel
• Effective Date: 01-Oct-2023
• Refers: ASTM D2700-23a - Standard Test Method for Motor Octane Number of Spark-Ignition Engine Fuel
• Effective Date: 01-Oct-2023
• Refers: ASTM D4175-23e1 - Standard Terminology Relating to Petroleum Products, Liquid Fuels, and Lubricants
• Effective Date: 01-Jul-2023
• Refers: ASTM D5293-20 - Standard Test Method for Apparent Viscosity of Engine Oils and Base Stocks Between –10 °C and –35 °C Using Cold-Cranking Simulator
• Effective Date: 01-Jun-2020

Overview

ASTM D7320-18e1 is a standardized test method developed by ASTM International to evaluate automotive engine oils in the Sequence IIIG, spark-ignition engine test. This method is essential for assessing high-temperature performance characteristics of engine oils, such as resistance to oil thickening, engine wear, varnish and deposit formation, and overall oil stability. The Sequence IIIG procedure is widely referenced in the automotive industry to ensure engine oils provide reliable protection and performance under moderately high-speed, high-temperature service conditions.

Key Topics

• Engine Oil Thickening: The test measures increases in oil viscosity, simulating oxidation effects that can cause oil to thicken, leading to issues like oil pump starvation and engine failure in real-world applications.
• Engine Wear Assessment: Camshaft and lifter wear measurements are obtained to evaluate the anti-wear properties of the oil in high-pressure environments.
• Deposit Rating: The tendency of an oil to form deposits, which can contribute to piston ring sticking and loss of compression, is a critical evaluation metric.
• Varnish and Oil Consumption: The test also observes oil consumption rates and varnish formation, both key indicators of oil performance.
• Supplemental Testing: Includes options for further evaluation via IIIGA (low-temperature viscosity), IIIGVS (end-of-test viscosity), or IIIGB (phosphorous retention).

Applications

The ASTM D7320-18e1 standard is used for:

• Quality Control in Oil Production: Essential for manufacturers formulating single- and multiviscosity grade oils for use in both gasoline and diesel engines.
• Specification and Certification: Supports compliance with established requirements such as ASTM D4485, Military Specification MIL-PRF-2104, and SAE J183 for engine lubricating oils.
• Research and Development: Guides the formulation of engine oils that must meet or exceed performance levels under high thermal stress and mechanical load.
• Automotive and Fleet Maintenance: Used by laboratories, OEMs, and third parties to confirm oil suitability for modern, high-performance engines.
• Industry Benchmarking: Provides a common framework for comparison against oils of known good or poor performance on oil thickening and wear.

Related Standards

When applying ASTM D7320-18e1, referencing related standards ensures a holistic evaluation of engine oils:

• ASTM D4485: Engine oil performance specification referencing the IIIG test.
• MIL-PRF-2104: Military performance requirements for lubricating oils.
• SAE J183 & J304: Industry-recognized classifications and test methods for engine oils.
• ASTM D6984: Predecessor Sequence IIIF test, now replaced by the IIIG.
• ASTM D4175: Terminology for petroleum products and lubricants.
• ASTM D445, D5293, D4684: Viscosity measurement methods relevant to engine oil evaluation.
• Other Related ASTM Standards: D3343, D4052, D5185, etc., for comprehensive analyses of oil chemistry and performance.

Practical Value

Implementing ASTM D7320-18e1 delivers significant benefits:

• Enhanced Engine Protection: Selecting oils passing this test reduces the risks of catastrophic engine failures and performance loss.
• Reliable Performance Data: Consistent procedures offer comparative data vital for OEM approvals and legal compliance.
• Global Trade and Acceptance: As an internationally recognized method, D7320 supports worldwide acceptance in regulatory and commercial contexts.
• Improved Product Development: OEMs and oil manufacturers use results to innovate and improve next-generation lubricants for modern engine designs.

By applying ASTM D7320-18e1, stakeholders across the automotive value chain ensure that engine oils meet critical demands for high-temperature stability, wear resistance, and operational reliability.

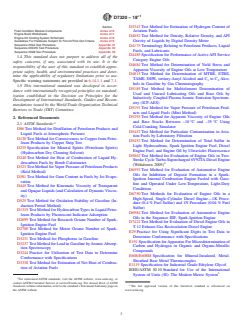

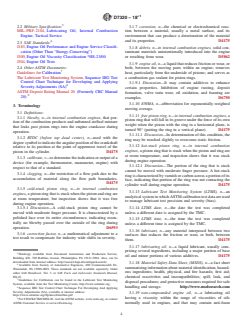

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
´1
Designation: D7320 − 18
Standard Test Method for
Evaluation of Automotive Engine Oils in the Sequence IIIG,
Spark-Ignition Engine
This standard is issued under the fixed designation D7320; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
ε NOTE—Editorially updated TMC governance information in June 2022.
INTRODUCTION
Portions of this test method are written for use by laboratories that make use of ASTM Test
Monitoring Center (TMC) services (see Annex A1 – Annex A4).
TheTMC provides reference oils, and engineering and statistical services to laboratories that desire
to produce test results that are statistically similar to those produced by laboratories previously
calibrated by the TMC.
In general, the Test Purchaser decides if a calibrated test stand is to be used. Organizations such as
theAmerican Chemistry Council require that a laboratory utilize theTMC services as part of their test
registration process. In addition, the American Petroleum Institute and the Gear Lubricant Review
Committee of the Lubricant Review Institute (SAE International) require that a laboratory use the
TMC services in seeking qualification of oils against their specifications.
The advantage of using the TMC services to calibrate test stands is that the test laboratory (and
hence the Test Purchaser) has an assurance that the test stand was operating at the proper level of test
severity. It should also be borne in mind that results obtained in a non-calibrated test stand may not
be the same as those obtained in a test stand participating in the ASTM TMC services process.
Laboratories that choose not to use the TMC services may simply disregard these portions.
