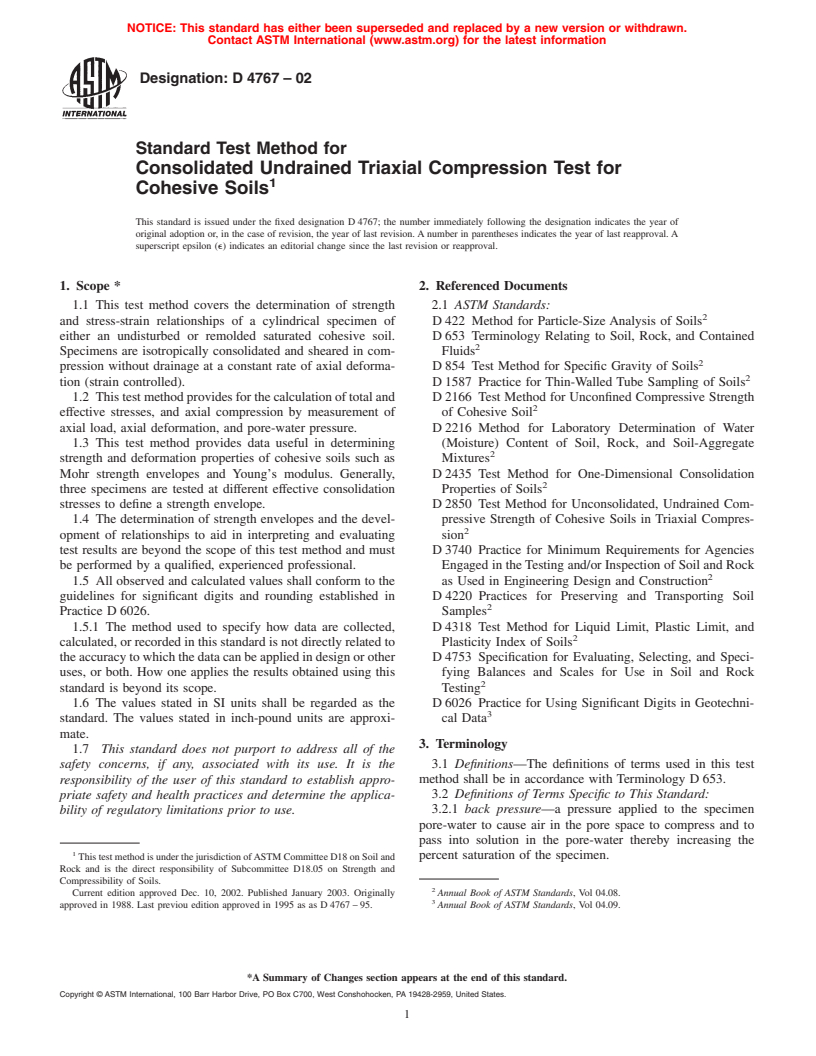

Designation:D4767–02
Standard Test Method for
Consolidated Undrained Triaxial Compression Test for
1
Cohesive Soils
This standard is issued under the fixed designation D4767; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.A
superscript epsilon (e) indicates an editorial change since the last revision or reapproval.
1. Scope * 2. Referenced Documents
1.1 This test method covers the determination of strength 2.1 ASTM Standards:
2
and stress-strain relationships of a cylindrical specimen of D422 Method for Particle-Size Analysis of Soils
either an undisturbed or remolded saturated cohesive soil. D653 Terminology Relating to Soil, Rock, and Contained
2
Specimens are isotropically consolidated and sheared in com- Fluids
2
pression without drainage at a constant rate of axial deforma- D854 Test Method for Specific Gravity of Soils
2
tion (strain controlled). D1587 Practice for Thin-Walled Tube Sampling of Soils
1.2 Thistestmethodprovidesforthecalculationoftotaland D2166 Test Method for Unconfined Compressive Strength
2
effective stresses, and axial compression by measurement of of Cohesive Soil
axial load, axial deformation, and pore-water pressure. D2216 Method for Laboratory Determination of Water
1.3 This test method provides data useful in determining (Moisture) Content of Soil, Rock, and Soil-Aggregate
2
strength and deformation properties of cohesive soils such as Mixtures
Mohr strength envelopes and Young’s modulus. Generally, D2435 Test Method for One-Dimensional Consolidation
2
three specimens are tested at different effective consolidation Properties of Soils
stresses to define a strength envelope. D2850 Test Method for Unconsolidated, Undrained Com-
1.4 The determination of strength envelopes and the devel- pressive Strength of Cohesive Soils in Triaxial Compres-
2
opment of relationships to aid in interpreting and evaluating sion
test results are beyond the scope of this test method and must D3740 Practice for Minimum Requirements for Agencies
be performed by a qualified, experienced professional. Engaged in theTesting and/or Inspection of Soil and Rock
2
1.5 All observed and calculated values shall conform to the as Used in Engineering Design and Construction
guidelines for significant digits and rounding established in D 4220 Practices for Preserving and Transporting Soil
2
Practice D6026. Samples
1.5.1 The method used to specify how data are collected, D4318 Test Method for Liquid Limit, Plastic Limit, and
2
calculated,orrecordedinthisstandardisnotdirectlyrelatedto Plasticity Index of Soils
theaccuracytowhichthedatacanbeappliedindesignorother D4753 Specification for Evaluating, Selecting, and Speci-
uses, or both. How one applies the results obtained using this fying Balances and Scales for Use in Soil and Rock
2
standard is beyond its scope. Testing
1.6 The values stated in SI units shall be regarded as the D6026 Practice for Using Significant Digits in Geotechni-
3
standard. The values stated in inch-pound units are approxi- cal Data
mate.
3. Terminology
1.7 This standard does not purport to address all of the
3.1 Definitions—The definitions of terms used in this test
safety concerns, if any, associated with its use. It is the
responsibility of the user of this standard to establish appro- method shall be in accordance with Terminology D653.
3.2 Definitions of Terms Specific to This Standard:
priate safety and health practices and determine the applica-
bility of regulatory limitations prior to use. 3.2.1 back pressure—a pressure applied to the specimen
pore-water to cause air in the pore space to compress and to
pass into solution in the pore-water thereby increasing the
1
percent saturation of the specimen.
ThistestmethodisunderthejurisdictionofASTMCommitteeD18onSoiland
Rock and is the direct responsibility of Subcommittee D18.05 on Strength and
Compressibility of Soils.
2
Current edition approved Dec. 10, 2002. Published January 2003. Originally
Annual Book of ASTM Standards, Vol 04.08.
3
approved in 1988. Last previou edition approved in 1995 as as D4767–95. Annual Book of ASTM Standards, Vol 04.09.
*A Summary of Changes section appears at the end of this standard.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959, United States.
1

---------------------- Page: 1 ----------------------
D4767–02
3.2.2 effective consolidation stress—the difference between (drained conditions) or where pore pressures induced by
the cell pressure and the pore-water pressure prior to shearing loading can be estimated, and the field stress conditions are
the specimen. similar to those in the test method.
3.2.3 failure—the stress condition at failure for a test
...
