ASTM A573/A573M-20
(Specification)Standard Specification for Structural Carbon Steel Plates
Standard Specification for Structural Carbon Steel Plates
ABSTRACT
This specification covers structural quality carbon-manganese-silicon steel plates in three tensile strength ranges intended primarily for service at atmospheric temperatures where improved notch toughness is important. If the steel is to be welded, a welding procedure suitable for the grade of steel and intended use or service shall be utilized. The steel shall be made by fine grain practice. Heat and product analysis shall conform to the chemical composition requirements prescribed for carbon, manganese, phosphorus, sulfur, and silicon. The tension test specimen shall conform to the tensile requirements including tensile strength, yield point, and elongation.
SCOPE
1.1 This specification covers structural quality carbon-manganese-silicon steel plates in three tensile strength ranges.
Note 1: This specification was originally intended primarily for construction of storage tanks used at ambient temperatures when improved toughness was needed over that available in semi-killed ingot cast steels.
1.2 Plates covered by this specification are limited to a maximum thickness of 1.5 in. [40 mm].
1.3 If the steel is to be welded, it is presupposed that a welding procedure suitable for the grade of steel and intended use or service will be utilized. See Appendix X3 of Specification A6/A6M for information on weldability.
1.4 The values stated in either inch-pound units or SI units are to be regarded separately as standard. Within the text, the SI units are shown in brackets. The values stated in each system are not necessarily exact equivalents; therefore, to ensure conformance with the standard, each system shall be used independently of the other, and values from the two systems shall not be combined.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
- Status
- Published
- Publication Date
- 30-Jun-2020
- Technical Committee
- A01 - Steel, Stainless Steel and Related Alloys
Relations
- Effective Date
- 01-Mar-2024
- Effective Date
- 01-Nov-2023
- Effective Date
- 01-Nov-2017
- Effective Date
- 15-Nov-2016
- Effective Date
- 01-May-2016
- Effective Date
- 01-May-2014
- Effective Date
- 01-Oct-2013
- Effective Date
- 01-May-2013
- Effective Date
- 01-Nov-2012
- Effective Date
- 01-Mar-2012
- Effective Date
- 01-Apr-2011
- Effective Date
- 01-Oct-2010
- Effective Date
- 01-Apr-2010
- Effective Date
- 01-Apr-2009
- Effective Date
- 01-Nov-2008
Overview
ASTM A573/A573M-20 is a standard specification developed by ASTM International for structural quality carbon-manganese-silicon steel plates. This standard defines requirements for plates produced in three distinct tensile strength ranges and is particularly intended for applications at atmospheric temperatures where enhanced notch toughness is necessary. The specification outlines criteria for chemical composition, mechanical properties, and applicable supplementary requirements, ensuring reliable performance, especially in structural and welded construction scenarios.
Key Topics
- Scope: Covers carbon-manganese-silicon steel plates intended for structural use in three tensile strength grades, suitable for service at ambient temperatures requiring improved toughness.
- Thickness Limitation: Plates are restricted to a maximum thickness of 1.5 inches (40 mm).
- Weldability: If welding is required, appropriate procedures per ASTM guidelines must be used to match the intended application and plate grade, referencing Specification A6/A6M for details.
- Chemical Composition: Prescribes maximum and minimum content for key elements such as carbon, manganese, phosphorus, sulfur, silicon, and, for wider plates, a minimum aluminum content.
- Mechanical Properties: Specifies required ranges for tensile strength, yield point, and elongation, as demonstrated by tension tests on sample coupons.
- Heat and Product Analysis: Chemical composition is verified by heat analysis and supplemented by product analysis, with tolerance thresholds as per Specification A6/A6M.
- Supplementary Requirements: Allows for additional tests, including the Charpy V-Notch Impact Test, if requested by the purchaser to verify notch toughness for critical service applications.
- Dual Units: Provides requirements in both inch-pound and SI units, which must be used independently to ensure compliance.
Applications
The primary use for ASTM A573/A573M-20 steel plates is in the fabrication of structures where toughness and resistance to impact at normal temperatures are significant factors:
- Storage Tanks: Originally developed for storage tanks operating at ambient conditions, especially where improved fracture resistance is essential.
- Bridges and Buildings: Suitable for critical load-bearing elements in bridges or building frames due to their combination of strength and toughness.
- Welded Construction: Preferred for welded assemblies thanks to controlled weldability criteria and predictable mechanical properties.
- Rolling Stock and Ships: Utilized in rail and marine applications that demand both durability and safety, particularly where sub-zero notch toughness may be considered in design.
- General Structural Steel Applications: Appropriate where enhanced toughness over conventional semi-killed ingot cast steels is needed.
Related Standards
- ASTM A6/A6M: Specification for General Requirements for Rolled Structural Steel Bars, Plates, Shapes, and Sheet Piling; provides detailed general delivery and testing requirements referenced throughout ASTM A573/A573M-20.
- Welding Codes: Proper application may require adherence to relevant welding standards and procedures for structural steel to ensure safety and structural integrity.
- Other ASTM Plate Specifications: Depending on application, other carbon steel plate standards such as ASTM A572 or ASTM A36 may also be considered for comparison or selection.
Keywords: ASTM A573, structural steel plates, carbon-manganese-silicon steel, improved toughness, welded construction, mechanical properties, chemical composition, storage tanks, toughness testing, steel plate standards, ASTM International.
Implementing ASTM A573/A573M-20 ensures that carbon steel plates used in structural applications meet rigorous safety, mechanical, and quality standards, supporting long-term, reliable performance in demanding environments.
Buy Documents
ASTM A573/A573M-20 - Standard Specification for Structural Carbon Steel Plates
REDLINE ASTM A573/A573M-20 - Standard Specification for Structural Carbon Steel Plates
Get Certified
Connect with accredited certification bodies for this standard
Element Materials Technology
Materials testing and product certification.
Inštitut za kovinske materiale in tehnologije
Institute of Metals and Technology. Materials testing, metallurgical analysis, NDT.
Sponsored listings
Frequently Asked Questions
ASTM A573/A573M-20 is a technical specification published by ASTM International. Its full title is "Standard Specification for Structural Carbon Steel Plates". This standard covers: ABSTRACT This specification covers structural quality carbon-manganese-silicon steel plates in three tensile strength ranges intended primarily for service at atmospheric temperatures where improved notch toughness is important. If the steel is to be welded, a welding procedure suitable for the grade of steel and intended use or service shall be utilized. The steel shall be made by fine grain practice. Heat and product analysis shall conform to the chemical composition requirements prescribed for carbon, manganese, phosphorus, sulfur, and silicon. The tension test specimen shall conform to the tensile requirements including tensile strength, yield point, and elongation. SCOPE 1.1 This specification covers structural quality carbon-manganese-silicon steel plates in three tensile strength ranges. Note 1: This specification was originally intended primarily for construction of storage tanks used at ambient temperatures when improved toughness was needed over that available in semi-killed ingot cast steels. 1.2 Plates covered by this specification are limited to a maximum thickness of 1.5 in. [40 mm]. 1.3 If the steel is to be welded, it is presupposed that a welding procedure suitable for the grade of steel and intended use or service will be utilized. See Appendix X3 of Specification A6/A6M for information on weldability. 1.4 The values stated in either inch-pound units or SI units are to be regarded separately as standard. Within the text, the SI units are shown in brackets. The values stated in each system are not necessarily exact equivalents; therefore, to ensure conformance with the standard, each system shall be used independently of the other, and values from the two systems shall not be combined. 1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ABSTRACT This specification covers structural quality carbon-manganese-silicon steel plates in three tensile strength ranges intended primarily for service at atmospheric temperatures where improved notch toughness is important. If the steel is to be welded, a welding procedure suitable for the grade of steel and intended use or service shall be utilized. The steel shall be made by fine grain practice. Heat and product analysis shall conform to the chemical composition requirements prescribed for carbon, manganese, phosphorus, sulfur, and silicon. The tension test specimen shall conform to the tensile requirements including tensile strength, yield point, and elongation. SCOPE 1.1 This specification covers structural quality carbon-manganese-silicon steel plates in three tensile strength ranges. Note 1: This specification was originally intended primarily for construction of storage tanks used at ambient temperatures when improved toughness was needed over that available in semi-killed ingot cast steels. 1.2 Plates covered by this specification are limited to a maximum thickness of 1.5 in. [40 mm]. 1.3 If the steel is to be welded, it is presupposed that a welding procedure suitable for the grade of steel and intended use or service will be utilized. See Appendix X3 of Specification A6/A6M for information on weldability. 1.4 The values stated in either inch-pound units or SI units are to be regarded separately as standard. Within the text, the SI units are shown in brackets. The values stated in each system are not necessarily exact equivalents; therefore, to ensure conformance with the standard, each system shall be used independently of the other, and values from the two systems shall not be combined. 1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ASTM A573/A573M-20 is classified under the following ICS (International Classification for Standards) categories: 77.140.50 - Flat steel products and semi-products. The ICS classification helps identify the subject area and facilitates finding related standards.
ASTM A573/A573M-20 has the following relationships with other standards: It is inter standard links to ASTM A6/A6M-24, ASTM A6/A6M-23, ASTM A6/A6M-17a, ASTM A6/A6M-16a, ASTM A6/A6M-16, ASTM A6/A6M-14, ASTM A6/A6M-13a, ASTM A6/A6M-13, ASTM A6/A6M-12a, ASTM A6/A6M-12, ASTM A6/A6M-11, ASTM A6/A6M-10a, ASTM A6/A6M-10, ASTM A6/A6M-09, ASTM A6/A6M-08a. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ASTM A573/A573M-20 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

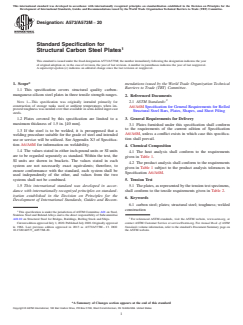

Designation:A573/A573M −20
Standard Specification for
Structural Carbon Steel Plates
This standard is issued under the fixed designationA573/A573M; the number immediately following the designation indicates the year
of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope* mendations issued by the World Trade Organization Technical
Barriers to Trade (TBT) Committee.
1.1 This specification covers structural quality carbon-
manganese-silicon steel plates in three tensile strength ranges.
2. Referenced Documents
NOTE 1—This specification was originally intended primarily for
2.1 ASTM Standards:
construction of storage tanks used at ambient temperatures when im-
A6/A6M Specification for General Requirements for Rolled
proved toughness was needed over that available in semi-killed ingot cast
Structural Steel Bars, Plates, Shapes, and Sheet Piling
steels.
3. General Requirements for Delivery
1.2 Plates covered by this specification are limited to a
maximum thickness of 1.5 in. [40 mm].
3.1 Plates furnished under this specification shall conform
to the requirements of the current edition of Specification
1.3 If the steel is to be welded, it is presupposed that a
A6/A6M, unless a conflict exists in which case this specifica-
welding procedure suitable for the grade of steel and intended
tion shall prevail.
use or service will be utilized. See Appendix X3 of Specifica-
tion A6/A6M for information on weldability.
4. Chemical Composition
1.4 The values stated in either inch-pound units or SI units
4.1 The heat analysis shall conform to the requirements
are to be regarded separately as standard. Within the text, the
given in Table 1.
SI units are shown in brackets. The values stated in each
4.2 The product analysis shall conform to the requirements
system are not necessarily exact equivalents; therefore, to
given in Table 1 subject to the product analysis tolerances in
ensure conformance with the standard, each system shall be
Specification A6/A6M.
used independently of the other, and values from the two
systems shall not be combined. 5. Tension Test
1.5 This international standard was developed in accor-
5.1 The plates, as represented by the tension test specimens,
dance with internationally recognized principles on standard- shall conform to the tensile requirements given in Table 2.
ization established in the Decision on Principles for the
6. Keywords
Development of International Standards, Guides and Recom-
6.1 carbon steel; plates; structural steel; toughness; welded
construction
This specification is under the jurisdiction of ASTM Committee A01 on Steel,
Stainless Steel and Related Alloys and is the direct responsibility of Subcommittee
A01.02 on Structural Steel for Bridges, Buildings, Rolling Stock and Ships. For referenced ASTM standards, visit the ASTM website, www.astm.org, or
Current edition approved July 1, 2020. Published July 2020. Originally approved contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
in 1966. Last previous edition approved in 2013 as A573/A573M – 13. DOI: Standards volume information, refer to the standard’s Document Summary page on
10.1520/A0573_A0573M-20. the ASTM website.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
A573/A573M−20

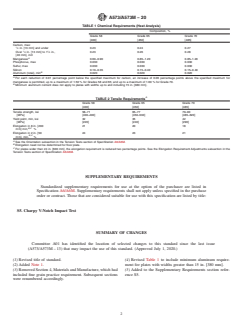

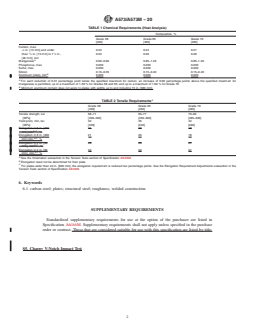

TABLE 1 Chemical Requirements (He
...
This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

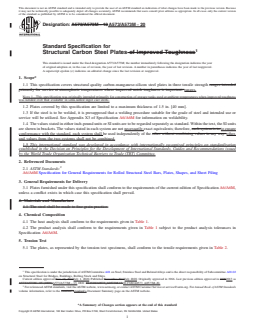

Designation: A573/A573M − 13 A573/A573M − 20
Standard Specification for
Structural Carbon Steel Plates of Improved Toughness
This standard is issued under the fixed designation A573/A573M; the number immediately following the designation indicates the year
of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope*
1.1 This specification covers structural quality carbon-manganese-silicon steel plates in three tensile strength ranges intended
primarily for service at atmospheric temperatures where improved notch toughness is important. ranges.
NOTE 1—This specification was originally intended primarily for construction of storage tanks used at ambient temperatures when improved toughness
was needed over that available in semi-killed ingot cast steels.
1.2 Plates covered by this specification are limited to a maximum thickness of 1.5 in. [40 mm].
1.3 If the steel is to be welded, it is presupposed that a welding procedure suitable for the grade of steel and intended use or
service will be utilized. See Appendix X3 of Specification A6/A6M for information on weldability.
1.4 The values stated in either inch-pound units or SI units are to be regarded separately as standard. Within the text, the SI units
are shown in brackets. The values stated in each system are not necessarily exact equivalents; therefore, each system is to to ensure
conformance with the standard, each system shall be used independently of the other without combining values in any way. other,
and values from the two systems shall not be combined.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
A6/A6M Specification for General Requirements for Rolled Structural Steel Bars, Plates, Shapes, and Sheet Piling
3. General Requirements for Delivery
3.1 Plates furnished under this specification shall conform to the requirements of the current edition of Specification A6/A6M,
unless a conflict exists in which case this specification shall prevail.
4. Materials and Manufacture
4.1 The steel shall be made to fine grain practice.
4. Chemical Composition
4.1 The heat analysis shall conform to the requirements given in Table 1.
4.2 The product analysis shall conform to the requirements given in Table 1 subject to the product analysis tolerances in
Specification A6/A6M.
5. Tension Test
5.1 The plates, as represented by the tension test specimens, shall conform to the tensile requirements given in Table 2.
This specification is under the jurisdiction of ASTM Committee A01 on Steel, Stainless Steel and Related Alloys and is the direct responsibility of Subcommittee A01.02
on Structural Steel for Bridges, Buildings, Rolling Stock and Ships.
Current edition approved Nov. 15, 2013July 1, 2020. Published November 2013July 2020. Originally approved in 1966. Last previous edition approved in 20092013 as
A573/A573M – 05 (2009).A573/A573M – 13. DOI: 10.1520/A0573_A0573M-13.10.1520/A0573_A0573M-20.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’sstandard’s Document Summary page on the ASTM website.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
...
