ASTM A625/A625M-13(2024)

Standard Specification for Tin Mill Products, Black Plate, Single-Reduced

ABSTRACT
This specification covers single-reduced black plate produced from low carbon, cold-reduced steel, furnished in coils and cut sizes, for use in the manufacture of containers, closures, signs, toys and other products, as well as for plating applications. The black plates shall be produced with ground roll and shot-blasted roll finishes and shall be furnished oiled or dry.
SCOPE
1.1 This specification covers single-reduced black plate produced from low carbon, cold-reduced steel, furnished in coils and cut sizes, for use in the manufacture of containers, closures, signs, toys and other products, as well as for plating applications.
1.2 It may be supplied dry or oiled and with or without surface treatment. This product is normally supplied with a trimmed edge.
1.3 This specification is applicable to orders in either inch-pound units (as A625), which is supplied in thicknesses from 135-lb base weight (0.0149 in.) and lighter, or SI units (as A625M), which is supplied in thicknesses from 0.378 mm and lighter.
1.4 The values stated in either inch-pound or SI units are to be regarded as standard. Within the text, the SI units are shown in brackets. The values stated in each system are not exact equivalents; therefore, each system must be used independently of the other. Combining values from the two systems may result in nonconformance with this specification.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

• Status: Published
• Publication Date: 29-Feb-2024
• ICS: 77.140.50 - Flat steel products and semi-products
• Technical Committee: A01 - Steel, Stainless Steel and Related Alloys
• Drafting Committee: A01.20 - Tin Mill Products

Relations

• Replaces: ASTM A625/A625M-13(2018) - Standard Specification for Tin Mill Products, Black Plate, Single-Reduced
• Effective Date: 01-Mar-2024
• Referred By: ASTM A987/A987M-19 - Standard Practice for Measuring Shape Characteristics of Tin Mill Products
• Effective Date: 01-Mar-2024

Overview

ASTM A625/A625M-13(2024) is the standard specification for single-reduced black plate tin mill products, developed by ASTM International. This specification covers thin, low carbon, cold-reduced steel supplied in coils and cut sizes. Black plate is a critical base material used in the manufacturing of containers, closures, signage, toys, and an extensive range of products, as well as in plating operations. The standard details product characteristics, surface finishes, supply conditions, and ordering guidelines, supporting efficient procurement and consistent quality for industrial users.

Compliance with ASTM A625/A625M ensures that black plate products meet rigorous international quality and dimensional requirements. The standard is recognized globally and aligns with principles developed by the World Trade Organization's Technical Barriers to Trade (TBT) Committee, supporting international trade and interoperability.

Key Topics

• Product Scope: Covers single-reduced black plate from low carbon, cold-reduced steel, available in both inch-pound (A625) and SI (A625M) units.
• Supply Options: Available in coils or cut-to-length sheets, furnished either oiled or dry and with optional surface treatments.
• Surface Finishes:
  • Ground roll finishes (e.g., lustrous smooth, with or without grit lines)
  • Shot-blasted or textured finishes for specific applications
• Dimensional Standards: Thickness supplied from 135-lb base weight (0.0149 in.) and lighter in A625 or 0.378 mm and lighter in A625M.
• Ordering Information: Specifies product name, surface appearance, finish, thickness, width, length, steel type, mechanical designation, application, quantity, coil and packaging requirements, and special needs.
• Measurement Units: Both inch-pound and SI units are accepted as standard, but cannot be combined in a single order.

Applications

Single-reduced black plate tin mill products are engineered for versatility in a range of industrial, commercial, and consumer environments. Typical practical applications include:

• Packaging and Containers: Used as the base for tinplate and tin-free steel products in food cans, beverage containers, and industrial packaging due to its formability and surface quality.
• Closures and Ends: Suitable for manufacturing lids, caps, and closures that require precise dimensions and high surface integrity.
• Signage and Displays: Provides a durable, printable surface for signs and advertising displays.
• Toys and Consumer Goods: Used for toys, household items, and decorative products, benefiting from clean finishes and reliable mechanical properties.
• Metal Plating: Serves as a base material for subsequent coating or plating processes, supporting corrosion protection and enhanced aesthetics.

Proper transit and storage procedures are necessary to prevent rusting, as single-reduced black plate is susceptible to corrosion if not handled correctly. Supplemental oiling or surface treatments may be specified depending on the application.

Related Standards

For complete and consistent technical requirements, ASTM A625/A625M refers to several associated standards:

• ASTM A623 / A623M: General Requirements for Tin Mill Products, covering mechanical properties, dimensions, tolerances, and other product characteristics.
• Other Tin Mill Product Specifications: For chemically treated, oiled, or specialty surface finishes, refer to specific guidelines in related ASTM standards.
• ISO and International Trade: Developed per WTO TBT principles, enhancing compatibility with global purchasing and regulatory frameworks.

Summary

The ASTM A625/A625M-13(2024) standard is an essential reference for producers, buyers, and end users of single-reduced black plate tin mill products. By standardizing product characteristics and providing clear guidance on ordering and applications, it supports high-quality production and efficient international trade in steel-based packaging, fabrication, and industrial sectors. For optimal results, always consult the latest edition of related ASTM tin mill standards when specifying material for critical end uses.

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

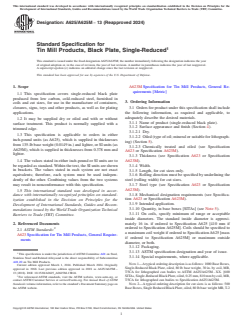

Designation: A625/A625M − 13 (Reapproved 2024)
Standard Specification for
Tin Mill Products, Black Plate, Single-Reduced
This standard is issued under the fixed designation A625/A625M; the number immediately following the designation indicates the year
of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope A623M Specification for Tin Mill Products, General Re-
quirements [Metric]
1.1 This specification covers single-reduced black plate
produced from low carbon, cold-reduced steel, furnished in
3. Ordering Information
coils and cut sizes, for use in the manufacture of containers,
closures, signs, toys and other products, as well as for plating 3.1 Orders for product under this specification shall include
applications.
the following information, as required and applicable, to
adequately describe the desired materials.
1.2 It may be supplied dry or oiled and with or without
3.1.1 Name of product (single-reduced black plate).
surface treatment. This product is normally supplied with a
3.1.2 Surface appearance and finish (Section 4).
trimmed edge.
3.1.2.1 Dry.
1.3 This specification is applicable to orders in either
3.1.2.2 Oiled (type of oil; mineral or suitable for lithograph-
inch-pound units (as A625), which is supplied in thicknesses
ing) (Section 5).
from 135-lb base weight (0.0149 in.) and lighter, or SI units (as
3.1.2.3 Chemically treated and oiled (see Specification
A625M), which is supplied in thicknesses from 0.378 mm and
A623 or Specification A623M).
lighter.
3.1.3 Thickness (see Specification A623 or Specification
1.4 The values stated in either inch-pound or SI units are to A623M).
be regarded as standard. Within the text, the SI units are shown
3.1.4 Width.
in brackets. The values stated in each system are not exact 3.1.5 Length, for cut sizes only.
equivalents; therefore, each system must be used indepen-
3.1.6 Rolling direction must be specified by underlining the
dently of the other. Combining values from the two systems steel (rolling width) for cut sizes.
may result in nonconformance with this specification.
3.1.7 Steel type (see Specification A623 or Specification
A623M).
1.5 This international standard was developed in accor-
3.1.8 Mechanical designation requirements (see Specifica-
dance with internationally recognized principles on standard-
tion A623 or Specification A623M).
ization established in the Decision on Principles for the
3.1.9 Intended application.
Development of International Standards, Guides and Recom-
3.1.10 Quantity, in base boxes [SITAs] (see Note 5).
mendations issued by the World Trade Organization Technical
3.1.11 On coils, specify minimum of range or acceptable
Barriers to Trade (TBT) Committee.
inside diameters. The standard inside diameter is approxi-
mately 16 in. if ordered to Specification A625 [410 mm if
2. Referenced Documents
2 ordered to Specification A625M]. Coils should be specified to
2.1 ASTM Standards:
a maximum coil weight if ordered to Specification A625 [mass
A623 Specification for Tin Mill Products, General Require-
if ordered to Specification A625M] or maximum outside
ments
diameter, or both.
3.1.12 Packaging.
3.1.13 ASTM specification designation and year of issue.
This specification is under the jurisdiction of ASTM Committee A01 on Steel,
3.1.14 Special requirements, where applicable.
Stainless Steel and Related Alloysand is the direct responsibility of Subcommittee
A01.20 on Tin Mill Products.
NOTE 1—A typical ordering description is as follows: 1000 Base Boxes,
Current edition approved March 1, 2024. Published March 2024. Originally
Single-Reduced Black Plate, oiled, 80 lb base weight, 30 in. by coil, MR,
approved in 1968. Last previous edition approved in 2018 as A625/A625M –
T5CA for lithographed can bodies to ASTM A625/A625M - XX. [600
13 (2018). DOI: 10.1520/A0625_A0625M-13R24.
2 SITAs, Single-Reduced Black Plate, oiled, 0.25 mm, 810 mm by coil, MR,
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
T5CA for lithographed can bodies to Specification A625/A625M.
contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM
Standards volume information, refer to the standard’s Document Summary page on NOTE 2—A typical ordering description for cut sizes is as follows: 500
the ASTM website. Base
...
