ASTM D2570-16
(Test Method)Standard Test Method for Simulated Service Corrosion Testing of Engine Coolants
Standard Test Method for Simulated Service Corrosion Testing of Engine Coolants
SIGNIFICANCE AND USE
4.1 This test method, by a closer approach to engine cooling system conditions, provides better evaluation and selective screening of engine coolants than is possible from glassware testing (Test Method D1384). The improvement is achieved by controlled circulation of the coolant, by the use of automotive cooling system components, and by a greater ratio of metal surface area to coolant volume.
4.2 Although this test method provides improved discrimination, it cannot conclusively predict satisfactory corrosion inhibition and service life. If greater assurance of satisfactory performance is desired, it should be obtained from full-scale engine tests (Test Method D2758) and from field testing in actual service (Practice D2847).
4.3 Significance and interpretation of the test and its limitations are discussed further in Appendix X1.
4.4 If this test method is used as a qualification test for Specification D3306 and Specification D4985, the recommended components listed in Section 5 shall be used. If it is not being used for such qualification purposes, then suitable substitution components may be used, if agreed upon between the contracting parties.
SCOPE
1.1 This test method evaluates the effect of a circulating engine coolant on metal test specimens and automotive cooling system components under controlled, essentially isothermal laboratory conditions.
1.2 This test method specifies test material, cooling system components, type of coolant, and coolant flow conditions that are considered typical of current automotive use.
1.3 The values stated in foot-pound-second units are to be regarded as the standard. The values given in parentheses (SI units) are approximate equivalents for information only.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use. Specific precautionary statements are given in Section 6.
General Information
Relations
Buy Standard
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

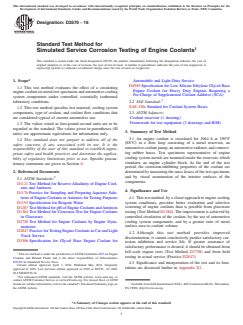

Designation: D2570 − 16
Standard Test Method for
1
Simulated Service Corrosion Testing of Engine Coolants
This standard is issued under the fixed designation D2570; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope* Automobile and Light-Duty Service
D4985 Specification for Low Silicate Ethylene Glycol Base
1.1 This test method evaluates the effect of a circulating
Engine Coolant for Heavy Duty Engines Requiring a
enginecoolantonmetaltestspecimensandautomotivecooling
Pre-Charge of Supplemental Coolant Additive (SCA)
system components under controlled, essentially isothermal
3
laboratory conditions. 2.2 SAE Standard:
SAE J20e Standard for Coolant System Hoses
1.2 This test method specifies test material, cooling system
components, type of coolant, and coolant flow conditions that 2.3 ASTM Adjuncts:
are considered typical of current automotive use. Coolant reservoir (1 drawing)
Framework for test equipment (3 drawings and B/M)
1.3 The values stated in foot-pound-second units are to be
regarded as the standard. The values given in parentheses (SI
3. Summary of Test Method
units) are approximate equivalents for information only.
3.1 An engine coolant is circulated for 1064 h at 190°F
1.4 This standard does not purport to address all of the
(88°C) in a flow loop consisting of a metal reservoir, an
safety concerns, if any, associated with its use. It is the
automotivecoolantpump,anautomotiveradiator,andconnect-
responsibility of the user of this standard to establish appro-
ing rubber hoses. Test specimens representative of engine
priate safety and health practices and determine the applica-
cooling system metals are mounted inside the reservoir, which
bility of regulatory limitations prior to use. Specific precau-
simulates an engine cylinder block. At the end of the test
tionary statements are given in Section 6.
period, the corrosion-inhibiting properties of the coolant are
determined by measuring the mass losses of the test specimens
2. Referenced Documents
and by visual examination of the interior surfaces of the
2
2.1 ASTM Standards:
components.
D1121 Test Method for Reserve Alkalinity of Engine Cool-
ants and Antirusts
4. Significance and Use
D1176 Practice for Sampling and Preparing Aqueous Solu-
tions of Engine Coolants orAntirusts forTesting Purposes 4.1 This test method, by a closer approach to engine cooling
D1193 Specification for Reagent Water system conditions, provides better evaluation and selective
D1287 TestMethodforpHofEngineCoolantsandAntirusts screening of engine coolants than is possible from glassware
D1384 Test Method for Corrosion Test for Engine Coolants testing (Test Method D1384).The improvement is achieved by
in Glassware controlled circulation of the coolant, by the use of automotive
D2758 Test Method for Engine Coolants by Engine Dyna- cooling system components, and by a greater ratio of metal
mometer surface area to coolant volume.
D2847 PracticeforTestingEngineCoolantsinCarandLight
4.2 Although this test method provides improved
Truck Service
discrimination, it cannot conclusively predict satisfactory cor-
D3306 Specification for Glycol Base Engine Coolant for
rosion inhibition and service life. If greater assurance of
satisfactory performance is desired, it should be obtained from
full-scale engine tests (Test Method D2758) and from field
1
This test method is under the jurisdiction ofASTM Committee D15 on Engine
testing in actual service (Practice D2847).
Coolants and Related Fluids and is the direct responsibility of Subcommittee
D15.09 on Simulated Service Tests.
4.3 Significance and interpretation of the test and its limi-
Current edition approved April 1, 2016. Published May 2016. Originally
tations are discussed further in Appendix X1.
approved in 1966. Last previous edition approved in 2010 as D2570 - 10. DOI:
10.1520/D2570-16.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
3
Standards volume information, refer to the standard’s Document Summary page on Available from SAE International (SAE), 400 Commonwealth Dr.,Warrendale,
the ASTM website. PA 15096, http://www.sae.org.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1
---------------------- Page: 1 ----------------------
D25
...
This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

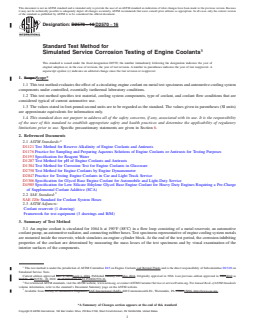

Designation: D2570 − 10 D2570 − 16
Standard Test Method for
1
Simulated Service Corrosion Testing of Engine Coolants
This standard is issued under the fixed designation D2570; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope Scope*
1.1 This test method evaluates the effect of a circulating engine coolant on metal test specimens and automotive cooling system
components under controlled, essentially isothermal laboratory conditions.
1.2 This test method specifies test material, cooling system components, type of coolant, and coolant flow conditions that are
considered typical of current automotive use.
1.3 The values stated in foot-pound-second units are to be regarded as the standard. The values given in parentheses (SI units)
are approximate equivalents for information only.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory
limitations prior to use. Specific precautionary statements are given in Section 6.
2. Referenced Documents
2
2.1 ASTM Standards:
D1121 Test Method for Reserve Alkalinity of Engine Coolants and Antirusts
D1176 Practice for Sampling and Preparing Aqueous Solutions of Engine Coolants or Antirusts for Testing Purposes
D1193 Specification for Reagent Water
D1287 Test Method for pH of Engine Coolants and Antirusts
D1384 Test Method for Corrosion Test for Engine Coolants in Glassware
D2758 Test Method for Engine Coolants by Engine Dynamometer
D2847 Practice for Testing Engine Coolants in Car and Light Truck Service
D3306 Specification for Glycol Base Engine Coolant for Automobile and Light-Duty Service
D4985 Specification for Low Silicate Ethylene Glycol Base Engine Coolant for Heavy Duty Engines Requiring a Pre-Charge
of Supplemental Coolant Additive (SCA)
3
2.2 SAE Standard:
SAE J20e Standard for Coolant System Hoses
2.3 ASTM Adjuncts:
Coolant reservoir (1 drawing)
Framework for test equipment (3 drawings and B/M)
3. Summary of Test Method
3.1 An engine coolant is circulated for 1064 h at 190°F (88°C) in a flow loop consisting of a metal reservoir, an automotive
coolant pump, an automotive radiator, and connecting rubber hoses. Test specimens representative of engine cooling system metals
are mounted inside the reservoir, which simulates an engine cylinder block. At the end of the test period, the corrosion-inhibiting
properties of the coolant are determined by measuring the mass losses of the test specimens and by visual examination of the
interior surfaces of the components.
1
This test method is under the jurisdiction of ASTM Committee D15 on Engine Coolants and Related Fluids and is the direct responsibility of Subcommittee D15.09 on
Simulated Service Tests.
Current edition approved Dec. 1, 2010April 1, 2016. Published January 2011May 2016. Originally approved in 1966. Last previous edition approved in 20092010 as
D2570 - 09.D2570 - 10. DOI: 10.1520/D2570-10.10.1520/D2570-16.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
3
Available from Society of Automotive Engineers, SAE International (SAE), 400 Commonwealth Dr., Warrendale, PA 15096.15096, http://www.sae.org.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1
---------------------- Page: 1 ----------------------
D2570 − 16

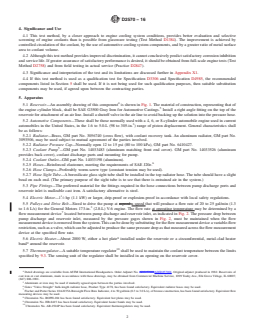

4. Significance and Use
4.1 This test method, by a closer approach to engine cooling system conditions, provides better evaluation and selective
screening of engine coolants than is possible from glassware testing (Test Method D1384). The improvement is achieved by
controlled circulation of the coolant, by the use of automotive cooling system components, and by a greater ratio of metal surface
area to coolant volume.
4.2 Although this test method provides improved discrimination, it cannot conclusively predict satisfactory corrosion inhibition
and service life. If greater assurance of satisfactor
...
