ASTM F2465/F2465M-05(2011)e1

(Guide)

Standard Guide for Oil Spill Dispersant Application Equipment: Single-point Spray Systems

Standard Guide for Oil Spill Dispersant Application Equipment: Single-point Spray Systems

ABSTRACT
This guide covers performance criteria, requirements, material characteristics, and essential features for oil spill dispersant application systems. This guide also covers vessel-based spray systems employing single-point spray nozzles. Oil spill dispersant spray equipment shall conform to the minimum performance requirements such as target dosage, dispersant flow or injection rate determination, droplet size distribution, and maximum delivery variation over spray switch. Materials used in the spray systems shall be corrosion-resistant to salt water and shall be able to be used or stored at extreme temperatures. Performance data shall be provided to user, including information such as dilute versus neat application, dosage chart, accuracy of data, nozzles and pumps, and operational manual.
SCOPE
1.1 This guide covers performance criteria, requirements, material characteristics, and essential features for oil spill dispersant application systems. This guide is not intended to be restrictive to a specific configuration.
1.2 This guide covers vessel-based spray systems employing single-point spray nozzles, including designs that have been based on or evolved from “fire-monitor” systems, and is not fully applicable to other systems such as spray boom/nozzle or aircraft systems.
1.3 This guide is one of five related to dispersant application systems. The other four guides cover the design of boom and nozzle systems, spray system calibration, spray deposition measurements, and use of the systems. Familiarity with all five guides (listed in 2.1) is recommended.
1.4 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard.
1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use.

General Information

Status
Historical
Publication Date
31-Aug-2011
ICS
13.020.40 - Pollution, pollution control and conservation
Technical Committee
F20 - Hazardous Substances and Oil Spill Response
Drafting Committee
F20.13 - Treatment
Current Stage
Ref Project

Relations

Replaces
ASTM F2465-05 - Standard Guide for Oil Spill Dispersant Application Equipment: Single-point Spray Systems
Effective Date
01-Sep-2011
Replaced By
ASTM F2465/F2465M-05(2016) - Standard Guide for Oil Spill Dispersant Application Equipment: Single-point Spray Systems
Effective Date
01-Feb-2016
Referred By
ASTM F1737/F1737M-23 - Standard Guide for Use of Oil Spill Dispersant Application Equipment During Spill Response: Boom and Nozzle Systems
Effective Date
01-Sep-2011

Buy Standard

ASTM F2465/F2465M-05(2011)e1 - Standard Guide for Oil Spill Dispersant Application Equipment: Single-point Spray SystemsASTM F2465/F2465M-05(2011)e1 - Standard Guide for Oil Spill Dispersant Application Equipment: Single-point Spray Systems
PreviousNext
Guide
ASTM F2465/F2465M-05(2011)e1 - Standard Guide for Oil Spill Dispersant Application Equipment: Single-point Spray Systems
English language
4 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)


NOTICE: This standard has either been superseded and replaced by a new version or withdrawn.
Contact ASTM International (www.astm.org) for the latest information
´1

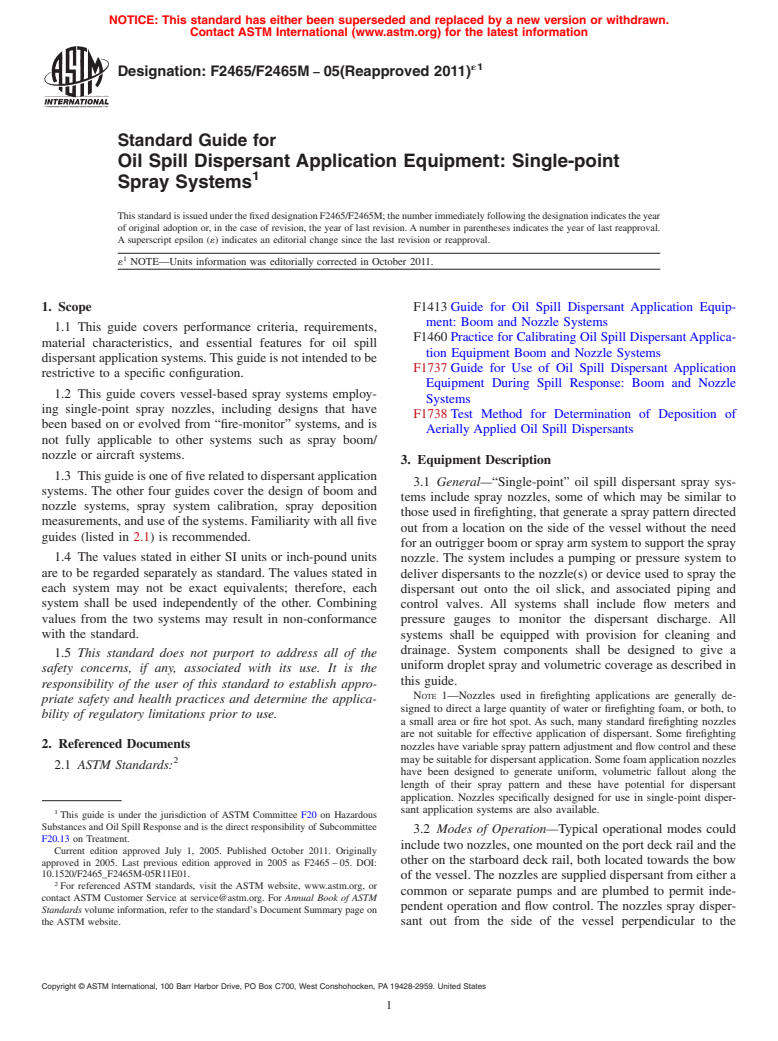

Designation: F2465/F2465M − 05(Reapproved 2011)
Standard Guide for
Oil Spill Dispersant Application Equipment: Single-point
Spray Systems
ThisstandardisissuedunderthefixeddesignationF2465/F2465M;thenumberimmediatelyfollowingthedesignationindicatestheyear
of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
´ NOTE—Units information was editorially corrected in October 2011.
1. Scope F1413 Guide for Oil Spill Dispersant Application Equip-
ment: Boom and Nozzle Systems
1.1 This guide covers performance criteria, requirements,
F1460 Practice for Calibrating Oil Spill DispersantApplica-
material characteristics, and essential features for oil spill
tion Equipment Boom and Nozzle Systems
dispersant application systems.This guide is not intended to be
F1737 Guide for Use of Oil Spill Dispersant Application
restrictive to a specific configuration.
Equipment During Spill Response: Boom and Nozzle
1.2 This guide covers vessel-based spray systems employ-
Systems
ing single-point spray nozzles, including designs that have
F1738 Test Method for Determination of Deposition of
been based on or evolved from “fire-monitor” systems, and is
Aerially Applied Oil Spill Dispersants
not fully applicable to other systems such as spray boom/
nozzle or aircraft systems.
3. Equipment Description
1.3 Thisguideisoneoffiverelatedtodispersantapplication
3.1 General—“Single-point” oil spill dispersant spray sys-
systems. The other four guides cover the design of boom and
tems include spray nozzles, some of which may be similar to
nozzle systems, spray system calibration, spray deposition
those used in firefighting, that generate a spray pattern directed
measurements, and use of the systems. Familiarity with all five
out from a location on the side of the vessel without the need
guides (listed in 2.1) is recommended.
for an outrigger boom or spray arm system to support the spray
1.4 The values stated in either SI units or inch-pound units
nozzle. The system includes a pumping or pressure system to
are to be regarded separately as standard. The values stated in deliver dispersants to the nozzle(s) or device used to spray the
each system may not be exact equivalents; therefore, each
dispersant out onto the oil slick, and associated piping and
system shall be used independently of the other. Combining
control valves. All systems shall include flow meters and
values from the two systems may result in non-conformance
pressure gauges to monitor the dispersant discharge. All
with the standard.
systems shall be equipped with provision for cleaning and
drainage. System components shall be designed to give a
1.5 This standard does not purport to address all of the
uniform droplet spray and volumetric coverage as described in
safety concerns, if any, associated with its use. It is the
this guide.
responsibility of the user of this standard to establish appro-
NOTE 1—Nozzles used in firefighting applications are generally de-
priate safety and health practices and determine the applica-
signed to direct a large quantity of water or firefighting foam, or both, to
bility of regulatory limitations prior to use.
a small area or fire hot spot. As such, many standard firefighting nozzles
are not suitable for effective application of dispersant. Some firefighting
2. Referenced Documents
nozzles have variable spray pattern adjustment and flow control and these
may be suitable for dispersant application. Some foam application nozzles
2.1 ASTM Standards:
have been designed to generate uniform, volumetric fallout along the
length of their spray pattern and these have potential for dispersant
application. Nozzles specifically designed for use in single-point disper-
sant application systems are also available.
This guide is under the jurisdiction of ASTM Committee F20 on Hazardous
Substances and Oil Spill Response and is the direct responsibility of Subcommittee
3.2 Modes of Operation—Typical operational modes could
F20.13 on Treatment.
include two nozzles, one mounted on the port deck rail and the
Current edition approved July 1, 2005. Published October 2011. Originally
other on the starboard deck rail, both located towards the bow
approved in 2005. Last previous edition approved in 2005 as F2465 – 05. DOI:
10.1520/F2465_F2465M-05R11E01.
of the vessel. The nozzles are supplied dispersant from either a
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
common or separate pumps and are plumbed to permit inde-
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
pendent operation and flow control. The nozzles spray disper-
Standards volume information, refer to the standard’s Document Summary page on
the ASTM website. sant out from the side of the vessel perpendicular to the
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
´1
F2465/F2465M − 05 (2011)
direction of the vessel’s movement and treat oil on each side of 3.5.4 The vessel platform has slow transit and application
the vessel in the zone free of the influence of the vessel’s bow speeds when compared with aircraft application systems (a
wave as it moves through the slick. This type of operation is problem common to all vessel-based application methods).
only effective in light winds.
4. Minimum Equipment Performance Specifications
3.2.1 In moderate to high wind conditions the vessel would
travel in a cross-wind direction, and dispersant would be
4.1 Target Dosage—Oil spill dispersant spray equipment
sprayed downwind, only from the nozzle mounted on the
shall provide a dispersant dosage of between 20 to 1000 L per
downwind side of the vessel. If nozzles were mounted on both
hectare [2 to 100 U.S. gal per acre]. It is not a requirement that
sides of the vessels only the downwind of the two nozzles
a single system cover the entire range. Section 7.2 of this
would be used at any given time. Use of the two nozzles would
standard lists the requirements for dosage and application data
alternate when the vessel reverses direction after completing a
to be provided by the manufacturer.
spray pass. Smaller single-point spray systems can utilize
4.2 Dispersant Flow or Injection Rate Determination—The
portable, “manned” nozzles to permit the operator to direct the
dispersant flow from each single-point nozzle shall be moni-
spray from the side of the vessel onto oil slicks either while the
tored using appropriate pressure and flow meters. The disper-
vessel is moving or stationary. This allows the operator to
sant flow rate (for diluted application, the dispersant flow rate
target heavier patches of oil with dispersant as required.
is equal to the dispersant injection rate) must be sufficient to
3.3 Neat versus DiluteApplication—Single-point spray sys-
produce the required dosage on the thickness of oil being
tems may be used to apply dispersant neat or diluted, depend-
encountered
ing on the manufacturer’s usage guidelines and on the slick
4.2.1 Dispersant flow rate (DFR) shall be verified using the
conditions. Operators should be aware that some dispersant
following equations:
products are less effective when applied diluted with seawater.
DFR 5 S 3W 3D 31.67 310 (1)
Manufacturer’s recommended usage guidelines and indepen-
dent research on dispersant effectiveness testing shall be
where:
consulted when considering dilute application.
DFR = dispersant flow rate, L/min,
3.4 Operational Advantages: S = speed of the delivery vehicle, km/h,
W = swath width, m, and
3.4.1 In operational terms, single-point spray systems may
D = dosage, L/ha.
offer the following advantages over vessel-based application
systems:
3.4.1.1 No specialized spray booms, spray boom attach-
Or equivalently in U.S. units:
ments, or supports are required, which makes the system easy
DFR 5 S 3W 3D 32.33 310 (2)
to install on vessels-of-opportunity.
where:
3.4.1.2 Less possibility of damage to the spray equipment in
rough sea conditions.
DFR = dispersant flow rate, U.S. gal/min (USGPM),
3.4.1.3 The spray swath can be considerably wider than S = speed of the delivery vehicle, knots,
conventional spray boom/multi-nozzle systems. W = swath width, ft, and
D = dosage, U.S. gal per acre (USGPA).
3.4.2 Single-point spray systems may offer the following
advantages over conventional boom and nozzle application
4.3 Droplet Size Distribution—The droplet size distribution
systems:
of the dispersant reaching the target shall have a Volume
3.4.2.1 The single nozzles are easier to maintain than the
Median Diameter (VMD) of between 300 to 800 µm. The
mult
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.

This May Also Interest You

ASTM
ASTM F2683-11(2024)(Guide)
Standard Guide for Selection of Booms for Oil-Spill Response

SIGNIFICANCE AND USE
3.1 This guide is intended to aid in the selection of oil spill containment boom for various response conditions. It is not intended to define rigid sets of boom selection standards.
3.2 This guide is intended to be used by persons generally familiar with the practical aspects of oil spill cleanup operations including on-scene response coordinators, planners, oil spill management teams, oil spill removal organizations, and plan evaluators.
3.3 Minimum requirements for boom dimensions, buoyancy, and tensile strength are specified in Guide F1523/F1523M. This guide provides additional qualitative information to aid in boom selection.
3.4 Seven general types of boom systems are described in this standard. Each description includes a summary of the operating principle and a list of selection considerations.
3.5 Definitions relating to boom design, boom types, boom components, boom characteristics, and boom performance can be found in Terminology F818.
3.6 Selection considerations are included to help the user on the selection of a particular boom type or category. Users are cautioned that within each category there may be a wide variation in performance among the various booms.
SCOPE
1.1 This guide covers the selection of boom for the containment and recovery of marine oil spills.
1.2 This guide does not address the compatibility of spill-control equipment with spill products. It is the user’s responsibility to ensure that any equipment selected is compatible with anticipated products and conditions.
1.3 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Guide
    7 pages
    English language
    sale 15% off
ASTM
ASTM F2532-19(2024)(Guide)
Standard Guide for Determining Net Environmental Benefit of Dispersant Use

SIGNIFICANCE AND USE
2.1 Net Environmental Benefit Analysis (NEBA) applied to oil spill response is the process of considering advantages and disadvantages of different spill response options (including no response) to arrive at a spill response decision resulting in the lowest overall environmental and socioeconomic impacts.
2.2 Spill response will likely involve some combination of response options. There are no response methods that are completely effective or risk-free. NEBA should be conducted with appropriate regulatory agencies and other organizations as part of spill contingency planning. NEBA is important for pre-spill planning since some response options have a limited window of opportunity.
SCOPE
1.1 This guide covers considerations in determining net environmental benefit of dispersant use on oil spills. This guide is applicable to both surface and sub-surface application. The purpose of this guide is to minimize environmental and socioeconomic impacts of oil spills.
1.2 Net environmental benefit analysis (NEBA) should be conducted as part of oil spill contingency planning.
1.3 There are many methods to control, cleanup or treat oil spills. Dispersants should be given equal consideration with other spill response options.
1.4 Only general guidance is provided here. For the purposes of this guide, it is assumed that the crude or fuel oil is dispersible to some extent. The dispersant is also assumed to be relatively effective, applied correctly, and in compliance with relevant government regulations. Differences between commercial dispersants or between different oils are not considered in this guide.
1.5 This guide applies to marine and estuarine environments only.
1.6 When making dispersant use decisions, appropriate government authorities should be consulted as required by law.
1.7 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.8 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Guide
    5 pages
    English language
    sale 15% off
ASTM
ASTM F3350-18(2024)(Guide)
Standard Guide for Collecting Skimmer Performance Data in Ice Conditions

SIGNIFICANCE AND USE
4.1 This guide establishes test conditions that will provide a measured oil recovery rate and efficiency for a skimmer operating in drift ice.
4.2 End users need a procedure to quantify optimum performance data for planning and selection of equipment.
4.3 The procedure in this guide will assist in verifying and accurately reporting skimmer system performance.
4.4 Tests will be conducted under well documented conditions and provide repeatable results. Other detailed testing and collection of skimmer performance data are covered under existing standards (see Guide F631 and Test Method F2709).
SCOPE
1.1 This guide defines a procedure and measurement criteria to quantify the recovery rate and efficiency of a stationary skimmer system in drift ice conditions.
1.2 The suggested procedure and test parameters are intended to provide conditions typical of relatively sparse drift ice and relatively dense drift ice coverage.
1.3 It is accepted that the recovery rate as determined by this guide will not likely be achievable under actual conditions of a spill. The procedure in this guide does not account for such issues as changing recovery conditions, number of daylight hours, operator downtime, less than ideal control of skimmer settings, and inclement weather.
1.4 The procedure in this guide involves the use of specific test oils that may be considered hazardous materials. It is the responsibility of the user of this guide to procure and abide by necessary permits and regulations for the use and disposal of test oil.
1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Guide
    5 pages
    English language
    sale 15% off
ASTM
ASTM F3349-18(2024)(Guide)
Standard Guide for Use of Herding Agents in Conjunction with In-Situ Burning

SIGNIFICANCE AND USE
4.1 This guide describes the use of herding agents for the purpose of in-situ burning. It is intended to aid decision-makers and spill-responders in contingency planning, spill response, and training, and to aid manufacturers in developing effective herding agents.
4.2 This guide is not intended as a detailed operational manual for the use of herding agents or the burning of spilled oil.
SCOPE
1.1 This guide relates to the use of herding agents in conjunction with in-situ burning of spilled oil.
1.1.1 Although the focus is on the use of herders in conjunction with in-situ burning, herders may also be used to aid in mechanical recovery of spilled oil.
1.2 The purpose of this guide is to provide information that will enable oil-spill responders to select the appropriate techniques and devices to successfully collect and ignite oil spilled on water.
1.3 The focus of this guide is on the in-situ combustion of marine oil spills in drift ice conditions. The use of herding agents on calmer ice-free water is also possible.
1.4 This guide is one of several related to in-situ burning. Other standards cover specifications for fire-containment booms and the environmental and operational considerations for burning.
1.5 The storage, transport, and use of herding agents may be subject to regulations that will vary according to the jurisdiction. While guidance of a general nature is provided in this document, users of this guide should determine regulations that apply to their situation.
1.6 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.7 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Guide
    6 pages
    English language
    sale 15% off
ASTM
ASTM F2008-00(2024)(Guide)
Standard Guide for Qualitative Observations of Skimmer Performance

SIGNIFICANCE AND USE
4.1 This guide provides procedures enabling the recording of qualitative performance information under controlled test conditions. This information can be used together with quantitative data to comprehensively evaluate a particular spill removal device or as a means of comparing two or more devices.
4.2 Although the qualitative assessment described in this guide can be somewhat subjective, it is an important part of the overall evaluation of a spill removal device. This guide covers performance factors other than recovery rate and efficiency that will affect the device's performance in an actual spill. Their consideration allows the comprehensive evaluation or comparison of spill removal devices.
4.3 Caution must be exercised whenever test data are used to predict performance in actual spill situations as the uncontrolled environmental conditions that affect performance in the field are rarely identical to conditions in the test tank.
4.4 Portions of this guide are specifically intended for skimmers with hydraulic power supplies. This is not intended to limit application of this guide to skimmers with other power supplies such as electric or pneumatic.
SCOPE
1.1 This guide covers evaluating a number of qualitative performance parameters for full-scale oil spill removal systems or individual components of those systems. It is intended to complement the quantitative testing covered in Guide F631.
1.2 This guide is intended for potential purchasers of oil spill removal equipment to ensure that suppliers meet their needs and expectations.
1.3 This guide requires a subjective evaluation that could vary widely when completed by different organizations. As such, its main use would be as a means of comparing different skimmers for a particular organization or application.
1.4 Not all of the items in this guide would apply to a particular skimmer or to a particular cleanup application. Prior to using this guide, users should carefully review the entire contents and note those areas that are most important to their needs. In particular, qualitative evaluation of items such as workmanship of construction may not be applicable to prototype skimmers.
1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. Specific safety precautions are given in Section 9.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Guide
    9 pages
    English language
    sale 15% off
ASTM
ASTM F3337-23(Guide)
Standard Guide for Taking Property and Behavior Measurements on Weathered Fractions of Oil

SIGNIFICANCE AND USE
5.1 A standard procedure is necessary to establish property changes for spilled oils or petroleum products at different oil weathering stages.
5.2 This procedure employs standardized equipment, and test procedures.
5.3 This procedure should be performed at the stages of weathering corresponding to the spill conditions of interest.
SCOPE
1.1 This guide summarizes methods to fractionate oil by evaporative weathering and then measure the properties and behavior of the weathered oil. The results of this guide can provide oil behavior data for input into oil spill models and response method selection.
1.2 This guide covers general procedures for oil weathering and behavior and does not cover all possible procedures which may be applicable to this topic.
1.3 The results obtained using this guide are intended to provide baseline data for the behavior of oil and petroleum products when spilled and input to oil spill models.
1.4 The results obtained using this guide can be used directly to predict certain facets of oil spill behavior or as input to oil spill models.
1.5 The accuracy of the guide depends very much on the representative nature of the oil sample used. Certain oils can have different properties depending on their chemical contents at the moment a sample is taken.
1.6 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.7 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.8 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Guide
    4 pages
    English language
    sale 15% off
  • Guide
    4 pages
    English language
    sale 15% off
ASTM
ASTM F3634-23(Guide)
Standard Guide for Preparing Weathered Samples of Oil Using a Rotary Evaporator

SIGNIFICANCE AND USE
4.1 A standard procedure is necessary to prepare samples of oils or petroleum products at different oil weathering stages with compositional distribution that is representative of weathered spilled oil.
4.2 This procedure uses standardized equipment and test procedures.
4.3 This procedure should be performed at the stages of weathering corresponding to the spill conditions of interest.
SCOPE
1.1 This guide summarizes methods to produce representative residual oil following evaporative weathering using a rotary evaporator.
1.1.1 The results of this guide can provide weathered oil samples for further study and characterization.
1.2 This guide covers general procedures for artificial weathering of oil by using rotary evaporation devices and does not cover all possible procedures that may be applicable to this topic.
1.3 The accuracy of this guide depends very much on the representative nature of the oil sample used. Certain oils can have different properties depending on their chemical contents at the time a sample is taken.
1.4 Units—The values stated in SI units are to be regarded as the standard. No other units of measurement are included in this standard.
1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Guide
    3 pages
    English language
    sale 15% off
ASTM
ASTM F2464-22(Guide)
Standard Guide for Cleaning of Various Oiled Shorelines and Habitats

SIGNIFICANCE AND USE
3.1 One of the key considerations in making sound cleanup decisions for oiled shorelines is the relative sensitivity of the impacted area. Some areas are very sensitive and certain cleaning methods could cause more harm than benefit. In such cases, natural recovery will be the preferred approach. In other cases, depending on the type of oil, the amount of oil present may be so extensive that recovery will be significantly delayed or not occur at all unless active intervention is carried out.
3.2 This guide presents summary information taken from publications listed in Section 2 on the relative physical and biological sensitivities of shorelines for coastal and inland habitats. Use this guide together with the referenced publications and ASTM guides to make informed decisions prior to undertaking cleaning operations. Consult appropriate government agencies according to law.
3.3 The relative sensitivities of shorelines and resources relate to a number of factors:
3.3.1 Shoreline type (substrate, grain size, tidal elevation, etc.),
3.3.2 Biological productivity, diversity and vulnerability,
3.3.3 Exposure to wave and tidal energy, and
3.3.4 Ability to conduct cleanup without further damage.
SCOPE
1.1 This guide provides information on shoreline types and sensitive habitats that can be used as guidance for selecting appropriate cleaning techniques following an oil spill. This guide does not address protected archaeological, historical, or cultural sites.
1.2 This guide’s emphasis is on typical physical and biological attributes of coastal and inland habitats that could be at risk from oil spills. It reviews and encompasses the entire spectrum of shoreline types representing a wide range of sensitivities. It is largely based on NOAA’s and API’s publications listed in Section 2.
1.3 This guide provides only very broad guidance on cleaning strategies for the various habitats. For more in-depth guidance, the reader is referred to Section 2, Referenced Documents.
1.4 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Guide
    6 pages
    English language
    sale 15% off
  • Guide
    6 pages
    English language
    sale 15% off
ASTM
ASTM F2926-18(2022)(Guide)
Standard Guide for Selection and Operation of Vessel-mounted Camera Systems

SIGNIFICANCE AND USE
3.1 The contributions of an effective vessel-mounted camera system:
3.1.1 Provide a tactical image of the portion of spill in the vicinity of the vessel upon which the system is mounted,
3.1.2 Assist in detection of slicks when they are not observable by persons operating at, or near, the water’s surface or at night,
3.1.3 Provide assistance identifying the area of heaviest oil concentration,
3.1.4 Provide input for the operational deployment of equipment,
3.1.5 Extend the hours of clean-up operations to include darkness and poor visibility,
3.1.6 Locate reported oil-on-water, and
3.1.7 Guidance for operational crews to the slick(s).
SCOPE
1.1 This guide provides information and criteria for the selection of camera remote sensing systems that are vessel-mounted for the detection of oil on water.
1.2 This guide applies to the detection of oil-on-water involving cameras of IR, visible, ultra-violet, or night vision types.
1.3 The context of camera use is addressed to the extent it has a bearing on their selection and utility for certain missions or objectives.
1.4 This guide is generally applicable to all types of crude oils and most petroleum products, under a variety of marine or fresh water situations.
1.5 Many camera technologies exhibit limitations with respect to discriminating between the target substances under certain states of weathering, lighting, wind and sea, or various camera settings.
1.6 In general remote sensing systems are used to detect and delineate the overall slick. Vessel-mounted systems are used only to provide a tactical image in the vicinity of the recovery vessel.
1.7 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.8 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.9 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Guide
    6 pages
    English language
    sale 15% off
ASTM
ASTM F2327-21(Guide)
Standard Guide for Selection of Airborne Remote Sensing Systems for Detection and Monitoring of Oil on Water

SIGNIFICANCE AND USE
2.1 The contributions that an effective remote sensing system can make are:
2.1.1 Provide a strategic picture of the overall spill,
2.1.2 Assist in detection of slicks when they are not visible by persons operating at, or near, the water's surface or at night,
2.1.3 Provide location of slicks containing the most oil,
2.1.4 Provide input for the operational deployment of equipment,
2.1.5 Extend the hours of clean-up operations to include darkness and poor visibility,
2.1.6 Identify oceanographic and geographic features toward which the oil may migrate,
2.1.7 Locate unreported oil-on-water,
2.1.8 Collect evidence linking oil-on-water to its source,
2.1.9 Help reduce the time and effort for long range planning,
2.1.10 A log, or time history, of the spill can be compiled from successive data runs, and
2.1.11 A source of initial input for predictive models and for “truthing” or updating them over time.
SCOPE
1.1 This guide provides information and criteria for selection of remote sensing systems for the detection and monitoring of oil on water.
1.2 This guide applies to the remote sensing of oil-on-water involving a variety of sensing devices used alone or in combination. The sensors may be mounted on vessels, in helicopters, fixed-wing aircraft, unmanned aerial vehicles (UAVs), drones, or aerostats. Excluded are situations where the aircraft are used solely as a telemetry or visual observation platform and exo-atmosphere or satellite systems.
1.3 The context of sensor use is addressed to the extent it has a bearing on their selection and utility for certain missions or objectives.
1.4 This guide is generally applicable for all types of crude oils and most petroleum products, under a variety of marine or fresh water situations.
1.5 Many sensors exhibit limitations with respect to discriminating the target substances under certain states of weathering, lighting, wind and sea, or in certain settings.
1.6 This guide gives information for evaluating the capability of a remote surveillance technology to locate, determine the areal extent, as well as measure or approximate characteristics of oil spilled upon water.
1.7 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.8 Remote sensing of oil-on-water involves a number of safety issues associated with the modification of aircraft and their operation, particularly at low altitudes. Also, in some instances, hazardous materials or conditions (for example, certain gases, high voltages, etc.) can be involved. This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.9 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Guide
    4 pages
    English language
    sale 15% off
  • Guide
    4 pages
    English language
    sale 15% off
