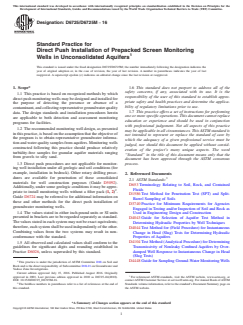

Designation: D6725/D6725M − 16
Standard Practice for
Direct Push Installation of Prepacked Screen Monitoring
1
Wells in Unconsolidated Aquifers
This standard is issued under the fixed designation D6725/D6725M; the number immediately following the designation indicates the
year of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last
reapproval. A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope* 1.6 This standard does not purport to address all of the
safety concerns, if any, associated with its use. It is the
1.1 This practice is based on recognized methods by which
responsibility of the user of this standard to establish appro-
direct push monitoring wells may be designed and installed for
priate safety and health practices and determine the applica-
the purpose of detecting the presence or absence of a
bility of regulatory limitations prior to use.
contaminant,andcollectingrepresentativegroundwaterquality
1.7 This practice offers a set of instructions for performing
data. The design standards and installation procedures herein
one or more specific operations. This document cannot replace
are applicable to both detection and assessment monitoring
education or experience and should be used in conjunction
programs for facilities.
with professional judgement. Not all aspects of this practice
1.2 The recommended monitoring well design, as presented
may be applicable in all circumstances. This ASTM standard is
inthispractice,isbasedontheassumptionthattheobjectiveof
not intended to represent or replace the standard of care by
the program is to obtain representative groundwater informa-
which the adequacy of a given professional service must be
tionandwaterqualitysamplesfromaquifers.Monitoringwells
judged, nor should this document be applied without consid-
constructed following this practice should produce relatively
eration of the project’s many unique aspects. The word
turbidity-free samples for granular aquifer materials ranging
“Standard” in the title of this document means only that the
from gravels to silty sand.
document has been approved through the ASTM consensus
1.3 Direct push procedures are not applicable for monitor-
process.
ing well installation under all geologic and soil conditions (for
example, installation in bedrock). Other rotary drilling proce-
2. Referenced Documents
dures are available for penetration of these consolidated
3
2.1 ASTM Standards:
materials for well construction purposes (Guide D5092).
D653 Terminology Relating to Soil, Rock, and Contained
Additionally, under some geologic conditions it may be appro-
Fluids
2
priate to install monitoring wells without a filter pack (1, 2) .
D1586 Test Method for Penetration Test (SPT) and Split-
Guide D6724 may be referred to for additional information on
Barrel Sampling of Soils
these and other methods for the direct push installation of
D3740 Practice for Minimum Requirements for Agencies
groundwater monitoring wells.
Engaged in Testing and/or Inspection of Soil and Rock as
1.4 The values stated in either inch-pound units or SI units
Used in Engineering Design and Construction
presented in brackets are to be regarded separately as standard.
D4043 Guide for Selection of Aquifer Test Method in
The values stated in each system may not be exact equivalents;
Determining Hydraulic Properties by Well Techniques
therefore,eachsystemshallbeusedindependentlyoftheother.
D4044 Test Method for (Field Procedure) for Instantaneous
Combining values from the two systems may result in non-
Change in Head (Slug) Tests for Determining Hydraulic
conformance with the standard.
Properties of Aquifers
D4104 Test Method (Analytical Procedure) for Determining
1.5 All observed and calculated values shall conform to the
Transmissivity of Nonleaky Confined Aquifers by Over-
guidelines for significant digits and rounding established in
damped Well Response to Instantaneous Change in Head
Practice D6026, unless superseded by this standard.
(Slug Tests)
1
D4448 Guide for Sampling Ground-Water Monitoring Wells
This practice is under the jurisdiction of ASTM Committee D18 on Soil and
Rock and is the direct responsibility of Subcommittee D18.21 on Groundwater and
Vadose Zone Investigations.
Current edition approved July 15, 2016. Published August 2016. Originally
3
approved in 2001. Last previous edition approved in 2010 as D6725–04(2010). For referenced ASTM standards, visit the ASTM website, www.astm.org, or
DOI: 10.1520/D6725_D6725M-16. contactASTM Customer Service at service@astm.org. ForAnnual Book ofASTM
2
The boldface numbers in parent
...
This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

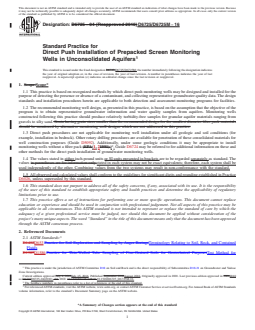

Designation: D6725 − 04 (Reapproved 2010) D6725/D6725M − 16
