Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

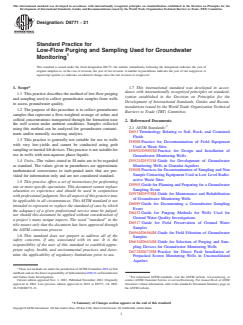

Designation: D6771 − 21
Standard Practice for
Low-Flow Purging and Sampling Used for Groundwater
1
Monitoring
This standard is issued under the fixed designation D6771; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope* 1.7 This international standard was developed in accor-
dance with internationally recognized principles on standard-
1.1 This practice describes the method of low-flow purging
ization established in the Decision on Principles for the
and sampling used to collect groundwater samples from wells
Development of International Standards, Guides and Recom-
to assess groundwater quality.
mendations issued by the World Trade Organization Technical
1.2 The purpose of this procedure is to collect groundwater
Barriers to Trade (TBT) Committee.
samples that represent a flow-weighted average of solute and
colloid concentrations transported through the formation near
2. Referenced Documents
the well screen under ambient conditions. Samples collected
2
2.1 ASTM Standards:
using this method can be analyzed for groundwater contami-
D653 Terminology Relating to Soil, Rock, and Contained
nants and/or naturally occurring analytes.
Fluids
1.3 This practice is generally not suitable for use in wells
D5088 Practice for Decontamination of Field Equipment
with very low-yields and cannot be conducted using grab
Used at Waste Sites
samplingorinertialliftdevices.Thispracticeisnotsuitablefor
D5092/D5092M Practice for Design and Installation of
use in wells with non-aqueous phase liquids.
Groundwater Monitoring Wells
D5521/D5521M Guide for Development of Groundwater
1.4 Units—The values stated in SI units are to be regarded
Monitoring Wells in Granular Aquifers
as standard. The values given in parentheses are approximate
D5608 Practices for Decontamination of Sampling and Non
mathematical conversions to inch-pound units that are pro-
Sample Contacting Equipment Used at Low Level Radio-
vided for information only and are not considered standard.
active Waste Sites
1.5 This practice offers a set of instructions for performing
D5903 Guide for Planning and Preparing for a Groundwater
one or more specific operations. This document cannot replace
Sampling Event
education or experience and should be used in conjunction
D5978/D5978M Guide for Maintenance and Rehabilitation
with professional judgment. Not all aspects of this practice may
of Groundwater Monitoring Wells
be applicable in all circumstances. This ASTM standard is not
D6089 Guide for Documenting a Groundwater Sampling
intended to represent or replace the standard of care by which
Event
the adequacy of a given professional service must be judged,
D6452 Guide for Purging Methods for Wells Used for
nor should this document be applied without consideration of
Ground Water Quality Investigations
a project’s many unique aspects. The word “standard” in the
D6517 Guide for Field Preservation of Ground Water
title means only that the document has been approved through
Samples
the ASTM consensus process.
D6564/D6564M Guide for Field Filtration of Groundwater
1.6 This standard does not purport to address all of the
Samples
safety concerns, if any, associated with its use. It is the
D6634/D6634M Guide for Selection of Purging and Sam-
responsibility of the user of this standard to establish appro-
pling Devices for Groundwater Monitoring Wells
priate safety, health, and environmental practices and deter-
D6725/D6725M Practice for Direct Push Installation of
mine the applicability of regulatory limitations prior to use.
Prepacked Screen Monitoring Wells in Unconsolidated
Aquifers
1
These test methods are under the jurisdiction ofASTM Committee D18 on Soil
andRockandarethedirectresponsibilityofSubcommitteeD18.21onGroundwater
2
and Vadose Zone Investigations. For referenced ASTM standards, visit the ASTM website, www.astm.org, or
Current edition approved Nov. 1, 2021. Published November 2021. Originally contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
approved in 2002. Last previous edition approved in 2018 as D6771 –18. DOI: Standards volume information, refer to the standard’s Document Summary page on
10.1520/D6771-21. the ASTM website.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------
D6771 − 21
D69
...

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: D6771 − 1821
Standard Practice for
Low-Flow Purging and Sampling for Wells and Devices
Used for Ground-Water Quality InvestigationsGroundwater
1
Monitoring
This standard is issued under the fixed designation D6771; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope*
1.1 This practice describes the method of low-flow purging and sampling used to collect groundwater samples from wells to assess
groundwater quality.
1.2 The purpose of this procedure is to collect groundwater samples that represent a flow-weighted average of solute and colloid
concentrations transported through the formation near the well screen under ambient conditions. Samples collected using this
method can be analyzed for groundwater contaminants and/or naturally occurring analytes.
1.3 This practice is generally not suitable for use in wells with very low-yields and cannot be conducted using grab sampling or
inertial lift devices. This practice is not suitable for use in wells with non-aqueous phase liquids.
1.4 Units—The values stated in SI units are to be regarded as standard. The values given in parentheses are approximate
mathematical conversions to inch-pound units that are provided for information only and are not considered standard.
1.5 This practice offers a set of instructions for performing one or more specific operations. This document cannot replace
education or experience and should be used in conjunction with professional judgment. Not all aspects of this practice may be
applicable in all circumstances. This ASTM standard is not intended to represent or replace the standard of care by which the
adequacy of a given professional service must be judged, nor should this document be applied without consideration of a project’s
many unique aspects. The word “standard” in the title means only that the document has been approved through the ASTM
consensus process.
1.6 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of
regulatory limitations prior to use.
1.7 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
1
This practice is These test methods are under the jurisdiction of ASTM Committee D18 on Soil and Rock and isare the direct responsibility of Subcommittee D18.21
on Groundwater and Vadose Zone Investigations.
Current edition approved Sept. 1, 2018Nov. 1, 2021. Published September 2018November 2021. Originally approved in 2002. Last previous edition approved in 2018 as
D6771 –18. DOI: 10.1520/D6771-18.10.1520/D6771-21.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------
D6771 − 21
2. Referenced Documents
2
2.1 ASTM Standards:
D653 Terminology Relating to Soil, Rock, and Contained Fluids
D5088 Practice for Decontamination of Field Equipment Used at Waste Sites
D5092D5092/D5092M Practice for Design and Installation of Groundwater Monitoring Wells
D5521D5521/D5521M Guide for Development of Groundwater Monitoring Wells in Granular Aquifers
D5608 Practices for Decontamination of Sampling and Non Sample Contacting Equipment Used at Low Level Radioactive
Waste Sites
D5903 Guide for Planning and Preparing for a Groundwater Sampling Event
D5978D5978/D5978M Guide for Maintenance and Rehabilitation of Groundwater Monitoring Wells
D6089 Guide for Documenting a Groundwater Sampling Event
D6452 Guide for Purging Methods for Wells Used for Ground Water Quality Investigations
D6517 Guide for Field Preservation of Ground Water Samples
D6564D6564/D6564M Guide for Field Filtration of Groundwater Samples
D6634D6634/D6634M Guide for Selection of Purging and Sampling Devices for Groundwater Monitoring Wells
D6725D6725/D6725M Practice for Direct Push Installation of Prepacked Screen Monitoring Well
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.

This May Also Interest You

ASTM
ASTM D5903-96(2023)(Guide)
Standard Guide for Planning and Preparing for a Groundwater Sampling Event

SIGNIFICANCE AND USE
3.1 The success of a sampling event is influenced by adequate planning and preparation. Use of this guide will help the groundwater sampler to methodically execute the planning and preparation.
3.2 This guide should be used by a professional or technician that has training or experience in groundwater sampling.
SCOPE
1.1 This guide covers planning and preparing for a groundwater sampling event. It includes technical and administrative considerations and procedures. Example checklists are also provided as Appendices.
1.2 This guide may not cover every consideration procedure, or both, that is necessary before all groundwater sampling projects. In karst or fractured rock terranes, it may be appropriate to collect groundwater samples from springs (see Guide D5717). This guide focuses on sampling of groundwater from monitoring wells; however, most of the guidance herein can apply to the sampling of springs as well.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This guide offers an organized collection of information or a series of options and does not recommend a specific course of action. This document cannot replace education or experience and should be used in conjunction with professional judgment. Not all aspects of this guide may be applicable in all circumstances. This ASTM standard is not intended to represent or replace the standard of care by which the adequacy of a given professional service must be judged, nor should this document be applied without consideration of a project's many unique aspects. The word “Standard” in the title of this document means only that the document has been approved through the ASTM consensus process.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Guide
    5 pages
    English language
    sale 15% off
ASTM
ASTM D6001/D6001M-20(Guide)
Standard Guide for Direct-Push Groundwater Sampling for Environmental Site Characterization

SIGNIFICANCE AND USE
5.1 Direct-push groundwater sampling and profiling are economical methods for obtaining discrete interval groundwater quality samples in many soils and unconsolidated formations without the expense of permanent monitoring well installation (1-10).4 Many of these devices can be used to profile groundwater quality or contamination and/or hydraulic conductivity with depth by performing repetitive sampling and testing events. DP groundwater sampling is often used in expedited site characterization (Practice D6235) and as a means to accomplish high resolution site characterization (HRSC) (11, 12). The formation to be sampled should be sufficiently permeable to allow filling of the sampler in a relatively short time. The zone to be sampled and/or slug tested can be isolated by matching sampler screen length to obtain discrete samples of thin saturated, permeable layers. Use of these sampling and hydraulic testing techniques will result in more detailed characterization of sites containing multiple aquifers. The field conditions, sampler design and data quality objectives should be reviewed to determine if development (Guide D5521/D5521M) of the screened formation is appropriate. The samplers do not have a filter pack designed to retain fines like conventional wells, but only a slotted screen or wire-mesh covered ports. So, obtaining low turbidity samples may be difficult or even impossible in formations with a significant proportion of fine-grained materials. With most systems turbidity will always be high so consult Guide D6564/D6564M if field filtration of samples is required. Discrete water sampling, combined with knowledge of location and thickness of target aquifers, may better define conditions in thin multiple aquifers than monitoring wells with long screened intervals that can intersect and allow for intercommunication of multiple aquifers (4, 6, 11-15). DP sampling performed without knowledge of the location and thickness of target aquifers can result in sampling...
SCOPE
1.1 This guide covers a review of methods for sampling groundwater at discrete points or in increments by insertion of groundwater sampling devices using Direct Push Methods (D6286/D6286M, see 3.3.2). By directly pushing the sampler, the soil is displaced and helps to form an annular seal above the sampling zone. Direct-push water sampling can be one time, or multiple sampling events. Knowledge of site specific geology and hydrogeologic conditions is necessary to successfully obtain groundwater samples with these devices.
1.2 Direct-push methods of water sampling are used for groundwater quality and geohydrologic studies. Water quality and permeability may vary at different depths below the surface depending on geohydrologic conditions. Incremental sampling or sampling at discrete depths is used to determine the distribution of contaminants and to more completely characterize geohydrologic environments. These explorations are frequently advised in characterization of hazardous and toxic waste sites and for geohydrologic studies.
1.3 This guide covers several types of groundwater samplers; sealed screen samplers, profiling samplers, dual tube sampling systems, and simple exposed screen samplers. In general, sealed screen samplers driven to discrete depth provide the highest quality water samples. Profiling samplers using an exposed screen(s) which are purged between sampling events allow for more rapid sample collection at multiple depths. Simple exposed screen samplers driven to a test zone with no purging prior to sampling may result in more questionable water quality if exposed to upper contaminated zones, and in that case, would be considered screening devices.
1.4 Methods for obtaining groundwater samples for water quality analysis and detection of contaminants are presented. These methods include use of related standards such as; selection of purging and sampling devices (Guide D6452 and D6634/D6634M), samp...

  • Guide
    22 pages
    English language
    sale 15% off
  • Guide
    22 pages
    English language
    sale 15% off
ASTM
ASTM D6029/D6029M-20(Practice)
Standard Practice for (Analytical Procedures) Determining Hydraulic Properties of a Confined Aquifer and a Leaky Confining Bed with Negligible Storage by the Hantush-Jacob Method

SIGNIFICANCE AND USE
5.1 Assumptions:
5.1.1 The control well discharges at a constant rate, Q.
5.1.2 The control well is of infinitesimal diameter and fully penetrates the aquifer.
5.1.3 The aquifer is homogeneous, isotropic, and areally extensive.
Note 2: Slug and pumping tests implicitly assume a porous medium. Fractured rock and carbonate settings may not provide meaningful data and information.
5.1.4 The aquifer remains saturated (that is, water level does not decline below the top of the aquifer).
5.1.5 The aquifer is overlain, or underlain, everywhere by a confining bed having a uniform hydraulic conductivity and thickness. It is assumed that there is no change of water storage in this confining bed and that the hydraulic gradient across this bed changes instantaneously with a change in head in the aquifer. This confining bed is bounded on the distal side by a uniform head source where the head does not change with time.
5.1.6 The other confining bed is impermeable.
5.1.7 Leakage into the aquifer is vertical and proportional to the drawdown, and flow in the aquifer is strictly horizontal.
5.1.8 Flow in the aquifer is two-dimensional and radial in the horizontal plane.
5.2 The geometry of the well and aquifer system is shown in Fig. 1.
5.3 Implications of Assumptions:
5.3.1 Paragraph 5.1.1 indicates that the discharge from the control well is at a constant rate. Section 8.1 of Test Method D4050 discusses the variation from a strictly constant rate that is acceptable. A continuous trend in the change of the discharge rate could result in misinterpretation of the water-level change data unless taken into consideration.
5.3.2 The leaky confining bed problem considered by the Hantush-Jacob solution requires that the control well has an infinitesimal diameter and has no storage. Abdul Khader and Ramadurgaiah (5) developed graphs of a solution for the drawdowns in a large-diameter control well discharging at a constant rate from an aquifer confined...
SCOPE
1.1 This practice covers an analytical procedure for determining the transmissivity and storage coefficient of a confined aquifer and the leakance value of an overlying or underlying confining bed for the case where there is negligible change of water in storage in a confining bed. This practice is used to analyze water-level or head data collected from one or more observation wells or piezometers during the pumping of water from a control well at a constant rate. With appropriate changes in sign, this practice also can be used to analyze the effects of injecting water into a control well at a constant rate.
1.2 This analytical procedure is used in conjunction with Test Method D4050.
1.3 Limitations—The valid use of the Hantush-Jacob method is limited to the determination of hydraulic properties for aquifers in hydrogeologic settings with reasonable correspondence to the assumptions of the Theis nonequilibrium method (Practice D4106) with the exception that in this case the aquifer is overlain, or underlain, everywhere by a confining bed having a uniform hydraulic conductivity and thickness, and in which the gain or loss of water in storage is assumed to be negligible, and that bed, in turn, is bounded on the distal side by a zone in which the head remains constant. The hydraulic conductivity of the other bed confining the aquifer is so small that it is assumed to be impermeable (see Fig. 1).
FIG. 1 Cross Section Through a Discharging Well in a Leaky Aquifer (from Reed (1)3). The Confining and Impermeable Bed Locations Can Be Interchanged
1.4 Units—The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in nonconformance with the standard. Reporting of results in units other than SI shall not...

  • Standard
    11 pages
    English language
    sale 15% off
  • Standard
    11 pages
    English language
    sale 15% off
ASTM
ASTM D5472/D5472M-20(Practice)
Standard Practice for Determining Specific Capacity and Estimating Transmissivity at the Control Well

SIGNIFICANCE AND USE
5.1 Assumptions of the Theis (1) equation affect specific capacity and transmissivity estimated from specific capacity. These assumptions are given below:
5.1.1 Aquifer is homogeneous and isotropic.
5.1.2 Aquifer is horizontal, of uniform thickness, and infinite in areal extent.
5.1.3 Aquifer is confined by impermeable strata on its upper and lower boundaries.
5.1.4 Density gradient in the flowing fluid must be negligible and the viscous resistance to flow must obey Darcy's Law.
5.1.5 Control well penetrates and receives water equally from the entire thickness of the aquifer.
5.1.6 Control well has an infinitesimal diameter.
5.1.7 Control well discharges at a constant rate.
5.1.8 Control well operates at 100 percent efficiency.
5.1.9 Aquifer remains saturated throughout the duration of pumping.
5.2 Implications of Assumptions and Limitations of Method.
5.2.1 The simplifying assumptions necessary for solution of the Theis equation and application of the method are never fully met in a field situation. The satisfactory use of the method may depend upon the application of one or more empirical correction factors being applied to the field data.
5.2.2 Generally the values of transmissivity derived from specific capacity vary from those values determined from aquifer tests utilizing observation wells. These differences may reflect 1) that specific-capacity represents the response of a small part of the aquifer near the well and may be greatly influenced by conditions near the well such as a gravel pack or graded material resulting from well development, and 2) effects of well efficiency and partial penetration.
5.2.3 The values of transmissivity estimated from specific capacity data are considered less accurate than values obtained from analysis of drawdowns that are observed some distance from the pumped well.
Note 1: The quality of the result produced by this practice is dependent on the competence of the personnel performing it...
SCOPE
1.1 This practice describes a procedure for conducting a specific capacity test, computing the specific capacity of a control well, and estimating the transmissivity in the vicinity of the control well. Specific capacity is the well yield per unit drawdown at an identified time after pumping started.
1.2 This practice is used in conjunction with Test Method D4050 for conducting withdrawal and injection well tests.
1.3 The method of determining transmissivity from specific capacity is a variation of the nonequilibrium method of Theis  (1)2 for determining transmissivity and storage coefficient of an aquifer. The Theis nonequilibrium method is given in Practice D4106.
1.4 Limitations—The limitations of the technique for determining transmissivity are primarily related to the correspondence between the field situation and the simplifying assumptions of the Theis method.
1.5 The scope of this practice is limited by the capabilities of the apparatus.
1.6 All observed and calculated values shall conform to the guidelines for significant digits and rounding established in Practice D6026.
1.6.1 The procedures used to specify how data are collected/recorded and calculated in this practice are regarded as the industry standard. In addition, they are representative of the significant digits that should generally be retained. The procedures used do not consider material variation, purpose for obtaining the data, special purpose studies, or any considerations for the user’s objectives; and it is common practice to increase or reduce significant digits of reported data to commensurate with these considerations. It is beyond the scope of this practice to consider significant digits used in analysis methods for engineering design.
1.7 Units—The values stated in SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system...

  • Standard
    6 pages
    English language
    sale 15% off
  • Standard
    6 pages
    English language
    sale 15% off
ASTM
ASTM D5850-20(Practice)
Standard Practice for (Analytical Procedure) Determining Transmissivity, Storage Coefficient, and Anisotropy Ratio from a Network of Partially Penetrating Wells

SIGNIFICANCE AND USE
5.1 This practice is one of several available for determining vertical anisotropy ratio. Among other available methods are Weeks ((5); see Practice D5473/D5473M), that relies on distance-drawdown data, and Way and McKee (6), that utilizes time-drawdown data. An important restriction of the Weeks distance-drawdown method is that the observation wells need to have identical construction (screened intervals) and two or more of the observation wells need to be located at a distance from the pumped well beyond the effects of partial penetration. The procedure described in this practice general distance-drawdown method, in that it works in theory for most observation well configurations incorporating three or more wells, provided some of the wells are within the zone where flow is affected by partial penetration.
5.2 Assumptions:
5.2.1 Control well discharges at a constant rate, Q.
5.2.2 Control well is of infinitesimal diameter and partially penetrates the aquifer.
5.2.3 Data are obtained from a number of partially penetrating observation wells, some screened at elevations similar to that in the pumped well and some screened at different elevations.
5.2.4 The aquifer is confined, homogeneous and areally extensive. The aquifer may be anisotropic, and, if so, the directions of maximum and minimum hydraulic conductivity are horizontal and vertical, respectively.
5.2.5 Discharge from the well is derived exclusively from storage in the aquifer.
5.3 Calculation Requirements—Application of this method is computationally intensive. The function, fs, shown in (Eq 4) should be evaluated numerous times using arbitrary input parameters. It is not practical to use existing, somewhat limited, tables of values for fs and, because this equation is rather formidable, it may not be easily tractable by hand. Because of this, it is assumed the practitioner using this will have available a computerized procedure for evaluating the function fs. This can be accomplished u...
SCOPE
1.1 This practice covers an analytical procedure for determining the transmissivity, storage coefficient, and ratio of vertical to horizontal hydraulic conductivity of a confined aquifer using observation well drawdown measurements from a constant-rate pumping test. This practice uses data from a minimum of four partially penetrating, recommended to be positioned observation wells around a partially penetrating control well.
1.2 The analytical procedure is used in conjunction with the field procedure in Test Method D4050.
1.3 Limitations—The limitations of the technique for determination of the horizontal and vertical hydraulic conductivity of aquifers are primarily related to the correspondence between the field situation and the simplifying assumption of this practice.
1.4 Units—The values stated in inch-pound units are to be regarded as the standard. The SI units given in parentheses are mathematical conversions, which are provided for information purposes only and are not considered standard. The reporting of results in units other than inch-pound shall not be regarded as nonconformance with this standard.
1.5 All observed and calculated values shall conform to the guidelines for significant digits and rounding established in Practice D6026, unless superseded by this standard.
1.6 The procedures used to specify how data are collected/recorded or calculated in this standard are regarded as the industry standard. In addition, they are representative of the significant digits that generally should be retained. The procedures used do not consider material variation, purpose for obtaining the data, special purpose studies, or any considerations for the user’s objective; and it is common practice to increase or reduce the significant digits of reported data to be commensurate with these considerations. It is beyond the scope of this standard to consider significant digits used in analysis method or engineeri...

  • Standard
    13 pages
    English language
    sale 15% off
  • Standard
    13 pages
    English language
    sale 15% off
ASTM
ASTM D5270/D5270M-20(Practice)
Standard Practice for (Analytical Procedures) Determining Transmissivity and Storage Coefficient of Bounded, Nonleaky, Confined Aquifers

SIGNIFICANCE AND USE
5.1 Assumptions:
5.1.1 The well discharges at a constant rate.
5.1.2 Well is of infinitesimal diameter and is open through the full thickness of the aquifer.
5.1.3 The nonleaky confined aquifer is homogeneous, isotropic, and areally extensive except where limited by linear boundaries.
5.1.4 Discharge from the well is derived initially from storage in the aquifer; later, movement of water may be induced from a constant-head boundary into the aquifer.
5.1.5 The geometry of the assumed aquifer and well are shown in Fig. 1 or Fig. 2.
5.1.6 Boundaries are vertical planes, infinite in length that fully penetrate the aquifer. No water is yielded to the aquifer by impermeable boundaries, whereas recharging boundaries are in perfect hydraulic connection with the aquifer.
5.1.7 Observation wells represent the head in the aquifer; that is, the effects of wellbore storage in the observation wells are negligible.
5.2 Implications of Assumptions:
5.2.1 Implicit in the assumptions are the conditions of a fully-penetrating control well and observation wells of infinitesimal diameter in a confined aquifer. Under certain conditions, aquifer tests can be successfully analyzed when the control well is open to only part of the aquifer or contains a significant volume of water or when the test is conducted in an unconfined aquifer. These conditions are discussed in more detail in Practice D4105/D4105M.
5.2.2 In cases in which this practice is used to locate an unknown boundary, a minimum of three observation wells is needed. If only two observation wells are available, two possible locations of the boundary are defined, and if only one observation well is used, a circle describing all possible locations of the image well is defined.
5.2.3 The effects of a constant-head boundary are often indistinguishable from the effects of a leaky, confined aquifer. Therefore, care must be taken to ensure that a correct conceptual model of the system has been created ...
SCOPE
1.1 This practice covers an analytical procedure for determining the transmissivity, storage coefficient, and possible location of boundaries for a confined aquifer with a linear boundary. This practice is used to analyze water-level or head data from one or more observation wells or piezometers during the pumping of water from a control well at a constant rate. This practice also applies to flowing artesian wells discharging at a constant rate. With appropriate changes in sign, this practice also can be used to analyze the effects of injecting water into a control well at a constant rate.
1.2 The analytical procedure in this practice is used in conjunction with the field procedure in Test Method D4050.
1.3 Limitations—The valid use of this practice is limited to determination of transmissivities and storage coefficients for aquifers in hydrogeologic settings with reasonable correspondence to the assumptions of the Theis nonequilibrium method (see Practice D4106) (see 5.1), except that the aquifer is limited in areal extent by a linear boundary that fully penetrates the aquifer. The boundary is assumed to be either a constant-head boundary (equivalent to a stream or lake that hydraulically fully penetrates the aquifer) or a no-flow (impermeable) boundary (equivalent to a contact with a significantly less permeable rock unit). The Theis nonequilibrium method is described in Practices D4105/D4105M and D4106.
1.4 Units—The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in nonconformance with the standard. Reporting of results in units other than SI shall not be regarded as nonconformance with this standard.
1.5 All observed and calculated values shall conform to the guidelines for significa...

  • Standard
    8 pages
    English language
    sale 15% off
  • Standard
    8 pages
    English language
    sale 15% off
ASTM
ASTM D4104/D4104M-20(Practice)
Standard Practice for (Analytical Procedures) Determining Transmissivity of Nonleaky Confined Aquifers by Overdamped Well Response to Instantaneous Change in Head (Slug Tests)

SIGNIFICANCE AND USE
5.1 Assumptions of Solution of Cooper et al (1):
5.1.1 The head change in the control well is instantaneous at time t  = 0.
5.1.2 Well is of finite diameter and fully penetrates the aquifer.
5.1.3 Flow in the nonleaky aquifer is radial.
Note 2: The exact conservation equation of Richards (5)with the volumetric water content can be simplified to take the form used in the solution of (1)with the storage coefficient, which implies several assumptions including that of constant total stresses (6).
5.2 Implications of Assumptions:
5.2.1 The mathematical equations applied ignore inertial effects and assume the water level returns the static level in an approximate exponential manner. The geometric configuration of the well and aquifer are shown in Fig. 1.
FIG. 1 Cross Section Through a Well in Which a Slug of Water is Suddenly Injected
5.2.2 Assumptions are applicable to artesian or confined conditions and fully penetrating wells. However, this practice is commonly applied to partially penetrating wells and in unconfined aquifers where it may provide estimates of hydraulic conductivity for the aquifer interval adjacent to the open interval of the well if the horizontal hydraulic conductivity is significantly greater than the vertical hydraulic conductivity.
Note 3: Slug and pumping tests implicitly assume a porous medium. Fractured rock and carbonate settings may not provide meaningful data and information.
5.2.3 As pointed out by Cooper et al (1) the determination of storage coefficient by this practice has questionable reliability because of the similar shape of the curves, whereas, the determination of transmissivity is not as sensitive to choosing the correct curve. However, the curve selected should not imply a storage coefficient unrealistically large or small.
Note 4: The quality of the result produced by this standard is dependent on the competence of the personnel performing it, and the suitability of the equipment and facilities us...
SCOPE
1.1 This practice covers the determination of transmissivity from the measurement of force-free (overdamped) response of a well-aquifer system to a sudden change of water level in a well. Force-free response of water level in a well to a sudden change in water level is characterized by recovery to initial water level in an approximate exponential manner with negligible inertial effects.
1.2 The analytical procedure in this practice is used in conjunction with the field procedure in Test Method D4044/D4044M for collection of test data.
1.3 Limitations—Slug tests are considered to provide an estimate of transmissivity. Although the assumptions of this practice prescribe a fully penetrating well (a well open through the full thickness of the aquifer), the slug test is commonly conducted using a partially penetrating well. Such a practice may be acceptable for application under conditions in which the aquifer is stratified and horizontal hydraulic conductivity is much greater than vertical hydraulic conductivity. In such a case the test would be considered to be representative of the average hydraulic conductivity of the portion of the aquifer adjacent to the open interval of the well.
1.4 All observed and calculated values shall conform to the guidelines for significant digits and rounding established in Practice D6026.
1.4.1 The procedures used to specify how data are collected/recorded and calculated in the standard are regarded as the industry standard. In addition, they are representative of the significant digits that generally should be retained. The procedures used do not consider material variation, purpose for obtaining the data, special purpose studies, or any considerations for the user’s objectives; and it is common practice to increase or reduce significant digits of reported data to be commensurate with these considerations. It is beyond the scope of this practice to consider significant digits use...

  • Standard
    5 pages
    English language
    sale 15% off
  • Standard
    5 pages
    English language
    sale 15% off
ASTM
ASTM D5473/D5473M-20(Practice)
Standard Practice for (Analytical Procedures) Analyzing the Effects of Partial Penetration of Control Well and Determining the Horizontal and Vertical Hydraulic Conductivity in a Nonleaky Confined Aquifer

SIGNIFICANCE AND USE
5.1 Assumptions:
5.1.1 Control well discharges at a constant rate, Q.
5.1.2 Control well is of infinitesimal diameter and partially penetrates the aquifer.
5.1.3 The nonleaky artesian aquifer is homogeneous, and aerially extensive. The aquifer may also be anisotropic and, if so, the directions of maximum and minimum hydraulic conductivity are horizontal and vertical, respectively. The methods may be used to analyze tests on unconfined aquifers under conditions described in a following section.
Note 1: Slug and pumping tests implicitly assume a porous medium. Fractured rock and carbonate settings may not provide meaningful data and information.
5.1.4 Discharge from the well is derived exclusively from storage in the aquifer.
5.1.5 The geometry of the assumed aquifer and well conditions are shown in Fig. 2.
5.2 Implications of Assumptions—The vertical flow components in the aquifer are induced by a control well that partially penetrates the aquifer, that is, a well that is not open to the aquifer through its full thickness. The effects of vertical flow components are measured in piezometers near the control well, that is, within a distance, r, in which vertical flow components are significant, that is:
5.3 Application of Method to Unconfined Aquifers:
5.3.1 Although the assumptions are applicable to artesian or confined conditions, Weeks (1) has pointed out that the solution may be applied to unconfined aquifers if drawdown is small compared with the saturated thickness of the aquifer or if the drawdown is corrected for reduction in thickness of the aquifer, and the effects of delayed gravity response are small. The effects of gravity response become negligible after a time as given, for piezometers near the water table, by the equation:
for values of ar/b
for greater values of ar/b.
5.3.2 Drawdown in an unconfined aquifer is also affected by curvature of the water table or free surface near the control well, and b...
SCOPE
1.1 This practice covers an analytical solution for determining the horizontal and vertical hydraulic conductivity of an aquifer by analysis of the response of water levels in the aquifer to the discharge from a well that partially penetrates the aquifer. This standard uses data derived from Test Method D4050.
1.2 Limitations—The limitations of the technique for determination of the horizontal and vertical hydraulic conductivity of aquifers are primarily related to the correspondence between the field situation and the simplifying assumption of this practice.
1.3 Units—The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in nonconformance with the standard. Reporting of test results in units other than SI shall not be regarded as nonconformance with this standard.
1.4 All observed and calculated values shall conform to the guidelines for significant digits and rounding established in Practice D6026.
1.4.1 The procedures used to specify how data are collected/recorded or calculated, in this standard are regarded as the industry standard. In addition, they are representative of the significant digits that generally should be retained. The procedures used do not consider material variation, purpose for obtaining the data, special purpose studies, or any considerations for the user’s objectives; and it is common practice to increase or reduce significant digits of reported data to be commensurate with these considerations. It is beyond the scope of this standard to consider significant digits used in analytical methods for engineering design
1.5 This practice offers a set of instructions for performing one or more specific operations. This document cannot replace education or experience and...

  • Standard
    17 pages
    English language
    sale 15% off
  • Standard
    17 pages
    English language
    sale 15% off
ASTM
ASTM D6028/D6028M-20(Practice)
Standard Practice for (Analytical Procedure) Determining Hydraulic Properties of a Confined Aquifer Taking into Consideration Storage of Water in Leaky Confining Beds by Modified Hantush Method

SIGNIFICANCE AND USE
5.1 Assumptions:
5.1.1 The control well discharges at a constant rate, Q.
5.1.2 The control well is of infinitesimal diameter and fully penetrates the aquifer.
5.1.3 The aquifer is homogeneous, isotropic, and areally extensive.
Note 1: Slug and pumping tests implicitly assume a porous medium. Fractured rock and carbonate settings may not provide meaningful data and information.
5.1.4 The aquifer remains saturated (that is, water level does not decline below the top of the aquifer).
5.1.5 The aquifer is overlain or underlain, or both, everywhere by confining beds individually having uniform hydraulic conductivities, specific storages, and thicknesses. The confining beds are bounded on the distal sides by one of the cases shown in Fig. 1.
5.1.6 Flow in the aquifer is two-dimensional and radial in the horizontal plane.
5.2 The geometry of the well and aquifer system is shown in Fig. 1.
5.3 Implications of Assumptions:
5.3.1 Paragraph 5.1.1 indicates that the discharge from the control well is at a constant rate. Paragraph 8.1 of Test Method D4050 discusses the variation from a strictly constant rate that is acceptable. A continuous trend in the change of the discharge rate could result in misinterpretation of the water-level change data unless taken into consideration.
Note 2: The quality of the result produced by this standard is dependent on the competence of the personnel performing it, and the suitability of the equipment and facilities used. Agencies that meet the criteria of Practice D3740 are generally considered capable of competent and objective testing/sampling/inspection/etc. Users of this standard are cautioned that compliance with Practice D3740 does not in itself assure reliable results. Reliable results depend on many factors; Practice D3740 provides a means of evaluating some of those factors.
5.3.2 The leaky confining bed problem considered by the modified Hantush method requires that the control well has an infinite...
SCOPE
1.1 This practice covers an analytical procedure for determining the transmissivity and storage coefficient of a confined aquifer taking into consideration the change in storage of water in overlying or underlying confining beds, or both. This practice is used to analyze water-level or head data collected from one or more observation wells or piezometers during the pumping of water from a control well at a constant rate. With appropriate changes in sign, this practice also can be used to analyze the effects of injecting water into a control well at a constant rate.
1.2 This analytical procedure is used in conjunction with Test Method D4050.
1.3 Limitations—The valid use of the modified Hantush method (1)2 is limited to the determination of hydraulic properties for aquifers in hydrogeologic settings with reasonable correspondence to the assumptions of the Hantush-Jacob method (Practice D6029/D6029M) with the exception that in this case the gain or loss of water in storage in the confining beds is taken into consideration (see 5.1). All possible combinations of impermeable beds and source beds (for example, beds in which the head remains uniform) are considered on the distal side of the leaky beds that confine the aquifer of interest (see Fig. 1).
FIG. 1 Cross Sections Through Discharging Wells in Leaky Aquifers with Storage of Water in the Confining Beds, Illustrating Three Different Cases of Boundary Conditions (from Reed (2) )
1.4 All observed and calculated values shall conform to the guidelines for significant digits and rounding established in Practice D6026.
1.4.1 The procedures used to specify how data are collected/recorded and calculated in the standard are regarded as the industry standard. In addition, they are representative of the significant digits that generally should be retained. The procedures used do not consider material variation, purpose for obtaining the data, special purpose studies,...

  • Standard
    10 pages
    English language
    sale 15% off
  • Standard
    10 pages
    English language
    sale 15% off
ASTM
ASTM D5855/D5855M-20(Practice)
Standard Practice for (Analytical Procedure) Determining Transmissivity and Storage Coefficient of Confined Nonleaky or Leaky Aquifer by Constant Drawdown Method in Flowing Well

SIGNIFICANCE AND USE
5.1 Assumptions—Leaky Aquifer:
5.1.1 Drawdown (sW) in the control well is constant,
5.1.2 Well is infinitesimal diameter and fully penetrates aquifer,
5.1.3 The aquifer is homogeneous, isotropic, and areally extensive, and
5.1.4 The control well is 100 % efficient.
5.2 Assumptions—Nonleaky Aquifer:
5.2.1 Drawdown (sW) in the control well is constant,
5.2.2 Well is infinitesimal diameter and fully penetrates aquifer,
5.2.3 The aquifer is homogeneous, isotropic, and areally extensive,
5.2.4 Discharge from the well is derived exclusively from storage in the nonleaky aquifer, and
5.2.5 The control well is 100 % efficient.
5.3 Implications of Assumptions:
5.3.1 The assumptions are applicable to confined aquifers and fully penetrating control wells. However, this practice may be applied to partially penetrating wells where the method may provide an estimate of hydraulic conductivity for the aquifer adjacent to the open interval of the well if the horizontal hydraulic conductivity is significantly greater than the vertical hydraulic conductivity.
5.3.2 Values obtained for storage coefficient are less reliable than the values calculated for transmissivity. Storage coefficient values calculated from control well data are not reliable.
Note 7: The quality of the result produced by this standard is dependent on the competence of the personnel performing it, and the suitability of the equipment and facilities used. Agencies that meet the criteria of Practice D3740 are generally considered capable of competent and objective testing/sampling/inspection/etc. Users of this standard are cautioned that compliance with Practice D3740 does not in itself assure reliable results. Reliable results depend on many factors; Practice D3740 provides a means of evaluating some of those factors.
SCOPE
1.1 This practice covers an analytical solution for determining transmissivity and storage coefficient of a leaky or nonleaky confined aquifer. It is used to analyze data on the flow rate from a control well while a constant head is maintained in the well.
1.2 This analytical procedure is used in conjunction with the field procedure in Practice D5786.
1.3 Limitations—The limitations of this technique for the determination of hydraulic properties of aquifers are primarily related to the correspondence between field situation and the simplifying assumption of the solution.
1.4 Units—The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values in each system may not be exact equivalents; therefore each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard. Reporting of test results in units other than SI shall not be regarded as nonconformance with this practice.
1.5 All observed and calculated values shall conform to the guidelines for significant digits and rounding established in Practice D6026.
1.6 This practice offers a set of instructions for performing one or more specific operations. This document cannot replace education or experience and should be used in conjunction with professional judgment. Not all aspects of the practice may be applicable in all circumstances. This ASTM standard is not intended to represent or replace the standard of care by which the adequacy of a given professional service must be judged, nor should this document be applied without the consideration of a project’s many unique aspects. The word “Standard” in the title of this document means only that the document has been approved through the ASTM consensus process.
1.7 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior ...

  • Standard
    6 pages
    English language
    sale 15% off
  • Standard
    6 pages
    English language
    sale 15% off
