ASTM C203-22

Standard Test Methods for Breaking Load and Flexural Properties of Block-Type Thermal Insulation

SIGNIFICANCE AND USE
5.1 These test methods are to be used to determine the resistance of some types of preformed block insulation when transverse loads are normally applied to the surface. Values are measured at the maximum load or breaking point under specified conditions or specimen size, span between supports, and rate of load application. The equations used are based on the assumption that the materials are uniform and presume that the stress-strain characteristics below the elastic limit are linearly elastic. These assumptions are not strictly applicable to thermal insulations of certain types in which crushing occurs before failure is obtained in transverse bending; however, depending upon the accuracy required, these procedures are capable of providing acceptable results.
5.2 Test Method I is especially useful when testing only for the modulus of rupture or the breaking load. This information is useful for quality control inspection and qualification for specification purposes.
5.3 Test Method II is useful in determining the elastic modulus in bending as well as the flexural strength. Flexural properties determined by these test methods are also useful for quality control and specification purposes.
5.4 The basic differences between the two test methods is in the location of the maximum bending moment, maximum axial fiber (flexural or tensile) stresses, and the resolved stress state in terms of shear stress and tensile/compression stress. The maximum axial fiber stresses occur on a line under the loading fitting in Test Method I and over the area between the loading fittings in Test Method II. Test Method I has a high shear stress component in the direction of loading, perpendicular to the axial fiber stress. Sufficient resolved shear stress is capable of producing failure by a shear mode rather than a simple tension/flexural failure. There is no comparable shear component in the central region between the loading fittings in Test Method II. Test Method II simulates a u...
SCOPE
1.1 These test methods cover the determination of the breaking load and calculated flexural strength of a rectangular cross section of a preformed block-type thermal insulation tested as a simple beam. It is also applicable to cellular plastics. Two test methods are described as follows:
1.1.1 Test Method I—A loading system utilizing center loading on a simply supported beam, supported at both ends.
1.1.2 Test Method II—A loading system utilizing two symmetric load points equally spaced from their adjacent support points at each end with a distance between load points of one half of the support span.
1.2 Either test method is capable of being used with the four procedures that follow:
1.2.1 Procedure A—Designed principally for materials that break at comparatively small deflections.
1.2.2 Procedure B—Designed particularly for those materials that undergo large deflections during testing.
1.2.3 Procedure C—Designed for measuring at a constant stress rate, using a CRL (constant rate of loading) machine. Used for breaking load measurements only.
1.2.4 Procedure D—Designed for measurements at a constant crosshead speed, using either a CRT (constant rate of traverse) or CRE (constant rate of extension) machine. Used for breaking load measurements using a fixed crosshead speed machine.
1.3 Comparative tests are capable of being run according to either method or procedure, provided that the method or procedure is found satisfactory for the material being tested.
1.4 These test methods are purposely general in order to accommodate the widely varying industry practices. It is important that the user consult the appropriate materials specification for any specific detailed requirements regarding these test methods.
1.5 The values stated in SI units are to be regarded as the standard. The values given in parentheses are provided for information only.
1.6 This standard does not purport to address all...

General Information

• Status: Published
• Publication Date: 31-Aug-2022
• ICS: 91.100.60 - Thermal and sound insulating materials
• Technical Committee: C16 - Thermal Insulation
• Drafting Committee: C16.32 - Mechanical Properties

Relations

• Refers: ASTM C168-24 - Standard Terminology Relating to Thermal Insulation
• Effective Date: 15-Apr-2024
• Refers: ASTM C133-24 - Standard Test Methods for Cold Crushing Strength and Modulus of Rupture of Refractories
• Effective Date: 01-Apr-2024
• Refers: ASTM C390-08(2024) - Standard Practice for Sampling and Acceptance of Thermal Insulation Lots
• Effective Date: 01-Mar-2024
• Refers: ASTM C870-24 - Standard Practice for Conditioning of Thermal Insulating Materials
• Effective Date: 01-Mar-2024
• Refers: ASTM C390-08(2019) - Standard Practice for Sampling and Acceptance of Thermal Insulation Lots
• Effective Date: 01-Sep-2019
• Refers: ASTM C168-18 - Standard Terminology Relating to Thermal Insulation
• Effective Date: 15-Apr-2018
• Refers: ASTM C168-17 - Standard Terminology Relating to Thermal Insulation
• Effective Date: 01-Jun-2017
• Refers: ASTM C870-11(2017) - Standard Practice for Conditioning of Thermal Insulating Materials
• Effective Date: 15-Apr-2017
• Refers: ASTM C168-15a - Standard Terminology Relating to Thermal Insulation
• Effective Date: 15-Oct-2015
• Refers: ASTM C168-15 - Standard Terminology Relating to Thermal Insulation
• Effective Date: 01-Jun-2015
• Refers: ASTM E4-14 - Standard Practices for Force Verification of Testing Machines
• Effective Date: 01-Jun-2014
• Refers: ASTM C390-08(2013) - Standard Practice for Sampling and Acceptance of Thermal Insulation Lots
• Effective Date: 01-Nov-2013
• Refers: ASTM C168-13 - Standard Terminology Relating to Thermal Insulation
• Effective Date: 01-Apr-2013
• Refers: ASTM C870-11 - Standard Practice for Conditioning of Thermal Insulating Materials
• Effective Date: 01-Apr-2011
• Refers: ASTM E4-10 - Standard Practices for Force Verification of Testing Machines
• Effective Date: 01-Jun-2010

Overview

ASTM C203-22 is the standard test method developed by ASTM International for determining the breaking load and flexural properties of block-type thermal insulation and cellular plastics. This standard provides systematic procedures for evaluating the resistance of preformed insulation materials when subjected to transverse loads, assessing their mechanical strength, and flexural behavior under specified testing conditions. The results obtained are vital for quality assurance, specification compliance, and product development across the thermal insulation industry.

Key Topics

• Breaking Load Determination
  ASTM C203-22 outlines two test methods for measuring the maximum load a block-type thermal insulation specimen can withstand before failure:

  • Test Method I: Center loading on a simply supported beam.
  • Test Method II: Symmetric two-point loading spaced equally from the supports.

• Flexural Strength and Modulus of Rupture
  The standard describes calculating the flexural strength (modulus of rupture) based on the maximum applied load and dimensions of the sample.

• Test Procedures and Applicability
  Four procedures can be used with either method, allowing accurate evaluation for materials that break at small deflections, accommodate large deflections, or require constant load or crosshead speed.

• Sample Preparation and Conditioning
  Guidance is provided for specimen size, preparation, and pre-test conditioning to ensure repeatable, valid results.

• Quality Control and Specification
  Test results support manufacturing quality control, confirm product conformance to material specifications, and provide essential data for material comparison.

• Statistical Reporting
  The standard includes requirements for data reporting, such as average values and standard deviation, improving test repeatability and confidence.

Applications

• Quality Assurance in Manufacturing
  Suppliers and manufacturers of thermal insulation products use ASTM C203-22 for batch testing of block and board products to verify mechanical performance.

• Product Specification and Qualification
  Product developers and specifiers rely on the test results to ensure materials meet specified flexural strength and breaking load criteria essential for safe and efficient insulation application.

• Certification and Compliance
  Meeting ASTM C203-22 is often required in project specifications for building and construction, industrial process piping, and equipment insulation.

• Material Selection and Design
  Engineers and architects reference flexural properties to select suitable insulation materials based on anticipated mechanical loads during transportation, installation, or service.

• Comparative Testing
  The standard enables comparative analysis of different insulation types or formulations to aid material improvement or substitution decisions.

Related Standards

• ASTM C133: Test Methods for Cold Crushing Strength and Modulus of Rupture of Refractories
• ASTM C168: Terminology Relating to Thermal Insulation
• ASTM C390: Practice for Sampling and Acceptance of Thermal Insulation Lots
• ASTM C870: Practice for Conditioning of Thermal Insulating Materials
• ASTM D76: Specification for Tensile Testing Machines for Textiles
• ASTM E4: Practices for Force Calibration and Verification of Testing Machines

Summary

ASTM C203-22 plays a critical role in the thermal insulation and building materials industries by standardizing the methodology for evaluating the flexural strength and breaking load of block-type insulation products. Regular use of these standardized test methods ensures product reliability, compliance, and supports informed material selection, contributing to safer, more efficient thermal insulation systems in a variety of construction and industrial applications.

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

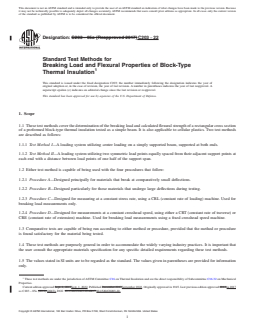

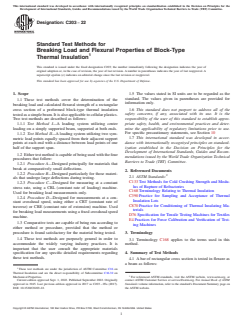

Designation: C203 − 22
Standard Test Methods for
Breaking Load and Flexural Properties of Block-Type
Thermal Insulation
This standard is issued under the fixed designation C203; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope 1.5 The values stated in SI units are to be regarded as the
standard. The values given in parentheses are provided for
1.1 These test methods cover the determination of the
information only.
breaking load and calculated flexural strength of a rectangular
1.6 This standard does not purport to address all of the
cross section of a preformed block-type thermal insulation
safety concerns, if any, associated with its use. It is the
testedasasimplebeam.Itisalsoapplicabletocellularplastics.
responsibility of the user of this standard to establish appro-
Two test methods are described as follows:
priate safety, health, and environmental practices and deter-
1.1.1 Test Method I—A loading system utilizing center
mine the applicability of regulatory limitations prior to use.
loading on a simply supported beam, supported at both ends.
For specific precautionary statements, see Section 10
1.1.2 Test Method II—A loading system utilizing two sym-
1.7 This international standard was developed in accor-
metric load points equally spaced from their adjacent support
dance with internationally recognized principles on standard-
points at each end with a distance between load points of one
ization established in the Decision on Principles for the
half of the support span.
Development of International Standards, Guides and Recom-
1.2 Either test method is capable of being used with the four
mendations issued by the World Trade Organization Technical
procedures that follow:
Barriers to Trade (TBT) Committee.
1.2.1 Procedure A—Designed principally for materials that
break at comparatively small deflections.

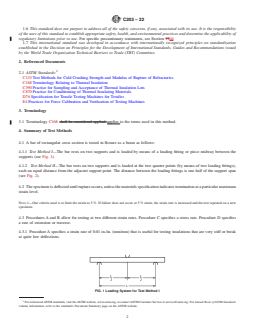

2. Referenced Documents
1.2.2 Procedure B—Designed particularly for those materi-
2.1 ASTM Standards:
als that undergo large deflections during testing.
C133 Test Methods for Cold Crushing Strength and Modu-
1.2.3 Procedure C—Designed for measuring at a constant
lus of Rupture of Refractories
stress rate, using a CRL (constant rate of loading) machine.
C168 Terminology Relating to Thermal Insulation
Used for breaking load measurements only.
C390 Practice for Sampling and Acceptance of Thermal
1.2.4 Procedure D—Designed for measurements at a con-
Insulation Lots
stant crosshead speed, using either a CRT (constant rate of
C870 Practice for Conditioning of Thermal Insulating Ma-
traverse) or CRE (constant rate of extension) machine. Used
terials
for breaking load measurements using a fixed crosshead speed
D76 Specification for Tensile Testing Machines for Textiles
machine.
E4 Practices for Force Calibration and Verification of Test-
1.3 Comparative tests are capable of being run according to
ing Machines
either method or procedure, provided that the method or
procedure is found satisfactory for the material being tested.
3. Terminology
1.4 These test methods are purposely general in order to
3.1 Terminology C168 applies to the terms used in this
accommodate the widely varying industry practices. It is
method.
important that the user consult the appropriate materials
4. Summary of Test Methods
specification for any specific detailed requirements regarding
these test methods.
4.1 A bar of rectangular cross section is tested in flexure as
a beam as follows:
These test methods are under the jurisdiction of ASTM Committee C16 on
Thermal Insulation and are the direct responsibility of Subcommittee C16.32 on
Mechanical Properties. For referenced ASTM standards, visit the ASTM website, www.astm.org, or
Current edition approved Sept. 1, 2022. Published September 2022. Originally contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM
approved in 1945. Last previous edition approved in 2017 as C203 – 05a (2017). Standards volume information, refer to the standard’s Document Summary page on
DOI: 10.1520/C0203-22. the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
C203 − 22

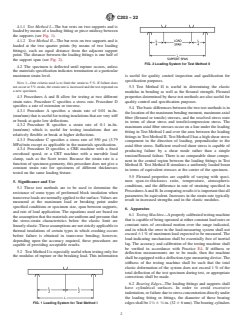

4.1.1 Test Method I—The bar rests on two supports and is
loaded by means of a loading fitting or piece midway between
the supports (see Fig. 1).
4.1.2 Test Method II—The bar rests on two supports and is
loaded at the two quarter points (by means of two loading
fittings), each an equal distance from the adjacent support
point. The distance between the loading fittings is one half of
the support span (see Fig. 2).

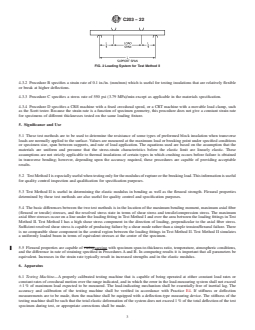

FIG. 2 Loading System for Test Method II
4.2 The specimen is deflected until rupture occurs, unless
the materials specification indicates termination at a particular
maximum strain level. is useful for quality control inspection and qualification for
specification purposes.
NOTE 1—One criteria used is to limit the strain to 5 %. If failure does
not occur at 5 % strain, the strain rate is increased and the test repeated on
5.3 Test Method II is useful in determining the elastic
a new specimen.
modulus in bending as well as the flexural strength. Flexural
4.3 Procedures A and B allow for testing at two different properties determined by these test methods are also useful for
strain rates. Procedure C specifies a stress rate. Procedure D quality control and specification purposes.
specifies a rate of extension or traverse.
5.4 The basic differences between the two test methods is in
4.3.1 Procedure A specifies a strain rate of 0.01 in./in.
thelocationofthemaximumbendingmoment,maximumaxial
(mm/mm)thatisusefulfortestinginsulationsthatareverystiff
fiber (flexural or tensile) stresses, and the resolved stress state
or break at quite low deflections.
in terms of shear stress and tensile/compression stress. The
4.3.2 Procedure B specifies a strain rate of 0.1 in./in.
maximum axial fiber stresses occur on a line under the loading
(mm/mm) which is useful for testing insulations that are
fitting in Test Method I and over the area between the loading
relatively flexible or break at higher deflections.
fittings inTest Method II.Test Method I has a high shear stress
4.3.3 Procedure C specifies a stress rate of 550 psi (3.79
component in the direction of loading, perpendicular to the
MPa)/min except as applicable in the materials specification.
axial fiber stress. Sufficient resolved shear stress is capable of
4.3.4 Procedure D specifies a CRE machine with a fixed
producing failure by a shear mode rather than a simple
crosshead speed, or a CRT machine with a movable load
tension/flexural failure. There is no comparable shear compo-
clamp, such as the Scott tester. Because the strain rate is a
nent in the central region between the loading fittings in Test
function of specimen geometry, this procedure does not give a
Method II. Test Method II simulates a uniformly loaded beam
constant strain rate for specimens of different thicknesses
in terms of equivalent stresses at the center of the specimen.
tested on the same loading fixture.
5.5 Flexural properties are capable of varying with speci-
men span-to-thickness ratio, temperature, atmospheric
5. Significance and Use
conditions, and the difference in rate of straining specified in
5.1 These test methods are to be used to determine the
ProceduresAandB.Incomparingresultsitisimportantthatall
resistance of some types of preformed block insulation when
parameters be equivalent. Increases in the strain rate typically
transverse loads are normally applied to the surface.Values are
result in increased strengths and in the elastic modulus.
measured at the maximum load or breaking point under
specified conditions or specimen size, span between supports,
6. Apparatus
and rate of load application. The equations used are based on
6.1 TestingMachine—Aproperly calibrated testing machine
the assumption that the materials are uniform and presume that
that is capable of being operated at either constant load rates or
the stress-strain characteristics below the elastic limit are
constant rates of crosshead motion over the range indicated,
linearlyelastic.Theseassumptionsarenotstrictlyapplicableto
and in which the error in the load-measuring system shall not
thermal insulations of certain types in which crushing occurs
exceed 61 % of maximum load expected to be measured. The
before failure is obtained in transverse bending; however,
load-indicating mechanism shall be essentially free of inertial
depending upon the accuracy required, these procedures are
lag. The accuracy and calibration of the testing machine shall
capable of providing acceptable results.
be verified in accordance with Practice E4. If stiffness or
5.2 Test Method I is especially useful when testing only for
deflection measurements are to be made, then the machine
the modulus of rupture or the breaking load. This information
shall be equipped with a deflection-type measuring device.The
stiffness of the testing machine shall be such that the total
elastic deformation of the system does not exceed 1 % of the
total deflection of the test specimen during test, or appropriate
corrections shall be made.
6.2 Bearing Edges—The loading fittings and supports shall
have cylindrical surfaces. In order to avoid excessive
indentation,orfailureduetostressconcentrationdirectlyunder
the loading fitting or fittings, the diameter of these bearing
1 1
FIG. 1 Loading System for Test Method I edgesshallbe1 ⁄4 6 ⁄4in.(32 66mm).Thebearingcylinders
C203 − 22
shall be straight and parallel to each other, and they shall be on preformed materials, all specimens shall be of the same
self-aligning to maintain full contact with the specimen thickness, except as applicable in the materials specification.
throughout the test. They shall have a length at least equal to The bearing faces of the test specimens shall be approximately
the width of the specimen. parallelplanes.Inpreparingspecimensfrompiecesofirregular
shape, any means such as a band saw, or any method involving
6.3 Bearing cylindrical supports are described inTest Meth-
the use of abrasives such as high-speed abrasion wheel or
ods C133.
rubbing bed, that will produce a specimen with approximately
6.4 See Fig. 1 for Test Method I; Fig. 2 for Test Method II.
plane and parallel faces (parallel within 1°) without weakening
6.4.1 CRL machines are described in Specification D76.
the structure of the specimen is capable of being used. The
6.4.2 CREandCRTmachines are described in Specification
valueobtainedonspecimenswithmachinedsurfaceswilldiffer
D76.
from those obtained on specimens with original surfaces.
Consequently, the report must state if original surfaces were
7. Test Specimens
retained and when only one original surface was retained,
whether it was on the tension or compression side of the beam.
7.1 The number of specimens to be tested shall be given in
thematerialsspecification.Intheabsenceofsuchspecification,
8. Conditioning
test at least four samples.
8.1 Dry and condition specimens prior to test, following
7.2 The specific materials specification shall be consulted
applicable specifications for the material. In the absence of
for the test specimen geometry and specific directions concern-
definitive drying specifications, follow accepted practices for
ing selection or cutting of specimens. In the absence of such
conditioning in Practice C870. Where circumstances or re-
guidance, the preferred test specimen shall be 1 in. thick by 4
quirements preclude compliance with these conditioning
in. wide by 12 in. long (25 by 100 by 300 mm) tested on a 10
procedures, exceptions agreed upon between the manufacturer
in. (250 mm) support span. The test specimens shall be 4 in.
and the purchaser shall be made, and will be specifically listed
(100 mm) unless otherwise specified, but in no case less than
in the test report.
3 in. (75 mm) in width, and 1 in. (25 mm) thick. The test
specimens shall be long enough to accommodate a support
9. Procedure
span of 10 in. (250 mm) in length. The width and thickness of
test specimens shall be recorded to the nearest 0.01 in. (0.3
9.1 Test Method I, Procedure A:
mm).
9.1.1 Use an untested specimen for each measurement.
Measure the width and depth of the specimen to the nearest
NOTE 2—When comparing test results, such data must be obtained
0.01 in. (0.3 mm) at the center of the support span. Each
using a common specimen size and the same procedure.
dimension is to be measured at three points along the center
7.3 The following are commonly used and minimum re-
line of the span and to use the average value of these
quirements for the test specimen geometry and test setup:
measurementsinordertogetabettervalueincasethesidesare
Common L/d = 10 Require 20$ L/d$ 2
not truly parallel.
(Common requirement that the support span be ten times the thickness.)
9.1.2 Determine the support span to be used and set up the
Common L/b = 2.5 Require L/b$ 0.8
(Common requirement that support span be two and a half times the
support span to within 1 % of the determined value. Measure
width.)
this support span to the nearest 0.1 in. (3.0 mm) at three points
Common b/d = 4 Require b/d$ 1
and record this measurement.
(Common requirement that the width be four times the thickness.)
9.1.3 Calculate the rate of crosshead motion as follows and
where:
set the machine for the calculated rate:
L = support span, in. (or mm),
R 5 ZL /6d (1)
d = thickness of specimen, in. (or mm), and
b = width of specimen, in. (or mm).
where:
NOTE 3—Examination of the minimum test requirements shows they
R = rate of crosshead motion, in./min. (or mm/min.),
are not compatible. They represent a compromise of industrial practices
L = support span, in. (or mm),
with the emphasis toward the commonly used parameters. This incom-
d = depth of beam, in. (or mm), and
patibility precludes a simple table of commonly used and minimum
dimensions.
Z = rate of straining of the outer fiber, in./in.·min (or
mm/mm·min). Z shall equal 0.01.
7.4 The selection of the samples shall conform to Practice
C390. The specimens shall be cut from larger blocks or In no case shall the actual crosshead rate differ from that
irregular shapes in such a manner to preserve as many of the calculated from Eq 1, by more than 6 50%.
original surfaces as acceptable. Only one sample shall be cut 9.1.4 Align the loading fitting and supports so that the axes
from a single block or board. Multiple specimens are capable of the cylindrical surfaces are parallel and the loading fitting is
of being cut from a sample such as a large bun of insulation midway between the supports. The parallelism is capable of
material. If the test specimen is cut to obtain a narrower width being checked by means of a plate with parallel grooves into
than as received, the cut shall be made lengthwise of the block. which the loading fitting and supports will fit when properly
For anisotropic materials, flexural tests are capable of being aligned. Center the specimen on the supports, with the long
run in other than the length direction, such as the cross axis of the specimen perpendicular to the loading fitting and
directionofthesample.Whencomparativetestsaretobemade supports.
C203 − 22
9.1.5 Apply the load to the specimen at the specified a plate containing parallel grooves into which the loading
crosshead rate, and take simultaneou
...

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: C203 − 05a (Reapproved 2017) C203 − 22
Standard Test Methods for
Breaking Load and Flexural Properties of Block-Type
Thermal Insulation
This standard is issued under the fixed designation C203; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope
1.1 These test methods cover the determination of the breaking load and calculated flexural strength of a rectangular cross section
of a preformed block-type thermal insulation tested as a simple beam. It is also applicable to cellular plastics. Two test methods
are described as follows:
1.1.1 Test Method I—A loading system utilizing center loading on a simply supported beam, supported at both ends.
1.1.2 Test Method II—A loading system utilizing two symmetric load points equally spaced from their adjacent support points at
each end with a distance between load points of one half of the support span.
1.2 Either test method is capable of being used with the four procedures that follow:
1.2.1 Procedure A—Designed principally for materials that break at comparatively small deflections.
1.2.2 Procedure B—Designed particularly for those materials that undergo large deflections during testing.
1.2.3 Procedure C—Designed for measuring at a constant stress rate, using a CRL (constant rate of loading) machine. Used for
breaking load measurements only.
1.2.4 Procedure D—Designed for measurements at a constant crosshead speed, using either a CRT (constant rate of traverse) or
CRE (constant rate of extension) machine. Used for breaking load measurements using a fixed crosshead speed machine.
1.3 Comparative tests are capable of being run according to either method or procedure, provided that the method or procedure
is found satisfactory for the material being tested.
1.4 These test methods are purposely general in order to accommodate the widely varying industry practices. It is important that
the user consult the appropriate materials specification for any specific detailed requirements regarding these test methods.
1.5 The values stated in SI units are to be regarded as the standard. The values given in parentheses are provided for information
only.
These test methods are under the jurisdiction of ASTM Committee C16 on Thermal Insulation and are the direct responsibility of Subcommittee C16.32 on Mechanical
Properties.
Current edition approved Sept. 1, 2017Sept. 1, 2022. Published December 2017September 2022. Originally approved in 1945. Last previous edition approved 2012 in 2017
as C203 – 05a (2012).(2017). DOI: 10.1520/C0203-05AR17.10.1520/C0203-22.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
C203 − 22
1.6 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of
regulatory limitations prior to use. For specific precautionary statements, see Section 1110
1.7 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
C133 Test Methods for Cold Crushing Strength and Modulus of Rupture of Refractories
C168 Terminology Relating to Thermal Insulation
C390 Practice for Sampling and Acceptance of Thermal Insulation Lots
C870 Practice for Conditioning of Thermal Insulating Materials
D76 Specification for Tensile Testing Machines for Textiles
E4 Practices for Force Calibration and Verification of Testing Machines
3. Terminology
3.1 Terminology C168 shall be considered applied applies to the terms used in this method.
4. Summary of Test Methods
4.1 A bar of rectangular cross section is tested in flexure as a beam as follows:
4.1.1 Test Method I—The bar rests on two supports and is loaded by means of a loading fitting or piece midway between the
supports (see Fig. 1).
4.1.2 Test Method II—The bar rests on two supports and is loaded at the two quarter points (by means of two loading fittings),
each an equal distance from the adjacent support point. The distance between the loading fittings is one half of the support span
(see Fig. 2).
4.2 The specimen is deflected until rupture occurs, unless the materials specification indicates termination at a particular maximum
strain level.
NOTE 1—One criteria used is to limit the strain to 5 %. If failure does not occur at 5 % strain, the strain rate is increased and the test repeated on a new
specimen.
4.3 Procedures A and B allow for testing at two different strain rates. Procedure C specifies a stress rate. Procedure D specifies
a rate of extension or traverse.
4.3.1 Procedure A specifies a strain rate of 0.01 in./in. (mm/mm) that is useful for testing insulations that are very stiff or break
at quite low deflections.
FIG. 1 Loading System for Test Method I
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
C203 − 22
FIG. 2 Loading System for Test Method II
4.3.2 Procedure B specifies a strain rate of 0.1 in./in. (mm/mm) which is useful for testing insulations that are relatively flexible
or break at higher deflections.
4.3.3 Procedure C specifies a stress rate of 550 psi (3.79 MPa)/min except as applicable in the materials specification.
4.3.4 Procedure D specifies a CRE machine with a fixed crosshead speed, or a CRT machine with a movable load clamp, such
as the Scott tester. Because the strain rate is a function of specimen geometry, this procedure does not give a constant strain rate
for specimens of different thicknesses tested on the same loading fixture.
5. Significance and Use
5.1 These test methods are to be used to determine the resistance of some types of preformed block insulation when transverse
loads are normally applied to the surface. Values are measured at the maximum load or breaking point under specified conditions
or specimen size, span between supports, and rate of load application. The equations used are based on the assumption that the
materials are uniform and presume that the stress-strain characteristics below the elastic limit are linearly elastic. These
assumptions are not strictly applicable to thermal insulations of certain types in which crushing occurs before failure is obtained
in transverse bending; however, depending upon the accuracy required, these procedures are capable of providing acceptable
results.
5.2 Test Method I is especially useful when testing only for the modulus of rupture or the breaking load. This information is useful
for quality control inspection and qualification for specification purposes.
5.3 Test Method II is useful in determining the elastic modulus in bending as well as the flexural strength. Flexural properties
determined by these test methods are also useful for quality control and specification purposes.
5.4 The basic differences between the two test methods is in the location of the maximum bending moment, maximum axial fiber
(flexural or tensile) stresses, and the resolved stress state in terms of shear stress and tensile/compression stress. The maximum
axial fiber stresses occur on a line under the loading fitting in Test Method I and over the area between the loading fittings in Test
Method II. Test Method I has a high shear stress component in the direction of loading, perpendicular to the axial fiber stress.
Sufficient resolved shear stress is capable of producing failure by a shear mode rather than a simple tension/flexural failure. There
is no comparable shear component in the central region between the loading fittings in Test Method II. Test Method II simulates
a uniformly loaded beam in terms of equivalent stresses at the center of the specimen.
5.5 Flexural properties are capable of varingvarying with specimen span-to-thickness ratio, temperature, atmospheric conditions,
and the difference in rate of straining specified in Procedures A and B. In comparing results it is important that all parameters be
equivalent. Increases in the strain rate typically result in increased strengths and in the elastic modulus.
6. Apparatus
6.1 Testing Machine—A properly calibrated testing machine that is capable of being operated at either constant load rates or
constant rates of crosshead motion over the range indicated, and in which the error in the load-measuring system shall not exceed
61 % of maximum load expected to be measured. The load-indicating mechanism shall be essentially free of inertial lag. The
accuracy and calibration of the testing machine shall be verified in accordance with Practice E4. If stiffness or deflection
measurements are to be made, then the machine shall be equipped with a deflection-type measuring device. The stiffness of the
testing machine shall be such that the total elastic deformation of the system does not exceed 1 % of the total deflection of the test
specimen during test, or appropriate corrections shall be made.
C203 − 22
6.2 Bearing Edges—The loading fittings and supports shall have cylindrical surfaces. In order to avoid excessive indentation, or
failure due to stress concentration directly under the loading fitting or fittings, the diameter of these bearing edges shall be 1 ⁄4 6
⁄4 in. (32 6 6 mm). The bearing cylinders shall be straight and parallel to each other, and they shall be self-aligning to maintain
full contact with the specimen throughout the test. They shall have a length at least equal to the width of the specimen.
6.3 Bearing cylindrical supports are described in Test Methods C133.
6.4 See Fig. 1 for Test Method I; Fig. 2 for Test Method II.
6.4.1 CRL machines are described in Specification D76.
6.4.2 CRE and CRT machines are described in Specification D76.
7. Safety Precautions
7.1 Safety precautions consistent with the normal usage of any universal testing machine shall be observed. Safety glasses should
be worn when testing all brittle samples.
7.2 Smoking and open flames shall be avoided when working with flammable or combustible specimens.
7.3 Respirators shall be worn during preparation of specimens that are friable or composed of compacted powder when dust levels
are above permissible limits. Laboratory clothes and gloves shall be used when working with such materials or material that is
abrasive or a skin irritant.
7. Test Specimens
7.1 The number of specimens to be tested shall be given in the materials specification. In the absence of such specification, test
at least four samples.
7.2 The specific materials specification shall be consulted for the test specimen geometry and specific directions concerning
selection or cutting of specimens. In the absence of such guidance, the preferred test specimen shall be 1 in. thick by 4 in. wide
by 12 in. long (25 by 100 by 300 mm) tested on a 10 in. (250 mm) support span. The test specimens shall be 4 in. (100 mm) unless
otherwise specified, but in no case less than 3 in. (75 mm) in width, and 1 in. (25 mm) thick. The test specimens shall be long
enough to accommodate a support span of 10 in. (250 mm) in length. The width and thickness of test specimens shall be recorded
to the nearest 0.01 in. (0.3 mm).
NOTE 2—When comparing test results, such data must be obtained using a common specimen size and the same procedure.
7.3 The following are commonly used and minimum requirements for the test specimen geometry and test setup:
Common L/d = 10 Require 20 $ L/d $ 2
(Common requirement that the support span be ten times the thickness.)
Common L/b = 2.5 Require L/b $ 0.8
(Common requirement that support span be two and a half times the width.)
Common b/d = 4 Require b/d $ 1
(Common requirement that the width be four times the thickness.)
where:
L = support span, in. (or mm),
d = thickness of specimen, in. (or mm), and
b = width of specimen, in. (or mm).
NOTE 3—Examination of the minimum test requirements shows they are not compatible. They represent a compromise of industrial practices with the
emphasis toward the commonly used parameters. This incompatibility precludes a simple table of commonly used and minimum dimensions.
7.4 The selection of the samples shall conform to Practice C390. The specimens shall be cut from larger blocks or irregular shapes
C203 − 22
in such a manner to preserve as many of the original surfaces as acceptable. Only one sample shall be cut from a single block or
board. Multiple specimens are capable of being cut from a sample such as a large bun of insulation material. If the test specimen
is cut to obtain a narrower width than as received, the cut shall be made lengthwise of the block. For anisotropic materials, flexural
tests are capable of being run in other than the length direction, such as the cross direction of the sample. When comparative tests
are to be made on preformed materials, all specimens shall be of the same thickness, except as applicable in the materials
specification. The bearing faces of the test specimens shall be approximately parallel planes. In preparing specimens from pieces
of irregular shape, any means such as a band saw, or any method involving the use of abrasives such as high-speed abrasion wheel
or rubbing bed, that will produce a specimen with approximately plane and parallel faces (parallel within 1°) without weakening
the structure of the specimen is capable of being used. The value obtained on specimens with machined surfaces will differ from
those obtained on specimens with original surfaces. Consequently, the report must state if original surfaces were retained and when
only one original surface was retained, whether it was on the tension or compression side of the beam.
8. Conditioning
8.1 Dry and condition specimens prior to test, following applicable specifications for the material. In the absence of definitive
drying specifications, follow accepted practices for conditioning in Practice C870. Where circumstances or requirements preclude
compliance with these conditioning procedures, exceptions agreed upon between the manufacturer and the purchaser shall be
made, and will be specifically listed in the test report.
9. Procedure
9.1 Test Method I, Procedure A:
9.1.1 Use an untested specimen for each measurement. Measure the width and depth of the specimen to the nearest 0.01 in. (0.3
mm) at the center of the support span. Each dimension is to be measured at three points along the center line of the span and to
use the average value of these measurements in order to get a better value in case the sides are not truly parallel.
9.1.2 Determine the support span to be used and set up the support span to within 1 % of the determined value. Measure this
support span to the nearest 0.1 in. (3.0 mm) at three points and record this measurement.
9.1.3 Calculate the rate of crosshead motion as follows and set the machine for the calculated rate:
R 5 ZL /6d (1)
where:
R = rate of crosshead motion, in./min. (or mm/min.),
L = support span, in. (or mm),
d = depth of beam, in. (or mm), and
Z = rate of straining of the outer fiber, in./in.·min (or mm/mm·min). Z shall equal 0.01.
In no case shall the actual crosshead rate differ from that calculated from Eq 1, by more than 6 50%.
9.1.4 Align the loading fitting and supports so that the axes of the cylindrical surfaces are parallel and the loading fitting is midway
between the supports. The parallelism is capable of being checked by means of a plate with parallel grooves into which the loading
fitting and supports will fit when properly aligned. Cente
...
