ASTM F1752-96

Standard Test Method for Archery Bow Component—Cord Material

SCOPE
1.1 This test method establishes the classification and testing of cord as a component material used in the fashioning of bowstrings.
1.2 This test method is not intended to provide information beyond any evaluation of the cord material that would determine its fitness for use other than in the fabrication of completed bowstrings.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use.

General Information

• Status: Historical
• Publication Date: 09-Nov-1996
• Technical Committee: F08 - Sports Equipment, Playing Surfaces, and Facilities
• Drafting Committee: F08.16 - Archery Products

Relations

• Replaced By: ASTM F1752-96(2001) - Standard Test Method for Archery Bow Component—Cord Material
• Effective Date: 10-Nov-1996

Standards Content (Sample)

NOTICE: This standard has either been superseded and replaced by a new version or discontinued.
Contact ASTM International (www.astm.org) for the latest information.

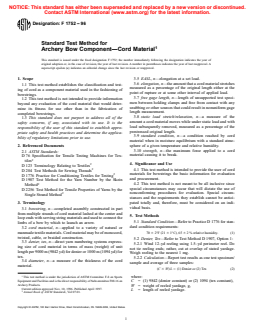

Designation: F 1752 – 96
Standard Test Method for
Archery Bow Component—Cord Material
This standard is issued under the fixed designation F 1752; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (e) indicates an editorial change since the last revision or reapproval.
1. Scope 3.5 EASL, n—elongation at a set load.
3.6 elongation, n—the amount that a cord material stretches
1.1 This test method establishes the classification and test-
measured as a percentage of the original length either at the
ing of cord as a component material used in the fashioning of
point of rupture or at some other interval of applied load.
bowstrings.
3.7 free gage length, n—length of unsupported test speci-
1.2 This test method is not intended to provide information
men between holding clamps and free from contact with any
beyond any evaluation of the cord material that would deter-
snubbing or other sources that could result in nonuniform gage
mine its fitness for use other than in the fabrication of
length measurement.
completed bowstrings.
3.8 static load stretch/relaxation, n—a measure of the
1.3 This standard does not purport to address all of the
amount a cord material moves while under static load and with
safety concerns, if any, associated with its use. It is the
load subsequently removed, measured as a percentage of the
responsibility of the user of this standard to establish appro-
prestressed original length.
priate safety and health practices and determine the applica-
3.9 standard condition, n—a condition reached by cord
bility of regulatory limitations prior to use.
material when in moisture equilibrium with a standard atmo-
2. Referenced Documents
sphere of a given temperature and relative humidity.
3.10 strength, n—the maximum force applied to a cord
2.1 ASTM Standards:
material causing it to break.
D 76 Specification for Tensile Testing Machines for Tex-
tiles
4. Significance and Use
D 123 Terminology Relating to Textiles
4.1 This test method is intended to provide the user of cord
D 204 Test Methods for Sewing Threads
2 materials for bowstrings the basic information for evaluation
D 1776 Practice for Conditioning Textiles for Testing
and procurement.
D 1907 Test Method for the Yarn Number by the Skein
2 4.2 This test method is not meant to be all inclusive since
Method
special circumstances may occur that will dictate the use of
D 2256 Test Method for Tensile Properties of Yarns by the
nonconforming procedures for evaluation. Special circum-
Single Strand Method
stances and the requirements they establish cannot be antici-
3. Terminology pated totally and, therefore, must be considered on an indi-
vidual basis.
3.1 bowstring, n—completed assembly constructed in part
from multiple strands of cord material lashed at the center and
5. Test Methods
loop ends with serving string materials and used to connect the
5.1 Standard Condition—Refer to Practice D 1776 for stan-
limbs of a bow by which to launch an arrow.
dard condition requirements:
3.2 cord material, n—applied to a variety of natural or
manmade textile materials. Cord material may be of monocord, 70 6 2°F ~21 6 1°C!,65 6 2 % relative humidity. (1)
twisted, cable, or braided construction.
5.2 Denier, Tex—Refer to Test Method D 1907, Option 1:
3.3 denier, tex, n—direct yarn numbering systems express-
5.2.1 Wind 12–yd reeling using 1.5–yd perimeter reel. Do
ing size of cord material in terms of mass (weight) of unit
not tie reeling ends; rather, cut at overlap of stated yardage.
length per 9000 m (9842 yd) for denier or 1000 m (1094 yd) for
Weigh reeling to the nearest 1 mg.
tex.
5.2.2 Calculation—Report test results as one test specimen/
3.4 diameter, n—a measure of the thickness of the cord
sample and average of three samples:
material.
~C 3 W!/L5~1! Denier or ~2! Tex (2)
where:
This test method is under the jurisdiction of ASTM Committee F-8 on Sports
Equipment and Facilities and is the direct responsibility of Subcommittee F08.16 on C = (1) 9842 (denier constant) or (2) 1094 (tex constant),
Archery Products.
W = weight of reeled yardage, g,
Current edition approved Nov. 10, 1996. Published April 1997.
L = length of reeled yardage.
Annual Book of ASTM Standards, Vol 07.01.
Copyright © ASTM, 100 Barr Harbor Drive, West Conshohocken, PA 19428-2959, United States.
...
