ASTM B695-04(2009)
(Specification)Standard Specification for Coatings of Zinc Mechanically Deposited on Iron and Steel
Standard Specification for Coatings of Zinc Mechanically Deposited on Iron and Steel
ABSTRACT
This specification covers the requirements for zinc coatings that are mechanically deposited on iron or steel basis metals. The zinc coatings are classified according to thickness and identified into two types; as coated without supplementary treatments or with colored chromate conversion treatment. The thickest coating classes are usually referred to as "mechanically galvanized". All deposited coatings should have a bright uniform silvery appearance, and a matte to medium-bright luster. Samples should be tested for adhesion, salt-spray corrosion resistance, appearance, thickness, and absence of hydrogen embrittlement. All tests results should comply with the given requirements.
SCOPE
1.1 This specification covers the requirements for a coating of zinc mechanically deposited on iron and steel basis metals. The coating is provided in several thicknesses up to and including 107 μm. The seven thickest classes are usually referred to as “mechanically galvanized.”
1.2 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use.
Note 1—The performance of this coating complies with the requirements of Specification A153/A153M and MIL-C-81562.
1.3 The values stated in SI units are to be regarded as the standard. The inch-pound equivalents of SI units are given for informational purposes.
General Information
Relations
Standards Content (Sample)
NOTICE: This standard has either been superseded and replaced by a new version or withdrawn.
Contact ASTM International (www.astm.org) for the latest information

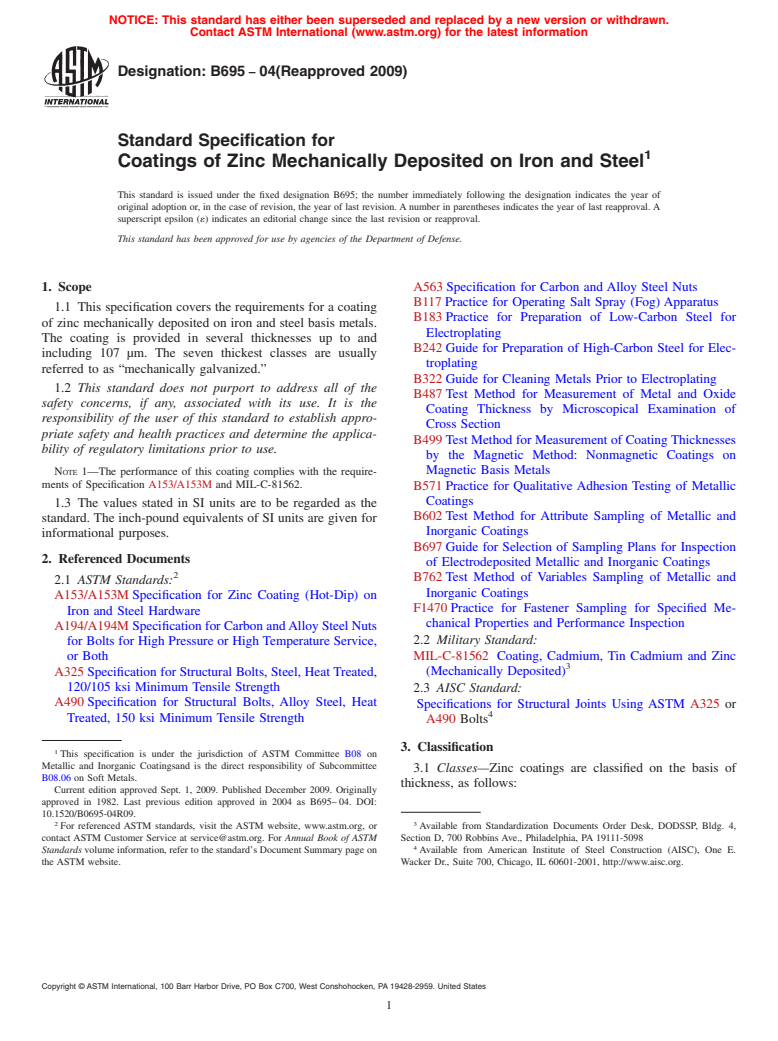

Designation:B695 −04(Reapproved 2009)
Standard Specification for
Coatings of Zinc Mechanically Deposited on Iron and Steel
This standard is issued under the fixed designation B695; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the Department of Defense.
1. Scope A563Specification for Carbon and Alloy Steel Nuts
B117Practice for Operating Salt Spray (Fog) Apparatus
1.1 This specification covers the requirements for a coating
B183Practice for Preparation of Low-Carbon Steel for
of zinc mechanically deposited on iron and steel basis metals.
Electroplating
The coating is provided in several thicknesses up to and
B242Guide for Preparation of High-Carbon Steel for Elec-
including 107 µm. The seven thickest classes are usually
troplating
referred to as “mechanically galvanized.”
B322Guide for Cleaning Metals Prior to Electroplating
1.2 This standard does not purport to address all of the
B487Test Method for Measurement of Metal and Oxide
safety concerns, if any, associated with its use. It is the
Coating Thickness by Microscopical Examination of
responsibility of the user of this standard to establish appro-
Cross Section
priate safety and health practices and determine the applica-
B499Test Method for Measurement of CoatingThicknesses
bility of regulatory limitations prior to use.
by the Magnetic Method: Nonmagnetic Coatings on
NOTE 1—The performance of this coating complies with the require- Magnetic Basis Metals
ments of Specification A153/A153M and MIL-C-81562.
B571Practice for Qualitative Adhesion Testing of Metallic
Coatings
1.3 The values stated in SI units are to be regarded as the
B602Test Method for Attribute Sampling of Metallic and
standard. The inch-pound equivalents of SI units are given for
Inorganic Coatings
informational purposes.
B697Guide for Selection of Sampling Plans for Inspection
2. Referenced Documents
of Electrodeposited Metallic and Inorganic Coatings
B762Test Method of Variables Sampling of Metallic and
2.1 ASTM Standards:
Inorganic Coatings
A153/A153MSpecification for Zinc Coating (Hot-Dip) on
F1470Practice for Fastener Sampling for Specified Me-
Iron and Steel Hardware
chanical Properties and Performance Inspection
A194/A194MSpecificationforCarbonandAlloySteelNuts
2.2 Military Standard:
for Bolts for High Pressure or High Temperature Service,
or Both MIL-C-81562 Coating, Cadmium, Tin Cadmium and Zinc
(Mechanically Deposited)
A325Specification for Structural Bolts, Steel, Heat Treated,
120/105 ksi Minimum Tensile Strength
2.3 AISC Standard:
A490Specification for Structural Bolts, Alloy Steel, Heat
Specifications for Structural Joints Using ASTM A325 or
Treated, 150 ksi Minimum Tensile Strength
A490 Bolts
3. Classification
This specification is under the jurisdiction of ASTM Committee B08 on
Metallic and Inorganic Coatingsand is the direct responsibility of Subcommittee
3.1 Classes—Zinc coatings are classified on the basis of
B08.06 on Soft Metals.
thickness, as follows:
Current edition approved Sept. 1, 2009. Published December 2009. Originally
approved in 1982. Last previous edition approved in 2004 as B695–04. DOI:
10.1520/B0695-04R09.
2 3
For referenced ASTM standards, visit the ASTM website, www.astm.org, or Available from Standardization Documents Order Desk, DODSSP, Bldg. 4,
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Section D, 700 Robbins Ave., Philadelphia, PA 19111-5098
Standards volume information, refer to the standard’s Document Summary page on Available from American Institute of Steel Construction (AISC), One E.
the ASTM website. Wacker Dr., Suite 700, Chicago, IL 60601-2001, http://www.aisc.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
B695−04 (2009)
6.2.1 Stress-Relief Treatment—All steel parts that have an
Class Minimum Thickness, µm
110 107
ultimate tensile strength of 1000 MPa and above and that
80 81
contain tensile stresses caused by machining, grinding,
70 69
straightening, or cold-forming operation shall be given a
65 66
55 53
stress-relief heat treatment prior to cleaning and metal deposi-
50 50
tion. The temperature and time at temperature shall be 190 6
40 40
15°C for a minimum of3hso that maximum stress relief is
25 25
12 12
obtained without reducing the hardness below the specified
minimum.
6.2.2 High-strength steels (which become embrittled when
3.2 Types—Zinccoatingsareidentifiedbytypesonthebasis
charged with hydrogen) and that have heavy oxide or scale
of supplementary treatment required, as follows:
shallbecleanedbeforeapplicationofthecoatinginaccordance
Type I—As coated, without supplementary treatment (Ap-
with Practice B242. In general, nonelectrolytic alkaline,
pendix X2.1).
anodic-alkaline, and some inhibited acid cleaners are preferred
Type II—With colored chromate conversion treatment (Ap-
toavoidtheriskofproducinghydrogenembrittlementfromthe
pendix X2.2).
cleaning procedure.
4. Ordering Information 6.2.3 For low-carbon steels, see Practice B183. Useful
guidelines are also given in Guide B322.
4.1 Supplyingthefollowinginformationbythepurchaserto
6.2.4 Mechanical deposition of zinc coatings shall consist,
the seller in the purchase order or other governing document
in general, of all of the steps listed below, and in the sequence
will make the application of this specification complete:
as shown:
4.1.1 Class, including a maximum thickness, if appropriate,
6.2.4.1 Preparation of the surface of the parts to be coated,
type,andforTypeII,colorandneedforsupplementallubricant
by chemical (generally acidic) procedure to an extent that
(3.1, 3.2, and 6.2.5),
permits uniformly satisfactory results from subsequent steps.
4.1.2 Nature of substrate (for example, high-strength steel),
6.2.4.2 Deposition of a thin metal coating, generally of
need for stress relief (6.2.1), and cleaning precautions to be
copper, by immersion in appropriate chemical solutions, with-
followed (6.2.2 and 6.2.3),
out the use of electric current. There are no thickness require-
4.1.3 Significant surfaces (6.3),
ments for this coating.
4.1.4 Requirements for and methods of testing for one or
6.2.4.3 Tumblingofthepartsthathavebeentreatedaccord-
more of the following, if required: need for and type of test
ing to 6.2.4.1 and 6.2.4.2 in a container with the following:
specimens (8.1), thickness (6.3 and 8.3), adhesion (6.4 and
(1)The zinc metal to be deposited, in powder form;
8.4), corrosion resistance (6.5 and 8.5), absence of hydrogen
(2)Impact media, which includes glass, for example, or
embrittlement,andthewaitingperiodbeforetestingandtesting
other substances that are essentially inert to the chemicals of
loads (6.6 and 8.6),
the deposition process. The function of this media is to aid in
4.1.5 Inspection responsibility (Section 11) and sampling
providingmechanicalforcestodrivethemetalpowderontothe
plan for each inspection criterion (Section 7), and
substrate parts;
4.1.6 Requirements for certified report of test results (Sec-
(3)A “promoter” or “accelerator” which aids in the uni-
tion 10).
form deposition of the metal powder; and
5. Workmanship
(4)A liquid medium, generally water.
6.2.4.4 Separation of the parts from the solid and liquid
5.1 The coating shall be uniform in appearance and free of
blisters, pits, nodules, flaking, and other defects that are media.
capable of adversely affecting the function of the coating. The 6.2.4.5 Rinsing.
coating shall cover all surfaces as stated in 6.3 including roots
6.2.4.6 Drying.
of threads, thread peaks, corners, recesses, and edges. The
6.2.5 Supplementary Treatments:
coating shall not be stained or discolored throughout to an
6.2.5.1 Colored Chromate Conversion Treatments (Type
extent capable of adversely affecting appearance as a func-
II)—Colored chromate conversion treatment for Type II shall
tional requirement. However, superficial staining, that results
be done in a solution containing hexavalent chromium ions.
from rinsing or drying, and variations in color or luster shall
This solution shall produce a bright or semi-bright continuous,
not be cause for rejection.
smooth, protective film with a uniform color that is capable of
ranging from yellow through bronze and olive-drab to brown
NOTE 2—The nature of the mechanical plating process is such that
coatings characteristically will not be as smooth or as bright as some andblackandthatarecapableofbeingdyedtoadesiredcolor.
electroplated coatings.
Bright dips that do not contain salts that yield films containing
hexavalent chromium ions are precluded as treatments for
6. Requirements
producing Type II coatings.
6.1 Appearance—The coating as deposited shall have a
6.2.5.2 Waxes, lacquers, or other organic coatings are not
uniform silvery appearance, and a matte to medium-bright
prohibited from being used to improve lubricity, and the need
luster.
for them shall be supplied in the purchase order or other
6.2 Process: governing document (see 4.1.1). Supplemental lubrication

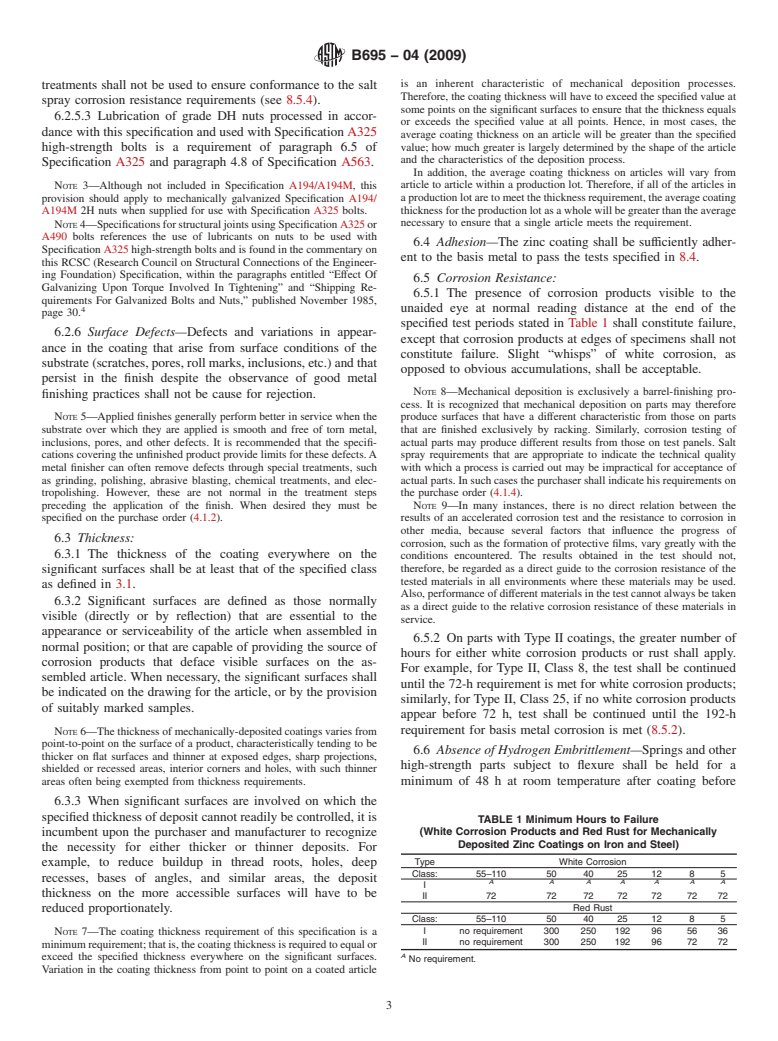

B695−04 (2009)
is an inherent characteristic of mechanical deposition processes.
treatments shall not be used to ensure conformance to the salt
Therefore, the coating thickness will have to exceed the specified value at
spray corrosion resistance requirements (see 8.5.4).
some points on the significant surfaces to ensure that the thickness equals
6.2.5.3 Lubrication of grade DH nuts processed in accor-
or exceeds the specified value at all points. Hence, in most cases, the
dancewiththisspecificationandusedwithSpecificationA325
average coating thickness on an article will be greater than the specified
high-strength bolts is a requirement of paragraph 6.5 of value; how much greater is largely determined by the shape of the article
and the characteristics of the deposition process.
Specification A325 and paragraph 4.8 of Specification A563.
In addition, the average coating thickness on articles will vary from
article to article within a production lot. Therefore, if all of the articles in
NOTE 3—Although not included in Specification A194/A194M, this
provision should apply to mechanically galvanized Specification A194/ aproductionlotaretomeetthethicknessrequirement,theaveragecoating
thicknessfortheproductionlotasawholewillbegreaterthantheaverage
A194M 2H nuts when supplied for use with Specification A325 bolts.
necessary to ensure that a single article meets the requirement.
NOTE4—SpecificationsforstructuraljointsusingSpecificationA325or
A490 bolts references the use of lubricants on nuts to be used with
6.4 Adhesion—The zinc coating shall be sufficiently adher-
SpecificationA325high-strengthboltsandisfoundinthecommentaryon
ent to the basis metal to pass the tests specified in 8.4.
this RCSC (Research Council on Structural Connections of the Engineer-
ing Foundation) Specification, within the paragraphs entitled “Effect Of
6.5 Corrosion Resistance:
Galvanizing Upon Torque Involved In Tightening” and “Shipping Re-
6.5.1 The presence of corrosion products visible to the
quirements For Galvanized Bolts and Nuts,” published November 1985,
4 unaided eye at normal reading distance at the end of the
page 30.
specified test periods stated in Table 1 shall constitute failure,
6.2.6 Surface Defects—Defects and variations in appear-
except that corrosion products at edges of specimens shall not
ance in the coating that arise from surface conditions of the
constitute failure. Slight “whisps” of white corrosion, as
substrate(scratches,pores,rollmarks,inclusions,etc.)andthat
opposed to obvious accumulations, shall be acceptable.
persist in the finish despite the observance of good metal
NOTE 8—Mechanical deposition is exclusively a barrel-finishing pro-
finishing practices shall not be cause for rejection.
cess. It is recognized that mechanical deposition on parts may therefore
NOTE 5—Applied finishes generally perform better in service when the produce surfaces that have a different characteristic from those on parts
substrate over which they are applied is smooth and free of torn metal, that are finished exclusively by racking. Similarly, corrosion testing of
inclusions, pores, and other defects. It is recommended that the specifi- actual parts may produce different results from those on test panels. Salt
cationscoveringtheunfinishedproductprovidelimitsforthesedefects.A spray requirements that are appropriate to indicate the technical quality
metal finisher can often remove defects through special treatments, such with which a process is carried out may be impractical for acceptance of
as grinding, polishing, abrasive blasting, chemical treatments, and elec- actualparts.Insuchcasesthepurchasershallindicatehisrequirementson
tropolishing. However, these are not normal in the treatment steps the purchase order (4.1.4).
preceding the application of the finish. When desired they must be NOTE 9—In many instances, there is no direct relation between the
specified on the purchase order (4.1.2). results of an accelerated corrosion test and the resistance to corrosion in
other media, because several factors that influence the progress of
6.3 Thickness:
corrosion, such as the formation of protective films, vary greatly with the
6.3.1 The thickness of the coating everywhere on the
conditions encountered. The results obtained in the test should not,
therefore, be regarded as a direct guide to the corrosion resistance of the
significant surfaces shall be at least that of the specified class
tested materials in all environments where these materials may be used.
as defined in 3.1.
Also,performanceofdifferentmaterialsinthetestcannotalwaysbetaken
6.3.2 Significant surfaces are defined as those normally
as a direct guide to the relative corrosion resistance of these materials in
visible (directly or by reflection) that are essential to the
service.
appearance or serviceability of the article when assembled in
6.5.2 On parts with Type II coatings, the greater number of
normal position; or that are capable of providing the source of
hours for either white corrosion products or rust shall apply.
corrosion products that deface visible surfaces on the as-
For example, for Type II, Class 8, the test shall be continued
sembled article. When necessary, the significant surfaces shall
until the 72-h requirement is met for white corrosion products;
be indicated on the drawing for the article, or by the provision
similarly, for Type II, Class 25, if no white corrosion products
of suitably marked samples.
appear before 72
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
