ASTM C1280-18(2023)
(Specification)Standard Specification for Application of Exterior Gypsum Panel Products for Use as Sheathing
Standard Specification for Application of Exterior Gypsum Panel Products for Use as Sheathing
ABSTRACT
This specification covers the minimum requirements for and the methods of application of gypsum sheathing for use as a substrate for exterior wall cladding. Gypsum sheathing board is a substrate that shall be covered by an exterior cladding or other weather-resistive barrier and is not intended for long-term exposure. Framing members shall be installed so that the surface will be in an even plane, unless otherwise specified, after the gypsum sheathing has been applied. The gypsum sheathing shall be cut by scoring and breaking or by sawing, working from the face side. The cut edges and ends of gypsum sheathing shall be trimmed to obtain neat fitting joints when installed. Gypsum sheathing shall be fitted snugly around all window and door openings. Control joints, other accessories, and metal plaster base shall be fastened through gypsum sheathing to framing members. Where fire resistance or shear resistance is not required, and when metal lath and Portland cement plaster are to be applied as the exterior cladding over gypsum sheathing installed over framing members and the metal lath shall be installed after the gypsum sheathing, the gypsum sheathing shall be permitted to be applied and fastening of the gypsum sheathing shall be completed with the attachment of the self-furred metal lath.
SCOPE
1.1 This specification covers the minimum requirements for and methods of application of exterior gypsum panel products that are specifically designed for use as a substrate for exterior cladding.
1.1.1 This specification does not cover gypsum panel products that are specifically designed for interior applications.
1.2 Details of construction for a specific assembly to achieve the required fire resistance shall be obtained from reports of fire-resistance tests, engineering evaluations, or listings from recognized fire testing laboratories.
1.2.1 This specification shall govern where it is more stringent (size or thickness of framing and size and spacing of fasteners) than the fire-rated construction.
1.3 Where sound control is required for a gypsum panel product assembly, the details of construction shall be in accordance with the acoustical test report of an assembly that has met the required acoustical value(s).
1.3.1 This specification shall govern where it is more stringent (size or thickness of framing and size and spacing of fasteners) than the sound-rated construction.
1.4 Where resistance to racking loads or shear is required for a gypsum panel product assembly, the details of construction shall be in accordance with the racking or shear test report of an assembly that has met the required racking or shear value(s).
1.4.1 This specification shall govern where it is more stringent (size or thickness of framing and size and spacing of fasteners) than the racking or shear-tested construction.
1.5 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.6 The text of this standard references notes which provide explanatory material. These notes shall not be considered as requirements of the standard.
1.7 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.8 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
Relations
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

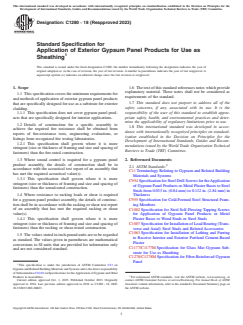

Designation: C1280 − 18 (Reapproved 2023)
Standard Specification for
Application of Exterior Gypsum Panel Products for Use as
Sheathing
This standard is issued under the fixed designation C1280; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 1.6 The text of this standard references notes which provide
explanatory material. These notes shall not be considered as
1.1 This specification covers the minimum requirements for
requirements of the standard.
and methods of application of exterior gypsum panel products
1.7 This standard does not purport to address all of the
that are specifically designed for use as a substrate for exterior
safety concerns, if any, associated with its use. It is the
cladding.
responsibility of the user of this standard to establish appro-
1.1.1 This specification does not cover gypsum panel prod-
priate safety, health, and environmental practices and deter-
ucts that are specifically designed for interior applications.
mine the applicability of regulatory limitations prior to use.
1.2 Details of construction for a specific assembly to
1.8 This international standard was developed in accor-
achieve the required fire resistance shall be obtained from
dance with internationally recognized principles on standard-
reports of fire-resistance tests, engineering evaluations, or
ization established in the Decision on Principles for the
listings from recognized fire testing laboratories.
Development of International Standards, Guides and Recom-
1.2.1 This specification shall govern where it is more
mendations issued by the World Trade Organization Technical
stringent (size or thickness of framing and size and spacing of
Barriers to Trade (TBT) Committee.
fasteners) than the fire-rated construction.
1.3 Where sound control is required for a gypsum panel
2. Referenced Documents
product assembly, the details of construction shall be in
2.1 ASTM Standards:
accordance with the acoustical test report of an assembly that
C11 Terminology Relating to Gypsum and Related Building
has met the required acoustical value(s).
Materials and Systems
1.3.1 This specification shall govern where it is more
C954 Specification for Steel Drill Screws for the Application
stringent (size or thickness of framing and size and spacing of
of Gypsum Panel Products or Metal Plaster Bases to Steel
fasteners) than the sound-rated construction.
Studs from 0.033 in. (0.84 mm) to 0.112 in. (2.84 mm) in
1.4 Where resistance to racking loads or shear is required
Thickness
for a gypsum panel product assembly, the details of construc-
C955 Specification for Cold-Formed Steel Structural Fram-
tion shall be in accordance with the racking or shear test report
ing Members
of an assembly that has met the required racking or shear
C1002 Specification for Steel Self-Piercing Tapping Screws
value(s).
for Application of Gypsum Panel Products or Metal
1.4.1 This specification shall govern where it is more
Plaster Bases to Wood Studs or Steel Studs
stringent (size or thickness of framing and size and spacing of C1007 Specification for Installation of Load Bearing (Trans-
fasteners) than the racking or shear-tested construction.
verse and Axial) Steel Studs and Related Accessories
C1063 Specification for Installation of Lathing and Furring
1.5 The values stated in inch-pound units are to be regarded
to Receive Interior and Exterior Portland Cement-Based
as standard. The values given in parentheses are mathematical
Plaster
conversions to SI units that are provided for information only
C1177/C1177M Specification for Glass Mat Gypsum Sub-
and are not considered standard.
strate for Use as Sheathing
C1278/C1278M Specification for Fiber-Reinforced Gypsum
Panel
This specification is under the jurisdiction of ASTM Committee C11 on
Gypsum and Related Building Materials and Systems and is the direct responsibility
of Subcommittee C11.03 on Specifications for the Application of Gypsum and Other
Products in Assemblies. For referenced ASTM standards, visit the ASTM website, www.astm.org, or
Current edition approved Oct. 1, 2023. Published October 2023. Originally contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
approved in 1994. Last previous edition approved in 2018 as C1280 – 18. DOI: Standards volume information, refer to the standard’s Document Summary page on
10.1520/C1280-18R23. the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

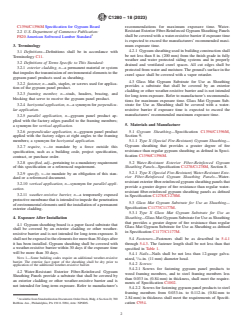

C1280 − 18 (2023)
C1396/C1396M Specification for Gypsum Board recommendations for maximum exposure time. Water-
Resistant Exterior Fiber-Reinforced Gypsum Sheathing Panels
2.2 U.S. Department of Commerce Publication:
shall be covered with a water-resistive barrier if exposure time
PS20 American Softwood Lumber Standard
is expected to exceed the manufacturers’ recommended maxi-
3. Terminology mum exposure time.
4.2.1 Gypsum sheathing used in building construction shall
3.1 Definitions—Definitions shall be in accordance with
be not less than 8 in. (200 mm) from the finish grade in fully
Terminology C11.
weather and water protected siding systems and in properly
3.2 Definitions of Terms Specific to This Standard:
drained and ventilated crawl spaces. All cut edges shall be
3.2.1 exterior cladding, n—a permanent material or system
protected from water and moisture. The ground’s surface in the
that impedes the transmission of environmental elements to the
crawl space shall be covered with a vapor retarder.
gypsum panel products used as sheathing.
4.3 Glass Mat Gypsum Substrate for Use as Sheathing
3.2.2 fastener, n—nails, staples, or screws used for applica-
provides a substrate that shall be covered by an exterior
tion of the gypsum panel product.
cladding or other weather-resistive barrier and is not intended
3.2.3 framing member, n—studs, headers, bracing, and
for long-term exposure. Refer to manufacturer’s recommenda-
blocking that serve to receive the gypsum panel product.
tions for maximum exposure time. Glass Mat Gypsum Sub-
3.2.4 horizontal application, n—a synonym for perpendicu-
strate for Use as Sheathing shall be covered with a water-
lar application. resistive barrier if exposure time is expected to exceed the
manufacturers’ recommended maximum exposure time.
3.2.5 parallel application, n—gypsum panel product ap-
plied with the factory edges parallel to the framing members;
5. Materials and Manufacture
a synonym for vertical application.
3.2.6 perpendicular application, n—gypsum panel product 5.1 Gypsum Sheathing—Specification C1396/C1396M,
applied with the factory edges at right angles to the framing Section 9.
members; a synonym for horizontal application.
5.1.1 Type X (Special Fire-Resistant) Gypsum Sheathing—
Gypsum sheathing that provides a greater degree of fire
3.2.7 require, v—to mandate by a force outside this
resistance than regular gypsum sheathing as defined in Speci-
specification, such as a building code, project specification,
fication C1396/C1396M.
contract, or purchase order.
3.2.8 specified, adj—pertaining to a mandatory requirement 5.2 Water-Resistant Exterior Fiber-Reinforced Gypsum
of this specification or a referenced requirement. Sheathing Panels—Specification C1278/C1278M, Section 8.
5.2.1 Type X (Special Fire-Resistant) Water-Resistant Exte-
3.2.9 specify, v—to mandate by an obligation of this stan-
rior Fiber-Reinforced Gypsum Sheathing Panels—Water-
dard or a referenced document.
resistant exterior fiber-reinforced gypsum sheathing panels that
3.2.10 vertical application, n—synonym for parallel appli-
provide a greater degree of fire resistance than regular water-
cation.
resistant fiber-reinforced gypsum sheathing panels as defined
3.2.11 weather-resistive barrier, n—a temporarily exposed
in Specification C1278/C1278M.
protective membrane that is intended to impede the penetration
5.3 Glass Mat Gypsum Substrate for Use as Sheathing—
of environmental elements until the installation of a permanent
Specification C1177/C1177M.
exterior cladding.
5.3.1 Type X Glass Mat Gypsum Substrate for Use as
Sheathing—Glass Mat Gypsum Substrate for Use as Sheathing
4. Exposure After Installation
that provides a greater degree of fire resistance than regular
4.1 Gypsum sheathing board is a paper faced substrate that
Glass Mat Gypsum Substrate for Use as Sheathing as defined
shall be covered by an exterior cladding or other weather-
in Specification C1177/C1177M.
resistive barrier and is not intended for long-term exposure. It
shall not be exposed to the elements for more than 30 days after

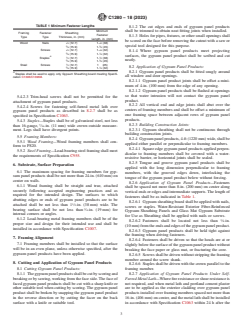

5.4 Fasteners—Fasteners shall be as described in 5.4.1
it has been installed. Gypsum sheathing shall be covered with through 5.4.3. The fastener length shall be not less than that
a weather-resistive barrier within 30 days if the exposure
...
