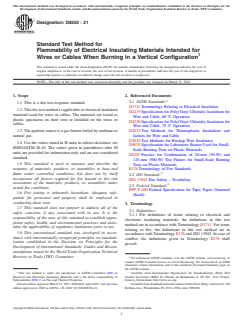

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
Designation:D8354 −21
Standard Test Method for
Flammability of Electrical Insulating Materials Intended for
1
Wires or Cables When Burning in a Vertical Configuration
This standard is issued under the fixed designation D8354; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
NOTE—The title of this test method was corrected editorially and the yeardate was changed on March 31, 2021.
1. Scope 2. Referenced Documents
2
2.1 ASTM Standards:
1.1 This is a fire-test-response standard.
D1711 Terminology Relating to Electrical Insulation
1.2 Thisfiretestmethodisapplicabletoelectricalinsulation
D2219 Specification for Poly(Vinyl Chloride) Insulation for
materials used for wires or cables. The materials are tested as
Wire and Cable, 60 °C Operation
plastic specimens on their own or installed on the wires or
D2220 Specification for Poly(Vinyl Chloride) Insulation for
cables.
Wire and Cable, 75 °C Operation
D2633 Test Methods for Thermoplastic Insulations and
1.3 The ignition source is a gas burner fueled by methane or
Jackets for Wire and Cable
natural gas.
D3032 Test Methods for Hookup Wire Insulation
1.4 Use the values stated in SI units in referee decisions; see
D5025 Specification for Laboratory Burner Used for Small-
IEEE/ASTM SI-10. The values given in parentheses after SI
Scale Burning Tests on Plastic Materials
units are provided for information only and are not considered
D5207 Practice for Confirmation of 20-mm (50-W) and
standard.
125-mm (500-W) Test Flames for Small-Scale Burning
1.5 This standard is used to measure and describe the
Tests on Plastic Materials
response of materials, products, or assemblies to heat and
E176 Terminology of Fire Standards
3
flame under controlled conditions, but does not by itself
2.2 ISO Standard:
incorporate all factors required for fire hazard or fire risk
ISO 13943 Fire Safety – Vocabulary
assessment of the materials, products, or assemblies under
4
2.3 Federal Standard:
actual fire conditions.
PPP-T-45D Federal Specification for Tape; Paper, Gummed
1.6 Fire testing is inherently hazardous. Adequate safe-
(Kraft)
guards for personnel and property shall be employed in
conducting these tests.
3. Terminology
1.7 This standard does not purport to address all of the
3.1 Definitions:
safety concerns, if any, associated with its use. It is the
3.1.1 For definitions of terms relating to electrical and
responsibility of the user of this standard to establish appro-
electronic insulating materials, the definitions in this test
priate safety, health, and environmental practices and deter-
method are in accordance with Terminology D1711. For terms
mine the applicability of regulatory limitations prior to use.
relating to fire, the definitions in this test method are in
1.8 This international standard was developed in accor-
accordance with Terminology E176 and ISO 13943. In case of
dance with internationally recognized principles on standard-
conflict, the definitions given in Terminology E176 shall
ization established in the Decision on Principles for the
prevail.
Development of International Standards, Guides and Recom-
mendations issued by the World Trade Organization Technical
Barriers to Trade (TBT) Committee.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
Standards volume information, refer to the standard’s Document Summary page on
the ASTM website.
1 3
This test method is under the jurisdiction of ASTM Committee D09 on Available from International Organization for Standardization (ISO), ISO
Electrical and Electronic Insulating Materials and is the direct responsibility of Central Secretariat, BIBC II, Chemin de Blandonnet 8, CP 401, 1214 Vernier,
Subcommittee D09.17 on Fire and Thermal Properties. Geneva, Switzerland, http://www.iso.org.
4
Current edition approved March 31, 2021. Published April 2021. Last previous AvailablefromStandardizationDocumentsOrderDesk,Bldg.4SectionD,700
edition approved in 2020 as D8354 – 20. DOI: 10.1520/D8354-21. Robbins Ave., Philadelphia, PA 19111-5094, Attn: NPODS.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------
D8354−21
4. Summary of Test Method 6.2.2 Use a compact lower clamp designed to afford mini-
mal interference with flaming or dripping particles flowing or
4.1 In this test
...
