EN 4840-103:2023
(Main)Aerospace series - Heat-shrinkable moulded shapes - Part 103: Fluoroelastomeric, temperature range -55 °C to 200 °C - Product standard
Aerospace series - Heat-shrinkable moulded shapes - Part 103: Fluoroelastomeric, temperature range -55 °C to 200 °C - Product standard
This document specifies the required characteristics for fluoroelastomeric, heat-shrinkable boots for use in aircraft electrical systems at operating temperatures between −55 °C and 200 °C.
The moulded shapes can be supplied with a pre-coated adhesive. Refer to the manufacturers/suppliers for options. A guide to adhesive compatibility is given in Annex A.
These moulded shapes are normally supplied in the styles and dimensions given in EN 4840 002. The colour is normally black.
Styles and dimensions other than those specifically listed in EN 4840 002 can be available as custom items. These items are considered to comply with this document if they comply with the property requirements listed in Table 1 with the exception of dimensions.
Luft- und Raumfahrt - Wärmeschrumpfende Formteile - Teil 103: Fluorelastomer, Temperaturbereich −55 °C bis 200 °C - Produktnorm
Dieses Dokument legt die Anforderungen an wärmeschrumpfende Fluorelastomer-Bauteile zur Verwendung in elektrischen Bordnetzen von Luftfahrzeugen bei Betriebstemperaturen zwischen −55 °C und 200 °C fest.
Die Formteile können mit Klebstoff beschichtet geliefert angeboten werden. Varianten siehe Hersteller/Lieferanten. Eine Anleitung hinsichtlich der Kompatibilität des Klebstoffs ist in Anhang A angegeben.
Diese Formteile werden üblicherweise in den in EN 4840 002 angegebenen Ausführungen und Maßen angeboten. Die Farbe ist üblicherweise schwarz.
Andere Ausführungen und Maße als die speziell in EN 4840 002 aufgeführten können nach Kundenwünschen angeboten werden. Diese Bauteile werden dahingehend angesehen, dass sie dieses Dokument erfüllen, wenn sie mit Ausnahme der Maße die in den Tabelle 1 aufgeführten Anforderungen an die Merkmale erfüllen.
Série aérospatiale - Manchons thermorétractables - Partie 103 : Fluoroélastomère, plage de températures de -55 °C à 200 °C - Norme de produit
Le présent document spécifie les caractéristiques requises pour les soufflets de manchons
thermorétractables en fluoroélastomère destinés à une utilisation dans les systèmes électriques des
aéronefs à des températures de fonctionnement comprises entre –55 °C et 200 °C.
Les manchons peuvent être fournis avec un adhésif préenduit. Pour connaître les options disponibles,
s’adresser aux fabricants/fournisseurs. L’Annexe A comporte un guide de la compatibilité des adhésifs.
Ces manchons sont normalement fournis dans les styles et les dimensions indiqués dans l’EN 4840-002.
La couleur est habituellement le noir.
Des styles et dimensions autres que ceux listés dans l’EN 4840-002 peuvent être disponibles en tant
qu’articles personnalisés. Ces articles sont considérés comme conformes au présent document s’ils
répondent aux exigences de propriétés présentées dans le Tableau 1, exception faite des dimensions.
Aeronavtika - Toplotno skrčljive ulite forme - 103. del: Fluoroelastomerne, temperaturno območje od –55 °C do 200 °C - Standard za proizvod
Ta dokument določa zahtevane lastnosti za toplotno skrčljive fluoroelastomerne škornje za uporabo v električnih sistemih letal pri obratovalnih temperaturah med −55 °C in 200 °C.
Ulite forme so lahko predhodno premazane z lepilom. Za možnosti se je treba obrniti na proizvajalca/dobavitelja. Vodnik po združljivosti lepil je podan v dodatku A.
Te ulite forme so običajno dobavljene v slogih in z dimenzijami, podanimi v standardu EN 4840-002. Običajno so črne barve.
Slogi in dimenzije, ki niso posebej navedeni v standardu EN 4840-002, so morda na voljo kot elementi po meri. Ti elementi se obravnavajo kot skladni s tem standardom, če so skladni z zahtevami za lastnosti, navedenimi v preglednici 1, razen z zahtevami za dimenzije.
General Information
Standards Content (Sample)

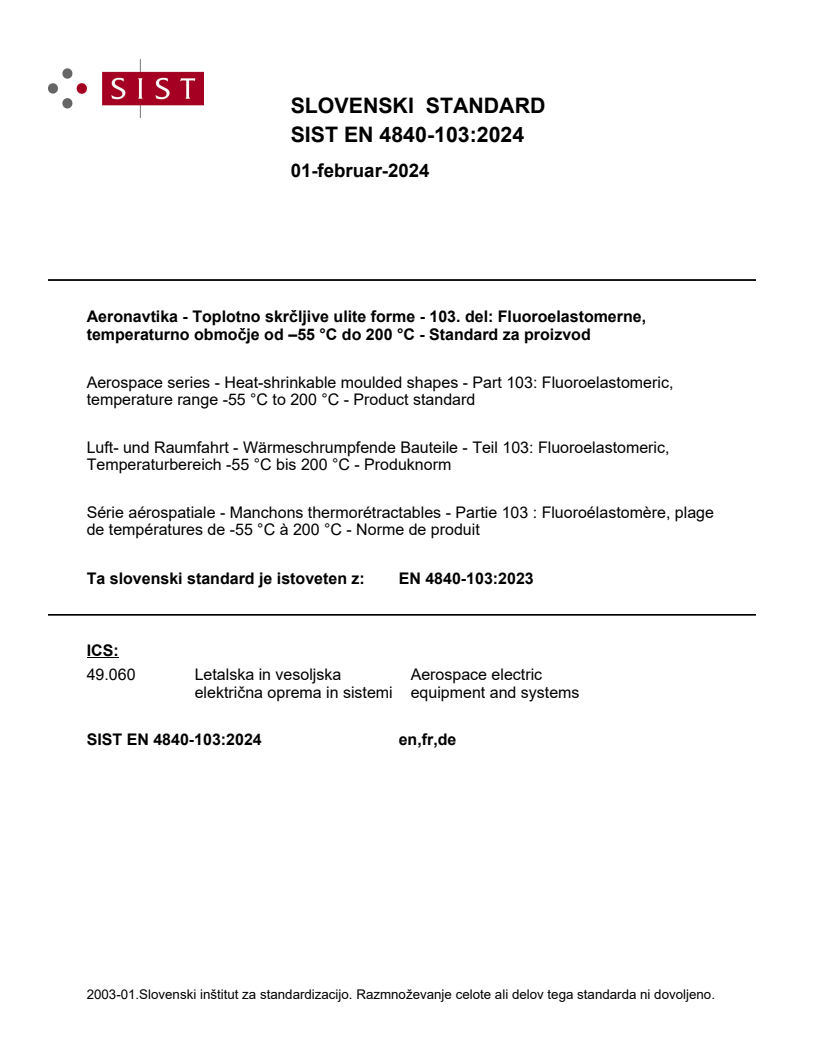

SLOVENSKI STANDARD
01-februar-2024
Aeronavtika - Toplotno skrčljive ulite forme - 103. del: Fluoroelastomerne,
temperaturno območje od –55 °C do 200 °C - Standard za proizvod
Aerospace series - Heat-shrinkable moulded shapes - Part 103: Fluoroelastomeric,
temperature range -55 °C to 200 °C - Product standard
Luft- und Raumfahrt - Wärmeschrumpfende Bauteile - Teil 103: Fluoroelastomeric,
Temperaturbereich -55 °C bis 200 °C - Produknorm
Série aérospatiale - Manchons thermorétractables - Partie 103 : Fluoroélastomère, plage
de températures de -55 °C à 200 °C - Norme de produit
Ta slovenski standard je istoveten z: EN 4840-103:2023
ICS:
49.060 Letalska in vesoljska Aerospace electric
električna oprema in sistemi equipment and systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

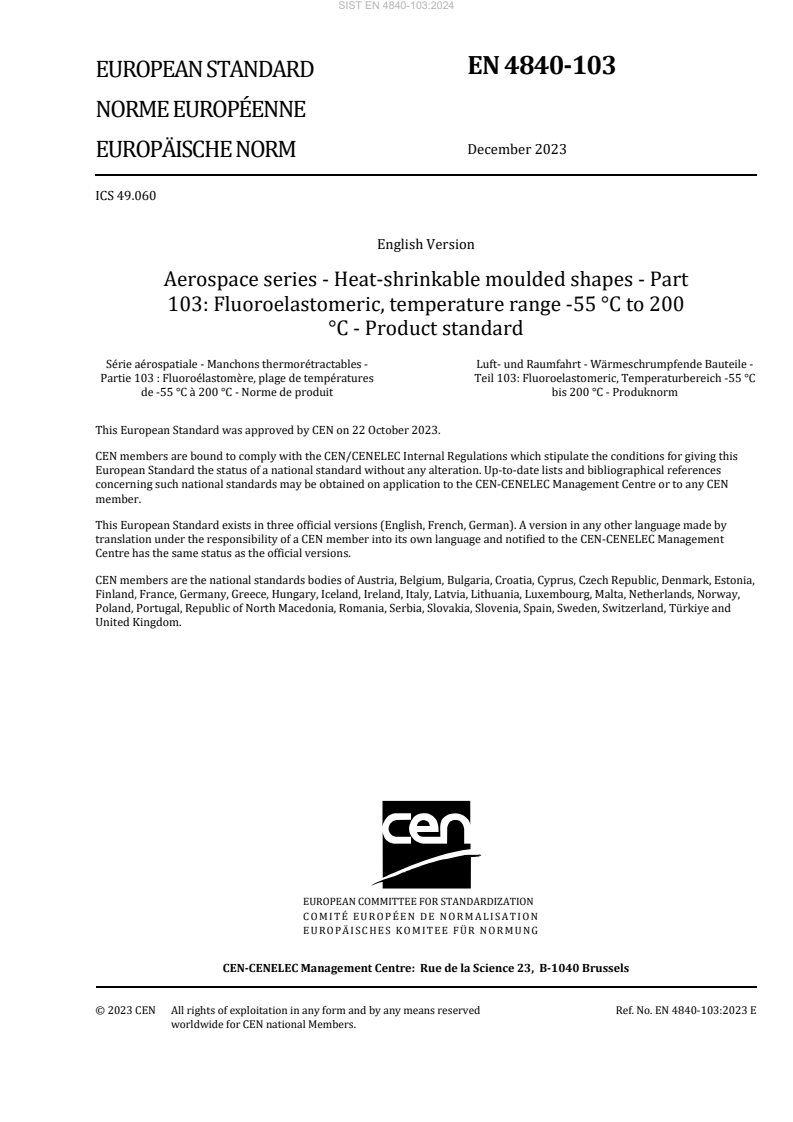

EN 4840-103
EUROPEAN STANDARD
NORME EUROPÉENNE
December 2023
EUROPÄISCHE NORM
ICS 49.060
English Version
Aerospace series - Heat-shrinkable moulded shapes - Part
103: Fluoroelastomeric, temperature range -55 °C to 200
°C - Product standard
Série aérospatiale - Manchons thermorétractables - Luft- und Raumfahrt - Wärmeschrumpfende Bauteile -
Partie 103 : Fluoroélastomère, plage de températures Teil 103: Fluoroelastomeric, Temperaturbereich -55 °C
de -55 °C à 200 °C - Norme de produit bis 200 °C - Produknorm
This European Standard was approved by CEN on 22 October 2023.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 4840-103:2023 E
worldwide for CEN national Members.

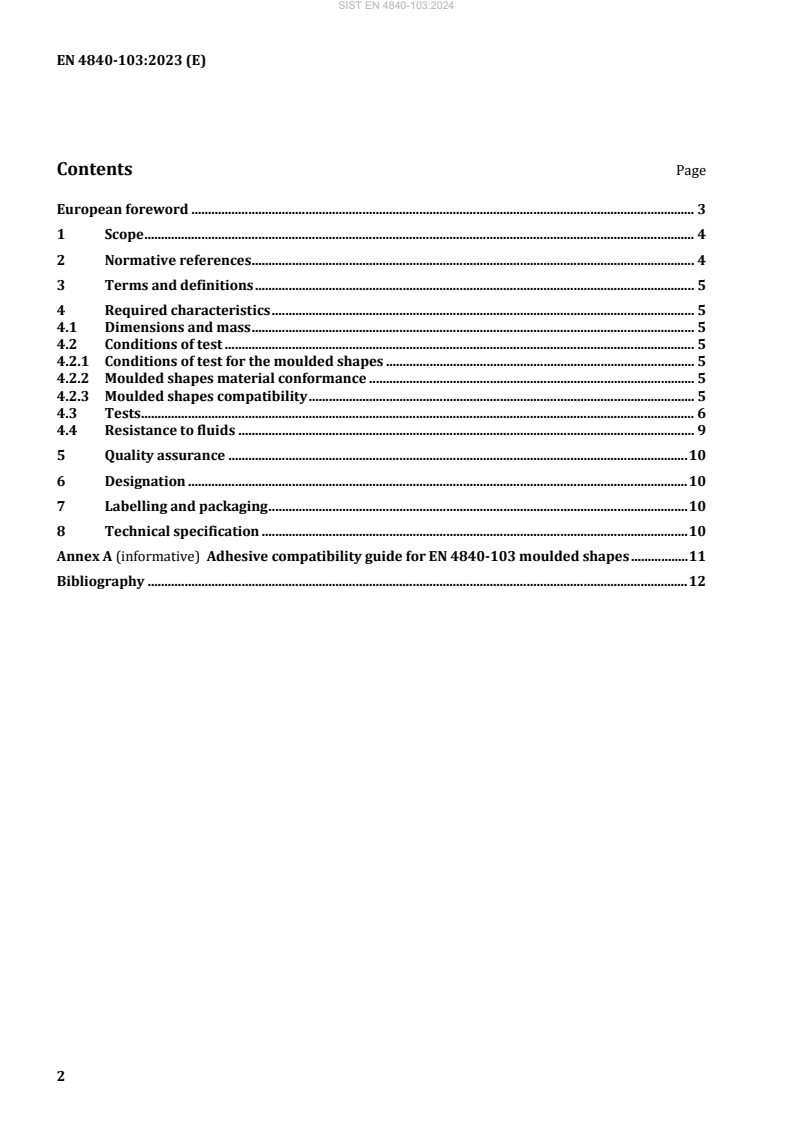

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 5
4 Required characteristics . 5
4.1 Dimensions and mass . 5
4.2 Conditions of test . 5
4.2.1 Conditions of test for the moulded shapes . 5
4.2.2 Moulded shapes material conformance . 5
4.2.3 Moulded shapes compatibility . 5
4.3 Tests . 6
4.4 Resistance to fluids . 9
5 Quality assurance . 10
6 Designation . 10
7 Labelling and packaging . 10
8 Technical specification . 10
Annex A (informative) Adhesive compatibility guide for EN 4840-103 moulded shapes . 11
Bibliography . 12
European foreword
This document (EN 4840-103:2023) has been prepared by the Aerospace and Defence Industries
Association of Europe — Standardization (ASD-STAN).
After enquiries and votes carried out in accordance with the rules of this Association, this
document has received the approval of the National Associations and the Official Services of the
member countries of ASD-STAN, prior to its presentation to CEN.
This document shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by June 2024, and conflicting national standards shall be
withdrawn at the latest by June 2024.
Attention is drawn to the possibility that some of the elements of this document may be the subject
of patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this document: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
1 Scope
This document specifies the required characteristics for fluoroelastomeric, heat-shrinkable boots for
use in aircraft electrical systems at operating temperatures between −55 °C and 200 °C.
The moulded shapes can be supplied with a pre-coated adhesive. Refer to the manufacturers/suppliers
for options. A guide to adhesive compatibility is given in Annex A.
These moulded shapes are normally supplied in the styles and dimensions given in EN 4840-002.
The colour is normally black.
Styles and dimensions other than those specifically listed in EN 4840-002 can be available as custom
items. These items are considered to comply with this document if they comply with the property
requirements listed in Table 1 with the exception of dimensions.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 3909:2016, Aerospace series — Test fluids and test methods for electrical and optical components and
sub-assemblies
EN 4840-001:2018, Aerospace series — Heat-shrinkable moulded shapes — Part 001: Technical
specification
, Aerospace series — Heat-shrinkable moulded shapes — Part 002: Index of product
EN 4840-002
standards and product dimensions
EN 60695-11-10:2013, Fire hazard testing — Part 11-10: Test flames — 50 W horizontal and vertical
flame test methods (IEC 60695-11-10:2013)
EN IEC 60757, Code for designation of colours (IEC 60757)
EN 62329-1, Heat-shrinkable moulded shapes — Part 1: Definitions and general requirements
(IEC 62329-1)
EN 62329-2:2006, Heat-shrinkable moulded shapes — Part 2: Methods of test (IEC 62329-2:2006)
ISO 1817:2022, Rubber, vulcanized or thermoplastic — Determinatio
...
