CEN/TR 15068:2009

Gas welding equipment - Measurement of noise emitted by blowpipe for welding, cutting, heating, brazing and soldering - Measurement method

This Technical Report specifies a test method for measuring the noise emitted by manual blowpipes according to EN ISO 5172 used for welding, cutting and allied processes.
This test method is used only for comparative purposes between manual blowpipes when tested under nominal conditions under clause 5.

Gasschweißgeräte - Messungen für von Brennern für Schweißen, Schneiden, Wärmen, Hartlöten und Weichlöten erzeugte Geräusche - Messverfahren

Matériel de soudage aux gaz - Mesurage du bruit émis par les chalumeaux destinés au soudage, brasage, coupage et chauffage - Méthode de mesurage

Le présent document spécifie une méthode d’essai pour le mesurage du bruit émis par les chalumeaux
manuels conformes à l’EN ISO 5172, utilisés pour le soudage, le coupage et techniques connexes.
Cette méthode d’essai n’est utilisée qu’à des fins de comparaison entre les chalumeaux manuels soumis aux
essais dans les conditions nominales de l’Article 5.

Oprema za plamensko varjenje - Merjenje hrupa, ki ga oddaja gorilnik za varjenje, rezanje, segrevanje, trdo in mehko spajkanje - Merilna metoda

General Information

• Status: Published
• Publication Date: 24-Mar-2009
• ICS: 25.160.30 - Welding equipment
• Technical Committee: CEN/TC 121 - Welding
• Drafting Committee: CEN/TC 121/SC 7 - Equipment for gas welding, cutting and allied processes
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 25-Mar-2009
• Due Date: 02-Apr-2010
• Completion Date: 25-Mar-2009
• Ref Project: SIST-TP CEN/TR 15068:2009 - Gas welding equipment - Measurement of noise emitted by blowpipe for welding, cutting, heating, brazing and soldering - Measurement method

Overview

CEN/TR 15068:2009 defines a standardized measurement method for assessing the noise emitted by manual blowpipes used in gas welding, cutting, heating, brazing and soldering (per EN ISO 5172). The Technical Report is intended for comparative noise testing of blowpipes under the manufacturer’s nominal gas supply conditions. Measurements are used to report an A-weighted emission sound pressure level (LpA) for each blowpipe/nozzle combination.

Key topics and requirements

• Scope and purpose: Test method for manual blowpipes; intended only for comparative evaluations when tested under nominal conditions.
• Measurement environment: Tests shall be performed indoors with the blowpipe flame axis horizontal, at least 1.5 m from floor and ceiling and 5 m from walls.
• Sensor positioning: Microphone placed 1 m from the nozzle tip in the same horizontal plane; six measurement positions (a–f) around the nozzle are used and the maximum of the six (corrected if necessary) is reported.
• Background noise handling: Background noise must be sufficiently low; if the background is within 6–15 dB of the combined level, a correction is applied per the standard’s equation; if >15 dB difference, no correction is needed.
• Instrumentation:
  • Sound level meters meeting EN 61672-1 Class 1 or equivalent electroacoustic performance, using A-weighting and slow (S) time constant.
  • Octave-band filters, if used, must satisfy EN 61260 Class 1.
  • Pressure gauges and flowmeters at the blowpipe inlet must have an accuracy of ±3%.
• Procedure and reporting: Apply manufacturer’s nominal gas type, pressure and flow; test each nozzle interchangeably. Test report must include date, test body, conditions, equipment identification, nominal supply conditions and the measured LpA for each nozzle.

Applications and users

• Manufacturers of gas welding equipment and blowpipes - for product development, noise benchmarking and documentation.
• Independent test laboratories and conformity assessment bodies - to perform comparative noise tests and issue technical reports.
• Procurement and safety officers - to compare equipment noise performance for workplace safety and selection.
• R&D and product designers - to evaluate design changes that affect acoustic emissions.

Related standards

• EN ISO 5172 (blowpipe specifications referenced)
• EN 13622 (terminology for gas welding equipment)
• EN 61260 / IEC 61260 (octave-band and fractional-octave filters)
• EN 61672-1 (sound level meter specifications)

This standard is practical for anyone needing repeatable, comparable noise measurements of manual blowpipes to support product specification, safety assessments and equipment selection.

Standards Content (Sample)

SLOVENSKI STANDARD
01-junij-2009
Oprema za plamensko varjenje - Merjenje hrupa, ki ga oddaja gorilnik za varjenje,
rezanje, segrevanje, trdo in mehko spajkanje - Merilna metoda
Gas welding equipment - Measurement of noise emitted by blowpipe for welding, cutting,
heating, brazing and soldering - Measurement method
Gasschweißgeräte - Messungen für von Brennern für Schweißen, Schneiden, Wärmen,
Hartlöten und Weichlöten erzeugte Geräusche - Messverfahren
Matériel de soudage aux gaz - Mesurage du bruit émis par les chalumeaux destinés au
soudage, brasage, coupage et chauffage - Méthode de mesurage
Ta slovenski standard je istoveten z: CEN/TR 15068:2009
ICS:
17.140.20 Emisija hrupa naprav in Noise emitted by machines
opreme and equipment
25.160.30 Varilna oprema Welding equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

TECHNICAL REPORT
CEN/TR 15068
RAPPORT TECHNIQUE
TECHNISCHER BERICHT
March 2009
ICS 25.160.30
English Version
Gas welding equipment - Measurement of noise emitted by
blowpipe for welding, cutting, heating, brazing and soldering -
Measurement method
Matériel de soudage aux gaz - Mesurage du bruit émis par Gasschweißgeräte - Messungen für von Brennern für
les chalumeaux destinés au soudage, brasage, coupage et Schweißen, Schneiden, Wärmen, Hartlöten und Weichlöten
chauffage - Méthode de mesurage erzeugte Geräusche - Messverfahren
This Technical Report was approved by CEN on 17 February 2009. It has been drawn up by the Technical Committee CEN/TC 121.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2009 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TR 15068:2009: E
worldwide for CEN national Members.

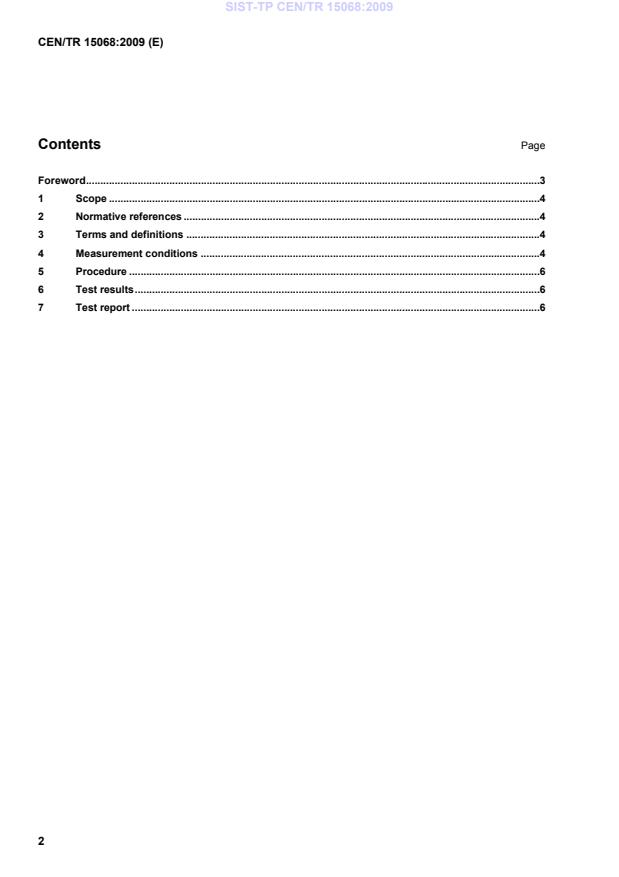

Contents Page
Foreword .3
1 Scope .4
2 Normative references .4
3 Terms and definitions .4
4 Measurement conditions .4
5 Procedure .6
6 Test results .6
7 Test report .6

Foreword
This document (CEN/TR 15068:2009) has been prepared by Technical Committee CEN/TC 121 “Welding”,
the secretariat of which is held by DIN.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
1 Scope
This Technical Report specifies a test method for measuring the noise emitted by manual blowpipes according
to EN ISO 5172 used for welding, cutting and allied processes.
This test method is used only for comparative purposes between manual blowpipes when tested under
nominal conditions under clause 5.
2 Normative references
The following referenced documents are indispensable for the application
...
